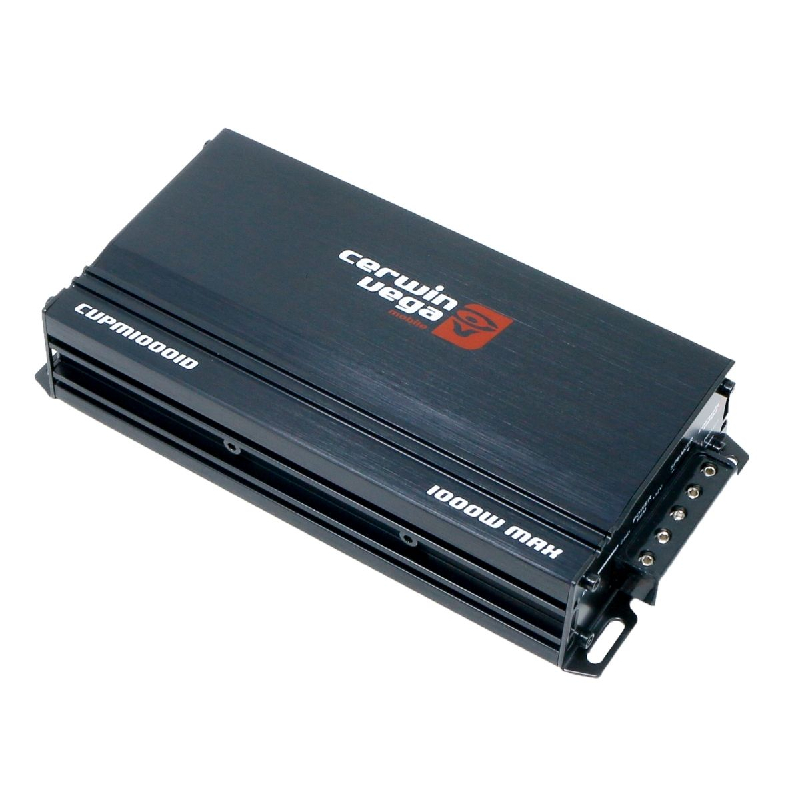

Cerwin Vega  CVPM10001D

CVPM Series 1000W Max Power, Class-D Mono Subwoofer Car Amplifier

Item #83977

Product Highlights

  • 1000W max power
  • Efficient Class-D design
  • car audio systems.
  • Enhances bass output

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 1000 Watts
  • Number of Channels : 1
  • Amplifier Class : D
  • Fuse Rating : 30x2 A
  • Promo : Yes

FEATURES


Features:

  • Latest High-Efficiency Class D Topology
  • ULTRA Compact Size
  • Fully Variable Crossovers (12dB per octave)
  • Handles HI and LO level input to 12V
  • 2 Ω Stable for Mono Block
  • 4/2 Ω Stable Stereo/4Ω Mono for 4 Channel
  • Proprietary Vega Bass Boost EQ Up To 12dB



Specifications:

  • MAX Power Rating: 1000W MAX
  • RMS Bridge (mono 2Ω): 500W x 1 @ 2Ω RMS
  • RMS Bridge (mono 4Ω): 310W x 1 @ 4Ω RMS
  • Types: Full Range, Class D
  • Power Supply: PWM
  • Power Supply (Threshold): 10 – 17DVC
  • Idle Current: (0.7A)
  • Distortion - THD (1KHz@4Ω): ?1%
  • Distortion - S/N Ratio (A weight @ 1W): -85dBA
  • Distortion - S/N Ratio (A weight @ FP): -101.1dBA
  • Input Sensitivity - Hi/Low Input Level: 0.15V – 6.0V
  • Input Impedance - Low Input Level: 20 KΩ
  • Output Impedance: 0.0297Ω
  • Damping Factor (50Hz@4Ω): >70
  • Bandwidth (-3dB): 10Hz-45KHz
  • Crossover (-12 dB/ Oct) Variable High-Pass: N/A
  • Crossover (-12 dB/ Oct) Variable Low-Pass: 35Hz-500Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
  • FUSE Ratings - ATC: 2 x 30A
  • Dimension - Length x Width x Height - Inches(mm): 7.64 x 3.7 1.47 (194 x 95 x 37.3)
  • UPC: 847169054075
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
