Wet Sounds REVO 12 XXX V4-B REVO-XXX Series 12" 1200W RMS (2400W Peak Power Handling) 2 Ohms, Dual Voice Coil Marine Subwoofer Xtreme Performance SPL
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" REVO-XXX Series Dual Voice Coil Marine Subwoofer
- • Owner's Manual
Why Choose Wet Sounds REVO 12 XXX V4-B Marine Subwoofer?
Unmatched Marine SPL Power
The REVO 12-XXX V4-B delivers extreme bass for enthusiasts seeking high-output sound, making it one of the few SPL marine subwoofers in the world. Engineered with advanced computer-aided design and full finite element analysis, it combines precision performance with durability, handling up to 1200W RMS (2400W peak) to shake any marine or outdoor environment.
High-Strength, High-Performance Bass
Crafted from a gloss black powder-coated cast aluminum frame and a stiff polypropylene/carbon/glass fiber cone, this subwoofer delivers superior strength and durability. Featuring a high-roll Santoprene rubber surround, fiberglass former, and 4" dual voice coil, it ensures reliable, long-lasting performance even under extreme conditions.
Powerful Bass with Superior Reliability

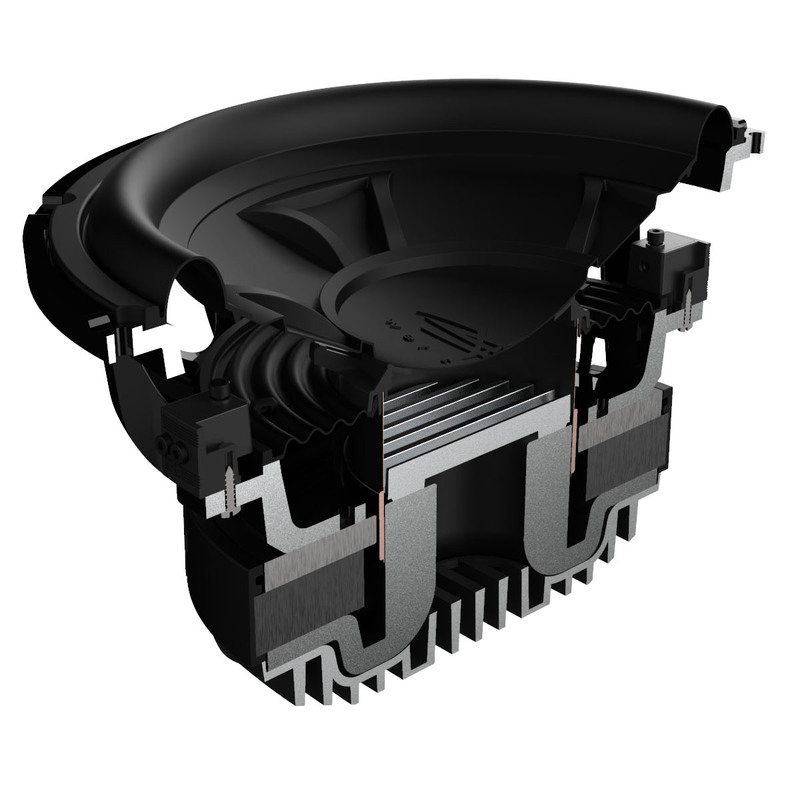

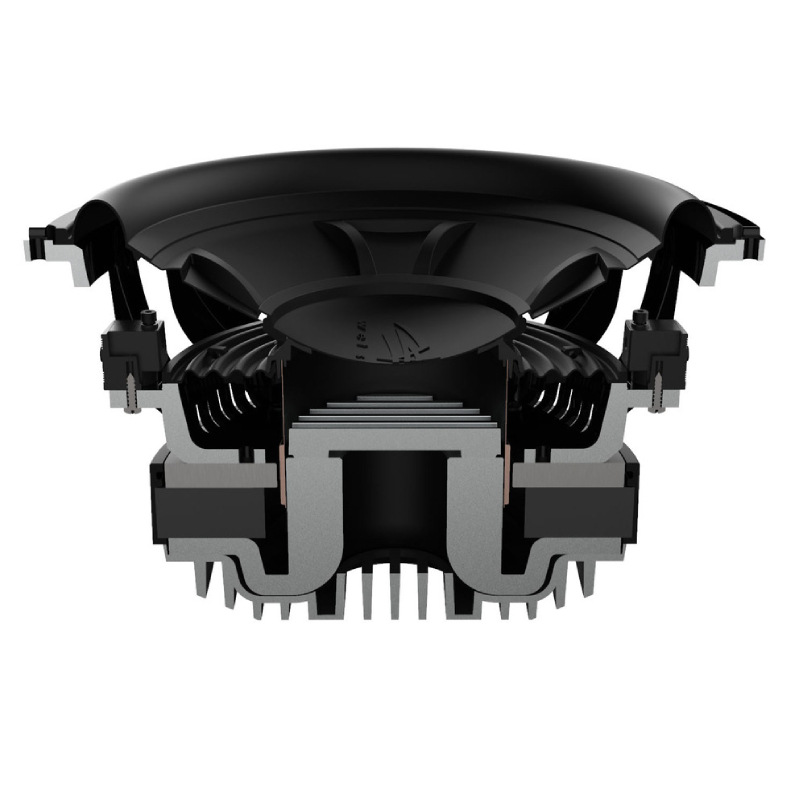

Stay cool under high power with an integrated multi-part cooling system featuring a T-yoke heat sink and peripheral/pole piece venting. Gold-plated binding posts ensure secure, corrosion-resistant connections, while flexible installation options—optimized for a 1.2cuft sealed or 1.8cuft ported enclosure (tuned to 41Hz)—deliver maximum bass output across a variety of marine applications.
Frequently Asked Questions (FAQ)
- • What amplifier should I use for this subwoofer?
A 1,200-watt RMS amplifier matched to the dual 2-ohm voice coils is recommended. Make sure the amplifier is wired for the correct final impedance before setting the gain.
- • Why does the bass sound weak after installation?
The subwoofer is designed for an optimized ported enclosure to produce strong SPL. Using the wrong enclosure volume or tuning can noticeably reduce bass output.
- • Why does the subwoofer distort at high volume?
Excessive amplifier gain or clipping can cause distortion and damage the voice coils. Reduce the gain and make sure the amplifier provides clean power within the recommended rating.
- • What enclosure size should I use?
The recommended enclosure is about 1.2 cubic feet sealed or 1.8 cubic feet ported. A ported enclosure tuned around 41 Hz is specified for optimized performance.
- • Why does the enclosure vibrate or rattle?
The high-power driver requires a rigid enclosure with adequate bracing. Check the mounting screws, enclosure joints, and internal support if you hear unwanted vibration.
- • Why isn't the subwoofer producing any sound?
Check the amplifier power, voice-coil wiring, and source signal before troubleshooting the speaker itself. Incorrect dual voice-coil connections can also result in an unexpected impedance or no output.
- • What mounting depth and cutout are required?
The mounting depth is approximately 6.53 inches with an 11.26-inch cutout. Measure the installation area carefully because the heavy motor structure also requires sufficient rear clearance.
- • Why is the bass different after changing the enclosure?
Enclosure volume, port tuning, and air leaks can significantly change the bass response. Use a properly sealed and braced enclosure that follows the recommended specifications.
- • Why is the cone moving excessively?
Excessive excursion can result from incorrect enclosure tuning, too much power, or unsuitable amplifier settings. Check the enclosure design and reduce the gain if the cone is moving beyond its normal range.
- • Can it handle demanding marine conditions?
The driver is engineered for marine use with components designed for high-power operation. Proper installation is still important because excessive water, heat, improper power, or mechanical damage can affect the subwoofer.
- Diameter : 12 Inch
- Sensitivity : 89 dB
- Impedance : 2 Ohm
- RMS Power Range : 1200 Watts
- Peak Power Handling : 2400 Watts
- Color : Black
- Mounting Depth : 6.53 Inches
Features:
- Exceptional SPL Performance: The REVO 12-XXX V4-B is one of the few SPL marine subwoofers in the world, delivering extreme bass for enthusiasts seeking high-output sound.
- Advanced Acoustical Engineering: Designed using cutting-edge computer-aided design and full finite element analysis for precision performance and durability.
- High-Power Handling: Capable of 1200W RMS and 2400W peak, ensuring powerful, deep bass that can shake any marine or outdoor environment.
- Premium Materials: Features a gloss black powder-coated cast aluminum frame and a high-stiffness matte black polypropylene/carbon fiber/glass fiber cone for superior strength.
- Durable Surround & Voice Coil: Equipped with high-roll Santoprene thermoformed rubber surround, fiberglass former, and a 4" dual voice coil for maximum reliability.
- Efficient Cooling System: Integrated multi-part cooling system with T-yoke heat sink and combination peripheral/pole piece venting keeps voice coil temperatures low during high-power use.
- Gold-Plated Binding Posts: Heavy-duty screw-down terminals provide secure, corrosion-resistant connections for long-lasting performance.
- Flexible Installation: Optimized for a 1.2 cu ft sealed enclosure or a 1.8 cu ft ported enclosure (tuned to 41 Hz) to maximize output while fitting a variety of marine applications.
Specifications:
- Subwoofer Size: 12 inches
- Impedance: Dual 2 ohms
- RMS Power: 1200W
- Peak Power: 2400W
- SPL Sensitivity: 89 dB
- Frequency Response: Fs 40 Hz
- Cone Material: Polypropylene / Carbon Fiber / Glass Fiber Composite
- Surround: Santoprene Thermoformed Rubber
- Voice Coil: Dual 4 inches
- Magnet System: Triple-stack heavy-duty
- Mounting Depth: 6.53 inches (165.86 mm)
- Diameter: 12.4 inches (314.96 mm)
- Hole Cutout: 11.26 inches (286 mm)
- Mms: 242 g
- Sd: 510.7 cm²
- Vas: 24 liters
- Qts: 0.39 | Qes: 0.42 | Qms: 5.00
- Le: 0.5 mH | Bl: 11.9 T*m
- Box Specs: Optimized for 1.2 cu ft sealed or 1.8 cu ft ported enclosure (optimum tuned at 41 Hz)
- Application Type: Enclosure / Marine SPL
- UPC: 814820022261
- Weight: 30
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
