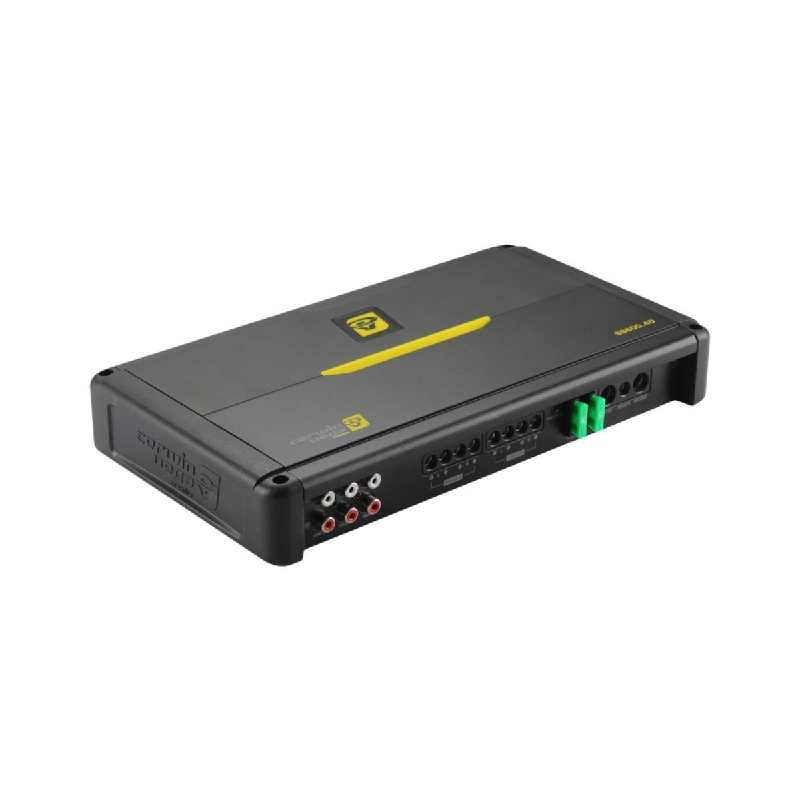

Cerwin Vega  S9600.4D

Stroker Series 4-Channel 600W Max Power, Class-D Car Amplifier

Item #84088

Product Highlights

  • Stroker Series design
  • 4-channel configuration
  • 600W max power output
  • Class-D amplifier
  • Efficient and powerful

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


  • Maximum Power : 600 Watts
  • Number of Channels : 4
  • Amplifier Class : D
  • Fuse Rating : 30x2 A

Features:

  • Latest High-Efficiency Full Range Digital Topology
  • Surface Mount Component Technology with 4-Layer PCB
  • Common Compact Size with Single-Sided Connections and Top    Mount Controls
  • Handles HI and LO level input up to 12V
  • Switched Speaker Level Turn On Option (VOX/DC Offset/REM)
  • Input configuration switch on 4 and 5 channel amplifiers
  • Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers
  • Lighted LED logo
  • Bass remote can be disassembled and installed in-dash
  • Variable Phase adjustment on ALL S9 series mono blocks to get the correct phase. Moves bass from the trunk to the front.



Specifications:

  • RMS Power:
    - 150Wx4 @ 4/2/1Ω
    - 400Wx2 @ 4/2Ω
  • Types: Full Range, Class D
  • Power Supply: Full PWM
  • Power Supply (Threshold): 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • Distortion - THD (1KHz@4Ω): 0.07%
  • Distortion - S/N Ratio (A weight @ 1W): -77.4dBA
  • Distortion - S/N Ratio (A weight @ FP): -97.4dBA
  • Input Sensitivity - Hi/Low Input Level: YES – UP to 25 W RMS / 0.2mV – 10.0V
  • Input Impedance - Low Input Level: 22 KΩ
  • Output Impedance: 0.047 Ω
  • Damping Factor (50Hz@4Ω): >250
  • Bandwidth (-3dB): 10Hz-35KHz
  • Crossover (-12 dB/ Oct) Variable High-Pass: 35Hz-350Hz
  • Crossover (-12 dB/ Oct) Variable Low-Pass: 35Hz-350Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
  • FUSE Ratings - ATC: 2 x 30A
  • Dimension - Length x Width x Height - Inches(mm): 11.81 x 7.25 x 2.0 ( 299.9 x 184.2 x 50.8)
  • UPC: 847169048340
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
