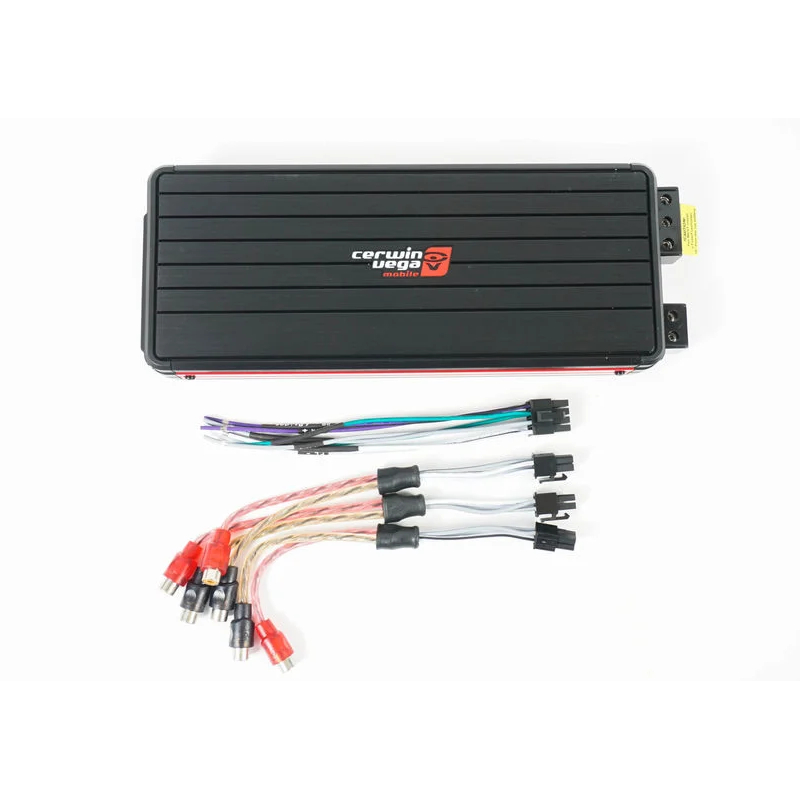

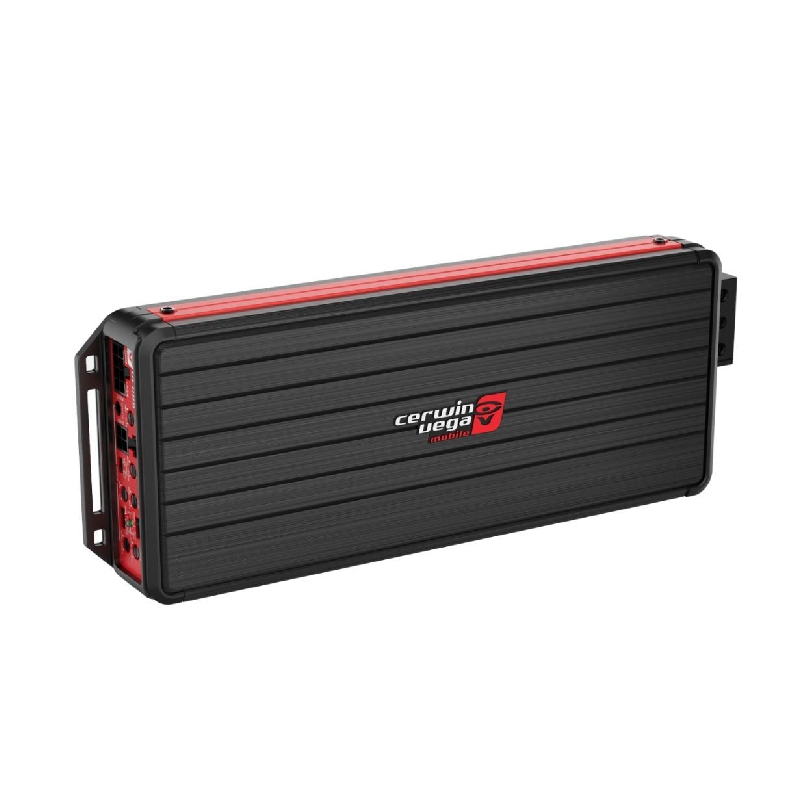

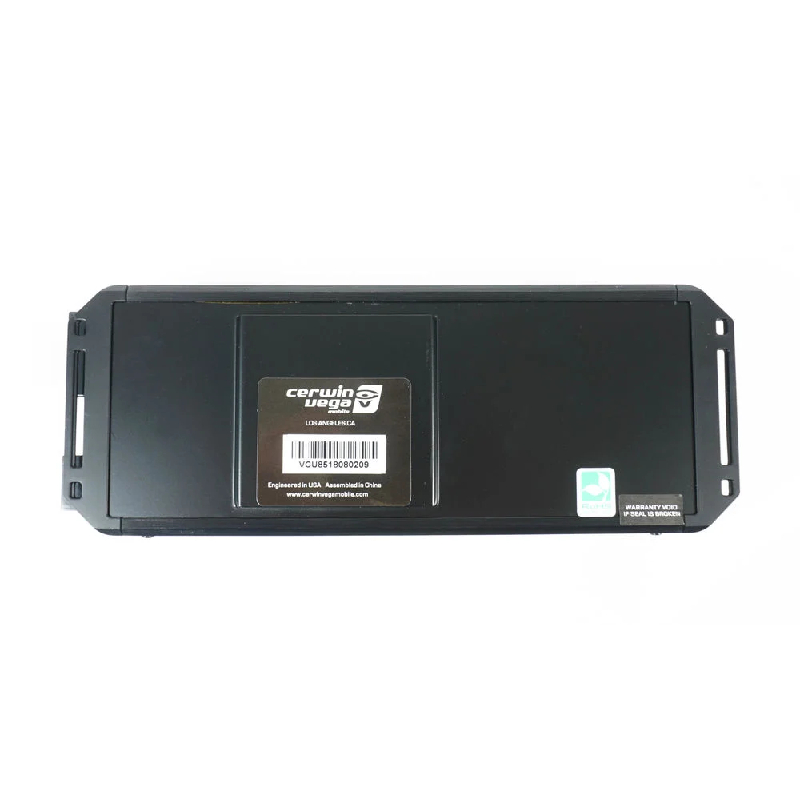

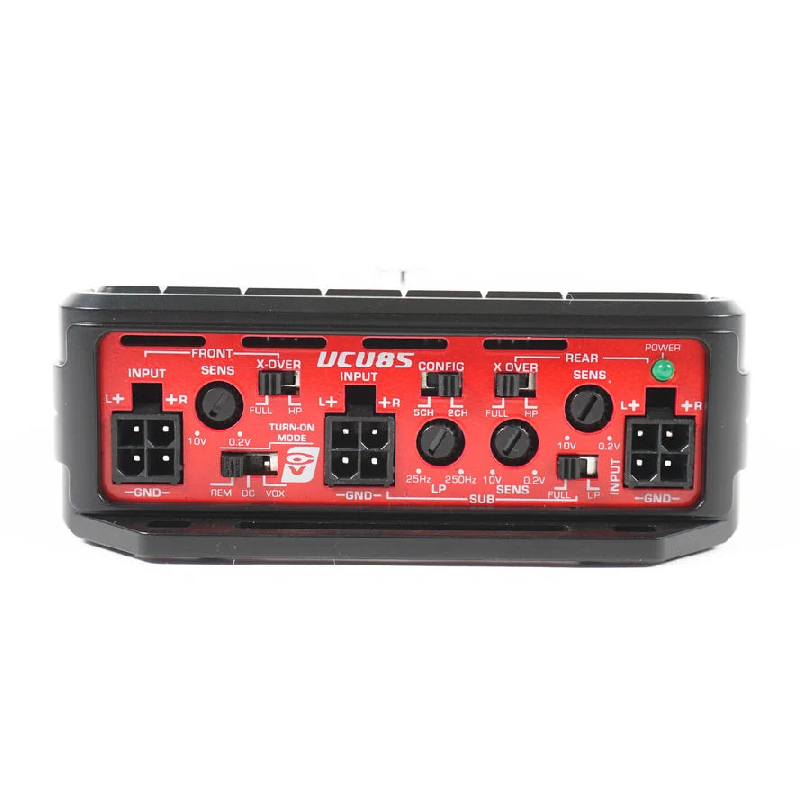

Cerwin Vega  VCU85 Hot Deal

Vega Series 5-Channel 1900W Max Power, Class-D Car Amplifier

Item #84095

Product Highlights

  • 1900W max power output.
  • 5-channel Class-D amplifier
  • power handling and performance.
  • easy installation.
  • car audio systems.

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 1900 Watts
  • Number of Channels : 5
  • Amplifier Class : D
  • Fuse Rating : 60 A
  • Promo : Yes

FEATURES


Features:

  • Updated High Efficiency Full Range Digital Topology
  • Enhanced Power IR Digital Chipset
  • Conformal-Coated 4-layer PCB
  • Remote Turn On Configurator - REM/DC/VOX
  • Boosted RFI (Radio Frequency Interference) Rejection
  • Compact Matching Heatsink Platform Dimensions
  • Accepts HI and LO Level Input Up To 12V
  • Water Resistan


Specifications:

  • Amplifier Type: 5-Channel
  • RMS Power Rating:
  • 950 W RMS
  • MAX Power Rating: 1900 W MAX
  • RMS Power:
  • 2Ω: 150 W x 4 / 350 W x 1
  • 4Ω: 80 W x 4 / 200 W x 1
  • Bridge (mono 4Ω): 300 W x 2 / 200 W x 1
  • Types: 5-Channel
  • Topology: Full-Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC – 17.0VDC
  • Idle Current: 0.7A
  • Distortion - THD (1KHz@4Ω): 0.5%
  • Distortion - S/N Ratio (A weight @ 1W): -85dBA
  • Distortion - S/N Ratio (A weight @ FP): -101.1dBA
  • Input Sensitivity:
  • Low: 200mV – 10.0V
  • High: 200mV – 10.0V
  • Input Impedance:
  • Low Input Level: 20 KΩ
  • AUX Input Level: 20 KΩ
  • Output Impedance: 0.018 Ω
  • Damping Factor (50Hz@4Ω): >70
  • Bandwidth (-3dB): 10Hz-35Hz
  • Crossover (-12 dB/ Oct) Variable High-Pass: Flat or Fixed 70Hz
  • Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
  • FUSE Ratings - ATC: 60A
  • Dimensions: 10.45” x 4.02” x 1.4” (265.6 x 102 x 36 mm)





  • UPC: 847169054198
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
