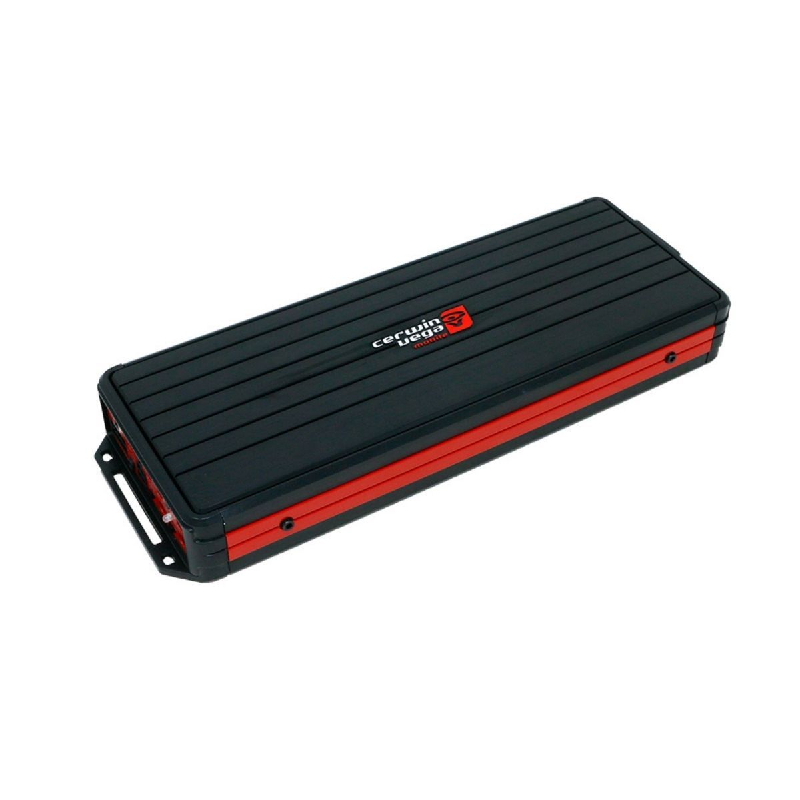

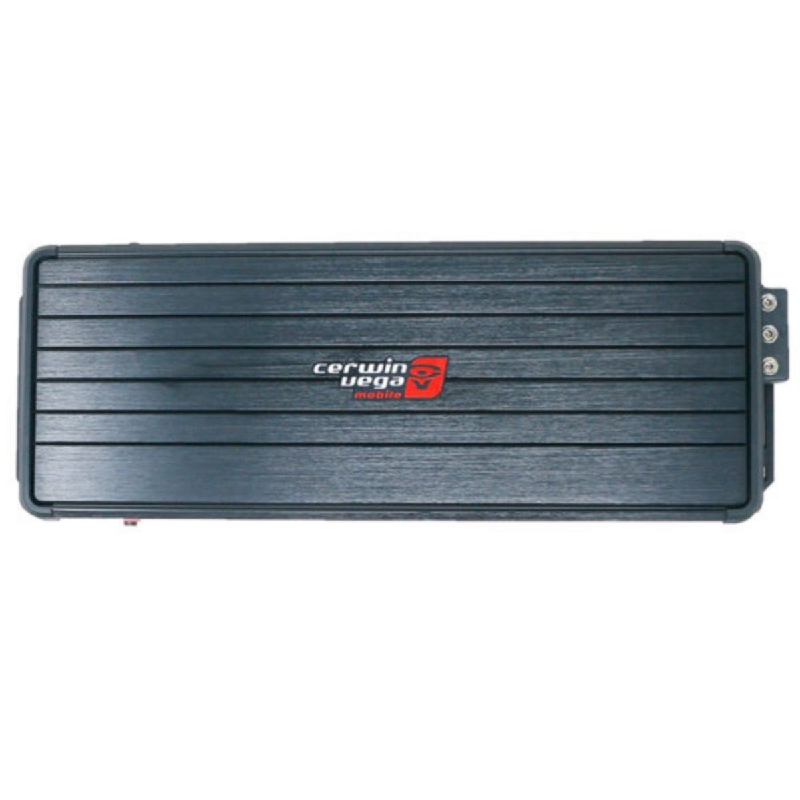

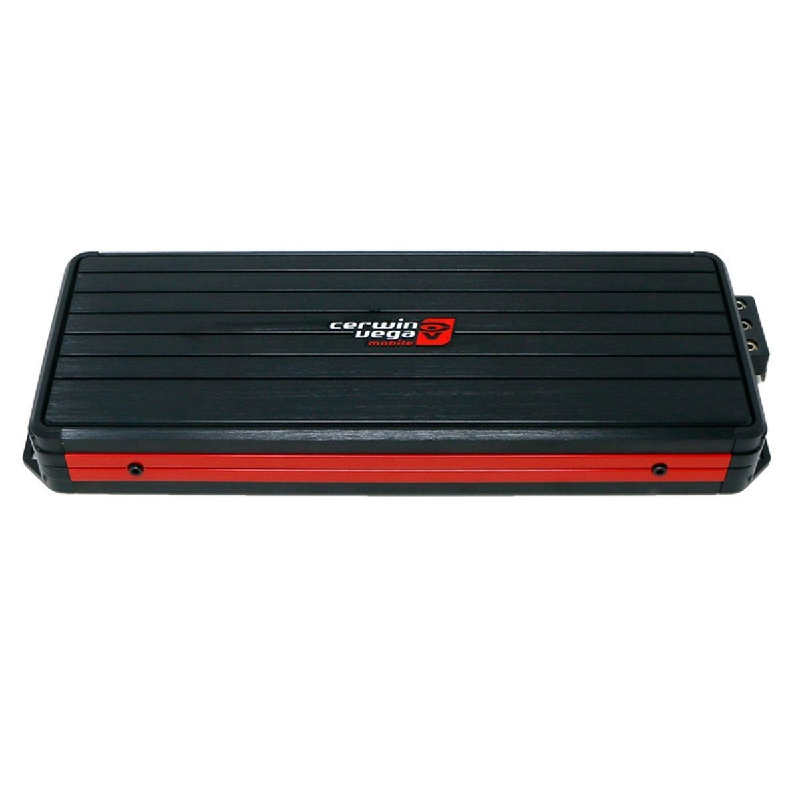

Cerwin Vega  VCU86

Vega Series 6-Channel 1520W Max Power, Class-D Car Amplifier

Item #84098

Product Highlights

  • Vega Series 6-channel
  • 1520W max power
  • High efficiency
  • Superior sound quality
  • Compact and powerful

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 1035 Watts
  • Number of Channels : 6
  • Amplifier Class : D
  • Fuse Rating : 60 A

FEATURES


Features:

  • Updated High-Efficiency Full-Range Digital Topology
  • Enhanced Power IR Digital Chipset
  • Conformal-Coated 4-layer PCB

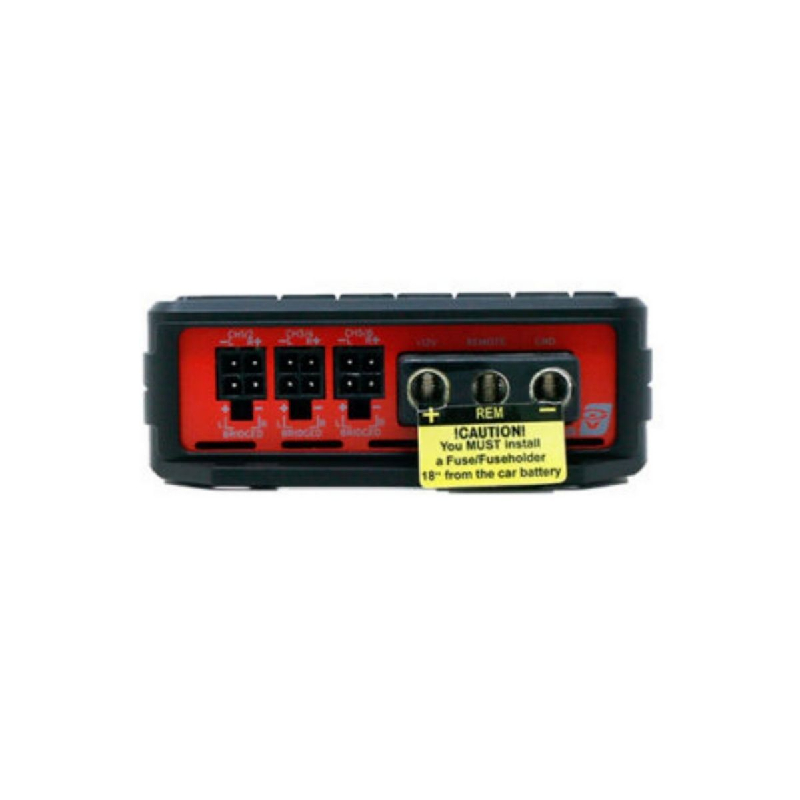

  • Remote Turn On Configurator - REM/DC/VOX
  • Boosted RFI (Radio Frequency Interference) Rejection
  • Compact Matching Heatsink Platform Dimensions
  • Accepts HI and LO Level Input Up To 12V
  • Water-Resistant



Specifications:

  • 100W x 6 @ 4 ohms RMS
  • 150W x 6 @ 2 ohms RMS
  • 300W x 3 @ 4ohm Bridged RMS
  • Types: Full Range, Class D
  • Power Supply: Full PWM
  • Power Supply (Threshold): 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • Distortion - THD: (1KHz@4Ω) (0.5%)
  • Distortion - S/N Ratio (A weight @ 1W): -85dBA
  • Distortion - S/N Ratio (A weight @ FP): -101.1dBA
  • Input Sensitivity - Hi/Low Input Level: 200mV – 10.0V / 200mV – 10.0V
  • Input Impedance - Low Input Level: 20 KΩ
  • Input Impedance - AUX Input Level: 20 KΩ
  • Output Impedance: 0.018 Ω
  • Damping Factor (50Hz@4Ω): >250
  • Bandwidth (-3dB): 10Hz-35KHz

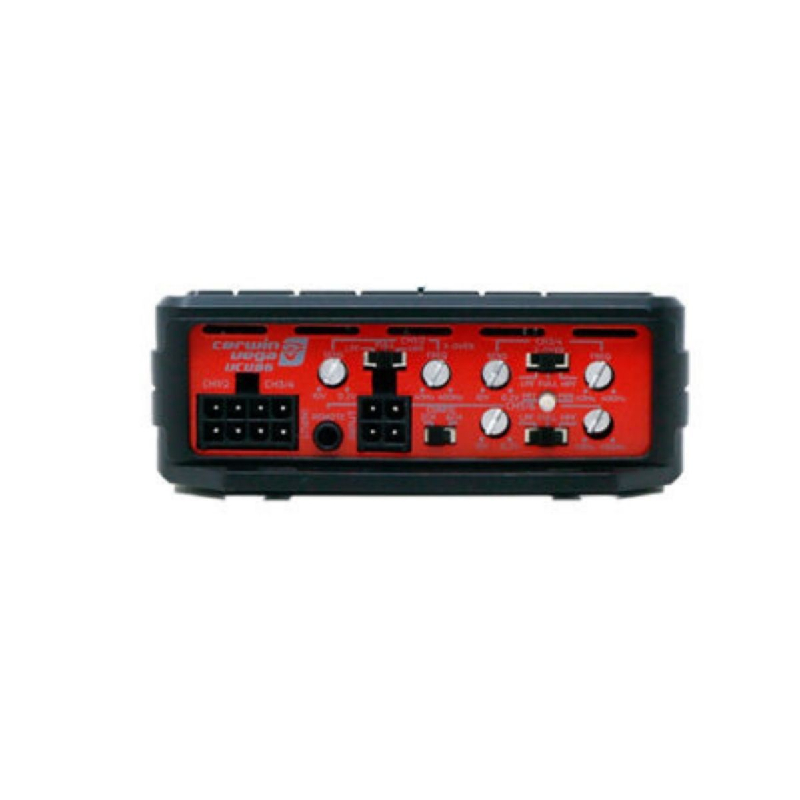

  • Crossover (-12 dB/ Oct) Variable High-Pass Flat or Fixed: 70Hz
  • Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
  • FUSE Ratings - ATC: 60A
  • Dimension - Length x Width x Height - Inches(mm): 11.24 x 4.02 x 1.4 (285.6 x 102 x 36)
  • UPC: 847169057304
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
