- Maximum Power : 800 Watts
- Number of Channels : 2
- RMS Power Output : 85x2 Watts
- Amplifier Class : AB
- Fuse Rating : 30x1 A

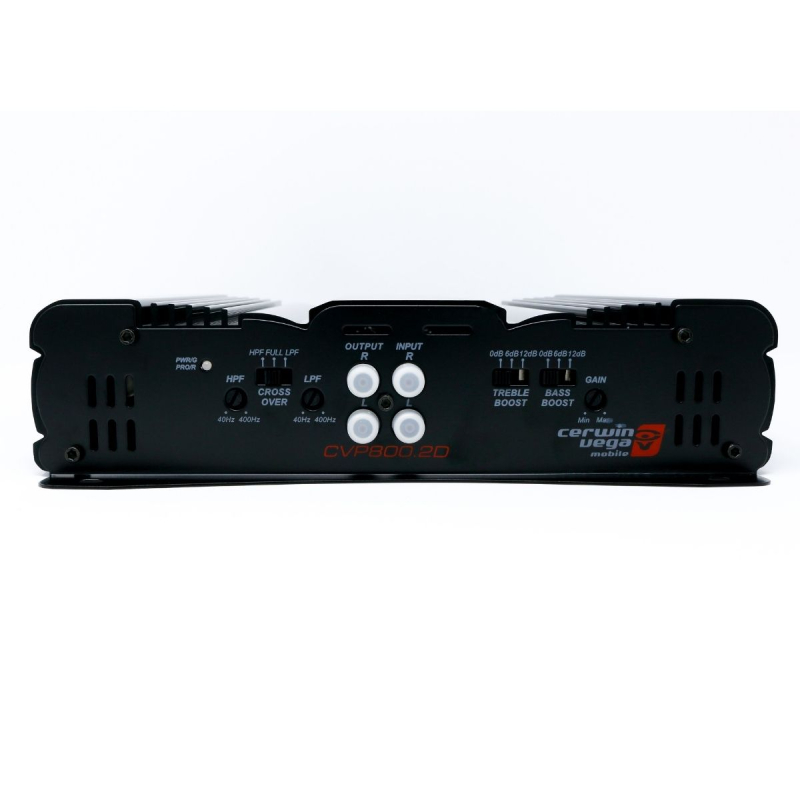

Features:
- LED Power and Protection Indicator
- HPF / LPF control
- Input Mode
- Input and Output Selected
- Treble Boost Control
- Bass Boost Control
- Gain Control

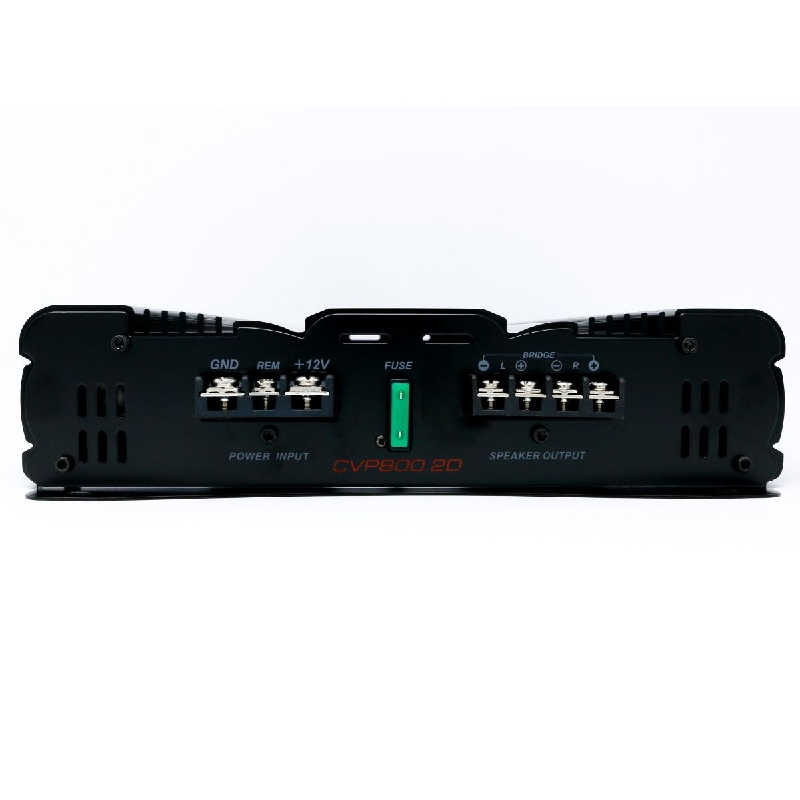

- Power Input
- Fuse
- Speaker Output
Specifications:
- MAX Power Rating: 800W
- RMS Power(2Ω): 85Wx2
- RMS Power (4Ω): 60Wx2
- RMS Bridge (stereo 4Ω): 180Wx1
- Power Supply: PWM
- Power Supply (Threshold): 10-16VDC
- Idle Current: 0.5A
- Distortion - THD (1KHz@4Ω): ?1%
- Distortion - S/N Ratio (A weight @ 1W): >90dB
- Input Sensitivity - Hi/Low Input Level: 200mV-6V
- Input Impedance - Low Input Level: 20KΩ
- Output Impedance: 2/4Ω
- Damping Factor (50Hz@4Ω): 100
- Bandwidth (-3dB): 10Hz-32KHz
- Crossover (-12 dB/ Oct) Variable High-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- FUSE Ratings - ATC: 30Ax1
- Dimension - Length x Width x Height - Inches(mm): 7.88 Inches x 9.38 Inches x 2.25 Inches (200mm x 238mm x 57mm)
- UPC: 765531603723
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
