Alpine HDS-990 Status Series Single DIN High-Resolution Digital Media Audio Source (does not play discs)
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

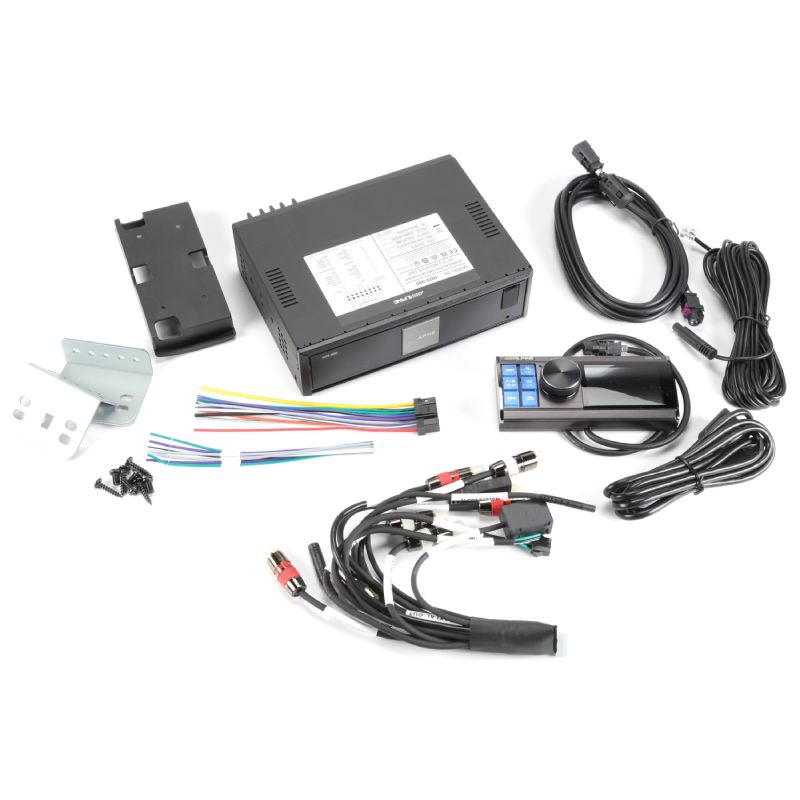

What's Inside?
- •Hide-away source amplifier (15A fuse)

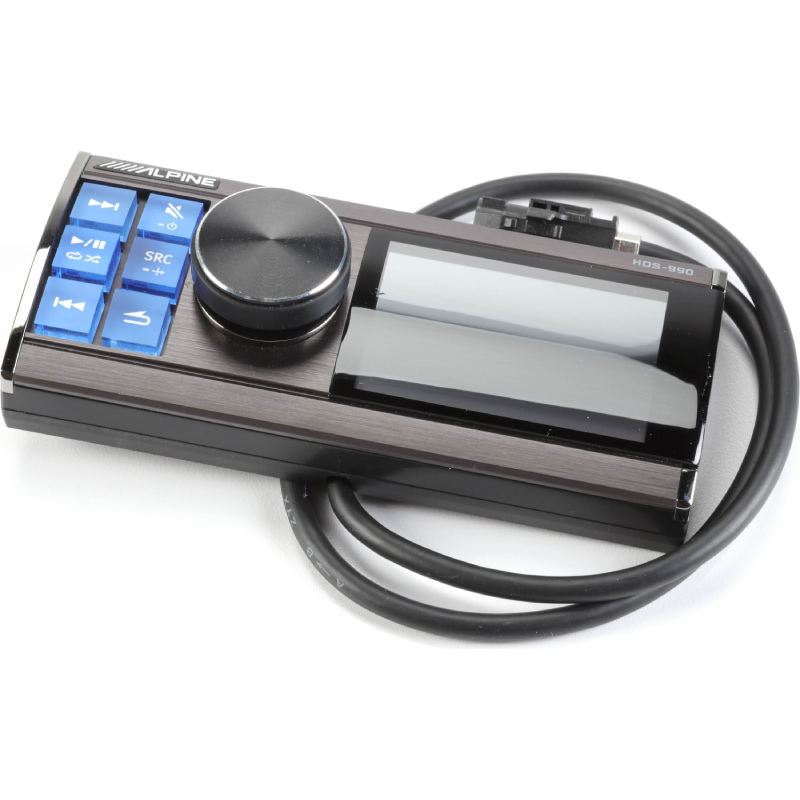

- •Wired remote commander (attached 19" cable)

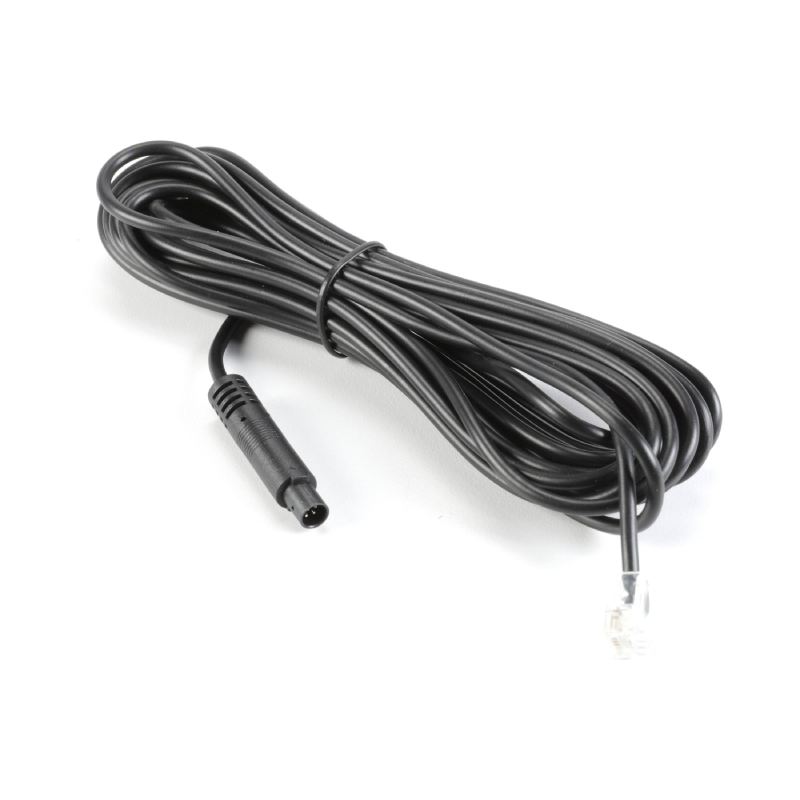

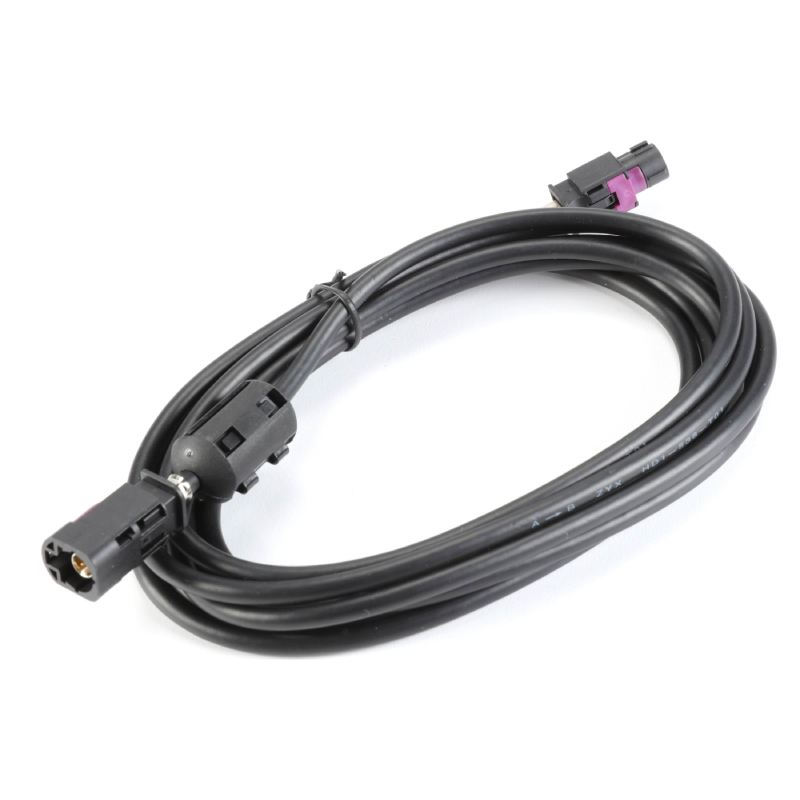

- •16' System communication cable
- •8' Commander extension cable
- •High-level input harness

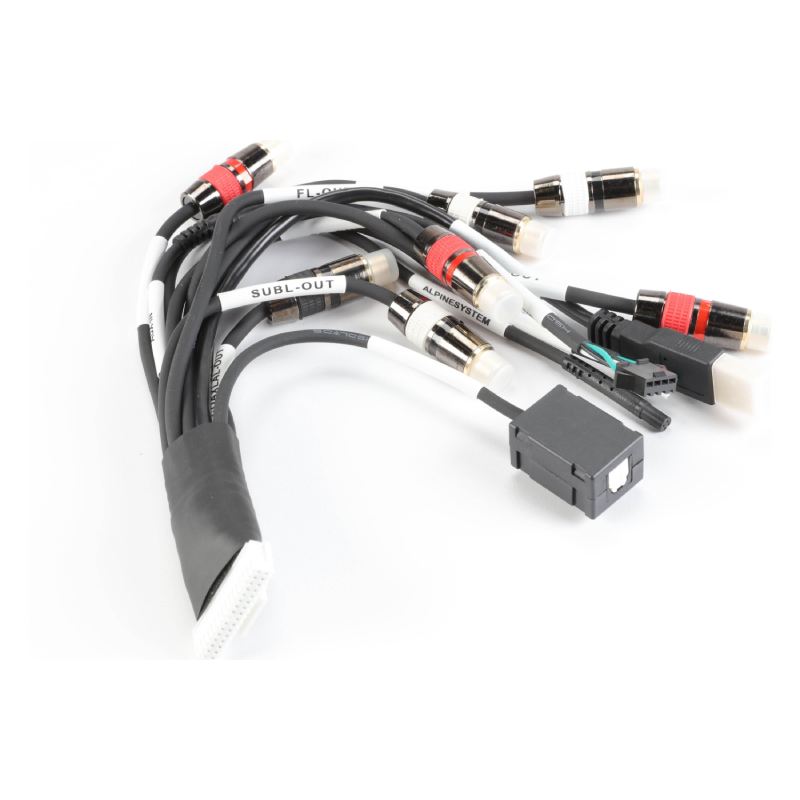

- •Preout/Aux harness

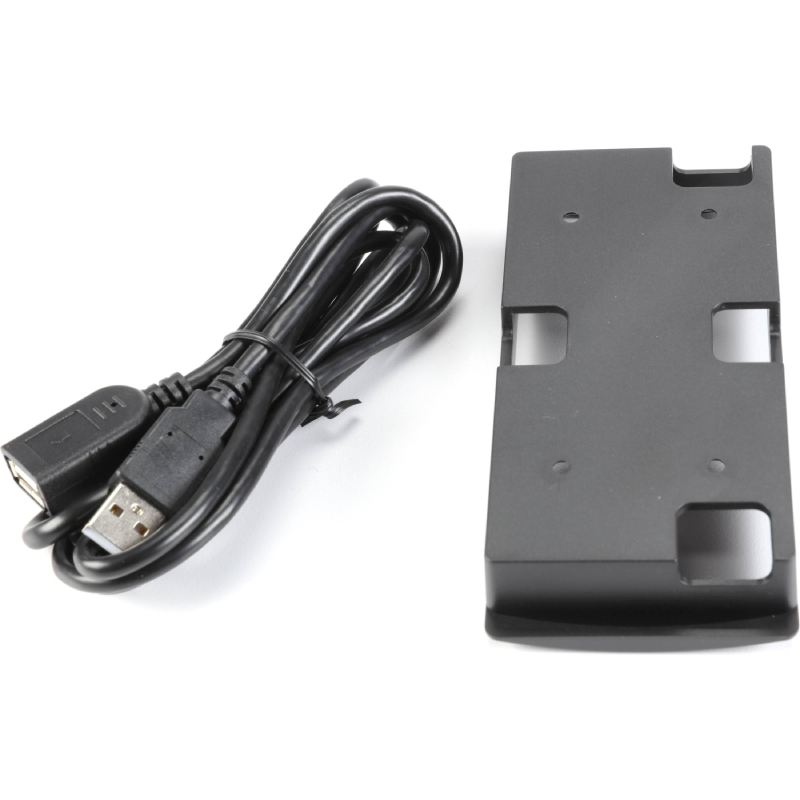

- •58" USB extension cable

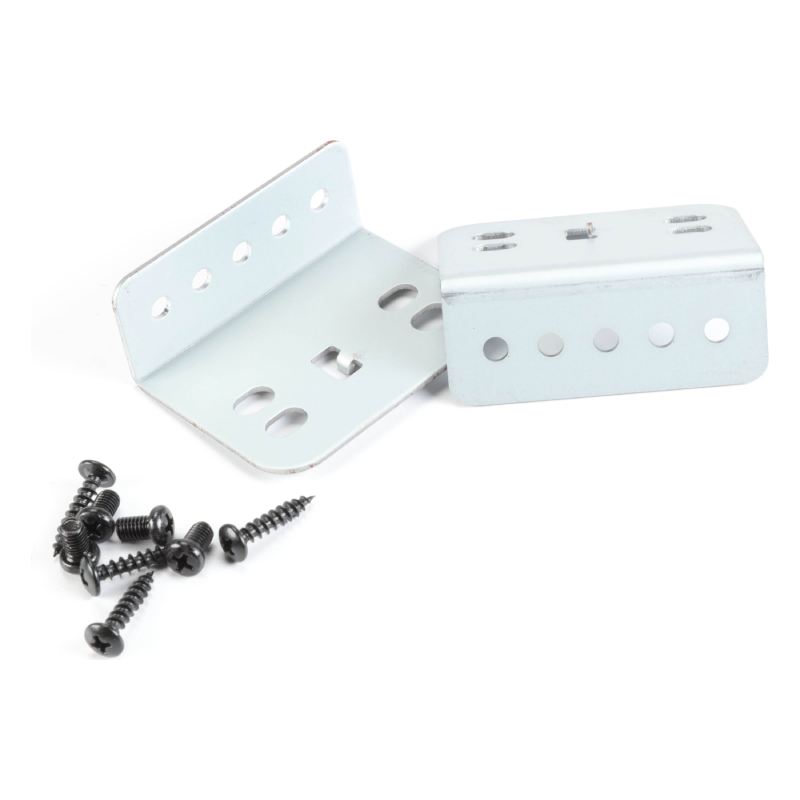

- •2 Mounting brackets
- •Wired remote housing
- •20 Self-tapping screws
- •4 Machine screws
- •4 Self-tapping screws
- •Warranty Information
- •Owner's manual
Why Choose Alpine HDS-990 Digital Media Receiver?
Deliver Impeccable Playback of High-resolution
Alpine's HDS-990 digital media player doesn't do a lot of things you expect from a traditional head unit, and that's okay.
What it does do is deliver impeccable playback of high-resolution (up to 24-bit sampling depth/192kHz frequency response) digital music files, turning your car's cockpit into something like a recording studio — just without those pesky hourly rates.
High-quality Materials
Alpine utilizes some of the same technology found in their legendary F#1 Status system in the HDS-990 — you can hear for yourself just how well it reproduces sound, thanks to its high-quality materials and fine craftsmanship. The HDS-990 includes a dash-mounted commander unit, so you can use it in tandem with an existing radio in your car or as a replacement.
High-definition Screen

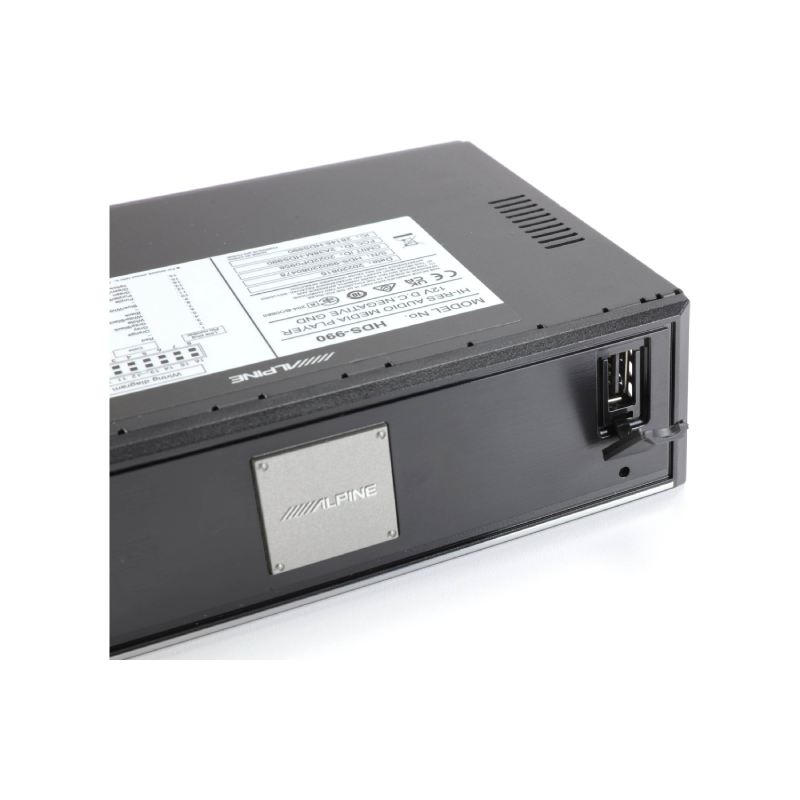

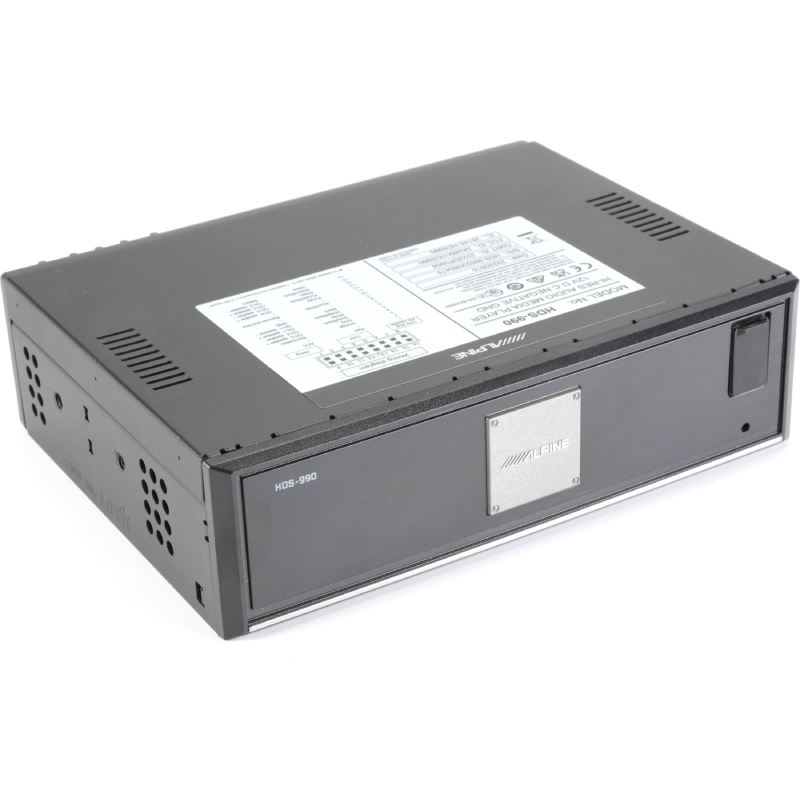

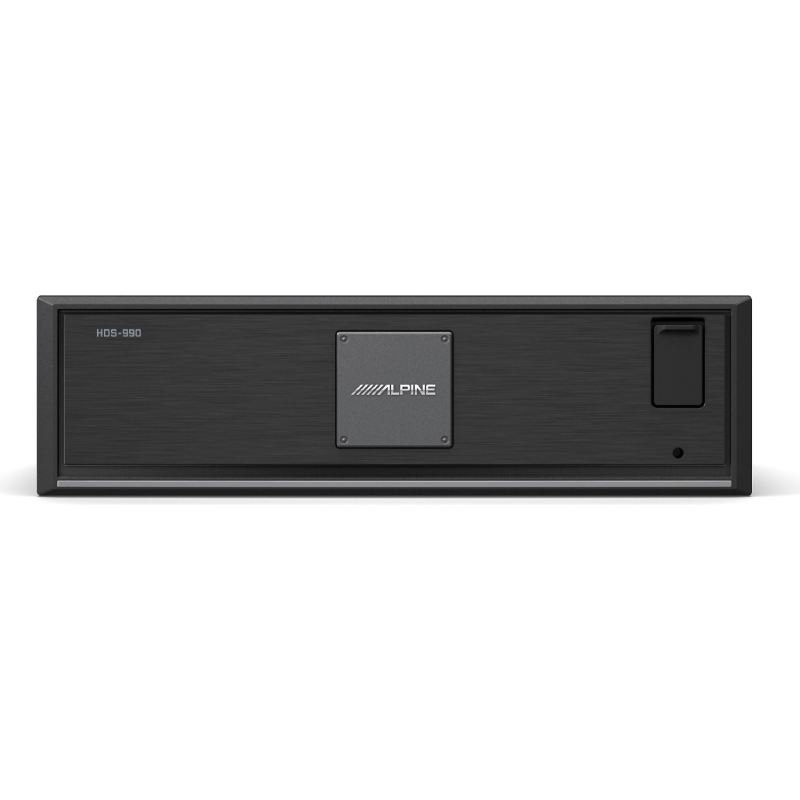

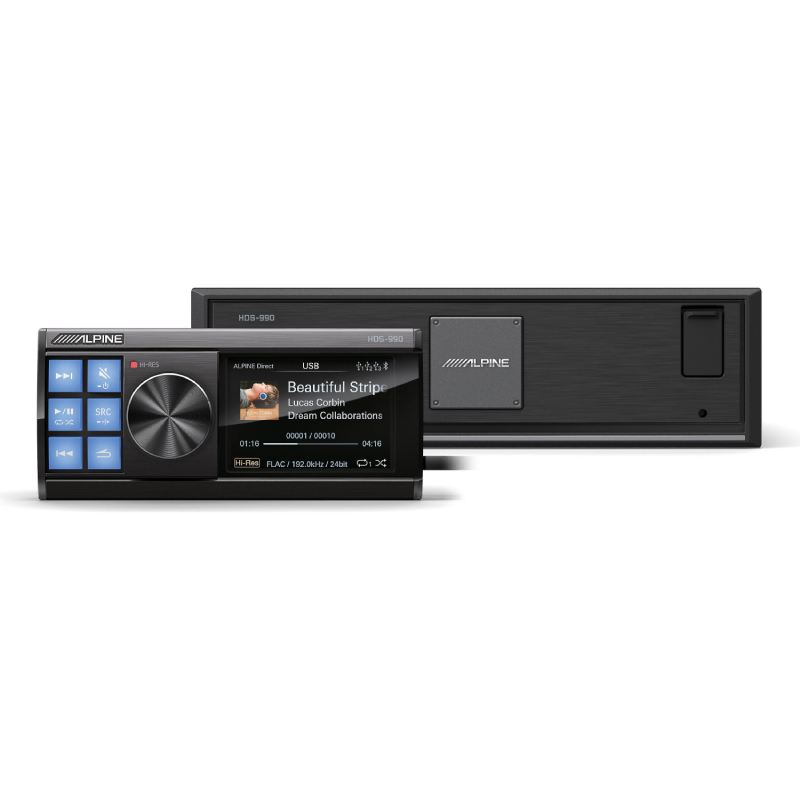

The HDS-990 consists of two parts: the "black box" source unit which contains the inputs and outputs, and a "commander unit" with built-in display which lets you control the action.

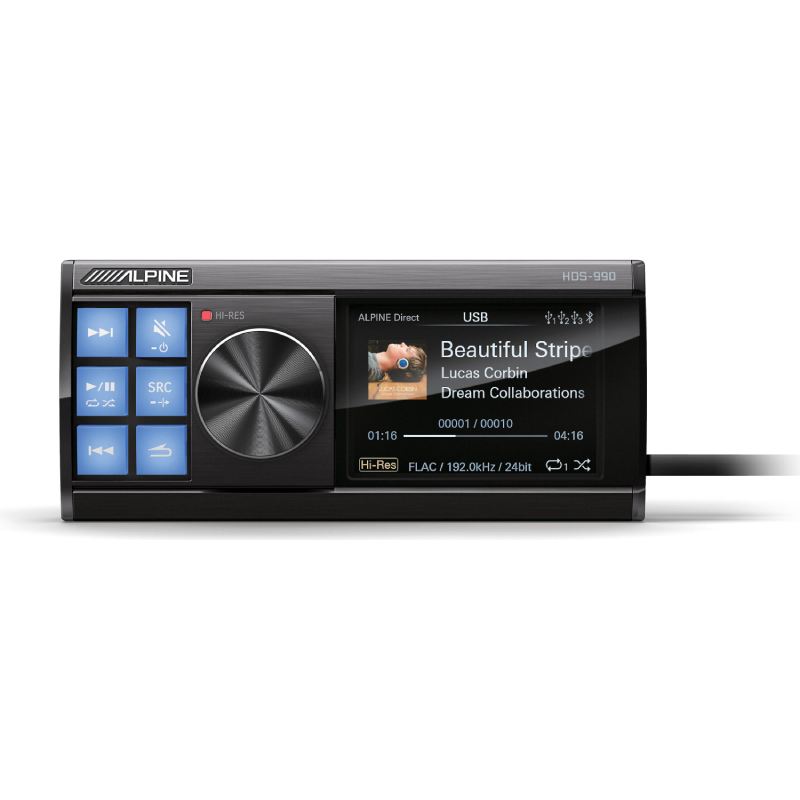

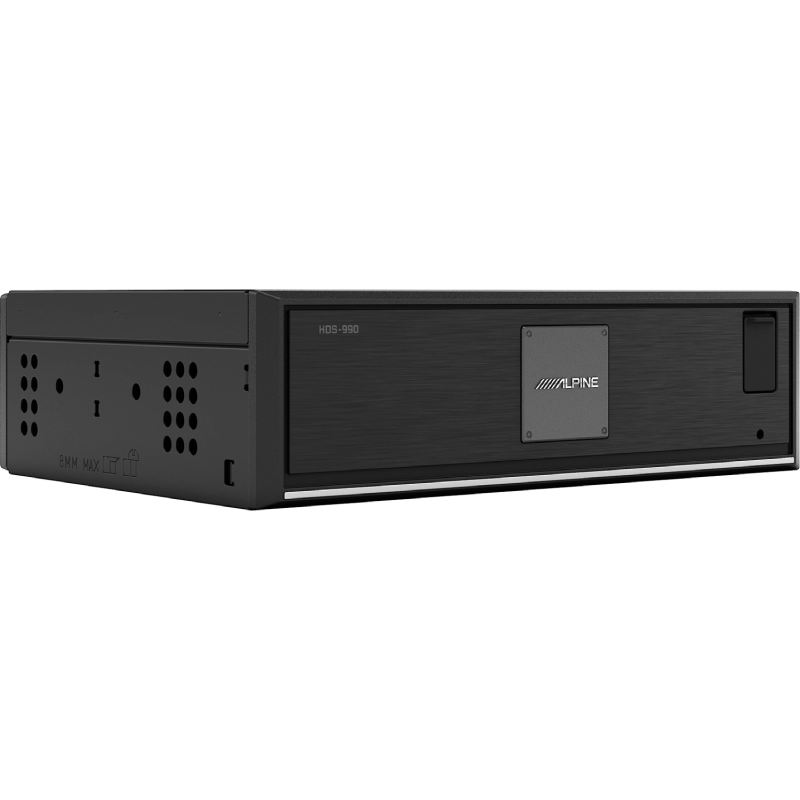

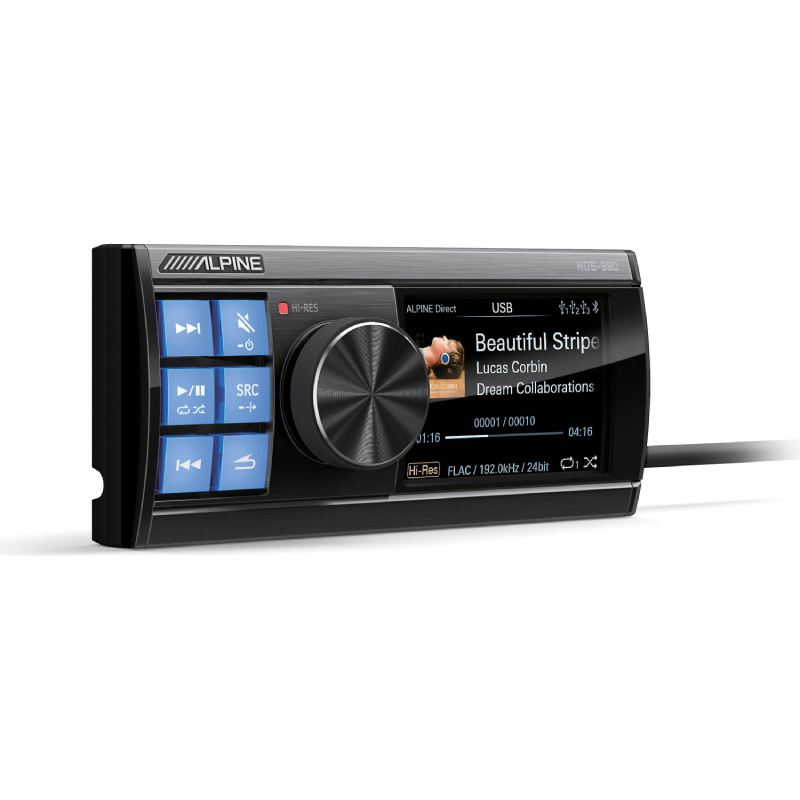

The source unit fits in many traditional single-DIN (2" tall) dash openings, or you can plug it into your existing radio using RCA connections or 4-channel high-level inputs and install it in your dash or another out-of-the-way location. The dash-mounted commander unit offers a high-definition screen, six of Alpine's classic control buttons, and a rotary dial for making volume adjustments. The commander unit includes a case mount for a permanent installation on your dash.
Keeping the Signals Clean

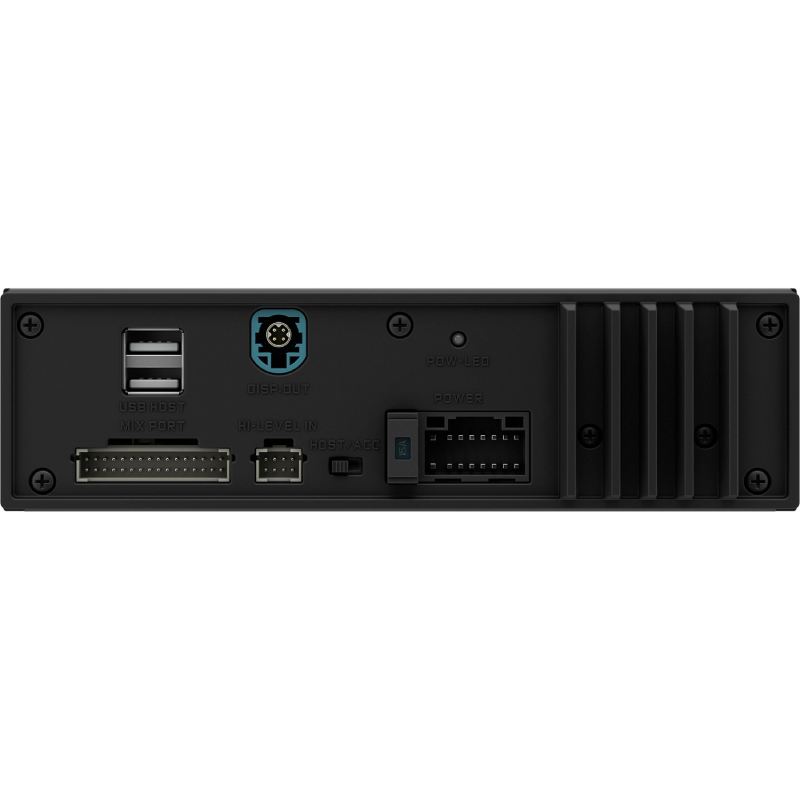

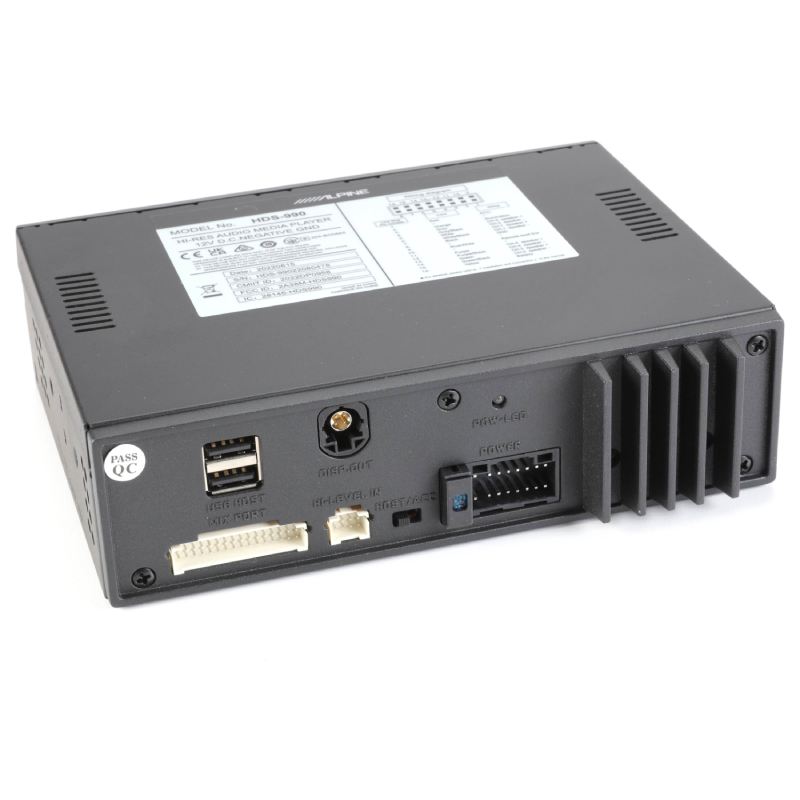

The HDS-990's built-in 4-channel amplifier offers 25 watts RMS per channel to power your speakers, so you can power your factory speaker system without adding an outboard amp.The HDS-990 offers a 2-channel 3.5mm auxiliary input for connecting a wired audio source, plus a 4-channel high-level input for connecting to your car's factory radio. It also boasts three USB 2.0 inputs (one up front, a pair in the rear) for connecting thumb drives or mobile external hard drives loaded with your high-res music files.
Built-in Bluetooth Connectivity
The HDS-990's built-in Bluetooth connectivity is a great way for you to stream music from your phone or other mobile device. Unfortunately, the HDS-990 won't support hands-free calling, so you'll have to depend on your existing radio (if you have one) for that functionality.
Frequently Asked Questions (FAQ)
- • Why am I receiving a USB transfer error message
This is typically a communication failure often resolved by simply turning the vehicle's accessory (ACC) power off and then back on. Ensure you are using a high-quality USB storage device and not a smartphone charging device connected to the USB terminal.
- • Can I connect multiple smartphones with Bluetooth?
Yes, many modern digital media receivers support pairing multiple devices for easier switching. Check the settings to manage paired phones and select the active device.
- • Can I keep my factory steering wheel controls?
Yes, they can usually be retained by using a compatible steering wheel control interface. The correct adapter depends on your vehicle's make and model.
- • Why is there no sound even though the display is working?
This is commonly caused by amplifier settings, wiring issues, or incorrect audio output configuration. Checking all speaker and amplifier connections usually identifies the problem.
- • Does this receiver support high-resolution audio files?
Yes, it is designed to play supported high-quality digital audio formats. Using compatible files allows you to enjoy better sound quality than compressed audio.
- • Why does Bluetooth audio skip while I'm driving?
Audio interruptions may occur because of wireless interference or an outdated phone operating system. Keeping your phone updated and close to the receiver usually improves stability.
- • Can I add amplifiers and a subwoofer later?
Yes, the receiver is designed to work with aftermarket amplifiers and powered subwoofers. This makes it easy to expand your audio system in the future.
- • Why does the receiver lose my saved settings?
This usually happens when the constant power wire isn't connected correctly. Correcting the wiring will allow the receiver to retain presets and system settings.
- • Why does the screen fail to display anything?
If the screen remains black, double-check that the proprietary cable connecting the commander unit to the black box is firmly seated. Also, ensure the ignition switch is in the correct position, as the unit will not operate when the car is completely off.
- DIN : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : Front, Rear & Sub
Features:
- high-resolution digital media player (does not play discs)
- black box source unit and dash-mountable commander unit with wiring harnesses for connection between the two and to factory radios (if desired)
- built in amplifier: 25W x 4 RMS (50W x 4 max)
- source unit fits in select single-DIN (2" tall) dash openings
- built-in Bluetooth for audio streaming (does not allow for hands-free calling)
- compatible with AAC, aptX/aptX HD, LDAC, and SRC formats for streaming audio
- Audio Features:
- audiophile-grade components, materials, and construction
- plays AAC, AIFF, ALAC, APE, DSD, FLAC, LDAC, MP3, M4A, WMA, and WAV files up to 24-bit/192kHz resolution with wired connection
- high-resolution indicator light on commander unit
Specifications:
- AUX Input Mini: (rear)
- Audio/video Input: ---
- USB Input: Front/Rear
- USB Port Power: 1.5A
- Backup Camera Input: No
- Second Camera Input: No
- CarPlay: No
- Android Auto: No
- Siri Control: No
- Alexa Voice Control: N
- Android Control: Yes
- Memory Card Slot: USB Memory
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: No
- HD Radio: N/A
- Navigation: ---
- Full size: No
- Nano: No
- Touch: no
- iPhone: No
- RMS Power (CTA-2006): N/A
- RMS Power (Manufacturer): 25 watts
- Peak OutputL: 50 watts
- RMS Power Bandwidth: 20-20kHz
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: No
- Navigation App Compatible: (iOS)
- Navigation App Compatible: (Android)
- Preamp Voltage: 4 volts
- Screen Size: ---
- Screen Type: ---
- Display Color: Full Color
- Key Button Color: Blue
- EQ Bands: 10
- Wireless Remote: Yes
- Steering Wheel Control Compatible: Built-in
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- FM Sensitivity: ---
- European Tuning: No
- Seek/Scan: N/A
- Radio Data System: Yes
- Music File Playback: WAV, FLAC, ALAC, AAC, WMA, MP3, DSD
- High-res Playback: up to 24-bit/192kHz
- UPC: 793276084910
- Weight: 4.73
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
