- Diameter : 10 Inch
- Maximum Power : 800 Watts
- Sensitivity : 85.5 dB
- Impedance : 4 Ohm
- Peak Power Handling : 800 Watts
- Number of Voice Coils : Single
- Mounting Depth : 4.8 Inches
- RMS Power Handling : 125 Watts
What's Inside?

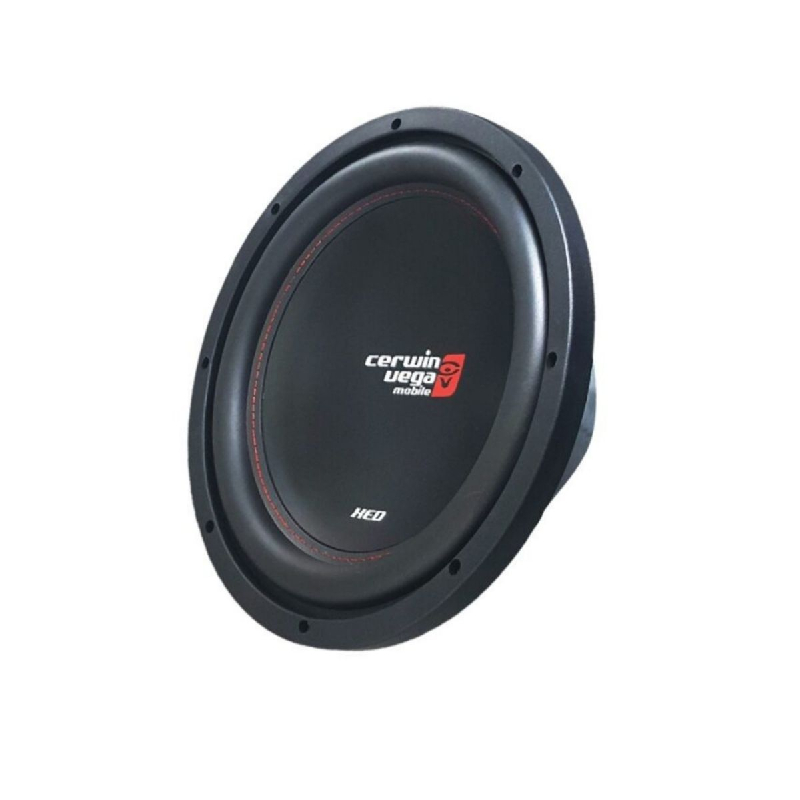

- 1 10" XED Series Single 4 Ohm Xtreme-Energy Design Car Subwoofer
Features:
- Parabolic Polypropylene Cone
- Unique Foam Blend High Roll Surround
- Bumped Back Plate For Maximum Excursion
- Vented Pole Piece For Extended Play
- High Roll Rubber Surround
Specifications:
- 10” Single 4-ohm Xtreme-Energy Design Subwoofer
- Power Handling:125W RMS / 800W MAX
- 2” Voice Coil
- Xmax - Inch(mm): 12.8
- Fs-Free Air Resonance (Hz): 35.0
- Vas (Liter): 33.8
- Qts: 0.62
- Qes: 0.66
- Qms: 10.06
- Re (Ω)[series]: 3.9
- Sd (cm²): 0.033
- Cms (mm/N): 0.219
- Mms (g): 94.3
- BL (T*M): 10.974
- SPL (db): 85.5
- Mounting Depth: 4.8(121.0)
- Total Diameter: 10.3(262.0)
- Mounting Diameter (inch/mm): 9.4(238.0)
- Screw Hole Diameter: 9.7(247.0)
- Displacement (ft3/L): N/A
- UPC: 0847169044588
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
