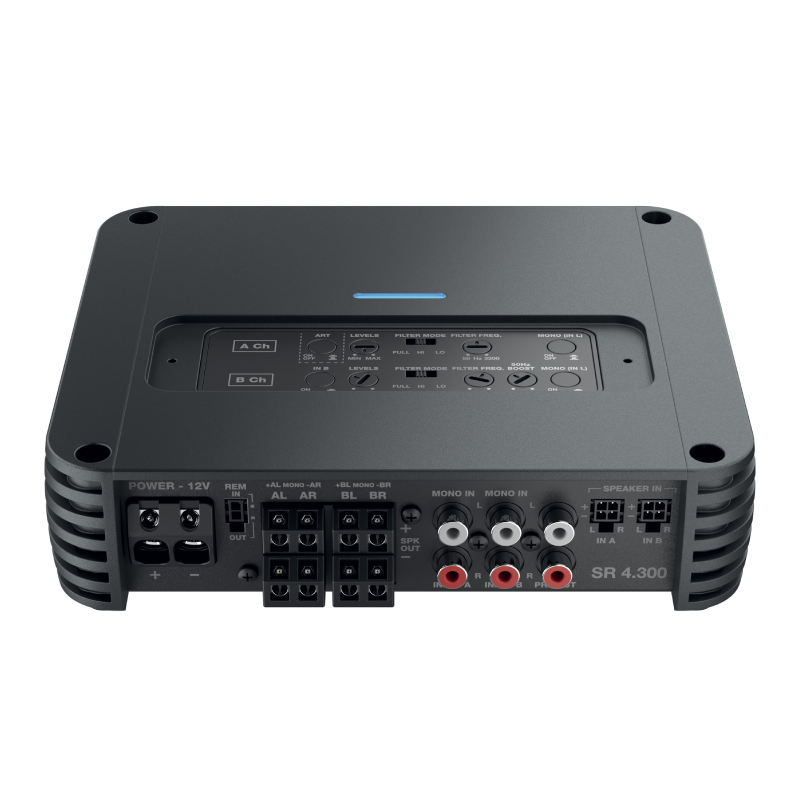

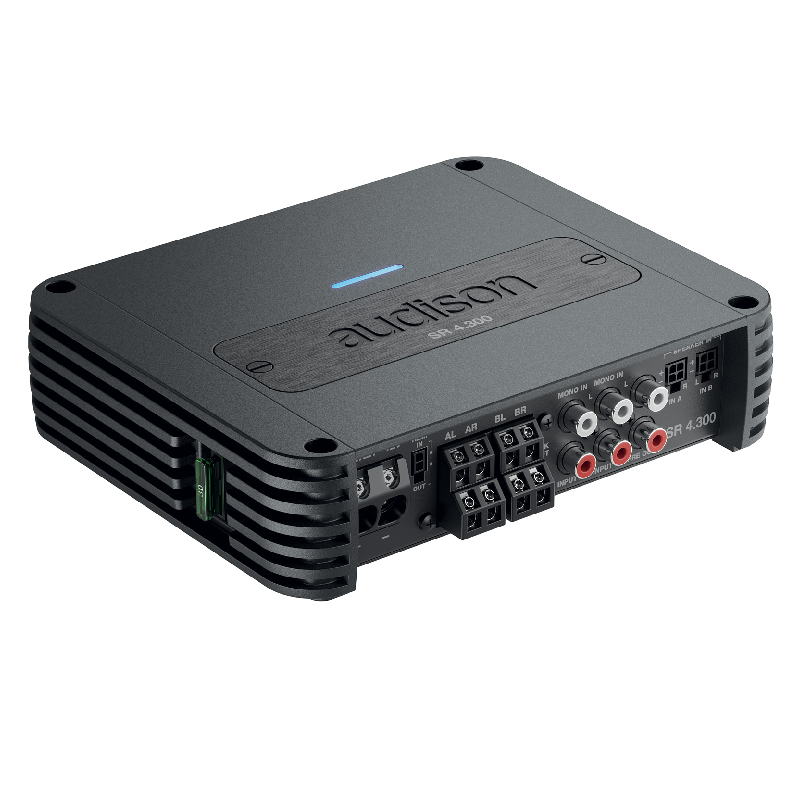

Audison  SR4.300.2

SR.2 Series 4-Channel 130W RMS x 4 at 2-Ohms, Class-D Car Amplifier

Item #84636

Condition:   Brand New

Product Highlights

  • SR.2 4-Channel
  • 130W x4 (2O)
  • Class-D Amp
  • High Efficiency
  • Compact Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on 4 Channel Amplifiers!

Use Code: CYBW5

Ends in:

$399.99

Reg. Price $440.00  Save $40.01
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison SR4.300.2 SR.2 Series 4-Channel 130W RMS x 4 at 2-Ohms, Class-D Car Amplifier


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
AF M12.14 bit
Versatile High-Power 4-Channel Amplifier

Delivering up to 520W of clean RMS power, this versatile 4-channel Class-D amplifier adapts to 2, 3, or 4-channel configurations with ease. With ultra-low 0.03% THD, a wide 10Hz–35kHz bandwidth, and a strong 100 dBA S/N ratio, it ensures crystal-clear sound and powerful bass response. Built with ART automatic remote turn-on/off and high-efficiency design, it’s the perfect balance of performance, flexibility, and reliability for any car audio system.


SPECIFICATIONS


  • Maximum Power : 520 Watts
  • Number of Channels : 4
  • Frequency Response : 10-35000 Hz
  • Amplifier Class : D
  • Fuse Rating : 25x1 A

FEATURES


Features:

  • Power and Ground wire terminals updated from 8 AWG to 4 AWG
  • Discrete MOSFET output devices used in the F/R amplifier channels



Specifications:

Power supply voltage / fuse 11 ÷ 15 VDC / 1 x 30A

  • Operating power supply voltage 6.5V ÷17 VDC
  • Idling current 1.6 A
  • Idling current when off 0.03 mA
  • Consumption @ 14.4 VDC, 2Ω, Max Musical
  • Power 25 A
  • Remote IN 6.5 ÷ 15 VDC (1 mA)
  • Remote OUT 6.5 ÷ 15 VDC (150 mA)
  • ART - Automatic Remote Turn on/off from
  • OUTPUT BTL speakers (Selectable) 1.5 ÷ 7 VDC
  • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.03%
  • Damping factor @ 1 kHz, 4Ω, 2 VRMS 150
  • Bandwidth @ -1.5 dB 10Hz ÷ 35 kHz
  • S/N ratio (A weighted @ 1 V Input) 100 dBA
  • Pre-In sensitivity 0.2 ÷ 5 VRMS
  • Speaker-In sensitivity 0.8 ÷ 20 VRMS
  • Minimum load impedance
    • @4Ch: 2Ω
    • @ 3Ch: 2Ω + 2Ω + 4Ω
    • @ 2Ch: 4Ω
  • OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
  • 4Ch 85 W x 4 (4Ω)
  • 4Ch 130 W x 4 (2Ω)
  • 3Ch 80 W x 2 (4Ω) + 250 W x 1 (4Ω)
  • 3Ch 130W x 2 (2Ω) + 260 W x 1 (4Ω)
  • 2Ch 250 W x 2 (4Ω)
  • UPC: 8018823138543
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
