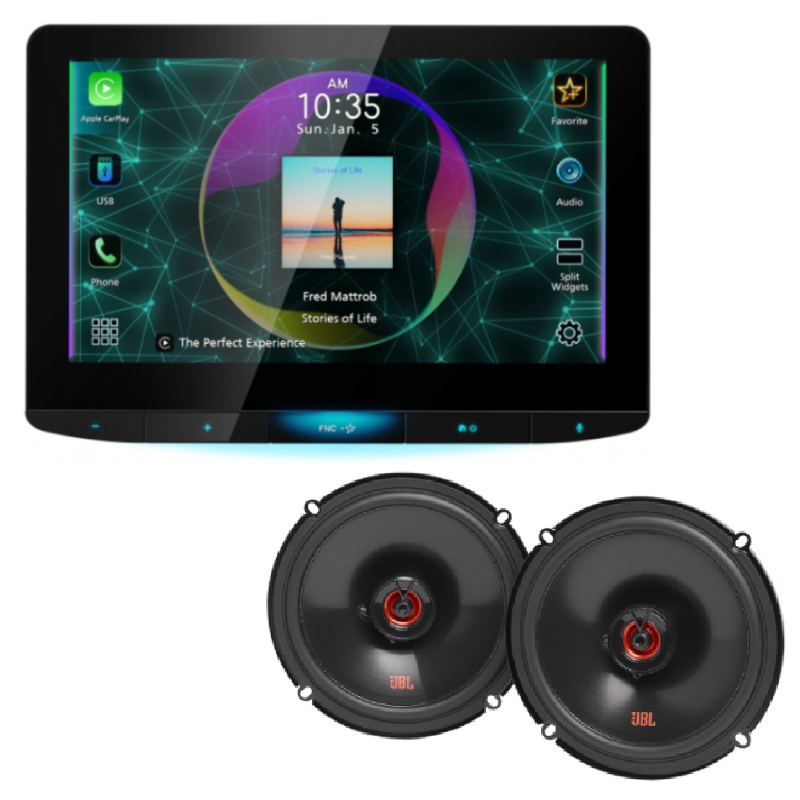

JVC KW-Z1000W-Bundle includes JVC KW-Z1000W 10.1" Digital Media Receiver w/ Apple CarPlay, Android Auto + JBL Club 620F 6.5" 165W Peak Power Handling 3 Ohms 2-Way Car Speakers
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • JVC KW-Z1000W
- • JBL Club 620F

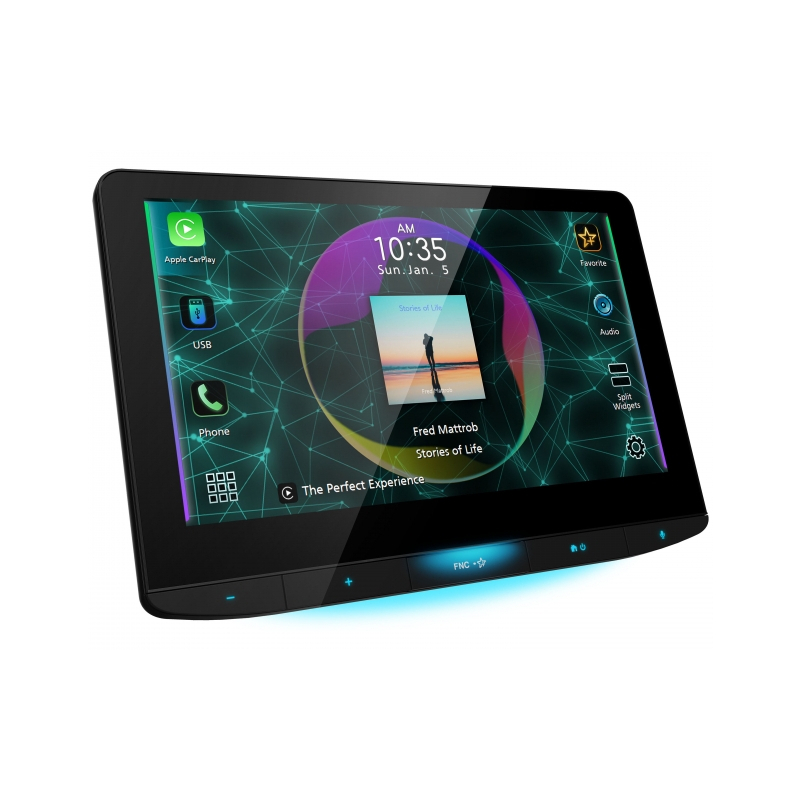

JVC KW-Z1000W
The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

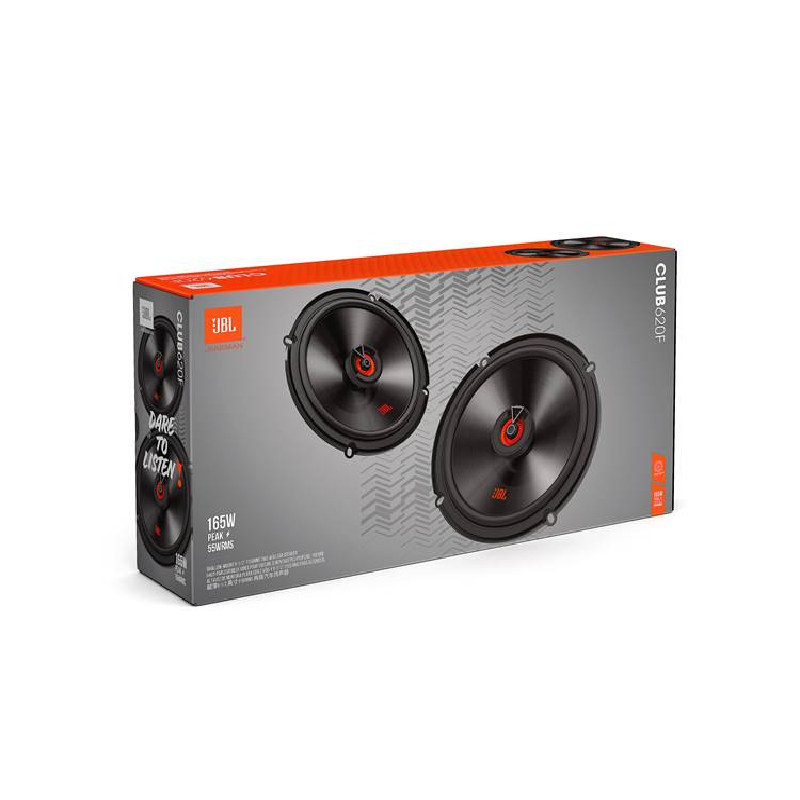

JBL Club 620F
Club 620F specified compact design for 6-1/2" that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles. Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment. Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased low-frequency output and greater musical character.
- Satellite Radio Ready : Yes
- DIN : 2
KW-Z1000W 10.1" HD Screen, Wireless Apple CarPlay, Wireless Android Auto, HDMI Input, 4-Cam Input, High-Resolution Audio, iDatalink Maestro Ready, Bluetooth® , 13-Band EQ, Digital Media Receiver
Technical Specifications:
- Monitor
- High Definition Monitor: Yes
- Screen Size: 10.1"W HD Screen
- Touch Panel; Capacitive / Bonding
- Monitor Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Variable
- Dimmer: Yes
- Multilingual Display: Yes[4]
- Wallpaper Capture: Yes
- Live Wallpaper: Yes
Media Playback:
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB( Up to192kHz/24bit )
- DSD Compatible with Tag: USB
- H.264 Compatible: USB
- WMV Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- AVI/MKV Compatible: USB
- JPEG File Playback: USB
- PNG File Playback: USB
- BMP File Playback: USB
Bluetooth Control:
- Built-in Bluetooth[1]: Yes (Version 5.0, Wired-Mic included)
- Hands Free Call: Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Supported Audio Formats: LDAC / AAC / SBC
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android: Yes
Wi-Fi Control:
Android Control:

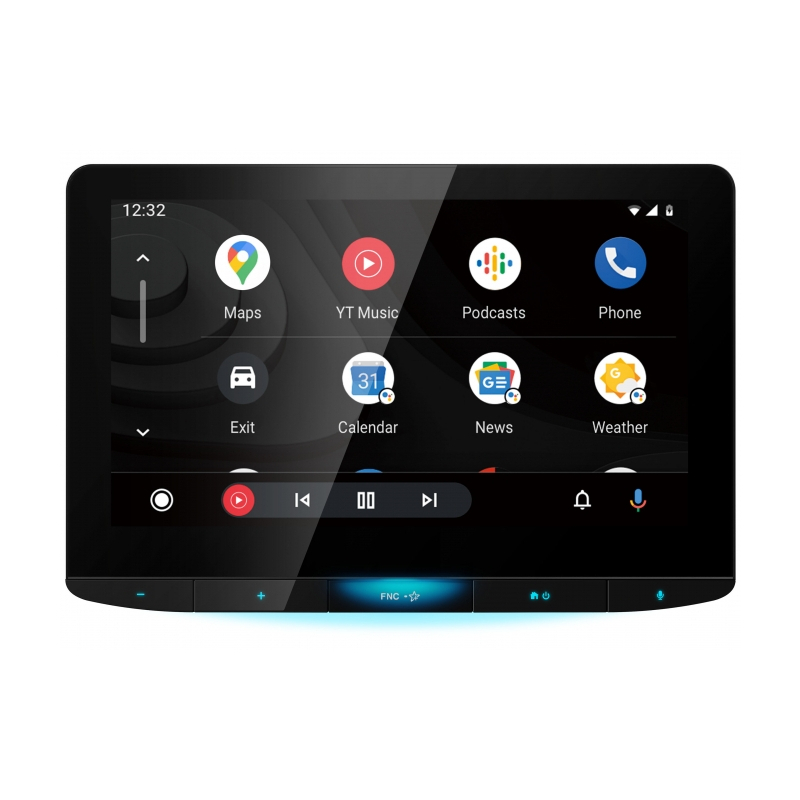

- Android Auto[2]: Yes (via Wi-Fi or USB)
- Mirroring for Android: Yes (via Wi-Fi or HDMI)
- Android Music Playback: Yes (via Bluetooth(R))
- Pandora Control: Yes (Android Auto / Mirroring)
- iHeartRadio Control: Yes (Android Auto / Mirroring)
- Spotify Control: Yes (Android Auto / Mirroring)
iPod/iPhone Control:

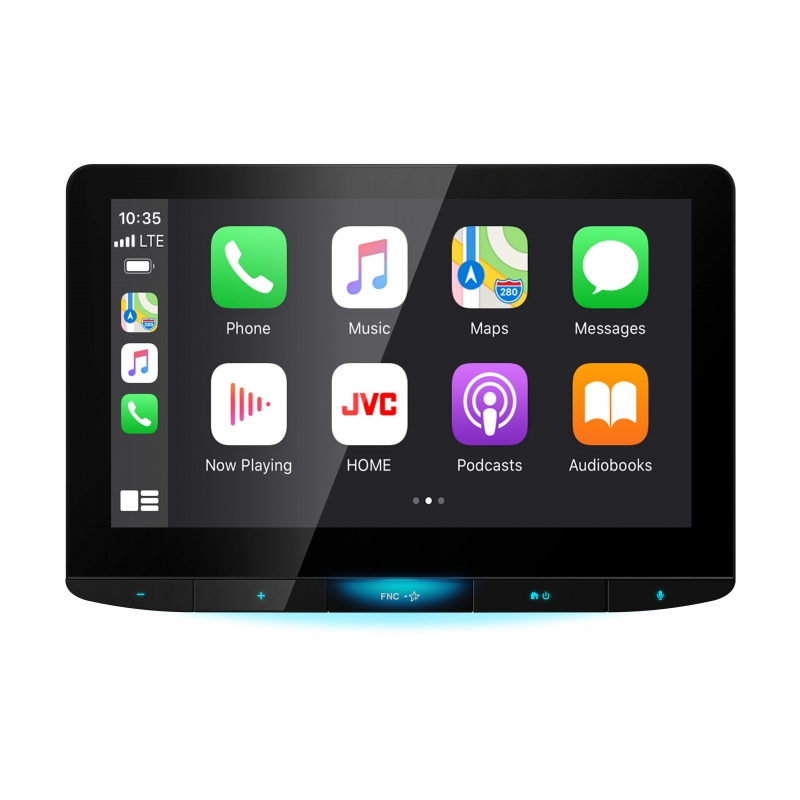

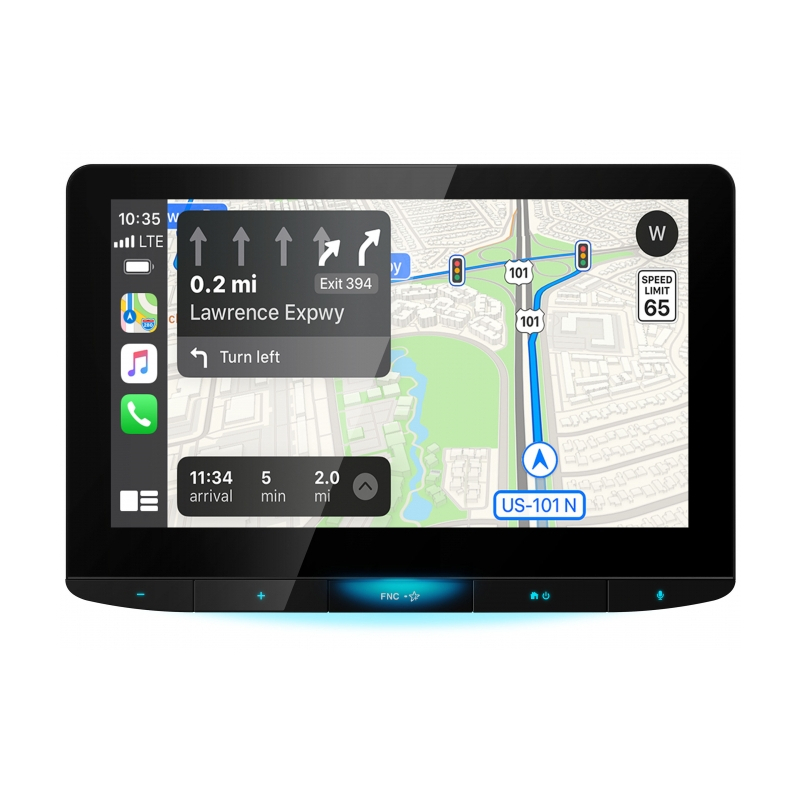

- CarPlay[3]: Yes (via Wi-Fi or USB)
- Mirroring for iPhone: Yes (via HDMI)
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
- Pandora Control: Yes (CarPlay / Mirroring)
- iHeartRadio Control: Yes (CarPlay / Mirroring)
- Spotify Control: Yes (CarPlay / Mirroring)
USB:
- USB Port: x 2 (High Speed)
- Position: Rear
- USB Power Supply: Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
Radio Tuner:
- SiriusXM Ready: Yes *SiriusXM 360L Ready
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
- Automatic Presetting (Strong Station Sequential Memory): Yes
- FM
- Frequency Range: 87.9 - 107.9MHz
- AM
- Frequency Range: 530-1,700kHz
Audio:
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (8Preset + 4user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- High-Resolution Audio: Yes
- K2 Technology: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes
- Dual-Zone Function: Yes

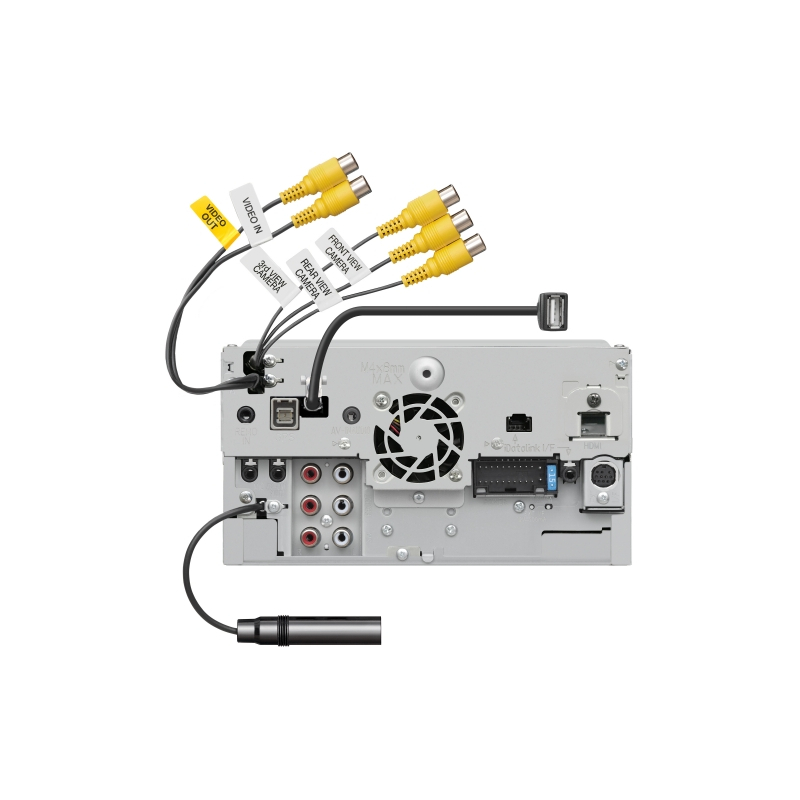

Inputs and Outputs:
- AV Input: mini jack + RCA Video(AV-IN or CAM4 switchable)
- Video Out: RCA
- Rear view camera Input: Yes
- Front view camera Input: Yes
- 3rd Camera Input: Yes
- Line Output Terminals : 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
General:
- iDatalink Maestro Ready: Yes
- Remote Control Application: Yes
- Back Up Memory: Yes
- Face Type
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
- Learning Direct OEM Remote: Yes
- Dimensions (W x H x D)
- Installation Size: 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
- Weight: 7.28 lbs. (3.25kg)

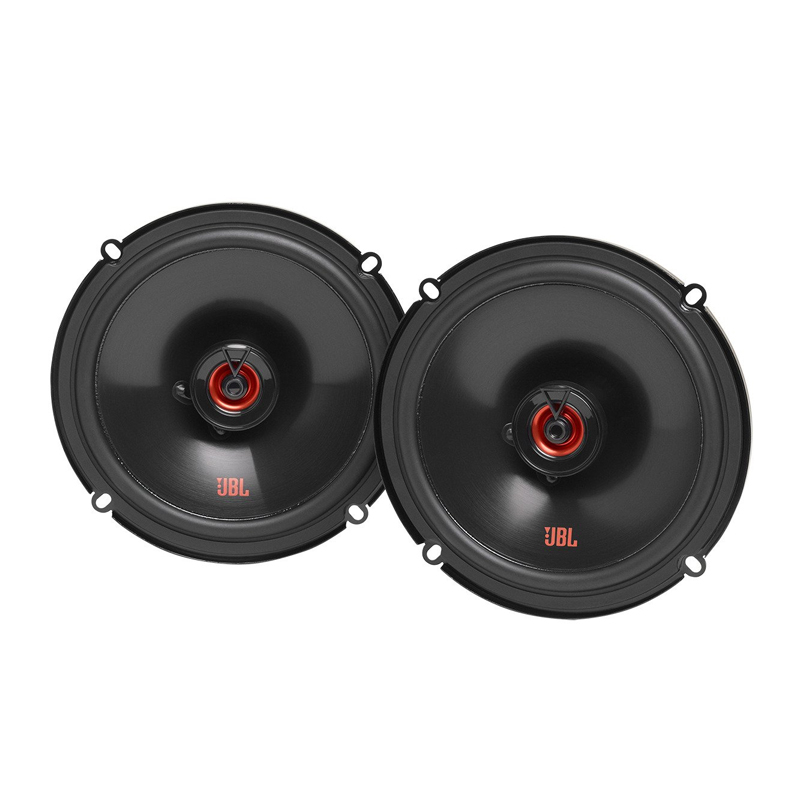

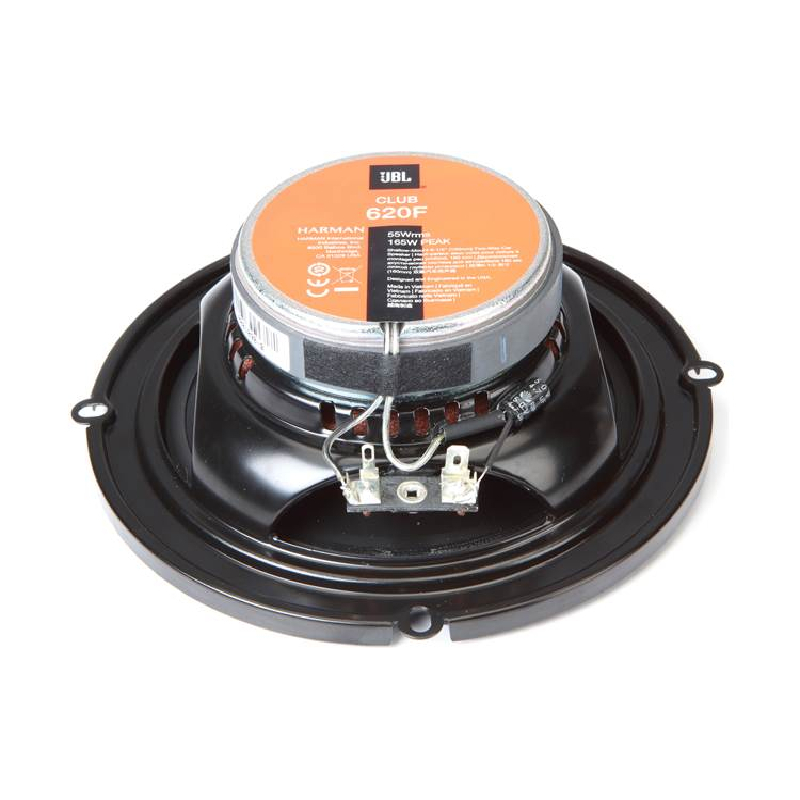

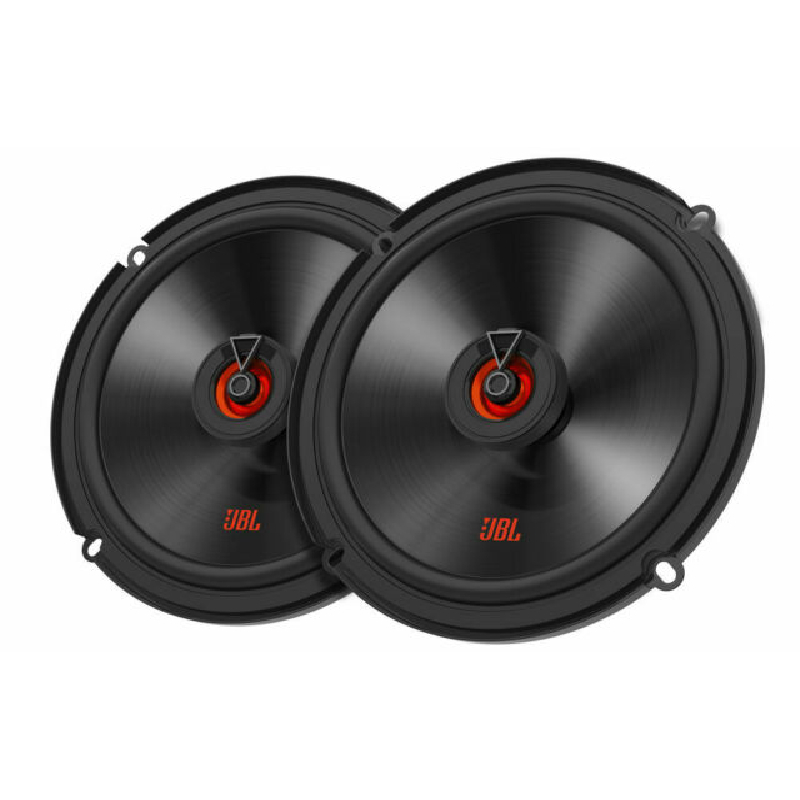

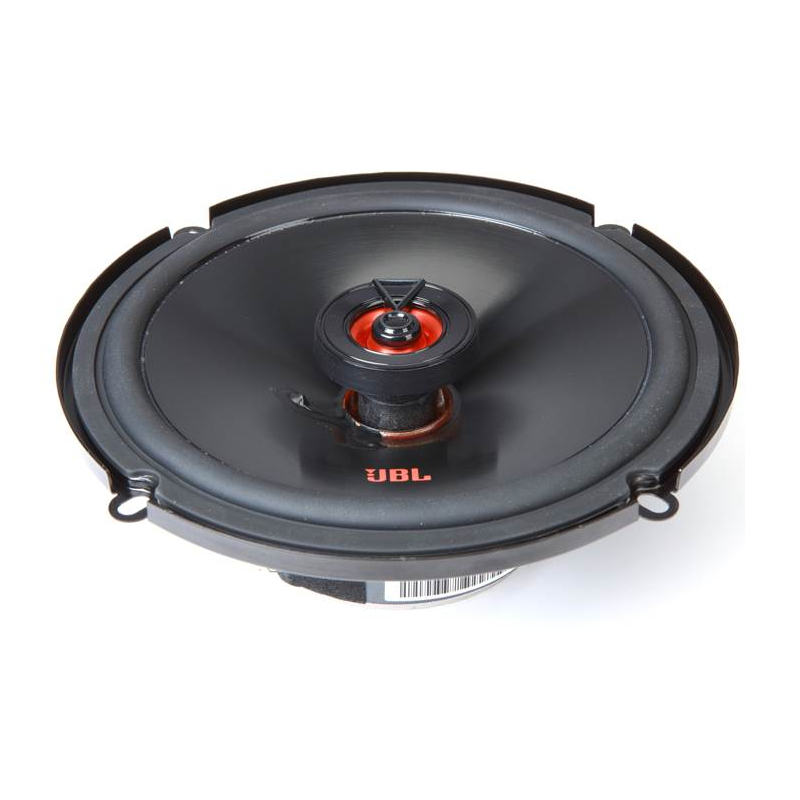

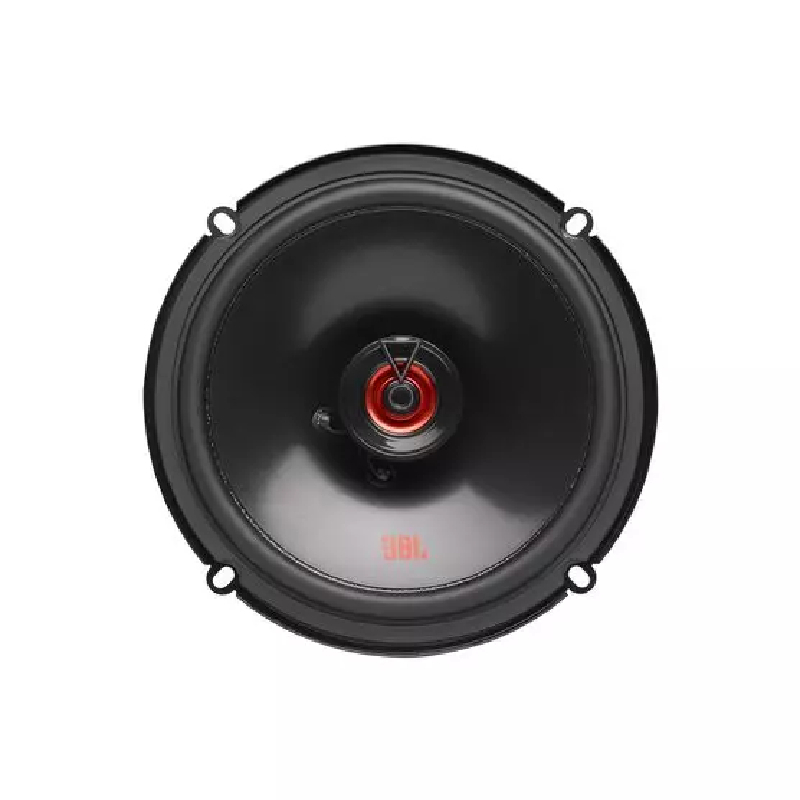

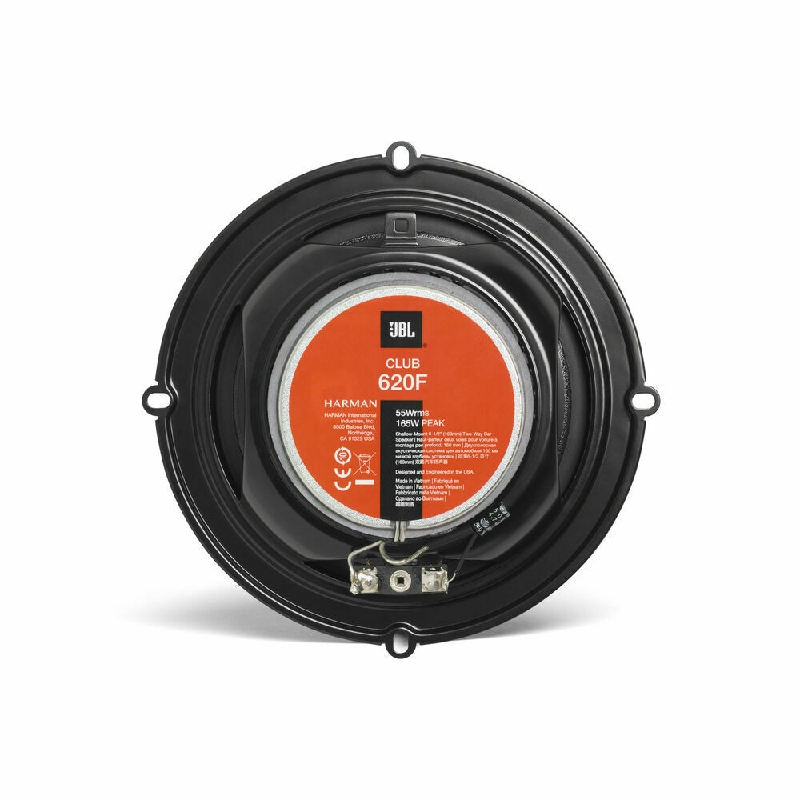

Club 620F Club Series 6.5" 55W RMS (165W Peak Power Handling) 3 Ohm 2-Way Shallow-mount Car Speakers
Specifications:

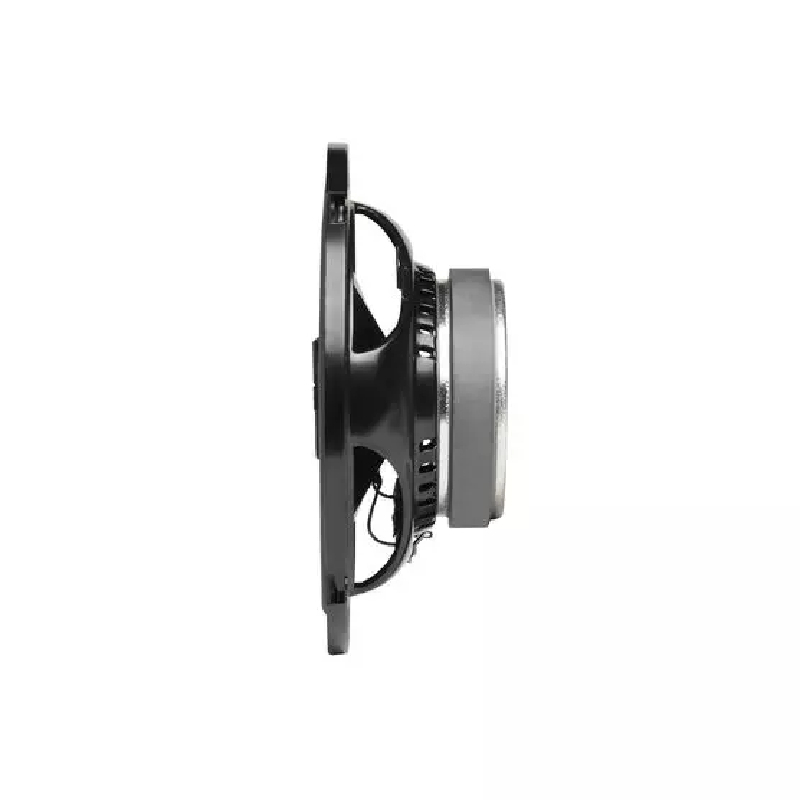

- Shallow-Mount 6-1/2" (160mm) Two-Way Car Speaker
- Power Handling: 55W RMS, 165W peak
- Sensitivity (@ 2.83V): 92dB
- Frequency Response: 55Hz – 20kHz
- Nominal Impedance: 3.0 ohms
- UPC: 791489131049
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
