What's Inside?
- 4-Channel amplifier
- 30A ATO fuse (installed)
- Speaker-level input harness with eight 4" wires
- 4 Self-tapping screws (3/4" length)
- Warranty sheet
- Two 2-way speakers
- 2 Grilles
- Two 11" lengths of speaker wire (tinned wire on one end and female quick slides on the other)
- 4 Red plastic butt connectors
- Eight 1-1/8" Self-tapping screws
- 8 Speed clips
- Two 3-way speakers
- 2 Grilles
- Two 11" lengths of speaker wire (tinned wire on one end and female quick slides on the other)
- 4 Red plastic butt connectors
- Eight 1-1/8" Self-tapping screws
- 8 Speed clips
- Owner's manual (English/ Spanish/ German/ French)

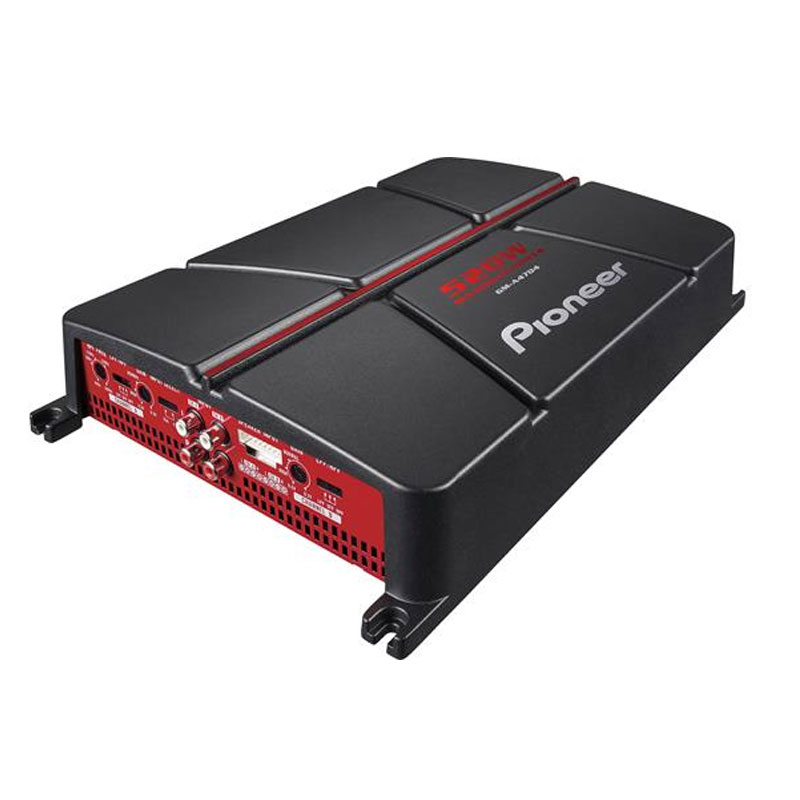

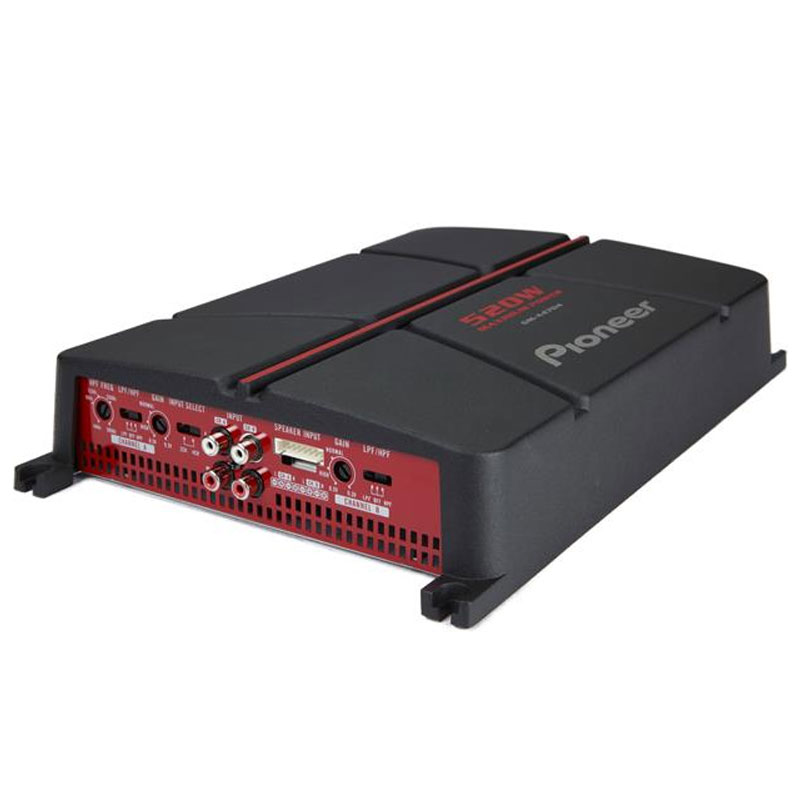

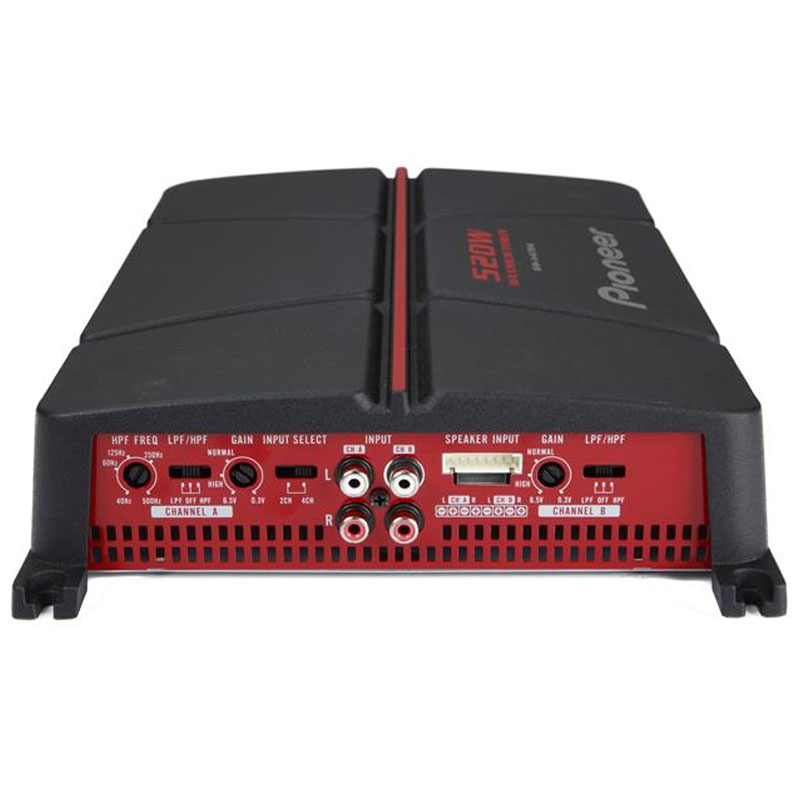

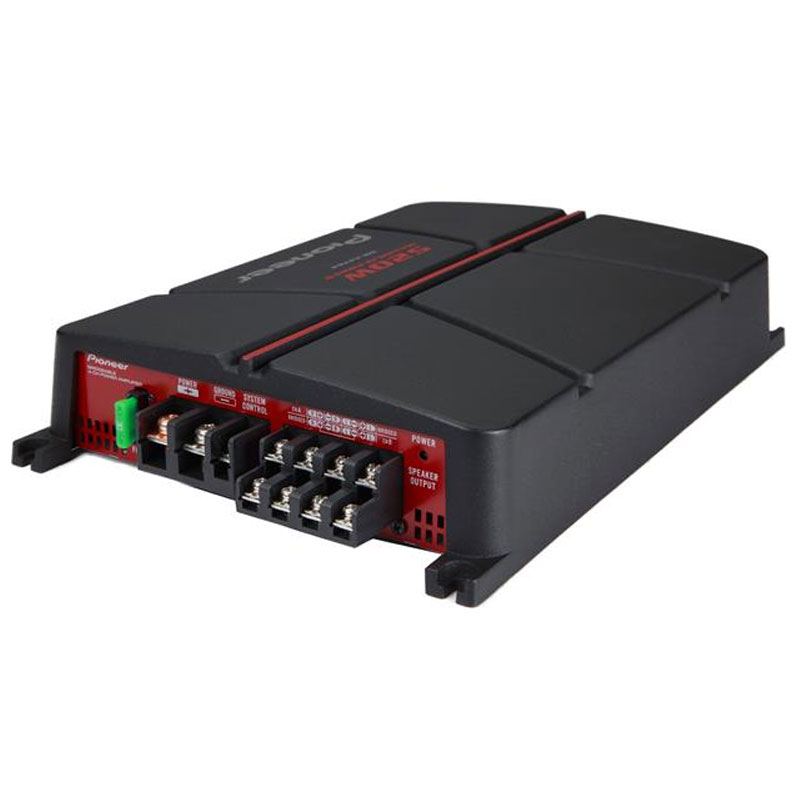

4-Channel A Series Bridgeable Class AB 2-Ohm Stable Car Amplifier 520W Peak Power
Specifications:
- Fuse Rating: 30
- Width (inches): 12-1/16
- Input Voltage: 14.4v
- Signal to Noise Ratio: 78 dB
- Minimum Impedance Unbridged: 2
- Bass Boost: No
- Low-Pass Slope (dB/octave): 12 dB/octave
- Best Frequency Response: 10-70k Hz
- RMS Power Output (Watts x Channels): 40 x 4
- Power at 2 Ohms (Watts x Channels): 65 x 4
- Bridged Power (Watts x Channels): 130 x 2
- Low-Pass Crossover Frequency: 80Hz
- Preamp Outputs: No
- THD at Rated RMS Power: 1%
- Bass Boost Frequency: N/A
- Peak Power Output (Watts x Channels): N/A
- Minimum Impedance Bridged: 4
- Amplifier Class: AB
- High-Pass Crossover Frequency: 40-500(A), 80Hz(B)
- High-Pass Slope (dB/octave): 12 dB/octave
- Fan Cooled: No
- Speaker Level Inputs: Harness
- Height (inches): 2-3/8
- Depth (inches): 8-1/2

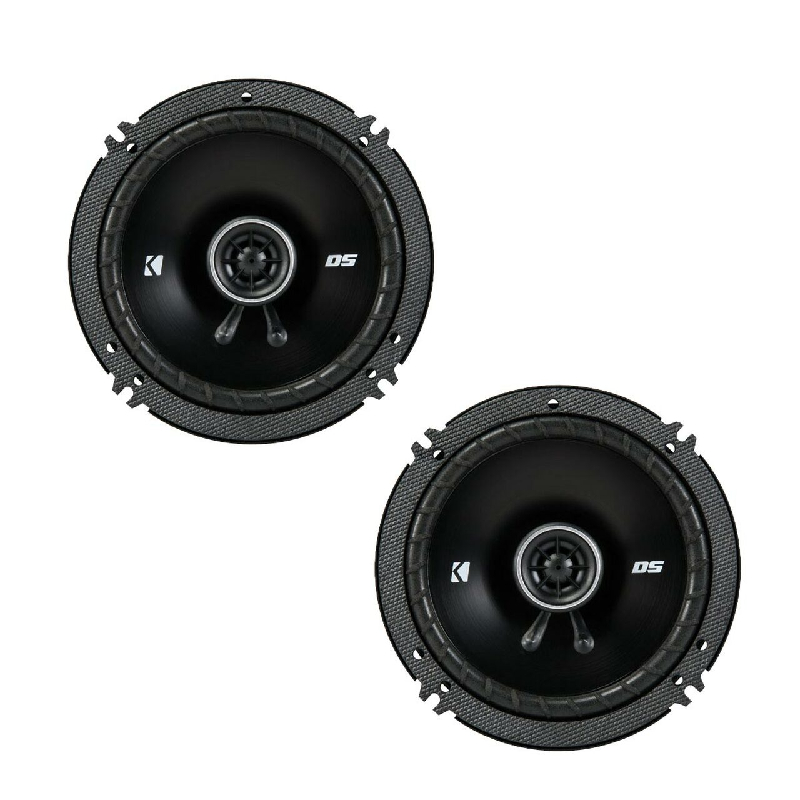

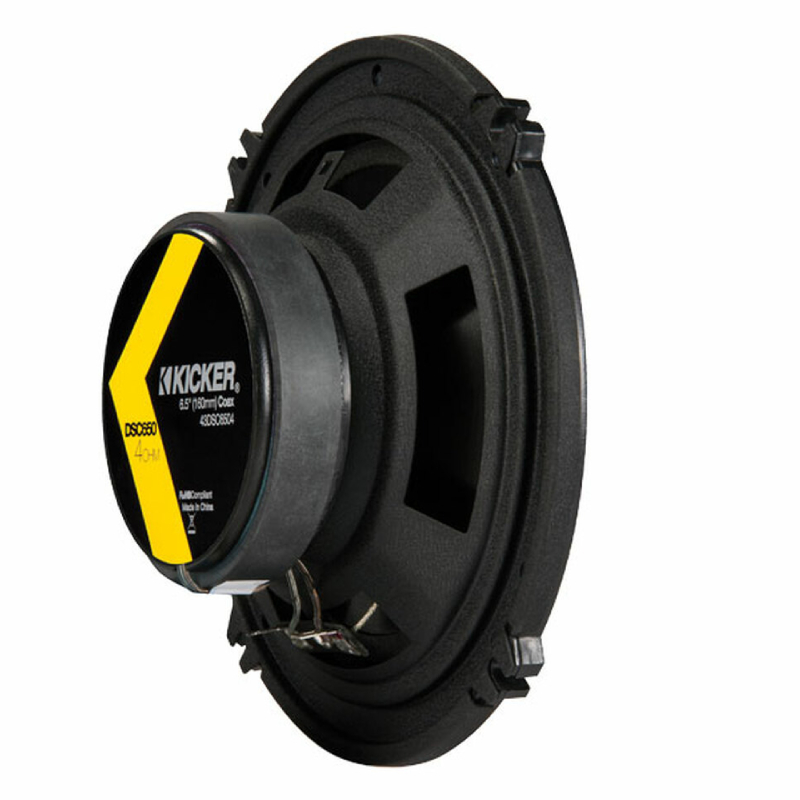

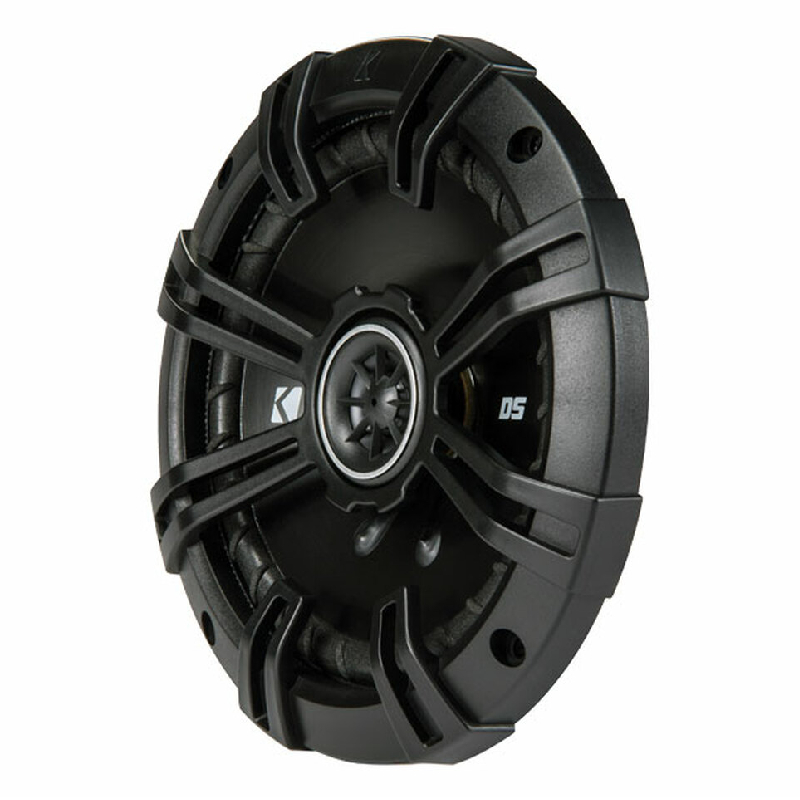

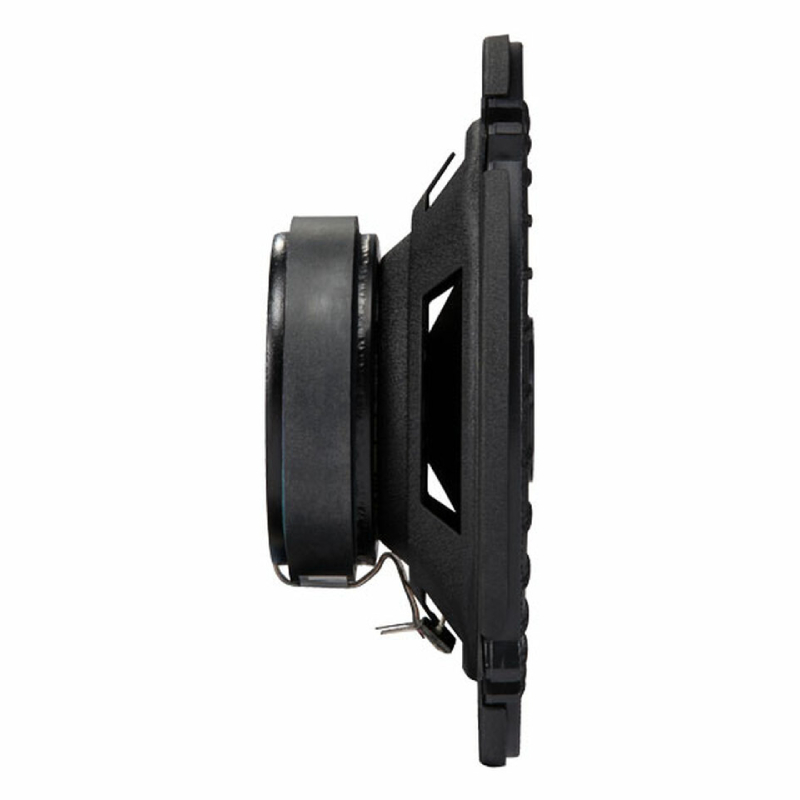

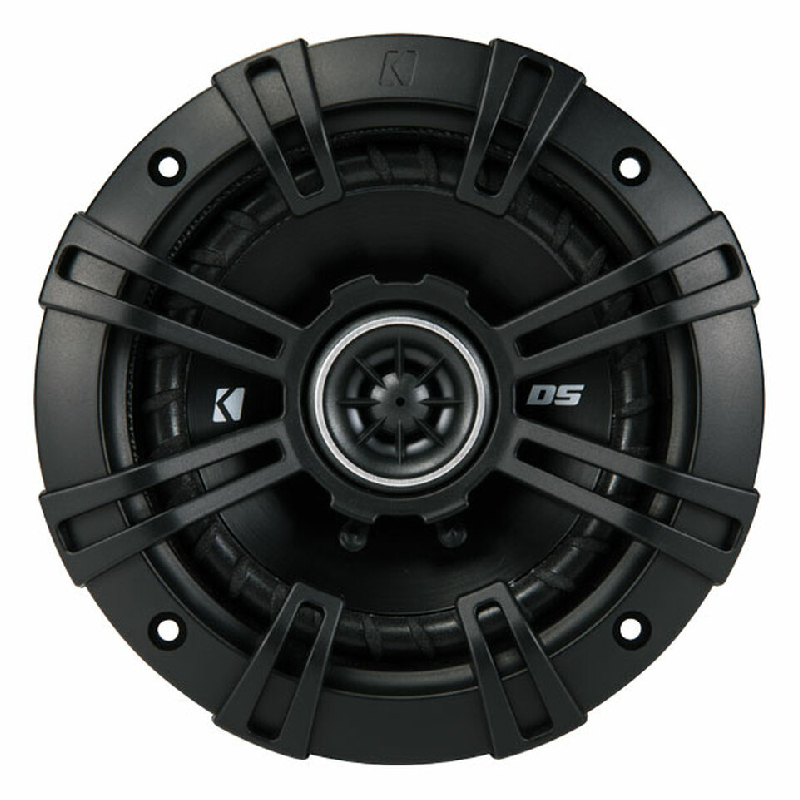

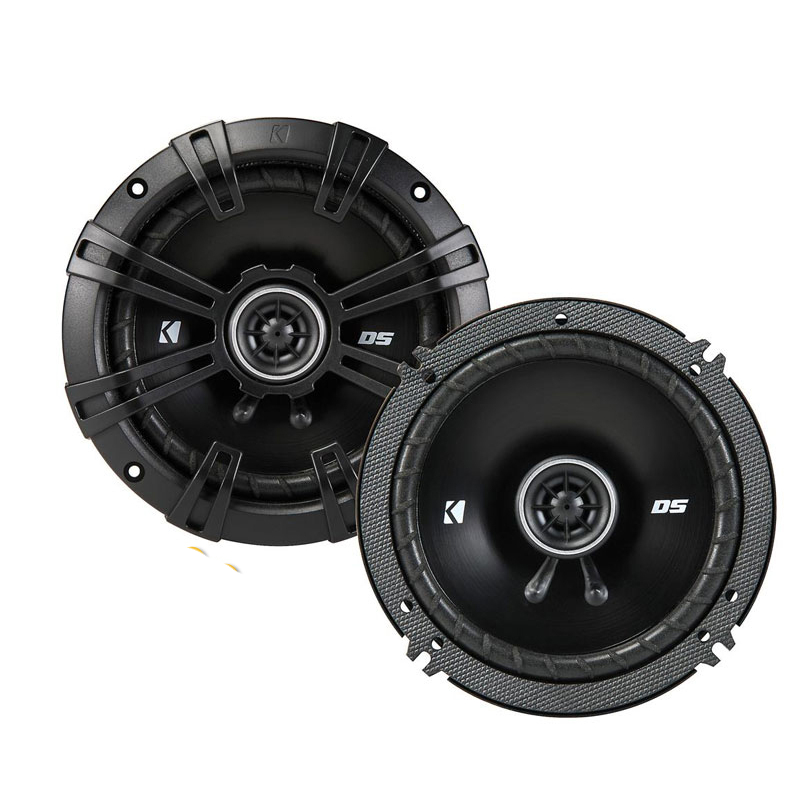

DS Series 6-1/2" 60W RMS (240W Peak Power Handling) 2-way 4 Ohm Car Speakers
Specifications:
- Woofer Surround: Polyester Foam
- Tweeter Composition: PEI
- Tweeter Design: 1/2" Balanced Dome
- Sensitivity: 90 dB at 1 watt
- Peak Power Handling (Watts): 240
- RMS Power Range (Watts): 60
- Design: 2-way
- Cutout Diameter or Length (inches): 4 7/8
- Impedance (Ohms): 4
- Woofer Composition: Polypropylene
- Frequency Response: 40 - 20k Hz
- Top-mount Depth (Inches): 1 13/16
- Bottom-mount Depth (Inches): 2 3/16

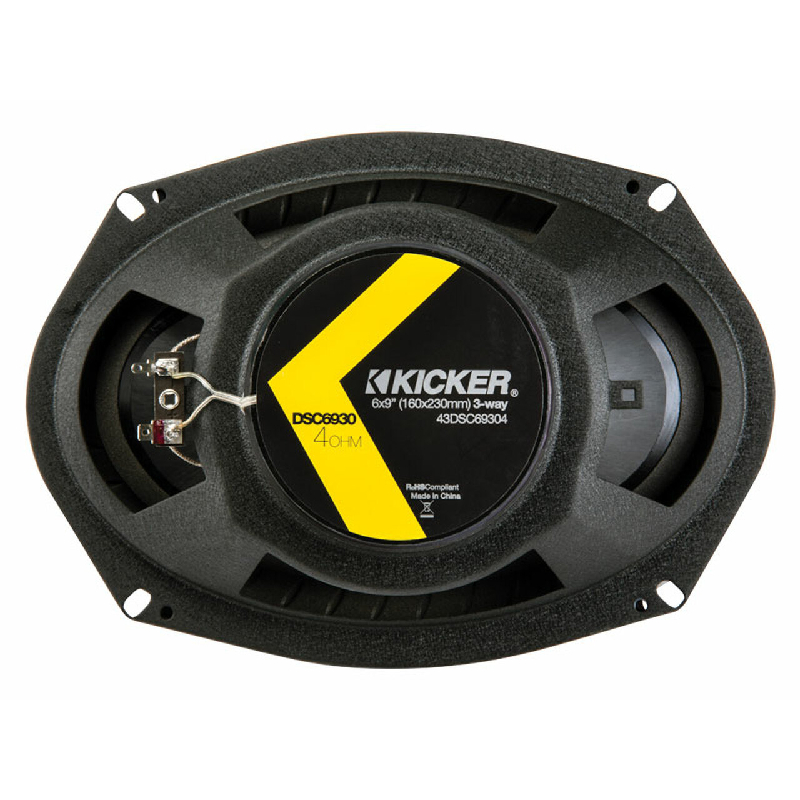

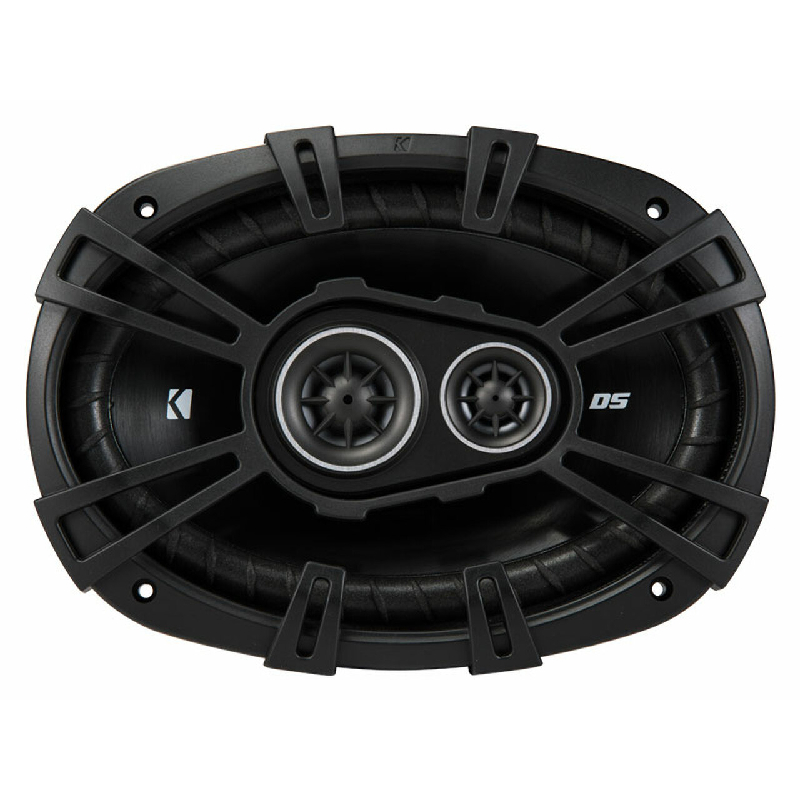

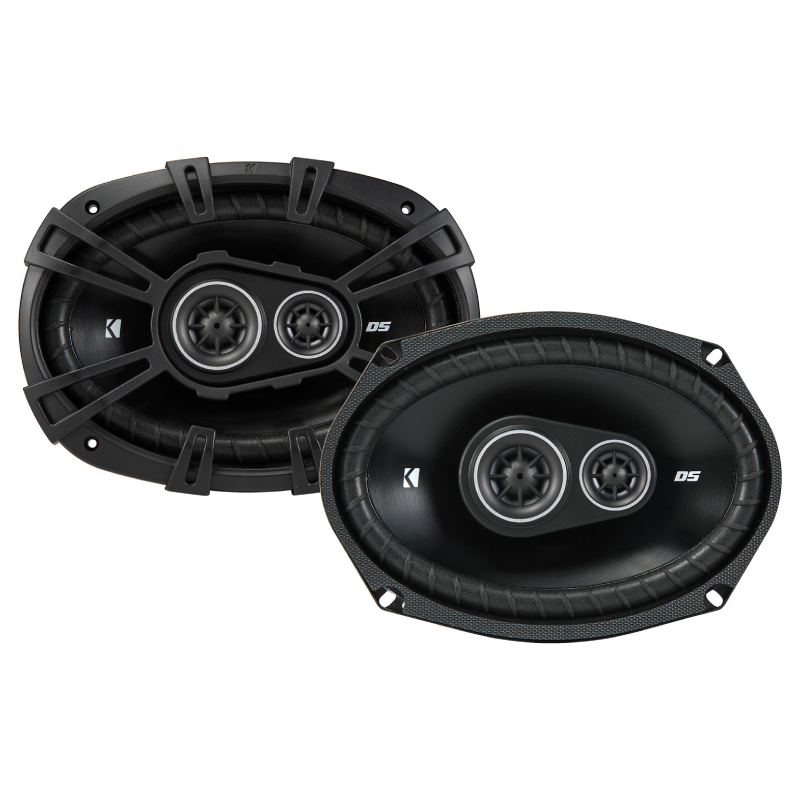

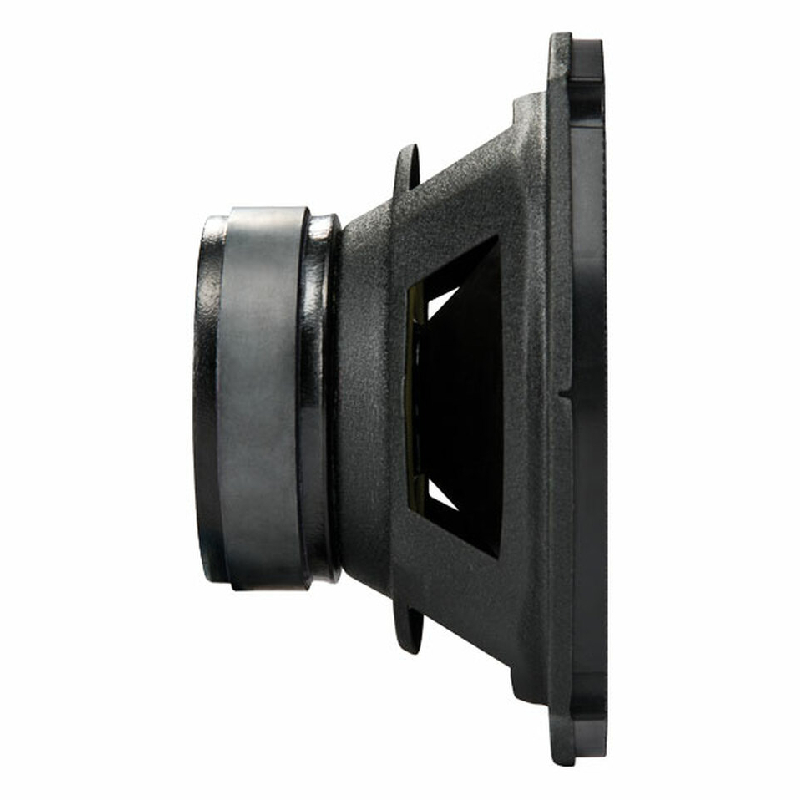

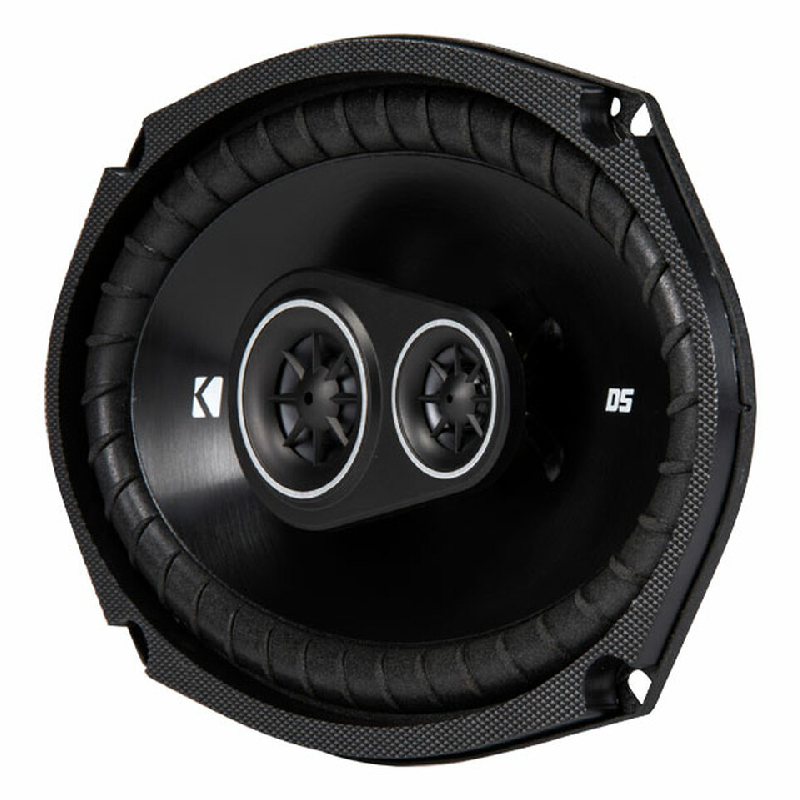

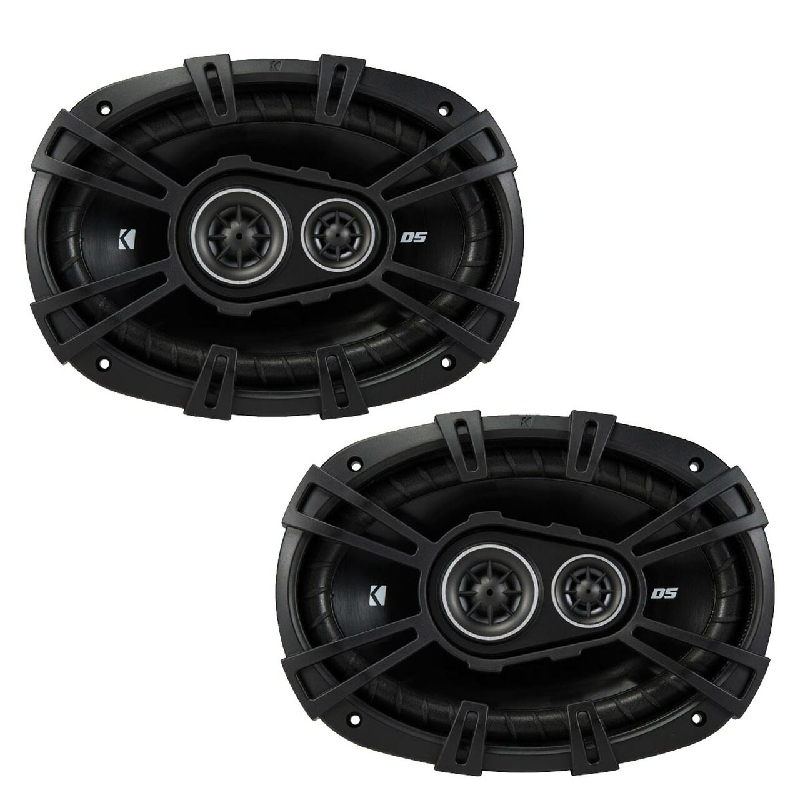

DS Series 6x9" 90W RMS (360W Peak Power Handling) 3-way 4 Ohm Coaxial Car Speakers
Specifications:
- Top-mount Depth (Inches): 3 1/4
- RMS Power Range (Watts): 90-180
- Woofer Composition: Polypropylene
- Tweeter Composition: PEI
- Sensitivity: 92 dB at 1 watt
- Peak Power Handling (Watts): 360
- Tweeter Design: 1/2" Balanced Dome
- Design: 3-way
- Woofer Surround: Polyester Foam
- Frequency Response: 30 - 20k Hz
- Impedance (Ohms): 4
- Bottom-mount Depth (Inches): 3 11/16
- UPC:
- Weight: 32
