JVC KD-X38MBS 1-DIN Digital Media Receiver Bluetooth, USB, with Variable-Color Illumination
We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • JVC KD-X38MBS Digital Media Receiver (10A fuse)
- • Quick Start Guide
- • Warranty Information
- • Wiring harness
Versatile Application
Receivers and amplifiers for marine and motor sports applications need to perform in harsh environments exposed to outdoor elements. JVC’s marine and motor sports receivers and amplifiers feature compact size for versatile installation even in tight spaces. Conformal coated main PCBs (printed circuit boards) offer additional protection against moisture and condensation from damaging the product.
4.0V High-Voltage 3 Pre-Outs / Conformal Coating
Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier. A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls. Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver. HFP 1.7 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.

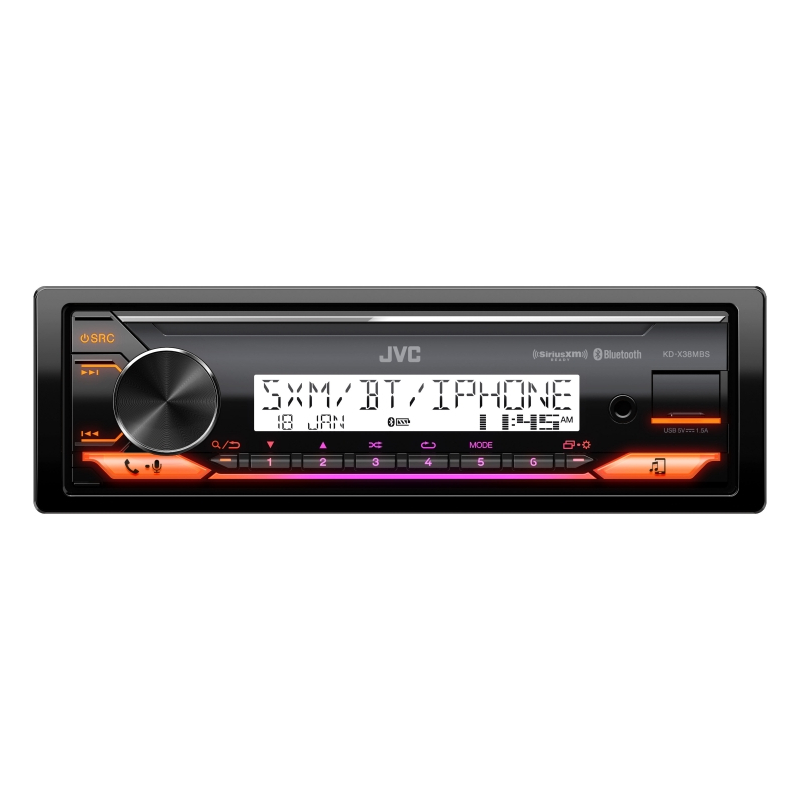

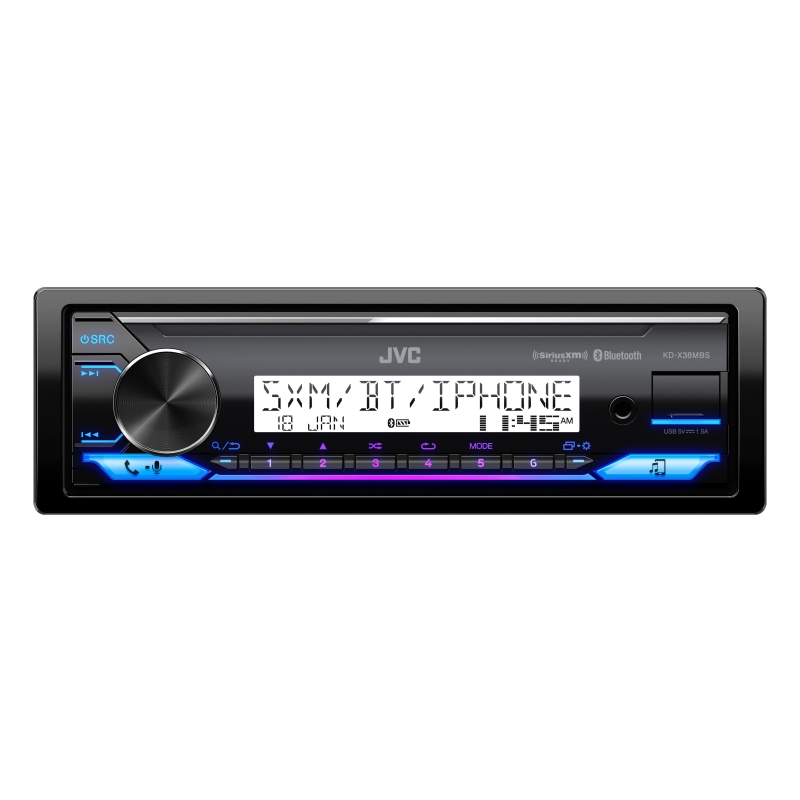

2-Zone Variable-Color Illumination
You can mix the front panel illumination into 2 separate color zones. 50 preset patterns (49 colors + 1 user color preset) are available for easy customization. In addition, manual setting is possible to set each RGB color by 32 steps, providing a total of 32,768 different colors for each zone, 1 and 2, to match your preferences. You can even enjoy moving illumination, selectable from 10 color animation patterns.
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
- Maximum Power : 50 Watts
- Satellite Radio Ready : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Front USB Input : 1
- Preamp Outputs : 6
Specifications:
- Display Type: 2-Line VA LCD Display
- LCD Color: Black
- Key Color: Variable Color
- Music Sync. Effect: Yes
- Spanish Text Display Compatible: Yes
- French Text Display Compatible: Yes
- Auto Dimmer: Yes
- Brightness Control: Yes
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Ver 4.2, Wired-Mic included)
- Hands Free Call: Yes (HFP 1.7.1)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes (AVRCP 1.6.1)
- Supported Audio Formats: AAC / SBC
- 5 BT-Audio Connection [JVC Streaming DJ]: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- iPhone & Android Automatic Pairing: Yes (iPhone only)
- Low Battery Information: Yes
Android Control
- Android Music Playback: Yes (via Bluetooth(R))
iPod/iPhone Control
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
USB
- Position: Front
- USB Power Supply: Yes (1.5A)
- Drive Change Mode for Mass Storage Class: Yes

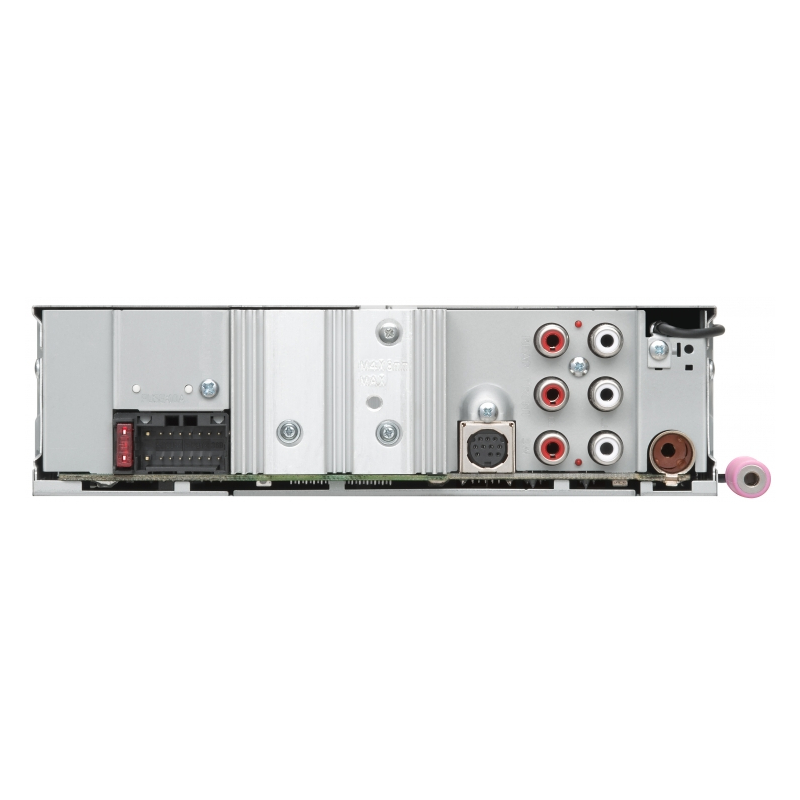

Inputs and Outputs
- AUX Input: 1 (Front)
- Line Output Terminals (Pair): 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level: 4.0V
- Subwoofer Output with Level/Frequency Control: Yes (Level -50 to +10)
- Subwoofer Output Level: 4.0V
Tuner
- SiriusXM Ready: Yes
- Radio Data Broadcast System (RBDS): Yes
- Preset Stations: 18FM + 6AM
- Strong Station Memory (for FM): Yes
- Radio Timer: Yes (once/Daily/Weekly)
- Tuner Preset Memory (for power disconnection): Yes
- Frequency Range (Frequency Step): 87.9 - 107.9MHz (200kHz)
- Frequency Range (Frequency Step): 530 - 1,700kHz (10kHz)
Audio
- Maximum Power Output: 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD): 22W x 4
- Subwoofer Direct Connection (Mono Lch): Yes
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (11-Preset)
- Bass Boost: Yes
- Loudness Control: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- K2 Technology: Yes
- Time Alignment: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
General
- Waterproof: Yes
- Shallow Chassis: Yes
- Back Up Memory: Yes
- Detachable Face Panel: Yes
- Wired Remote Control: Ready (RM-RK62M required)
- Steering Remote Control Ready: Yes
- Remote Control Application: Yes
- Antirust-coating for Marine: Yes
- Dimensions (W x H x D): Installation Size 7-3/16" x 2-1/16" x 3-15/16" (182 x 53 x 100mm)
- UPC:
- Weight: 6
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
