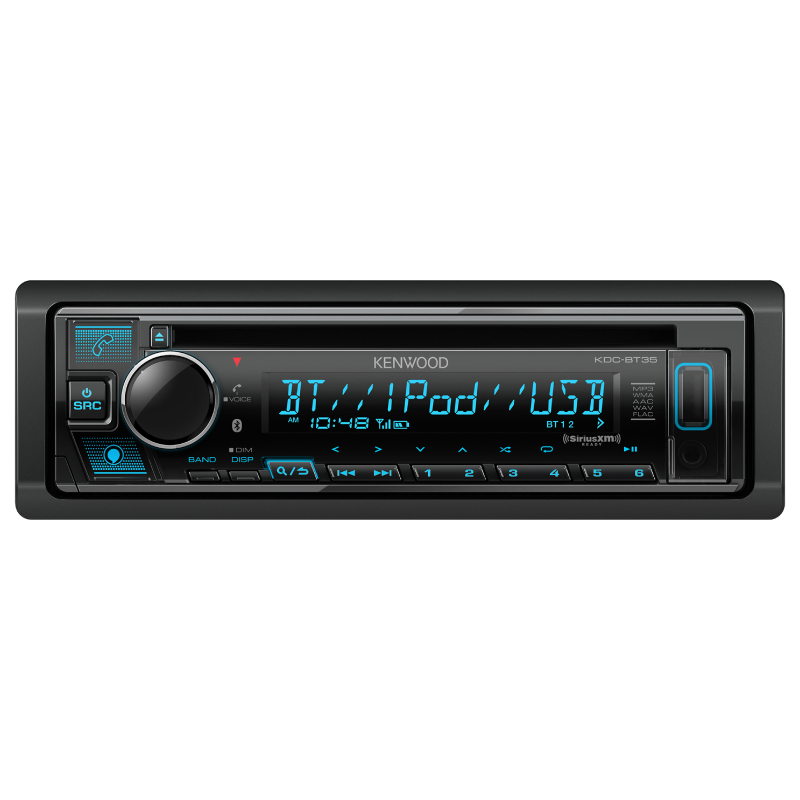

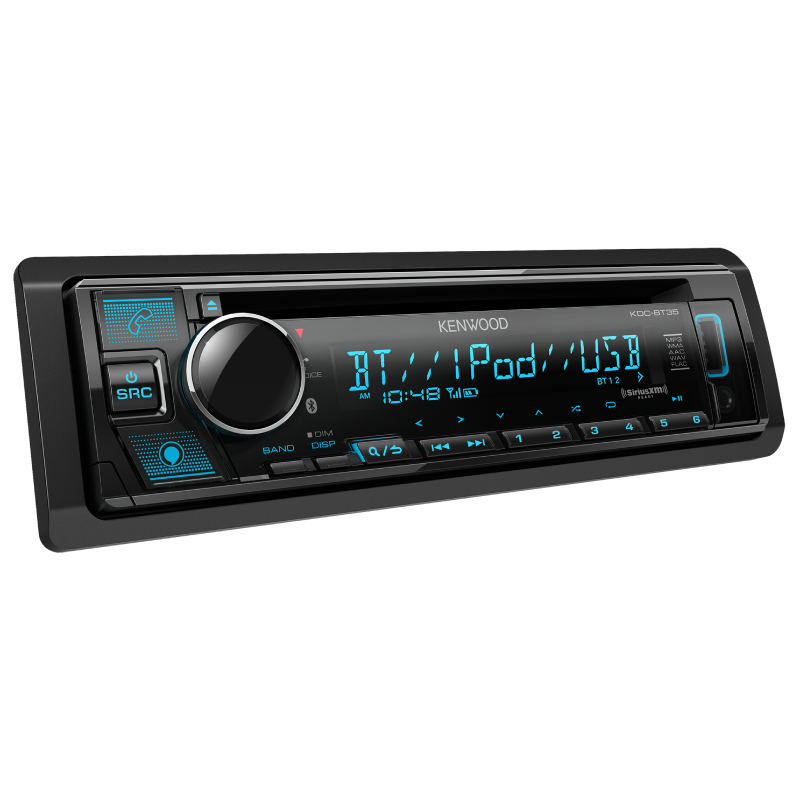

Kenwood  KDC-BT35

• Maximum Power : 200 Watts
• CD Text : Yes
• Satellite Radio Ready : Yes
• Subwoofer Preamp Outputs : Yes
• Built-in EQ : Yes
• DIN : 1
• Preamp Voltage : 2.5 volts
• Bluetooth : Yes
• Aux Input : Yes
• MP3 Playback : Yes
• WMA Playback : Yes
• Front USB Input : 1
• Preamp Outputs : 3

Features:

• Advanced Smartphone Integration: The KENWOOD KDC-BT35 revolutionizes in-car entertainment with its built-in Bluetooth, enabling hands-free calling and music streaming. The unique feature of using your smartphone as a wireless remote through the KENWOOD Remote app enhances user convenience. Additionally, the integration of Amazon Alexa mirrors the functionality of your home devices, offering voice-controlled navigation and entertainment right in your car.
• Superior Audio Experience: This receiver is a haven for sound quality enthusiasts. It supports various music formats, including high-resolution FLAC files, ensuring an exceptional listening experience. The KDC-BT35 also boasts a comprehensive EQ control, including a 13-band equalizer with Digital Time Alignment, allowing users to customize their audio experience to their preferences.

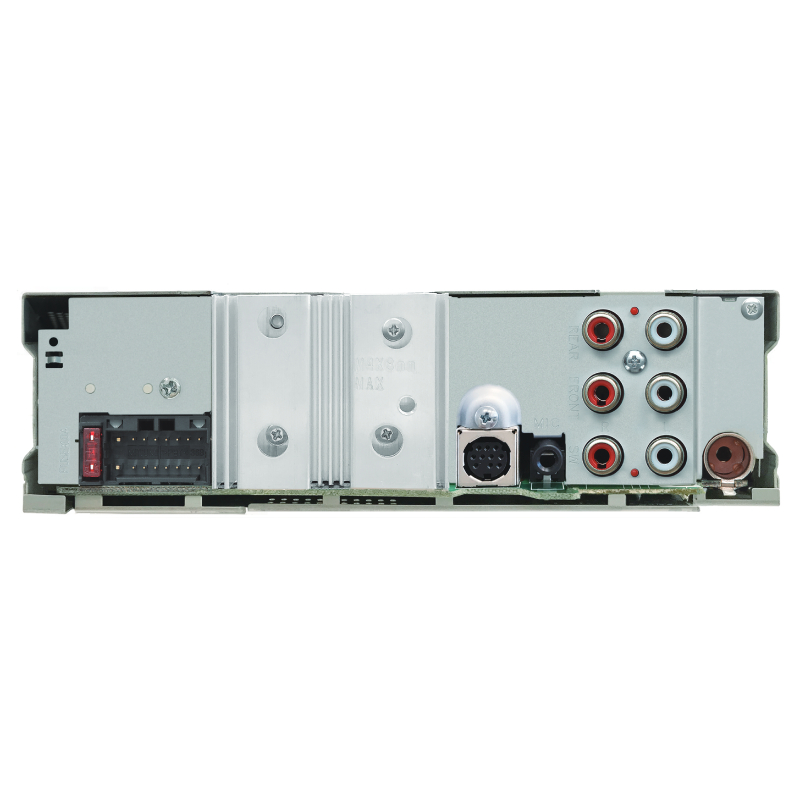

• Versatile Expandability Options: The KDC-BT35 is designed for easy system expansion. It features a front-panel USB port and an aux input, along with six 2.5-volt RCA preouts for connecting additional components like subwoofers. The inclusion of a high-quality external microphone and compatibility with SiriusXM Tuner broadens your audio sources, ensuring you're never short of entertainment options.
• User-Friendly Design and Multilingual Support: With a focus on user experience, the KDC-BT35 offers a multilingual interface, supporting English, Spanish, and French, catering to a diverse range of users. The sleek design, measuring 7-3/16" x 2-1/16" x 6-1/8" (182 x 53 x 155.5mm), ensures a perfect fit in a single DIN slot. The detachable faceplate feature adds an extra layer of security, making it an ideal choice for any vehicle.

Specifications:

FM

• Frequency Range(MHz) (Frequency step): 87.9MHz to 107.9MHz (200kHz)
• Usable Sensitivity S/N:30dB: 8.2dBf (0.71μV/75Ω)
• Quieting Sensitivity DIN S/N:46dB: 17.2dBf (2.0μV/75Ω)
• Frequency Response (±3.0dB): 30Hz to 15kHz
• S/N(dB): 64.0dB(MONO)
• Stereo Separation: 40dB(1kHz)

MW(AM)

• Frequency Range(kHz)(Frequency step): 530kHz to 1700kHz (10kHz)
• Usable Sensitivity (S/N 20dB): 29dBμ (28.2μV)

CD

• Laser Diode: GaAlAs
• Digital Filter(D/A): 8 Times Oversampling
• Spindle Speed: 500 to 200rpm (CLV)
• Wow & Flutter: Below Measurable Limit
• Frequency Response: 20Hz to 20kHz(±1dB)
• Total Harmonic Distortion: 0.01%(1kHz)
• S/N Ratio (dB): 94dB(1kHz)
• Dynamic Range: 92dB
• Channel Separation: 90dB
• MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode: Compliant with WINDOWS MEDIA AUDIO
• AAC Decode: AAC-LC ".aac" files
• WAV Decode: -
• Preout Level(mV)/Load-Unbalanced:  2,500mV/10kΩ
• Preout Impedance(Ω): =<600Ω
• Speaker Impedance(Ω): 4 to 8Ω

USB I/F

• USB: USB 1.1 / 2.0 High Speed
• File System: FAT12 / 16 / 32
• Maximum Supply current: DC5V(DC logo) 1.5A
• Frequency Response: 20Hz to 20kHz(±1dB)
• S/N Ratio (dB): 98dB(1kHz)
• Dynamic Range: 93dB
• Channel Separation: 89dB
• MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode: Compliant with Windows Media Audio
• AAC Decode: AAC-LC ".aac",".m4a" files
• WAV Decode: Linear-PCM
• FLAC Decode: FLAC file (Up to 24bit/96kHz)

AUX

• Input: Frequency Response 20Hz to 20kHz ±3dB
• Input Maximum Voltage: 1,000mV
• Input Impedance: 30kΩ

AMP

• Maximum Power: 50Wx4
• Full Bandwidth Power (at less than 1%THD): 22Wx4

TONE

• Band1: 62.5Hz ±9dB
• Band2: 100Hz ±9dB
• Band3: 160Hz ±9dB
• Band4: 250Hz ±9dB
• Band5: 400Hz ±9dB
• Band6: 630Hz ±9dB
• Band7: 1kHz ±9dB
• Band8: 1.6kHz ±9dB
• Band9: 2.5kHz ±9dB
• Band10: 4kHz ±9dB
• Band11: 6.3kHz ±9dB
• Band12: 10kHz ±9dB
• Band13: 16kHz ±9dB

Bluetooth

• Version: Bluetooth 4.2
• Frequency Range: 2.402 to 2.480GHz
• RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
• Maximum Communication range: Line of sight approx.10m(32.8ft)
• Profile
• HFP 1.7.1 (Hands Free Profile)
• SPP(Serial Port Profile)
• PBAP(Phonebook Access Profile)
• A2DP(Advanced Audio Distribution Profile)
• AVRCP 1.6.1 (Audio/Video Remote Control Profile)

GENE

• Operating voltage: 12V DC car battery
• Installation Size(W)(H)(D): 182(mm) 7-3/16(in) X 53(mm) 2-1/16(in) X 155.5(mm) 6-1/8(in)
• (Trim plate and Mounting sleeve: Included)

• UPC: 0019048233653
• Weight: 7
