Kenwood KSC-PSW7EQ 20x13cm Compact Powered Subwoofer with Built-in Class D Amplifier 160W Max Power, Remote Control including EQ adjustment
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Compact Powered Subwoofer
- • Owner's Manual
New Diaphragm Speaker
The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm. This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.
- Maximum Power : 160 Watts
- Impedance : 1 Ohm
- Frequency Response : 40-200 Hz
Features:
- MAX Power 160W
- Wired Remote Controller
- ACTIVE EQ TECHNOLOGY Switch
- Class D Amplifier
- (W)280mm x (H)70mm x (D)200mm
Specifications:
Amplifier
- Class D: Yes
- Maximum Output Power (W): 160W
- Signal to Noise Ratio (1ohm at 14.4V): 90dB
- Input Impedance: RCA 22k ohm / Speaker 10k ohm
- Sensitivity: RCA Voltage 20mV / Speaker Voltage 0.4mV
- Signal Sensing Turn On(Speaker Level Input): Yes
- Automatic input swiching (Speaker Level or RCA): Yes
- Fuse(Battery Cord): 10A
- Operating Voltage: DC 14.4V (11V~16V)
- Maximum Current Consumption: 5.9A
Speaker (System)
- Woofer Size: 20 x 13cm
- Cap Material: Aluminum
- Surround Material: Urethane
- Impedance: 1Ω
- Frequency Response: 40Hz-200Hz(-15dB)
- Sensitivity: 89dB

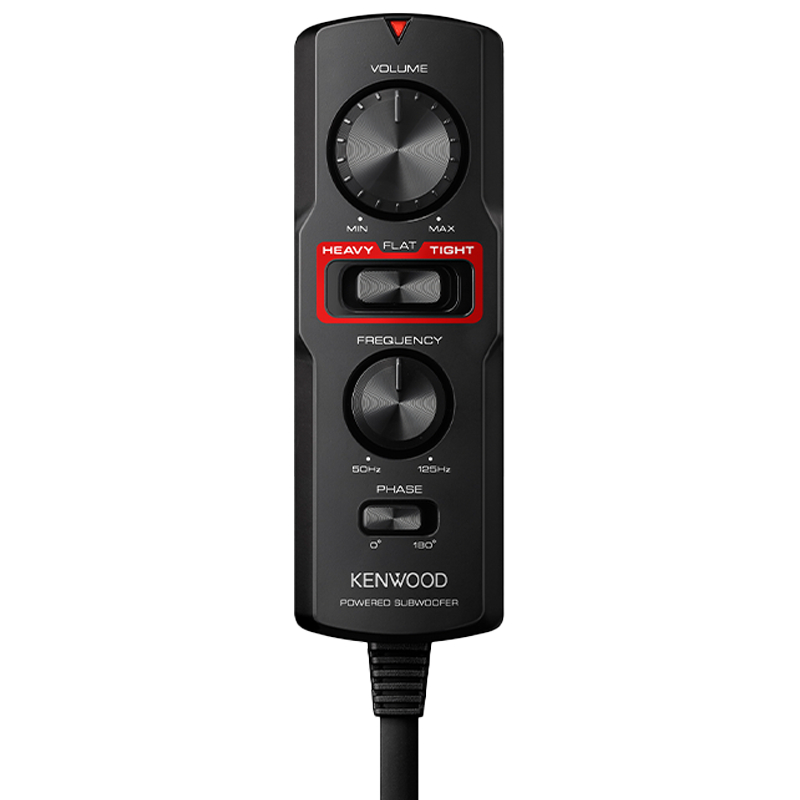

Audio Section(Wired Remote Controller)
- Gain Control (VOLUME) Variable: -∞ - 0dB
- Low-Pass Filter (FREQUENCY) Variable: 50Hz - 125Hz, -18dB/oct
- Phase Control (PHASE) Switched: 0° - 180°
- ACTIVE EQ TECHINOLOGY
- HEAVY
- TIGHT
- FLAT(w/o HEAVY/TIGHT effect mode.)
Dimension / Weight
- Width: 280mm
- Height: 70mm
- Depth: 200mm
- WEIGHT: 2.6kg
Accessory
- Cables w/ Connector
- Battery Cord: 5.0m 18AWG
- Battery Fuse: 10A
- GND: 1.5m 18AWG
- RCAInput (Female): 0.7m
- P-CON: 5.0m 20AWG
- Speaker Level Input (SP) with RCA (Male: 4.3m 18AWG
- Remote Controller (Wired): 5.0m
- Mounting Bracket: 2pcs
- Cord Crump: 1pc
- Screw
- Tapping Screw for Bracket: 2pcs Φ5 x 16mm
- Tapping Screw between Under Case and Bracket: 2pcs Φ5 x 12mm
- Tapping Screw for Cord Cramp: 2pcs Φ3 x 10mm
- Double-faced tape for Wired Remote Controller: 1pc
- Warranty Card: 1pc
- Instruction Manual: 4pcs
- UPC: 0019048235312
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
