Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

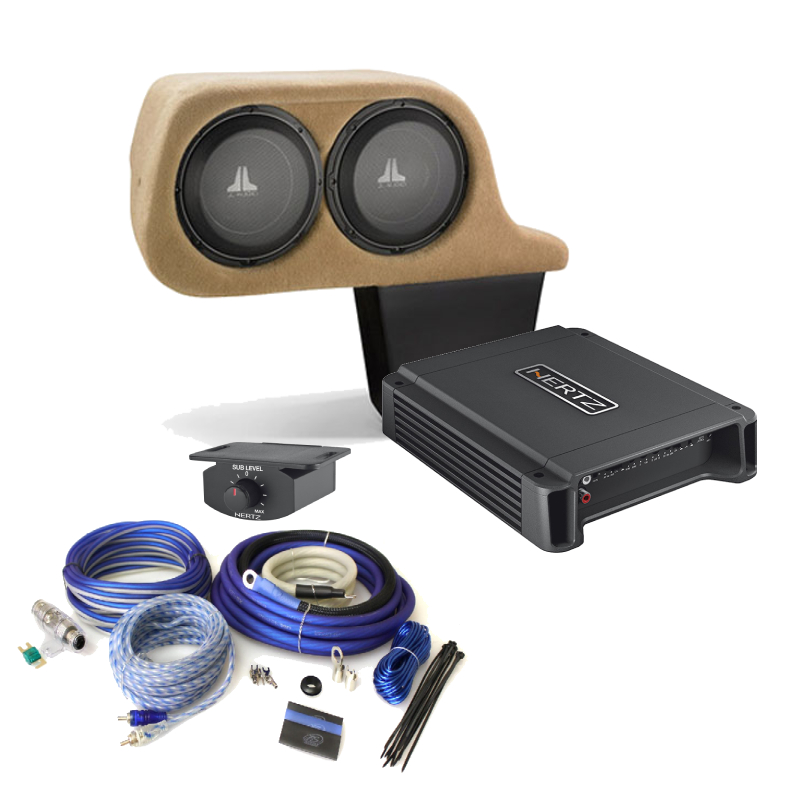

SB-GM-ESCESV/10W1V3/DG-Bundle5 includes JL Audio SB-GM-ESCESV/10W1V3/DG 10" Enclosure Subwoofer + Hertz HCP 1D Monoblock Subwoofer Amp + XS Power AKXS4-1 Amp Kit + Hertz HRC Sub Volume Remote Control
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • JL Audio SB-GM-ESCESV/10W1V3/DG
- • Hertz HCP 1D
- • XS Power AKXS4-1
- • Hertz HRC

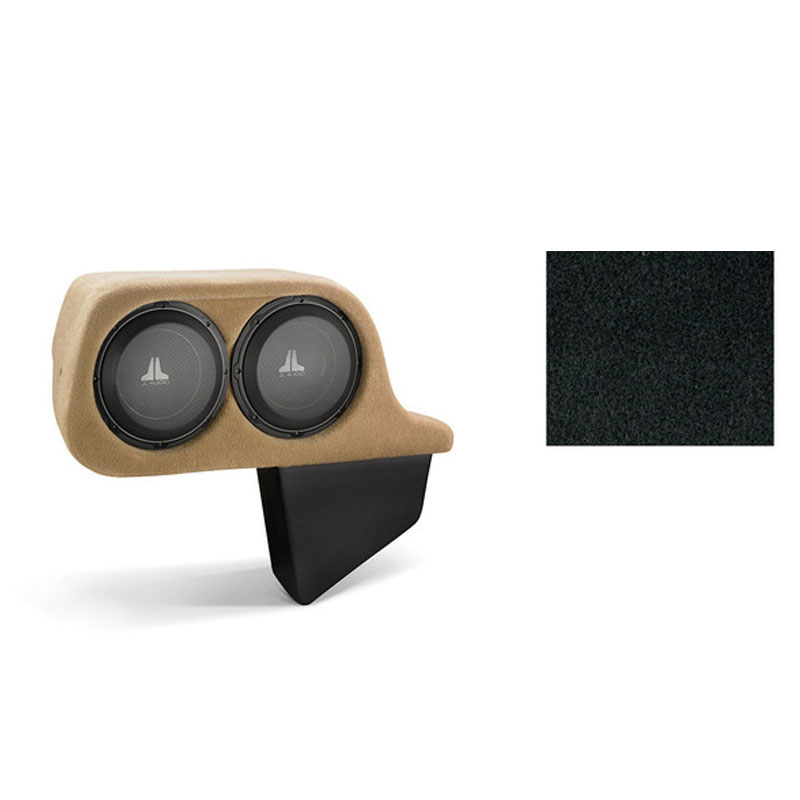

JL Audio SB-GM-ESCESV/10W1v3/DG Stealthbox® 10" Two 10W1v3-4 300W RMS (600W Peak Power Handling) 4 Ohm Mono Voice Coil Sealed Enclosure Subwoofer
The centerpiece of any serious audio upgrade is an outstanding subwoofer system. For GM's big SUV's, JL Audio now offer this powerful solution that fits all versions, including the luxurious Denali and Escalade models. Featuring a potent pair of 10-inch subwoofer drivers in a sealed enclosure, these rear-mounted Stealthbox® systems have the muscle to fill that big space with clean, powerful JL Audio bass performance.

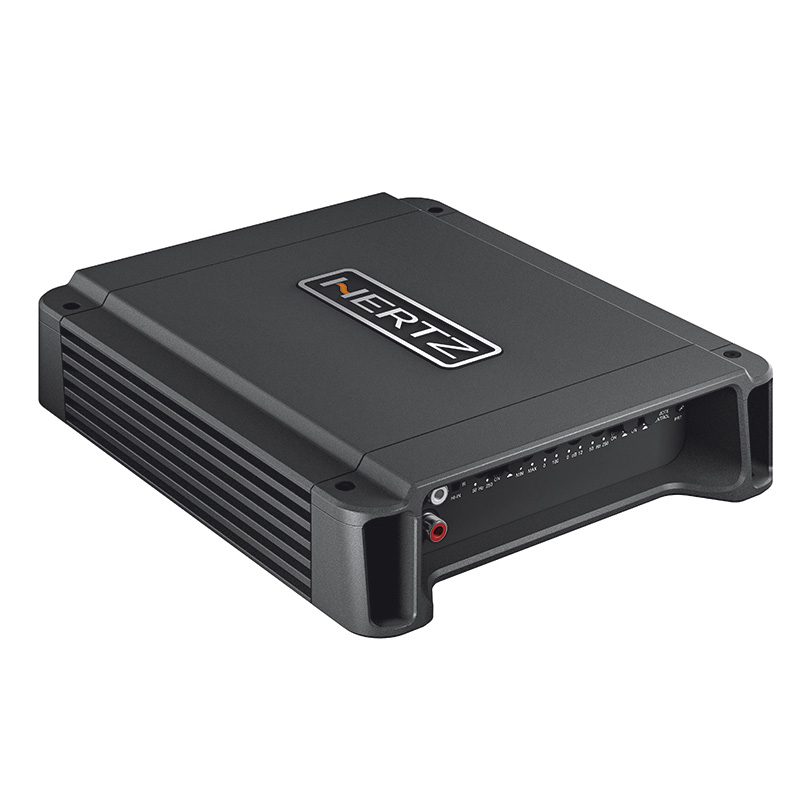

Hertz HCP 1D 500Wx1 RMS @ 2 ohms, Class D Mono Subwoofer Amplifier
HCP 1D is a mono D Class car audio amplifier , with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. HCP 1D has been designed to work in multiple configurations. More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer. Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.
XS Power AKXS4-1 XS Flex 4 AWG Amp Kit
This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly. Please see the steps below that will help to facilitate a fast, safe and easy installation of your new battery and cables.

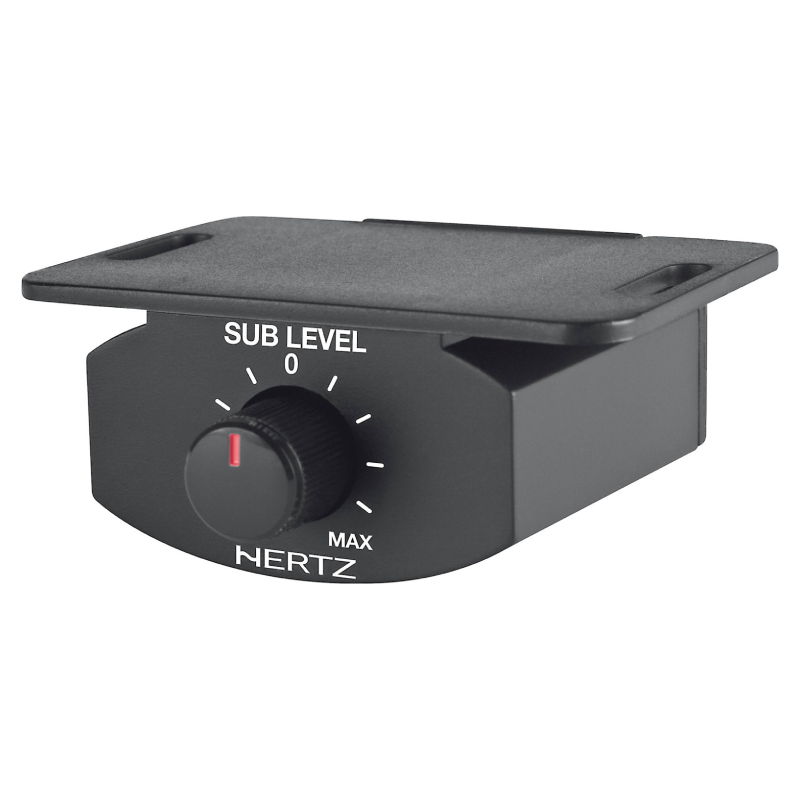

Hertz HRC Sub Volume Remote Control
Hertz' HRC wired remote control gives you the ability to control your sub's volume from the driver's seat. Works with Hertz HCP 1D, HCP 1DK, and HCP 5D amplifiers.
SB-GM-ESCESV/10W1v3/DG Stealthbox Series 10" 300W RMS (600W Peak Power Handling) 4 Ohms Single Voice Coil Sealed Enclosure Subwoofer
Features:
-
- Matching Amplifier: JL Audio XD600/1v2
- Recommended power range: 150 - 600 watts RMS
- Color Match Grade: Good
- Will not fit models without Power Liftgate option
- Also available in the following OEM Colors:
- Side-firing design
- Elevated frame cooling enhances power and sound quality
- Insert Molded Suspension / Coil / Terminal Sub-Assembly
- Sealed enclosure
- Binding post terminals for secure and sturdy connection and installation
- OEM Color: Ebony
- Injection molded, mica-filled polypropylene cone
- Power Handling:RMS: 600 watts total / 300 watts each
- Wired to a 2 ohm load
- Two JL Audio 10W1v3-4 Subwoofer
- Rubber surround
- DMA-optimized motor design
- Patented "floating cone attach method" technology
- Vented Reinforcement Collar
- Engineered Lead-Wire System
- Xmax: 11.0 mm
- Sensitivity: 84.2 dB
- For 2007-Up Chevrolet / GMC Extended Wheelbase SUV's & Cadillac Escalade ESV with Power Liftgate and Ebony interior
- Steel mesh grilles included

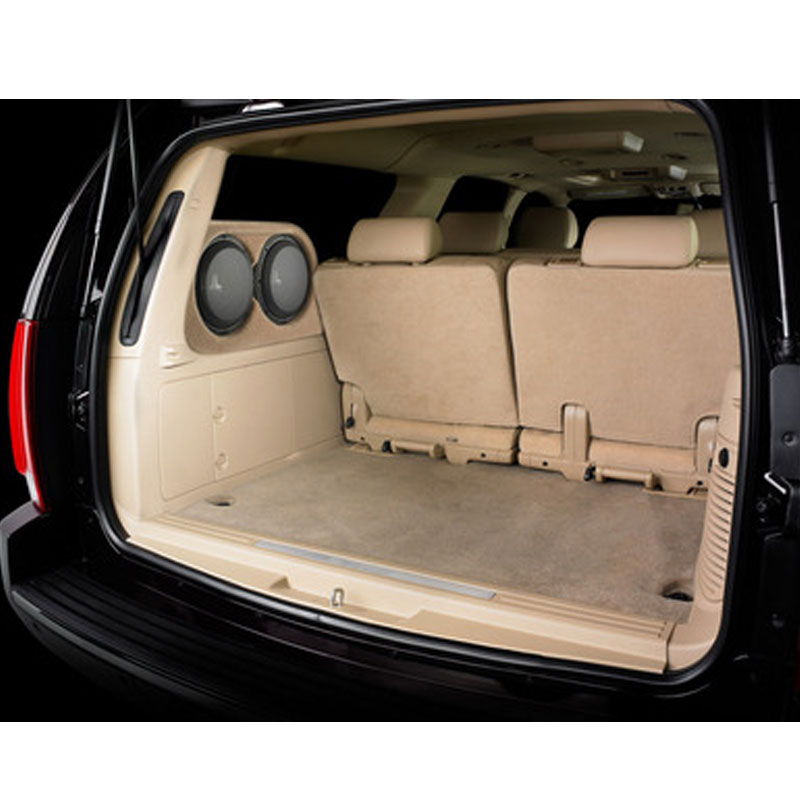

- Stealthbox® Installs on the driver side rear window ledge
- Will not fit regular wheelbase Chevrolet & GMC SUV's
- Light Cashmere: JL Audio SB-GM-ESCESV/10W1v3/TN
- Light Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA
- Dark Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA2
Specifications:
-
- Diameter : 10 Inch
- Impedance : 4 Ohm
- RMS Power Output : 300 Watts
- Speaker Size : 10 Inches
- Number Of Subwoofers : 2
- Vehicle Make : Cadillac
- Vehicle Make : Chevrolet
- Vehicle Make : GMC

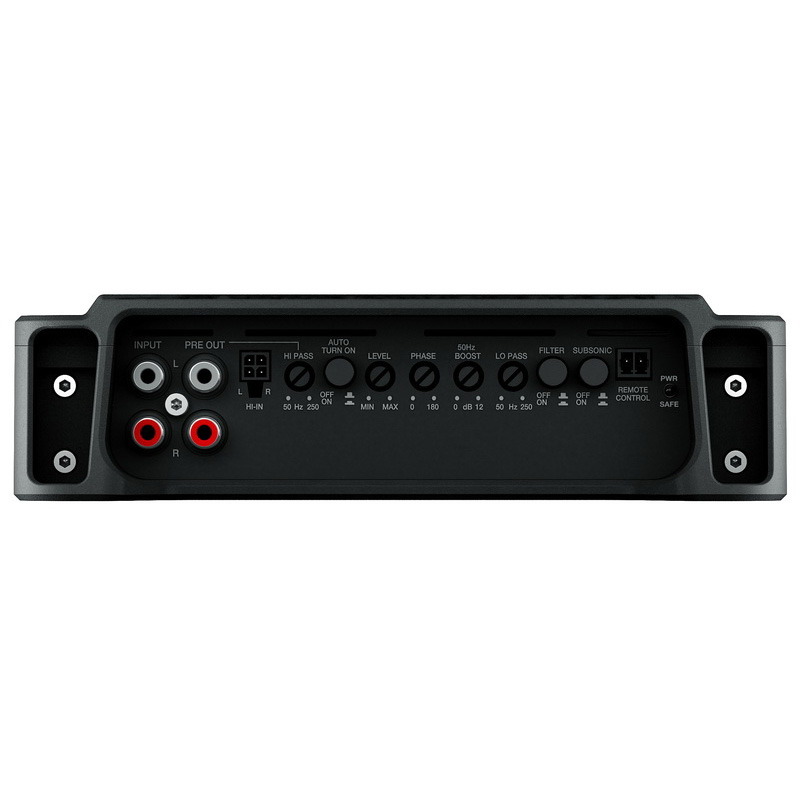

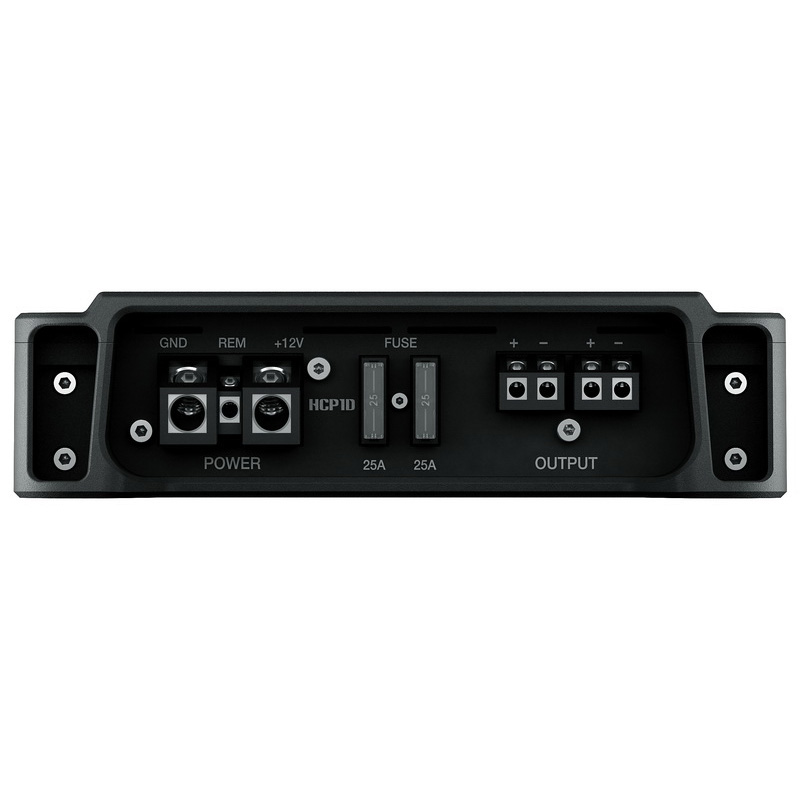

HCP 1D 500Wx1 RMS @ 2 ohms, Class D Monoblock Subwoofer Amplifier
Features:
- Compact design built from extruded aluminum heatsink with the top side ensuring effective transfer of the heat.
- Special balanced high-noise rejection input circuitry on the Pre-In or Speaker-In inputs.
- Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units) inputs.
- Selectable ART, Automatic Remote Turn-On/Off function, automatically turns on and off the amplifier when the OEM radio turns on and off (can be enabled/disabled, with only Speaker-In inputs).
- Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 ohm stable output stage.
- Pre-outs, also available when using Speaker-In level inputs, equipped with Hi-Pass filter with adjustable 12 dB/Oct. slope with continuity between 50 and 250 Hz, providing the ability to create Front + Sub multi-amplification active systems.
- Selectable full range power output, for dual-mono powerful audio systems.
- Bass Boost (50 Hz) adjustable to 12 dB, to increase the subwoofer punch.
- 24 dB continuous adjustable (50 to 250 Hz) Lo-Pass filter.
- SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signal to prevent damage to the subwoofer.
- Continuous adjustable PHASE control (0 to 180°); it optimizes alignment of woofer bass frequencies with sub ones.
- Optional Remote Volume Control (HRC); providing the ability to adjust subwoofer volume level from the dashboard.
Specifications:
- Channel mode: 1
- Output Power (RMS) @ 14.4 VDC
- 1 Ch: 380 W x 1 (4 ohms)
- 1 Ch: 700 W x 1 (2 ohms)
- Filters
- Bypass: Yes
- Hi-Pass: ---
- Lo-Pass: 50 ÷ 250 Hz @ 24 dB/Oct.
- Band-Pass: ---
- Subsonic: 25 Hz @ 24 dB/Oct.
- Distortion - THD (100Hz @ 4 ohms): 0.2%
- S/N Ratio (A weighted @ 1V): 100 dB
- Damping factor (100Hz @ 4 ohms): 80
- Size W x D x H mm (in.): 215 x 190 x 50 (8.46 x 7.48 x 1.97)
AKXS4-1 Amp Kit, XS Flex 4 AWG 100% Copper Wiring, Power Cable, Speaker Cable, Signal and Remote
Specification:
- 100% Copper Wiring
- Weight Lbs. – 5.5
- Weight Kgs. – 2.49
- Length – 9.75 in
- Height – 11 in
- Width – 2.5 in

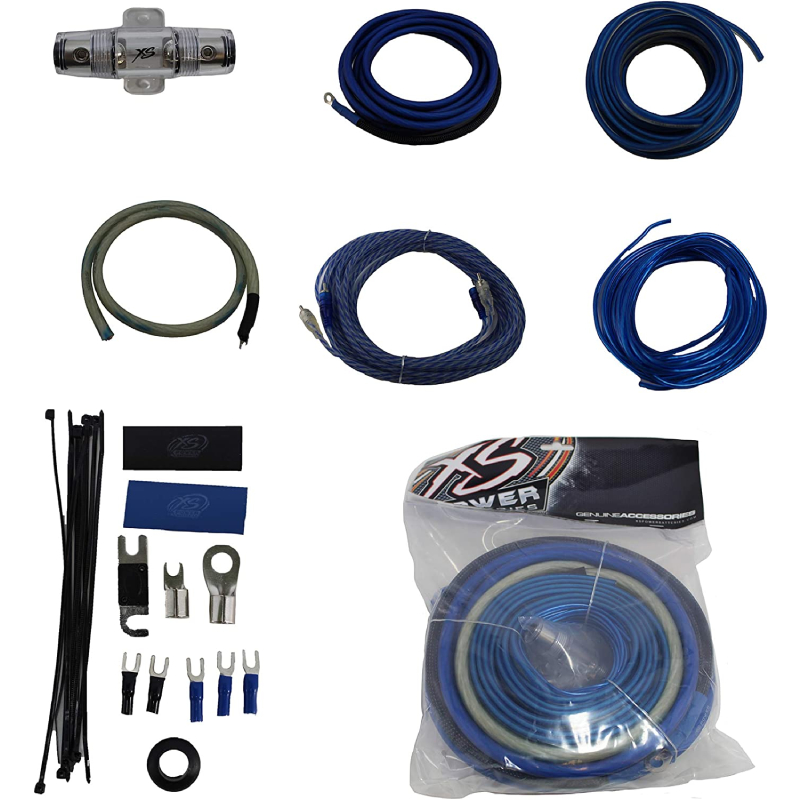

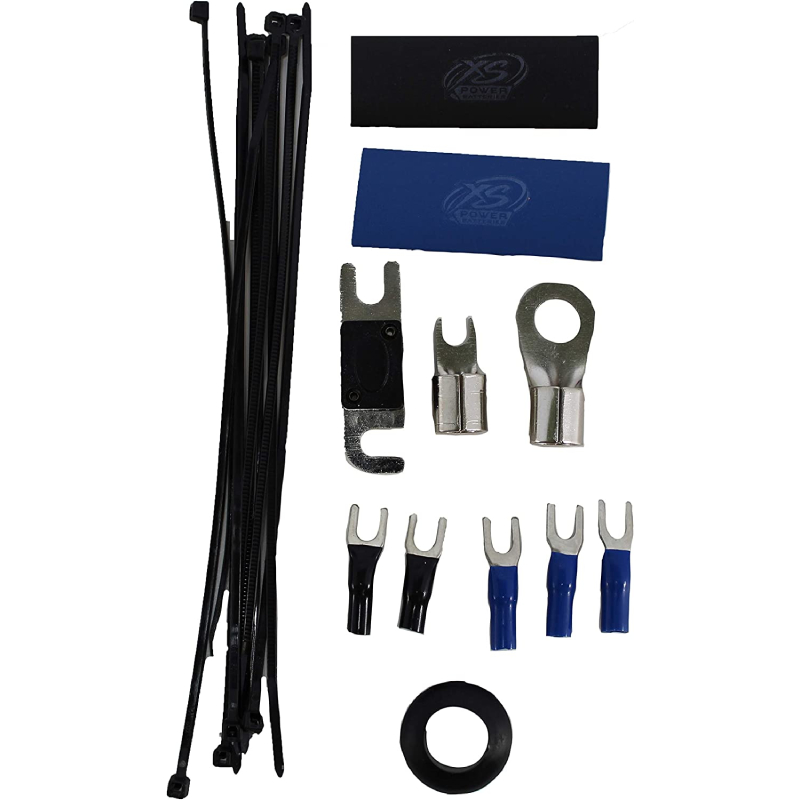

Kit Contents:
- 1qty - 17ft 4AWG XSFLEX BL Cable
- 1qty - 3ft 4AWG XSFLEX CLR Ground Cable
- 1qty - 17ft 18G BL Remote Cable
- 1qty - 25ft 14G Frosted Clear/Blue Speaker Wire
- 1qty - 17ft Triple Shielded Twisted Pair RCA Cables
- 1qty - Mini ANL Fuse Holder
- 1qty - 120A Mini ANL Fuse
- 2qty - Plaite Braid Tube in BK
- 2qty - 4AWG Ring Terminal/Seamless/BL
- 2qty - 4AWG Spade Terminal/BK
- 2qty - 14G Spade Terminals/BK
- 3qty - 14G Spade Terminals/BL
- 1qty - 1/2" Firewall Grommet
- 10qty - 6" Zip Ties
HRC Sub Volume Remote Control
Features:
- HRC Sub volume remote control
- 19.5' Cable (RJ-14 modular plug on one end and bare wire on other end)
Specifications:
- Hertz Remote Control knob
- for Herz HCP subwoofer amps
- adjustment range: -50 to +6 dB
- UPC: 798418839083
- Weight: 67
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
