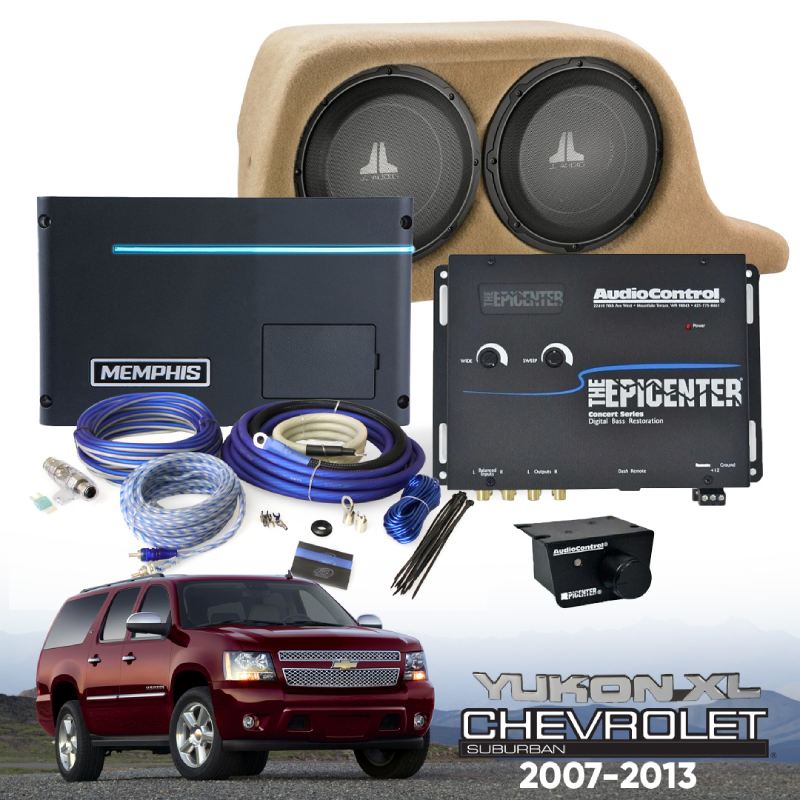

What's Inside?
- JL AUDIO SB-GM-ESCESV/10W1V3/DG
- MEMPHIS AUDIO PRXA600.1
- XS POWER AKXS4-1
- AudioControl EPICENTER-BLACK

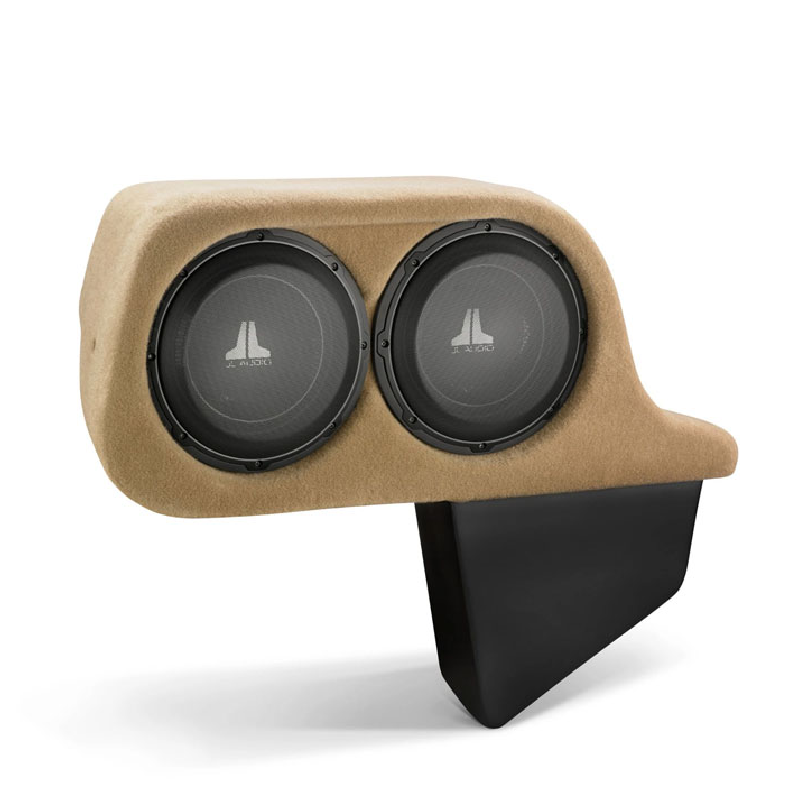

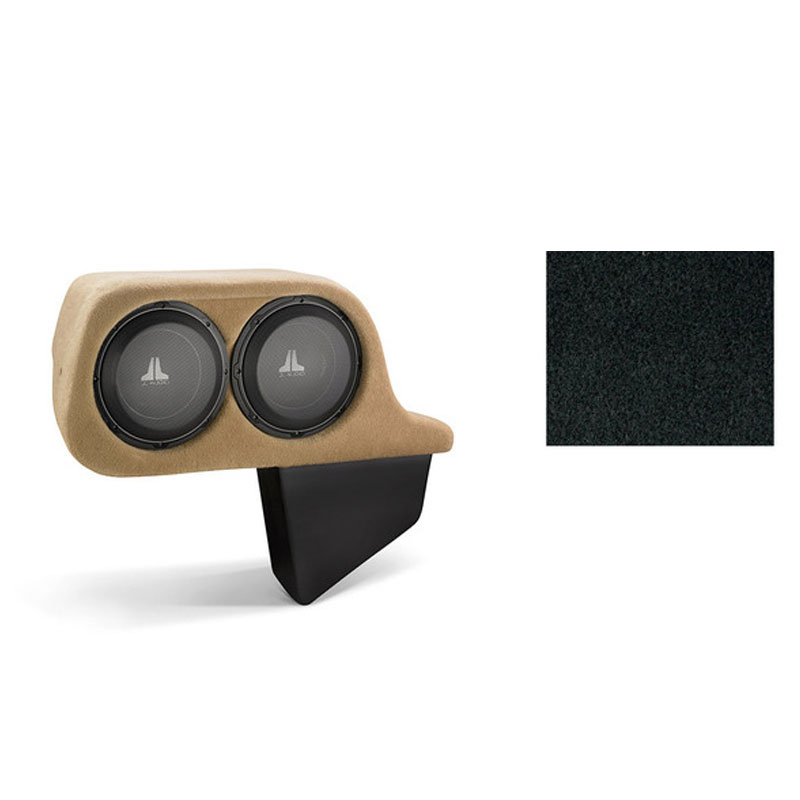

SB-GM-ESCESV/10W1v3/DG Stealthbox® 10" Two 10W1v3-4 300W RMS (600W Peak Power Handling) Single 4 Ohm Voice Coil for 2007-2013 Chevrolet / GMC Extended Wheelbase SUV’s & Cadillac Escalade ESV with Power Liftgate and Ebony interior
The centerpiece of any serious audio upgrade is an outstanding subwoofer system. For GM's big SUV's, we now offer this powerful solution that fits all versions, including the luxurious Denali and Escalade models. Featuring a potent pair of 10-inch subwoofer drivers in a sealed enclosure, these rear-mounted Stealthbox® systems have the muscle to fill that big space with clean, powerful JL Audio bass performance.

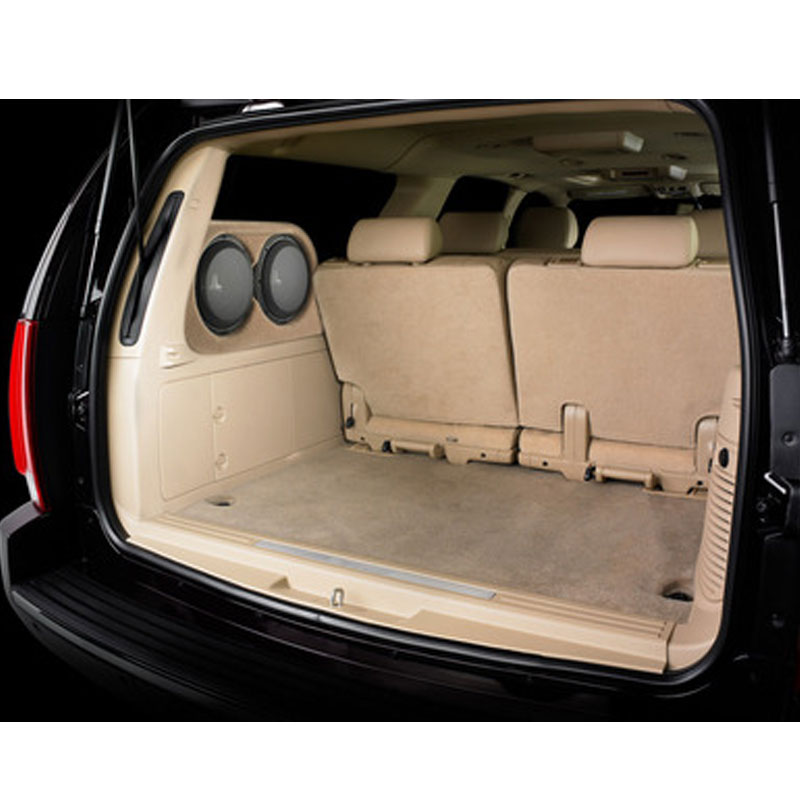

The clever design places the enclosure off the floor so that it doesn't take up any useful cargo or people space and the enclosure is positioned so that it will not affect the driver's visibility one bit. The only thing you will be giving up is that weak factory bass performance.
Please note that specific versions are available for the regular and extended wheelbase versions of these vehicles!
The Hard Data: Contains two 10W1v3-4 in a sealed enclosure. 600 watt power handling. Wired for 2 ohm mono. Installs on the driver side rear window ledge. Steel mesh grilles are included to protect the subwoofer drivers. Will not fit regular wheelbase Chevrolet & GMC SUV's. Will not fit models without Power Liftgate option. Installation requires relocation of jack.
Features:
- Matching Amplifier: JL Audio XD600/1v2
- Recommended power range: 150 - 600 watts RMS
- Color Match Grade: Good
- Will not fit models without Power Liftgate option
- Also available in the following OEM Colors:
- Side-firing design
- Elevated frame cooling enhances power and sound quality
- Insert Molded Suspension / Coil / Terminal Sub-Assembly
- Sealed enclosure
- Binding post terminals for secure and sturdy connection and installation
- OEM Color: Ebony
- Injection molded, mica-filled polypropylene cone
- Power Handling:RMS: 600 watts total / 300 watts each
- Wired to a 2 ohm load
- Two JL Audio 10W1v3-4 Subwoofer
- Rubber surround
- DMA-optimized motor design
- Patented "floating cone attach method" technology
- Vented Reinforcement Collar
- Engineered Lead-Wire System
- Xmax: 11.0 mm
- Sensitivity: 84.2 dB
- For 2007-Up Chevrolet / GMC Extended Wheelbase SUV's & Cadillac Escalade ESV with Power Liftgate and Ebony interior
- Steel mesh grilles included
- Stealthbox® Installs on the driver side rear window ledge
- Will not fit regular wheelbase Chevrolet & GMC SUV's
- Light Cashmere: JL Audio SB-GM-ESCESV/10W1v3/TN
- Light Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA
- Dark Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA2

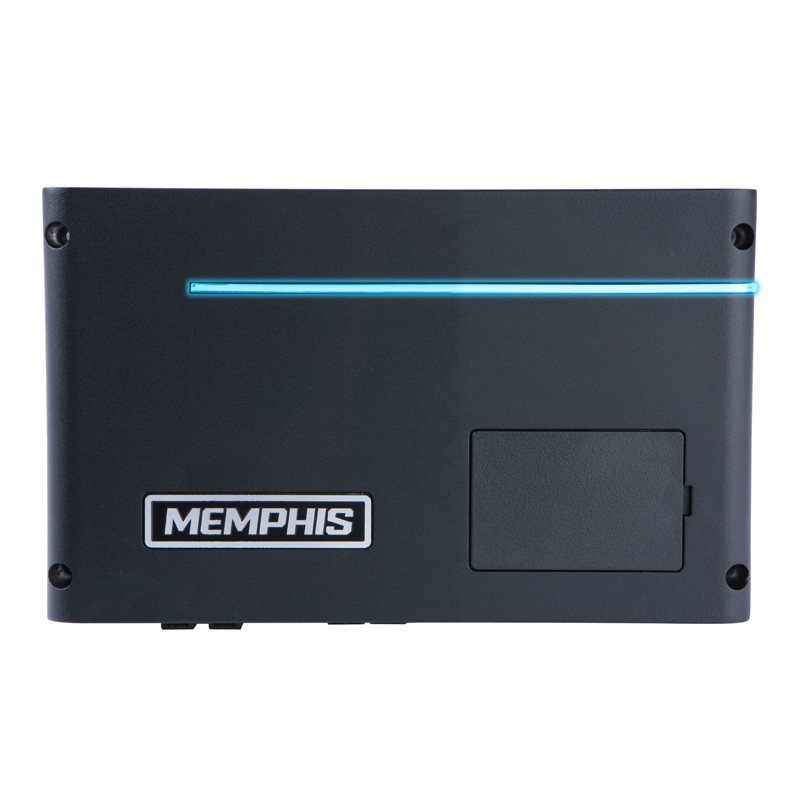

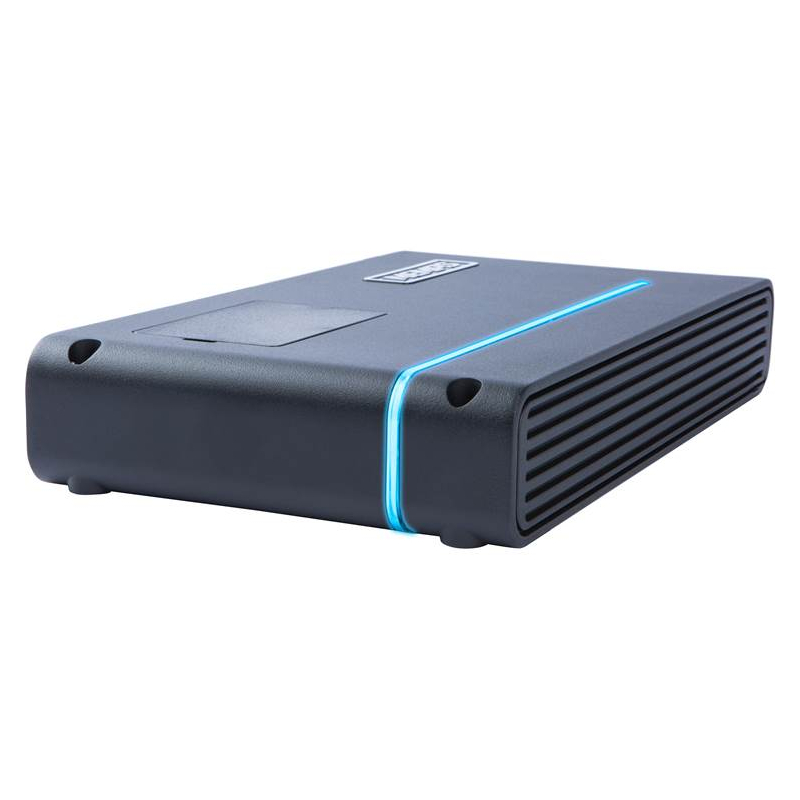

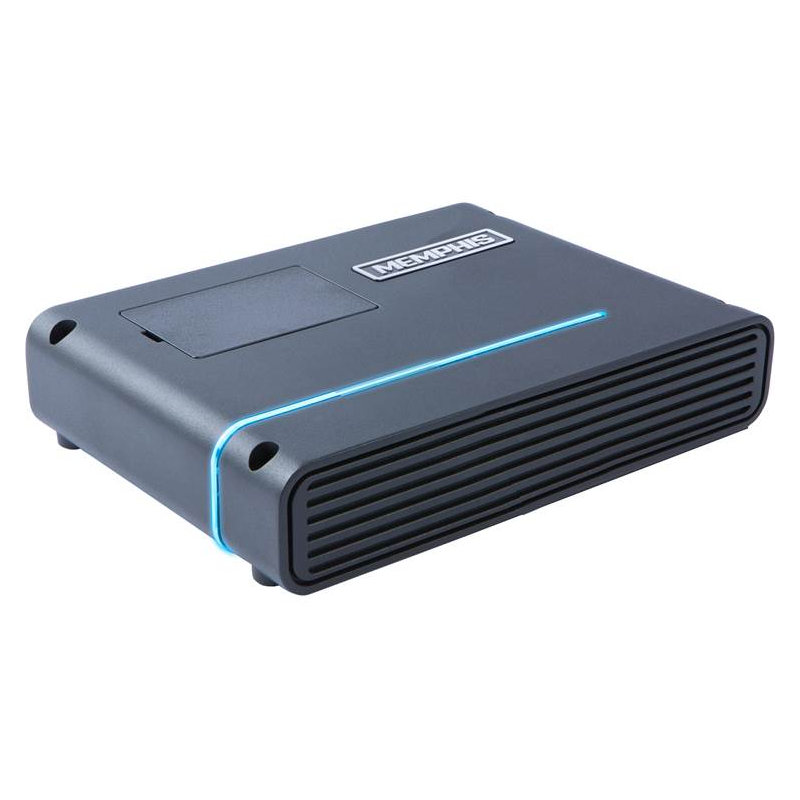

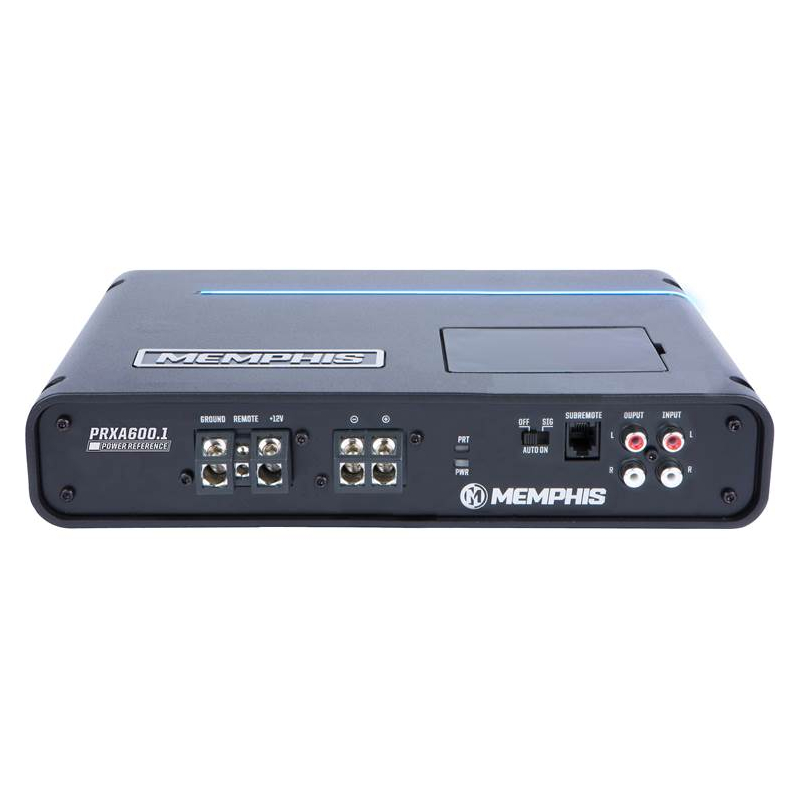

PRXA600.1 Power Reference Series 400W x 1 RMS @2Ohms, 600W Max Power Class D Monoblock Subwoofer Amplifier
Features:
- Diecast aluminum heatsink
- Signal sensing auto turn on
- Hidden top mounted control panel
- 12dB/octave Butterworth crossover
- 1Ω stable (MONO Amps)
- Short circuit protection
- Remote bass knob
- Input select switch (4/5 channel models)
Specifications:
- RMS POWER 4-ohms (w): 250x1
- RMS POWER 2-ohms (w): 400x1
- RMS POWER 1-ohm (w): 600x1
- Bridged/Mono Power 4-ohms (w): -
- THD% 4-ohms: <1%
- Frequency Response: 20Hz - 180Hz
- Dimensions L x W x H (in): 13.2 x 7.5 x 2.1
- Input Range: 220mV - 6V
- Recommended Amp Kit: 0GKIT

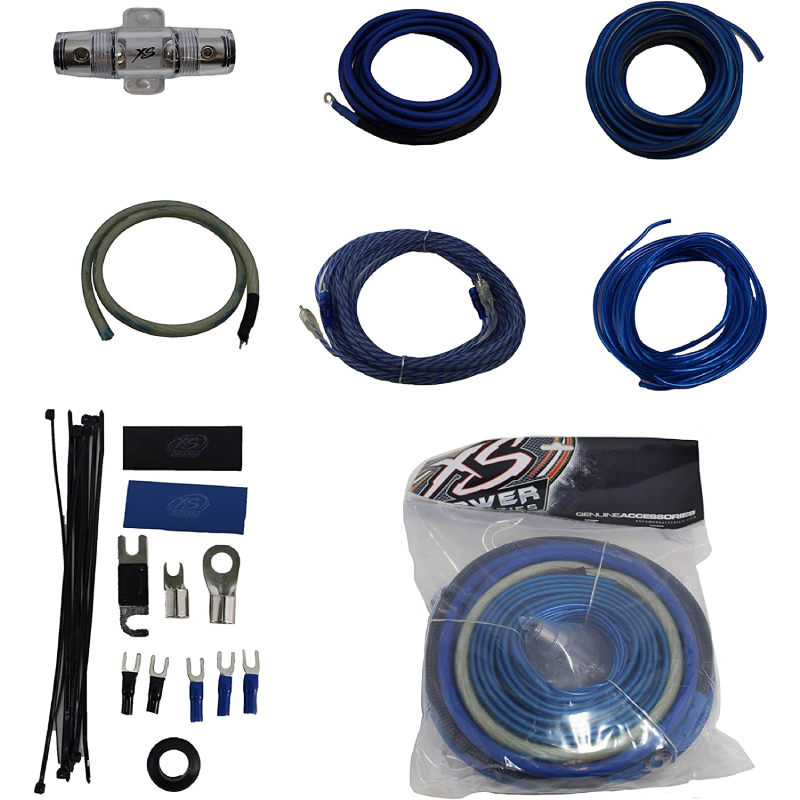

AKXS4-1 Amp Kit, XS Flex 4 AWG 100% Copper Wiring, Power Cable, Speaker Cable, Signal and Remote
Specification:
- 100% Copper Wiring
- Weight Lbs. – 5.5
- Weight Kgs. – 2.49
- Length – 9.75 in
- Height – 11 in
- Width – 2.5 in

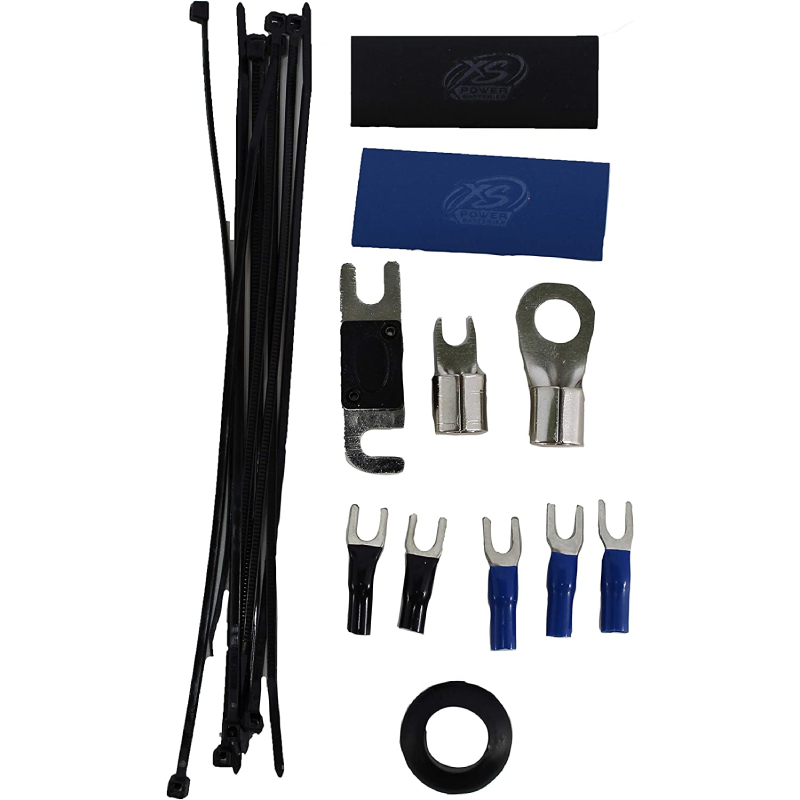

Kit Contents:
- 1qty - 17ft 4AWG XSFLEX BL Cable
- 1qty - 3ft 4AWG XSFLEX CLR Ground Cable
- 1qty - 17ft 18G BL Remote Cable
- 1qty - 25ft 14G Frosted Clear/Blue Speaker Wire
- 1qty - 17ft Triple Shielded Twisted Pair RCA Cables
- 1qty - Mini ANL Fuse Holder
- 1qty - 120A Mini ANL Fuse
- 2qty - Plaite Braid Tube in BK
- 2qty - 4AWG Ring Terminal/Seamless/BL
- 2qty - 4AWG Spade Terminal/BK
- 2qty - 14G Spade Terminals/BK
- 3qty - 14G Spade Terminals/BL
- 1qty - 1/2" Firewall Grommet
- 10qty - 6" Zip Ties

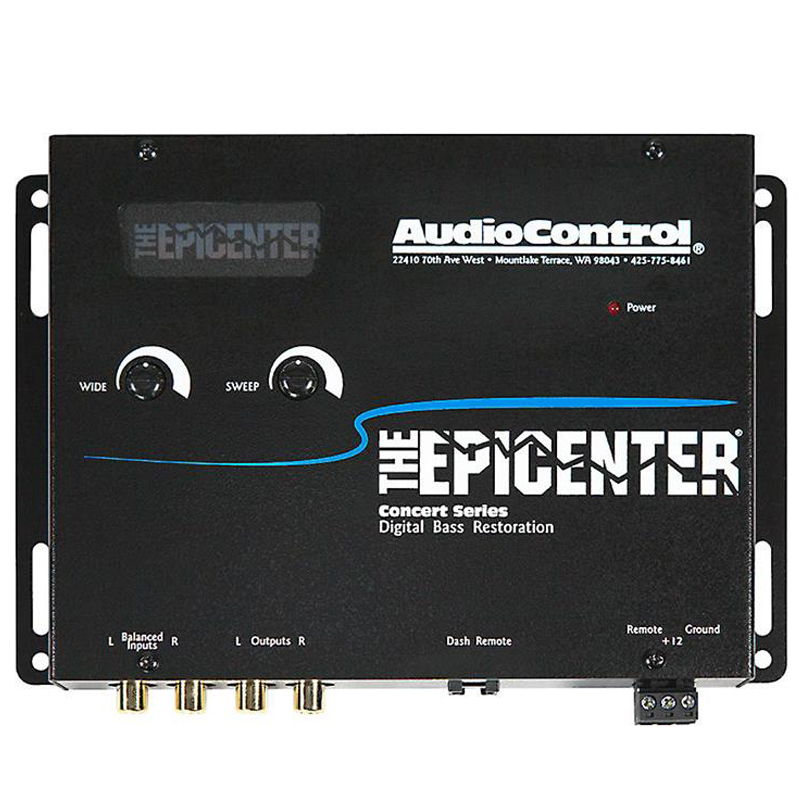

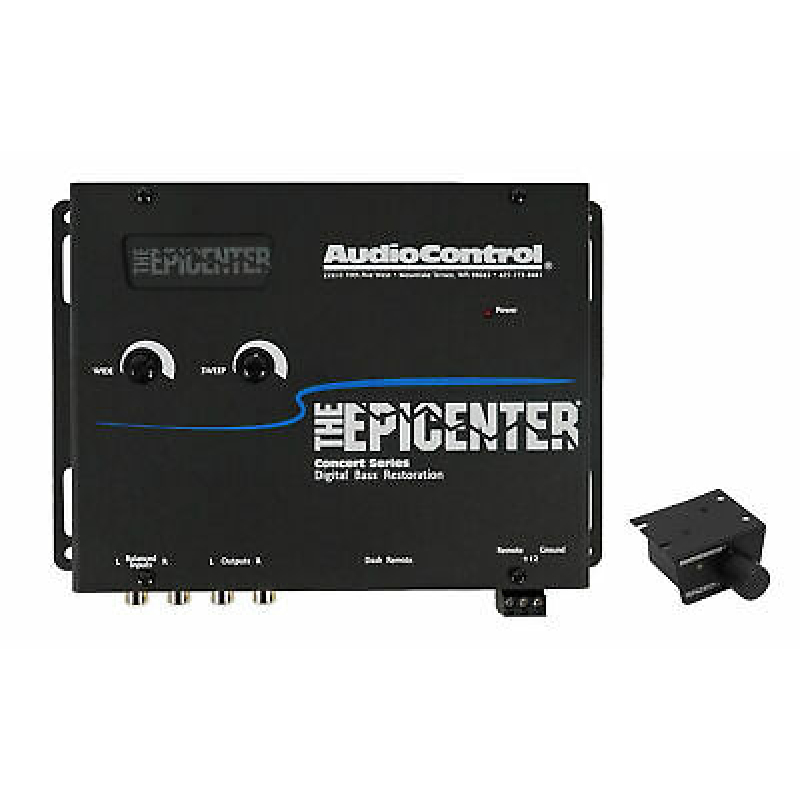

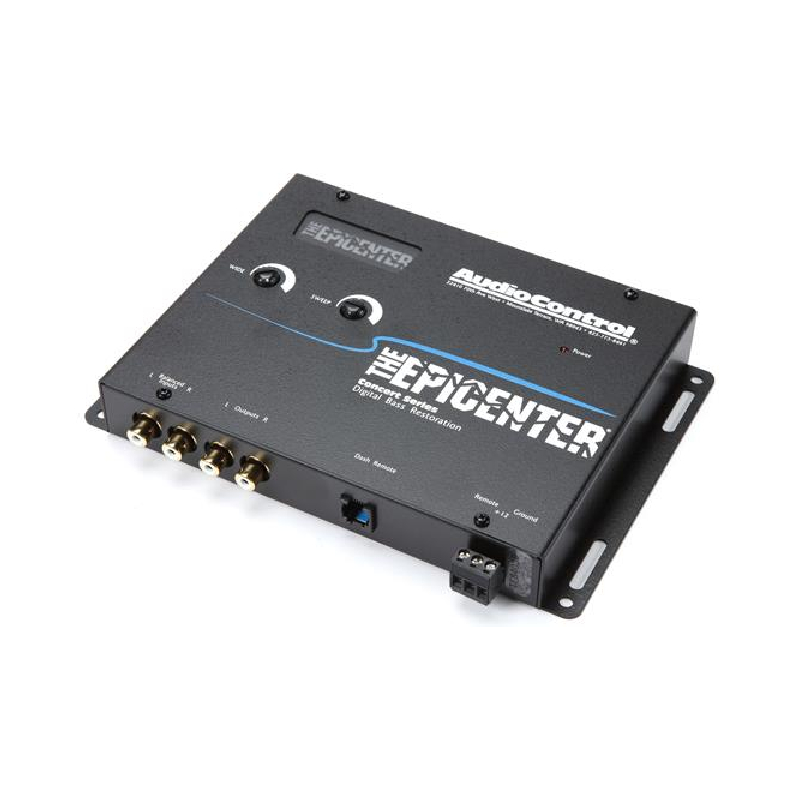

EPICENTER-BLACK Concert Series Digital Bass Maximizer and Restoration Processor with PFM Subsonic Filter (Black)
Features:
- Black or Sierra White
- Bass Restoration Processor
- Available in Espresso
- Bass Maximizaion Circuit
- Balanced inputs
- ParaBASS controls for tuning the bass restoraion efect
- Intelligent logic circuits
- Programmable Frequency Match (PFM) ilter
- Bass maximizing light display
- Adjustable Subsonic Filter

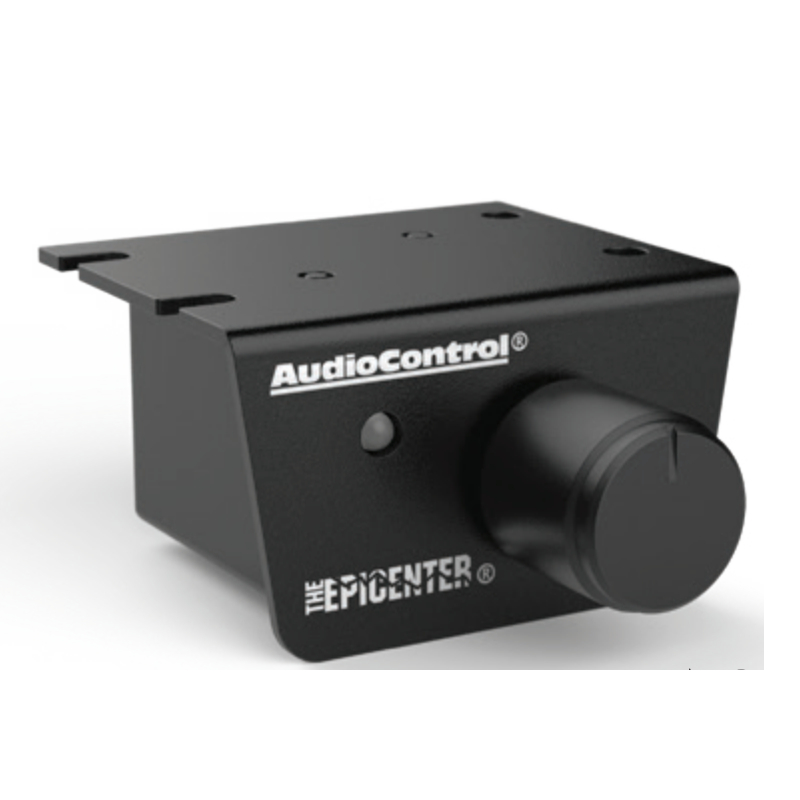

- Dash Mount ACR-1 for bass restoraion included
Specifications:
- Remote In Power Supply: High Headroom PWM Switching
- Frequency Response: 10Hz-100kHz
- Dimensions: 8W x 5.5D x 1.2H
- Preamp Inputs: 1 (2 channels)
- Maximum Input Level: 15Vrms
- Current Draw: 150mA
- Maximum Output Level: 13.5Vrms
- Preamp Outputs: 1 (2 channels)
- Input Impedance: 10kOhm
- Output Impedance: 150Ohm
- Total Harmonic Distortion: 0.003%
- Signal to Noise: 110dB
- Recommended Fuse Rating: 1A
- Weight: 1.8 lbs (0.8 kg)
- UPC:
- Weight: 65
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
