Clarion FX-450 2-DIN 6.8" Multimedia Head unit Receiver
We are a Clarion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Multimedia Head unit Receiver with free reverse camera
- • Owner's Manual
Overview

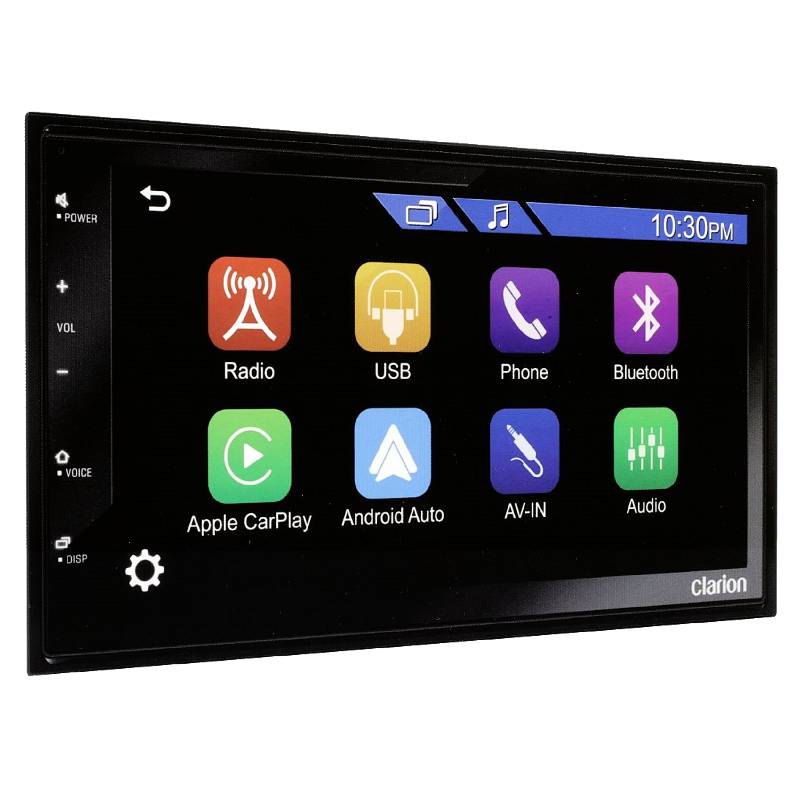

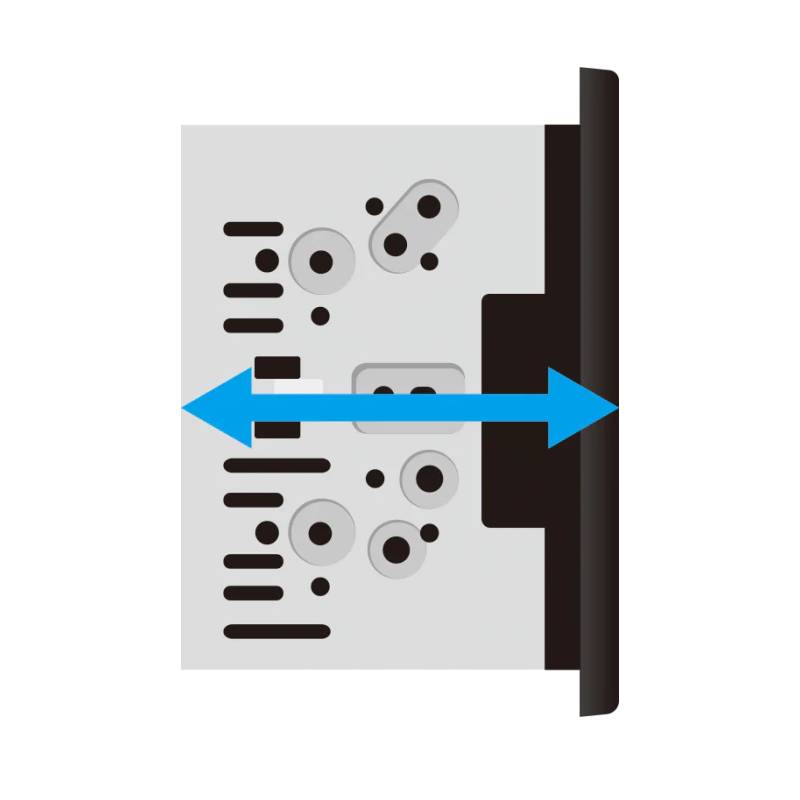

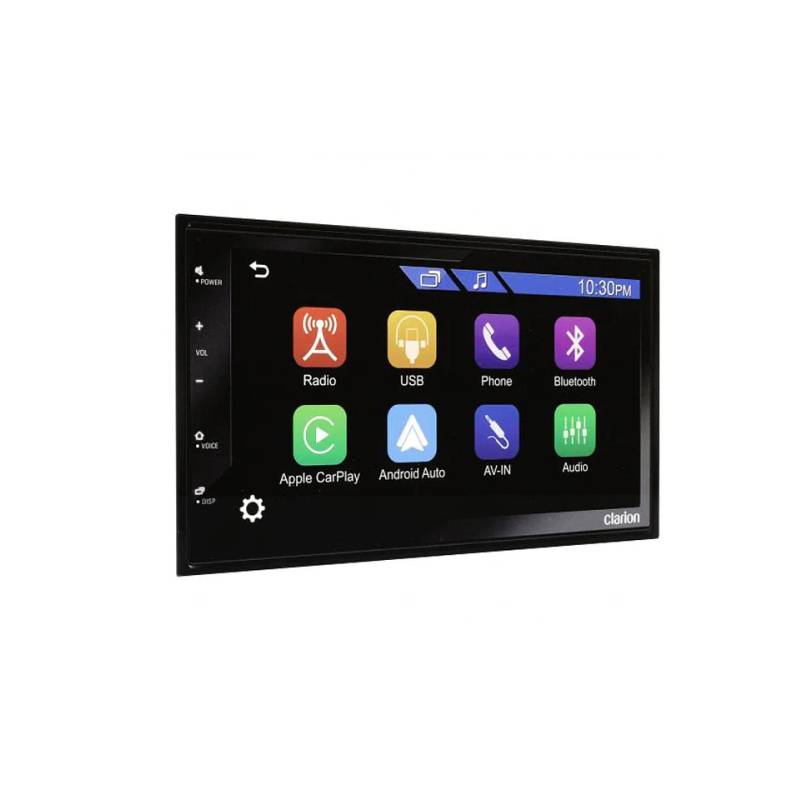

The Clarion FX450 is a double din mech less AV receiver. It features a highly responsive 6.8" touch display and is compatible with Apple CarPlay™ and Android Auto™ via rear USB connection. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. The FX450 has rear USB input as well as a built-in AM/FM tuner. The sound quality is superb with a built-in 45w x 4 amplifier and 24-bit digital audio processor with 13 band true EQ and dynamic bass booster to provide fantastic audio quality and adjustability. If more sound is desired, an amplifier can be added to the system via the 3V/5CH RCA pre-outs (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has a reverse camera input.

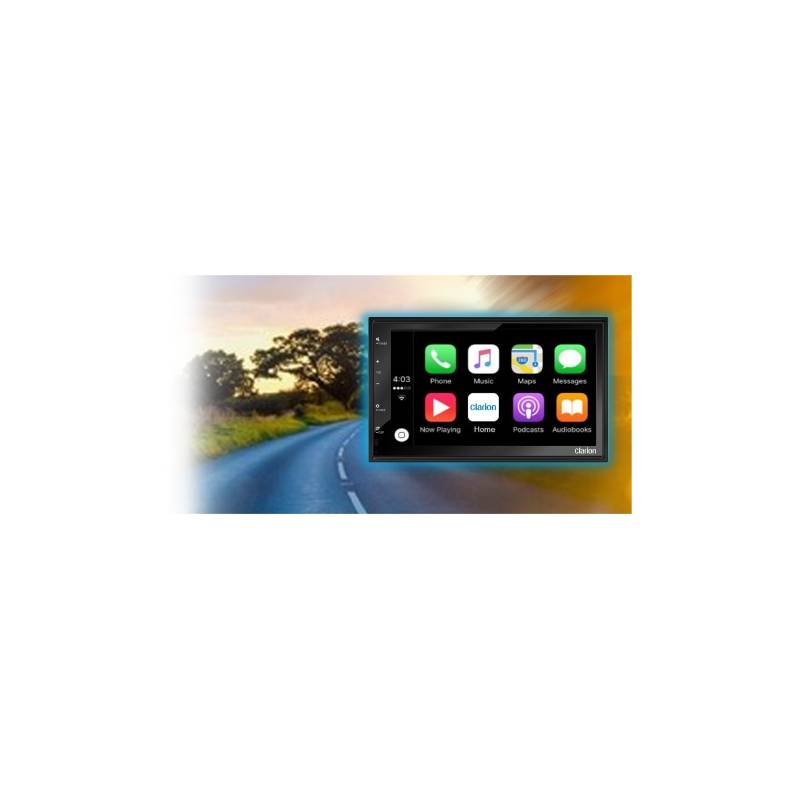

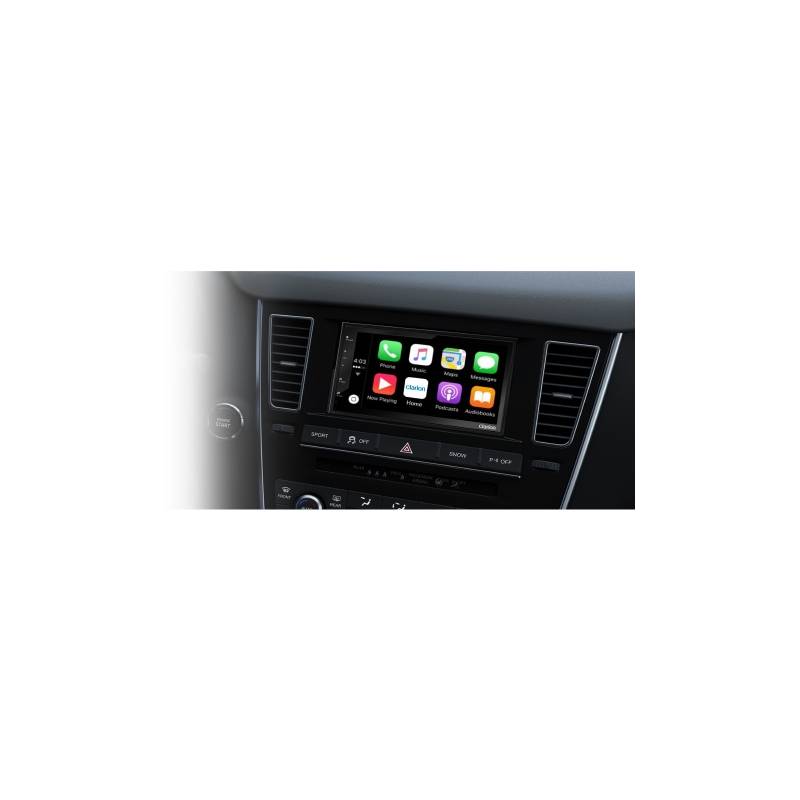

Apple CarPlay

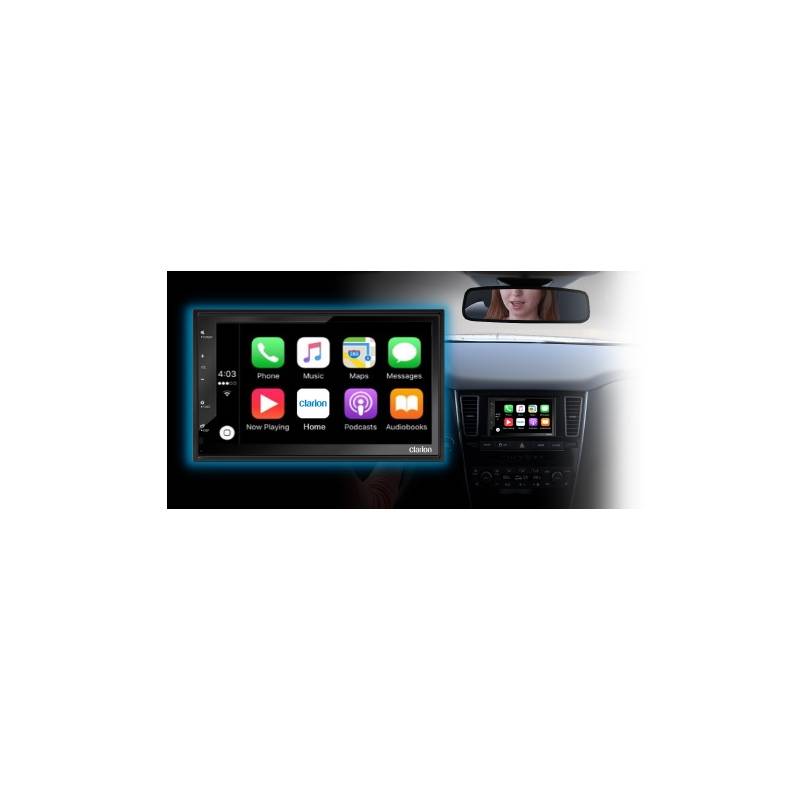

Operate your iPhone® functions from the large 6.8-inch monitor. Just connect your iPhone with its supplied cable, and you’ll be able to play music, send and receive messages, and a whole lot more, with simple touch and voice activation.
Enjoy safer, hands-free calling with Apple CarPlay. Since it works with Siri, you can access the phone’s stored contacts and easily make calls. Redialing and listening to stored voice messages can also be done by voice activation.
The power and simplicity of Apple Maps is now available on your dashboard. Apple CarPlay can predict where you most likely want to go using addresses. Maps will even estimate how long will take.
Siri affinity means you can play and enjoy the music on your iPhone just by saying the tune, artist name or genre, out loud. And since it supports Apple Music® as well, it’s easy to get and listen to the newest songs during your drive.
Apple CarPlay works with your iPhone apps, so your enjoyment is limitless including Music, Audiobooks, Podcasts, and beyond. Hands-free voice activation of apps is possible for safer operation while on the road.

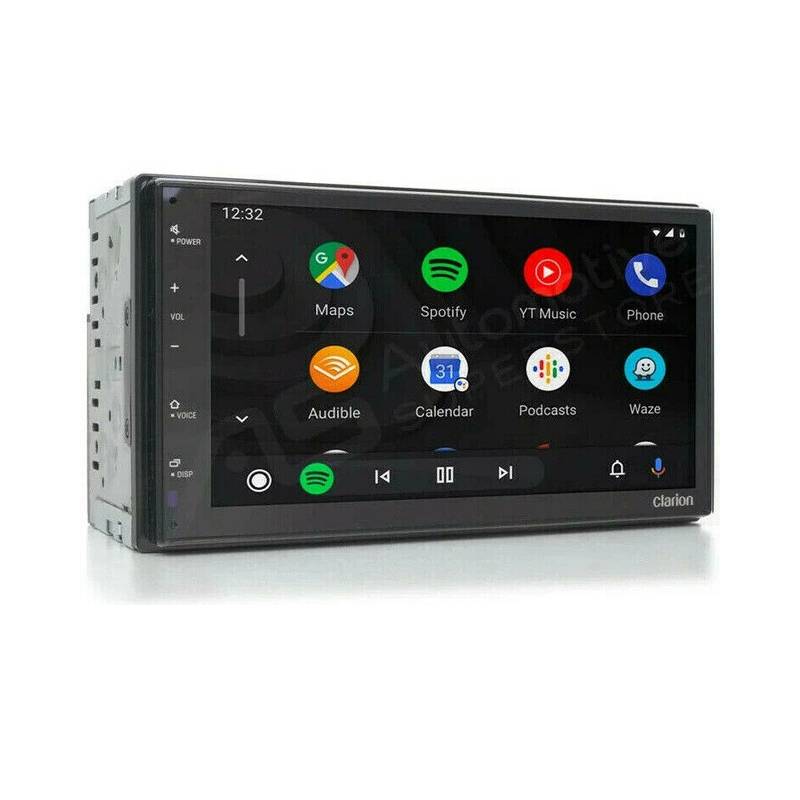

Android Auto™

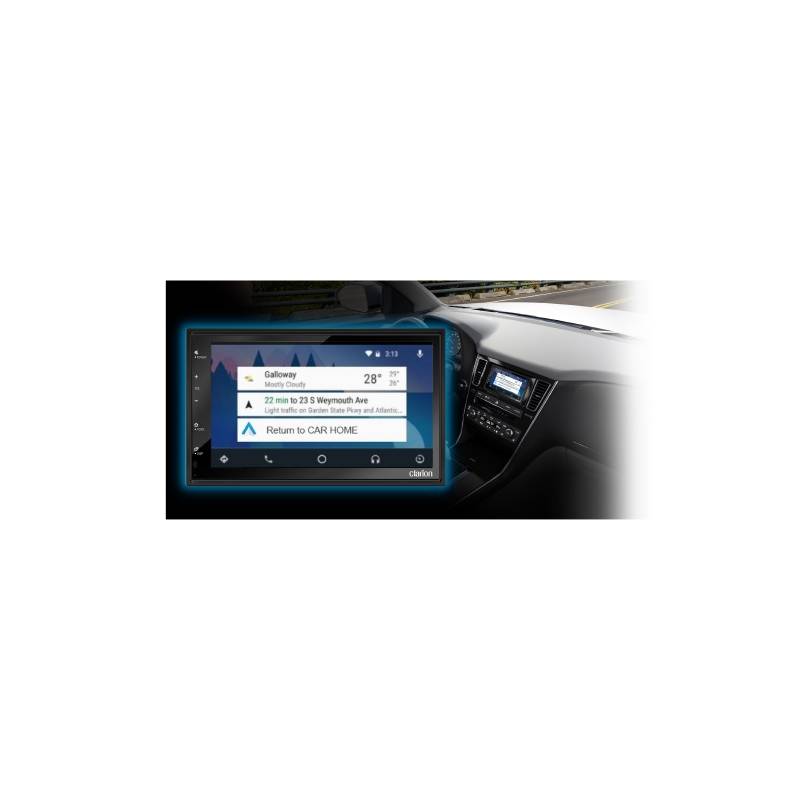

Just connect your Android smartphone to the FX450 by USB to display Google Maps and operate music playback functions right on the large 6.8-inch navigation screen. Enjoy talking on the phone with hands-free simplicity, as well as operating a wide variety of functions, while enjoying a safe and comfortable drive.
You can talk on the phone hands-free, so you can keep your hands on the steering wheel and your eyes on the road. Also send and receive messages just by speaking your command. Voiced commands also let you safely operate various functions while driving.
You can display Google Maps on the FX450’s large 6.8-inch screen. Count on it to support your journey through audible guidance messages as well as real-time traffic information, so you can reach your destination safe and sound
The ability to use Google Play™ Music lets you enjoy listening to all your favorite music streamed to your device. It responds to your voiced commands to there’s no need to take your hands off the steering wheel to get the music rolling.
Android Auto supports a wide variety of apps for use in your car. Enjoy music streaming apps, internet radio, messaging apps, and the list goes on, operable by your voice command—you just say the word and the apps jump into action.
Connectivity
Built-in Bluetooth provides hands-free voice communication, compatible with a wide variety of mobile phones. Safely communicate and drive at the same time.* Play music stored on a Bluetooth device, such as a mobile phone or a portable audio player, with wireless connection.
The FX450 supports playback of MP3 and WMA format audio files as well as MPEG video files. Play music file stored on a USB flash memory. Also album name and artwork as well as artist name are prominently displayed.

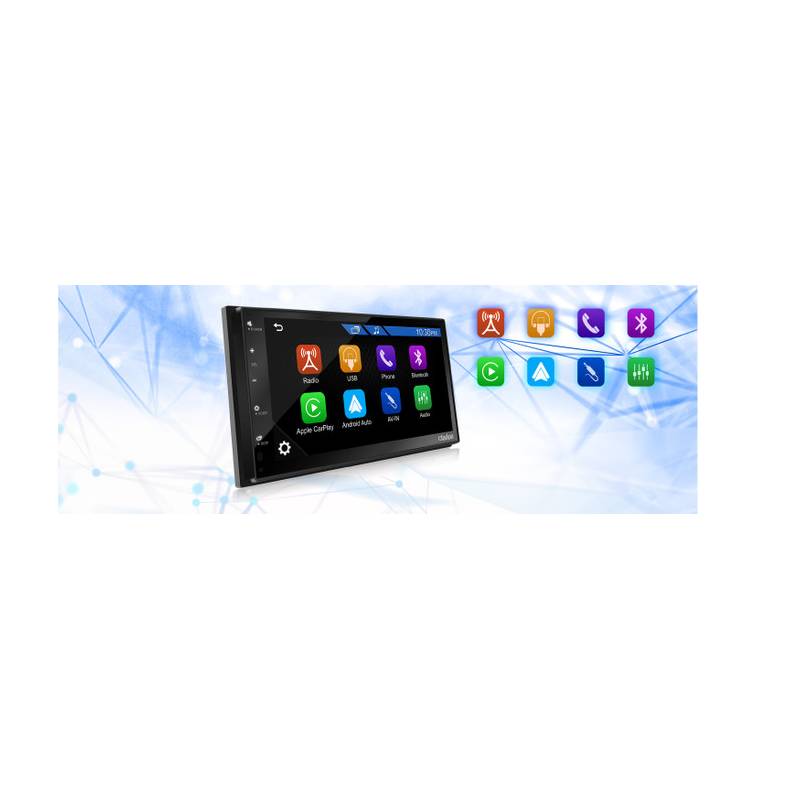

Design Interface

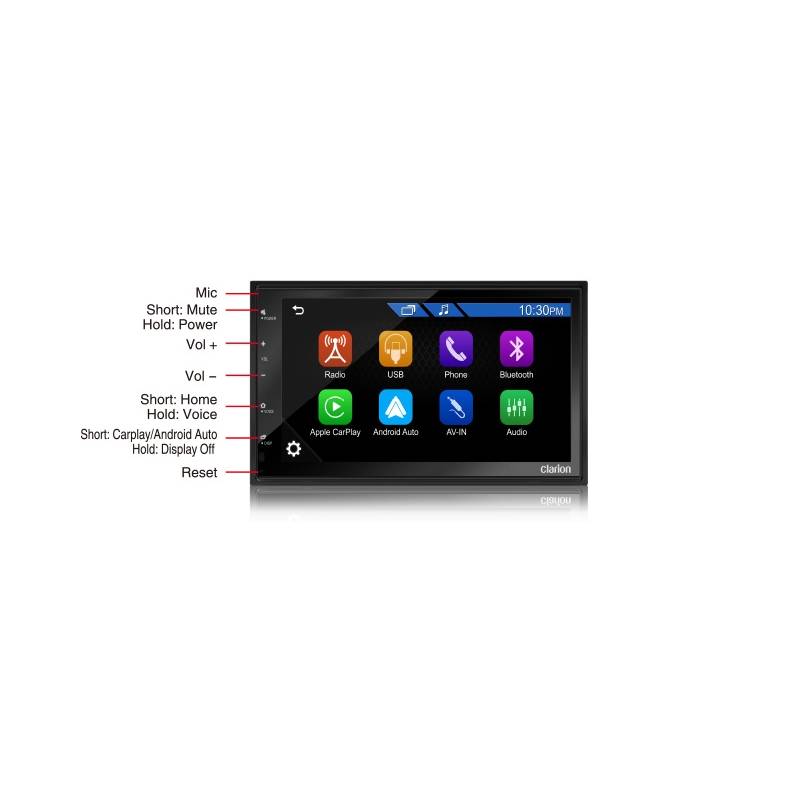

Beautiful interface with a high-definition WVGA panel and flat keys on the left side. Major sources are easily touched through the clear colored, highly visible menu icons. It also features a sensitive capacitive touchscreen for greater precision, comfort and control.
- DIN : 2
- Display Size : 6.8 Inch
- Bluetooth : Yes
- Preamp Outputs : 6
- Apple CarPlay : Yes
- Android Auto : Yes
What's Inside?
- Multimedia Head unit Receiver
Features:
- 6.8” Touch Display
- Apple CarPlay™ / Android Auto™ (USB)
- Built-in Bluetooth with External Microphone
- AM/FM Radio Tuner
- 13 Band EQ & Digital Time Alignment
- MOSFET 4 x 50W
- 4 x 3V Preouts (Front & Rear) + 1x Subwoofer Line Out
- Steering Wheel Control Ready (3 Wire Self Learn + OE SWC IR Remote In)
- Reversing Camera Input
Specifications:
- Power Output (MAX):50W x 4
- Dimensions(W × H × D) (mm)":178.2 x 100.2 x 88.3
- Weight(Kg):1.1
- Power Requirement:9V - 16V
- Power Consumption:15A
- Speaker Impedance:4-8 Ω
- Dash DVR remote:Yes
Display
- Screen Size: 6.8 Inches
- Resolution: 800 x 480 dots
USB Interface
- USB Standard: USB 2.0 Full Speed
- File System: FAT 16/32
- Maximum Current: DC 5V 1.5A
- D/A Converter: 24Bit
Bluetooth
- Communication System: Bluetooth Ver 4.1
- Output: Bluetooth Standard Power Class 1
- Maximum Range: Approx. 10meters
- Frequency Band: 2.4 GHz
- Compatible Bluetooth Profiles: HFP/SPP/A2DP/AVRCP/PBAP
- Supported Codecs: SBC (Sub Band Codec)
Radio Tuner
- Frequency FM Range: 87.5-108.0MHz
- Frequency AM Range: 530-1710 KHz
- Usable Sensitivity: 13.2 uV (FM) / 44.7 uV (AM)(MW)
Video
- Colour System of External Video Input: NTSC/PAL
- External Video Input (RCA/3.5m Jack): 1 Vp-p /75Ω
Audio
- Maximum Power: 50Wx4
- Continuous Power Output (RMS): 22Wx4
- Preout Level (V): 3V/10kΩ
- Preout Impedance: 1.3kΩ
- Speaker Impedance: 4-8Ω
- Output Frequency Band: 20-20000Hz
General
- Operating Voltage: 14.4V(10.5-16 V)
- Operational Temperature Range: -20°C to+80°C
- Maximum Current Consumption: 15A
Supported Formats
- Supported Audio Formats: MP3/WMA/WAV/FLAC, WMA Version V9 or earlier, ID3 Tag Version 1/2.2/2.3/2.4
- Support Video Formats: MPEG 1 (.mpg,mpeg), 720x480(30fps), MPEG 2 (.mpg,mpeg), 720x480(30fps), MPEG 4 (.mp4,avi), 1280x7200(30fps)
- Support File / Folder Formats: Directory nesting up to a maximum of 8 levels, Number of tracks/titles: maximum 999, Number of albums/folders: maximum 99
- UPC: 7501494303668
- Weight: 3
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
