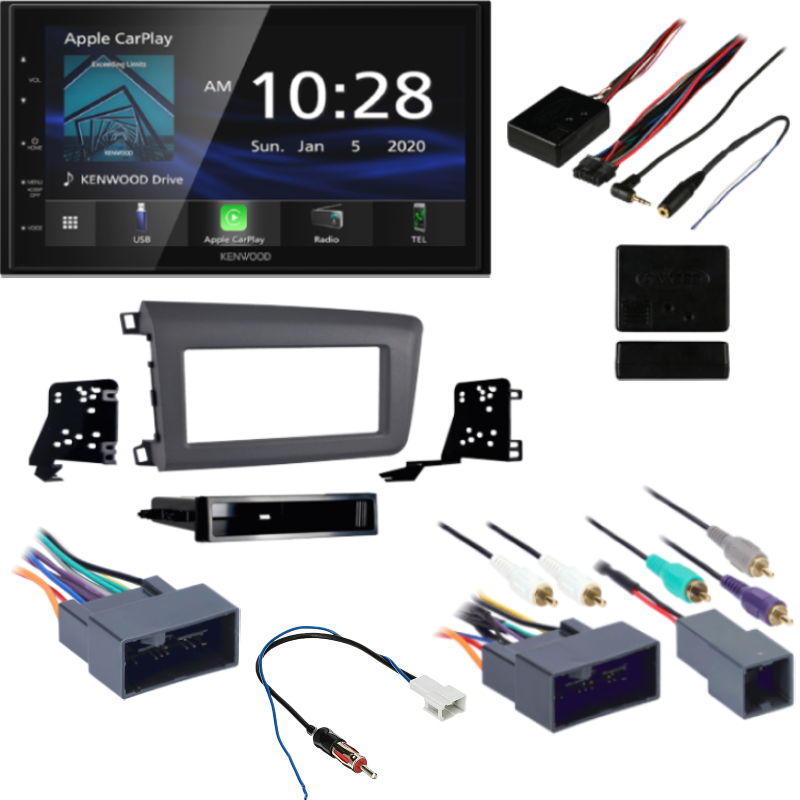

PCH Custom Audio  Civic Radio Replacement-Bundle31

• Vehicle Make : Honda
• Vehicle Model : Civic

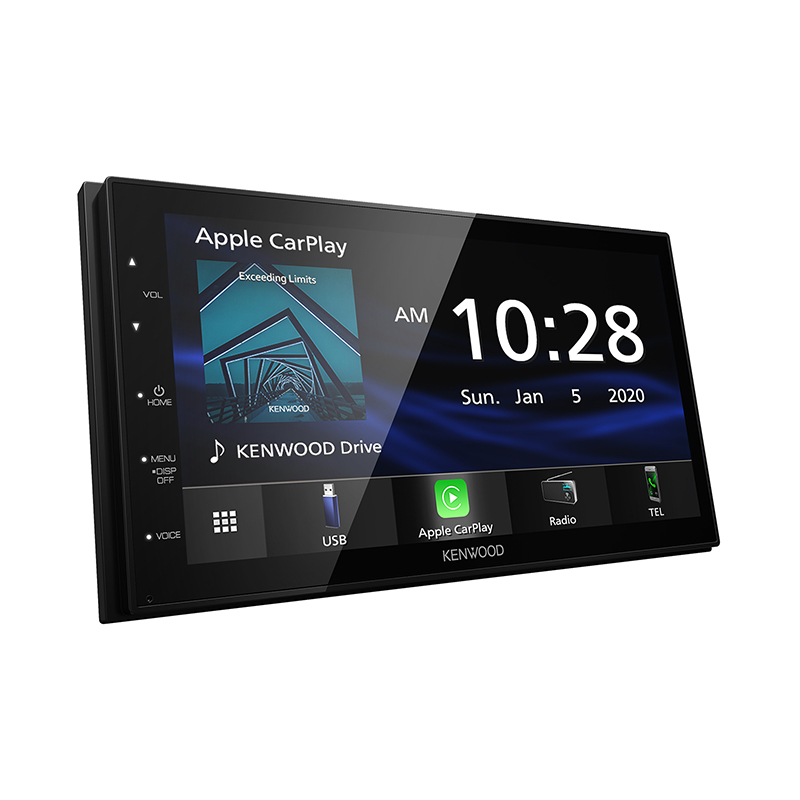

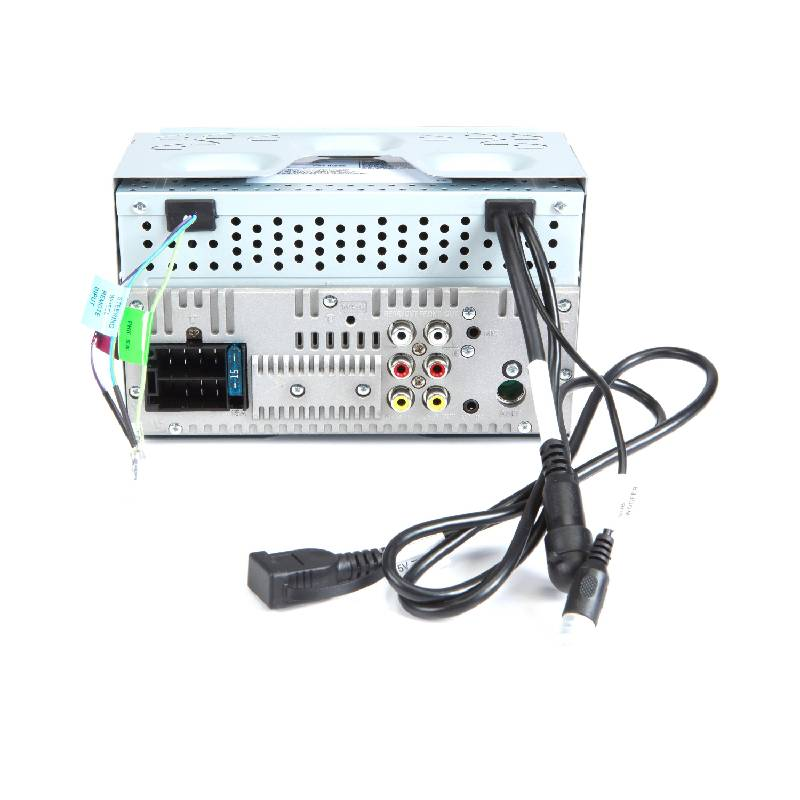

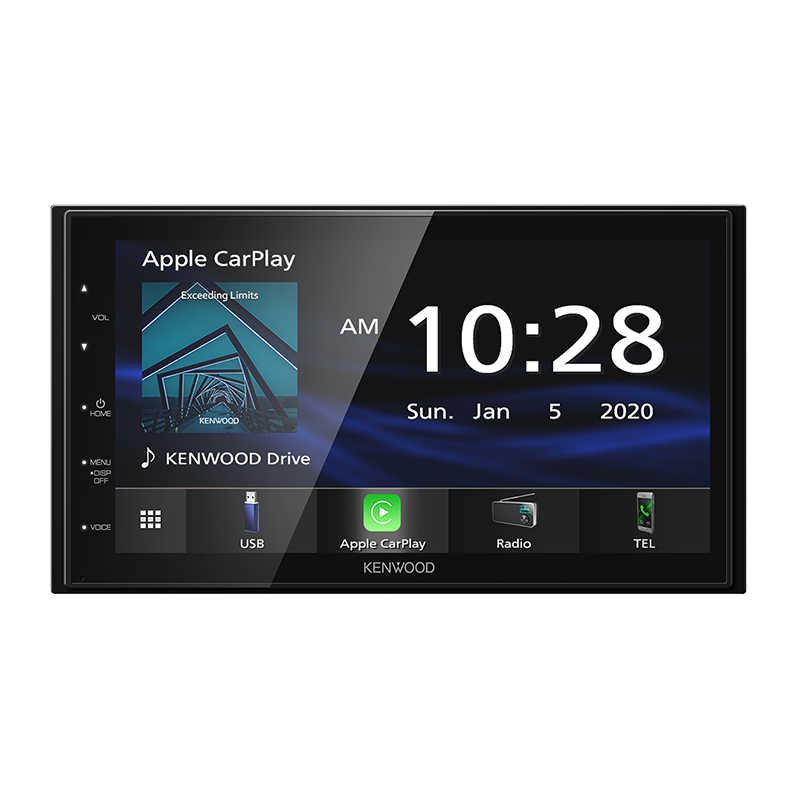

DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android

Features:

• 6.8" WVGA Monitor with Capacitive Touch Panel
• Apple CarPlay™ & Android Auto™
• USB Mirroring for Android
• 13 Band EQ with Digital Time Alignment
• Rear View Camera Input with Parking Guidelines
• Built-in Bluetooth
• Short Chassis
• 2 Preouts 2V + Subwoofer Out

Monitor Section:

• Picture size: 6.75inches(diagonal) wide
• W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
• Display system: Transparent TN LCD panel
• Drive system: TFT active matrix system
• Number of pixels:
  • 1,152,000
  • 800H x 480V x RGB
• Effective pixels: 99.99%
• Pixel arrangement: RGB striped arrangement
• Back lighting: LED

USB I/F Section:

• USB Standard: USB2.0 High Speed
• File System: FAT 16/32 , exFAT
• Maximum Power Supply Current: DC5V=1.5A
• D/A Converter: 24Bit
• Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
• Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / .mkv
• Frequency response 192k Sampling: 20 - 20,000 Hz
• 96k Sampling: 20 - 20,000 Hz
• 48k Sampling: 20 - 20,000 Hz
• 44.1k Sampling: 20 - 20,000 Hz
• Total harmonic distortion 1kHz: 0.2
• Signal to Noise ratio: 75dB
• Dynamic range: 75dB

Bluetooth Section:

• Technology: Bluetooth Ver4.1
• Frequency: 2.402 – 2.480 GHz
• RF Output Power: (E.I.R.P.)+8dBm (Avg.), Power Class 1
• Maximum Communication range: Line of sight approx.10m(32.8ft)
• Audio Codec: SBC / AAC
• Multi Profile Support: Multi Profile
• Profile
  • HFP (V1.6) (Hands Free Profile)
  • SPP (Serial Port Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (V1.5) (Audio/Video Remote Control Profile)
  • PBAP (Phonebook Access Profile)

DSP Section:

Graphics equalizer:

• BAND: 13 Band
• frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
• Gain: -09 to +09 (-9dB to +9dB)

2Way X'Over:

• HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
• SLOPE: -6/ -12/ -18/ -24 dB/Oct.
• Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
• LOW PASS FILTER frequency (Hz): 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
• SLOPE: -6/ -12/ -18/ -24 dB/Oct.
• Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Position:

• Front / Rear /Subwoofer Delay: 0 to 6.1m (0.01m Step)
• Gain: -8 to 0dB
• Subwoofer Level: -40 to +6dB

FM:

• Frequency Range: 87.9 - 107.9 MHz
• (Frequency step): (200kHz)
• Usable sensitivity: 16.2dBf
• S/N:30dB: 1.8μV/75 Ohms
• Quieting sensitivity-
• DIN S/N 46dB-
• Frequency response / (±3.0dB): 30Hz - 14kHz
• S/N (dB): 50dB (MONO)
• Selectivity-
• Stereo separation: 35dB (1kHz)

AM:

• Frequency Range: 530 - 1700 kHz
• (Frequency step): (10kHz)
• Usable sensitivity: 99μV(40dBμ)
• Video: Color system of external video inputNTSC/ PAL
• External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
• External audio max input level (RCA jacks): 1.5V / 25k Ohms
• Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms

Audio:

• Maximum Power Output (Front&Rear): 45Wx4
• Full Bandwidth Power / (at less than 1%THD): 21Wx4
• Output frequency band: 20 - 20,000Hz
• Preout level (V): 2.0V / 10k Ohms
• Preout impedance (Ω): 1.4k Ohms
• Speaker Impedance (Ω): 4-8 Ohms

General:

• Operating voltage: 12V DC Car Battery
• Installation Dimensions WxHxD:
  • 182 x 112 x 75 (mm)
  • 7-3/16 x 4-7/16 x 2-15/16 (inch)
• Main Unit Installation size W x H x D(w/o sleeve):
  • 178 x 100 x 75 (mm)
  • 7 x 3-15/16 x 2-15/16 (inch)
• Weight Main unit: 1.1 kg / 2.4 lbs
• (Including Sleeve and Trim plate): 1.3 kg / 2.8 lbs

95-7881G Gray Double DIN Harness for 2012-UP Honda Civic

Features:

• Stereo installation kit designed to fit any standard 4" tall aftermarket radio
• Painted gray to match the factory color and finish
• Made from the highest qualityABSplastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Designed to mount double din radios in the dash

70-1729 Honda Accord 08-Up

Features:

• Allows installation of an aftermarket radio using the existing factory wiring and connectors.
• No cutting of factory wiring is needed.
• Plugs into Car Harness at radio

70-1730 Honda Accord Amp Integration Harness '08-Up

Features:

• Allows installation of an aftermarket radio using the existing factory wiring and connectors.
• No cutting of factory wiring is needed.
• Plugs into Car Harness at Radio
• Retains Factory Amplified System
• Features RCAs instead of speaker wire

AXSWC Universal Steering Wheel Control Interface, Works with Many Popular Aftermarket Receivers - NEW MODEL that replaced the ASWC-1

Features:

• One Interface does it all – No additional interfaces needed
• Designed to be compatible with all major radio brands
• Auto detects (1) vehicle type, radio connection, and presets controls
• Ability to dual assign steering wheel control buttons
• Can be manually programmed for most vehicles
• Retains settings even after battery disconnection or interface removal
• All connections done at the radio location
• Micro “B” USB updatable

40-HD11 Honda Antenna Adapt Cable 2009-Up

Features:

• Antenna adapter cable
• Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
• Male Motorola™ connector and a blue wire lead on one end
• Female Honda-style snap-lock antenna connector on the other end
• A blue wire is attached to the adapter that connects to the antenna turn-on lead of the aftermarket radio
• Enter your vehicle model to see if this is compatible with your vehicle

• UPC: 798418838413
• Weight: 18
• Authorized Internet Dealer
