PCH Custom Audio  Jeep Radio Replacement-Bundle5

Kenwood DMX4707S 6.8" 2DIN Digital Multimedia Receiver + Metra Electronics 95-6511-17 Radio Install Kit + Axxess AXDIS-CH5 Data Interface

Item #85393

Product Highlights

  • Kenwood DMX4707S 6.8" 2DIN Digital Multimedia Receiver
  • Metra Electronics 95-6511-17 Radio Install Kit
  • Axxess AXDIS-CH5 Data Interface

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

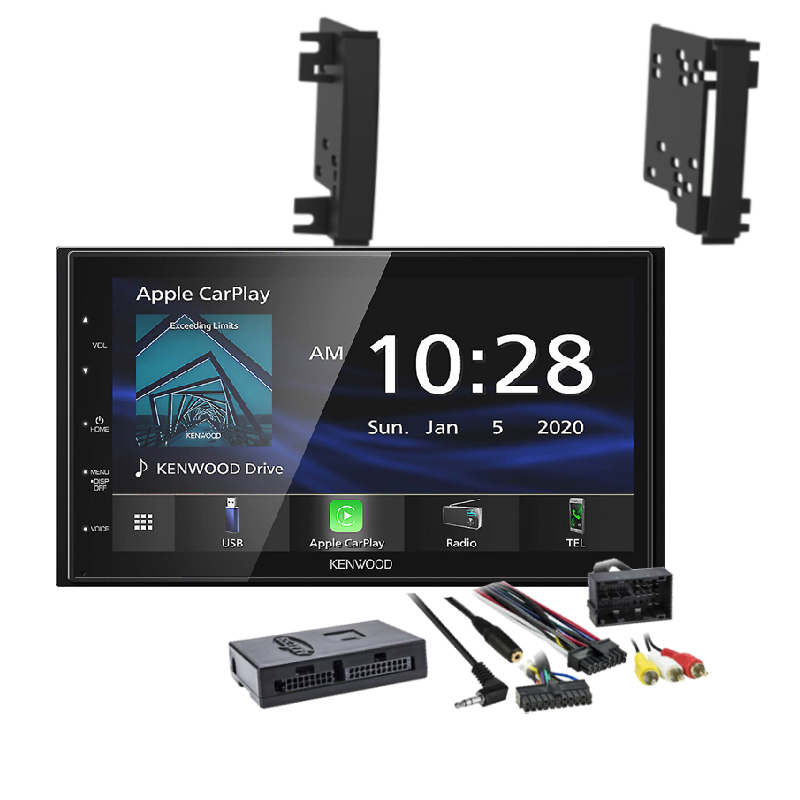

PCH Custom Audio Jeep Radio Replacement-Bundle5 Kenwood  DMX4707S 6.8" 2DIN Digital Multimedia Receiver + Metra Electronics  95-6511-17  Radio Install Kit + Axxess  AXDIS-CH5 Data Interface


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Kenwood DMX4707S
  • • Metra Electronics 95-6511-17
  • • Axxess AXDIS-CH5
  • • Owner's Manual

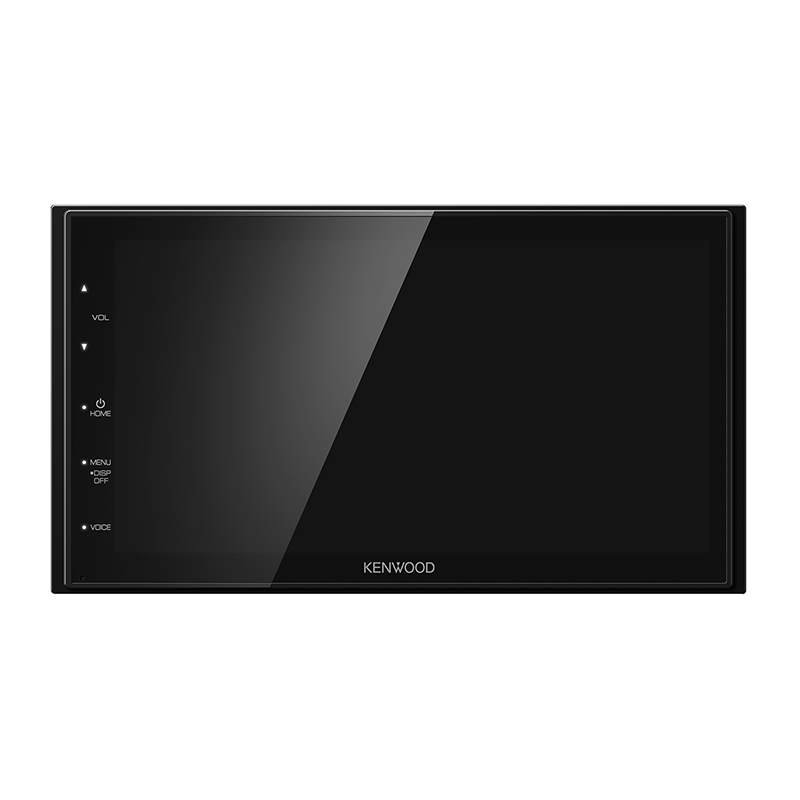

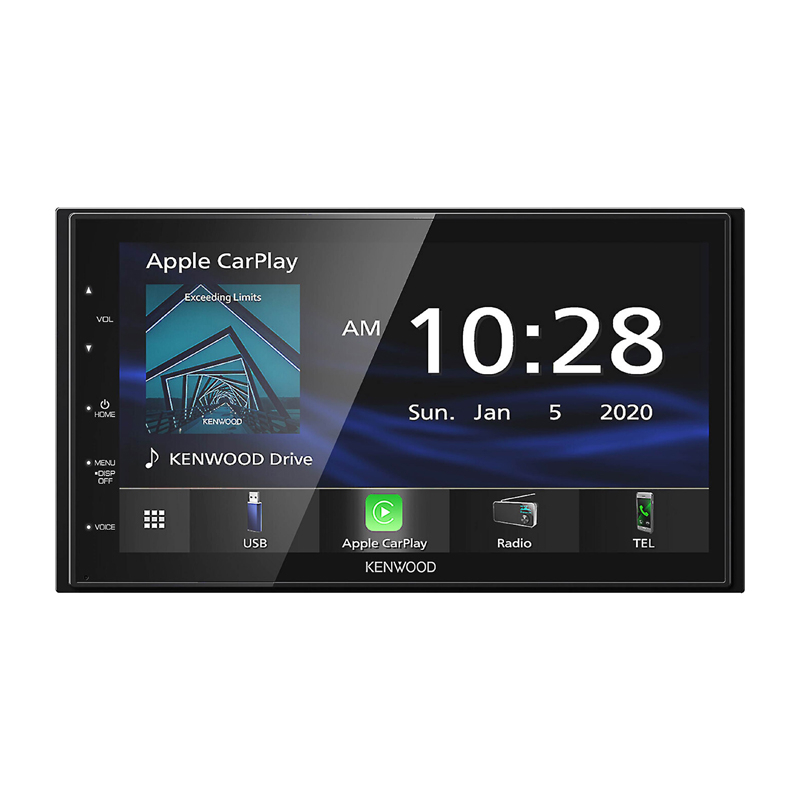

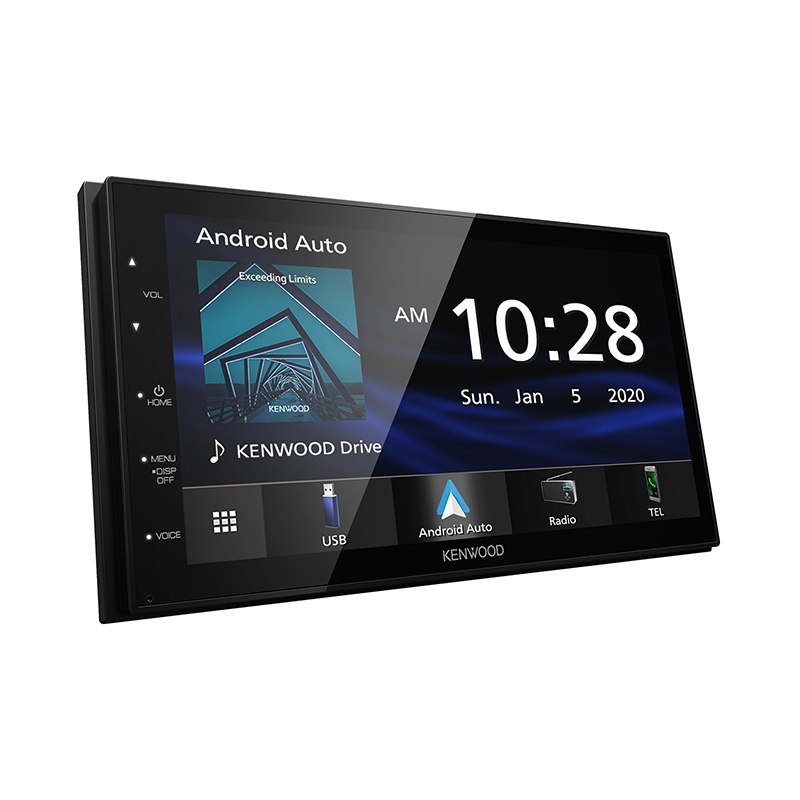

Kenwood DMX4707S
Kenwood DMX4707S

Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control. Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Metra Electronics 95-6511-17

This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is textured to match the original look and feel of the vehicle’s dashboard. Two sizes of trim panels are included to accommodate long or short nose Double-DIN radios. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.

Metra Electronics 95-6511-17
Axxess AXDIS-CH13

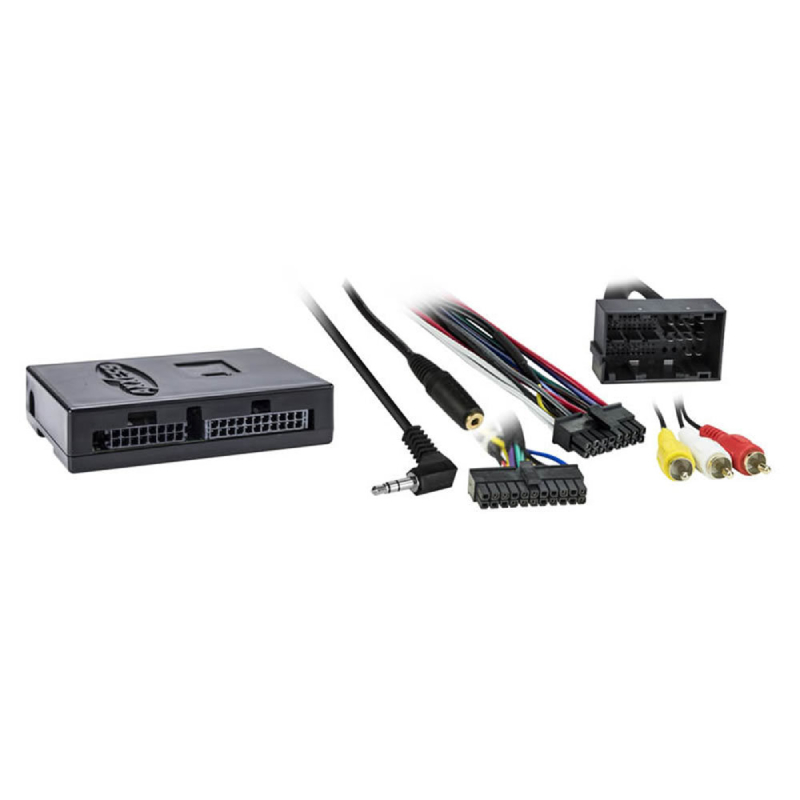

Axxess AXDIS-CH5

The AX-Series with built-in steering wheel control technology allows for an easy install solution of one interface to provide the functions that are needed when replacing a factory radio. Your easy-to-install radio replacement solution just got even easier. The AX-Series with built-in SWC retention now features our patented Axxess auto-detect technology, a new reset button and clean cloth taped harnessing.


SPECIFICATIONS


  • Vehicle Make : Jeep

FEATURES


DMX4707S 6.8" Digital Multimedia Receiver with Capacitive Touch Panel, Apple CarPlay, Android Auto, USB Mirroring for Android

Features:

  • shallow-mount digital multimedia receiver with AM/FM tuner
  • plays a variety of music files via USB: MP3, WMA, AAC music files/high-resolution WAV and FLAC music files
  • 6.75" capacitive touchscreen display
  • fits double-DIN (4" tall) dash openings



Smartphone Features

  • Apple CarPlay compatible (requires wired USB connection to your phone)
  • Android Auto compatible (requires wired USB connection to your phone)
  • built-in Bluetooth with dual phone connection for hands-free calling and music streaming
  • Android mirroring via USB



Audio/Visual Features

  • 13-band graphic EQ with Drive EQ and digital time alignment
  • bass boost and loudness controls
  • high- and low-pass filters
  • parking grid lines for rear-view camera



Expandability

  • compatible with SiriusXM satellite radio tuner

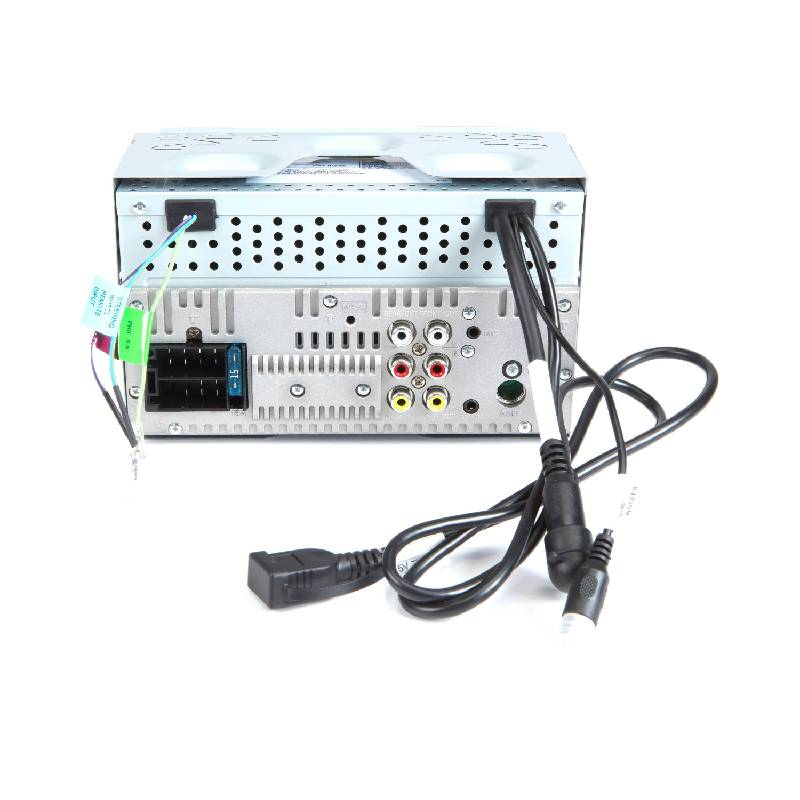

  • inputs: rear USB input, rear analog A/V input (mini-jack), backup camera input
  • outputs: rear composite video output, 5-channel preamp outputs (2-volt front, rear, mono sub)



Other Information

  • built-in amplifier (21 watts RMS/50 peak x 4 channels)
  • compatible with most factory steering wheel audio controls (adapter required)



95-6511-17 Chrysler Multi-Kit 2007-Up

Features:

  • Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
  • Textured to match factory dash
  • Made from the highest quality ABS plastic for an original factory-like fit and finish
  • Includes mounting brackets and detailed installation instructions
  • A tech support number is available for installation help 7 days a week
  • For updated design that accommodates "short nose" radio faces, use 95-6511



Wiring and Antenna Connections:

Harness

  • XSVI-6522-NAV (sold separately)
  • CHTO-03 (sold separately)

Antenna Adapter

  • 40-EU10 (sold separately)



AXDIS-CH5 Data Interface with SWC for Chrysler/Dodge/Jeep/RAM 2013-Up

Features:

  • Provides accessory power (12-volt 10-amp)
  • Retains R.A.P. (Retained Accessory Power)
  • Provides NAV outputs (parking brake, reverse and speed sense)
  • Retains audio controls on the steering wheel
  • Retains the factory backup camera (if through the factory radio)
  • Retains the factory 3.5mm AUX-IN jack
  • High level speaker input
  • Can be used in non-amplified or amplified systems
  • Micro-B USB updatable



Vehicle Applications:

  • Chrysler
    • 200 (LX trim) 2015-2016
  • Dodge
    • Dart (small screen option) 2013-2016
  • Jeep
    • Cherokee (Sport trim) 2014-2016
    • Compass (Sport trim) 2017.5-Up
  • RAM
    • 1500/2500/3500 (small screen option) 2013-2017
    • Chassis Cab 3500/4500/5500 (small screen option) 2013-2017
  • UPC: 798418838741
  • Weight: 17
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
