Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Radio Replacement Bundle for Jeep JK 2013-2018 Pioneer DMH-WC5700NEX + Metra 95-6511-17 + Axxess AXDIS-CH5 (ALL IN ONE SOLUTION)
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

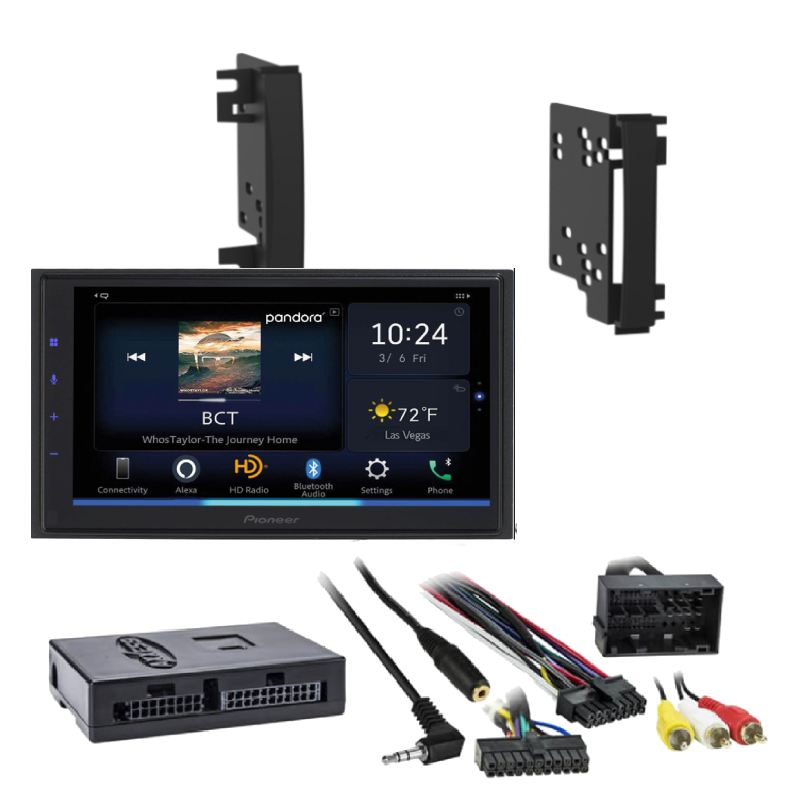

What's Inside?
- • Pioneer DMH-WC5700NEX
- • Metra Electronics 95-6511-17
- • Axxess AXDIS-CH5
- • Owner's Manual

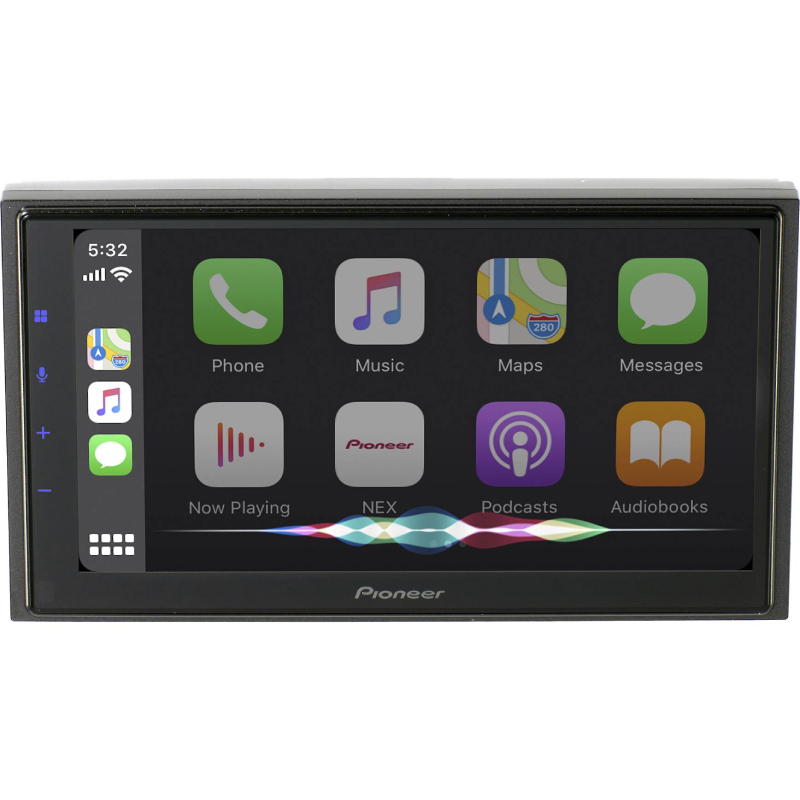

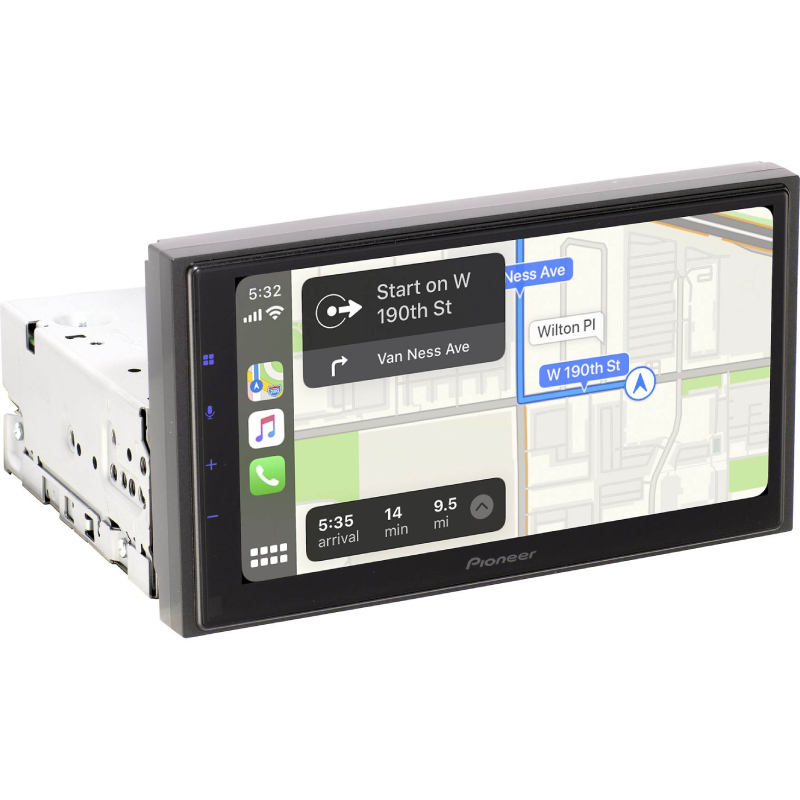

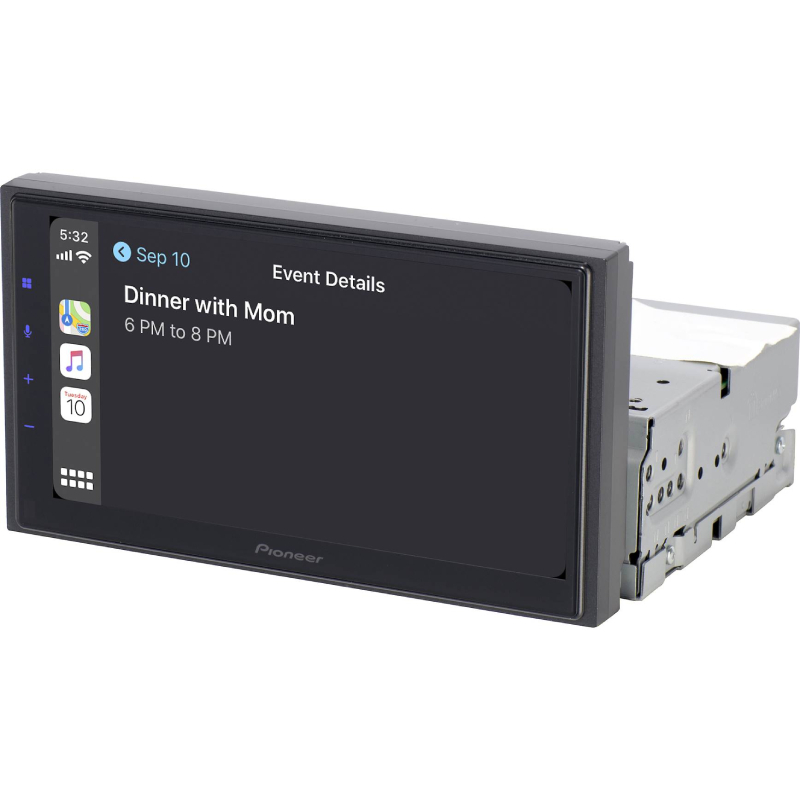

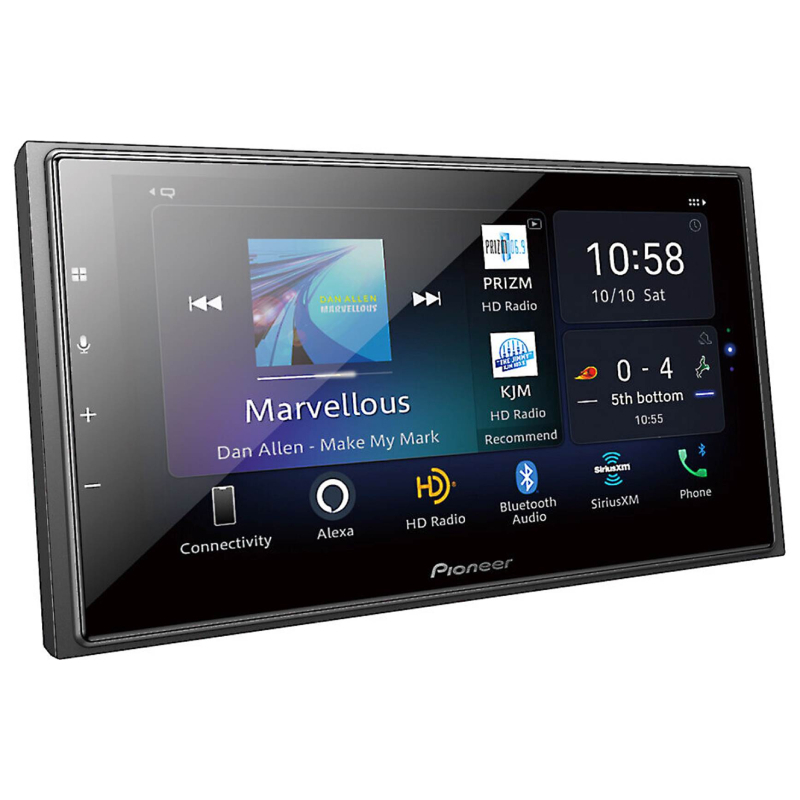

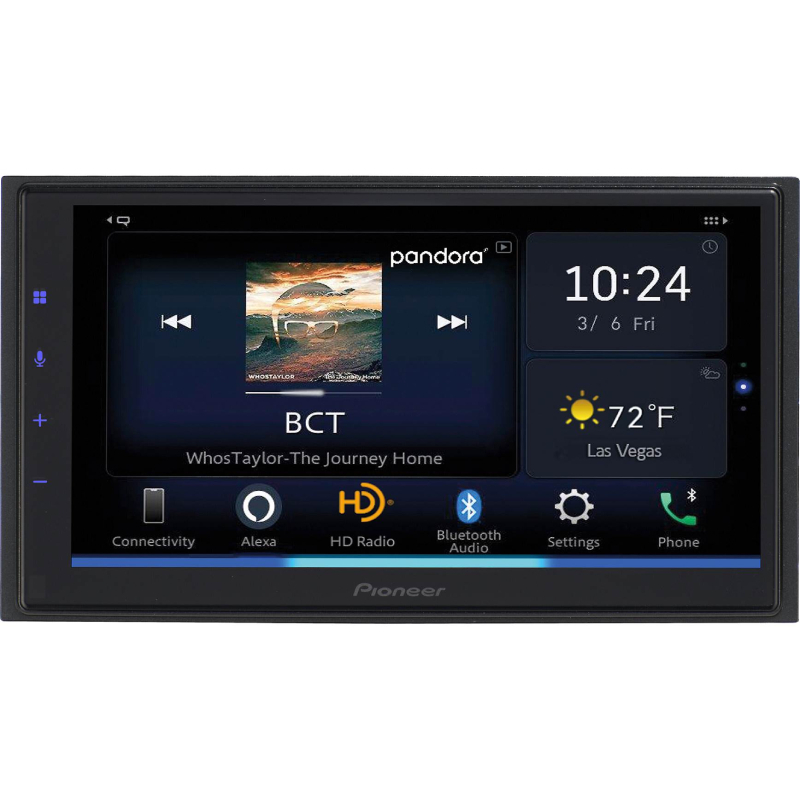

Pioneer DMH-WC5700NEX
Pioneer's NEX or Networked Entertainment eXperience line of receivers features an innovative and powerful new user interface that is responsive and highly customizable. The NEX models are designed especially for today's smartphone driven lifestyle.

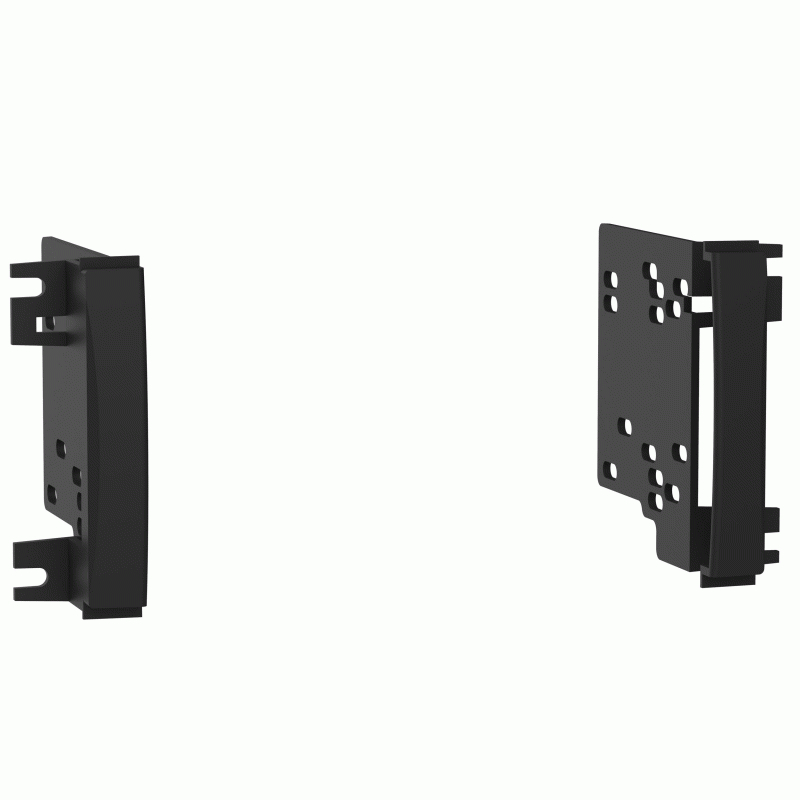

Metra Electronics 95-6511-17
This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is textured to match the original look and feel of the vehicle’s dashboard. Two sizes of trim panels are included to accommodate long or short nose Double-DIN radios. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.

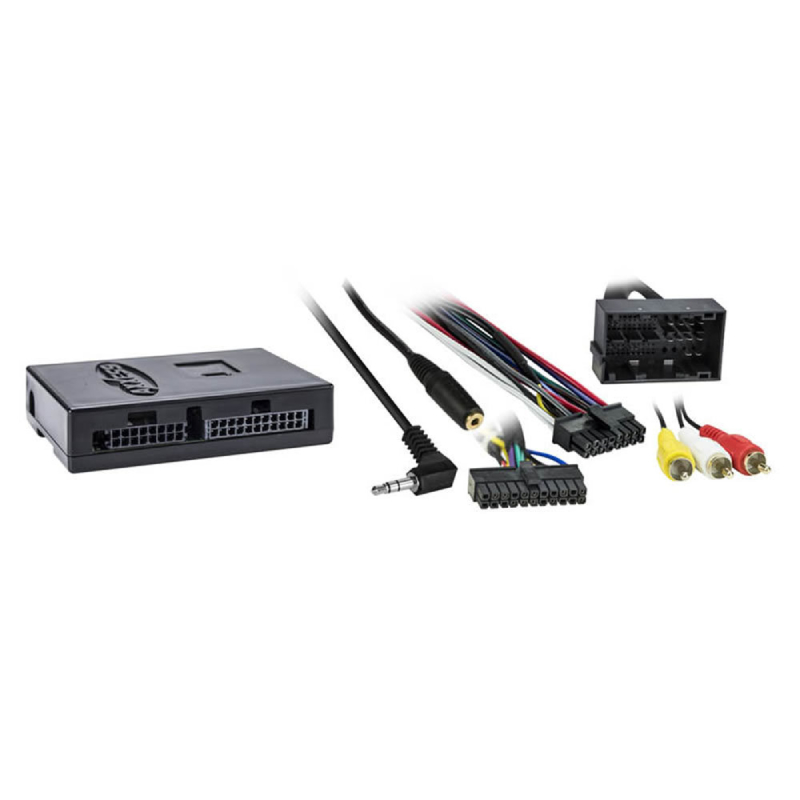

AXDIS-CH5
It allows you to control your car audio system from the steering wheel. It connects to the head unit of the car audio system and allows you to control functions like volume, track selection, and other features without having to take your hands off the wheel.
DMH-WC5700NEX 6.8" - Amazon Alexa, Android Auto™, Apple CarPlay®, Bluetooth® - Multimedia Digital Media Receiver
Features:
- Continuous Power Output: 22 W x 4-Channel
- Max Power Output: 50 W x 4-ch 4 ohm
- RCA Preamp Outputs: 6-Channel
- RCA Preout Voltage: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
Display:
- Back LightL: LED
- Brightness Control: Yes
- Color Customization: 5 display colors, 112 key colors
- Device (Non-DIN/Modular Unit): Modular, Non-DIN
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
- Display Off Mode: Yes
- Home Screen Customization: Yes
- Monitor Mechanism: Fixed
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 6.8"/16:9
- Touch Screen: Capacitive
Bluetooth:
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- BT Microphone: Included
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands-Free: Yes
- 5-phone Registration: Yes
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
Tuner:
- Best Station Memory: Yes
- HD Radio™: Built In, Aritist experience, Multicasting
- Hybrid Radio: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
Integration:
- Amazon Alexa: Built In
- Android Auto™: Wireless Connection or Wired USB Connection
- Apple® CarPlay: Wireless Connection or Wired USB Connection
- Gracenote Sports: Yes
- Mobile Operating System: Android / Apple iOS
- Music Playback (MTP): Yes
- Pandora®: With Apple CarPlay or Android Auto
- Pioneer App Compatibility: CarAVAssist Android, CarAVAssist iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: With Apple CarPlay or Android Auto
- Voice Control: Yes
- WiFi: Tethering, WiFi Hotspot
Digital Media Playback:
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / WAV Audio Playback (Hi-Res) / AAC Audio Playback / FLAC Audio / Playback (Hi-Res) / DSD Audio Playback (Hi-Res)
- Audio Video Playback via USB: .avi / .mpg/mpeg / .divx / .mp4 / .3gp / .mkv / .flv / .wmv/.asf / .m4v / H.263 / H.264 / .ts/.m2ts/.mts
- Image Display Via USB: BMP / JPEG / PNG
Audio:
- Bass Boost: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Network Mode: HPF/Band Pass/LPF
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Off/Low/High
- Easy EQ (EEQ) Preset Equalizer: Yes
- Listening Position Selector: Yes
- Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-ch
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
- Time Alignment: Manual
Inputs:
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
- Input 3: A/V or 2nd Camera
- Input 4: HDMI Micro (Type D)
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- GPS Antenna: Yes
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
95-6511-17 Chrysler Multi-Kit 2007-Up
Features:
- Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
- Textured to match factory dash
- Made from the highest quality ABS plastic for an original factory-like fit and finish
- Includes mounting brackets and detailed installation instructions
- A tech support number is available for installation help 7 days a week
- For updated design that accommodates "short nose" radio faces, use 95-6511
Wiring and Antenna Connections:
Harness
- XSVI-6522-NAV (sold separately)
- CHTO-03 (sold separately)
Antenna Adapter
- 40-EU10 (sold separately)
Axxess AXDIS-CH5 Data Interface with SWC for Chrysler/Dodge/Jeep/RAM 2013-Up
Features:
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P. (Retained Accessory Power)
- Provides NAV outputs (parking brake, reverse and speed sense)
- Retains audio controls on the steering wheel
- Retains the factory backup camera (if through the factory radio)
- Retains the factory 3.5mm AUX-IN jack
- High level speaker input
- Can be used in non-amplified or amplified systems
- Micro-B USB updatable
Vehicle Applications:
- Chrysler
- Dodge
- Dart (small screen option) 2013-2016
- Jeep
- Cherokee (Sport trim) 2014-2016
- Compass (Sport trim) 2017.5-Up
- RAM
- 1500/2500/3500 (small screen option) 2013-2017
- Chassis Cab 3500/4500/5500 (small screen option) 2013-2017
- UPC: 798418839342
- Weight: 17
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
