PCH Custom Audio  Jeep Radio Replacement-Bundle28

JVC KW-V850BT 6.8" 2-DIN multimedia receiver w/ clear resistive touch monitor + Metra Electronics 95-6511-17 install kit + Axxess AXDIS-CH5 data interface with SWC for Chrysler/Dodge/Jeep/RAM 2013-up

Item #85416

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

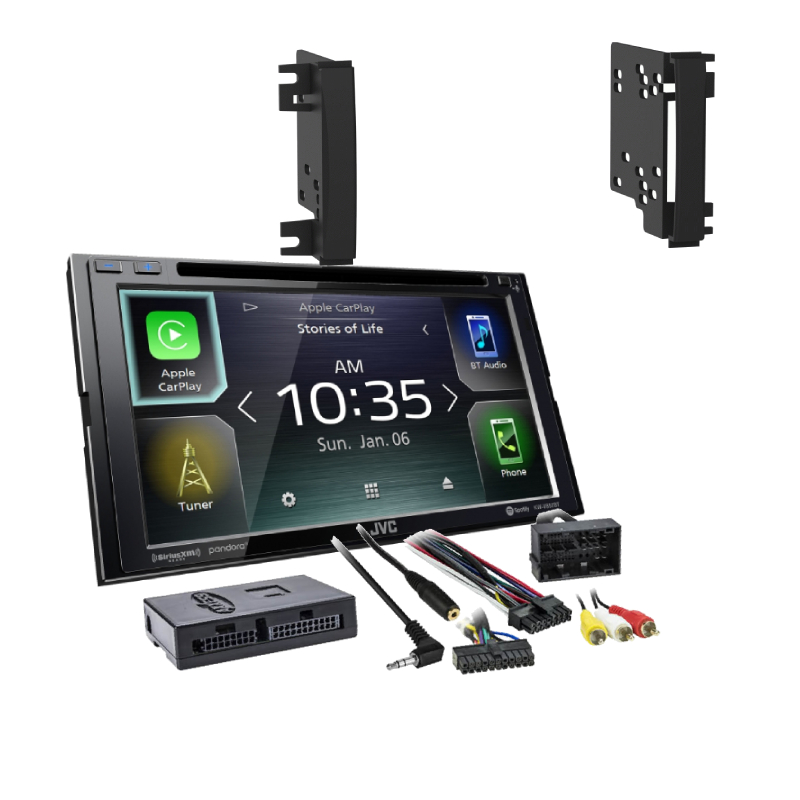

Radio Replacement Bundle for Jeep JK 2013-2018 JVC KW-V850BT + Metra 95-6511-17 + Axxess AXDIS-CH5 (ALL IN ONE SOLUTION)


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • JVC KW-V850BT
  • • Metra Electronics 95-6511-17
  • • Axxess AXDIS-CH5
  • • Owner's Manual

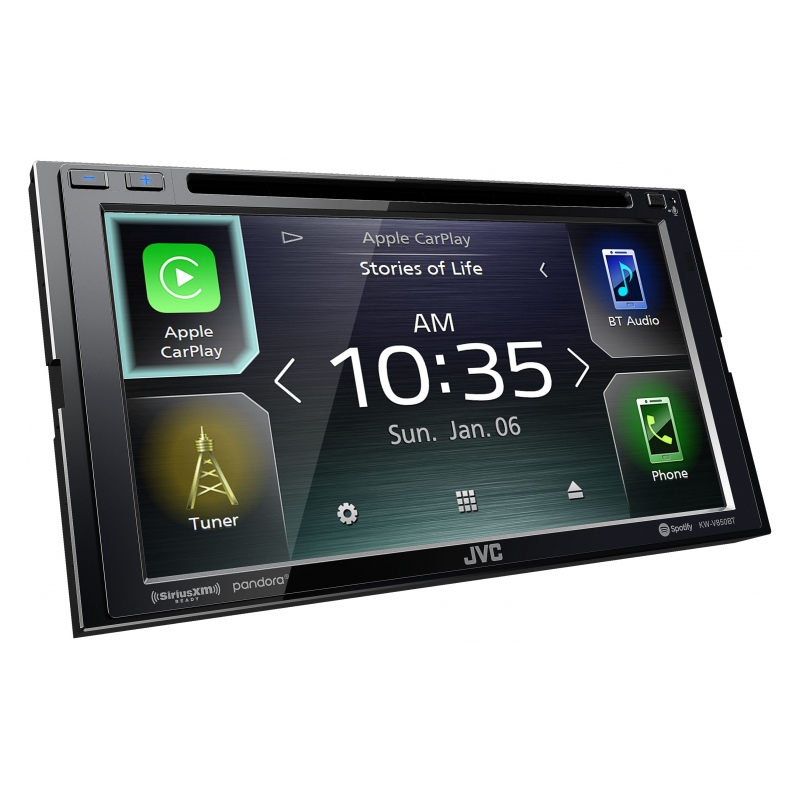

JVC KW-V850BT
JVC KW-V850BT

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety. Just connect your iPhone or Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want — count on JVC to deliver the music to your ears.

Metra Electronics 95-6511-17

This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is textured to match the original look and feel of the vehicle’s dashboard. Two sizes of trim panels are included to accommodate long or short nose Double-DIN radios. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.

Metra Electronics 95-6511-17
Axxess AXDIS-CH13

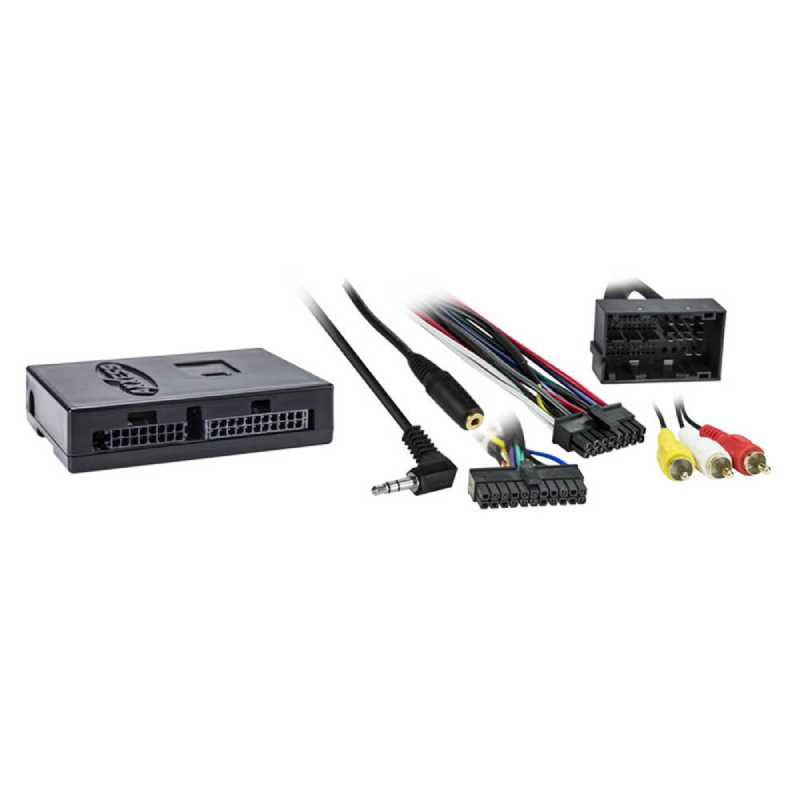

Axxess AXDIS-CH5

The AX-Series with built-in steering wheel control technology allows for an easy install solution of one interface to provide the functions that are needed when replacing a factory radio. Your easy-to-install radio replacement solution just got even easier. The AX-Series with built-in SWC retention now features our patented Axxess auto-detect technology, a new reset button and clean cloth taped harnessing.


SPECIFICATIONS


  • Vehicle Make : Jeep

FEATURES


KW-V850BT 2-DIN 6.8" Multimedia Receiver featuring Clear Resistive Touch Monitor / Apple CarPlay / Android Auto / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ

Features:

Monitor

  • Screen Size: 6.8" Wide VGA
  • Touch Panel: Clear Resistive
  • Monitor Touch Control: Yes
  • Customizable GUI: Yes
  • Key Illumination Color: Blue
  • Dimmer: Yes
  • Multilingual Display: Yes[4]
  • Wallpaper Capture: Yes
  • Live Wallpaper: Yes



Media Playback

  • MP3 Compatible with Tag: CD / DVD / USB
  • WMA Compatible with Tag: CD / DVD / USB
  • WAV Compatible with Tag: CD / DVD / USB
  • AAC Compatible with Tag: CD / DVD / USB
  • FLAC Compatible with Tag: CD / DVD / USB( Up to192kHz/24bit )
  • H.264 Compatible: CD / DVD / USB
  • WMV Compatible: CD / DVD / USB
  • MPEG 1/2 CompatibleCD / DVD / USB
  • MPEG 4 Compatible: CD / DVD / USB
  • AVI/MKV Compatible: CD / DVD / USB
  • JPEG File Playback: CD / DVD / USB
  • PNG File Playback: CD / DVD / USB
  • BMP File Playback: CD / DVD / USB



CD Player

  • CD-R/RW Compatible: Yes



DVD Player

  • DVD-R/-RW, +R/+RW Compatible: Yes
  • Video CD Playback: Yes



Bluetooth Control

  • Built-in Bluetooth[1]: Yes (Version 4.1, Wired-Mic included)
  • Hands Free Call: Yes (HFP1.7 Wideband Speech)
  • 2 Phones Full-Time Connection: Yes
  • Audio Streaming & Control (A2DP, AVRCP): Yes
  • 5 BT-Audio Connection: Yes
  • Voice Dialing (voice recognition compatible mobile phone required): Yes
  • Phone Book Access Profile (PBAP): Yes
  • Alphabetical Search for Phone Book: Yes
  • Auto Pairing for iPhone/Android: Yes



Android Control

  • Android Auto[2]: Yes (via USB)
  • Android Music Playback: Yes
  • Pandora Control: Yes (via Bluetooth(R))
  • Spotify Control; Yes (via Bluetooth(R))



iPod/iPhone Control

  • CarPlay[3]: Yes (via USB)
  • iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
  • Pandora Control: Yes (via USB or Bluetooth(R))
  • Spotify Control: Yes (via USB or Bluetooth(R))



USB

  • USB Port: x1 (High Speed)
  • Position: Rear
  • USB Power Supply: Yes (1.5A High Current Charging)
  • Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes



Radio Tuner

  • SiriusXM Ready: Yes
  • Radio Broadcast Data System (RBDS): Yes
  • Digital Processing Tuner: Yes
  • Preset Stations: 20(FM:15ch, AM:5ch)
  • Automatic Presetting (Strong Station Sequential Memory): Yes
  • FM Frequency Range: 87.9-107.9MHz
  • AM Frequency Range: 530-1,700kHz



Audio

  • Maximum Power Output (Front & Rear): 50Wx4
  • Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
  • MOS-FET Amplifier: Yes
  • EQ: Yes (13-Band Graphic EQ)
    • Preset EQ: Yes (8Preset + 4user)
    • Bass Boost: Yes
  • High-Pass Filter/Low-Pass Filter: Yes/Yes
  • 3-Way X'over: Yes
  • High-Resolution Audio: Yes
  • K2 Technology: Yes
  • Space Enhancement: Yes
  • Sound Response: Yes
  • Sound Lift: Yes
  • Volume Link EQ: Yes
  • Time Alignment: Yes
  • Dual-Zone Function: Yes



Inputs and Outputs

  • AV Input: mini jack
  • Video Out: RCA
  • Rear view camera Input: Yes
  • Front view camera Input: Yes
  • Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
  • Pre-output Level/Impedance: 4.0V / 10k ohms
  • Subwoofer Output with Level/Frequency Control: Yes



General

  • iDatalink Maestro Ready: Yes
  • Remote Control Application: Yes
  • Back Up Memory: Yes
  • Face Type
    • Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
  • Wireless Remote Control: Ready (RM-RK258 required)
  • Steering Remote Control Ready: Yes
  • Dimensions (W x H x D)
    • Installation Size: 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
    • Weight: 4.63 lbs. (2.1kg)
    • Unit weight in individual package: 6.17 lbs. (2.8kg)



95-6511-17 Chrysler Multi-Kit 2007-Up

Features:

  • Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
  • Textured to match factory dash
  • Made from the highest quality ABS plastic for an original factory-like fit and finish
  • Includes mounting brackets and detailed installation instructions
  • A tech support number is available for installation help 7 days a week
  • For updated design that accommodates "short nose" radio faces, use 95-6511



Wiring and Antenna Connections:

Harness

  • XSVI-6522-NAV (sold separately)
  • CHTO-03 (sold separately)

Antenna Adapter

  • 40-EU10 (sold separately)



AXDIS-CH5 Data Interface with SWC for Chrysler/Dodge/Jeep/RAM 2013-Up

Features:

  • Provides accessory power (12-volt 10-amp)

  • Retains R.A.P. (Retained Accessory Power)
  • Provides NAV outputs (parking brake, reverse and speed sense)
  • Retains audio controls on the steering wheel
  • Retains the factory backup camera (if through the factory radio)
  • Retains the factory 3.5mm AUX-IN jack
  • High level speaker input
  • Can be used in non-amplified or amplified systems
  • Micro-B USB updatable



Vehicle Applications:

  • Chrysler
    • 200 (LX trim) 2015-2016
  • Dodge
    • Dart (small screen option) 2013-2016
  • Jeep
    • Cherokee (Sport trim) 2014-2016
    • Compass (Sport trim) 2017.5-Up
  • RAM
    • 1500/2500/3500 (small screen option) 2013-2017
    • Chassis Cab 3500/4500/5500 (small screen option) 2013-2017
  • UPC:
  • Weight: 17
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
