PCH Custom Audio  Jeep Compass/Cherokee Radio Replacement-Bundle34

JVC KW-M865BW 6.8" Digital Media Receiver w/ Apple CarPlay, Android Auto + Metra 95-6511-17 Dash Kit + Axxess AXDIS-CH5 Data Interface w/ SWC

Item #85422

Product Highlights

  • JVC KW-M865BW 6.8" Receiver
  • Apple CarPlay & Android Auto
  • Metra Dash Kit
  • Axxess AXDIS-CH5 Interface
  • SWC Compatible

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Jeep Radio Replacement-Bundle34 includes JVC KW-M865BW 6.8" Digital Media Receiver w/ Apple CarPlay, Android Auto + Metra 95-6511-17 Dash Kit + Axxess AXDIS-CH5 Data Interface w/ SWC


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • JVC KW-M865BW
  • • Metra 95-6511-17
  • • Axxess AXDIS-CH5

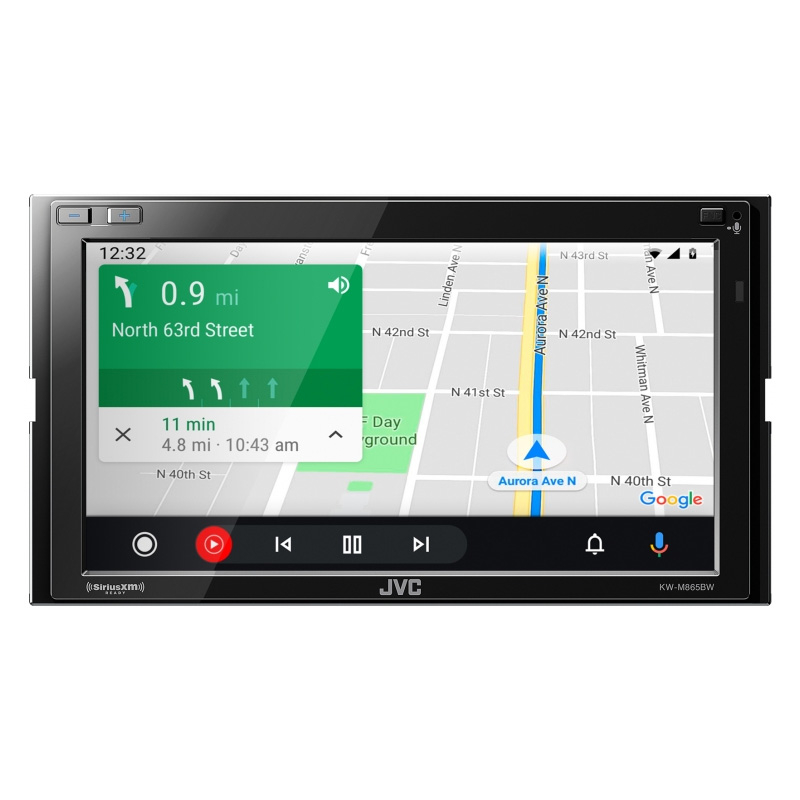

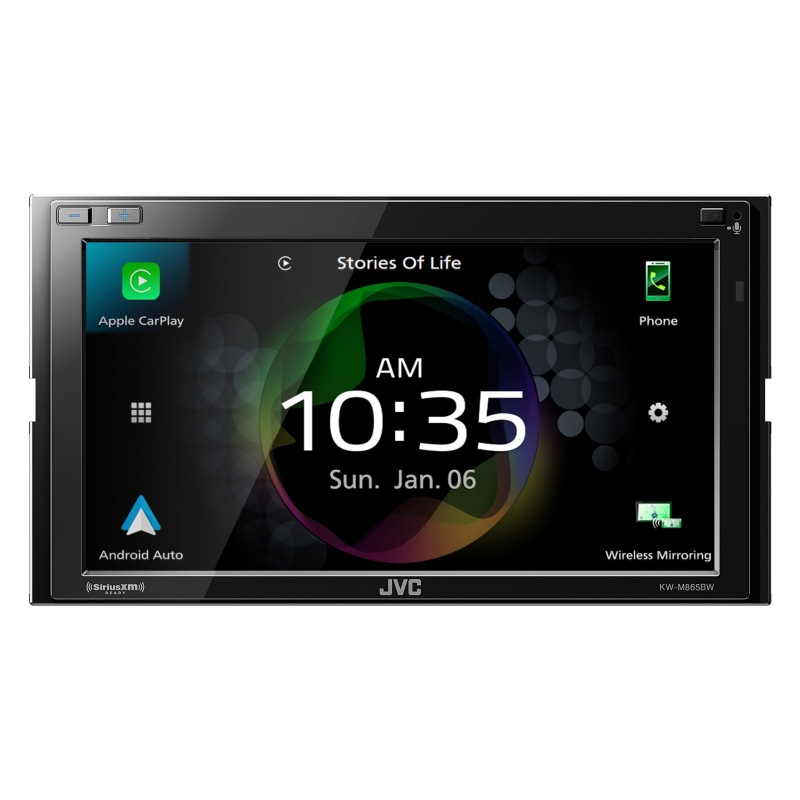

JVC KW-M865BW
JVC KW-M865BW

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety. Various information including time, photos, album art images, or iDatalink Maestro and more, can be displayed on the home screen in a big, easy-to-view way. From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want — count on JVC to deliver the music to your ears.

Metra Electronics 95-6511-17

This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is textured to match the original look and feel of the vehicle’s dashboard. Two sizes of trim panels are included to accommodate long or short nose Double-DIN radios. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.

Metra Electronics 95-6511-17

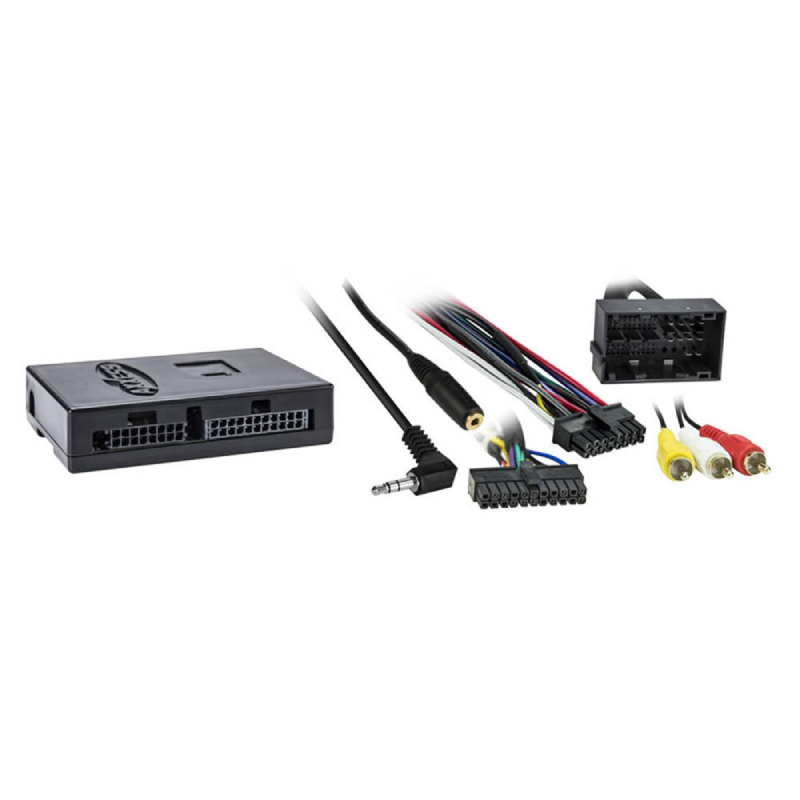

Axxess AXDIS-CH13
Axxess AXDIS-CH5

The AX-Series with built-in steering wheel control technology allows for an easy install solution of one interface to provide the functions that are needed when replacing a factory radio. Your easy-to-install radio replacement solution just got even easier. The AX-Series with built-in SWC retention now features our patented Axxess auto-detect technology, a new reset button and clean cloth taped harnessing.


SPECIFICATIONS


  • Vehicle Make : Jeep
  • Vehicle Model : Compass
  • Vehicle Model : Cherokee

FEATURES


KW-M865BW 2-DIN 6.8" Digital Media Receiver with Clear Resistive Touch Monitor, Wireless Apple CarPlay, Wireless Android Auto, 4-Cam Input, High-Resolution Audio, iDatalink Maestro Ready, Bluetooth®, 13-Band EQ

Features:

Monitor

  • Screen Size: 6.8"W VGA Screen
  • Touch Panel: Clear Resistive
  • Monitor Touch Control: Yes
  • Customizable GUI: Yes
  • Key Illumination Color: Blue
  • Dimmer: Yes
  • Multilingual Display: Yes[4]
  • Wallpaper Capture: Yes
  • Live Wallpaper: Yes



Media Playback

  • MP3 Compatible with Tag: USB
  • WMA Compatible with Tag: USB
  • WAV Compatible with Tag: USB
  • AAC Compatible with Tag: USB
  • FLAC Compatible with Tag: USB( Up to192kHz/24bit )
  • H.264 Compatible: USB
  • WMV Compatible: USB
  • MPEG 1/2 Compatible: USB
  • MPEG 4 Compatible: USB
  • AVI/MKV Compatible: USB
  • JPEG File Playback: USB
  • PNG File Playback: USB
  • BMP File Playback: USB



Bluetooth Control

  • Built-in Bluetooth[1]: Yes (Version 5.0, Wired-Mic included)
  • Hands Free Call: Yes (HFP1.7 Wideband Speech)
  • 2 Phones Full-Time Connection: Yes
  • Audio Streaming & Control (A2DP, AVRCP): Yes
  • Supported Audio Formats: AAC / SBC
  • 5 BT-Audio Connection: Yes
  • Voice Dialing (voice recognition compatible mobile phone required): Yes
  • Phone Book Access Profile (PBAP): Yes
  • Alphabetical Search for Phone Book: Yes
  • Auto Pairing for iPhone/Android: Yes



Wi-Fi Control

  • Built-in Wi-Fi: Yes



Android Control

  • Android Auto[2]: Yes (via Wi-Fi or USB)
  • Mirroring for Android: Yes (via Wi-Fi or USB*) *via USB : Need mirroring App
  • Android Music Playback: Yes (via Bluetooth(R))
  • Pandora Control: Yes (Android Auto / Mirroring)
  • iHeartRadio Control: Yes (Android Auto / Mirroring)
  • Spotify Control: Yes (Android Auto / Mirroring)



iPod/iPhone Control

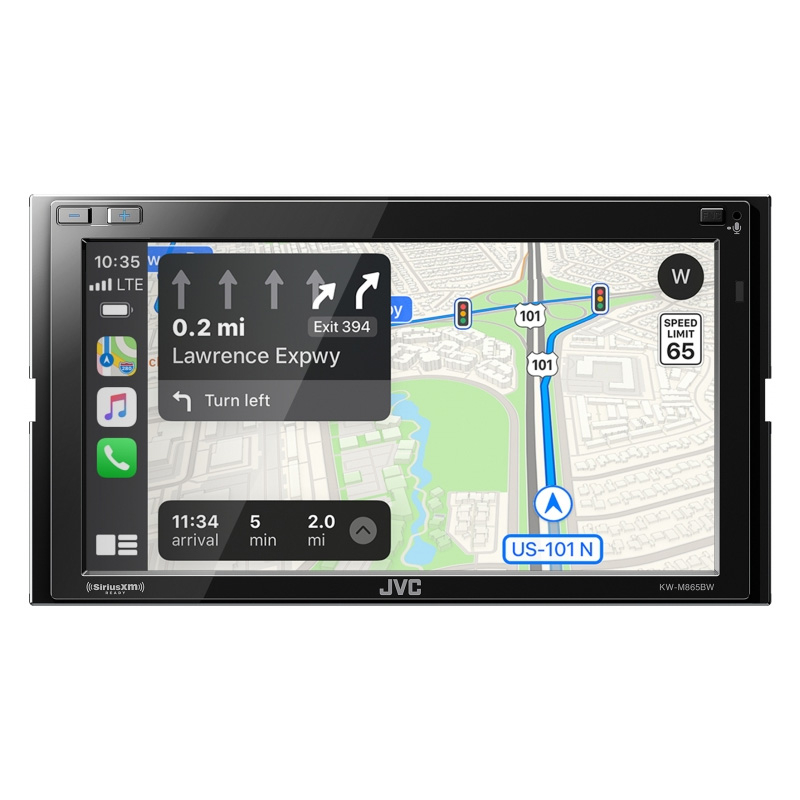

  • CarPlay[3]: Yes (via Wi-Fi or USB)
  • Mirroring for iPhone: Yes (via USB) *Need mirroring App
  • iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
  • Pandora Control: Yes (CarPlay / Mirroring)
  • iHeartRadio Control: Yes (CarPlay / Mirroring)
  • Spotify Control: Yes (CarPlay / Mirroring)



USB

  • USB Port: x 2 (High Speed)
  • Position: Rear
  • USB Power Supply: Yes (1.5A High Current Charging)
  • Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes



Radio Tuner

  • SiriusXM Ready: Yes
  • Radio Broadcast Data System (RBDS): Yes
  • Preset Stations: 20(FM:15ch, AM:5ch)
  • Automatic Presetting (Strong Station Sequential Memory): Yes
  • FM
    • Frequency Range 87.9 - 107.9MHz
  • AM
    • Frequency Range 530-1,700kHz



Audio

  • Maximum Power Output (Front & Rear): 50Wx4
  • Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
  • EQ: Yes (13-Band Graphic EQ)
  • Preset EQ: Yes (8Preset + 4user)
  • Bass Boost: Yes
  • High-Pass Filter/Low-Pass Filter: Yes/Yes
  • 3-Way X'over: Yes
  • High-Resolution Audio: Yes
  • K2 Technology: Yes
  • Space Enhancement: Yes
  • Sound Response: Yes
  • Sound Lift: Yes
  • Volume Link EQ: Yes
  • Time Alignment: Yes
  • Dual-Zone Function: Yes

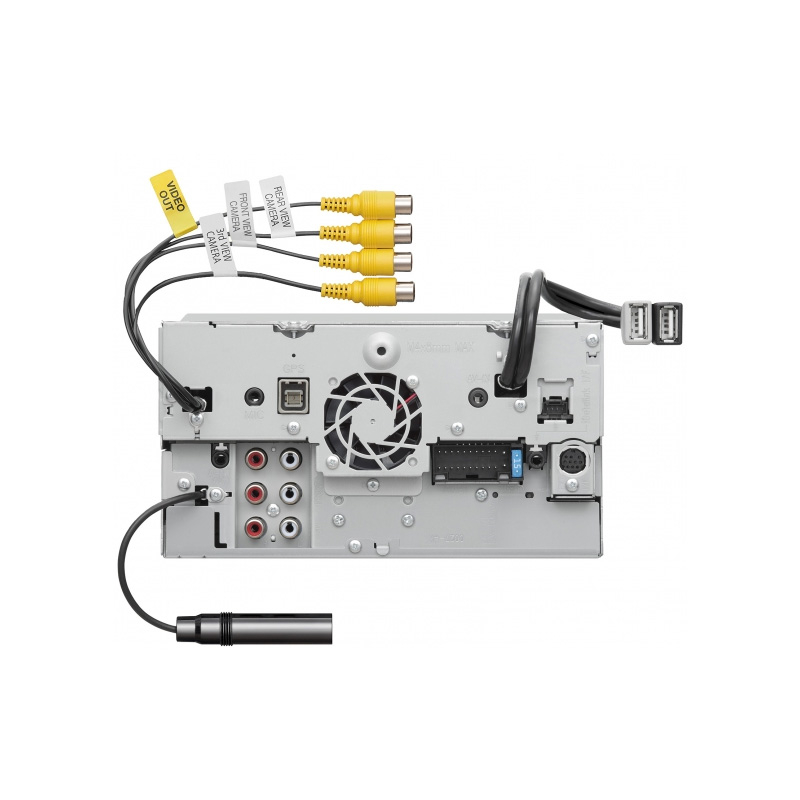

Inputs and Outputs

  • AV Input: mini jack (AV-IN or CAM4 switchable)
  • Video Out: RCA
  • Rear view camera Input: Yes
  • Front view camera Input: Yes
  • 3rd Camera Input: Yes
  • Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
  • Pre-output Level/Impedance: 5.0V / 10k ohms
  • Subwoofer Output with Level/Frequency Control: Yes



General

  • iDatalink Maestro Ready: Yes
  • Remote Control Application:Yes
  • Back Up Memory:Yes
  • Face Type
    • Viewing Angle AdjustmentYes (0 - 20 degree, default : 0 degree) 4 steps
  • Wireless Remote ControlReady (RM-RK258 required)
  • Steering Remote Control ReadyYes



95-6511-17 Chrysler Multi-Kit 2007-Up

Features:

  • Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
  • Textured to match factory dash
  • Made from the highest quality ABS plastic for an original factory-like fit and finish
  • Includes mounting brackets and detailed installation instructions
  • A tech support number is available for installation help 7 days a week
  • For updated design that accommodates "short nose" radio faces, use 95-6511



Wiring and Antenna Connections:

Harness

  • XSVI-6522-NAV (sold separately)
  • CHTO-03 (sold separately)



Antenna Adapter

  • 40-EU10 (sold separately)



Application:

Chrysler

  • 300/300C 2008-2009
  • Aspen 2008-2009
  • Sebring 2007-2009
  • Town and Country 2008-2009



Dodge

  • Avenger 2007-2009
  • Caliber 2009
  • Challenger 2009
  • Charger 2008-2009
  • Dakota 2008-2009
  • Durango 2008-2009
  • Grand Caravan 2008-2009
  • Journey 2009 (Modifications to radio cavity required)
  • Magnum 2008
  • Nitro 2007-2009
  • Ram 1500 2009



Jeep

  • Compass 2009
  • Commander 2008-2009
  • Grand Cherokee 2008-2009
  • Patriot 2009
  • Liberty 2008-2009
  • Wrangler 2007-2009 (Modifications to radio cavity required)
  • Wrangler Unlimited 2007-2009 (Modifications to radio cavity required)



Mitsubishi

  • Raider 2008-2009



AXDIS-CH5 Data Interface with SWC for Chrysler/Dodge/Jeep/RAM 2013-Up

Features:

  • Provides accessory power (12-volt 10-amp)
  • Retains R.A.P. (Retained Accessory Power)
  • Provides NAV outputs (parking brake, reverse and speed sense)
  • Retains audio controls on the steering wheel
  • Retains the factory backup camera (if through the factory radio)
  • Retains the factory 3.5mm AUX-IN jack
  • High level speaker input
  • Can be used in non-amplified or amplified systems
  • Micro-B USB updatable



Vehicle Applications:

  • Chrysler
    • 200 (LX trim) 2015-2016
  • Dodge
    • Dart (small screen option) 2013-2016
  • Jeep
    • Cherokee (Sport trim) 2014-2016
    • Compass (Sport trim) 2017.5-Up
  • RAM
    • 1500/2500/3500 (small screen option) 2013-2017
    • Chassis Cab 3500/4500/5500 (small screen option) 2013-2017
  • UPC: 798418843738
  • Weight: 17
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
