Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

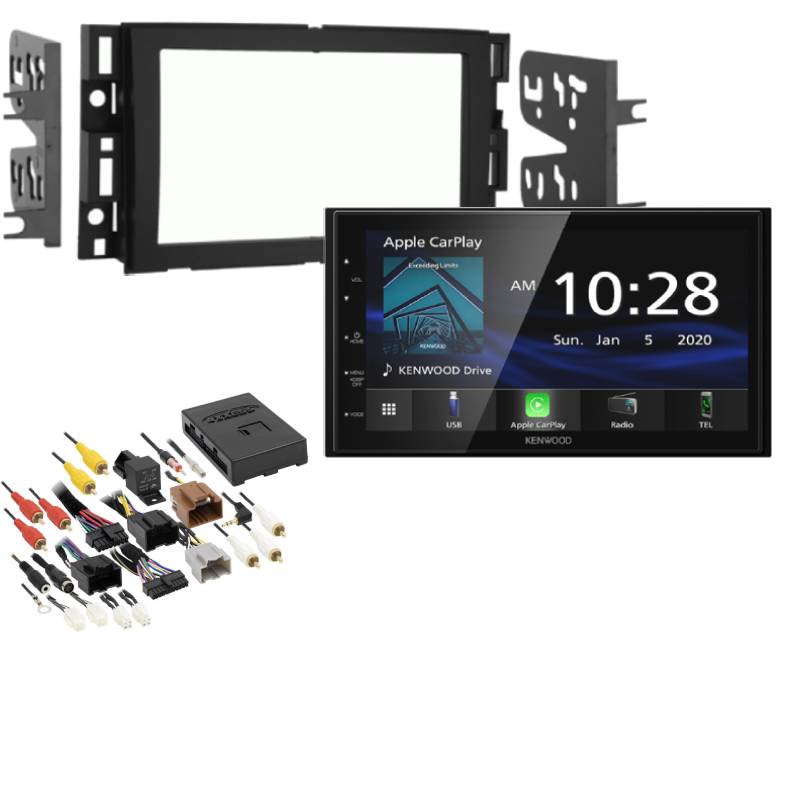

Radio Replacement Bundle for Chevy Silverado 2007-2013 includes the following: Kenwood DMX47S + Metra 95-3305 + Axxess AXDIS-GMLN29
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Kenwood DMX47S
- •Metra 95-3305
- •Axxess AXDIS-GMLN29
- •Owner's Manual

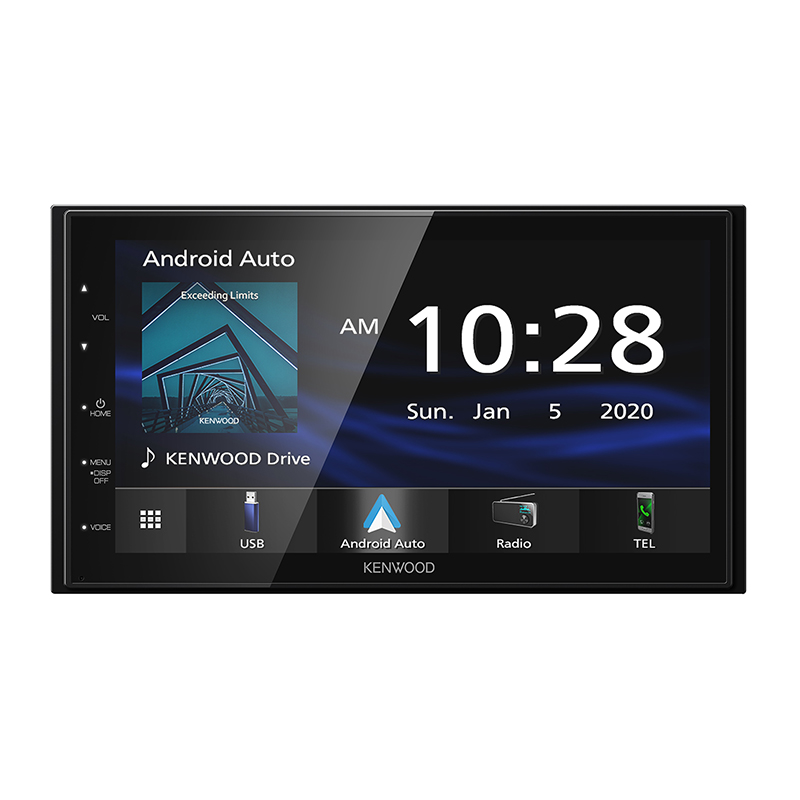

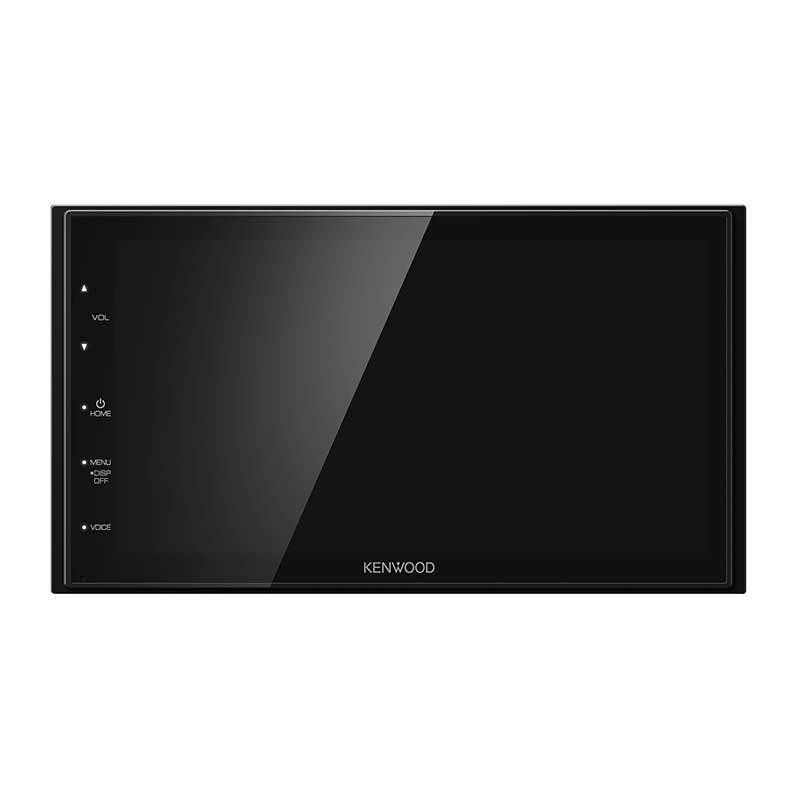

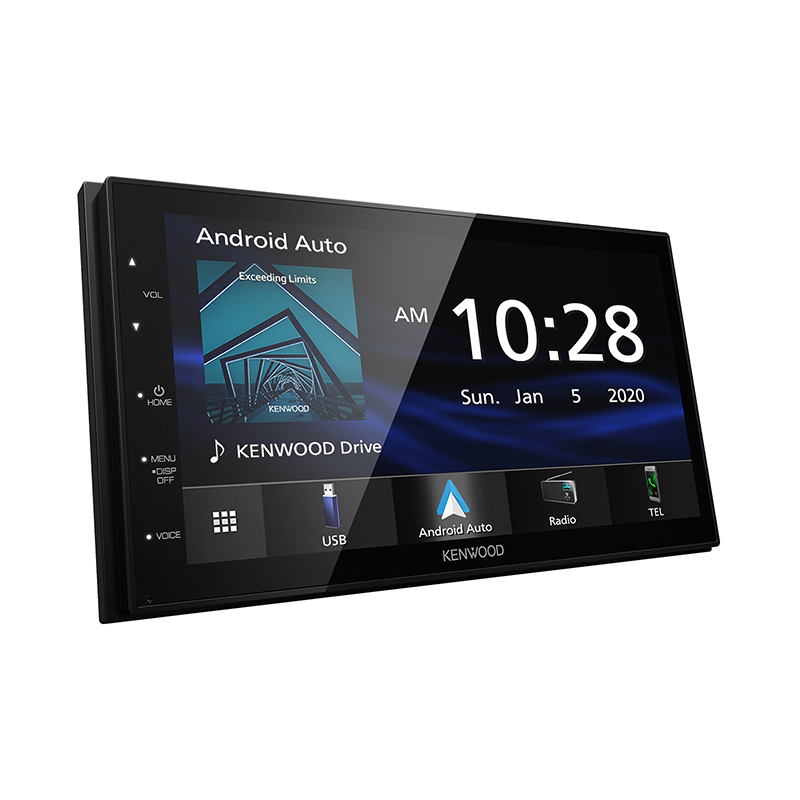

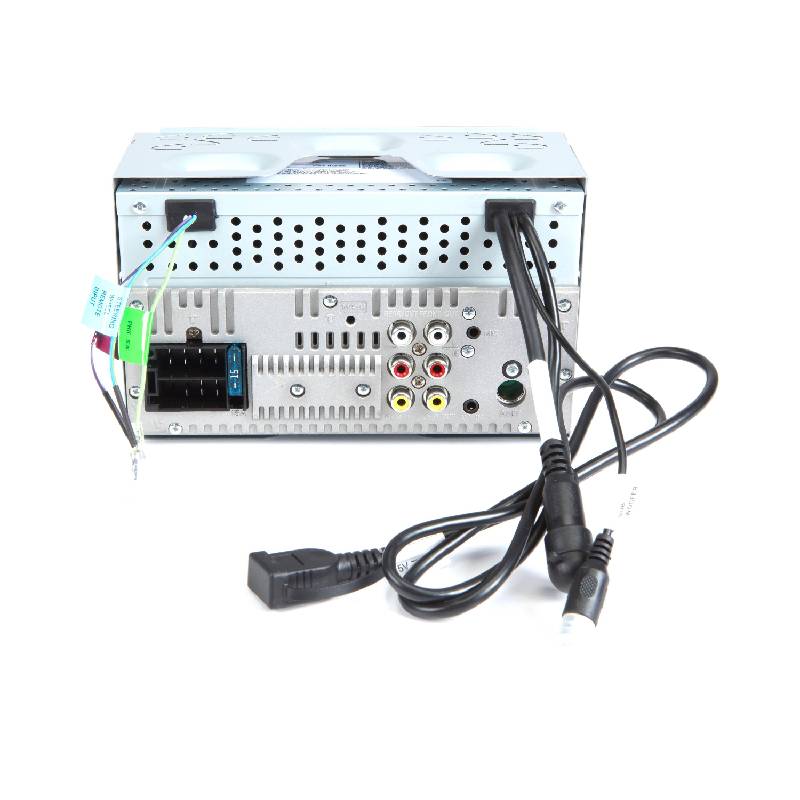

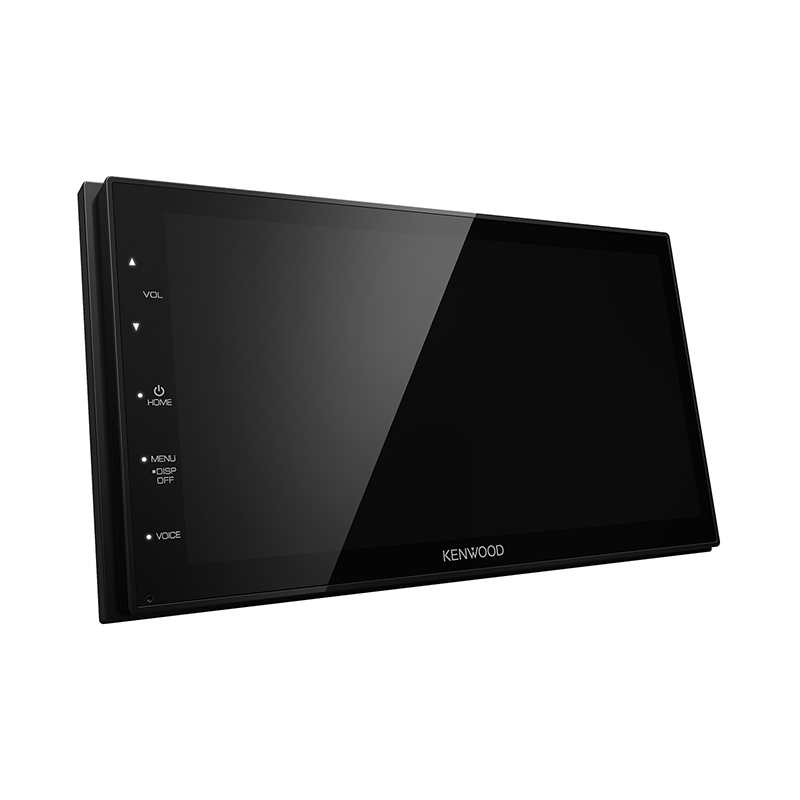

Kenwood DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen
Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road.
With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
Android Auto for Easy Connectivity
KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
FLAC Support
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
True Mirroring via USB, 2-Way Touch Control for Android
Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.

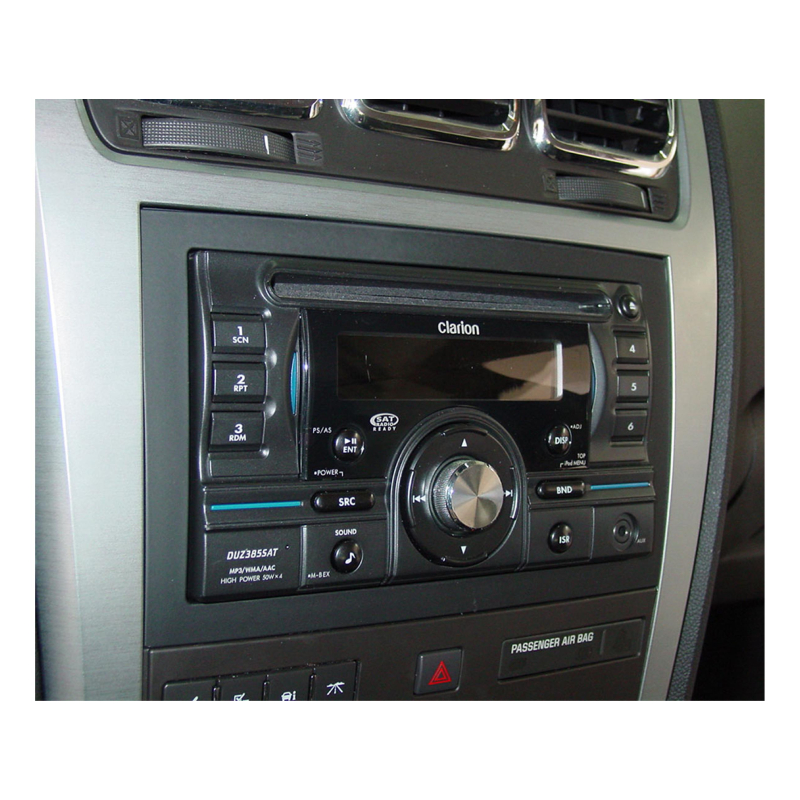

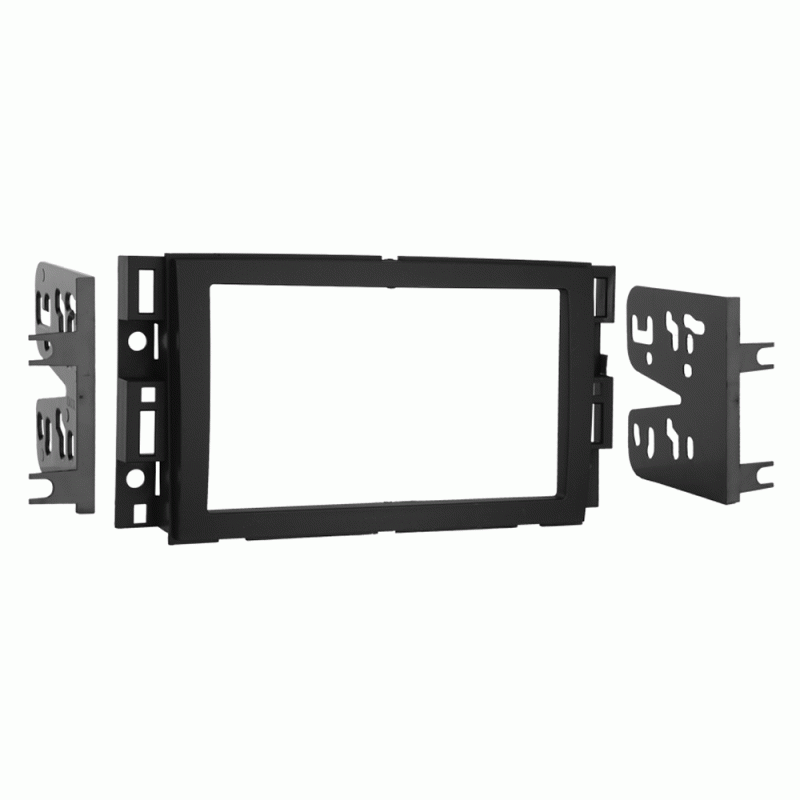

Metra 95-3305 General Motors vehicles Multi-Kit 99-95-2006-Up
Double DIN General Motors vehicles Multi-Kit 2006-Up
This Metra 95-3305 kit allows you to install a double-DIN (4" tall) car stereo in your vehicle's dash opening. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to find out if this kit is compatible with your vehicle.

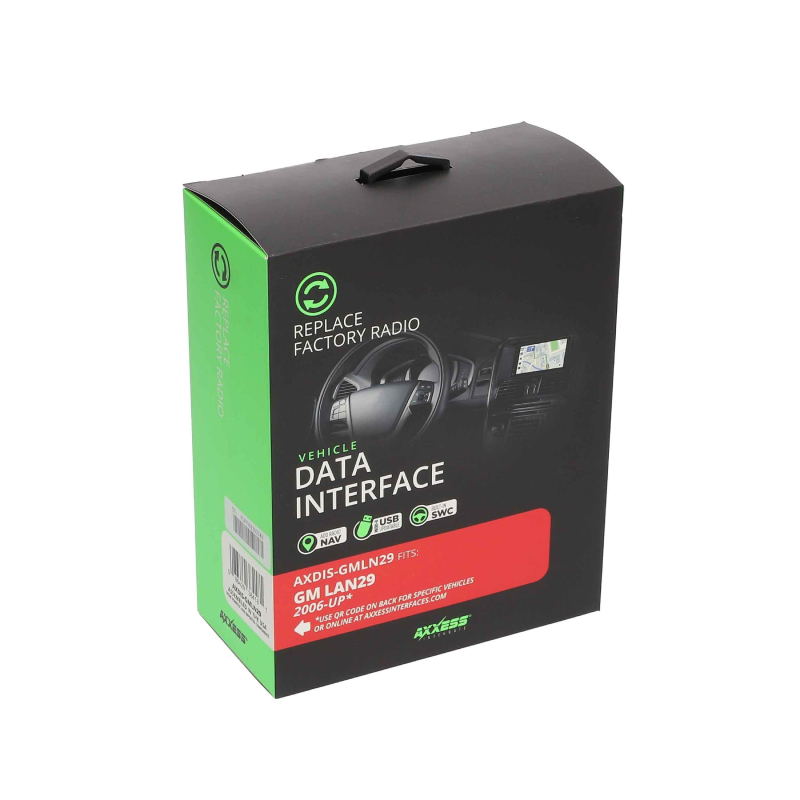

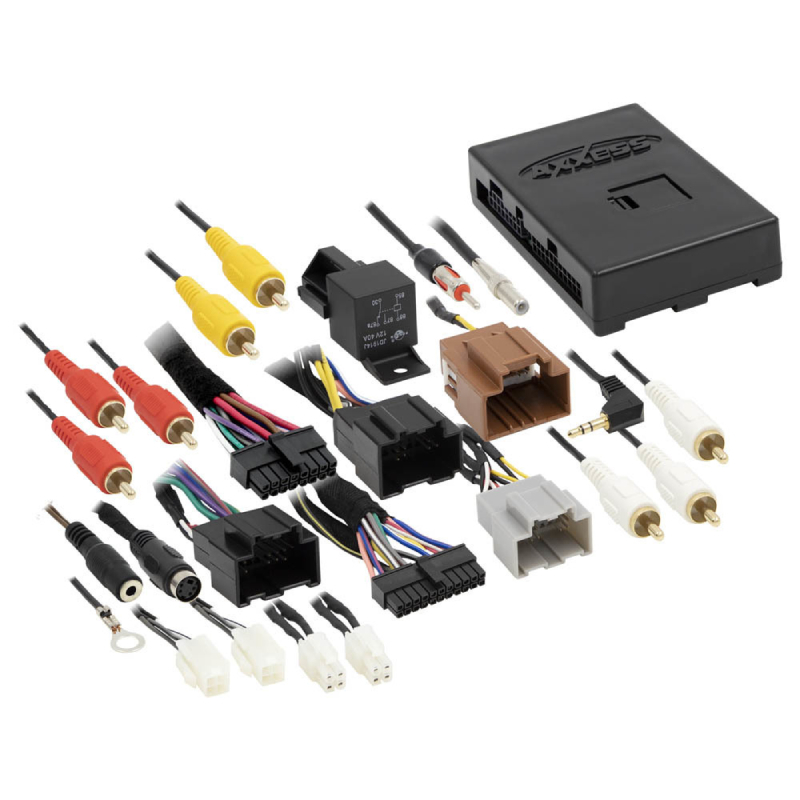

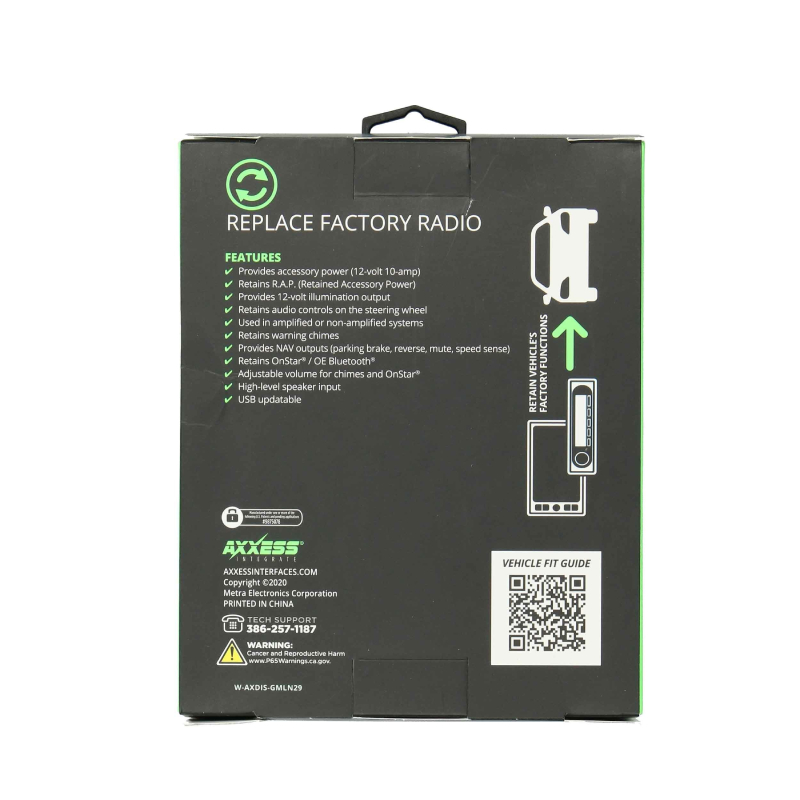

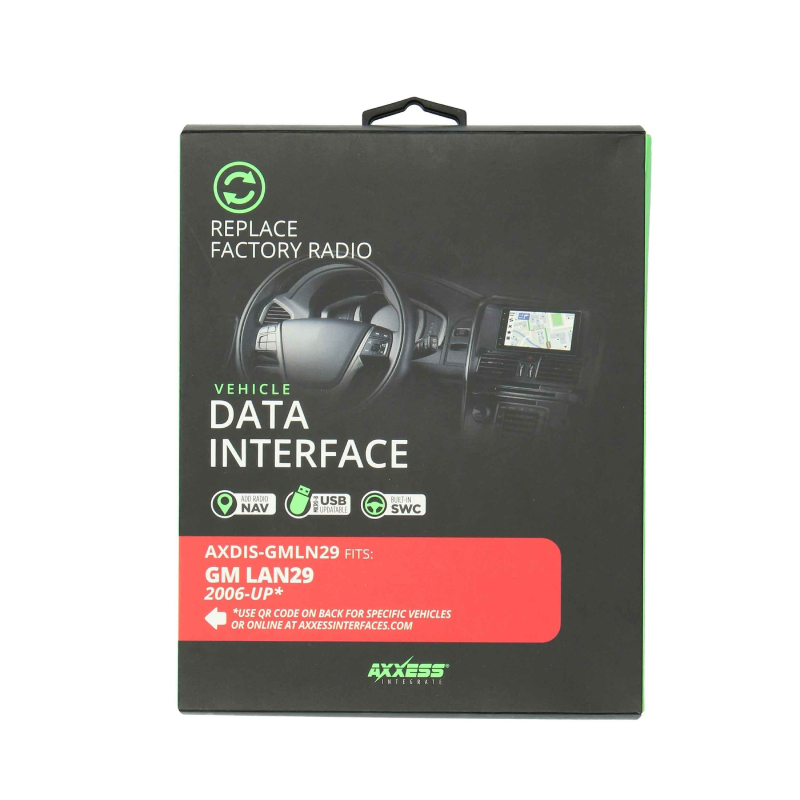

Axxess AXDIS-GMLN29 GM Data Interface with SWC 2006-Up
Retains the Factory Backup Camera
Axxess AXDIS-GMLN29 Provides accessory power (12-volt 10-amp), Retains R.A.P. (retained accessory power), Provides NAV outputs (parking brake, reverse, speed sense), Retains chimes, Retains audio controls on the steering wheel, Retains OnStar / OE Bluetooth Adjustable OnStar level, Retains the factory AUX-IN jack, Retains the factory backup camera, Retains RSE (rear seat entertainment), Retains SAT (satellite radio), Can be used in non-amplified, or analog/digital amplified models, Retains balance and fade (excluding digital amplified models),Includes an antenna adapter, Micro-B USB updatable.
Kenwood DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android
Features:
- 6.8" WVGA Monitor with Capacitive Touch Panel
- Apple CarPlay™ & Android Auto™
- USB Mirroring for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- Short Chassis
- 2 Preouts 2V + Subwoofer Out
Monitor Section:
- Picture size: 6.75inches(diagonal) wide
- W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels:1,152,000
- 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
USB I/F Section:
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32 , exFAT
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / .mkv
- Frequency response 192k Sampling: 20 - 20,000 Hz
- 96k Sampling: 20 - 20,000 Hz
- 48k Sampling: 20 - 20,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.2
- Signal to Noise ratio: 75dB
- Dynamic range: 75dB
Bluetooth Section:
- Technology: Bluetooth Ver4.1
- Frequency: 2.402 – 2.480 GHz
- RF Output Power: (E.I.R.P.) +8dBm (Avg.), Power Class 1
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
Profile:
- HFP (V1.6) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.5) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
Graphics equalizer:
- BAND: 13 Band
- frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
- Gain: -09 to +09 (-9dB to +9dB)
2Way X'Over:
- HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- LOW PASS FILTER frequency (Hz): 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position:
- Front / Rear /Subwoofer Delay: 0 to 6.1m (0.01m Step)
- Gain: -8 to 0dB
- Subwoofer Level: -40 to +6dB
FM:
- Frequency Range: 87.9 - 107.9 MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 16.2dBf
- S/N:30dB: 1.8μV/75 Ohms
- Quieting sensitivity -
- DIN S/N 46dB -
- Frequency response / (±3.0dB): 30Hz - 14kHz
- S/N (dB): 50dB (MONO)
- Selectivity -
- Stereo separation: 35dB (1kHz)
AM:
- Frequency Range: 530 - 1700 kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 99μV(40dBμ)
- Video: Color system of external video input NTSC/ PAL
- External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
- External audio max input level (RCA jacks): 1.5V / 25k Ohms
- Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms
Audio:
- Maximum Power Output (Front&Rear): 45Wx4
- Full Bandwidth Power / (at less than 1%THD): 21Wx4
- Output frequency band: 20 - 20,000Hz
- Preout level (V): 2.0V / 10k Ohms
- Preout impedance (Ω): 1.4k Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General:
- Operating voltage: 12V DC Car Battery
- Installation Dimensions WxHxD: 182 x 112 x 75 (mm) 7-3/16 x 4-7/16 x 2-15/16 (inch)
- Main Unit Installation size W x H x D(w/o sleeve): 178 x 100 x 75 (mm) 7 x 3-15/16 x 2-15/16 (inch)
- Weight Main unit: 1.1 kg / 2.4 lbs
- (Including Sleeve and Trim plate): 1.3 kg / 2.8 lbs
Metra 95-3305 2006-Up General Motors vehicles Multi-Kit
Features:
Wiring and Antenna Connections (sold separately)
- Harness
- see Vehicle Application Guide
- Antenna Adapter
- Vehicle Application Guide
Vehicle Applications:
- Chevrolet
- Avalanche 2007-2013
- Equinox 2007-09
- Express Van 2008-Up
- Impala 2006-2013
- Impala Limited (Fleet) 2014
- Monte Carlo 2006-07
- Tahoe 2007-2014
- Silverado 2007-2013(Excluding Classic Models)
- Silverado 2500/3500 2014
- Suburban 2007-2014
- Tahoe 2007-2014
- Traverse 2009-2012
- Captiva Sport 2012-Up
- Buick
- Enclave 2008-2012
- Lucerne 2006-2011
- GMC
- Acadia 2007-2012
- Savanna 2008-Up
- Sierra 2007-2013 (Excluding Classic Models)
- Sierra 2500/3500 2014
- Yukon 2007-2014
- Saturn
- Outlook 2007-2010
- Vue 2008-2010
- Suzuki
- Hummer
- Pontiac
Axxess AXDIS-GMLN29 GM Data Interface with SWC 2006-Up - REPLACEMENT FOR AX-GMLAN29-SWC
Features:
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Provides NAV outputs (parking brake, reverse, speed sense)
- Retains chimes
- Retains audio controls on the steering wheel
- Retains OnStar / OE Bluetooth
- Adjustable OnStar level
- Retains the factory AUX-IN jack
- Retains the factory backup camera
- Retains RSE (rear seat entertainment)
- Retains SAT (satellite radio)
- Can be used in non-amplified, or analog/digital amplified models
- Retains balance and fade (excluding digital amplified models)
- Includes an antenna adapter
- Micro-B USB updatable
- UPC:
- Weight: 20
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
