4-Channel Class-AB Amplifier with 6-Channel Digital Sound Processor 38Wx4 @ 2 Ohms-13.8V
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1 - D1S 4-Channel Class AB Amplifier with 6-Channel Digital Sound Processor
- • 1 - Owner’s Manual
- • 1 - Power Harness
- • 1 - Input/Output Harness
- • 1 - USB Tuning Cable
All new D1S Amplifier with DSP
The new D1S is a remarkable value for the new to DSP user or the budget conscious audiophile. The D1S features 4 x 38 watts @ 2 Ohms with 6 channels of Digital Sound Processing. The 28 bit DSP main chip supports the 10 band parametric EQ, digital crossovers and time correction. The D1S can also be used as a stand alone DSP processor via the 6 low-level RCA outputs. The new entry level D1S is loaded with features and is an undeniable value.
D1S Additional Features
- • EPS (Intelligent High-Level Input-Error Protection System)
- • Start-Stop ready
- • With the easy-to-use MUSWAY PC software, the D1S can be configured perfectly and in real time via PC
- • Built in 4-Channel high performance high to low converter, Hi-Fi sound quality and low noise
- • Internal Bluetooth Module: Hi-Fi Bluetooth for Audio Streaming.
- • For cars without ACC wire, speaker wire can be used turn on/off amplifier
- • 28-bit DSP main chip supports the 10-band parametric EQ, digital crossovers and time correction.

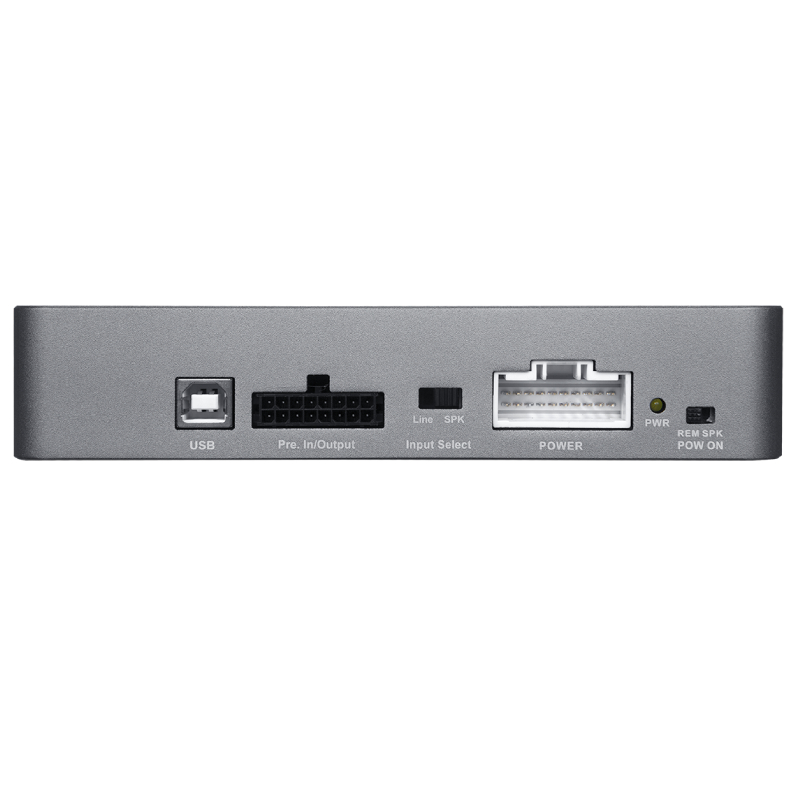

- • Input: 4 x High-Level, 2 x AUX/RCA
- • Output: 4 x High-Level, 6 x Low-Level (RCA) (Configurable via DSP Software)
Product Highlights:
- EPS (Intelligent High-Level Input-Error Protection System)
- Start-Stop ready
- With the easy-to-use MUSWAY PC software, the D1S can be configured perfectly and in real time via PC
- Built in 4-Channel high performance high to low converter, Hi-Fi sound quality and low noise
- Internal Bluetooth Module: Hi-Fi Bluetooth for Audio Streaming.
- For cars without ACC wire, speaker wire can be used turn on/off amplifier
- 28-bit DSP main chip supports the 10-band parametric EQ, digital crossovers and time correction.
- Input: 4 x High-Level, 2 x AUX/RCA
- Output: 4 x High-Level, 6 x Low-Level (RCA) (Configurable via DSP Software)
Specifications:
- Frequency response: 15Hz-22kHz (+0.5dB)
- Distortion THD (1 kHz @ 4 Ohms , 90% Power): < 0.022%
- S/N ratio @ A weighted, 1 V. Max. Power >95dB
- Input sensitivity 5V RMS (Highlevel)
- Input impedance: 220 Ohms (Highlevel)
- OUTPUT POWER (RMS) @ 13.8 VDC, 1% THD:
- 25 W x 4@ 4 Ohms
- 38 W x 4@ 2 Ohms

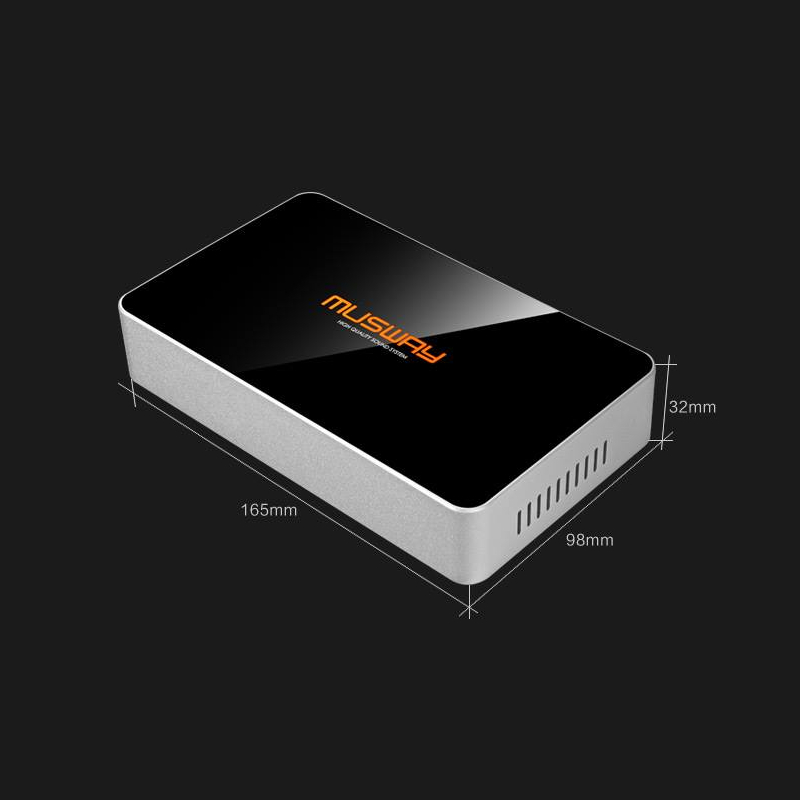

- Dimension (H x L x W) 1.3” x 6.5” x 3.8”
- UPC: 6972502090039
- Weight: 2
