12-Channel Advanced Digital Sound Processor
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1 - TUNE12 12-Channel Advanced Digital Sound Processor
- • 1 - Owner’s Manual
- • 1 - USB Tuning Cable
- • 1 - Power Terminal
- • 1 - High Level Input Terminal
- • 1 - Mounting Hardware

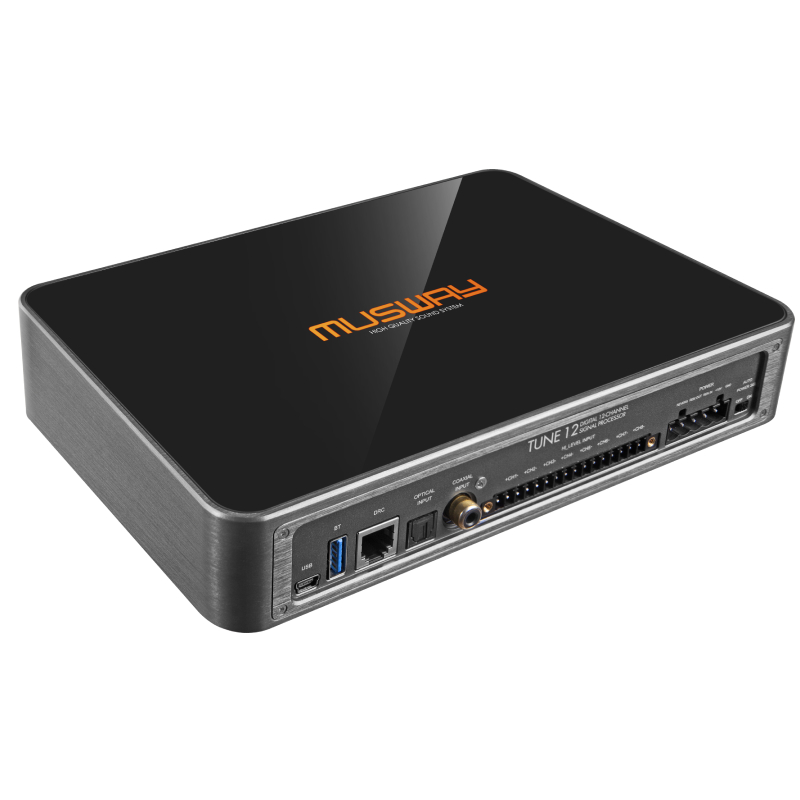

TUNE12’s Extremely High-end Sound
The stand-alone TUNE12 DSP Processor inspires with excellent features and inner values that are elementary in very complex devices. Three Burr-Brown converters were installed to optimize the channel separation and enables the multiple use of different sources. The centerpiece are the state-of-the-art Analog Devices ADAU1452 DSP chips, which are fine-tuned by the Musway engineers which will leave no audiophile’s wishes unfulfilled. The award-winning Tune 12 features 12 channels of DSP processing.
Additional Features
• EPS (Intelligent High-Level Input-Error Protection System)
• Start-Stop Ready

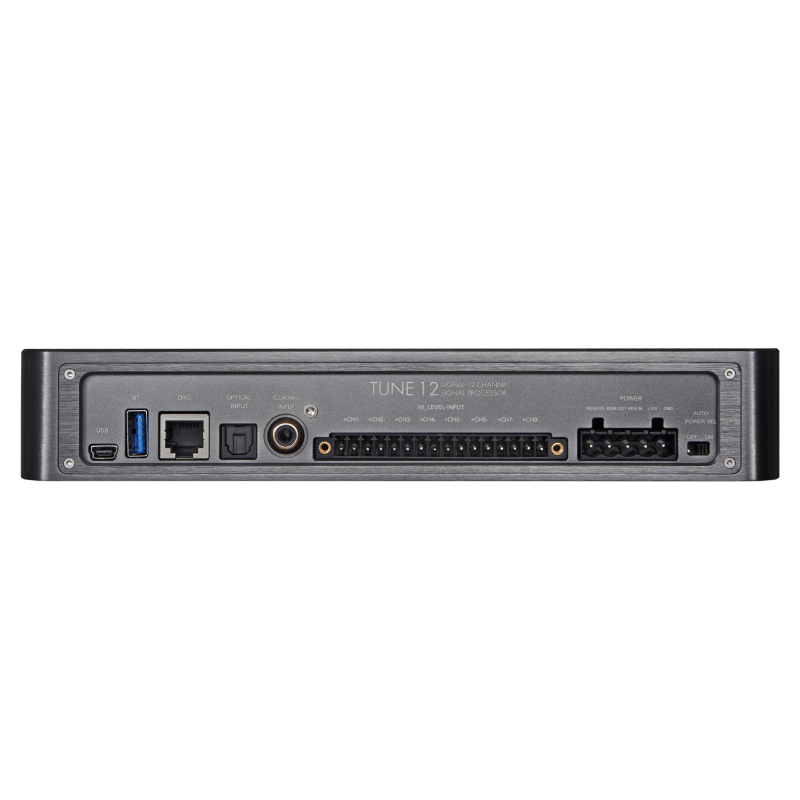

• Inputs: High-Level x 8, Low-Level (RCA) x 6, Aux x 2, Optical x 1 Coaxial x 1

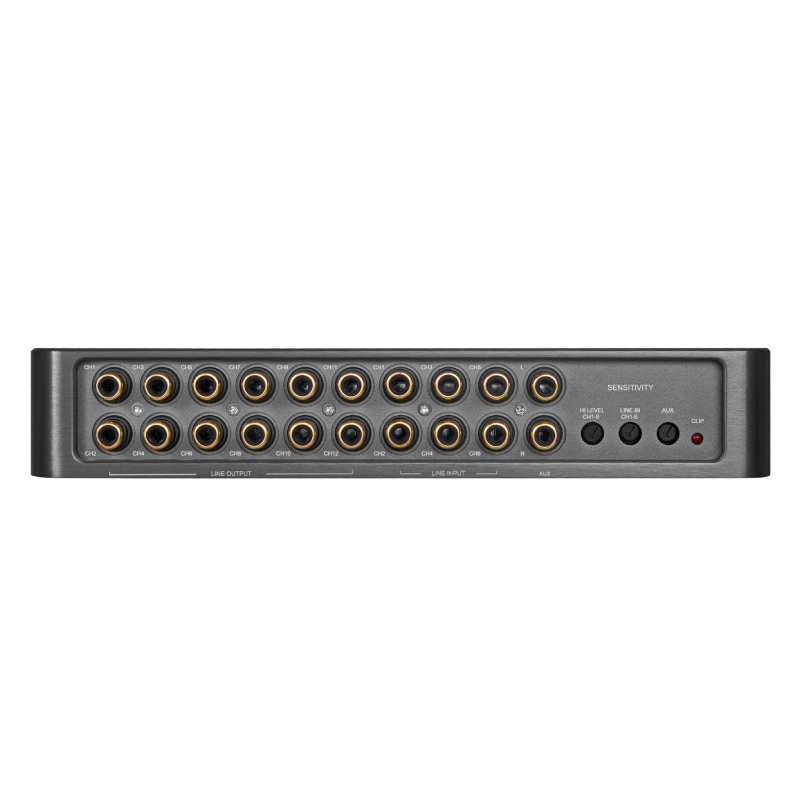

• Outputs: Low-Level Preamplifier-Outputs (RCA) x 12 (Configurable via DSP) Up to 6.5 Volts RMS
• Three Burr-Brown Converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 295 MHz DSP Technology, Controllable via new V3 PC Software or V3 App
• Independent Low-Level Input: The TUNE12 allows you to Connect Low Level Input and High-Level Input at the Same Time to use Multiples Sources
• Separately Adjustable Input Sensitivity (CH1-8 High-Level, CH1-6 Low-Level, AUX)

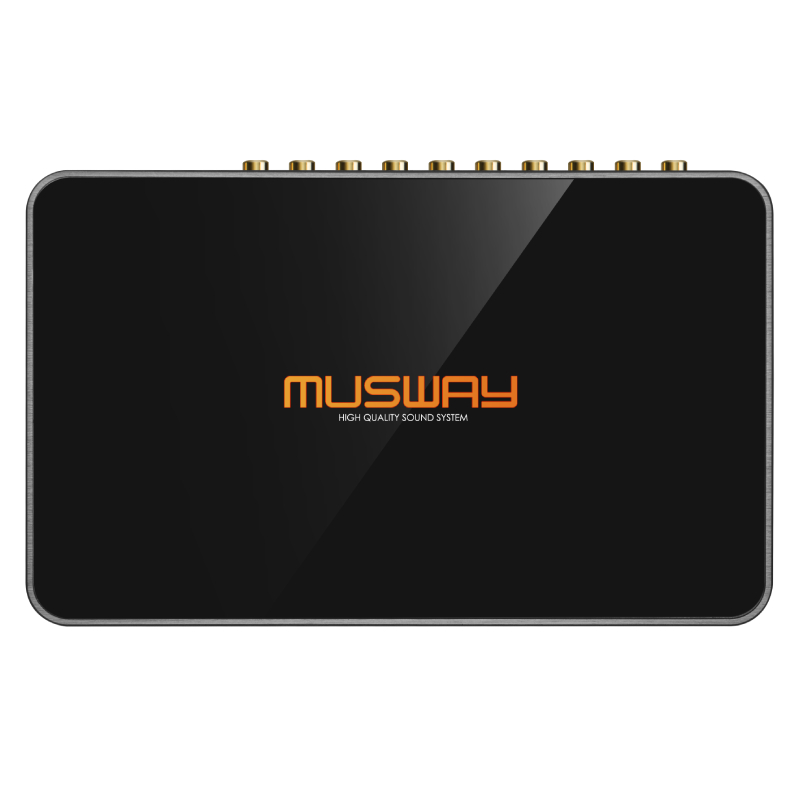

• High Quality Full Aluminum Housing with Glass Top Plate
• With the easy-to-use MUSWAY PC Software, the TUNE12 can be Configured Perfectly and in Real Time via PC or the new Musway App for your Smartphone or Tablet
• With the 3 Optional USB Bluetooth Dongles you can Stream audio (BTS), Stream aptX HD Hi Res Audio (BTS HD), and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
• Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips
Optional Accessories
BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”
BTS-HD
aptX HD USB Bluetooth Dongle for Hi-Res Audio Streaming
For use with TUNE12, DSP68, M6v3, M4+v3, M12.
BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”
DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimensions (H x L x W) 0.5” x 2.3” x 1.3”
Features:
- EPS (Intelligent High-Level Input-Error Protection System)
- Start-Stop Ready
- Inputs: High-Level x 8, Low-Level (RCA) x 6, Aux x 2, Optical x 1 Coaxial x 1
- Outputs: Low-Level Preamplifier-Outputs (RCA) x 12 (Configurable via DSP) Up to 6.5 Volts RMS
- Three Burr-Brown Converters (PCM3168A) and Analog Devices DSP (ADAU1452)
- Dual 32bit, 295 MHz DSP Technology, Controllable via new V3 PC Software or V3 App
- Independent Low-Level Input: The TUNE12 allows you to Connect Low Level Input and High-Level Input at the Same Time to use Multiples Sources
- Separately Adjustable Input Sensitivity (CH1-8 High-Level, CH1-6 Low-Level, AUX)
- High Quality Full Aluminum Housing with Glass Top Plate
- With the easy-to-use MUSWAY PC Software, the TUNE12 can be Configured Perfectly and in Real Time via PC or the new Musway App for your Smartphone or Tablet
- With the 3 Optional USB Bluetooth Dongles you can Stream audio (BTS), Stream aptX HD Hi Res Audio (BTS HD), and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
- Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips
Specifications:
- Distortion - THD+N (Digital Input): < 0.0005 %
- Distortion - THD+N (Analog Input): < 0.004%
- Bandwidth (-1 dB): 15 Hz - 22 kHz
- S/N Ratio A weighted (Digital Input): 116dB
- S/N Ratio A weighted (Analog Input): 108dB
- Input Sensitivity: 8V - 24 V RMS (High Level): 1 V - B V RMS (Low Level, AUX)
- Input Impedance: 13 0 (High Level); 22 kO (Low Level, AUX)
- SIGNAL CONVERTERS
- A/D: Burr-Brown 24 Bit / 96 kHz
- D/A: Burr-Brown 24 Bit / 192 kHz
- Crosstalk: > 90 dB
- Output Voltage: 6.5V RMS
- Operating Voltage DC 8 -16V (down to 6V)
- Dimensions 1.5” x 8.7” x 5.3”
- UPC: 6972502090046
- Weight: 4
