Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Universal Full Car Audio Package includes the following: Pioneer DMH-241EX + Infinity KAPPA 63XF + Infinity KAPPA 693M + Kicker Q-Class 41L7124 + Alpine R-A75M + Alpine R-A60F + XS Power XP750-SE
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Pioneer DMH-241EX
- •Infinity KAPPA 63XF
- •Infinity KAPPA 693M
- • Kicker Q-Class 41L7124
- •Alpine R-A75M
- •Alpine R-A60F
- •XS Power XP750-SE
- •Owner's Manual

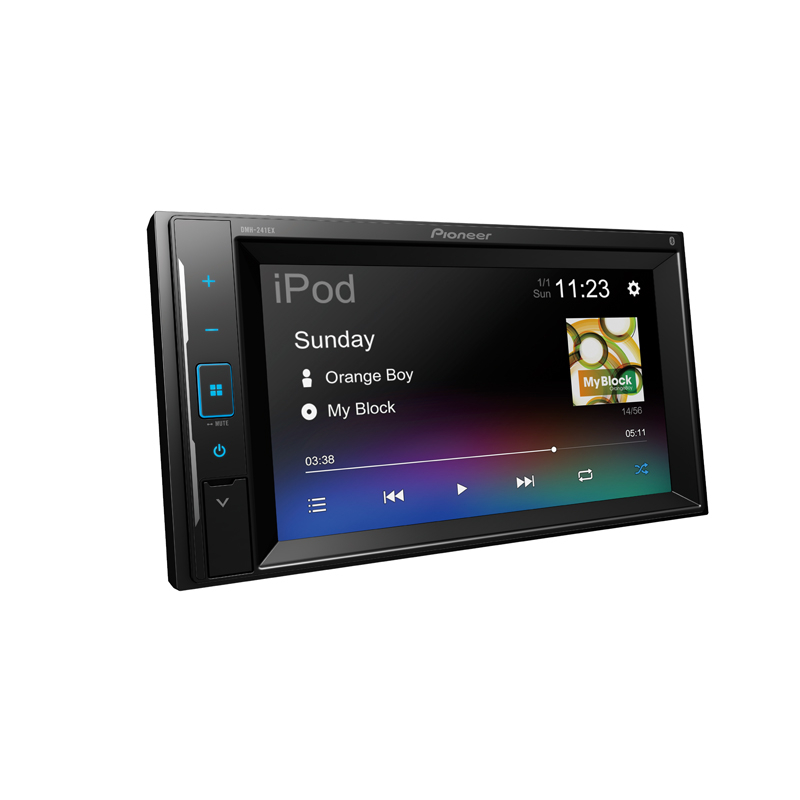

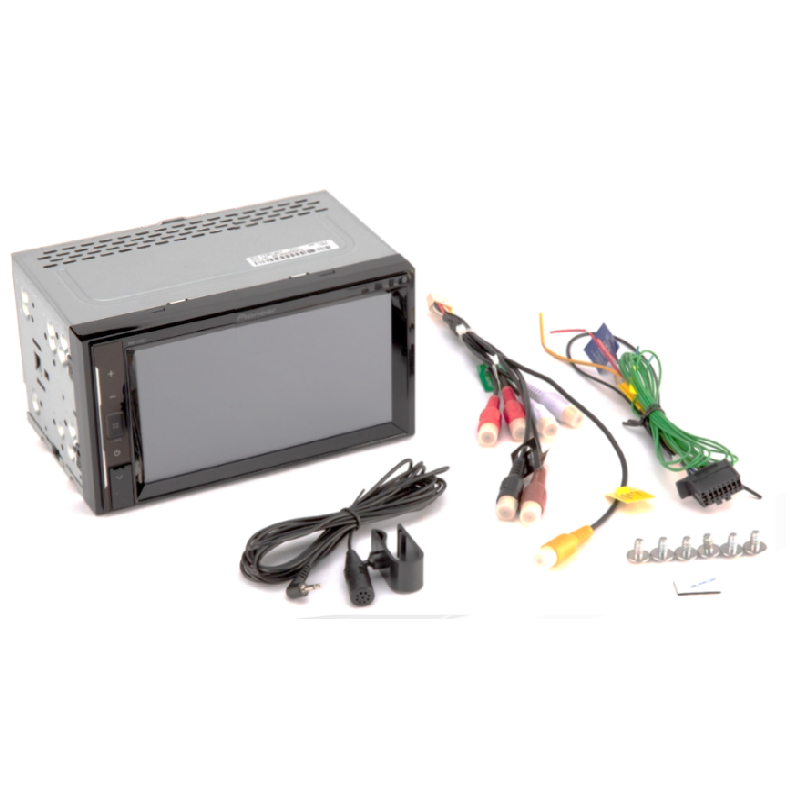

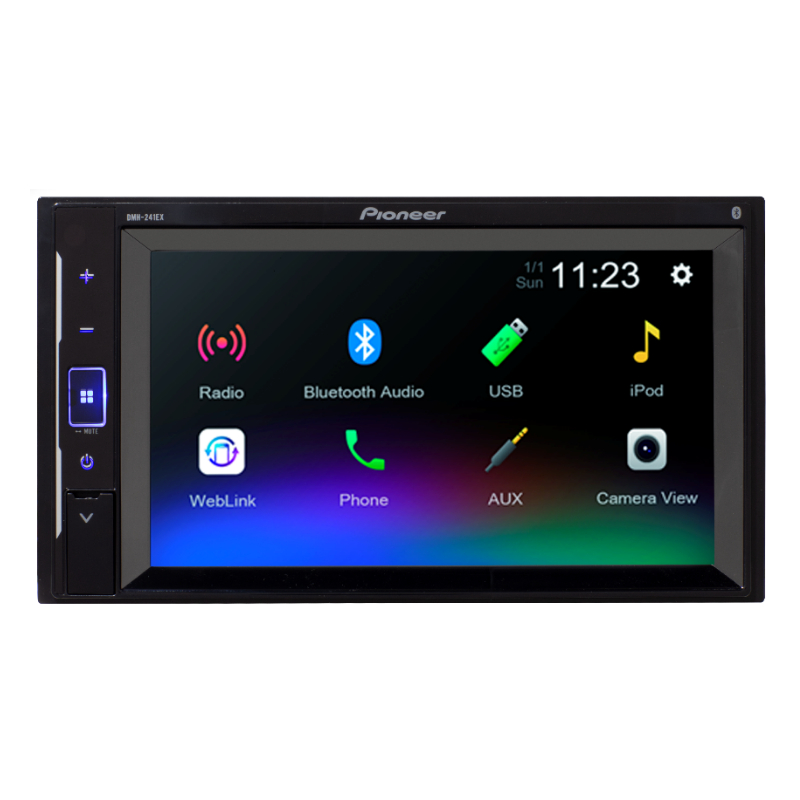

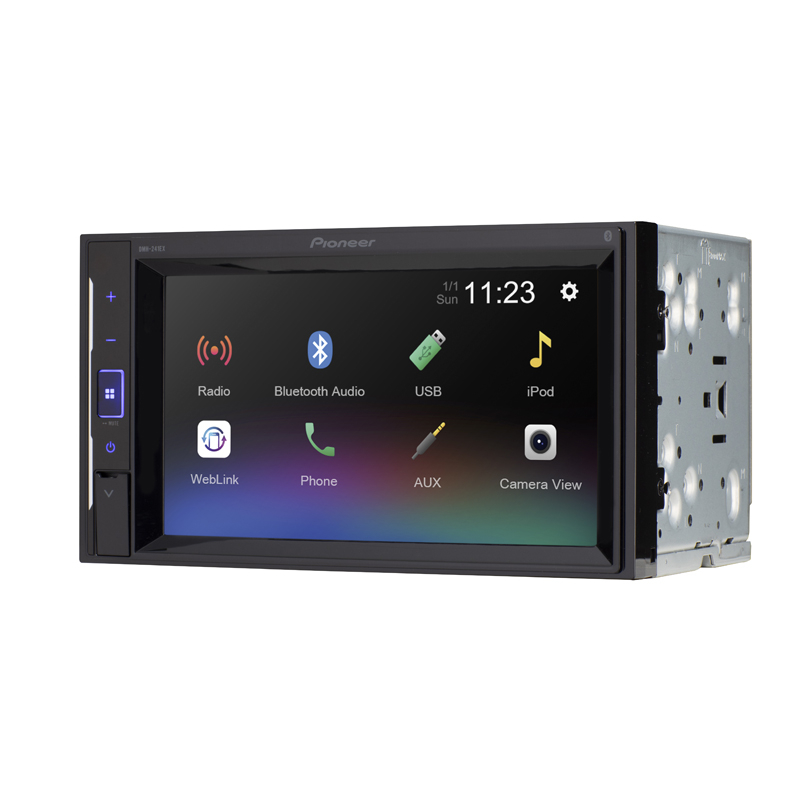

Pioneer DMH-241EX 6.2" WVGA Resistive Clear type touch panel
Networked Entertainment eXperience
Pioneer's NEX or Networked Entertainment eXperience line of receivers features an innovative and powerful new user interface that is responsive and highly customizable. The NEX models are designed especially for today's smartphone driven lifestyle.
The DMH-241EX is a 6.2" resistive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone.
Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as back up camera ready and much more.
Vozsis with Amazon Alexa
Vozsis is a smartphone app available for both iOS and Android OS devices that brings Amazon Alexa capability to compatible Weblink-enabled Pioneer multimedia in-dash receivers.
Downloading both the Vozsis and Weblink applications makes using Alexa in your car simple – just tap-and-ask, and Alexa will respond instantly. With Alexa, you can ask to play music, hear the news, check weather, control smart home devices1, and more.
Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically.
Visit www.pioneerelectronics.com/PUSA/Car/Alexa to learn more including the latest features, apps, and language support for Alexa compatible Pioneer in-dash receivers.
Hands Free Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound.
Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Back Up Camera Input Ready/ FLAC
Back Up Camera Input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear.
The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.
Pioneer's in-dash receivers offer playback of files encoded as high-res FLAC up to 192kHz/24 bit through USB. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.

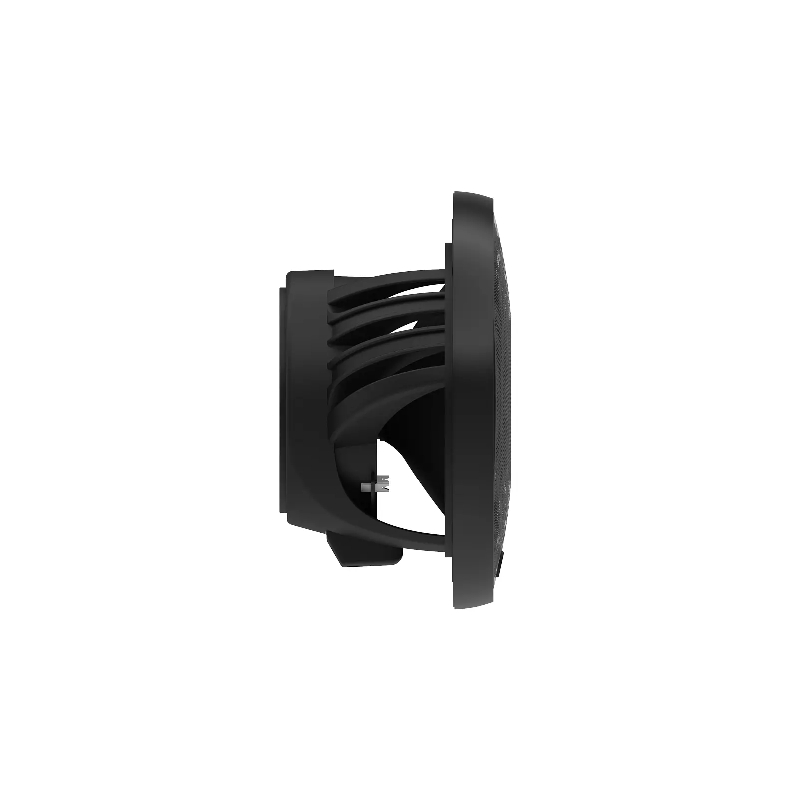

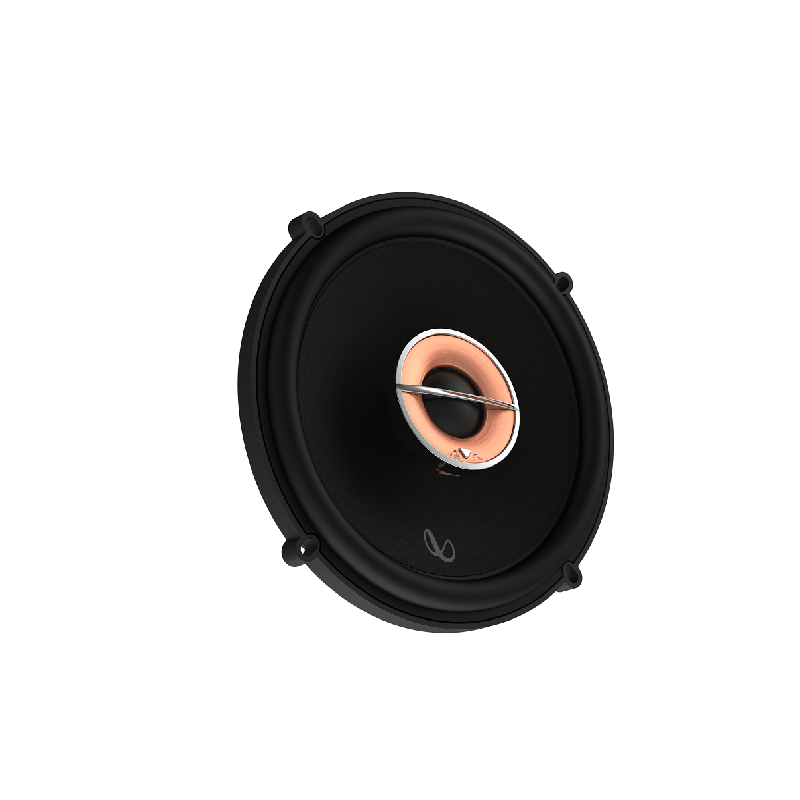

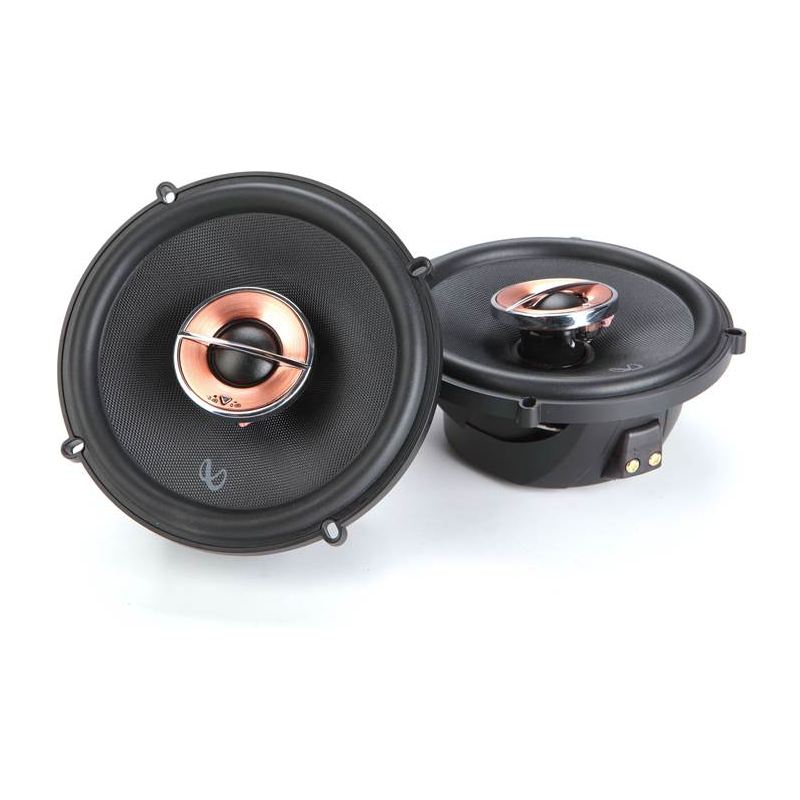

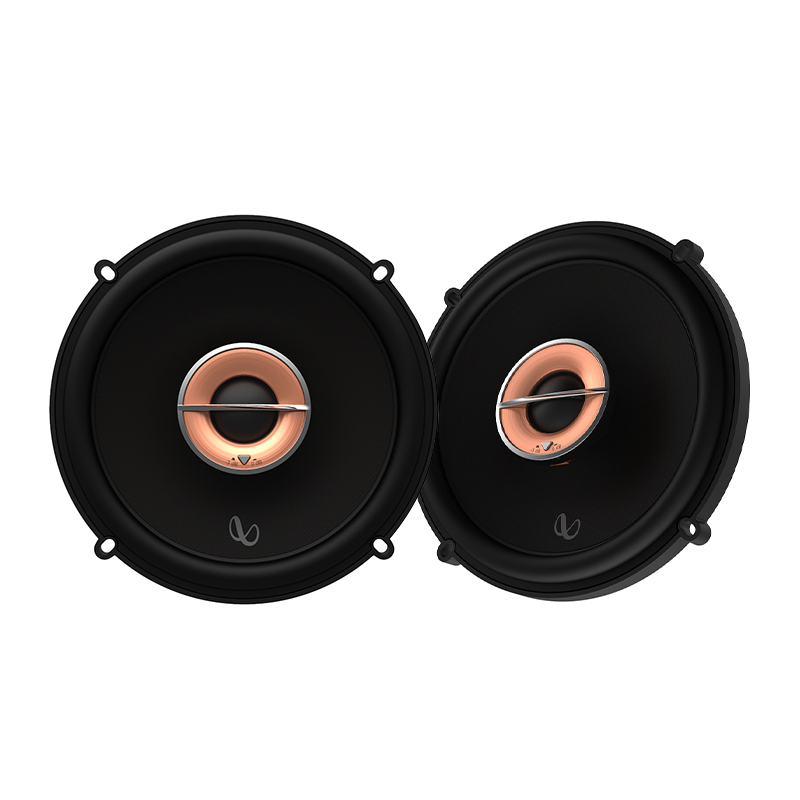

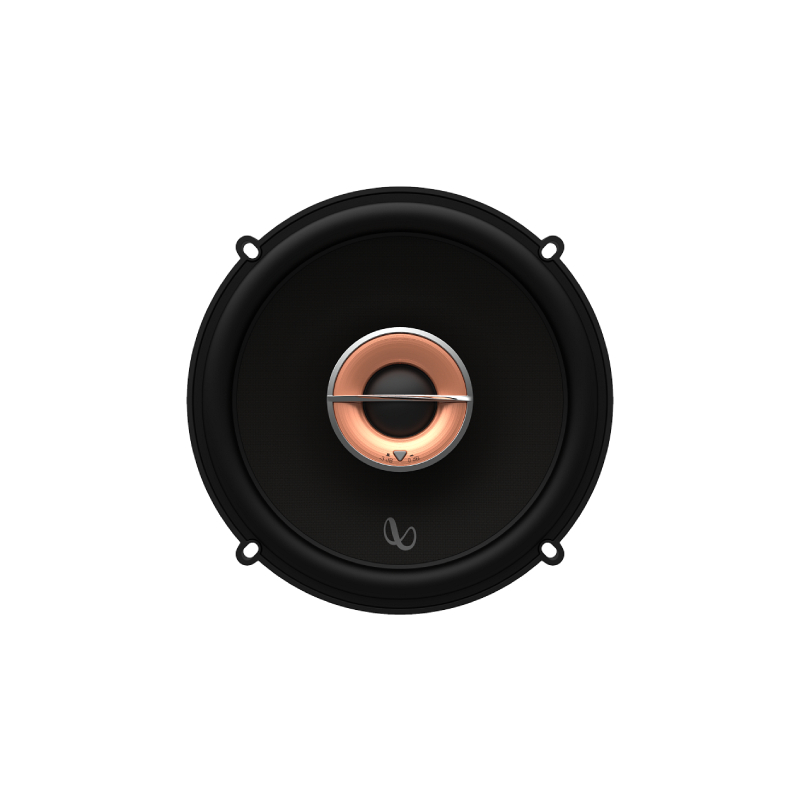

Infinity Kappa 63XF 6-1/2” 85W RMS (255W Peak Power Handling) 2-Way Car Audio Speaker No grilles
40kHz High-resolution Silk Dome Tweeter
Kappa edge-driven silk dome tweeters equipped with oversized voice coils deliver silky smooth highs with impressive thermal power handling and 40kHz high resolution.
0dB or -3dB Tweeter Output Level Control
The push-button on the angled tweeter allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.
Patented Plus One™ Glass Fiber Woofers
Infinity’s glassfiber woofer cones are lighter and stiffer with more cone-area than the competition, delivering increased low-frequency output and higher efficiency. Hearing is believing.

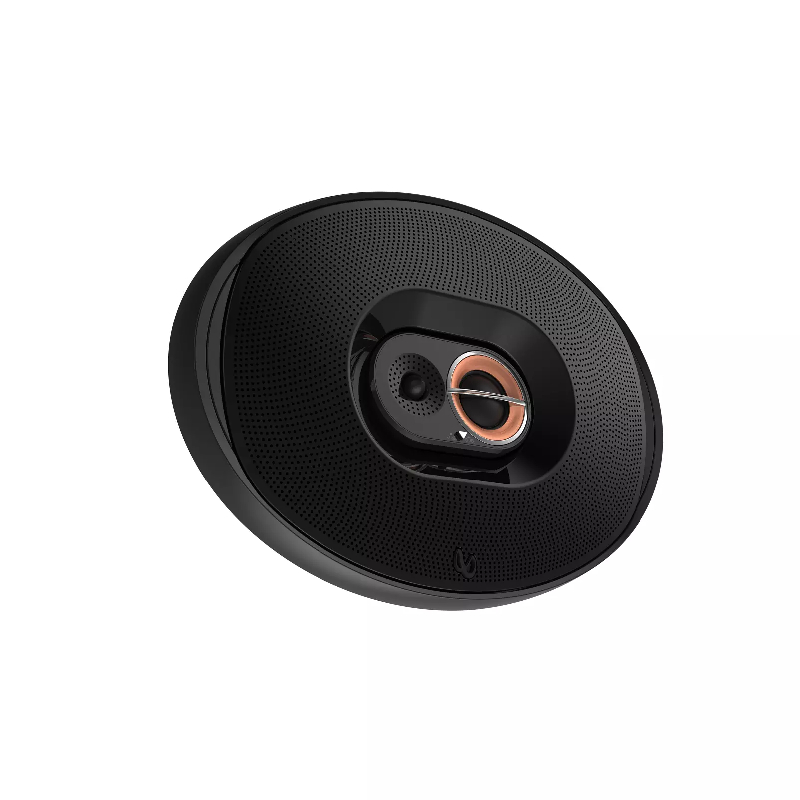

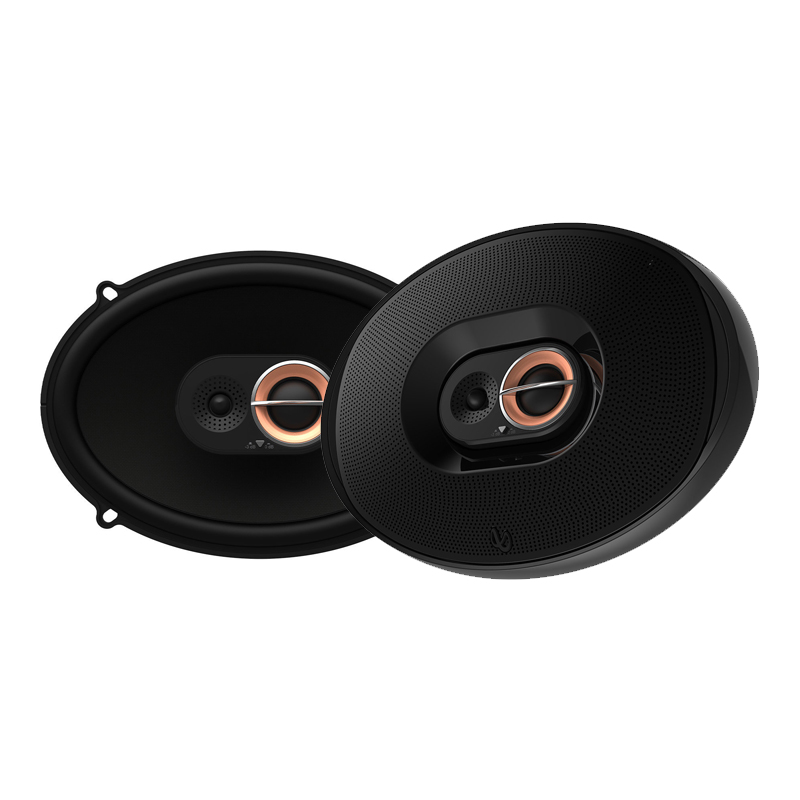

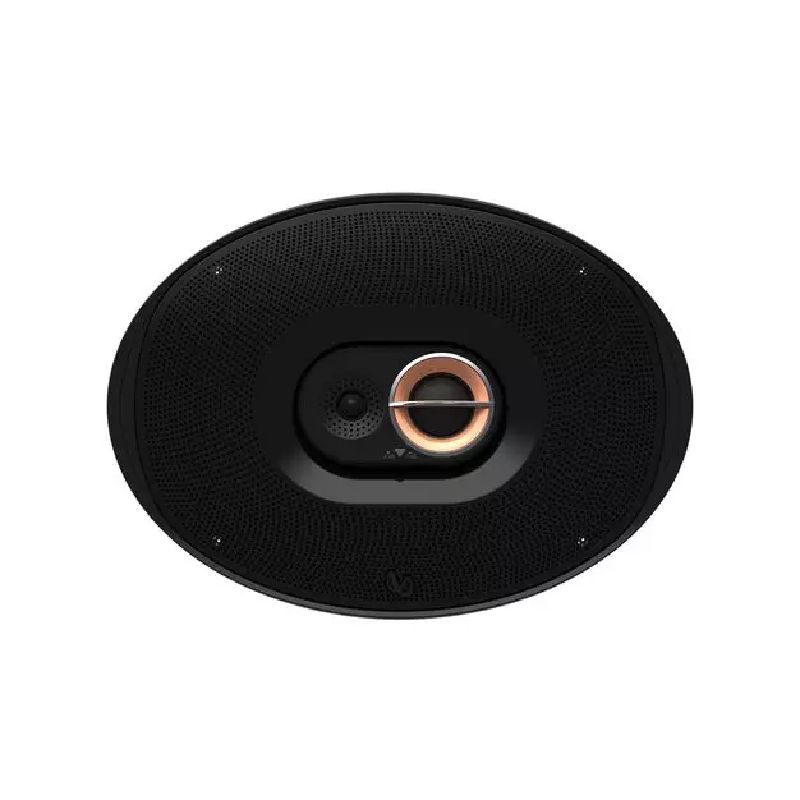

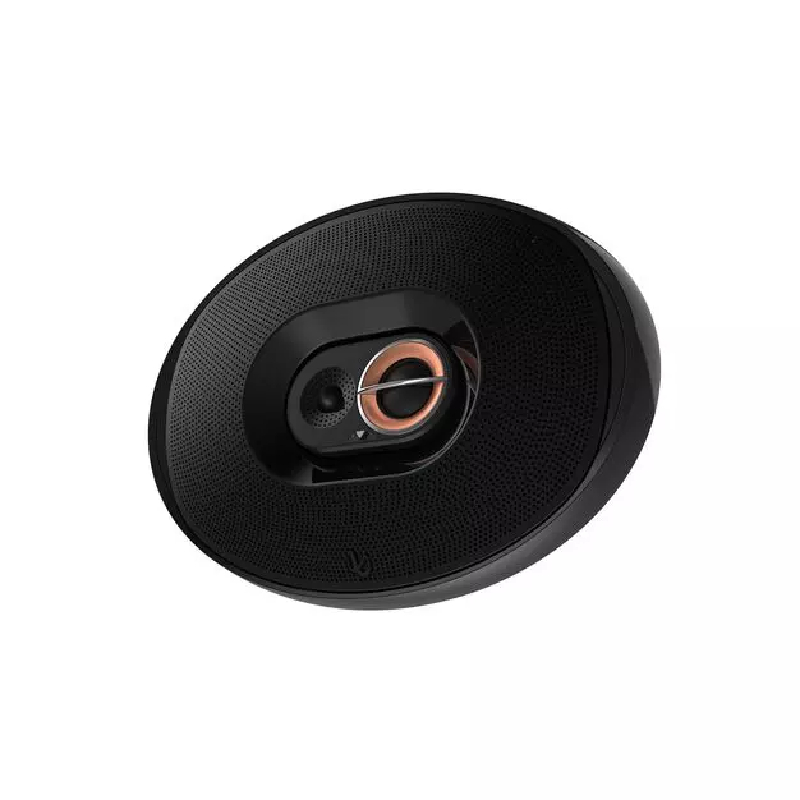

Infinity KAPPA 693M Kappa Series 6x9” 120W RMS (360W Peak Power Handling) 3-Way Car Speakers
40kHz High-resolution Silk Dome Tweeter
Kappa edge-driven silk dome tweeters equipped with oversized voice coils deliver silky smooth highs with impressive thermal power handling and 40kHz high resolution.
Patented Plus One™ Glass Fiber Woofers
Infinity’s glassfiber woofer cones are lighter and stiffer with more cone-area than the competition, delivering increased low-frequency output and higher efficiency. Hearing is believing.
0dB or -3dB Tweeter Output Level Control
The push-button on the angled tweeter allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.
3-way Upgradability
Kappa 2-way component system crossovers are compact and equipped with 2-way and 3-way selections to accommodate a 2” or 3” midrange upgrade.
The optional 2” or 3” midrange includes a bandpass crossover to upgrade a two-way system into a three-way system with perfect tonal balance.

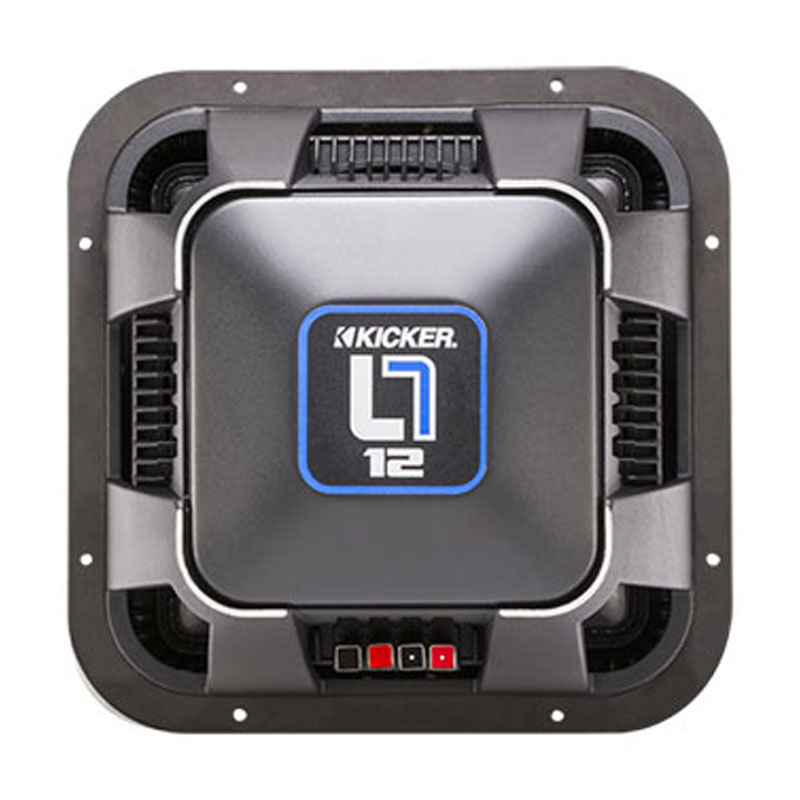

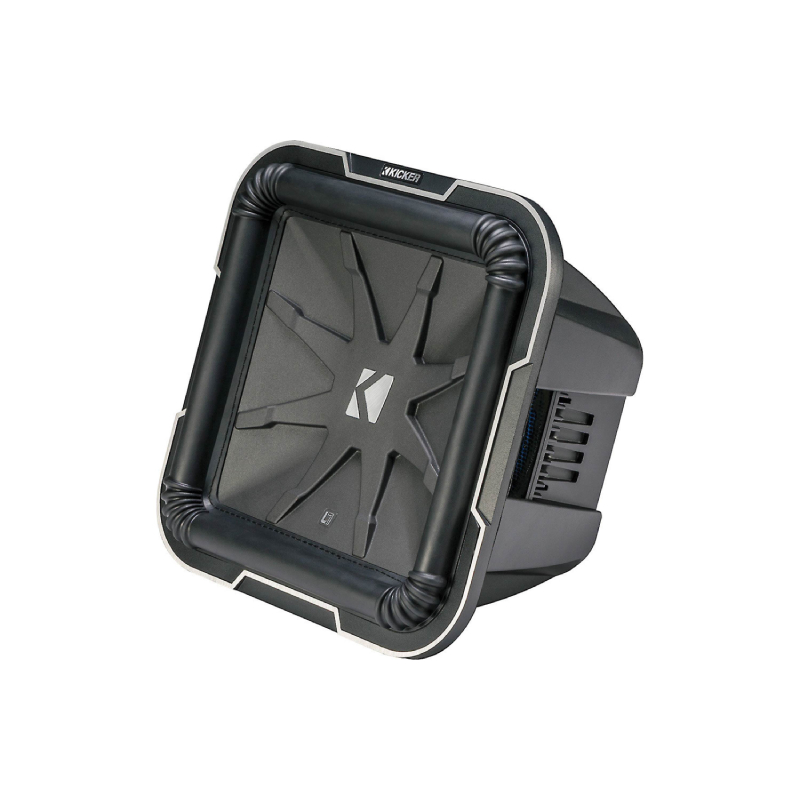

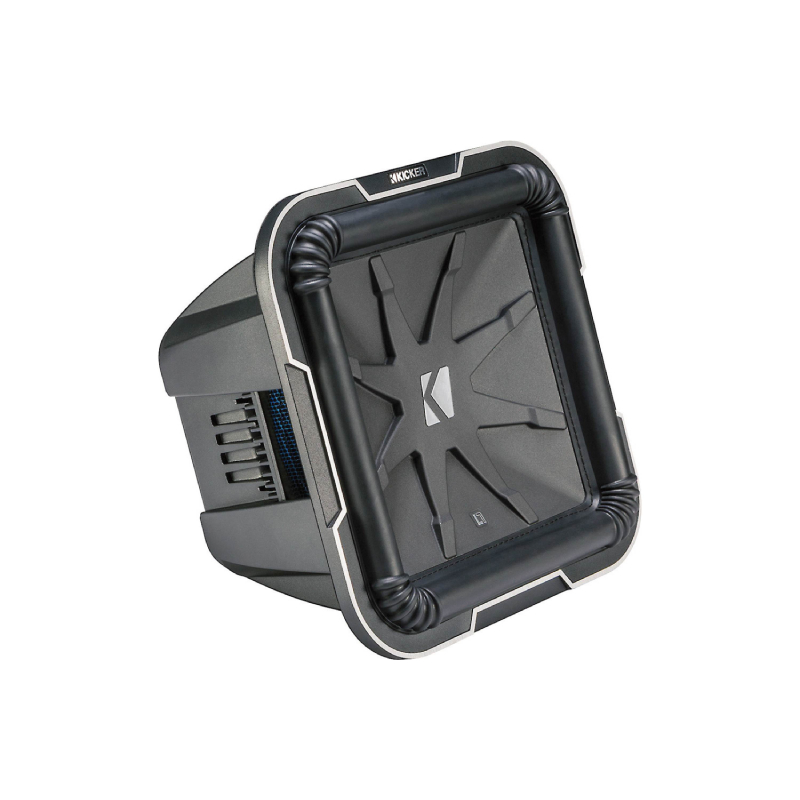

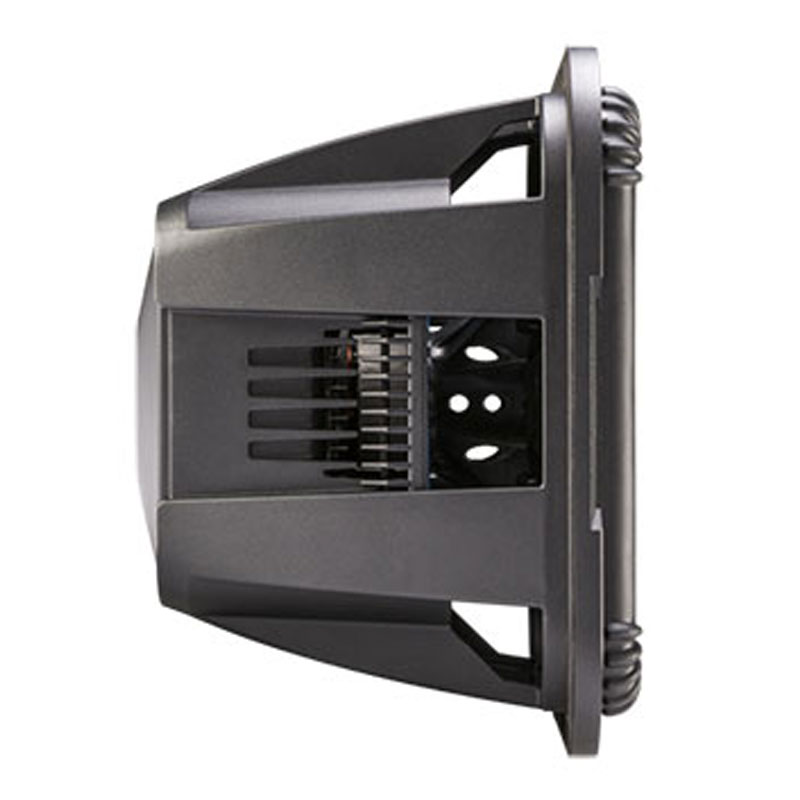

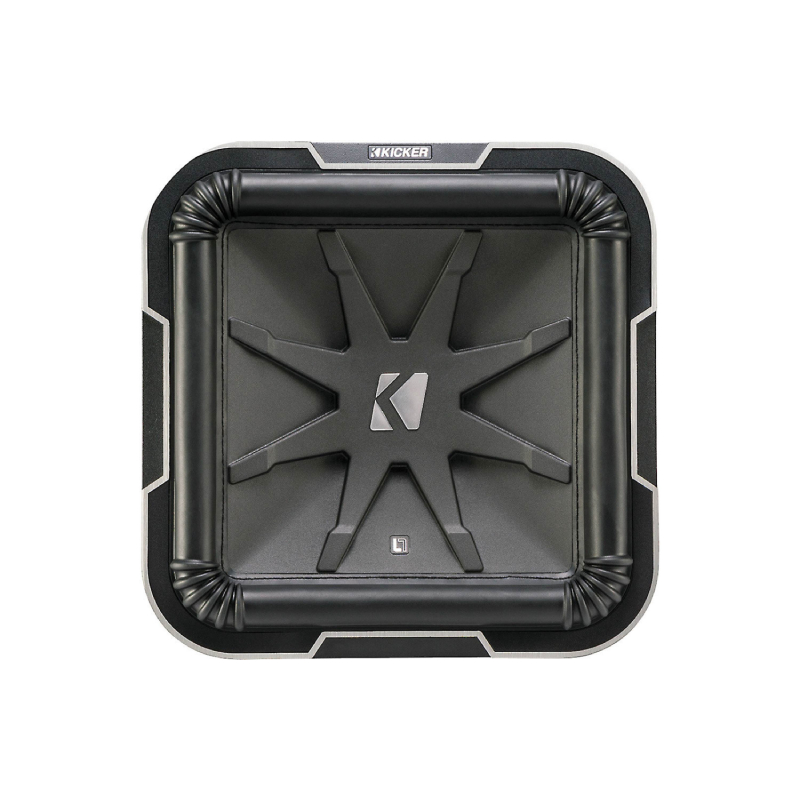

Kicker Q-Class 41L7124 L7 Series 12" 900W RMS (1800W Peak Power Handling) Square Dual 4 Ohm Voice Coil Car Subwoofer

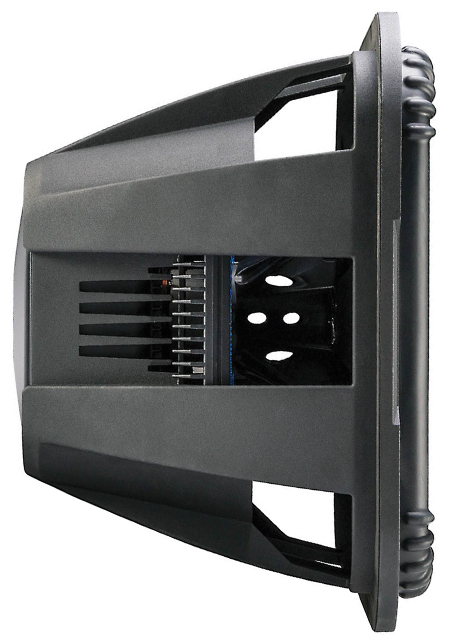

Keep it Cool/ Massive Motor
The Uniplate™ is a KICKER original, combining the pole piece and back plate as a single, seamless unit to pull damaging heat away from the sub. With heat management this advanced, you get the bass you crave – for as long as you crave it.
Extreme power handling needs a motor worthy of the KICKER name. Oversized magnets and an aluminum voice coil allow every drop of power to get from the sub to your ears.

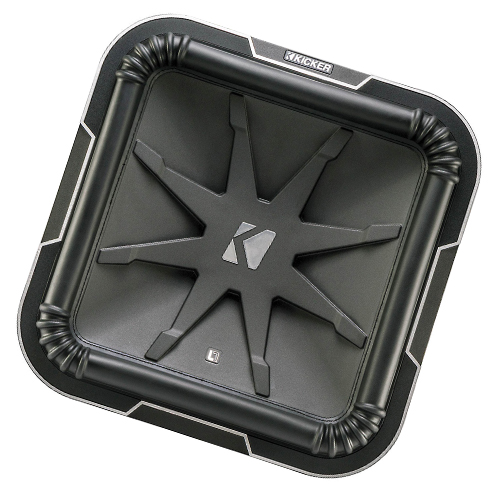

L7 Subwoofers/ Square Matters
Style. Substance. The L7™ brings award-winning innovation to you with the original square subwoofer.
A KICKER® original, these square subwoofers deliver 20% more surface area than a comparable circular sub. A bigger cone moves more air, so you get more sound!
Strong Suspension/Lean in the Corners
Kicker's Blue Lace™ spider and ribbed surround work together to give you the best suspension for your L7. You get unparalleled accuracy and volume to feel every note - every time.
Kicker's patented Santoprene™ corners allow your Kicker subs to play smooth, distortion-free music at any volume level.

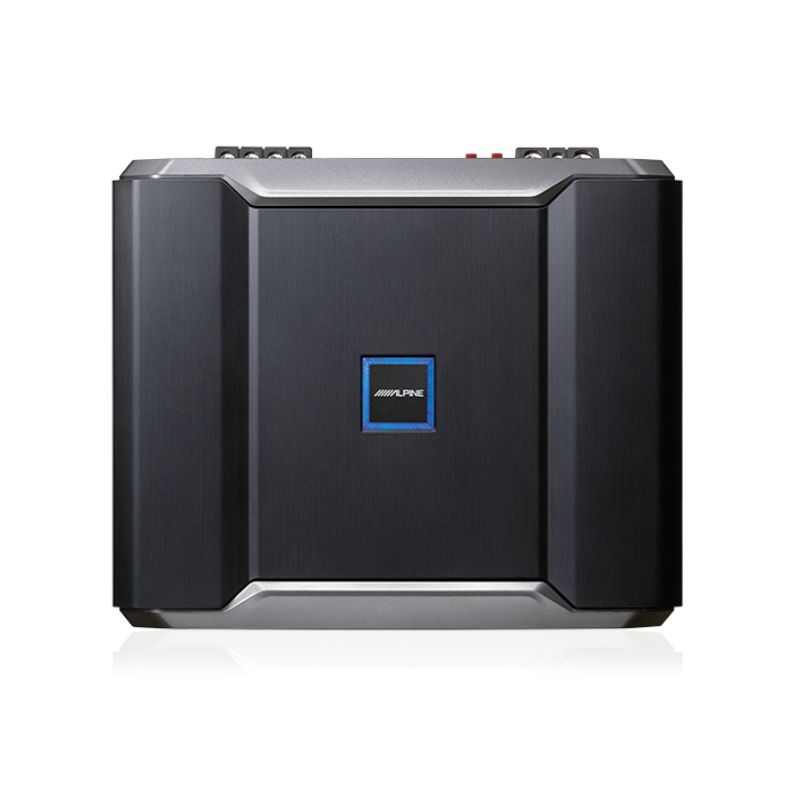

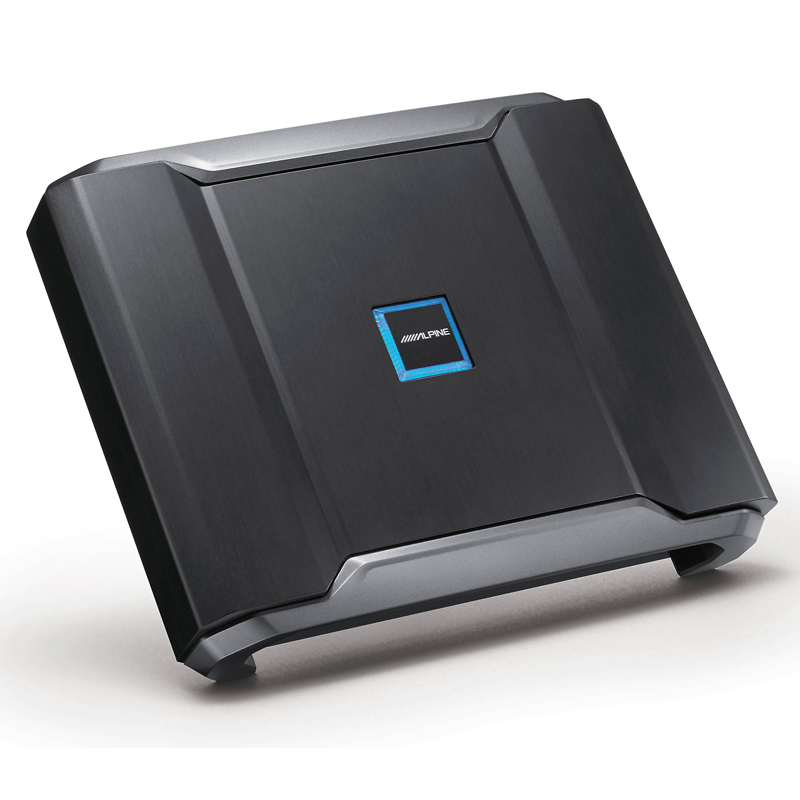

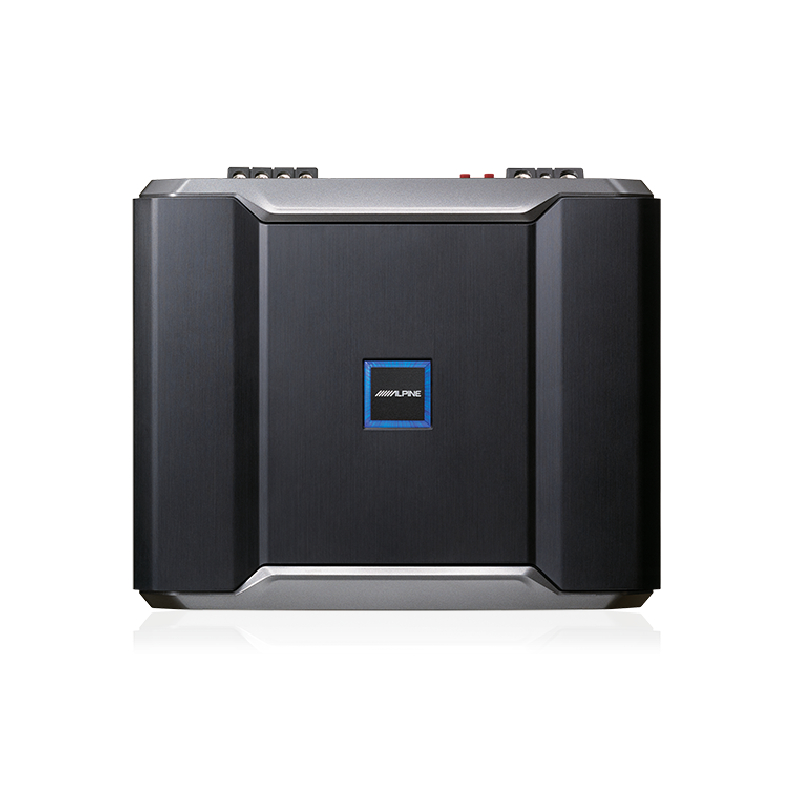

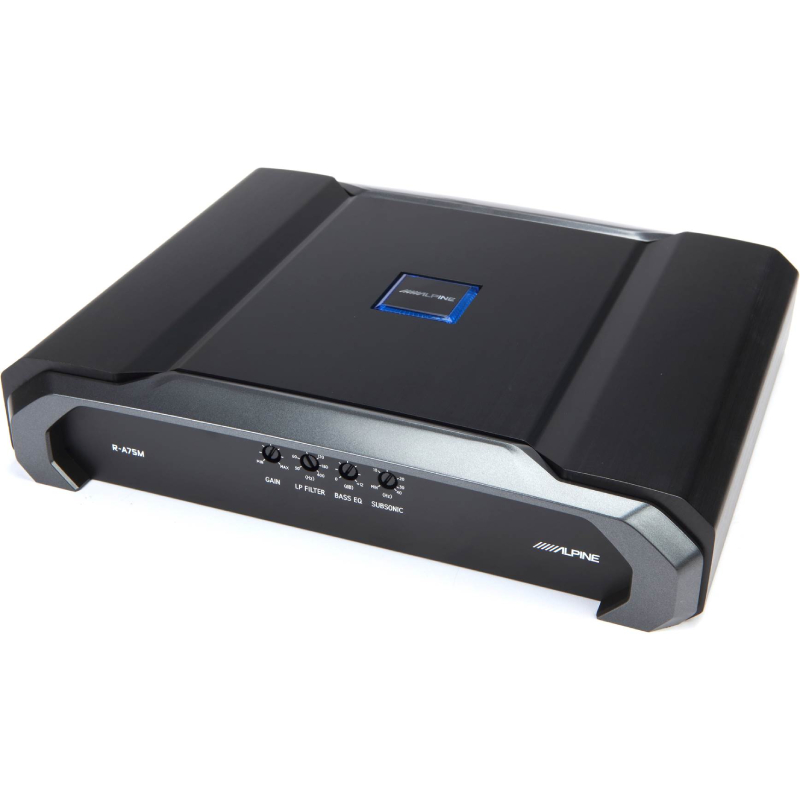

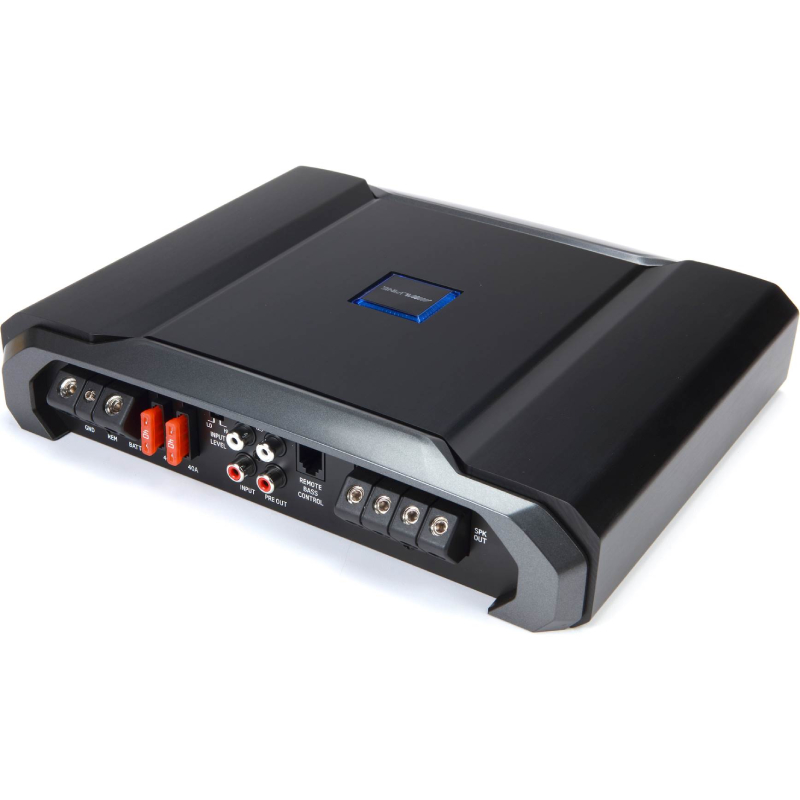

Alpine R-A75M R-Series 750W x 1 RMS @2Ohms Class D Mono Subwoofer Amplifier
Hi-resolution Audio Compliant
The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control.
This technology originally launched in the premium X-Series amplifiers,, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant.
Proper Sound Stage
This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality. With an incredibly low phase shift of 46°, the R-A60F 4-channel amplifier delivers accurate imaging compared to well over 100° of phase shift by a competitive amplifier model.
This superior phase curve ensures a proper sound stage among the singers and instruments.
Next Level System Builds
R-Series amplifiers have a built-in bandpass filter which lets you design an active speaker set-up without a separate processor. Improve the sound quality of component speakers by ditching your passive network.
Avoid added phase shifts and power losses by individually powering each component and assigning your own frequency bands for the incredible sound you’re looking for.
The Loudest Family On The Block
The “R” line of speakers and subwoofers have a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception.
Aside from their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience.

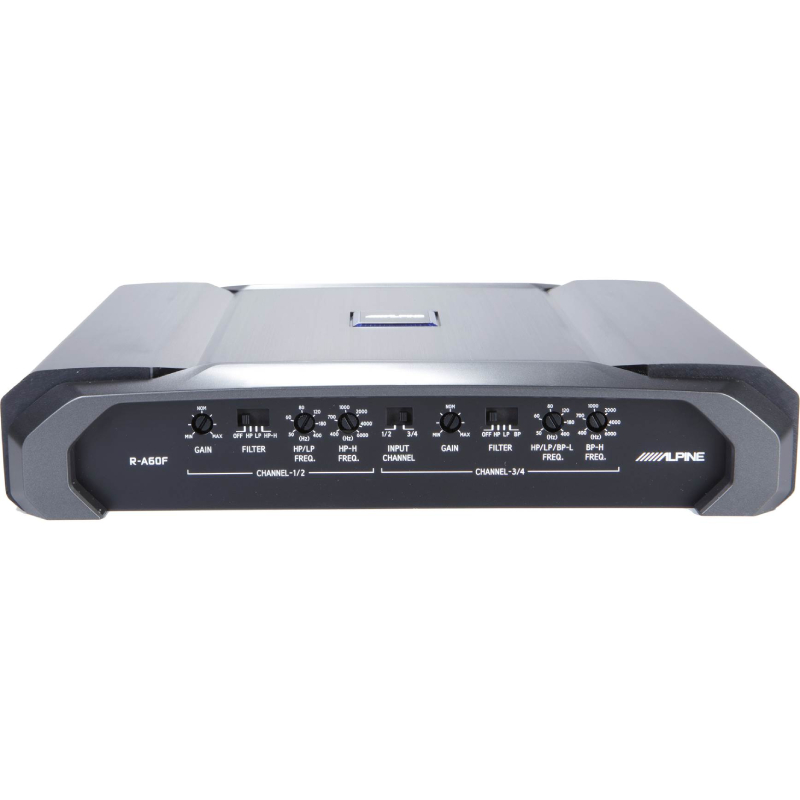

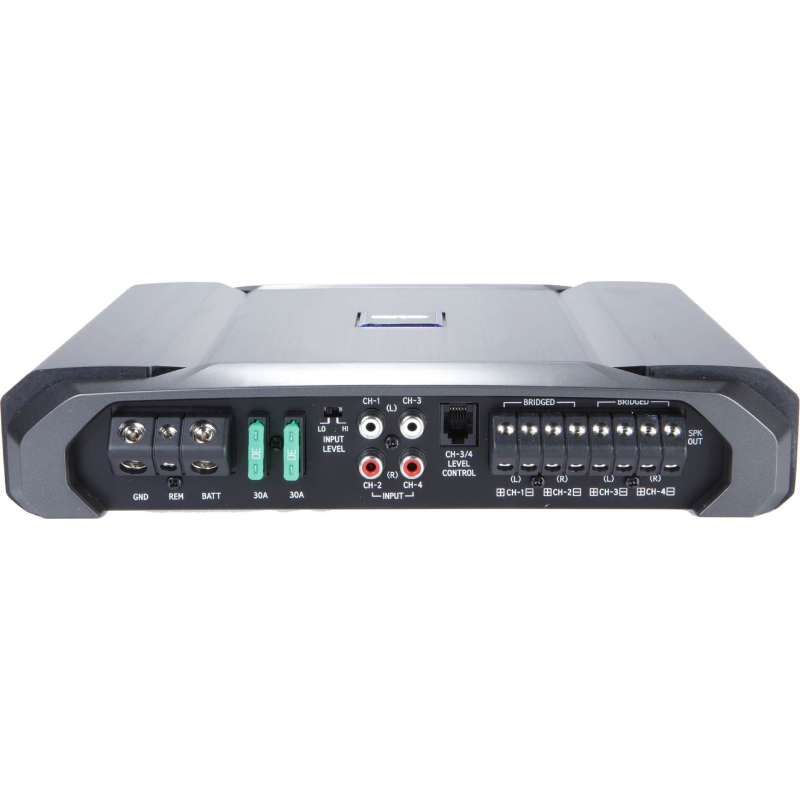

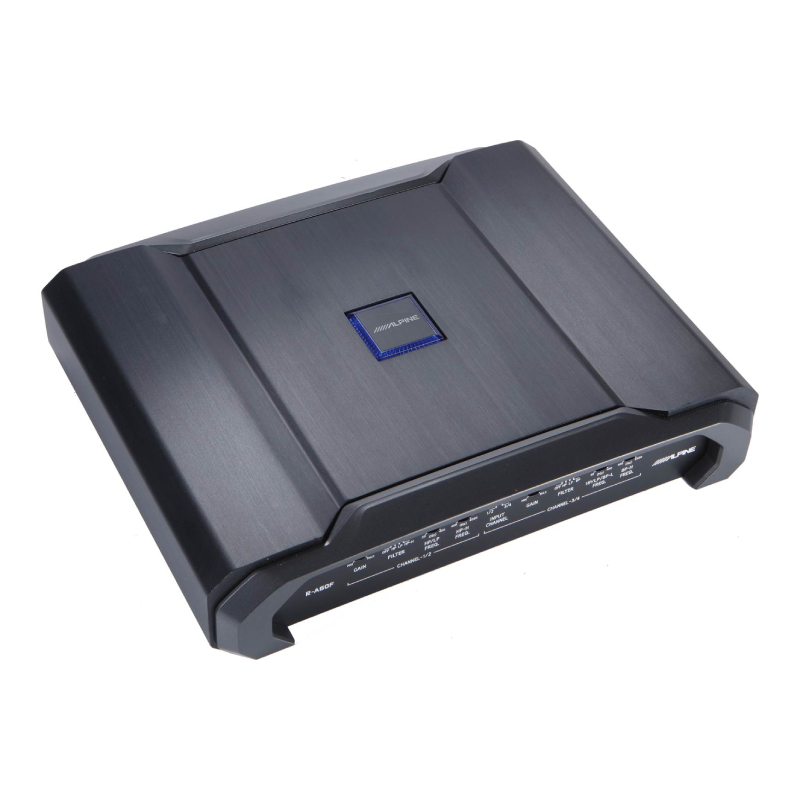

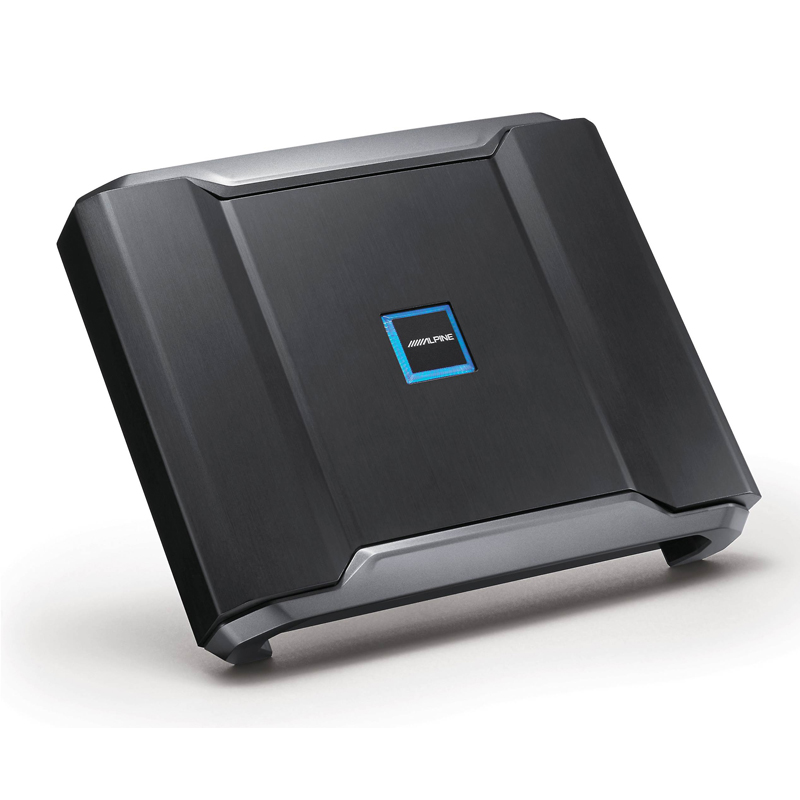

Alpine R-A60F R-Series 100Wx4 RMS @2Ohm Class D 4-Channel Subwoofer Amplifier
Hi-resolution Audio Compliant
The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control.
This technology, originally launched in the premium X-Series amplifiers, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant.
Proper Sound Stage
This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality. With an incredibly low phase shift of 46°, the R-A60F 4-channel amplifier delivers accurate imaging compared to well over 100° of phase shift by a competitive amplifier model.
This superior phase curve ensures a proper sound stage among the singers and instruments.
Next Level System Builds
R-Series amplifiers have a built-in bandpass filter which lets you design an active speaker set-up without a separate processor. Improve the sound quality of component speakers by ditching your passive network.
Avoid added phase shifts and power losses by individually powering each component and assigning your own frequency bands for the incredible sound you’re looking for.

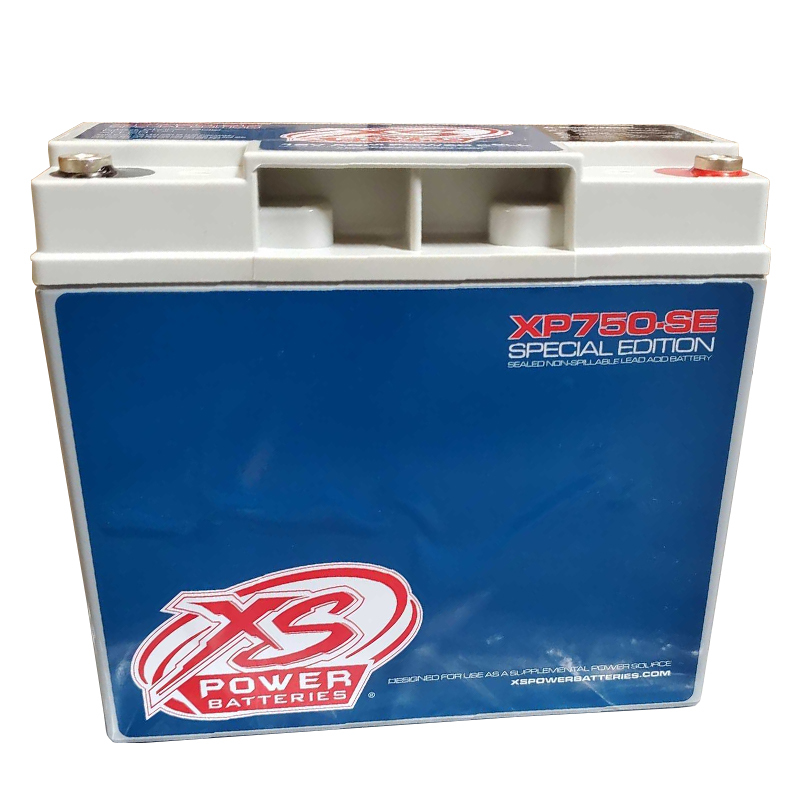

XS Power XP750 Special Edition 600W Battery 12-Volt Deep Cycle AGM Battery Power Cell with 600 Max Amps
Stores Energy
XS Power XP750-SE 12-Volt Deep Cycle AGM Power Cell, Sealed Absorbed Glass Mat (AGM) Design Leak-Proof, non-hazardous design, Designed for use as an additional battery to power your high-performance sound system, Stores energy so you don't need a capacitor for your system, Resists extreme vibrations for ultimate performance, M6 Terminal hardware included, Amp Hours: 20, Dimensions: 4.35 x 9.65 x 9.85 inches, Weight: 15.5 pounds, Voltage: 12 Volts, Max Amps: 600A.

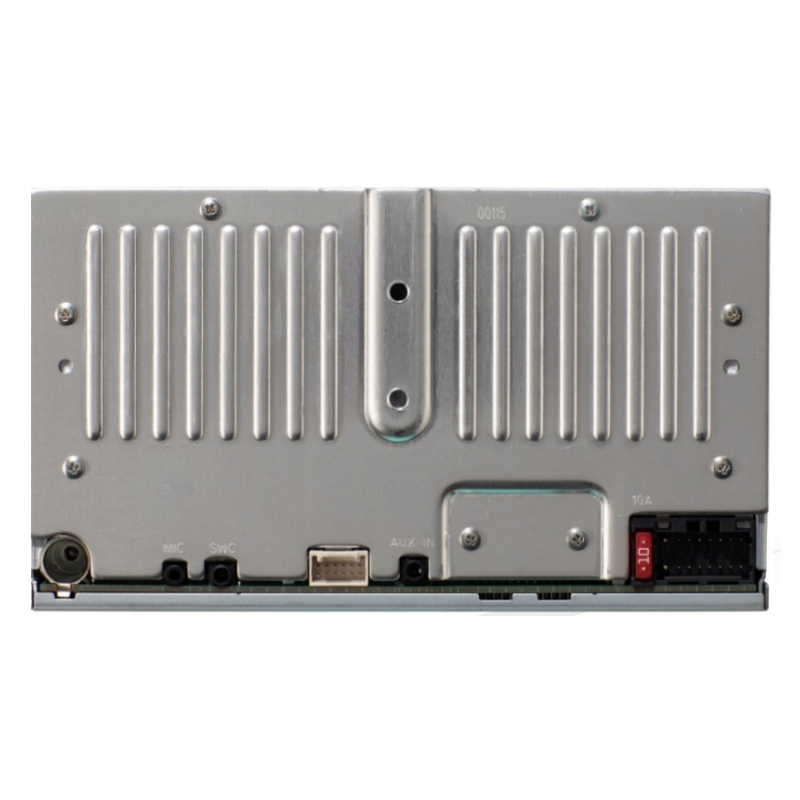

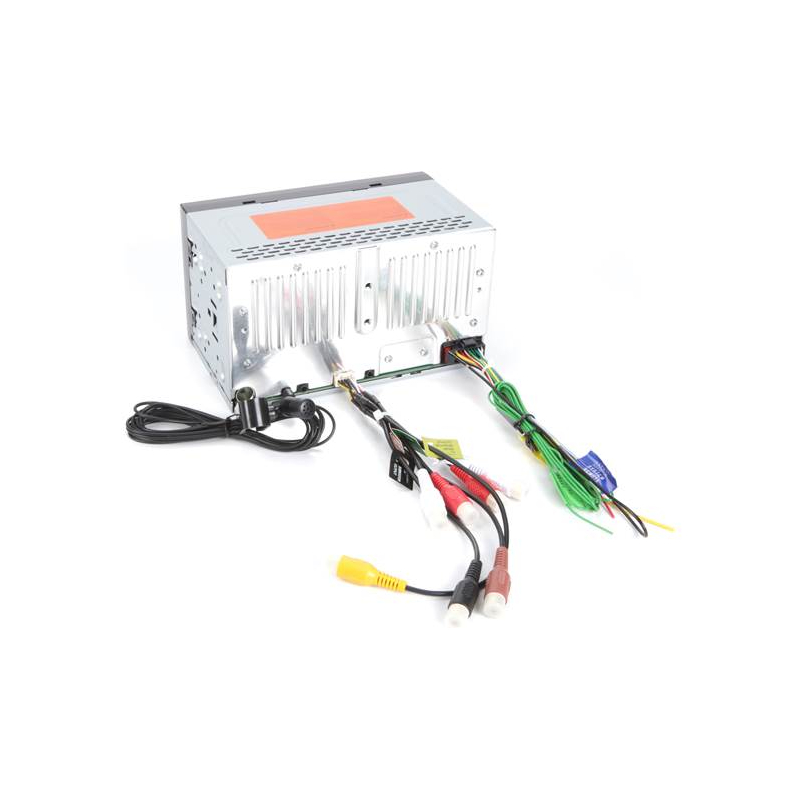

DMH-241EX 6.2" WVGA Resistive Clear type touch panel, High-quality AV unit with Bluetooth® technology, Amazon Alexa when Paired with Pioneer Vozsis App, Backup Camera Ready, Wireless Remote (Included)
Features:
- 6.2-inch WVGA Resistive Clear type touch panel
- RGB illumination (5 display colors, 112 key colors)
- 13-band GEQ
- Selectable preset wallpapers
- Single Front USB and Rear AUX-IN (Audio & Video)
- Rear View Camera Input
- Video Output
- 3 RCA Pre-Out (2V) Front & Rear & SW (monaural)
- Bluetooth (A2DP/HFP/AVRCP)
- Rear BT Mic Input
- Wired Remote Input
- Reduced Chassis depth
- Wireless Remote (Included)
Digital Media Playback
- Audio CODEC from USB (WMA, MP3, WAV, AAC, FLAC)
- Video CODEC from USB (AVI,DivX,Xvid,MPEG-2/4,WMV,JPEG)
Smartphone Connectivity
- WebLink
- Amazon Alexa when Paired with Pioneer Vozsis App
- iPhone & Android smartphone compatible
- iPod interface via USB
41L7124 L7 Series 12" 900W RMS (1800W Peak Power Handling) Square Dual 4 Ohm Voice Coil Car Subwoofer
12" L7 4Ω Subwoofer
The KICKER L7™ Subwoofer again reaches new heights in technology and design, capturing the imaginations of 2015 CES® Innovation Award judges and solidifying itself as the crown jewel among industry subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor.
Specifications:
- Rated Impedance [Ω]: 4
- Fs [Hz]: 34
- Sensitivity [1W, 1m]: 86.9
- Qts: 0.539
- Qms: 9.488
- Qes: 0.571
- Re [Ω]: 6.8
- Vas [ft³, L]: 1.92, 54.274
- Continuous Power Handling [Watts RMS]: 900
- Outer Frame Dimension [in, cm]: 12-9/16, 32
- Mounting Depth [in, cm]: 7-7/8, 20
- Mounting Cutout [in, cm]: 11-1/16, 28.1
- Frequency Response [Hz]: 20 - 100
Sealed Enclosure Specs:
- Minimum Sealed Volume ft3 (L): 1 (28.32)
- Minimum Sealed Power Handling: 900W RMS
- Maximum Sealed Volume ft3 (L): 2 (56.64)
- Maximum Sealed Power Handling: 900W RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF:
- Box Volume [ft³, L]: 1 (28.32)
- Panel A [in, cm]: 13.5X13.5, 34.3X34.3
- Panel B [in, cm]: 13.5x12, 34.3x30.5
- Panel C [in, cm]: 12x12, 30.5x30.5
Vented Compact:
- Box Volume, ft³ (L) + port displacement: 1.75 (49.6)
- Port Opening Size, in x in (cm x cm): 2.5x13.25 (6.4x34)
- Port Length, in (cm): 22.5 (57)
- Power Handling, RMS: 900
Vented SQ:
- Box Volume, ft³ (L) + port displacement: 3.25 (92)
- Port Opening Size, in x in (cm x cm): 3x13.25 (7.6x34)
- Port Length, in (cm): 14.5 (37)
- Power Handling, RMS: 900
R-A60F R-Series 100Wx4 RMS @2Ohm Class D 4-Channel Subwoofer Amplifier
Features:
- Alpine’s Class D Amplifier Circuit with Dual Post-Filter Feedback Loops
- CTA-2006-B Power Rating: 100W RMS x 4 (4ohm, 14.4V ≤ 1% THD+N); 150W RMS x 4 (2ohm, 14.4V≤ 1% THD+N)
- Bridged: 300W x 2 (4ohm, 14.4V, ≤1% THD+N)
- S/N ratio: >85dB (ref: 1W into 4 ohm), 106dB (at rated power)
- THD+N ≤0.03% (ref: 1W into 4 ohm)
- Frequency Response: 10Hz-45kHz (+/- 3dB)
- Damping Factor >500
R-A75M R-Series 750W x 1 RMS @2Ohms Class D Mono Subwoofer Amplifier
Features:
- Alpine’s Class D Amplifier Circuit
- CTA-2006-B Power Rating: 500W RMS x 1 (4omh, 14.4V, < 1% THD+N); 750W RMS x 1 (2ohm, 14.4V, < 1% THD+N)
- S/N ratio: > 85dB (ref. 1W into 4ohm)
- THD+N < 0.02% (ref. 1W into 4ohm)
- Frequency Response: 10Hz to 400 Hz (+/- 3dB)
- Damping Factor: > 1500
- Remote bass knob compatible (requires RUX-KNOB.2, sold separately)
Specifications:
- Power Output
- Per Channel, Ref.: 4 Ω, 14.4 V: 500 W RMS × 1
- Per Channel, Ref.: 2 Ω, 14.4 V: 750 W RMS × 1
- THD+N
- Ref.: 10 W into 4 Ω ≤0.02%
- Ref.: 10 W into 2 Ω ≤0.03%
- Ref.: Rated Power into 4 Ω ≤0.3%
- Ref.: Rated Power into 2 Ω ≤1.0%
- S/N Ratio
- IHF A-wtd + AES-17
- Ref.: 1 W into 4 Ω >85 dB
- IHF A-wtd + AES-17
- Ref.: Rated Power into 4 Ω >105 dB
- Frequency Response
- +0/–3 dB, Ref.: 1 W into 4 Ω 10 Hz - 400 Hz
- +0/–1 dB, Ref.: 1 W into 4 Ω 15 Hz - 325 Hz
- Damping Factor
- Ref.: 10 W into 4 Ω at 100 Hz >1,500
- Input Sensitivity
- RCA Input Hi: 0.4 - 10 V
- Ref.: Rated Power into 4 Ω Lo: 0.1 - 4.0 V
- Crossover
- Variable LPF 50 Hz - 400 Hz (–24 dB/oct.)
- Variable Subsonic 8 Hz - 40 Hz (–24 dB/oct.)
- Equalizer
- Bass EQ (fc=50 Hz) 0 to +12 dB (Variable)
- Remote Level*
- Linear Attenuation 0 to –20 dB
- Input Impedance >10 kΩ
- Preamp Output
- CH-1/2 Input Pass-through, Buffered 4 V max
- Dimensions
- Width: 273 mm (10-3/4”)
- Height: 50.8 mm (2”)
- Depth: 200 mm (7-7/8”)
- * Requires optional RUX-KNOB.2.
XP750-SE XP750 Special Edition 600W Battery 12-Volt Deep Cycle AGM Battery Power Cell with 600 Max Amps
Features:
- 12-Volt Deep Cycle AGM Power Cell
- Sealed Absorbed Glass Mat (AGM) Design
- Leak-Proof, non-hazardous design
- Designed for use as an additional battery to power your high-performance sound system
- Stores energy so you don't need a capacitor for your system
- Resists extreme vibrations for ultimate performance
- M6 Terminal hardware included
- Amp Hours: 20
- Dimensions: 4.35 x 9.65 x 9.85 inches
- Weight: 15.5 pounds
- Voltage: 12 Volts
- Max Amps: 600A
Kappa 693M Kappa Series 6x9” 120W RMS (360W Peak Power Handling) 3-Way Car Speakers
What's Inside?
- 2 x Speakers
- 2 x Grilles
- 2 x Foam gaskets
- 2 x Spacers
- 8 x Screws
- 8 x Speed clips
- 2 x Infinity logo badges
- 2 x Brand stickers
- 1 x Owner’s manual
Specifications:
- Peak: 360 watts per pair / 180 watts each
- RMS: 120 watts per pair / 60 watts each
- Plus One+ glass-fiber woofer cone
- hi-roll rubber surround
- edge-driven silk dome tweeter and supertweeter
- 3 ohms impedance
- Frequency Response: 35-40,000 Hz
- Top-mount Depth: 3-3/16"
- Sensitivity: 94dB

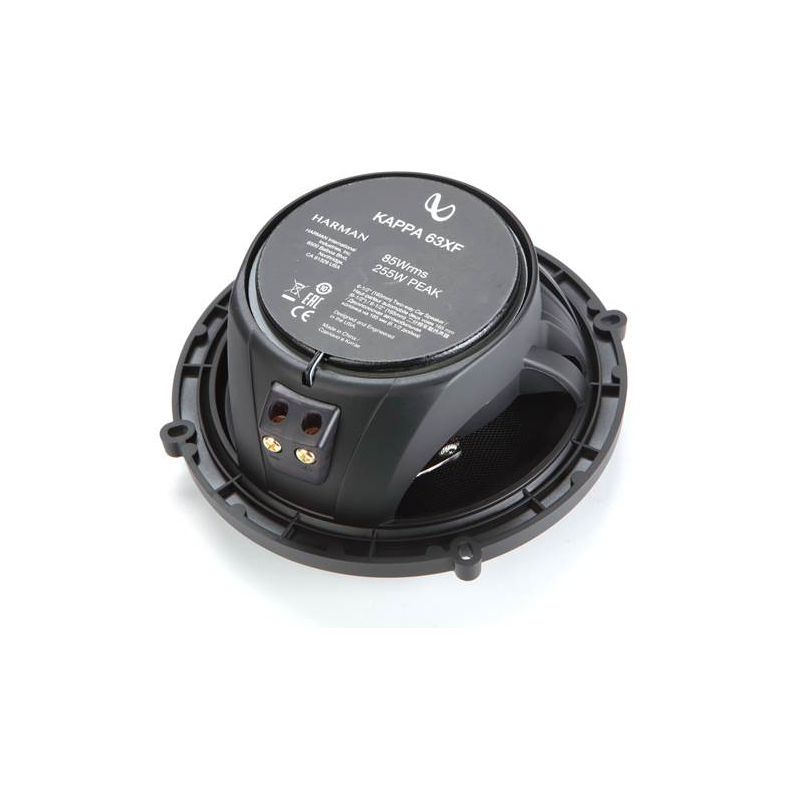

Kappa 63XF 6-1/2” 85W RMS (255W Peak Power Handling) 2-Way Car Audio Speaker No grilles
What's Inside?
- 2 x Speakers
- 2 X Plastic multi-hole adapter rings
- 2 x Foam gaskets
- 8 x Screws
- 8 x Speed clips
- 2 x Infinity logo badges
- 2 x Brand stickers
- 1 x Owner’s manual
Specifications:
- 40kHz High-resolution Silk Dome Tweeter
- Patented Plus One™ Glass Fiber Woofers
- 0dB or -3dB Tweeter Output Level Control
- UniPivot and Angled Tweeter
- 3-way Upgradability
- Super Compact Design and High Sensitivity
- 3" Midrange Speaker
- Sleek and Powerful Industry Design
- Slim and Smart Crossover Design
- Power Handling: 85Wrms, 255W peak
- Sensitivity (@ 2.83V): 93dB
- Frequency Response: 45Hz – 40kHz
- Impedance: 3.0ohms
- Kappa edge-driven silk dome tweeters
- Kappa’s Plus One™ fiberglass woofers
- UniPivot and Angled Tweeter
- grilles not included
- top-mount depth: 2-1/8
- UPC: 798418840423
- Weight: 94
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
