Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
PCH Custom Audio BE7ACP Full Car Audio Package-1 includes Boss Elite BE7ACP 7" Digital Multimedia Receiver w/ Apple CarPlay, Android Auto + JBL CLUB 602C 6.5" 2-way Car Speakers + JBL CLUB 620F 6.5" 2-Way Speakers + Kicker 43DC122 2" Enclosed Car Subwoofer + Boss Elite BE2500.1 Class A/B Monoblock Amplifier + Pioneer GM-D1004 Class FD 4-Channel Amplifier + XS Power XP750-SE 600W Battery
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Boss Elite BE7ACP
- • JBL CLUB 602C
- • JBL CLUB 620F
- • Kicker 43DC122
- • Boss Elite BE2500.1
- • Pioneer GM-D1004
- • XS Power XP750-SE

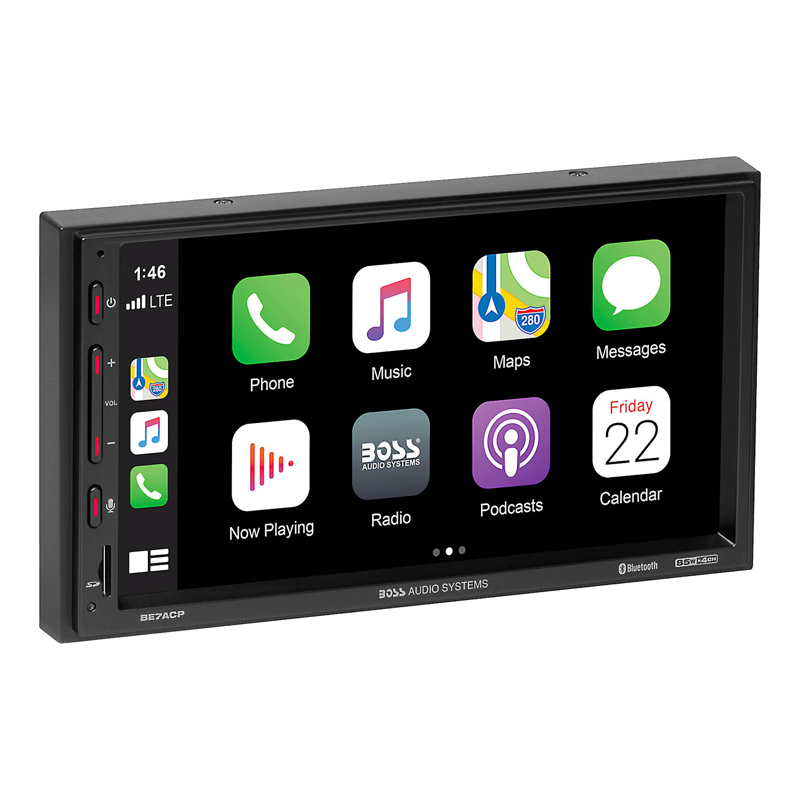

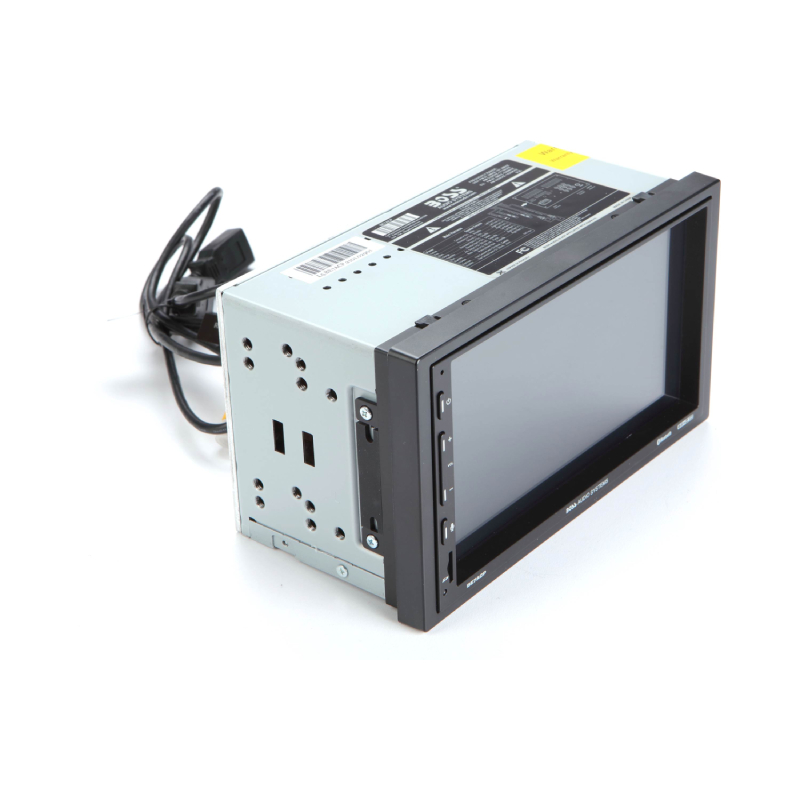

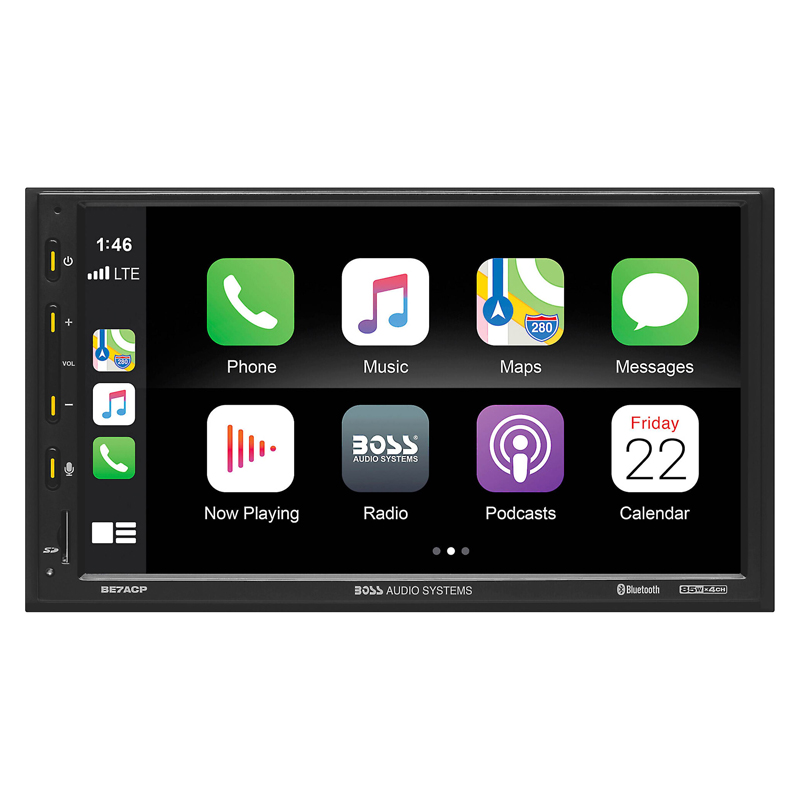

Boss Elite BE7ACP 2-DIN, 7" Digital Multimedia Receiver
Audio Streaming, AV Input, Bluetooth, and Built-in Preset EQ Features
Audio streaming [A2DP] is an audio protocol of Bluetooth technology. This profile allows for audio to be streamed wirelessly from your compatible device, such as a Smartphone, to the source unit so you can enjoy your favorite music or streaming music service such as Pandora or Spotify, wirelessly.
The AV Input allows you to connect to the video and/or audio output of an external device so you can enjoy your audio and video contet through your system.
Allows our Bluetooth equipped source units to make wireless hands-free calls when paired with a Bluetooth equipped Smartphone. Communicate via the built in microphone on most of our units [or external microphone if provided] and listen thru your car’s speakers.
The built-in, Preset EQ allows you to chose from preset EQ curves for a variety of music styles such as Rock or POP.
ID3 TAG, Multi-Color Illunimation Option, No CD Mechanism and Pre-Amp Output Features
ID3 Tag allows the audio file to store and display additional data such as title, artist, album, track number and more.
This unit allows you to choose from multi-color illumination options for backlighting the unit.
Our units without a CD mechanism are ideal for people who take their music with them digitally. These units can play digital media files directly from SD Cards*, USB Flash drives*, and connect with external devices such as your Smartphone thru the Aux input or via Audio Streaming*. *If equipped. Features vary from model to model
This units Pre-Amp outputs let you expand your system by adding up to 3 amps and/or signal processors for your Front, rear and subwoofer channels.

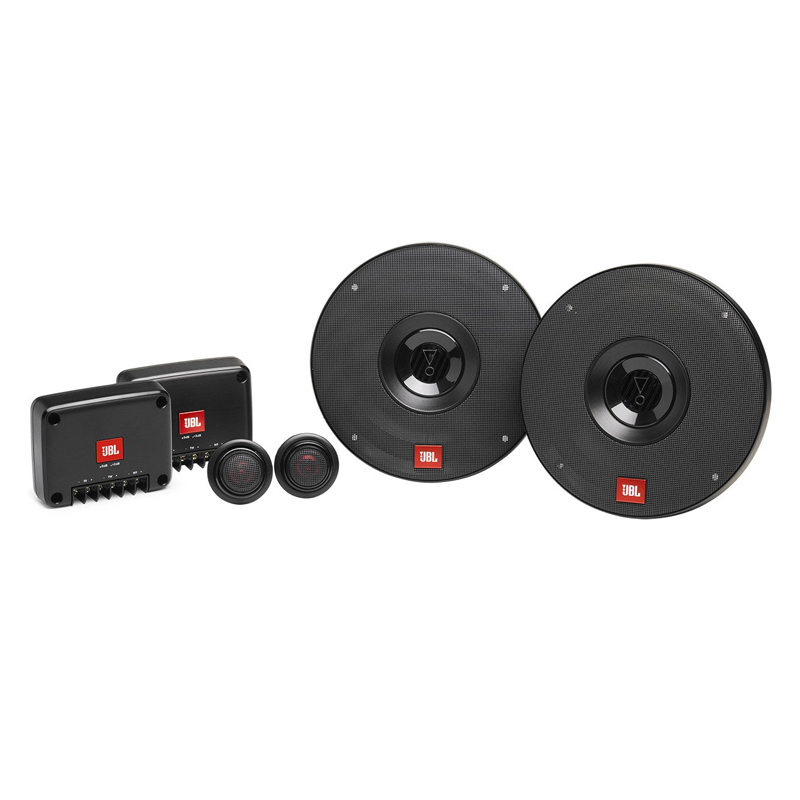

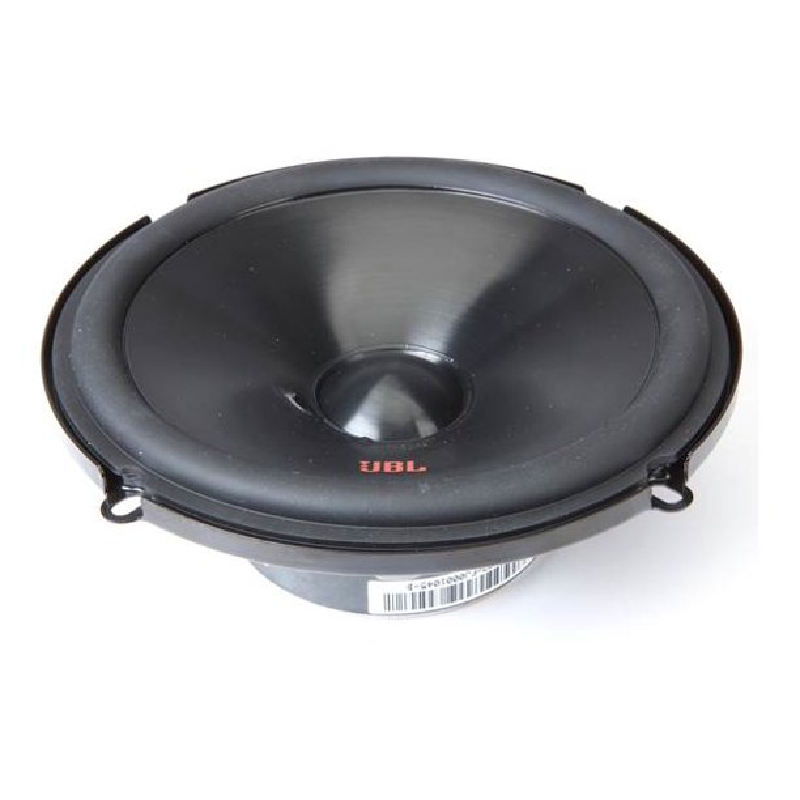

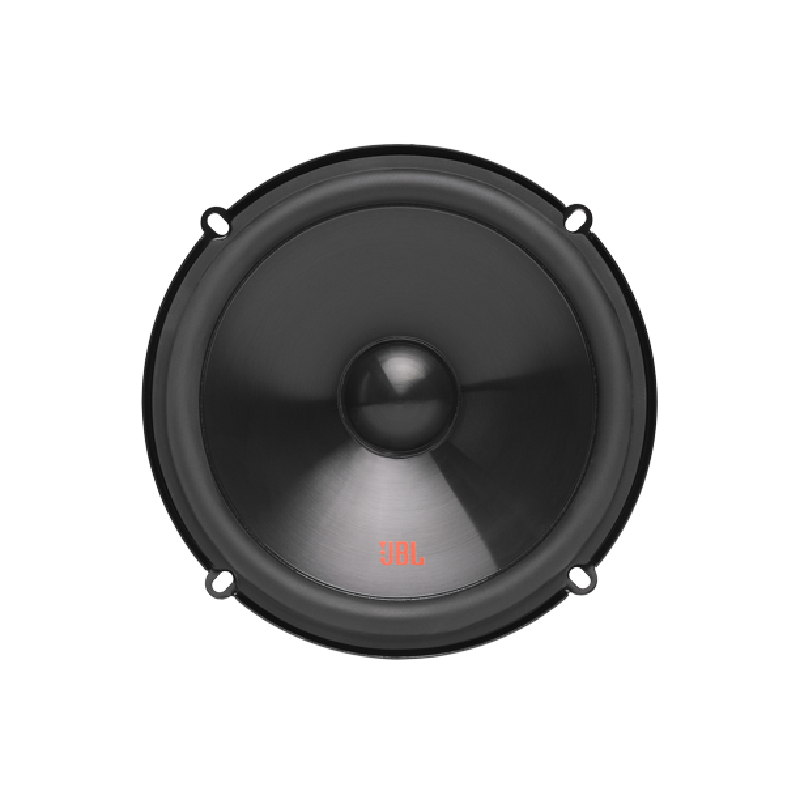

JBL Club 602C 6.5" 2-way Car Speakers
Plus One™ Woofer Cone Architecture
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased low-frequency output and greater musical character.

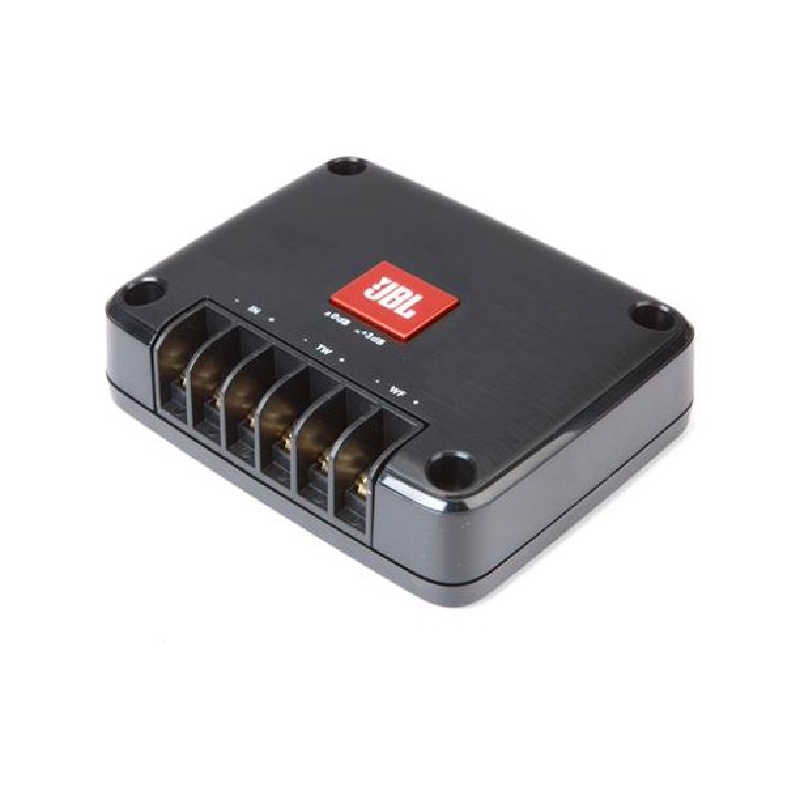

Adjustable Tweeter Output Level
The Club 622, Club 602C and Club 602CTP component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.
Acoustically Damped, UV-Resistant Polypropylene Cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Bigger Magnet, Bigger Power Handling
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.

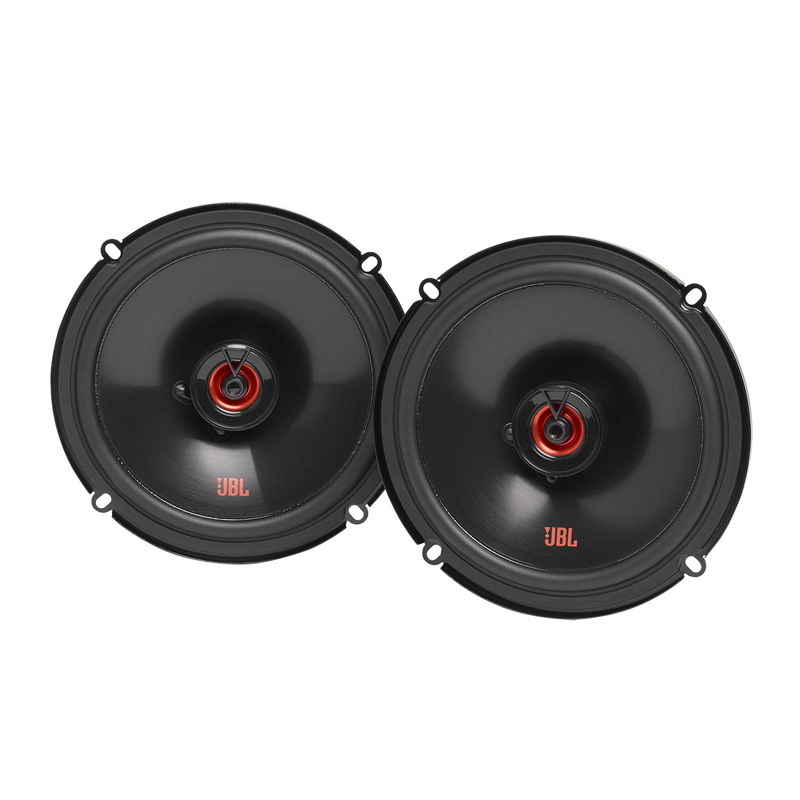

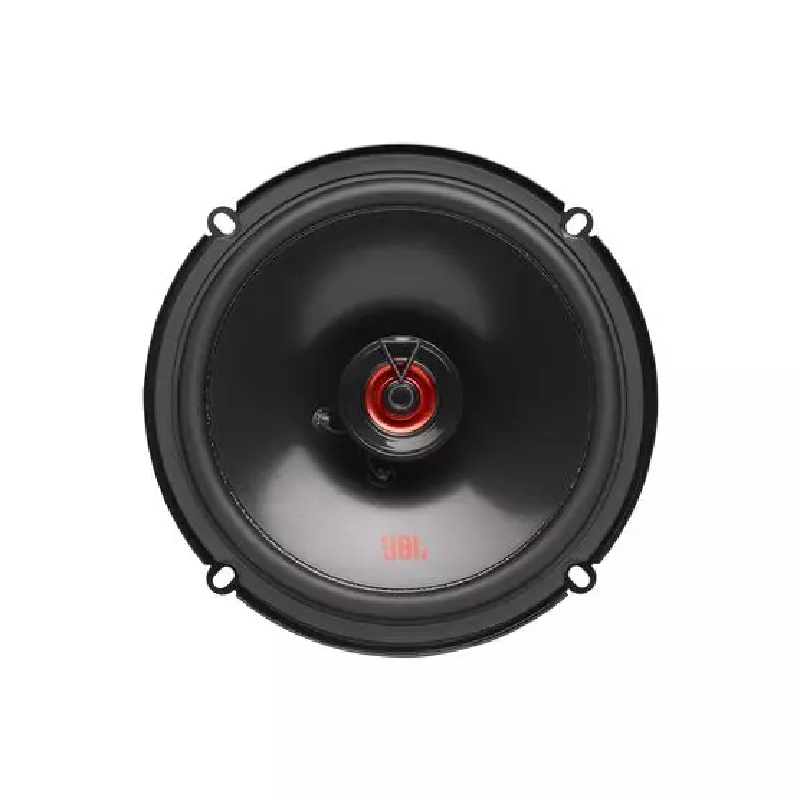

JBL Club 620F 6.5" 2-way Shallow-mount Car Speakers
Plus One™ Woofer Cone Architecture
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased low-frequency output and greater musical character

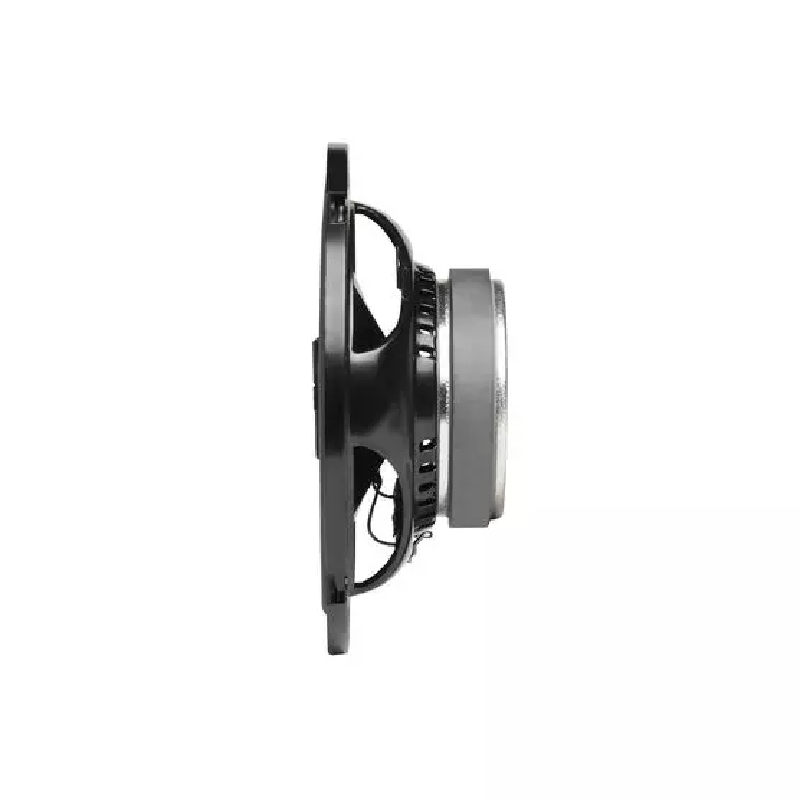

Specified Shallow Design for More Mounting Application
Club 620F specified compact design for 6-1/2" that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
Acoustically Damped, UV-Resistant Polypropylene Cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Bigger Magnet, Bigger Power Handling
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.

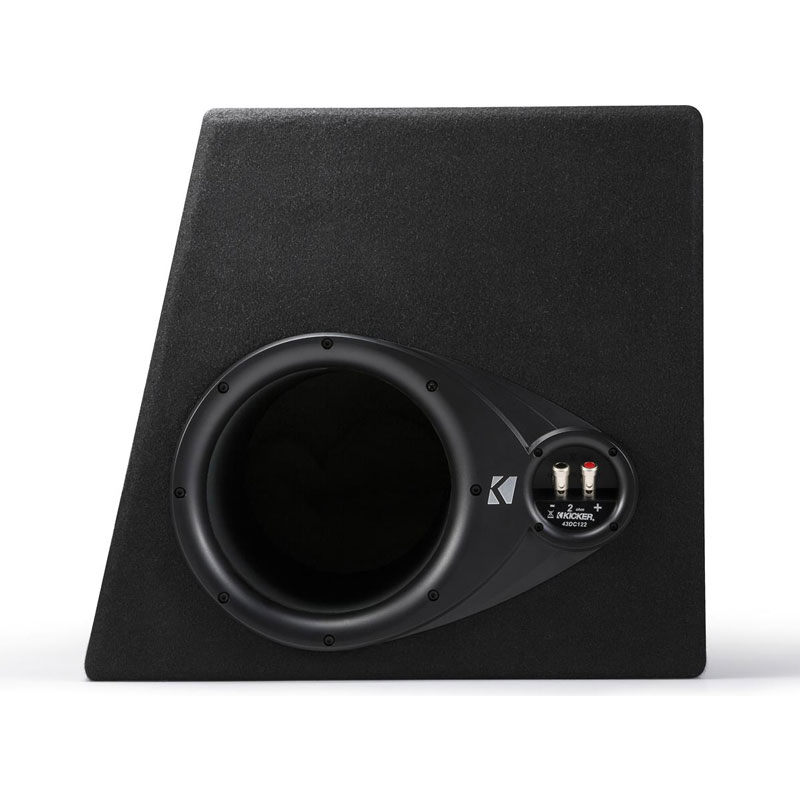

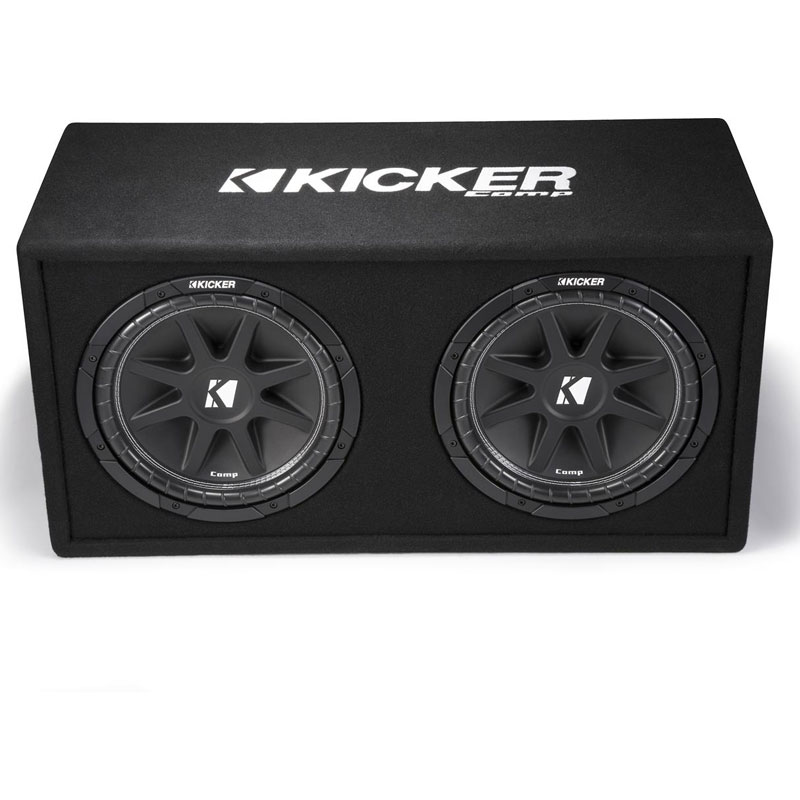

Kicker 43DC122 Comp Series 12" Dual 2 Ohm Subwoofer Ported Enclosure
Comp Loaded Enclosures
KICKER® Comp Loaded Enclosures deliver big bass, custom made to fit your life, and your ride.
Power House
Heavy MDF construction and thick internal bracing keep your enclosure pounding for years to come.
Black is Back
A sleek black carpet protects every enclosure, while preventing the box from shifting during travel.
ImPORTant
Comp enclosures include a custom-formed port, to ensure you get our signature KICKER bump!

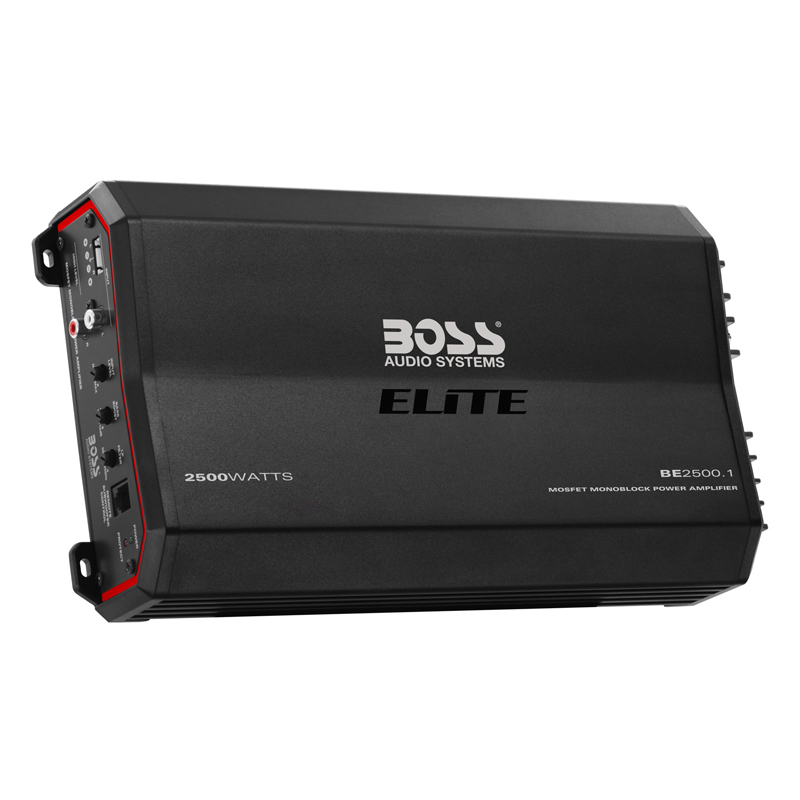

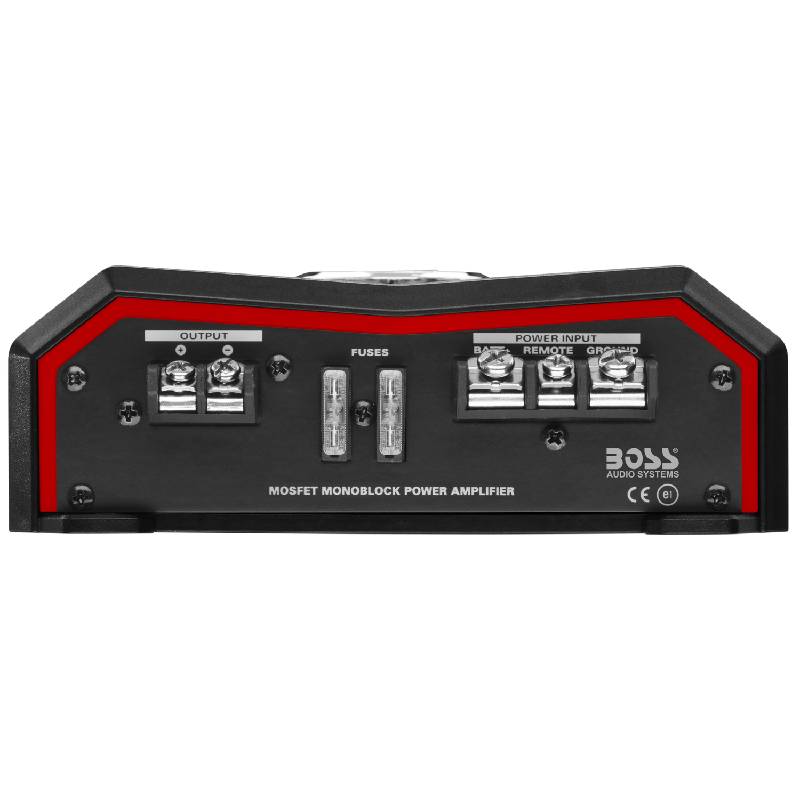

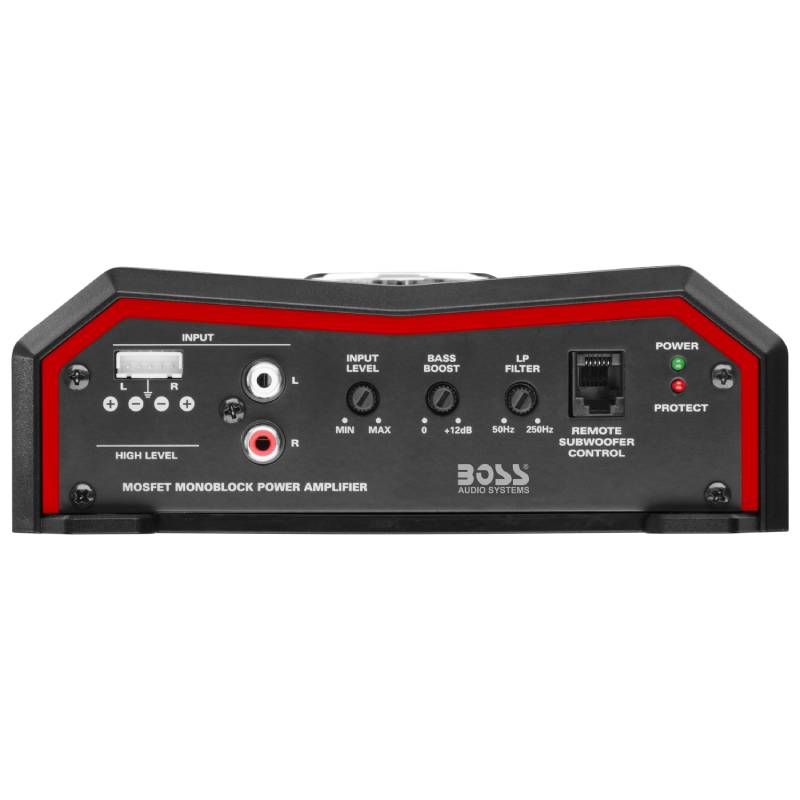

Boss Elite BE2500.1 Elite Series 2500W Max Power Remote Subwoofer Control
2 Ohm Stable
The lowest impedance accepted by this amplifier is 2 ohms. Amplifiers that are 2 ohms stable produce more power resulting in more volume. This amp can comfortably power speakers or subwoofers with all channel(s) being used at a load of 2 ohms.
Class A/B
Class A/B amplifiers have long been known for their ability to produce great quality sound while performing more efficiently than pure Class A amplifiers. We have developed a specific linear circuitry that further reduces distortion while increasing both sound quality and power output.
High and Low Level Inputs
An amplifier with both high-level and low-level inputs provides flexibility by allowing you to build an audio system using virtually any standard factory or aftermarket source unit. High-level (speaker level) inputs accept the signal from the speakers, while low-level (RCA) inputs accept the signal from the pre-amp outputs of the source unit.
MOSFET
MOSFET stands for Metal Oxide Semiconductor Field-Effect Transistor. MOSFETs are used either as a switch or to amplify a signal. MOSFETs are superior to other FETs, because they require less current to operate, which makes them better suited for car audio.
Protection
If the amplifier gets too hot, the thermal protection circuit turns the amp off and allows the amp to cool down before turning it back on. If a speaker fails causing an electrical short, the protection circuit will automatically cut the output and remain in that state until the short is resolved. These safety features give you peace of mind knowing the amplifier is constantly monitoring conditions to protect itself.

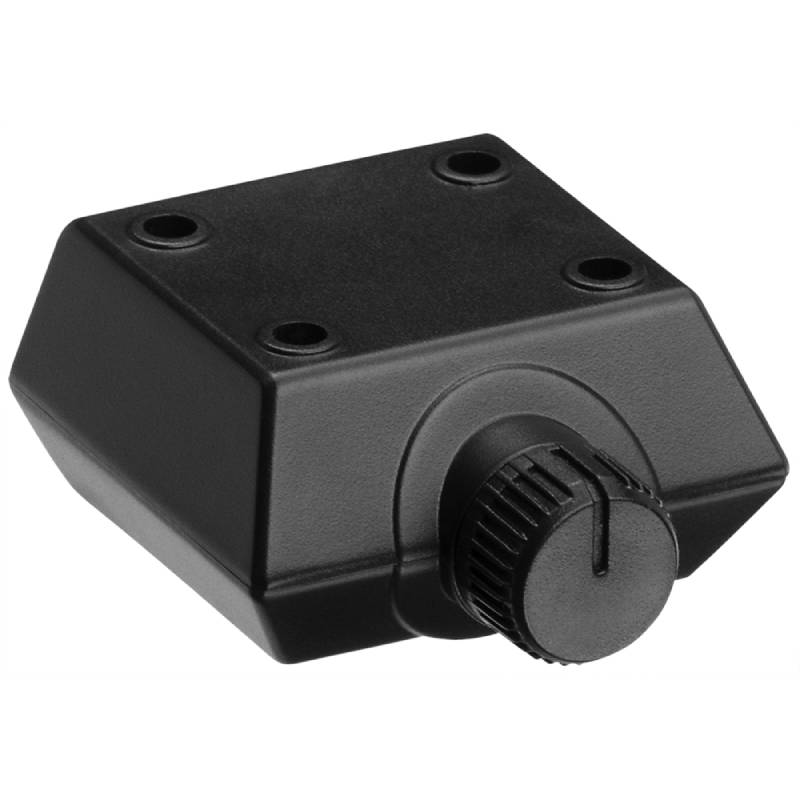

Subwoofer Level Control
The ability to boost or attenuate the sub level when an amp and subwoofer are connected to the subwoofer pre-amp output.

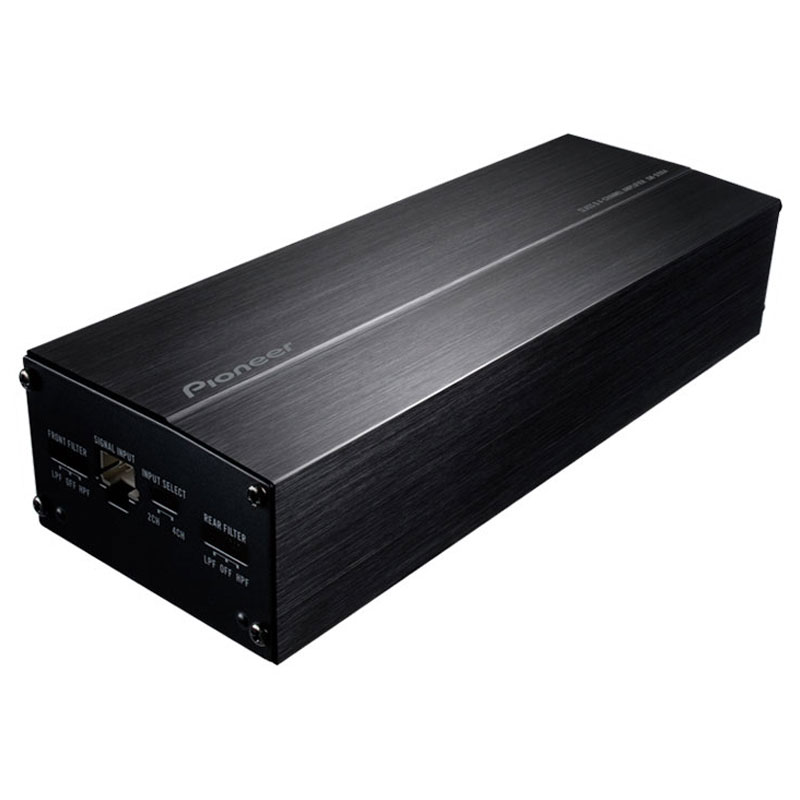

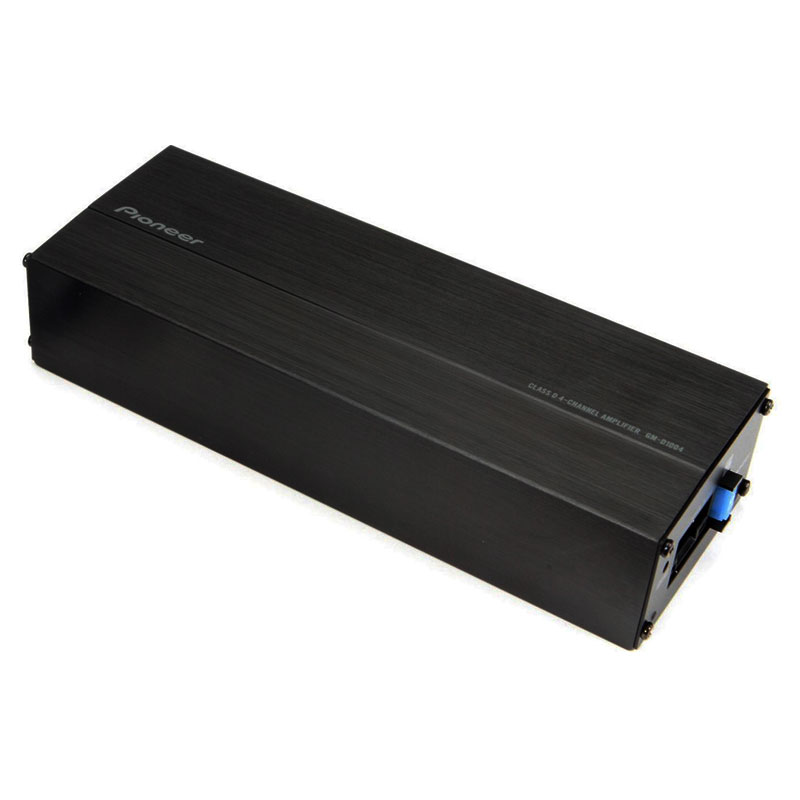

Pioneer GM-D1004 Slim Series 400W Class FD 4-Channel Digital Amplifier
Compact Design
Whether you call it “compact” or “micro” the GM-D1004 will wear the name proudly. With the size equivalent to slightly smaller than a standard red brick, you’ll have no problem finding a place to mount it or conceal it behind our short chassis Digital Media Receivers stereos, glove box or even in the center console.
Flexible Connectivity
For DIYers, the GM-D1004 amplifier is not only small and powerful but it’s easy to install. Simply connect power and ground at the radio and get more installation flexibility using hi-level or low-level inputs with a signal sensing remote turn on so you can use it in combination with a factory or aftermarket headunit.

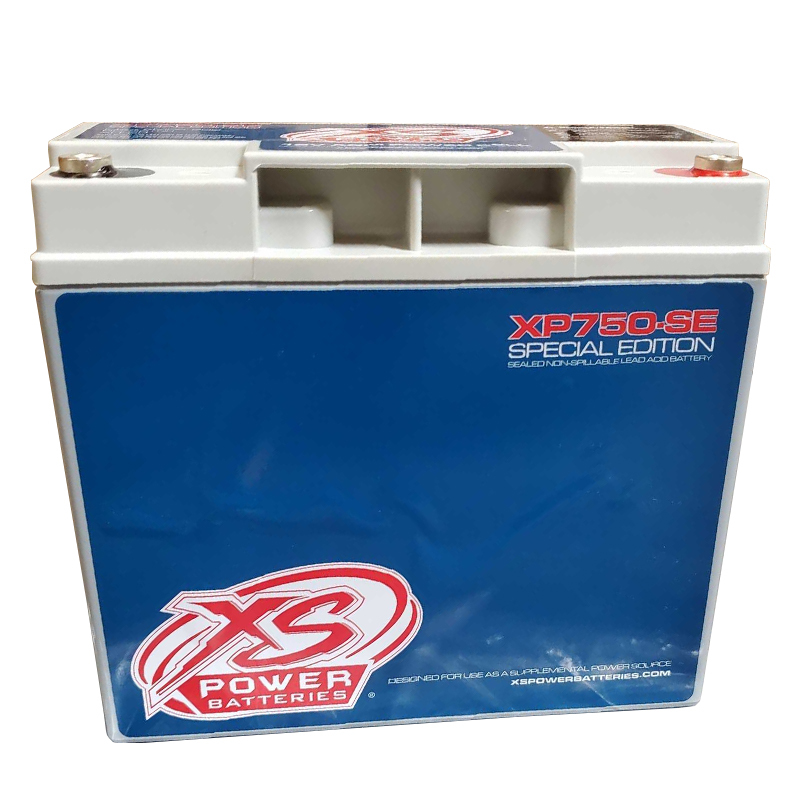

XS Power XP750-SE XP750 Special Edition 600W Battery
Sealed Absorbed Glass
XS Power XP750-SE 12-Volt Deep Cycle AGM Power Cell, Sealed Absorbed Glass Mat (AGM) Design Leak-Proof, non-hazardous design, Designed for use as an additional battery to power your high-performance sound system, Stores energy so you don't need a capacitor for your system, Resists extreme vibrations for ultimate performance, M6 Terminal hardware included, Amp Hours: 20, Dimensions: 4.35 x 9.65 x 9.85 inches, Weight: 15.5 pounds, Voltage: 12 Volts, Max Amps: 600A.
BE7ACP 2-DIN 7" Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, Spotify, Pandora
Features:
- 80 Watts x 4 Max Power, RBDS Tuner, Balance/Fader and Preset built-in EQ
- No CD or DVD Player, Plays Bluetooth/USB, MP3, WAV, AVI, FM/AM
- Compatible with Audio out from Smart Phones and MP3 Players
- USB, AV, Rear Camera, Steering Wheel Control Input
- Front, Rear & Sub Pre Amp Outputs
- USB Charging, Multi Color Illumination Options
- Bluetooth Hands Free, Make and receive calls, Bluetooth Audio Streaming. Play and control music and apps like Spotify/Pandora wirelessly
Media Playback
- MP3 THROUGH: Bluetooth/USB
Bluetooth
- BLUETOOTH AUDIO STREAMING: Yes
- BLUETOOTH HANDS-FREE: Yes
- PHONE BOOK ACCESS: Yes
- BLUETOOTH SUPPORTED PROFILES: A2DP, AVRCP, HFP, PBAP

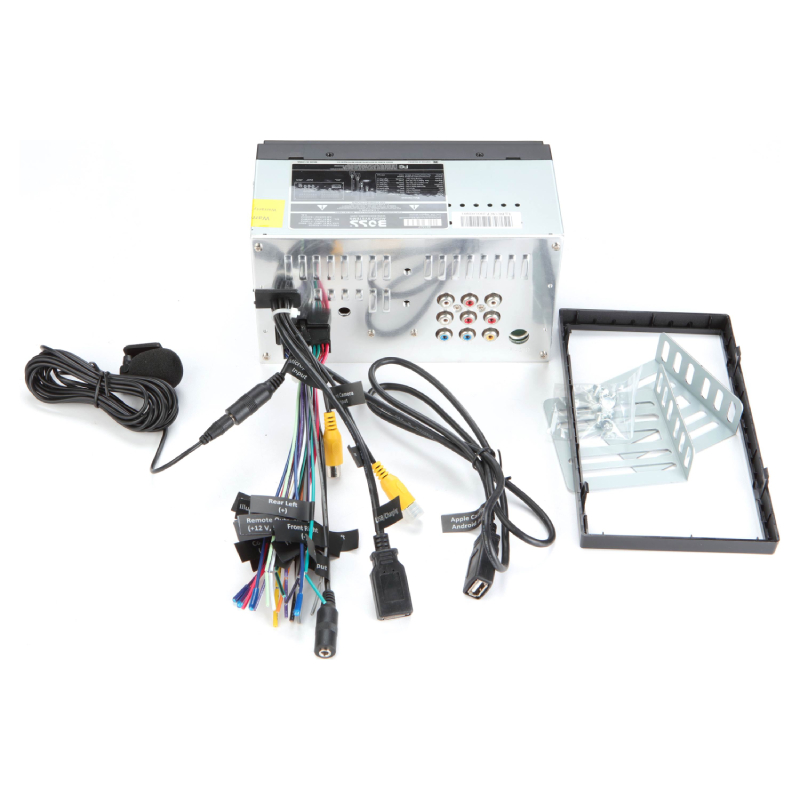

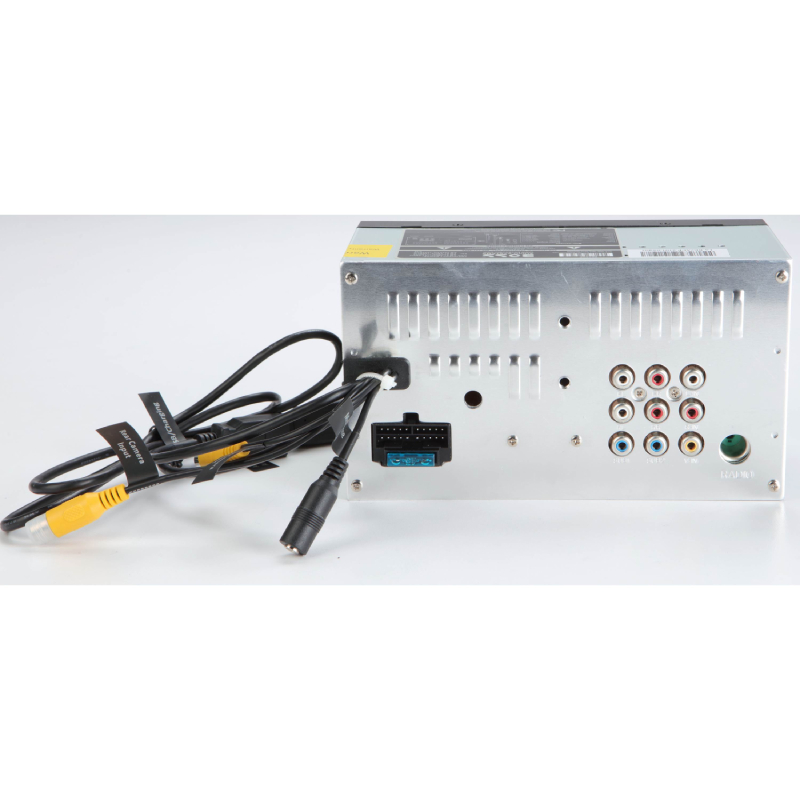

Inputs & Outputs
- USB PORT: Rear Cable
- IPOD INPUT: Yes
- A/V INPUT: Rear
- REAR CAMERA INPUT: Yes
- PRE-AMP OUTPUTS: Front, Rear & Sub
Performance & Controls
- TOTAL POWER OUTPUT: 320 Watts (80 Watts x 4 Ch)
- LAST POSITION MEMORY: Yes
- FULL IPOD CONTROL: Yes
- STEERING WHEEL CONTROL (*INTERFACE NOT INCLUDED): Yes
General
- SCREEN SIZE: 7"
- TOUCHSCREEN: Yes
- RESOLUTION: 800 x 480
- SWITCHABLE TUNER FREQUENCIES: USA, EUROPE
- TUNER PRESET: 10 FM / 10 AM
- A.M.S. ( AUTO MEMORY SEARCH): Yes
- SELECTABLE PRESET EQ: Yes
- ID3-TAG INFORMATION: Yes
- CLOCK DISPLAY: Yes
- CHASSIS TYPE: Double-DIN

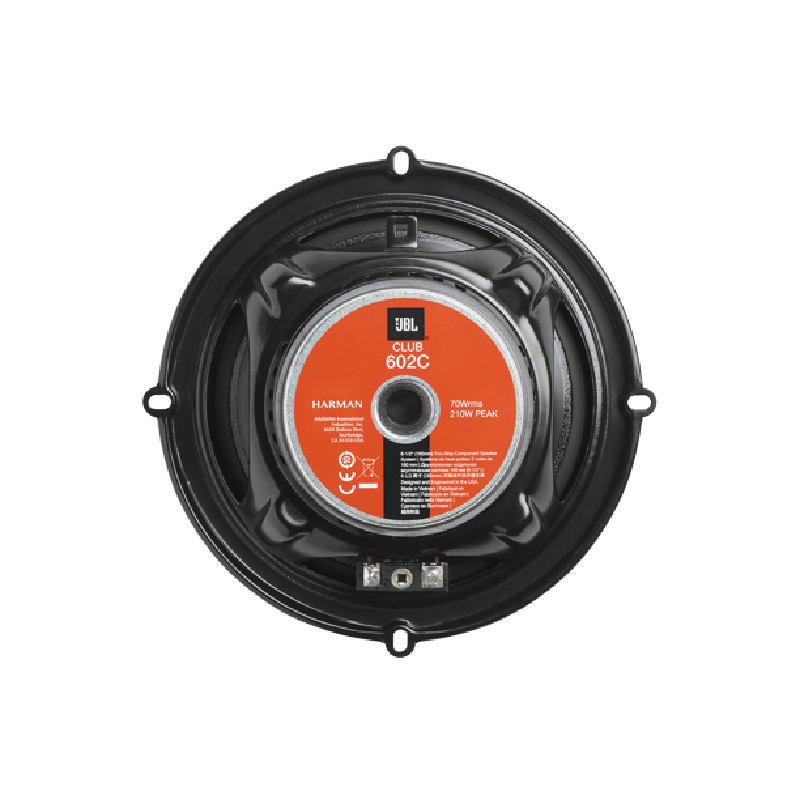

Club 602C Club Series 6.5" 70W RMS (210W Peak Power Handling) 3 Ohm 2-way Car Speakers
Specifications:
- 6-1/2" (160mm) Two-Way Component Speaker System
- Power Handling: 70W RMS, 210W peak
- Sensitivity (@ 2.83V): 92dB
- Frequency Response: 55Hz – 20kHz
- Nominal Impedance: 3.0 ohms

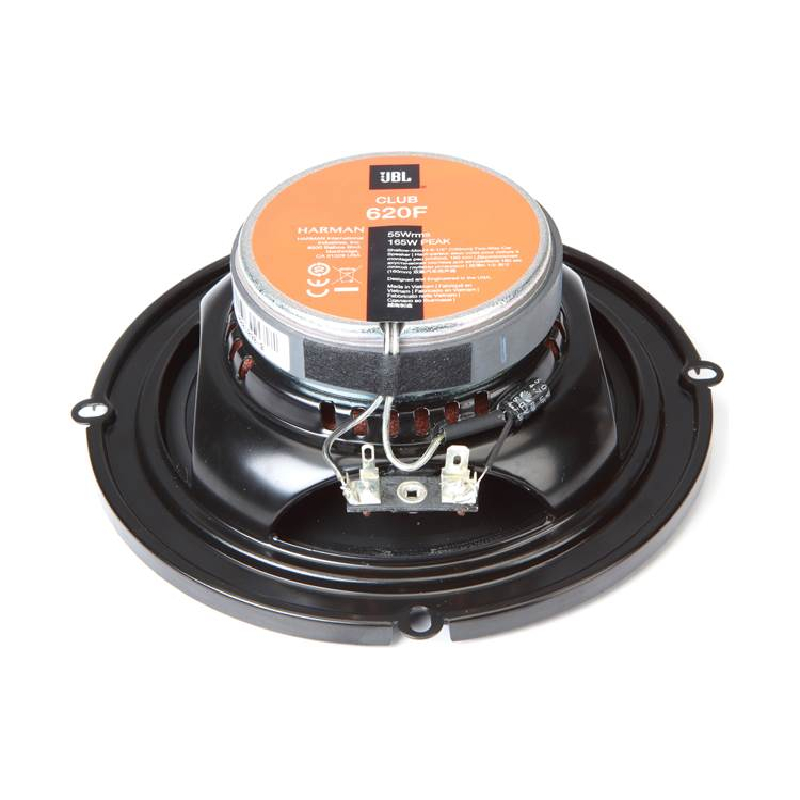

Club 620F Club Series 6.5" 55W RMS (165W Peak Power Handling) 3 Ohm 2-Way Shallow-mount Car Speakers
Specifications:
- Shallow-Mount 6-1/2" (160mm) Two-Way Car Speaker
- Power Handling: 55W RMS, 165W peak
- Sensitivity (@ 2.83V): 92dB
- Frequency Response: 55Hz – 20kHz
- Nominal Impedance: 3.0 ohms
43DC122 2" 300W RMS (600W Peak Power Handling) Dual 2 Ohms Voice Coil Enclosed Car Subwoofer
Specifications:
- Dual Subwoofer (in, cm): 12, 30
- Impedance (Ohms): 2
- Recommended Amplifier Power (watts RMS): 300
- Peak Power (watts, per ANSI/CTA-2031-A): 600
- Tuning Frequency [Hz]: 31
- Enclosure Depth 1 (in, cm): 13-7/8, 35.2
- Enclosure Depth 2 (in, cm): 17-1/4, 43.8
- Enclosure Height (in, cm): 16, 40.5
- Enclosure Width (in, cm): 32-7/16, 82.3

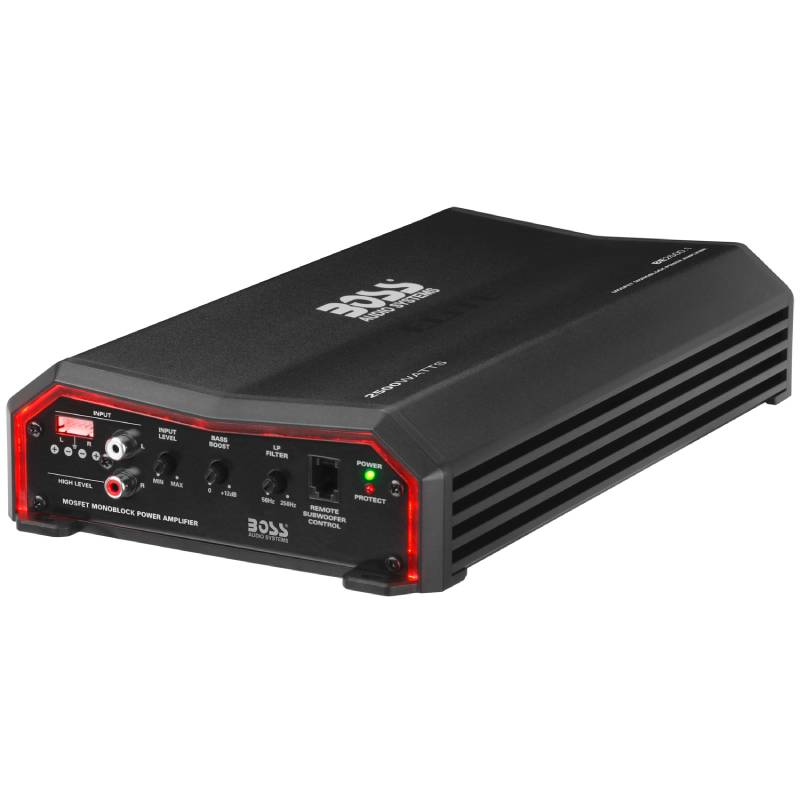

BE2500.1 Elite Series 2500W Max Power Class A/B Monoblock Power Amplifier, Remote Subwoofer Control
Features:
- 2500 W MAX Power 1 Channel
- 1875 W X 1 RMS @ 2 ohm
- 938 W X 1 RMS @ 4 ohm
- Monoblock, Class A/B, MOSFET Power Supply
- High and Low Level Inputs,
- Variable Low Pass Crossover, Switchable Bass Boost
- Include Remote Subwoofer Control
- 5 Years Elite Warranty
- Dimensions: 12.75" L x 7" W x 2.5" H
Specifications:
- Channel Configuration: 1 Channel
- Power Supply Type: Mosfet Power Supply
- Amp Topology: Monoblock, Class A/b
Performance Specifications:
- Total Power Output: 2500 Watts
- Peak Power @ 2 ohms: 2500 Watts X 1
- Peak Power @ 4 ohms: 1250 Watts X 1
- Rms Power @ 2 ohms: 1875 Watts X 1
- Rms Power @ 4 ohms: 938 Watts X 1
- Speaker Impedance: 2 To 8 ohms
- S/n Ratio (A-weighted): 105 Db
- Frequency Response: 9 Hz To 50 Khz ±1 Db
Connections, Controls, And Processing:
- Rca Inputs: 2 Channel
- High Level Inputs: Yes
- Low Pass Filter: 35 Hz To 160 Hz
- Bass Boost: Switchable 0 Or 18 Db
- Subwoofer Level Control: Yes
- Thermal/overload/short Protection: Yes
Measurements:
- Width: 7"
- Height: 2.5"
- Length: 12.75"
GM-D1004 Slim Series 400W Class FD 4-Channel Digital Amplifier
GENERAL:
- Number of Channels: 4
- Amplifer Class: Class FD
- Maximum Power Output: 400W
- Maximum Power Output at 2 W: 100W x 4
- Maximum Power Output at 4 W: 100W x 4
- Maximum Power Output - Bridged at 4 W: 200W x 2
- Nominal Power (RMS) Output at 2 W: 45W x 4
- Nominal Power (RMS) Output at 4 W: 45W x 4
- Nominal Power (RMS) Output - Bridged at 4 W: 90W x 2
- Frequency Response: 10 Hz to 40 kHz
- Total Harmonic Distortion (THD): < 0.05% (1 kHz)
- Signal-to-Noise (SN) Ratio: 75 dB

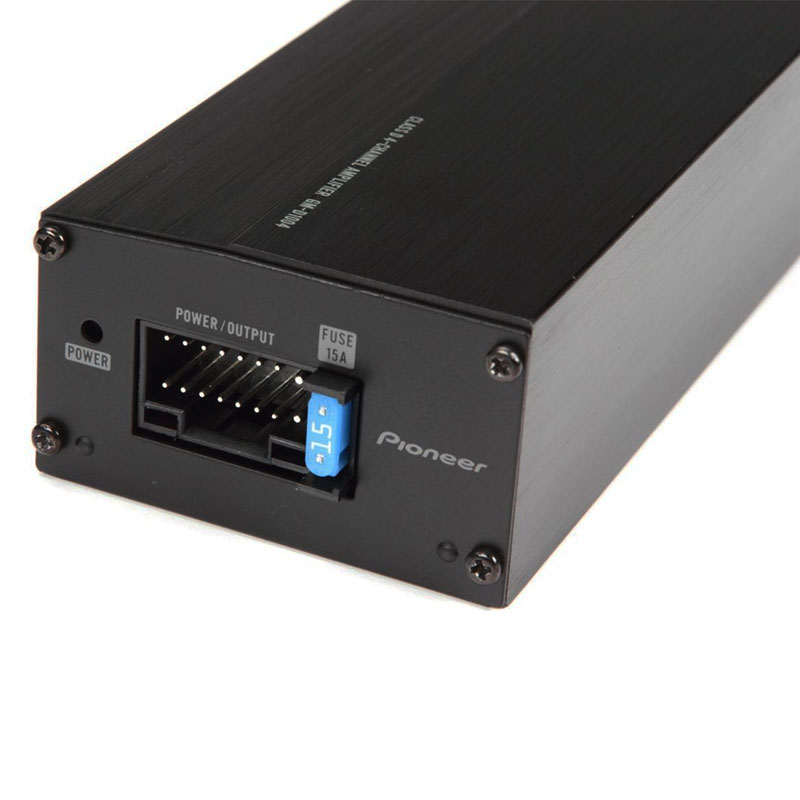

- Fuse Rating: 15 Amps
SPECIFICATIONS:
- RCA Inputs: 4-Ch.
- Speaker Level Inputs:
- Crossover Type: LPF/HPF
- Low-Pass Crossover Frequency: 80 Hz (LPF/OFF/HPF)
- Low Pass Slope (dB/octave): -12 dB/octave
- High-Pass Crossover Frequency: 80 Hz (LPF/OFF/HPF)
- High-Pass Slope (dB/octave): -12 dB/octave
- Automatic Signal Sensing and Turn-On
- Terminal Type: Removable
- Load Impedance Allowance (W): 1 to 8
- Bridgeable
- MOSFET Output Selection
- Protection Control System
- Dimensions (WxHxD)(inches): 7-1/8" x 1-1/2" x 2-1/2"
XP750-SE XP750 Special Edition 600W Battery 12-Volt Deep Cycle AGM Battery Power Cell with 600 Max Amps
Features:
- 12-Volt Deep Cycle AGM Power Cell
- Sealed Absorbed Glass Mat (AGM) Design
- Leak-Proof, non-hazardous design
- Designed for use as an additional battery to power your high-performance sound system
- Stores energy so you don't need a capacitor for your system
- Resists extreme vibrations for ultimate performance
- M6 Terminal hardware included
- Amp Hours: 20
- Dimensions: 4.35 x 9.65 x 9.85 inches
- Weight: 15.5 pounds
- Voltage: 12 Volts
- Max Amps: 600A
- UPC: 798418840430
- Weight: 151
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
