Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

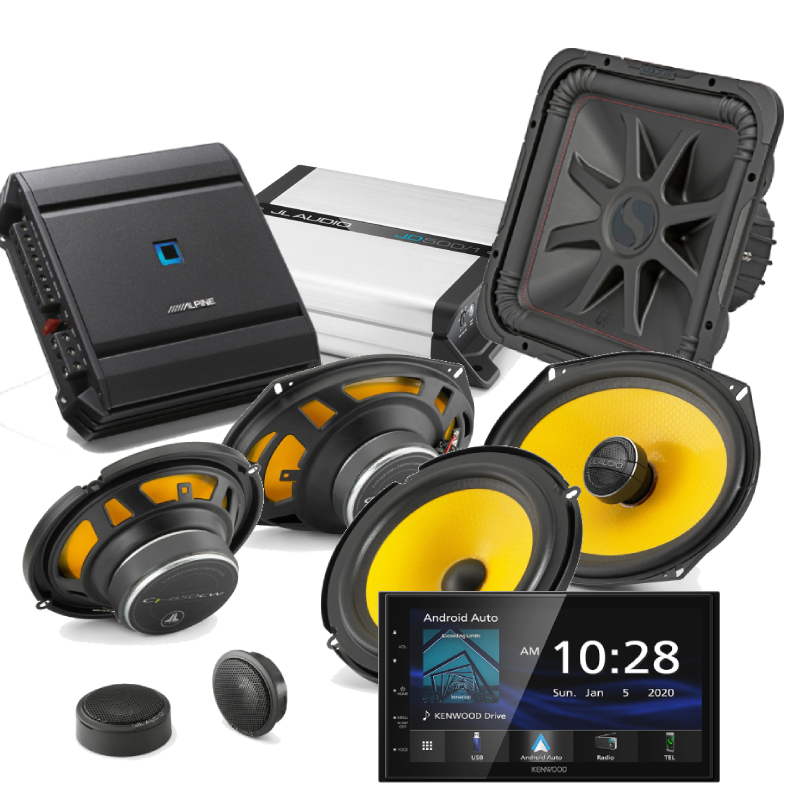

Universal Full Car Audio Package includes the following: Kenwood DMX47S + JL Audio C1-650 + JL Audio C1-690X + Kicker 45L7R154 + Alpine S-A32F + JL Audio JD500/1 + XS Power XP750-SE
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Kenwood DMX47S
- •JL Audio C1-650
- • JL Audio C1-690X
- •Kicker 45L7R154
- •Alpine S-A32F
- •JL Audio JD500/1
- • XS Power XP750-SE
- •Owner's Manual

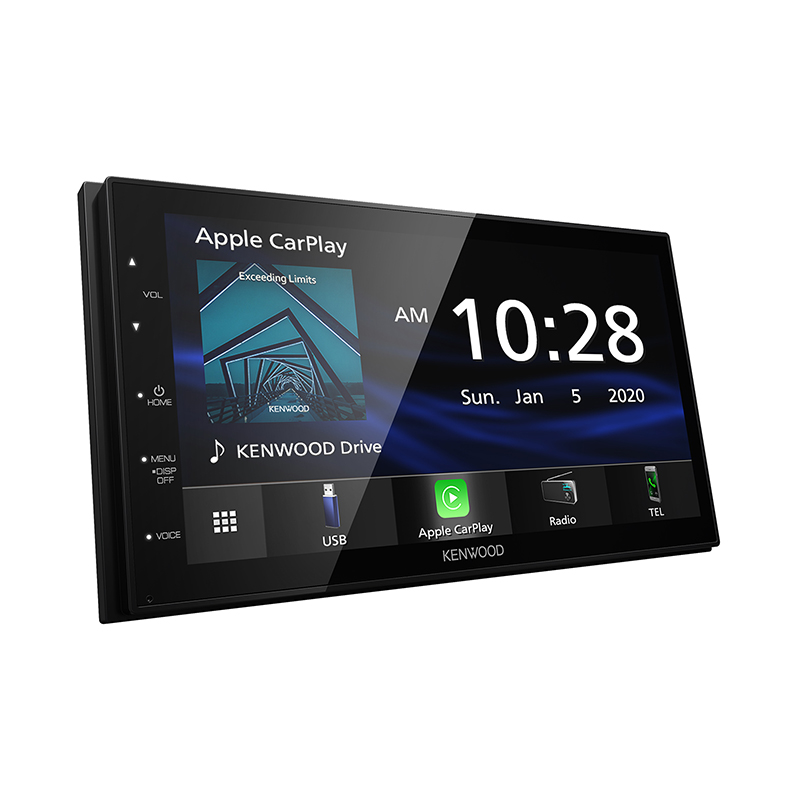

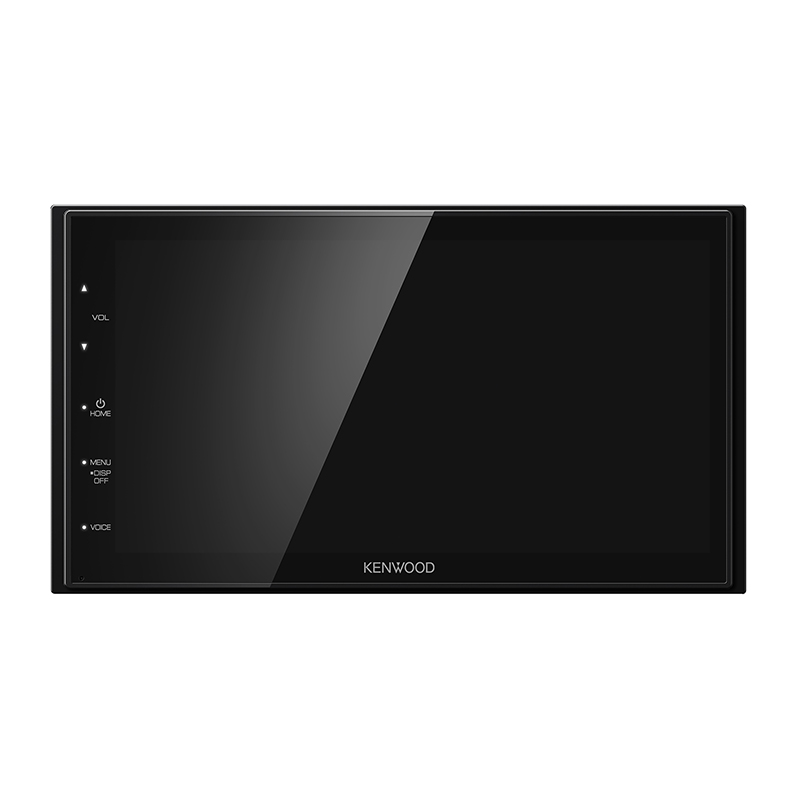

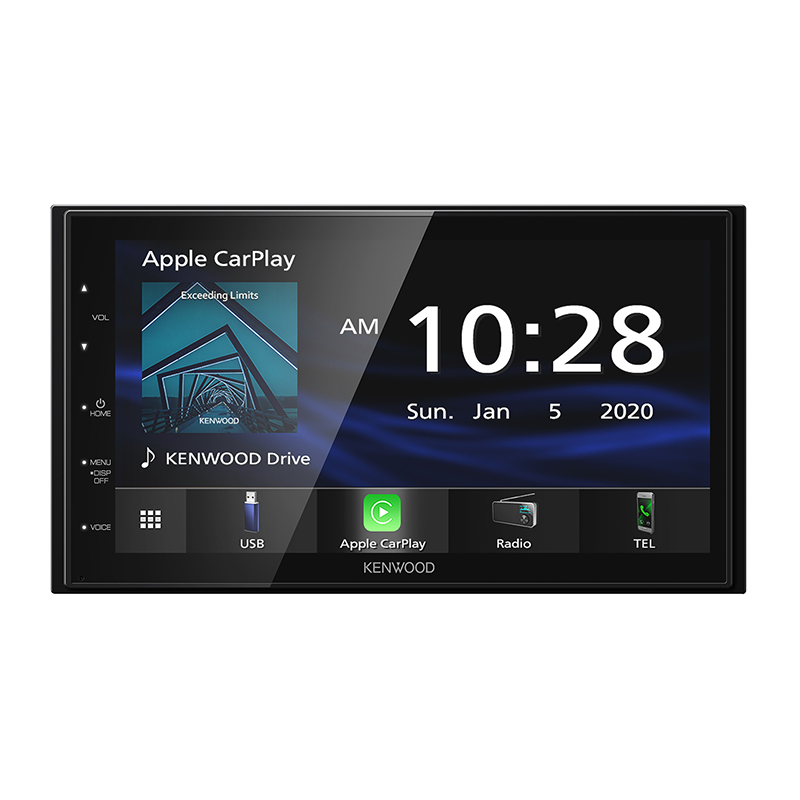

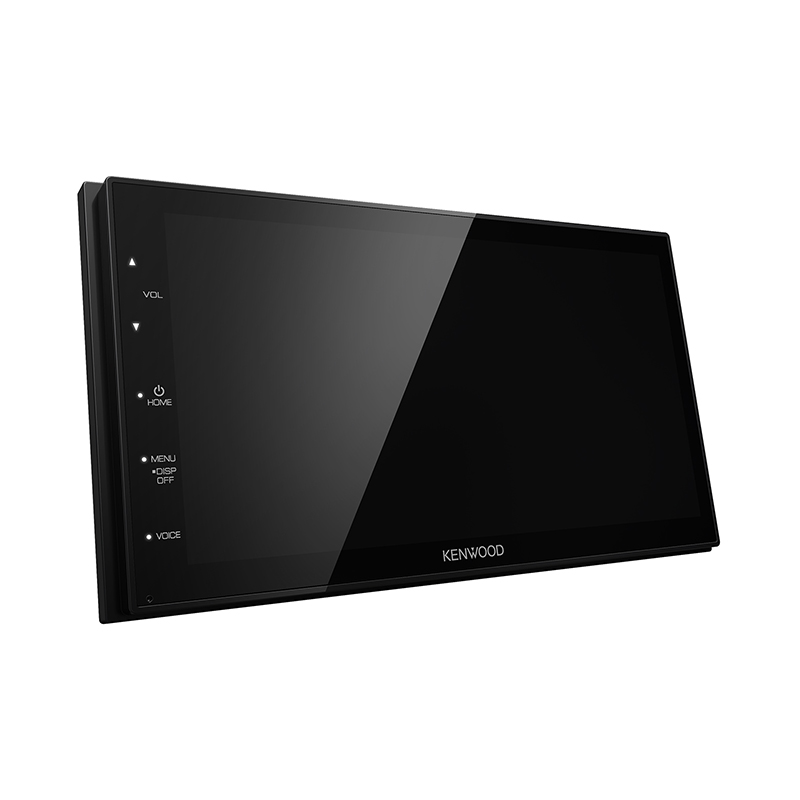

Kenwood DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen
Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
True Mirroring via USB, 2-Way Touch Control for Android
Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.

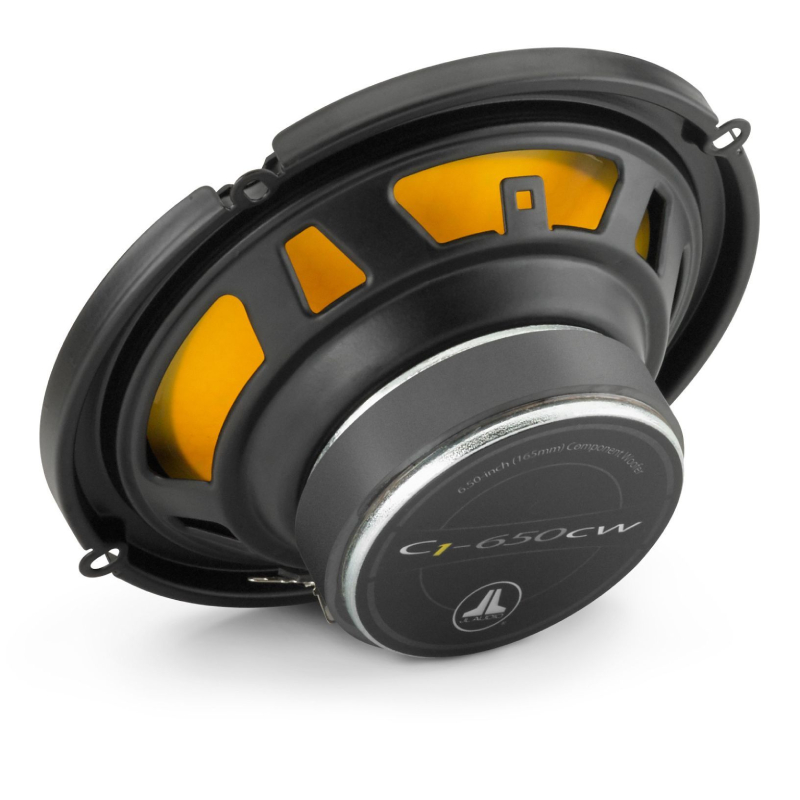

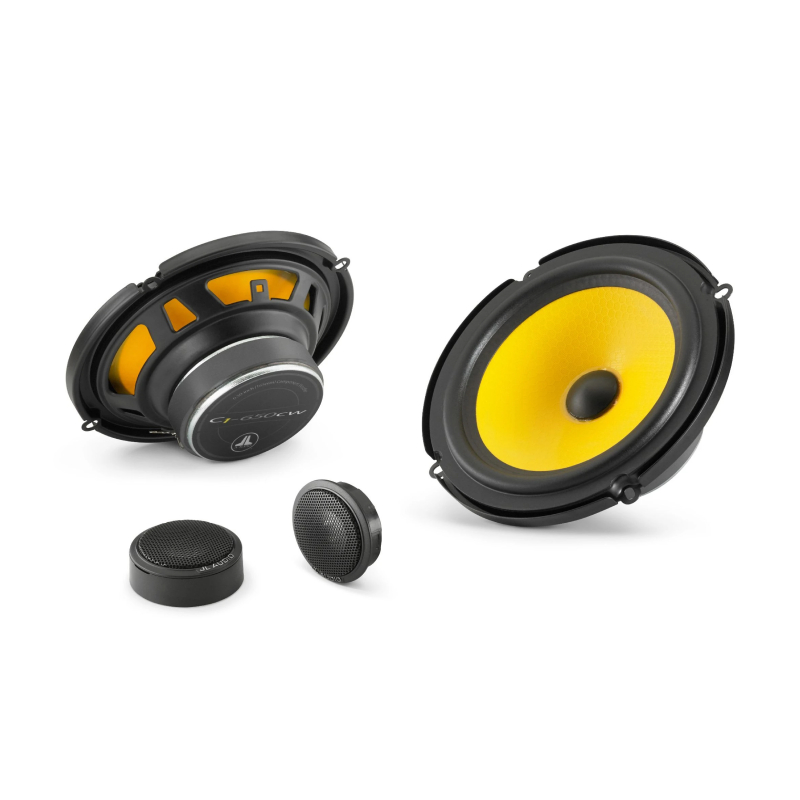

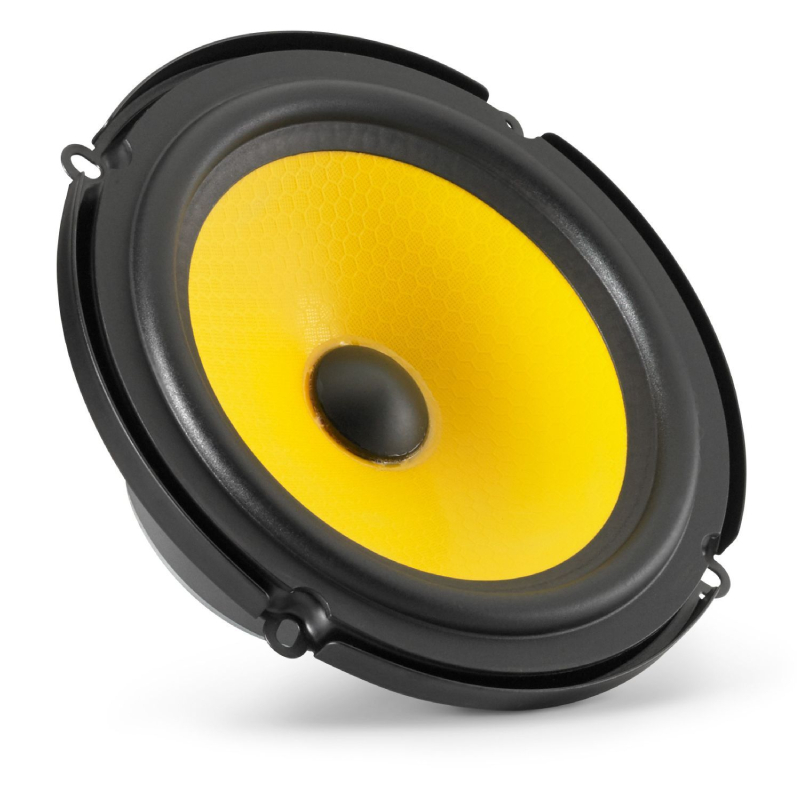

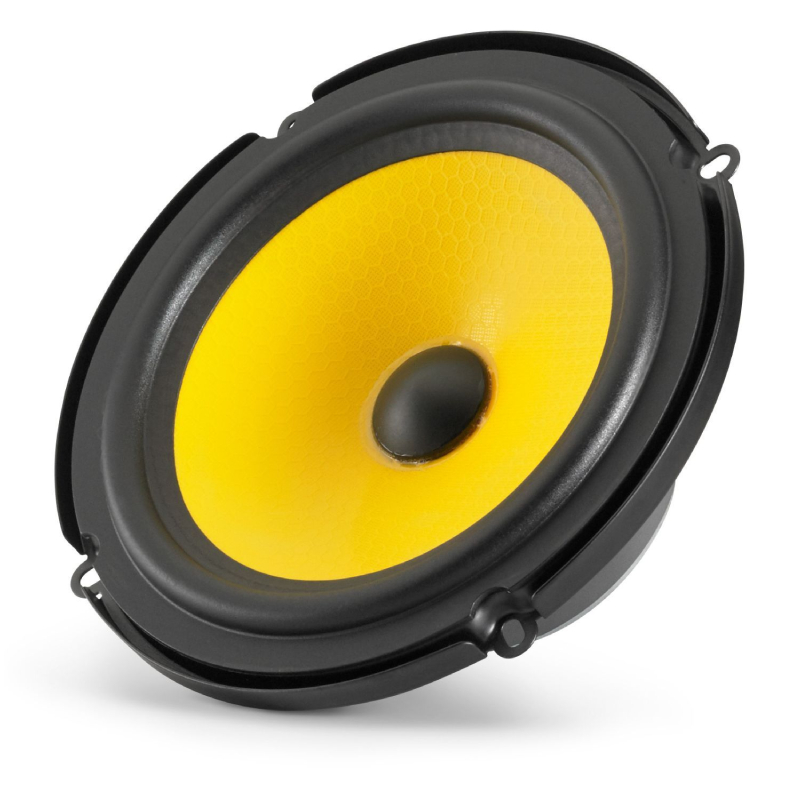

JL Audio C1-650 C1 Series 6-1/2" 50W RMS (225W Peak Power Handling) 2-Way Car Component Speaker System
Excellent off-axis response and high-frequency extension
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit.
An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
Aluminum Dome Tweeter
Compared to similar textile designs, aluminum tweeter diaphragms offer superior stiffness and high-frequency extension, with only a minor penalty in efficiency. JL Audio’s aluminum dome tweeters employ a rubber surround and ferrous fluid in the motor gap to damp the aluminum diaphragm.
This additional damping reduces ringing and improves the tweeter’s smoothness of reproduction while still delivering the high-frequency energy and extension that metal domes are known for.
Great audio performance
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings.
Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

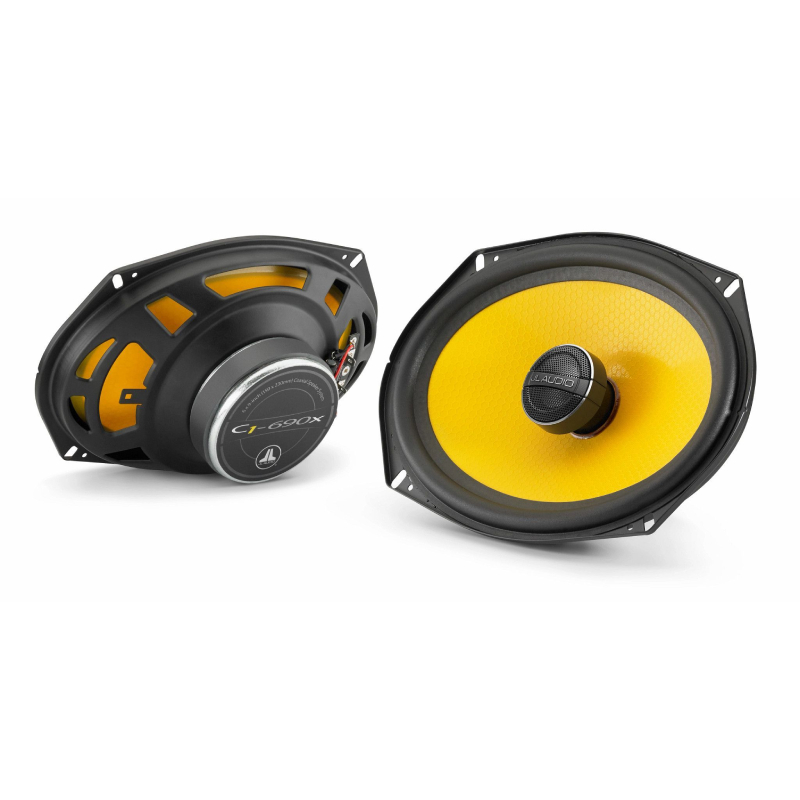

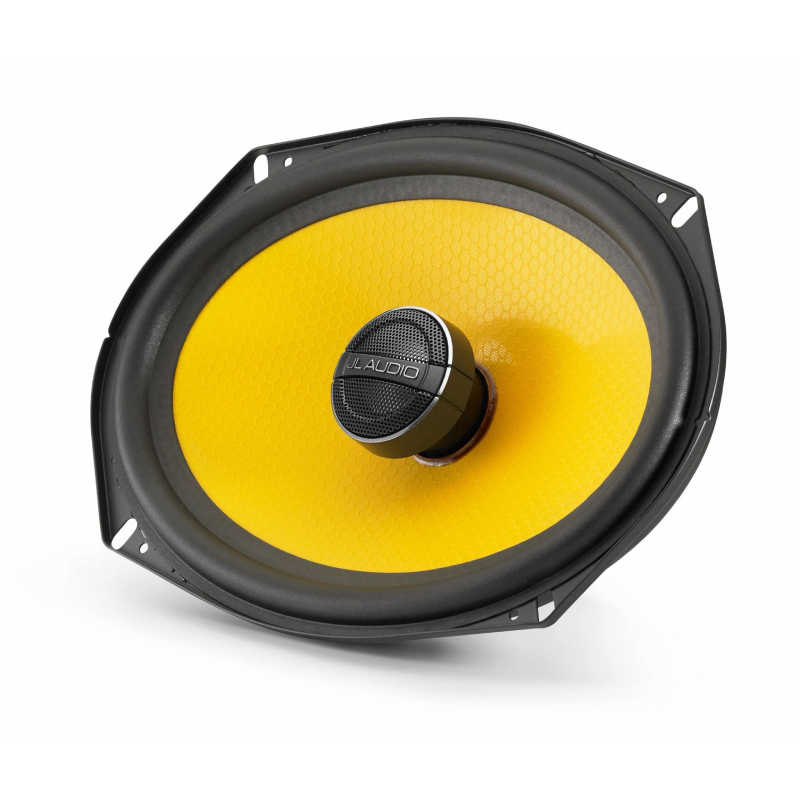

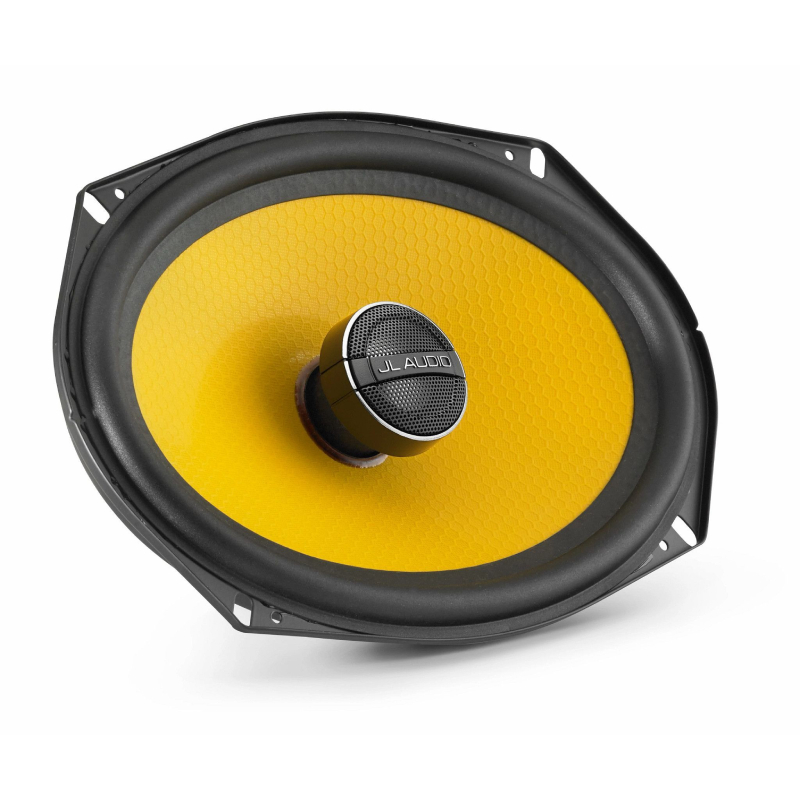

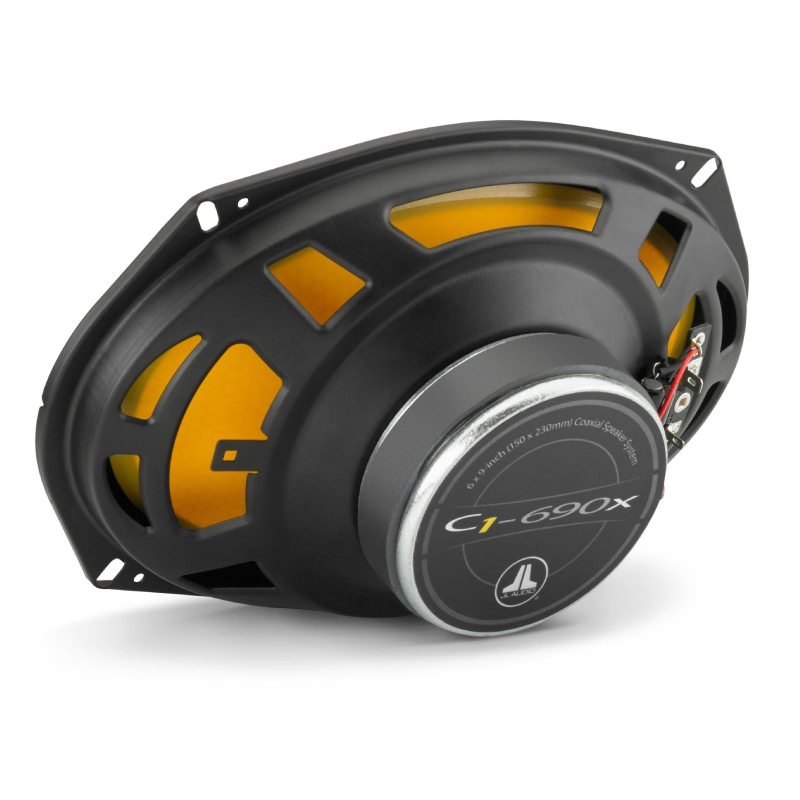

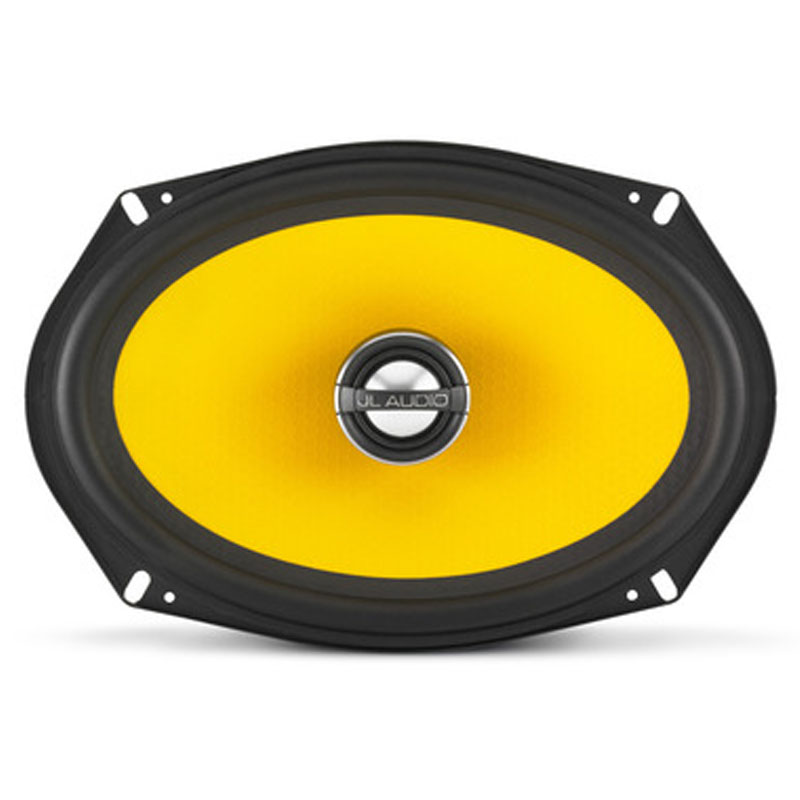

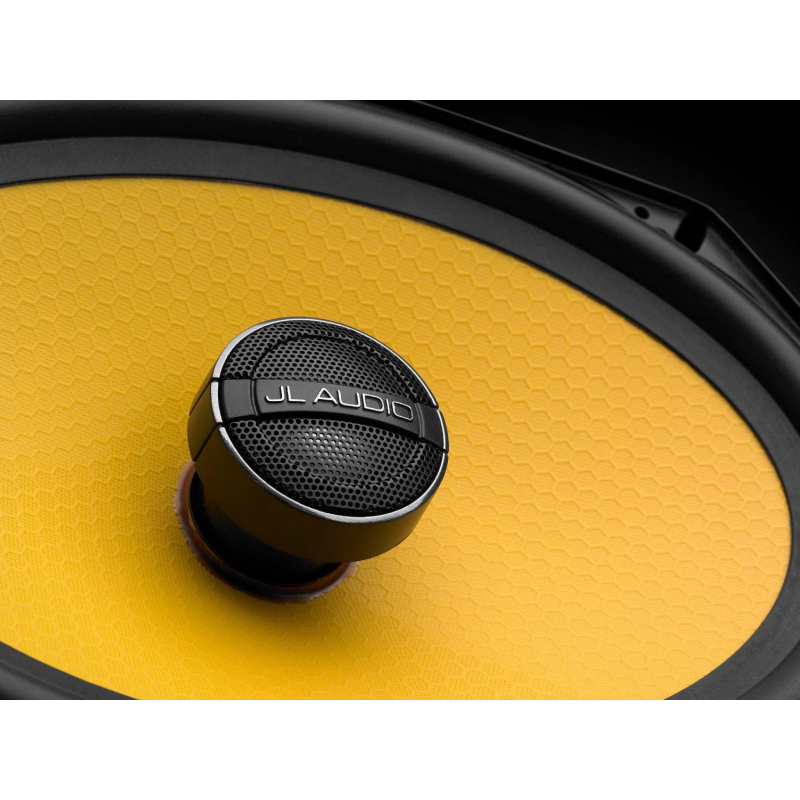

JL Audio C1-690x C1 Series 6x9" 60W RMS (225W Peak Power Handling) 2-way Coaxial Car Speaker System
C1 Coaxial Speaker System
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690x is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system.
A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Excellent off-axis response and high-frequency extension
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

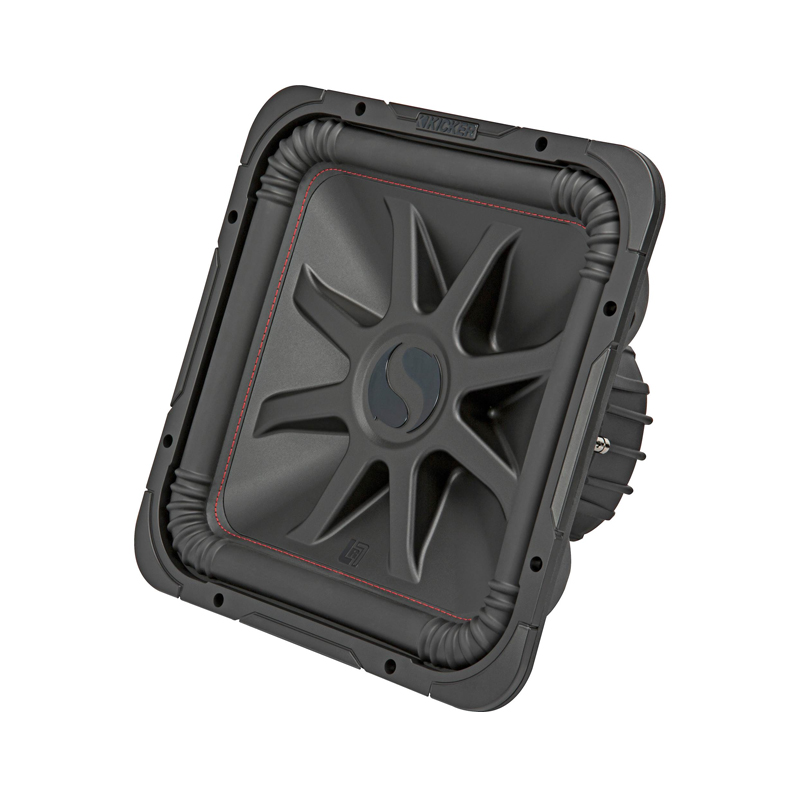

Kicker 45L7R154 L7R Series 15" 900W RMS (1800W Peak Power Handling) Dual 4-Ohm Voice Coil Subwoofer
Hip to Be Square
It’s simple – more cone means more air moves. KICKER’s L7R Square Sub technology gives you up to 20% more cone area than a round sub.
Signature Stitching
Signature red stitching binds the ribbed Santoprene® surround to the injection-molded SoloKon™ cone for added strength, even under extreme stress.
Takes the Heat
The L7R's powerful motor delivers big bass, while utilizing next-level thermal management for optimal performance. The UniPlate™ solid pole piece & backplate construction ensure the sub stays cool, even under extreme power loads.

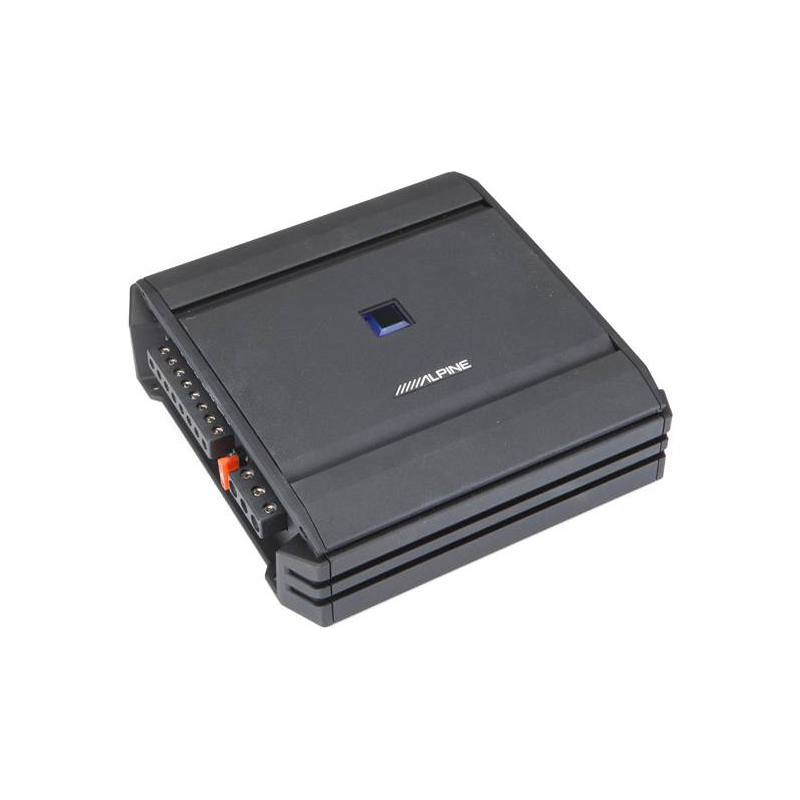

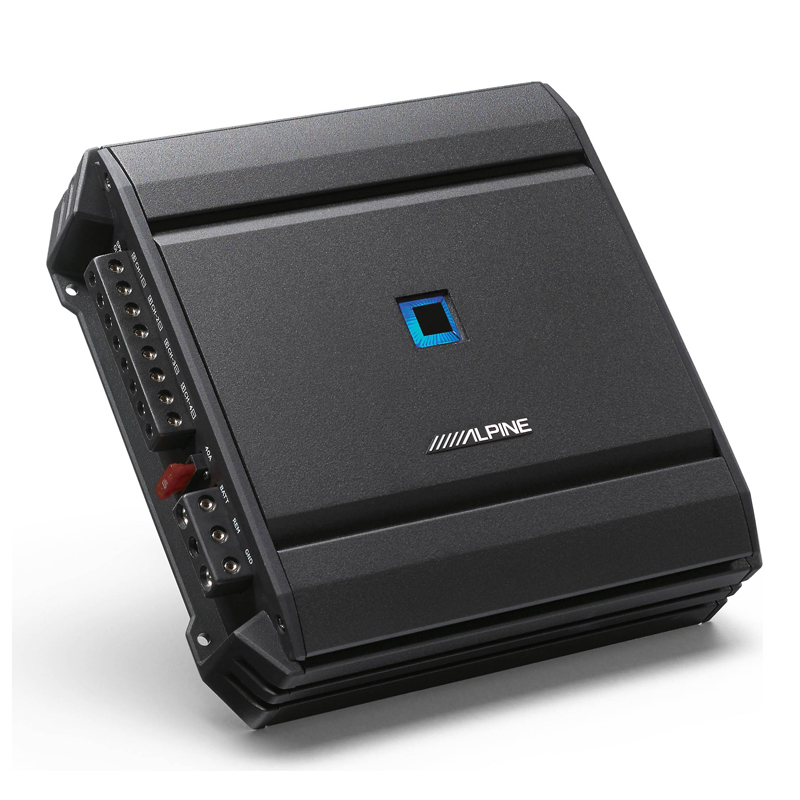

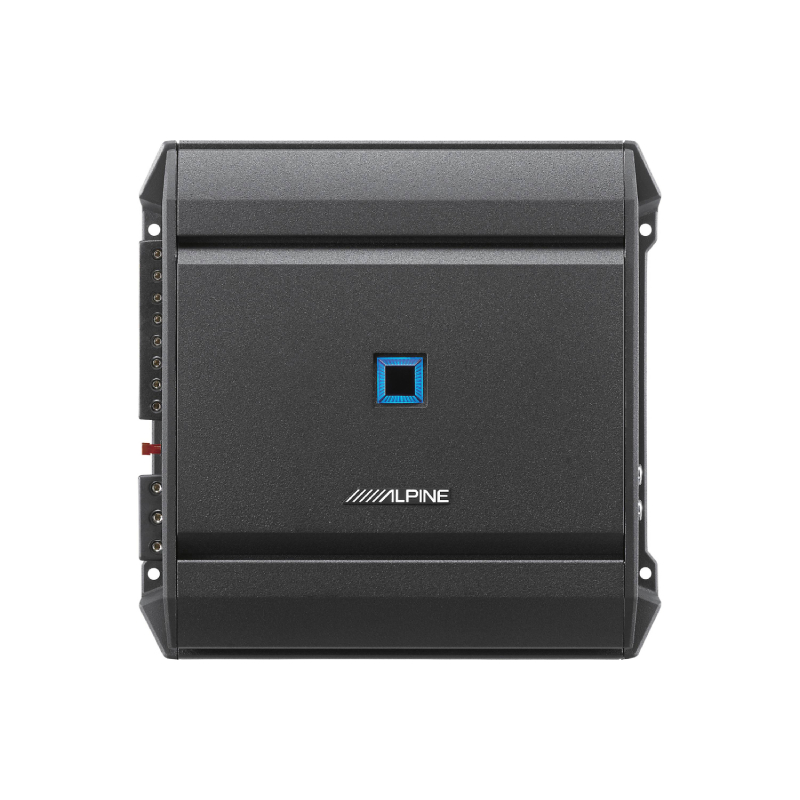

Alpine S-A32F S-Series 80W x 4 RMS @2Ohm 4-Channel Class D Power Amplifier
The Better Choice in Performance Value
Perfect for beginners and enthusiasts alike, the S-Series amplifiers have the technology to improve your music experience yet are still friendly on your wallet. Used in conjunction with our advanced S-Series speakers and subwoofers, they create a complete sound system that takes your in-vehicle music experience to the next level.
Small but Mighty
The S-Series amplifiers are designed to fit anywhere. Measuring at 8”, these amplifiers can be mounted under seats or behind panels. Though they sport a compact footprint on the outside, they produce impressive power on the inside The S-A32F 4-Channel Amplifier boasts the perfect amount of power to drive the newly redesigned S-Series speakers to their optimal performance for clean and accurate sound.
Reliable Performance
The S-Series amplifiers contain technology that was previously only available in our premium line up of amplifiers, the R- and X-Series models. The S-Series models are based on Alpine’s intelligent amplifier platform that ensures superior sound reproduction and precision imaging. With an improved heat sink, and protection circuit design that eliminates thermal shut-down, your music will keep playing no matter where your drive takes you.

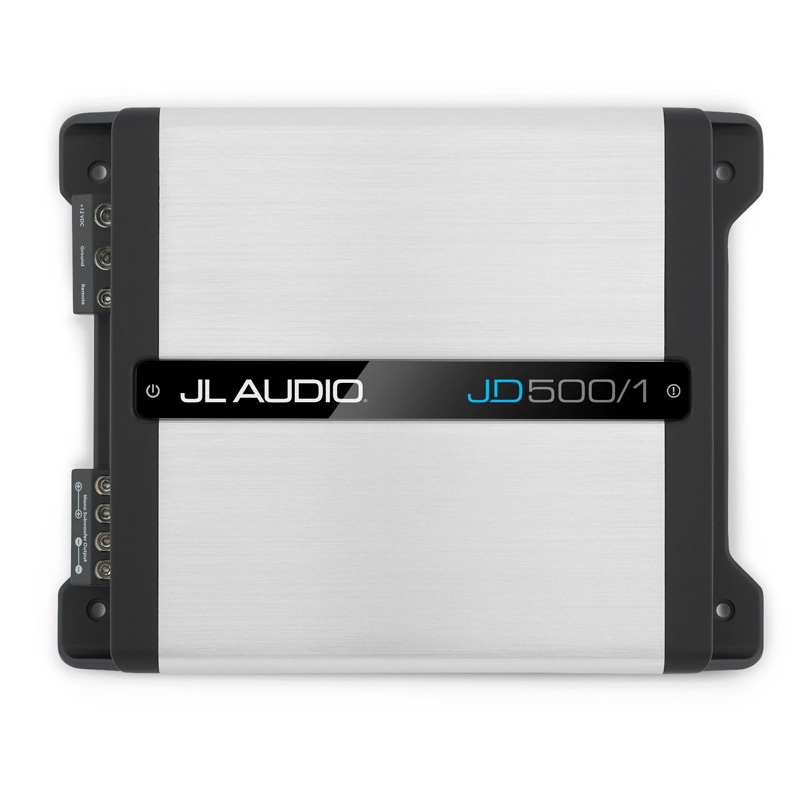

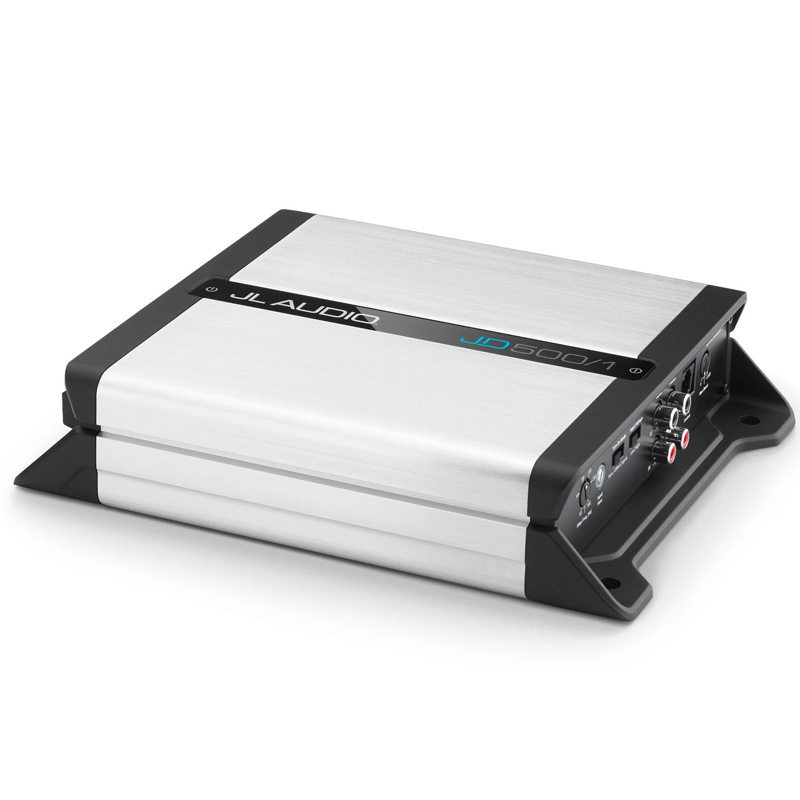

JL Audio JD500/1 JD Series 500Wx1 RMS @2Ohms Class D Monoblock Subwoofer Amplifier
JD Series Amplifier

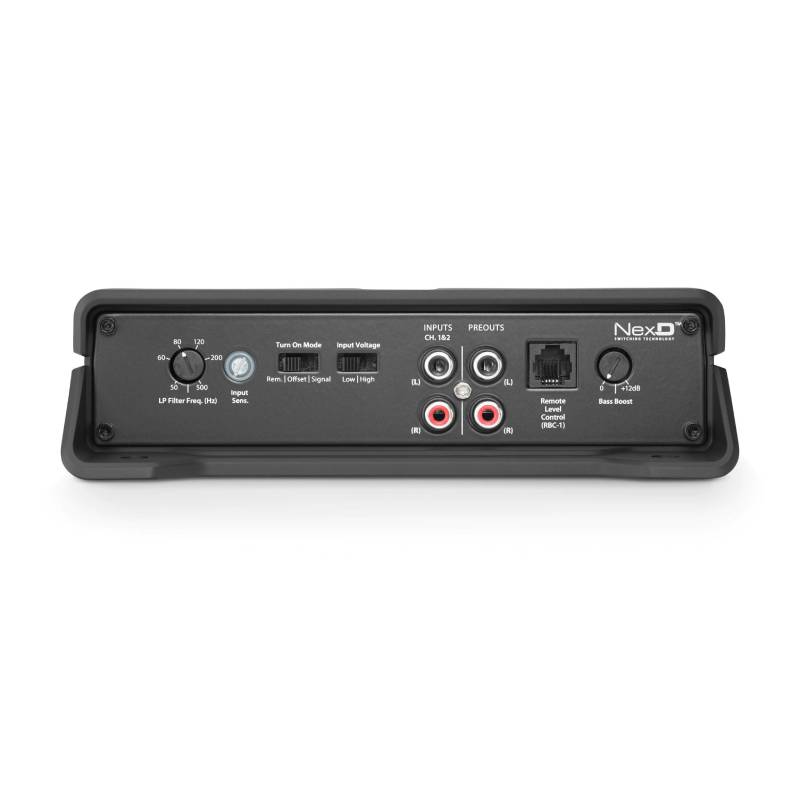

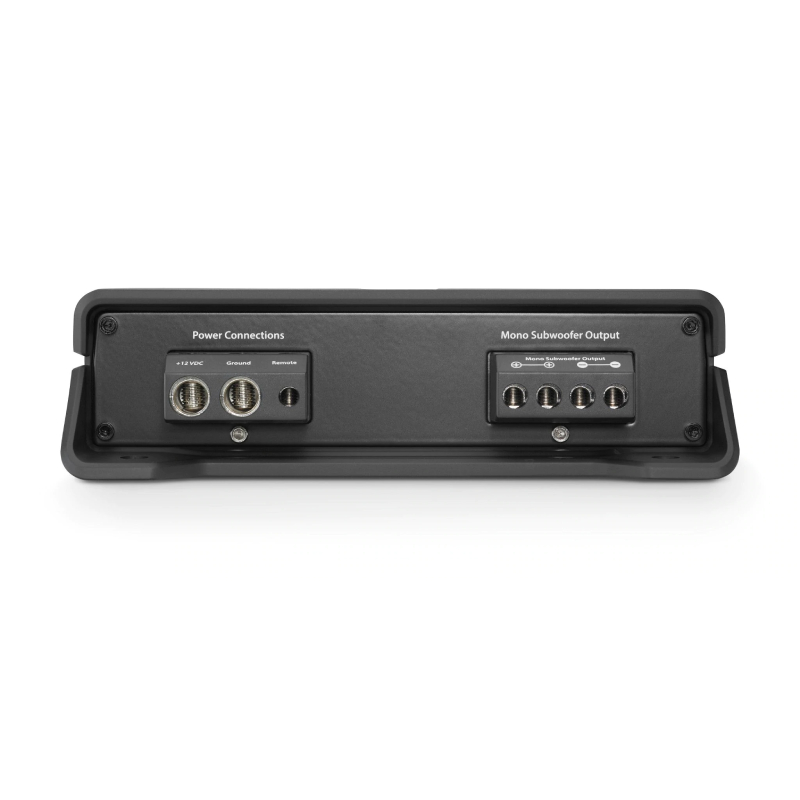

The JD500/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ.
Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
Complete Signal Processing Package
12dB/octave low-pass filter, non-defeatable, with fully variable filter frequency selection from 50-500 Hz Adjustable 0 to +12 dB Bass Boost EQ @ 45 Hz Remote level control with optional controller (RBC-1) Preamp outputs (buffered, pass-through type)
Great Solution for Powering Subwoofers
Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. JL Audio's proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.
LED-clipping indicator ring
The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.
NexD™ Switching Technology
For the full-range NexD™ amplifiers and channels we applied a variable, ultra-high speed version of the NexD™ technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.
XS Power XP750-SE Special Edition 600W Battery 12-Volt Deep Cycle AGM Battery Power Cell with 600 Max Amps
Resists Extreme Vibrations
12-Volt Deep Cycle AGM Power Cell, Sealed Absorbed Glass Mat (AGM) Design, Leak-Proof, non-hazardous design, Designed for use as an additional battery to power your high-performance sound system, Stores energy so you don't need a capacitor for your system, Resists extreme vibrations for ultimate performance, M6 Terminal hardware included Amp Hours: 20, Dimensions: 4.35 x 9.65 x 9.85 inches, Weight: 15.5 pounds Voltage: 12 Volts, Max Amps: 600A.

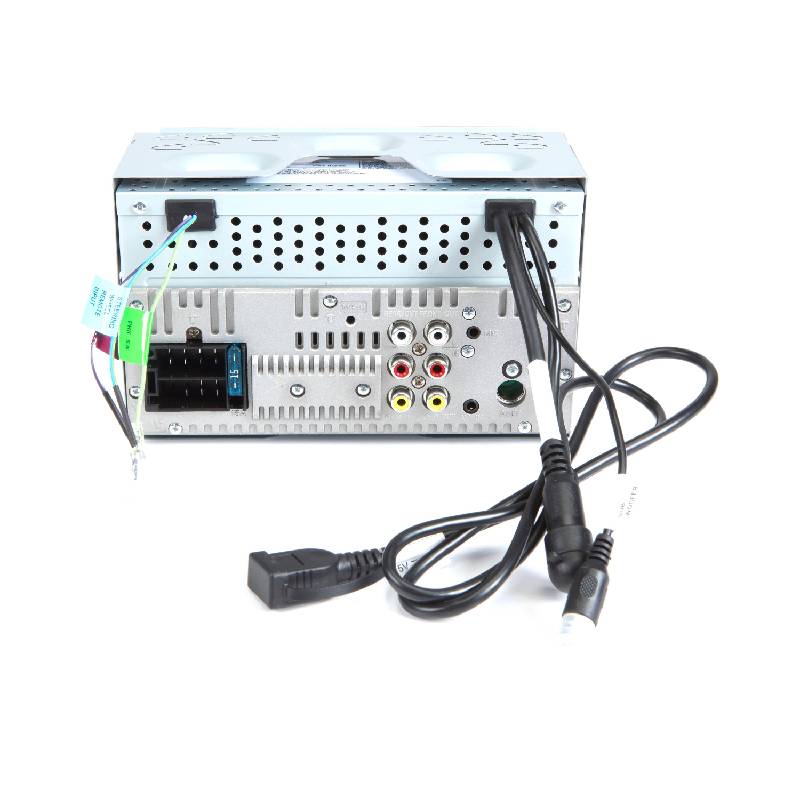

DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android
Features:
- 6.8" WVGA Monitor with Capacitive Touch Panel
- Apple CarPlay™ & Android Auto™
- USB Mirroring for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- Short Chassis
- 2 Preouts 2V + Subwoofer Out
Monitor Section:
- Picture size: 6.75inches(diagonal) wide
- W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels:1,152,000
- 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
USB I/F Section:
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32 , exFAT
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / .mkv
- Frequency response 192k Sampling: 20 - 20,000 Hz
- 96k Sampling: 20 - 20,000 Hz
- 48k Sampling: 20 - 20,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.2
- Signal to Noise ratio: 75dB
- Dynamic range: 75dB
Bluetooth Section:
- Technology: Bluetooth Ver4.1
- Frequency: 2.402 – 2.480 GHz
- RF Output Power: (E.I.R.P.) +8dBm (Avg.), Power Class 1
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
Profile:
- HFP (V1.6) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.5) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
Graphics equalizer:
- BAND: 13 Band
- frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
- Gain: -09 to +09 (-9dB to +9dB)
2Way X'Over:
- HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- LOW PASS FILTER frequency (Hz): 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position:
- Front / Rear /Subwoofer Delay: 0 to 6.1m (0.01m Step)
- Gain: -8 to 0dB
- Subwoofer Level: -40 to +6dB
FM:
- Frequency Range: 87.9 - 107.9 MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 16.2dBf
- S/N:30dB: 1.8μV/75 Ohms
- Quieting sensitivity -
- DIN S/N 46dB -
- Frequency response / (±3.0dB): 30Hz - 14kHz
- S/N (dB): 50dB (MONO)
- Selectivity -
- Stereo separation: 35dB (1kHz)
AM:
- Frequency Range: 530 - 1700 kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 99μV(40dBμ)
- Video: Color system of external video input NTSC/ PAL
- External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
- External audio max input level (RCA jacks): 1.5V / 25k Ohms
- Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms
Audio:
- Maximum Power Output (Front&Rear): 45Wx4
- Full Bandwidth Power / (at less than 1%THD): 21Wx4
- Output frequency band: 20 - 20,000Hz
- Preout level (V): 2.0V / 10k Ohms
- Preout impedance (Ω): 1.4k Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General:
- Operating voltage: 12V DC Car Battery
- Installation Dimensions WxHxD: 182 x 112 x 75 (mm) 7-3/16 x 4-7/16 x 2-15/16 (inch)
- Main Unit Installation size W x H x D(w/o sleeve): 178 x 100 x 75 (mm) 7 x 3-15/16 x 2-15/16 (inch)
- Weight Main unit: 1.1 kg / 2.4 lbs
- (Including Sleeve and Trim plate): 1.3 kg / 2.8 lbs
C1-650 C1 Series 6-1/2" 50W RMS (225W Peak Power Handling) 2-Way Car Component Speaker System
General Specifications:
- Continuous Power Handling (RMS): 50 W
- Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
- System Efficiency: 91.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 59 Hz - 22 KHz ± 3 dB
Woofer Physical Specifications:
- Frame Outer Diameter* (A): 6.25 in / 159 mm
- Grille Tray Outer Diameter (B): 6.84 in / 174 mm
- Motor Outer Diameter (C): 3.15 in / 80 mm
- Frontal Coaxial Tweeter Protrusion (D): N/A
- Frontal Grille Protrusion** (E): N/A
- Mounting Hole Diameter (F): 5.02 in / 128 mm
- Mounting Depth (G): 2.07 in / 53 mm
Tweeter Physical Specifications:
- Flush Mount Fixture Diameter (A1): 1.87 in / 48 mm
- Surface Mount Fixture Diameter (A2): 1.69 in / 43 mm
- Flush Mount Mounting Hole Diameter (B): 1.625 in / 41 mm
- Flush Mount Mounting Depth (C): 0.76 in / 19 mm
- Flush Mount Tweeter Frontal Protrusion (D1): 0.29 in / 7 mm
- Surface Mount Tweeter Frontal Protrusion (D2): 0.92 in / 23 mm
Crossover Physical Specifications:
- Width (W): 1.96 in / 50 mm
- Height (H): 0.90 in / 23 mm
- Depth (D): 1.34 in / 34 mm
C1-690x C1 Series 6x9" 60W RMS (225W Peak Power Handling) 2-way Coaxial Car Speaker System
Specifications:
- Continuous Power Handling (RMS): 60 W
- Recommended Amplifier Power (RMS): 10 - 100 W / Ch.
- System Efficiency: 91.5 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 39 Hz - 22 KHz ± 3 dB
- sensitivity: 94 dB at 2.83 volts
- grilles not included
- Frame Outer Diameter* (A): 6.38 x 9.33 in / 162 x 237 mm
- Grille Tray Outer Diameter (B): N/A
- Motor Outer Diameter (C): 3.54 in / 90 mm
- Frontal Coaxial Tweeter Protrusion** (D): 0.41 in / 10 mm
- Frontal Grille Protrusion (E): N/A
- Mounting Hole Diameter (F): N/A
- Mounting Depth (G): 2.75 in / 70 mm
- injection-molded mineral-filled polypropylene woofer cone with rubber surround
- When it comes to value, C1 is the real deal!
- Sold as a pair.
45L7R154 L7R Series 15" 900W RMS (1800W Peak Power Handling) Dual 4-Ohm Voice Coil Subwoofer
Features:
- Dual Four-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- SoloKon™
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals
Specifications:
- SIZE [in, cm]: 15, 38
- IMPEDANCE [Ohms]: 4 DVC
- POWER WATTS [peak/RMS]: 1800/900
- SENSITIVITY [dB 1w/1m]: 88.05
- MOUNTING DEPTH [in, cm]: 8 -3/8, 21.5
- MOUNTING DIAMETER [in, cm]: 13-3/4, 34.9
- MIN SEALED BOX VOL [cu. ft, L]: 1.5, 42.48
- MAX SEALED BOX VOL [cu. ft, L]: 3, 85
- MIN VENTED BOX VOL [cu. ft, L]: 3, 85
- MAX VENTED BOX VOL [cu. ft, L]: 6, 170

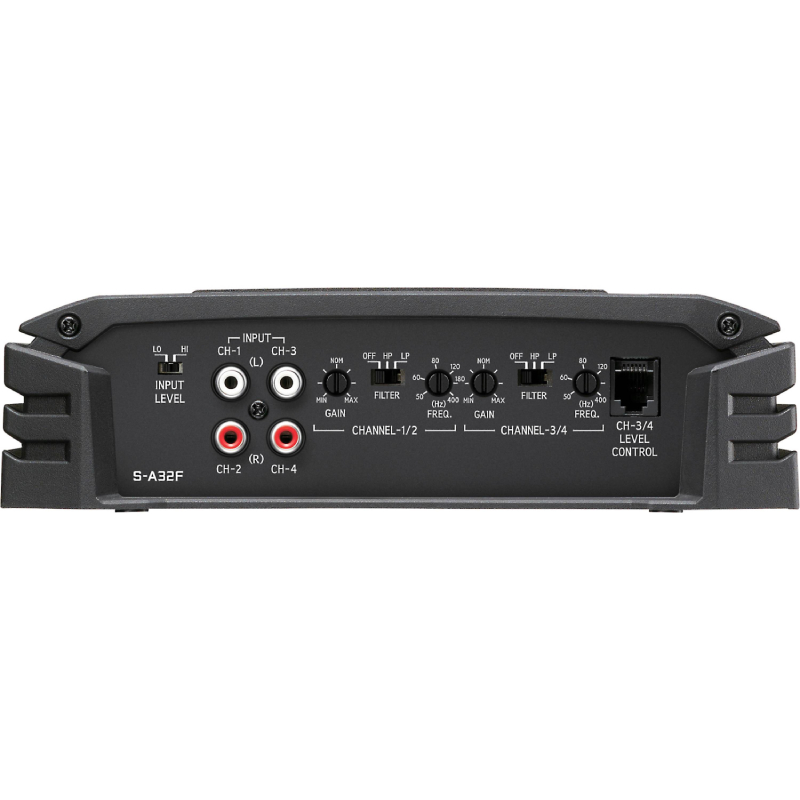

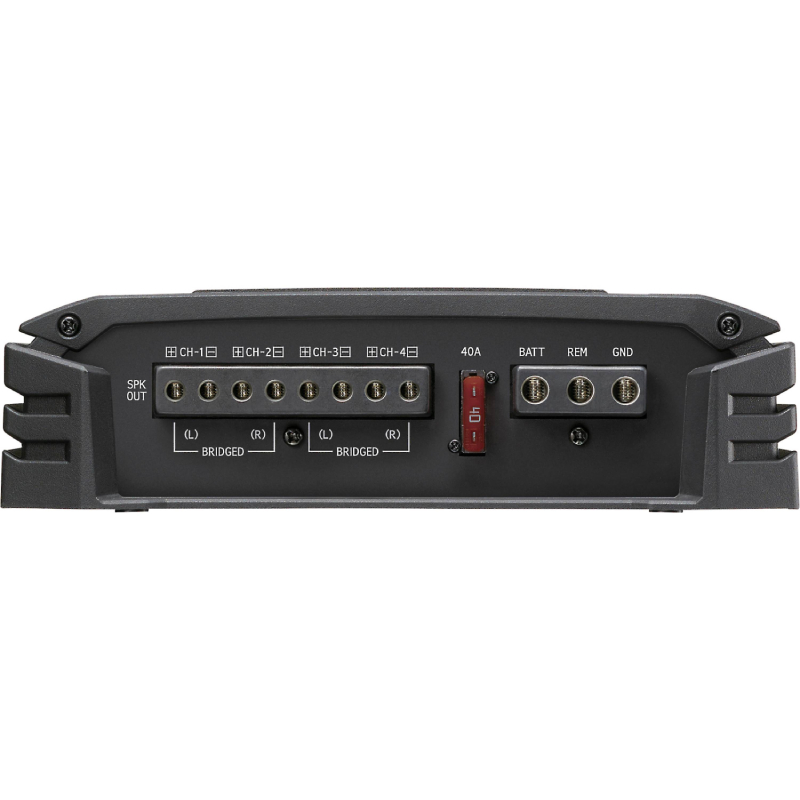

S-A32F S-Series 80W x 4 RMS @2Ohm 4-Channel Class D Power Amplifier
What's Inside?
- 1 S-A32F 4-Channel Class D Power Amplifier
Features:
- High Efficiency Digital Circuit Design
- Selectable Input Level
- Variable High/Low Pass Crossover
- Auto Turn-on with Remote Sensing
- Remote Level Control Ready
Specifications:
- Amplifier Class: D
- Low-Pass Crossover Frequency: 50-400 Hz
- Low-Pass Slope (dB/octave): 12 dB/octave
- High-Pass Crossover Frequency: 50-400 Hz
- High-Pass Slope (dB/octave): 12 dB/octave
- S/N Ratio: 1W into 4 Ohms: >83dB
- RMS Power Output (Watts x Channels): 55 x 4
- Peak Power Output (Watts x Channels): N/A
- RMS Power at 2 Ohms (Watts x Channels): 80 x 4
- Bridged Power (Watts x Channels): 160 x 2
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Frequency Response: +0/-3 dB 10Hz - 30kHz
- Frequency Response: +0/-1 dB 20Hz - 20kHz
- Fuse Rating: 40
- Speaker Level Inputs: RCA
- Preamp Outputs: No
- Width: 8"
- Height: 2-1/4"
- Depth: 8"
JD500/1 JD Series 500Wx1 RMS @2Ohms Class D Monoblock Subwoofer Amplifier
Specifications:Rated Continuous (RMS) Power @ 14.4 V
- @ 4 ohms: 250 W RMS x 1
- @ 3 ohms: 350 W RMS x 1
- @ 2 ohms: 500 W RMS x 1
- @ 1.5 ohms: N/A
Rated Continuous (RMS) Power @ 12.5 V
- @ 4 ohms: 225 W RMS x 1
- @ 3 ohms: 300 W RMS x 1
- @ 2 ohms: 400 W RMS x 1
- @ 1.5 ohms: N/A
General Specifications
- Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 ohms: >1000 / 50 Hz
- Damping Factor @ 2 ohms: >500 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 ohms per Ch.
- Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
Signal Processing
- Filter Mode(s): Low-Pass only
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer: No
- Filter Defeat Function: No
- Infrasonic Filter: No
- Bass Boost EQ: Yes
- Output Polarity Switch: No
- Remote Subwoofer Level Control: Optional (RBC-1)
- Remote Bass EQ Boost Control: No
- Pass-Through Preamp Output: Buffered
Physical Specifications
- Height (H): 2.10 in / 53 mm
- Width (W): 9.50 in / 242 mm
- Depth (D): 7.50 in / 190 mm
- UPC: 798418840249
- Weight: 89
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
