Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

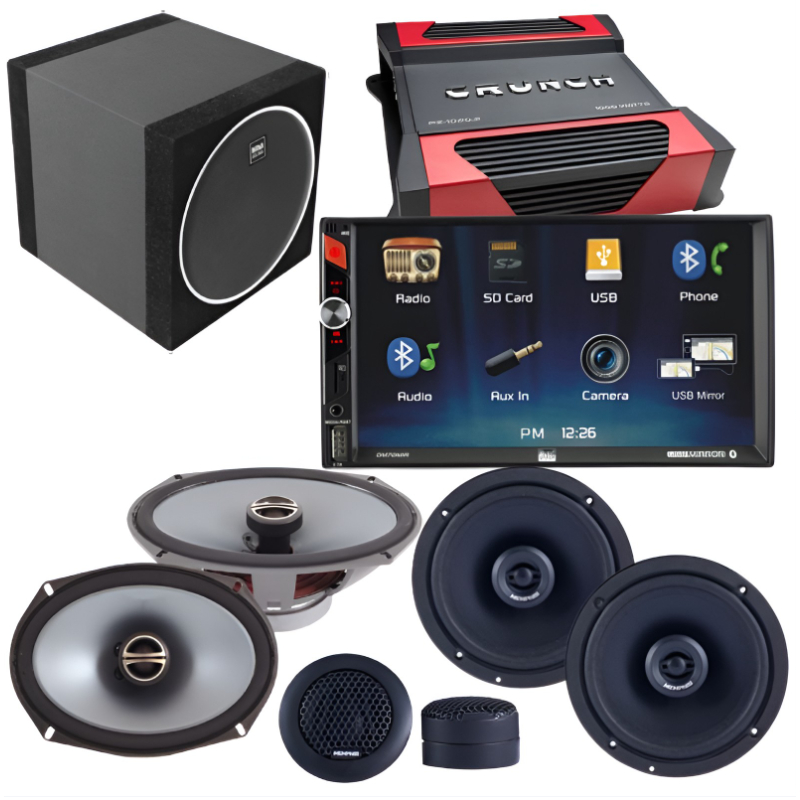

Universal Full Car Audio Package Dual DM70MIR + Alpine SPE-6090 + Memphis Audio SRX62 + Boss Elite BE10AE + Crunch PZ-1020.4 + Memphis Audio SRX1
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Dual DM70MIR
- • Alpine SPE-6090
- • Memphis Audio SRX62
- • Boss Elite BE10AE
- • Crunch PZ-1020.4
- • Memphis Audio SRX1
- • Owner's Manual

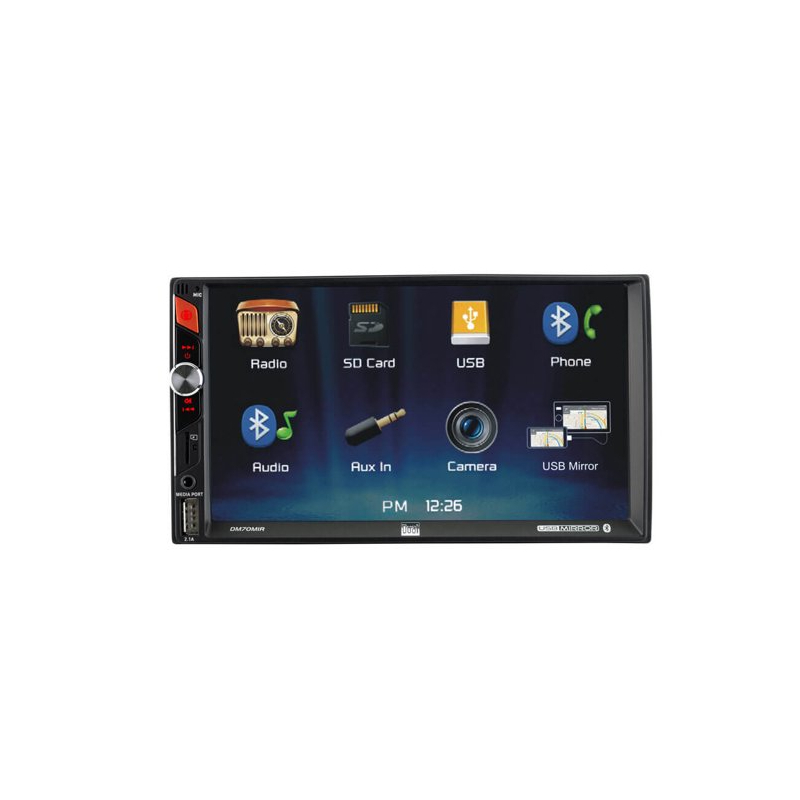

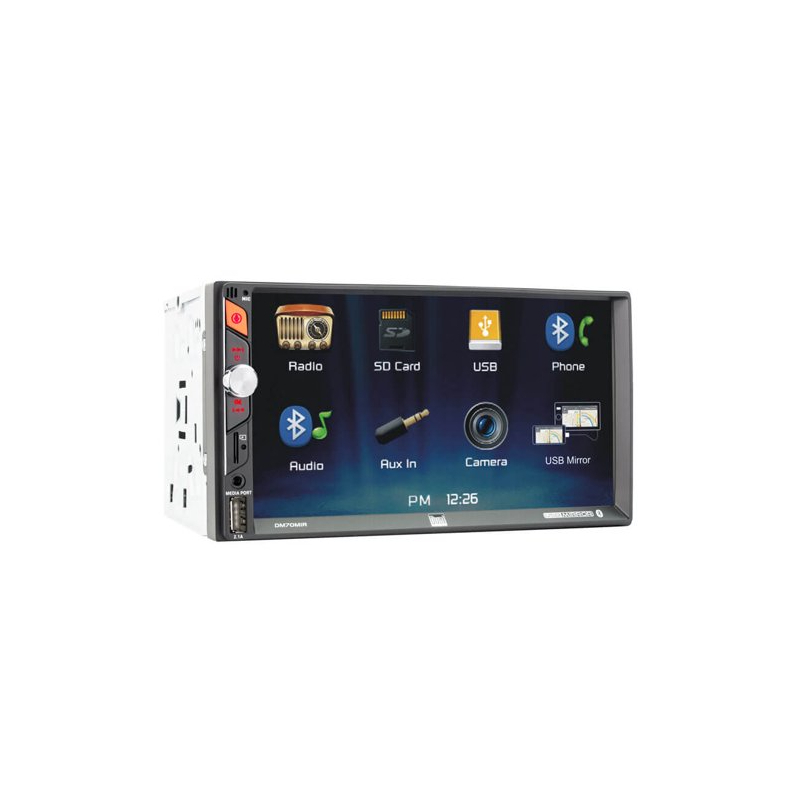

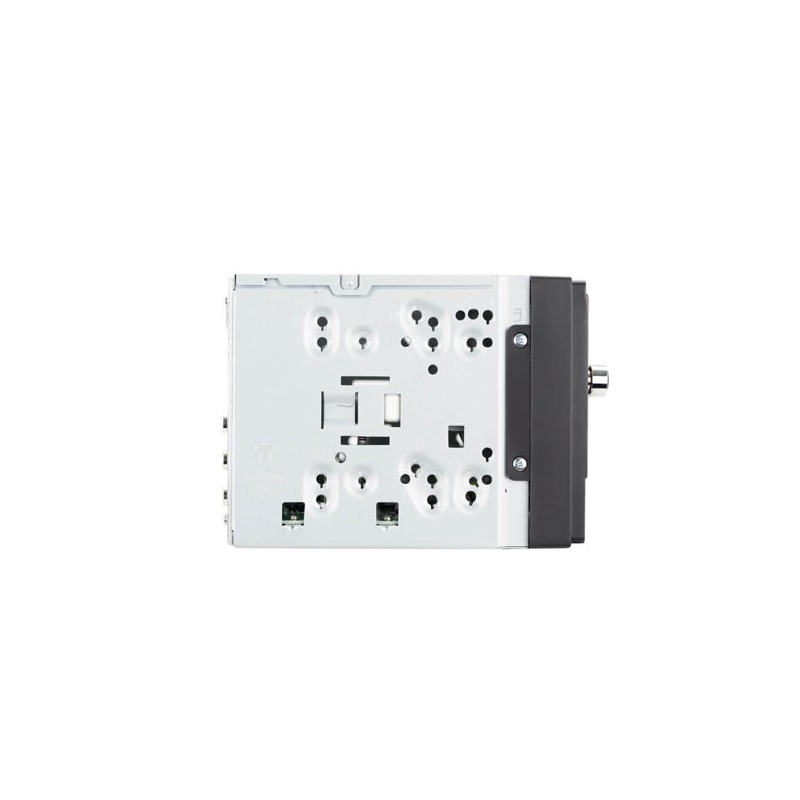

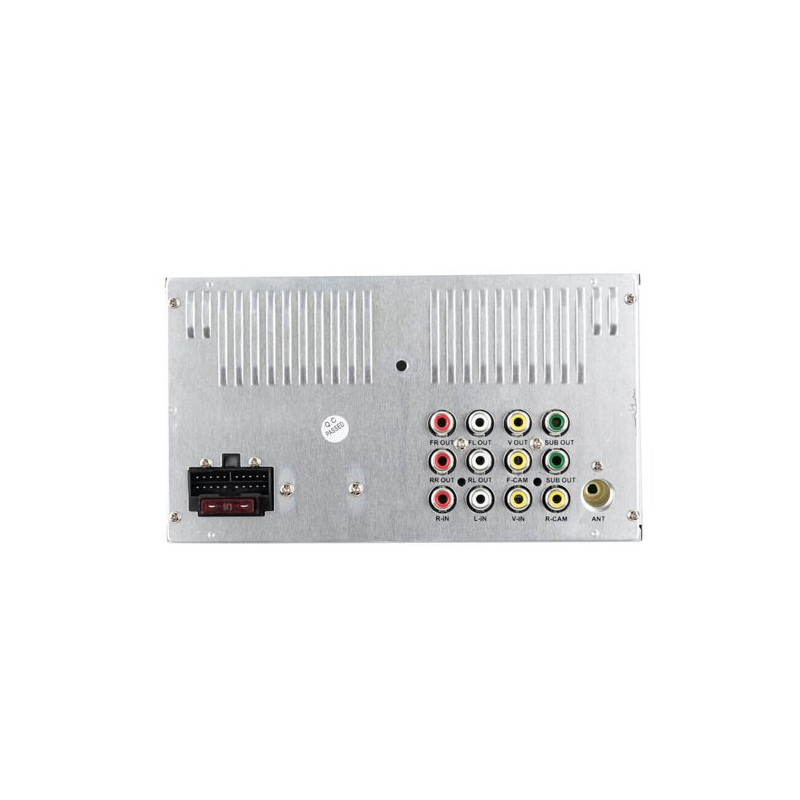

Dual DM70MIR
Maximize your driving experience with the Dual DM70MIR Double-DIN Digital Media Receiver with its 7-in., LCD touch screen. Designed to fit most 2-DIN dash openings, this mechless receiver brings a next-generation infotainment experience to your current vehicle. It lets you mirror the screen of your Android or Apple smartphone onto the receiver's screen via USB cable connection.
Alpine SPE-6090
Step up your factory speakers to an affordable upgrade with the all new Alpine Type-E speakers, for performance packed sound quality you expect from Alpine.
Memphis Audio SRX62
Street Reference coaxial speakers offer impressive performance and value at a wallet friendly price. This complete line of speakers features multiple sizes providing factory replacement solutions that will fit most vehicles. If you're looking for a factory audio upgrade without breaking the bank, Street Reference coaxials will be a perfect fit.
Boss Elite BE10AE
The AUTO POWER ON feature works only with high-level input. The amplifier will detect high input signals automatically. This amplifier has two different types of inputs: Low-level Input through RCA jack and High-Level Input through a four-pin modular connector. Low-level inputs provide an exceptionally clean sound from a source unit through RCA jacks. High-level inputs make your amplifier virtually adaptable to any source unit with the use of speaker outputs. Highlevel inputs should only be used when RCA outputs are not available. Under no circumstances should both low-level and high-level inputs are used simultaneously.
Crunch PZ-1020.4
POWERZONE four channel amplifier highlighted with bright Crunch red heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 1000 watts of power in a four channel application.
Memphis Audio SRX1
Street Reference component speakers offer impressive performance and value at a wallet friendly price. If you're looking for a factory audio upgrade without breaking the bank, Street Reference components will be a perfect fit.
DM70MIR 2-DIN 7" Touchscreen LCD Mechless, ReceiverUSB screen mirroring for Apple®/Android™, Built-in Bluetooth technology with hands-free calling
Features:
- 7" Touchscreen LCD (1024x600), USB screen mirroring for Apple®/Android™ ,
- Built-in Bluetooth technology with hands-free calling, music streaming with ID3
- tags and phonebook support – internal mic, AM/FM Tuner with 30 presets
- (18FM/12AM), Push-to-talk button to access smartphone voice assistant , Dual
- iPlug Smart Remote app via Bluetooth (Apple®/Android™), Front USB input with
- 2.1A fast charging and playback , Back-up camera input / Front camera input ,
- Rear A/V input (RCA) / Video output (RCA) , Front 3.5mm aux input / Front
- microSD card slot , 3 Pairs of RCA preamp outputs (F/R/S) , Digital media unit –
- will not play CDs/DVDs , Media playback: USB, microSD card , File playback:
- MP3 and FLAC , 7 Preset EQ curves (Pop, Jazz, Rock, Flat, Classic, Beat, & User) ,
- Audio mix (additional audio source playback while in mirroring mode) , Super
- slim design for easy install , 200 Watts max power (50W x 4) MOSFET , Steering
- Wheel Control (SWC) Input

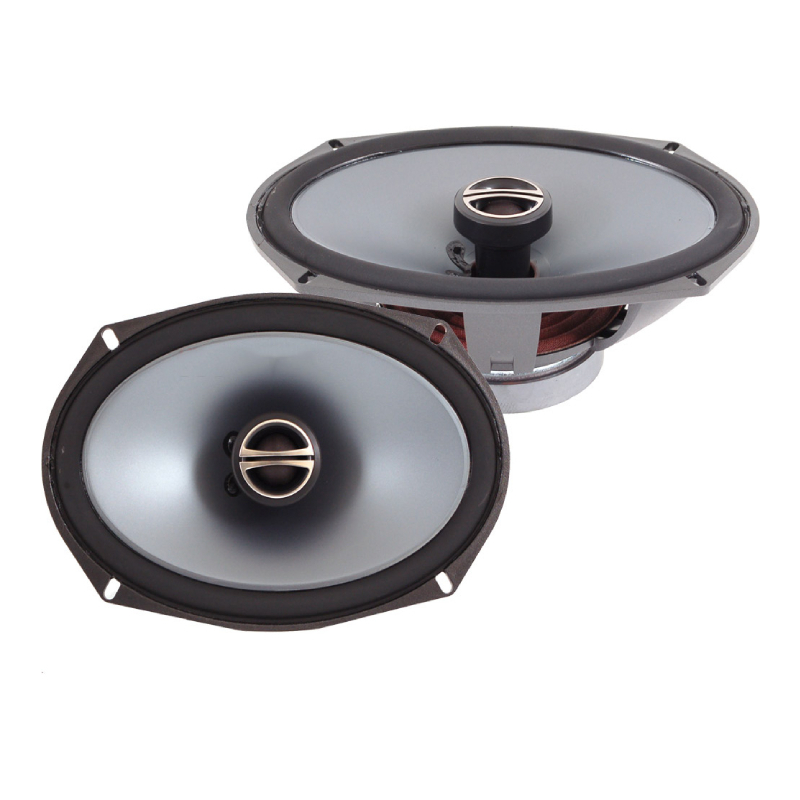

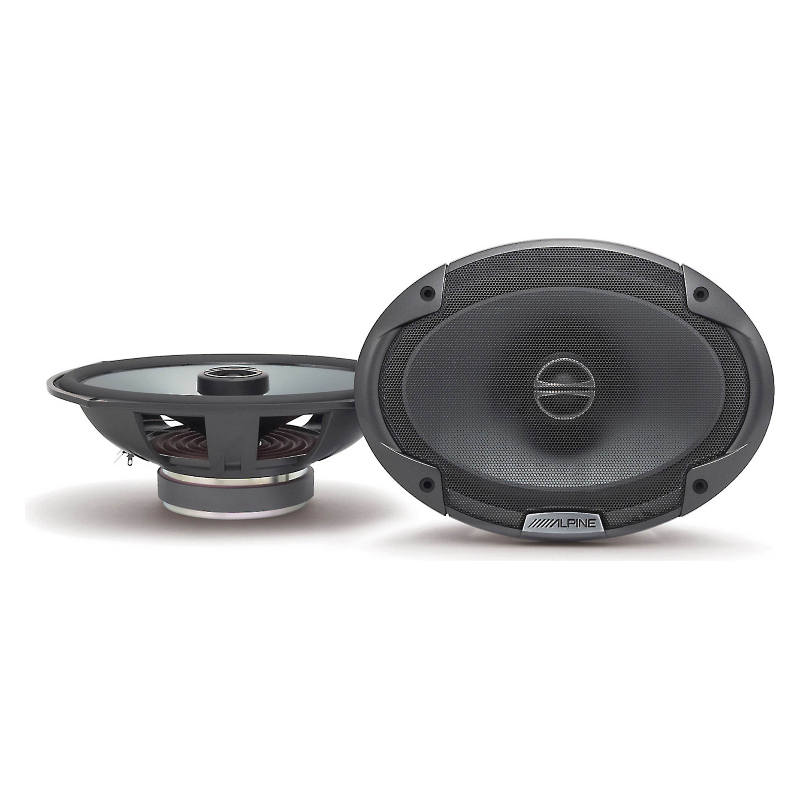

SPE-6090 E-Series 6x9" 75W RMS (300W Peak Power Handling) 2-Way Coaxial Car Audio Speakers
Features:
-
Tweeter
- Tweeter Type: 3/4'' Silk Soft Dome Tweeter
- Magnet Material: Neodymium Magnet
- Woofer
- Cone Material: Polypropylene Cone Pearl Mica Injection
- Voice Coil Type: Square Voice Coil Wire
- Magnet: Ferrite Magnet
- Frame: Injection Mold Frame
Specifications:
-
CEA 2031 Speaker Rating:
- Peak Power Capacity: 300W
- RMS Power Capacity: 75W
-
Power Handling
- CEA-2031 Power Rating: 75 Watts
- Power Handling Capacity (RMS): 75 Watts
- Power Handling Capacity (Peak): 300 Watts
- Dimensions
- Woofer Mounting Diameter (mm): 150mm x 222mm
- Woofer Mounting Diameter (in): 5-15/16'' x 8-3/4'
- Woofer Mounting Depth (mm): 76mm
- Woofer Mounting Depth (in): 3''
- General
- Frequency Response: 65Hz - 18kHz
- Impedence: 4 Ohms
- Sensitivity: 91dB /W(1m)

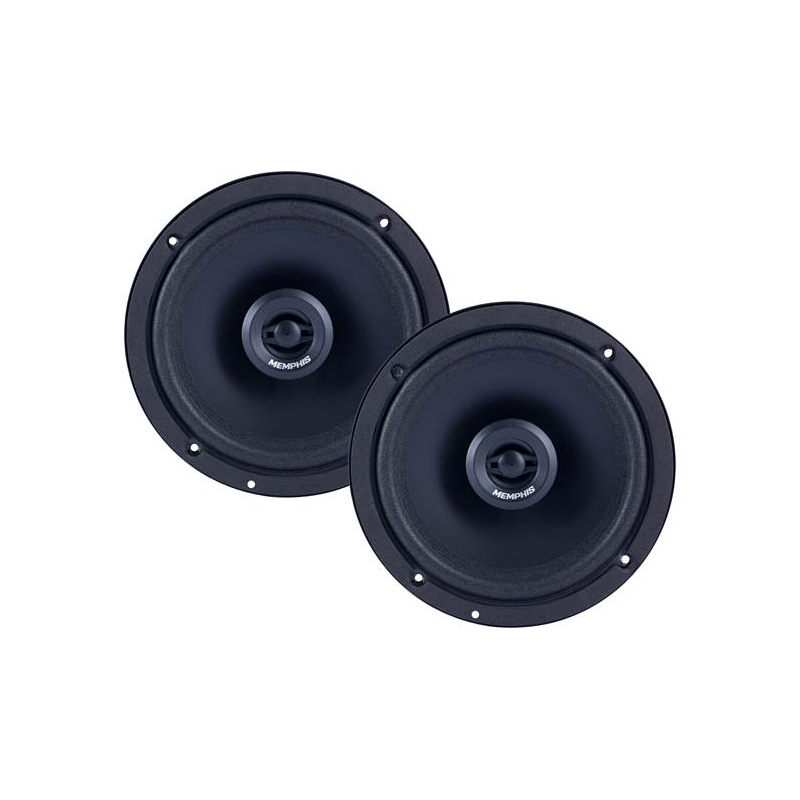

SRX62 Street Reference Series 6-1/2" 30W RMS (60W Peak Power Handling) 2-way Car Speakers
Features:
- Efficient paper cone
- Mylar tweeter
- Lightweight foam surround
- Shallow mounting depth
- Sizes to fit most factory locations
Specifications:
- Size (in): 6.5"
- RMS Power (w): 30
- Peak Power: 60
- Sensitivity (dB): 88
- Mounting Depth (in): 2
- Magnet Size (oz): 11.2
- Grill included: N

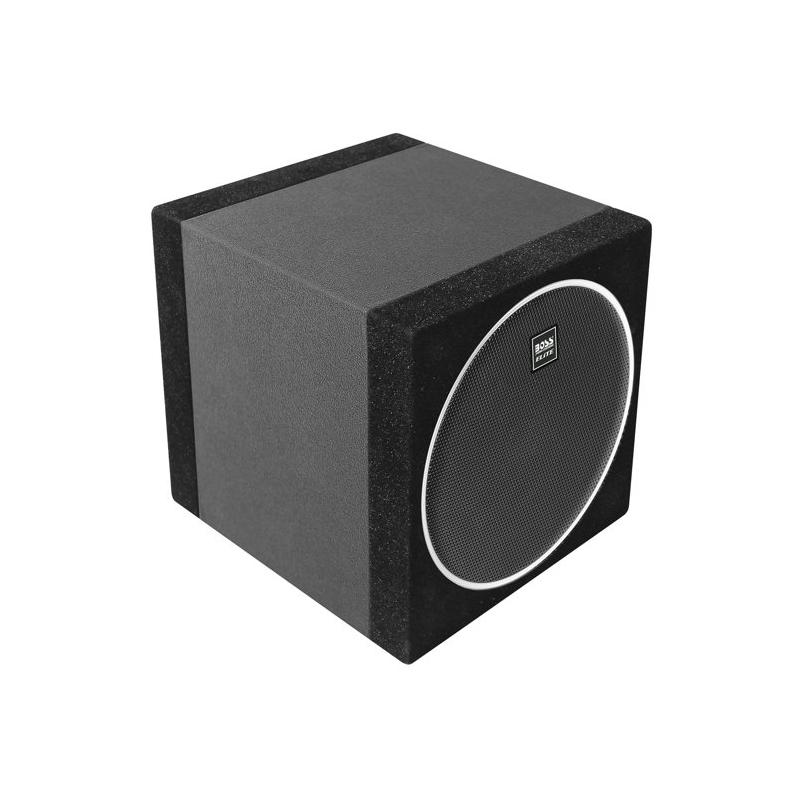

BE10AE 10" 300W RMS (600W Peak Power) Single 4 Ohm Voice Coil Subwoofer Enclosure with Built-In Amplifier Featuring 10" Passive Radiator
Features:
- High Performance Voice Coil
- RCA & Speaker Level Inputs
- Phase Control
- Bass Boost
- Low Pass Filter
- Class D Topology
- Subsonic Filter
- Remote Subwoofer Control
- LED Status Indicator
- Thermal, Short and Overload Protection Circuits
PZ-1020.4 1000 Watts Max Power Powerzone Series 2-ohm Stable 4-Channel Class-A/B Car Amplifier
Features:
- Hi Level Inputs
High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
- Operation Mode
4 channel operation mode allows either stereo or mono bridged operation
- Crossover Type
Variable electronic crossovers allow for complete control of the sound
- Electronic Equalizer
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Check specifications for specific frequencies for this amplifier
- Class / Topology
Class A/B high sound quality circuit that allows amplifier to develop high levels of power with minimal distortion
- Output Device Technology
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
- Heat Sink
QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions
- Power Supply
Rugged MOSFET Pulse Width Modulation power supply
Allows amplifier to product efficient power without taxing the vehicle electrical system
- Output Connections
Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion
- Connection Type
Secure connection for all power, ground and speaker connections.
- Full-Range RCA Outputs for Signal Pass Through
Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
- LED System Protection Circuitry Diagnostics
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
Specifications
- Class
Class A/B
- Variable Voltage
6V - 0.2V
- Signal to Noise
>90dB
- Frequency Response
10Hz-45KHz
- Crossover
VeraCross
Switchable
FULL / HPF
- Variable High Pass Crossover 12dB per Octave
CH3 & CH4
Switchable
HPF/LPF/FULL
HPF
60Hz - 1.2kHz
- Variable Low Pass Crossover 12dB per Octave
CH1 & CH2
LPF 60Hz - 1.2kHz
CH3 & CH4
Switchable
HPF/LPF/FULL
LPF
30Hz - 250Hz
- Bass Boost
Switchable
12 / 6 / 0dB
- Power @ 1 Ohm
N/A
- Power @ 2 Ohms
4 x 250 Watts
- Power @ 4 Ohms
4 x 125 Watts
- Mono Bridged @ 4 Ohms
2 x 500 Watts
- Total Channels
4
- Audio Inputs
RCA
- Audio Outputs
Full Range
RCA
- Speaker Terminal Wire Gauge
Spade Connector
Recommended
- Fusing
15Ax2
- Total Harmonic Distortion (THD)
<0.05%

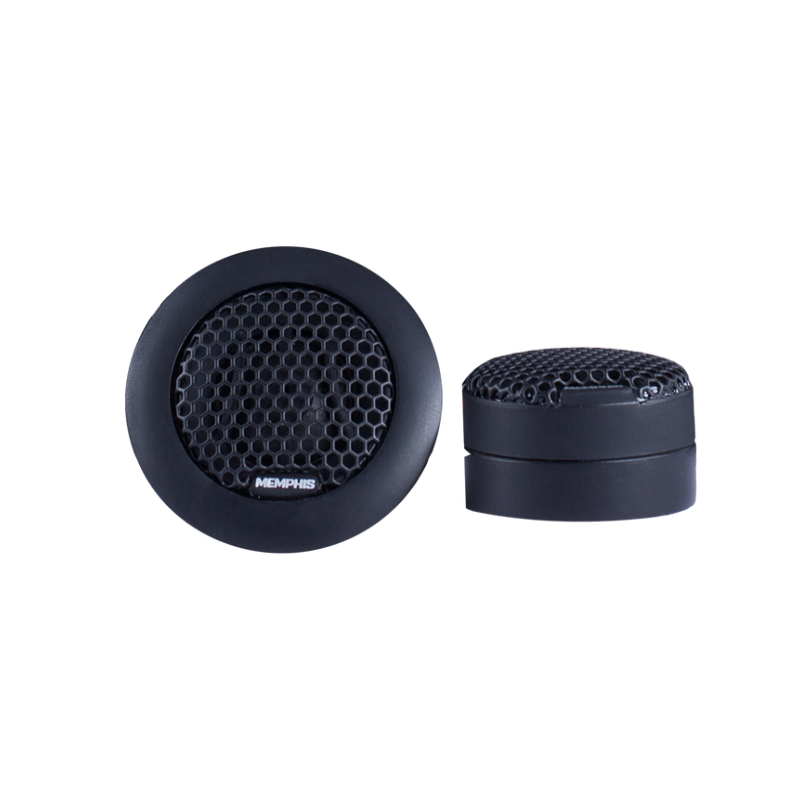

SRX1 Street Reference Series 1" (40 Watts Peak Power Handling) Electrostatic Car Soft Dome Tweeters
Features:
- Lightweight foam surround
- Mylar tweeter
- Treated paper cone
- Shallow mounting depth
- Maximum Peak Power (Watts) 40
- Recommended RMS Power (Watts) 20
- Sensitivity (dB) 97
- Mounting Depth (in) Surface
- Size (in) 1
- UPC:
- Weight: 54
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
