Ram Integration & Installation Kit for Heigh10 Multimedia Head Unit
We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

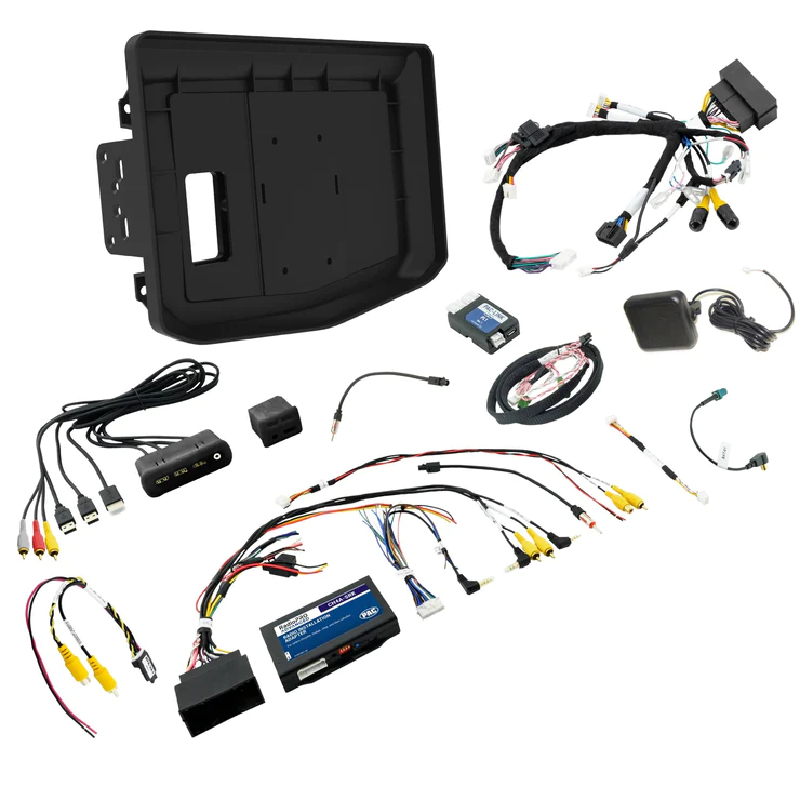

What's Inside?
- • HEIGH10 Display Mounting Pane
- • Radio Module Mounting Brackets
- • External Chime Speaker
- • Media Hub Replacement (USBHUB-CH1-RCA)
- • AM / FM Antenna Adapter (BAA22)
- • PAC-LINK Interface Module (PL1)
- • CAN-Bus Connection Harness (MQS4PT-CANC)
- • Differential/Composite Video Modules x2(RPA-VA1)
- • Main Wiring Harness (SRK-RAM13-HAR)
- • RadioPRO Replacement Interface Module(CH4A-SRK
- • 6” Data Harness (10P-2-10P-6-HAR)
- • Satellite Antenna Adapter (SAT-01)
Optimize Your Ram Truck Infotainment System
RadioPRO Advanced fully integrated RAM kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a RAM factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your RAM Truck stereo system!

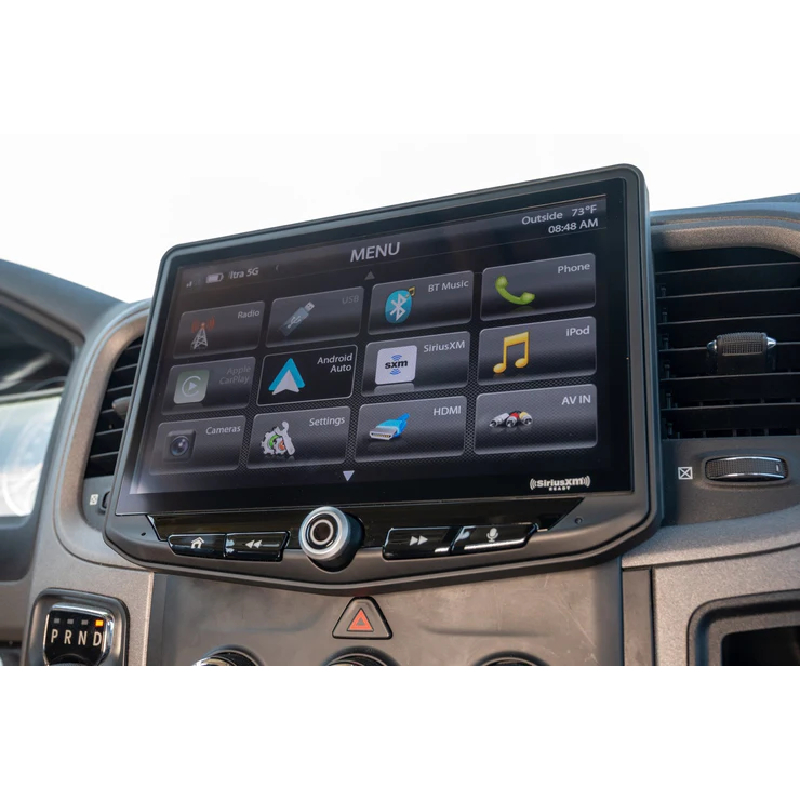

10-Inch Touchscreen
Features a giant high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.

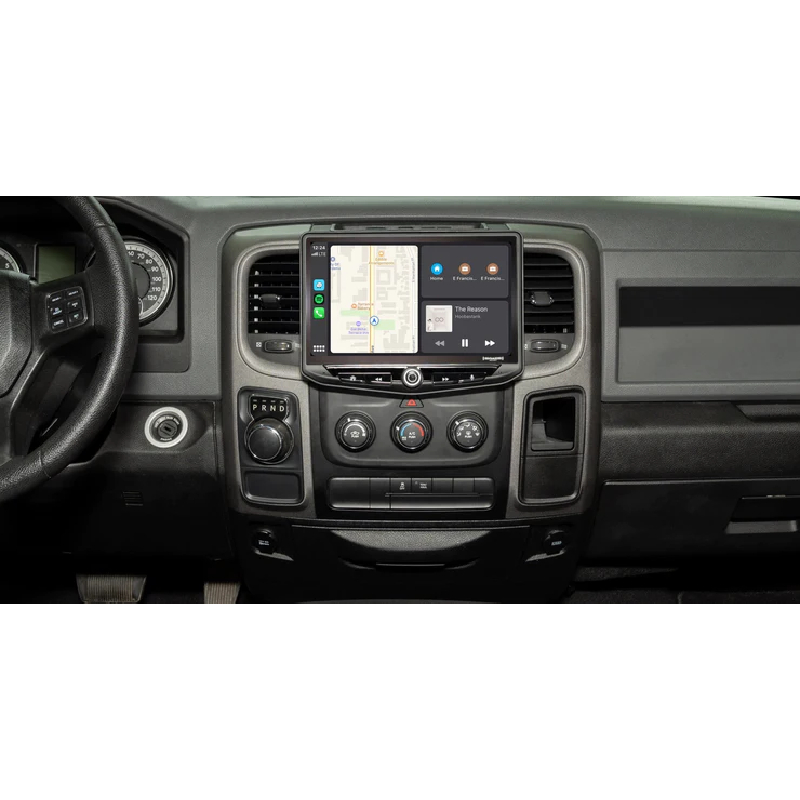

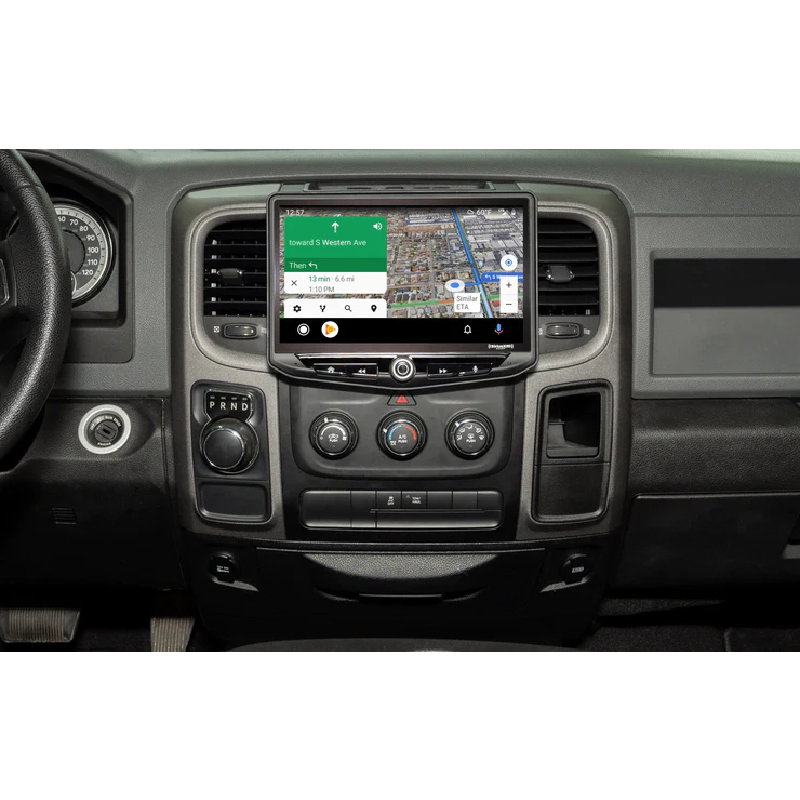

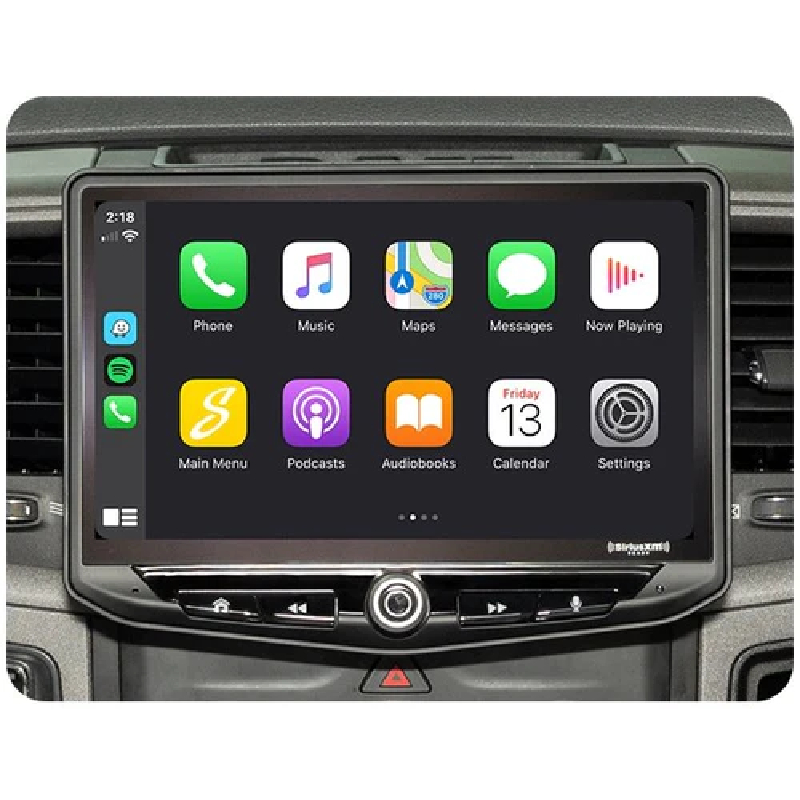

Adds Apple CarPlay & Android Auto
Access your smartphone's music, maps, and hands-free calling easily on your dash.
Plug & Play Installation
Complete plug-n-play system: no vehicle modifications needed!
Features:
- Full Integration Kit For 2013-2018 Ram and 2019 Ram Classic for use with Stinger Heigh10 (Un1810)
-
Vehicle to radio connectivity: vehicle speed, illumination, reverse, parking brake signals, and turn signals
- Flush-mounted plastics for a seamless OEM experience. Includes plastics for all OEM radio options
Retains:
- Steering-wheel controls
- Factory amplifier
- Factory backup & cargo cameras (if equipped)
- Vehicle speed, illumination, reverse and parking brake signals
User Customization Screens:
View and adjust vehicle information through customized screens:

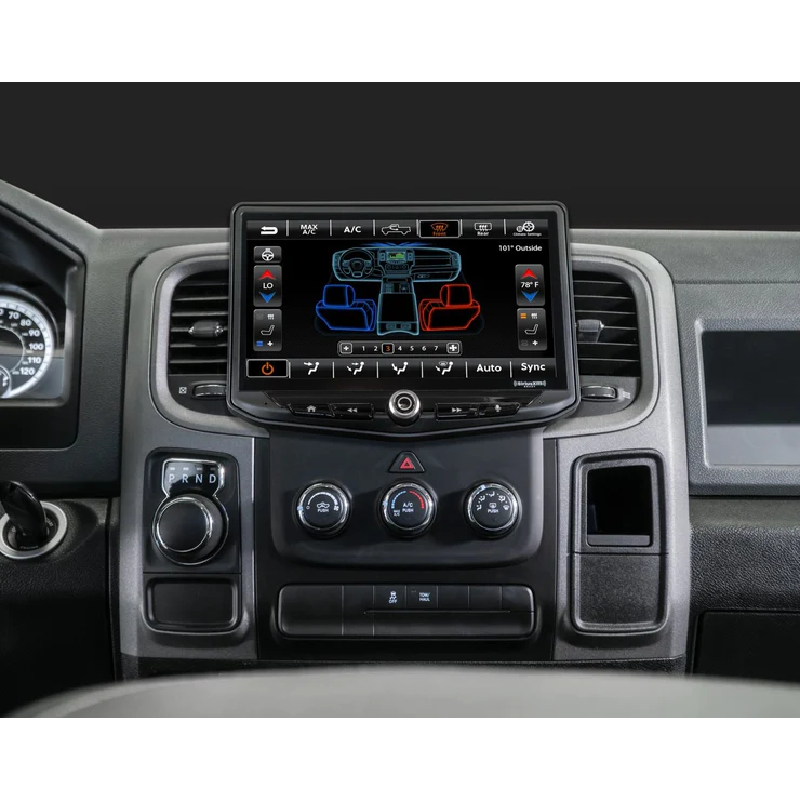

- Complete climate controls

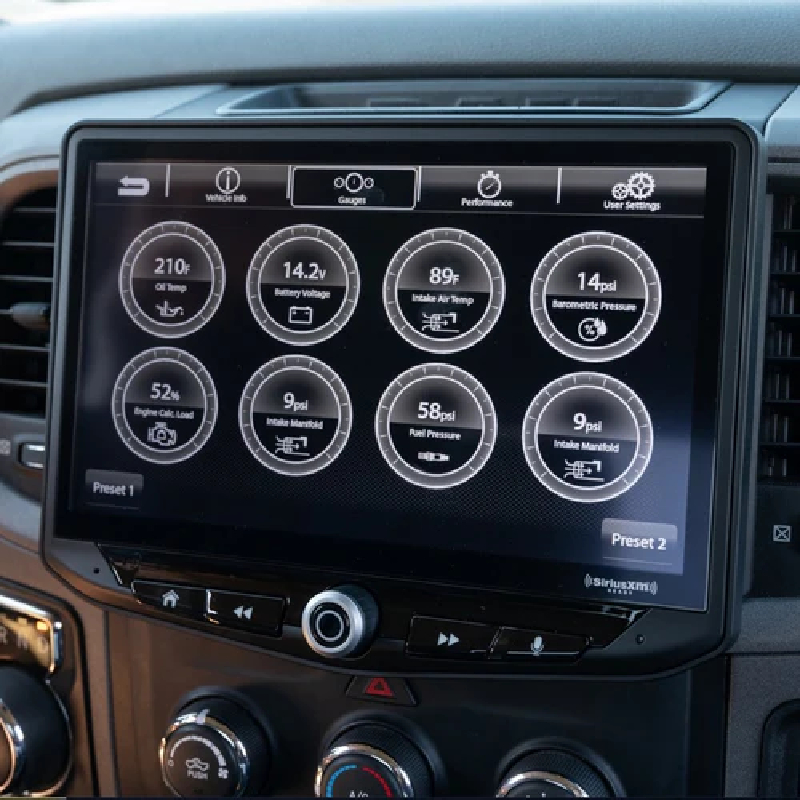

- Real-time performance gauges
- Tire pressures, door status, engine status, and other vehicle information
- Access to over 70+ customizable vehicle settings (when equipped)
Specifications:
General:
- Operating Voltage: 9.0VDC to 18VDC
- Grounding system: Negative Ground
- Max current consumption: 10A fused
Dimensions
- Radio Module: 178 mm x 100 mm x 116 mm (W x H x D)
- Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)
Display:
- 10-inch Diagonal
- 16:9 aspect ratio 1024 x 600
- Pixels: 1,843,200
- Active area: 222.72 (W) x 125.28 (H) mm
- Operating Temperature (C): -20° to 70°
Audio:
- Peak power output: 50W x 4ch/4Ω
- Load impedance: 4Ω nominal / 2Ω allowable
- Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1% THD at 14.4V
- Audio output level (max): 4.0V preout EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
- Gain: ±12dB (2dB/step) HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
Audio (cont.):
- Subwoofer Preout
- LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Gain: -14dB to 7dB (1dB/step)
- Phase: 0 or 180
- Speaker level: ±9dB (1dB/step)
- Time correction: 0 to 133 step (inch/ms)
USB:
- USB 2.0
- Max current supply: 1.5A
- USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
- File system: FAT32, NTFS
- 64GB Max
Bluetooth:
- V4.2 dual
- 4dBm Class2
- 2.4GHz to 2.48GHz
FM Tuner:
- 87.9MHz to 107.9MHz
- Usable sensitive 0dB (mono S/N: 30dB)
- SNR: 65dB
AM Tuner:
- 530KHz to 1710KHz
- Usable sensitive 0dB (mono S/N:20dB)
- SNR: 58dB
Camera(s) Video Inputs:
- NTSC OR PAL video formats
HDMI Input:
- Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p
Toslink (Optical):
Background Image (User):
- File Format: JPG / PNG
- Resolution: 1024 x 600
- File size is not limited
- UPC: 609098835169
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
