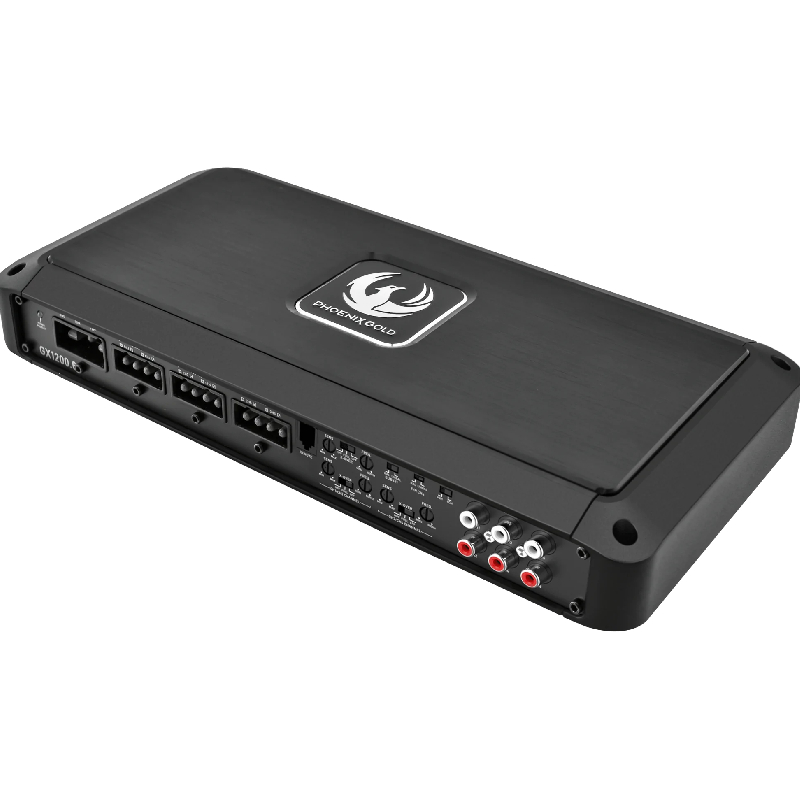

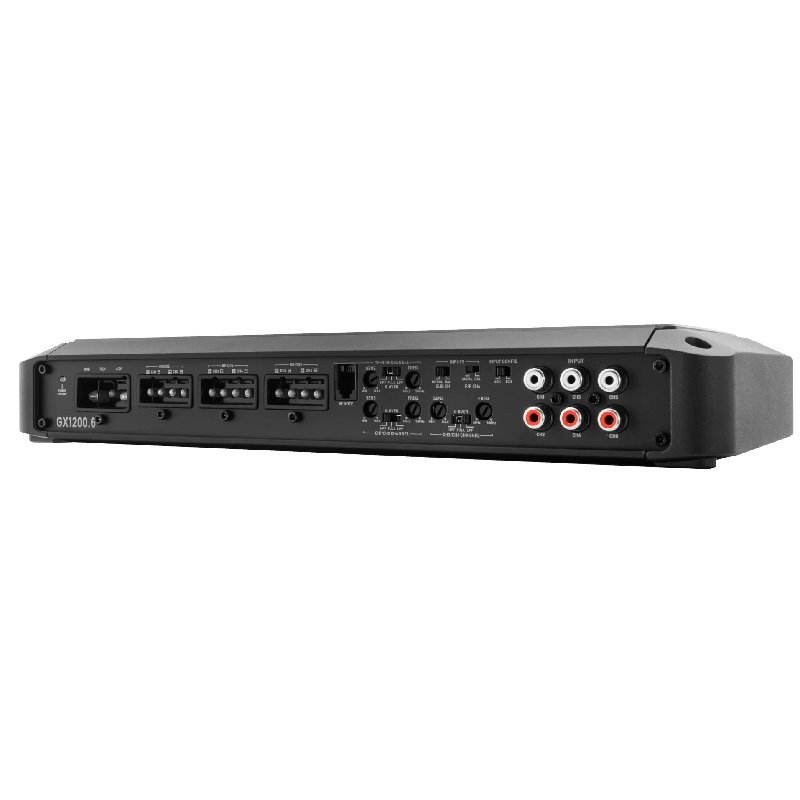

Phoenix Gold GX1200.6 1200 Watts 6-Channel Full Range Class D Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Full Range Class D Amplifier
- • High-Pass and Low-Pass Crossovers
- • High-Level Input Capable - for Easy OEM Integration
- • Selectable Balanced / Unbalanced Inputs
- • Multi-Input Selector
- • Proprietary Phoenix Gold Quick Connects
- • Flush Mountable Bass Knob
- • Full Radiation Heat Sink
- • Rotatable Badge
- • Single Sided Control Panel
- • Onboard Short/Thermal/Impedance Protection
6 Channel, Full Range Class D Amplifier
It is perfect for audiophiles who are looking for a quick and clean installation process. It also quick connects for high current conversion, as well as an optimized chassis which utilizes BFD (Balanced Flow Dissipation) to keep the amplifier cool and it also features – high-pass and low-pass crossovers, selectable balanced/unbalanced inputs, a multi-input selector, onboard short/thermal/impedance protection and a flush mountable bass knob.
- Maximum Power : 1200 Watts
- Low Frequency Response : 40000 Hz
- High Frequency Response : 10 Hz
- Number of Channels : 6
- Frequency Response : 10-40000 Hz
- Amplifier Class : D
Features:
- Audiophile Grade Full Range Class D
- Precision Components and Op Amps used to increase sound quality and lower distortion
- High Pass and Low Pass Crossovers
- Reduces the need for external processing which could lead to noise intrusion
- High-Level Input Capable - for Easy OEM Integration
- Can accept input sources from most OEM radios(requires X2LINE)

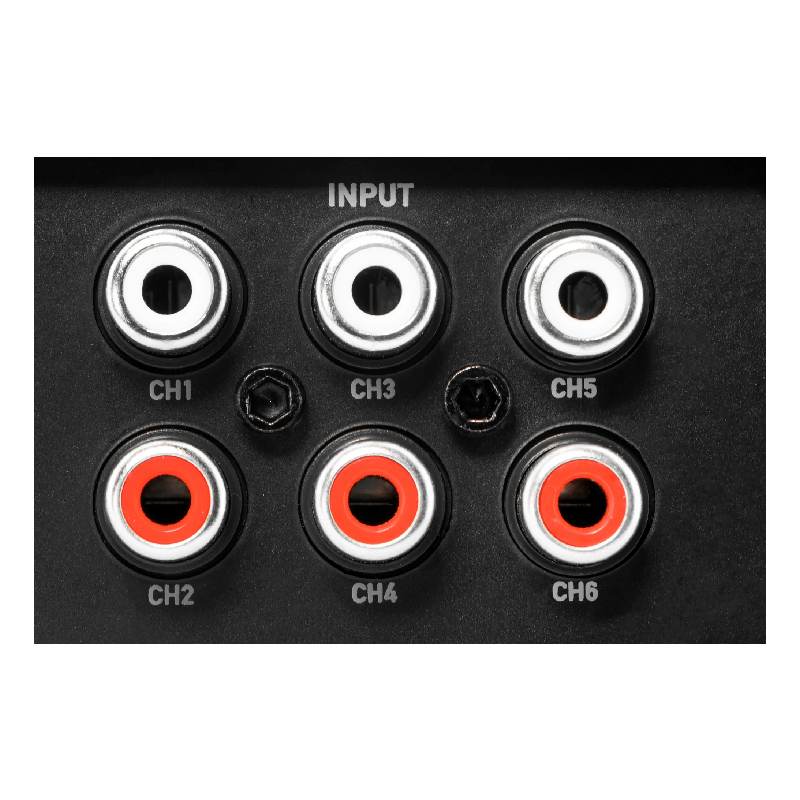

- Selectable Balanced / Unbalanced Inputs
- Matching input typesallow for the best possible signal transfer and the lowest noise

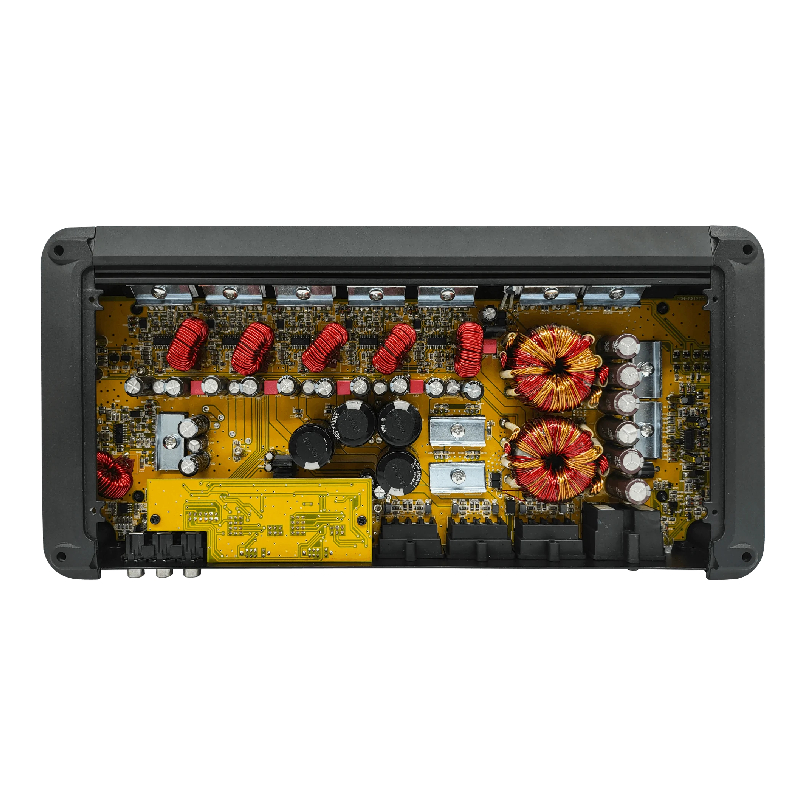

- Surface-Mount Component Technology
- Precision manufacturing process provides reliability and strict quality control
- Multi-Input Selector
- Allows amplifier to use signal from a pair of channels to drive multiple channels without adapters

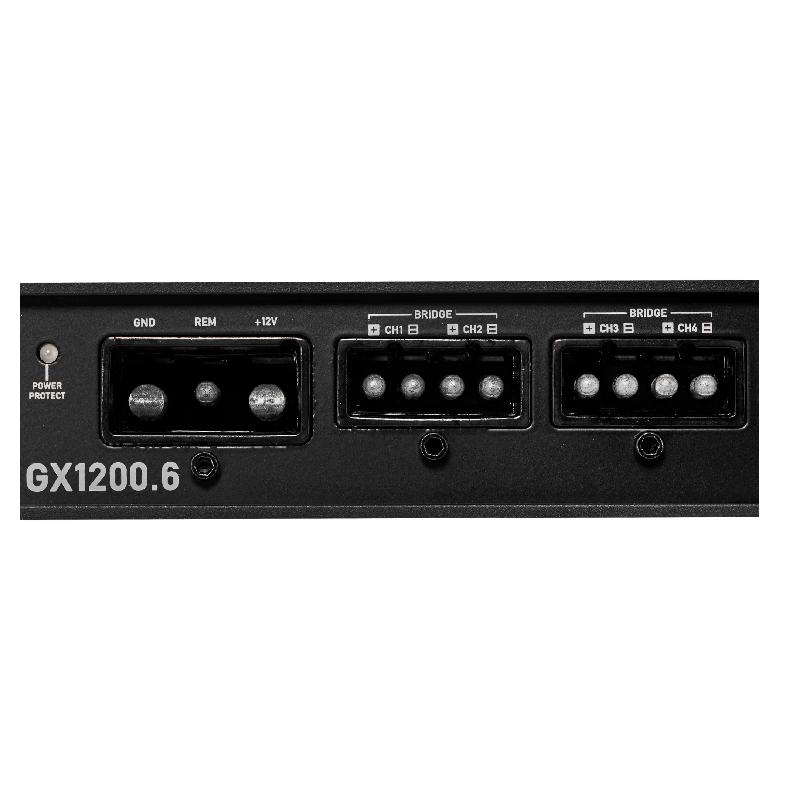

- Proprietary PG Quick Connects
- Enables high current transfer while increasing installation ease and serviceability
- Flush Mountable Bass Knob
- Remote bass control for easy level adjustment paired with custom installation options for ergonomic placement

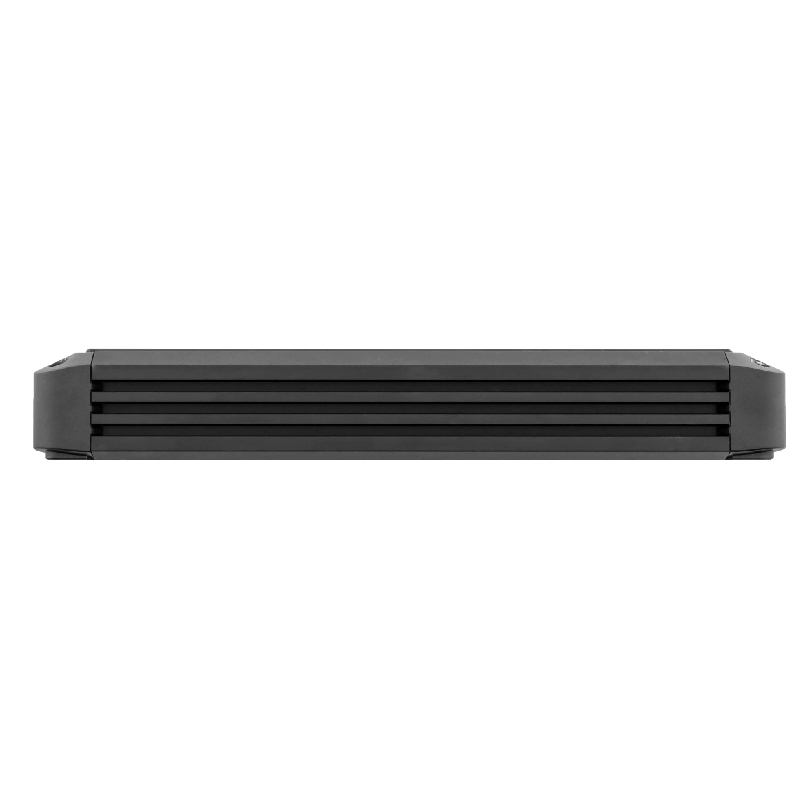

- Full Radiation Heat Sink
- Computer aided design heat sink was created to utilize entire chassis for head dissipation while reducing amplifier size and lowering operating temperatures

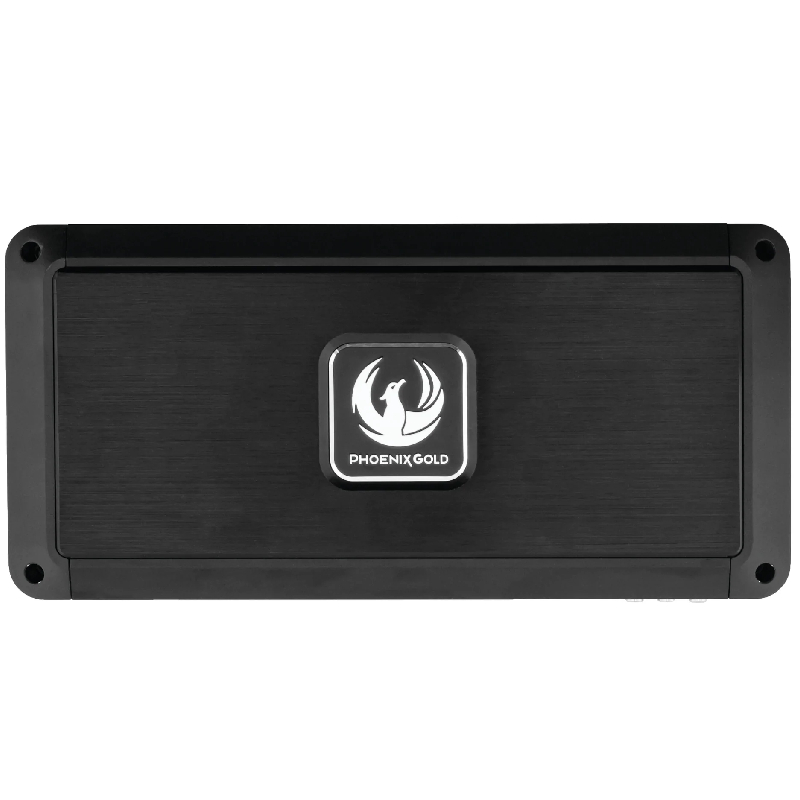

- Rotatable Badge
- Badge can be rotated to allow for increased custom installation mounting optionswhile retaining proper aesthetics

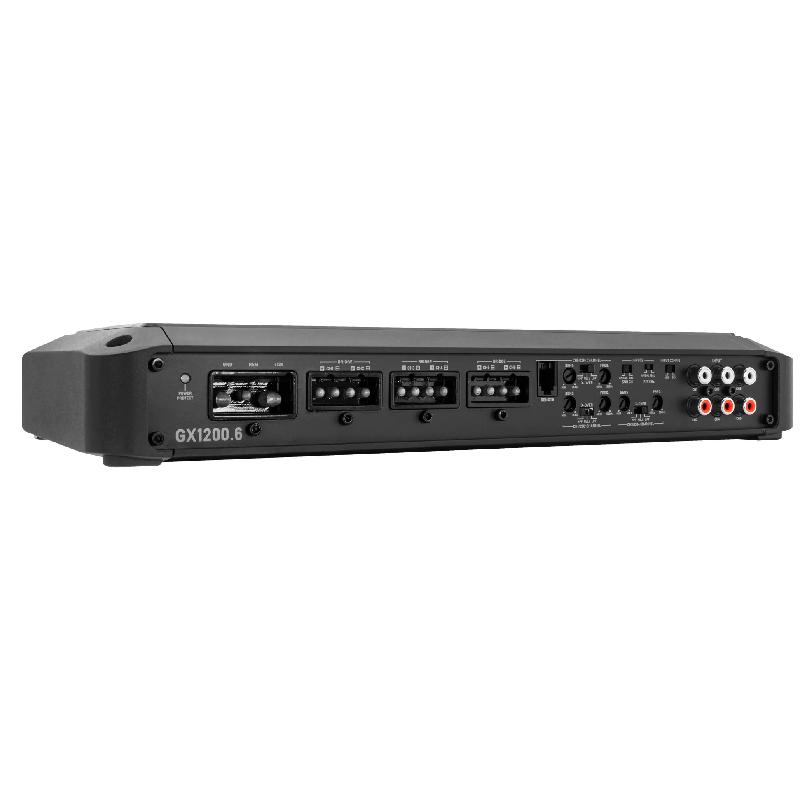

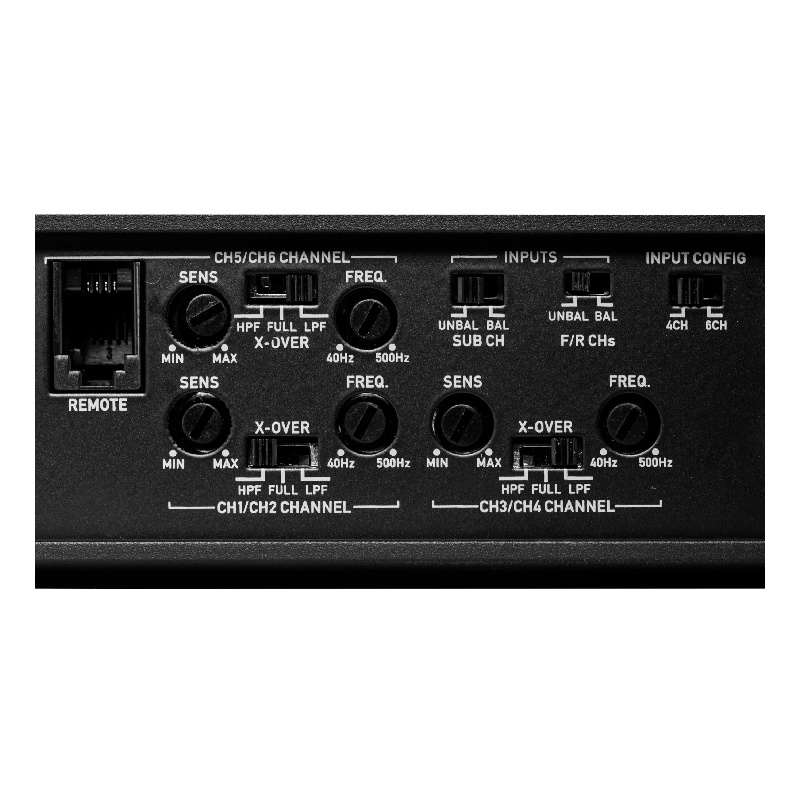

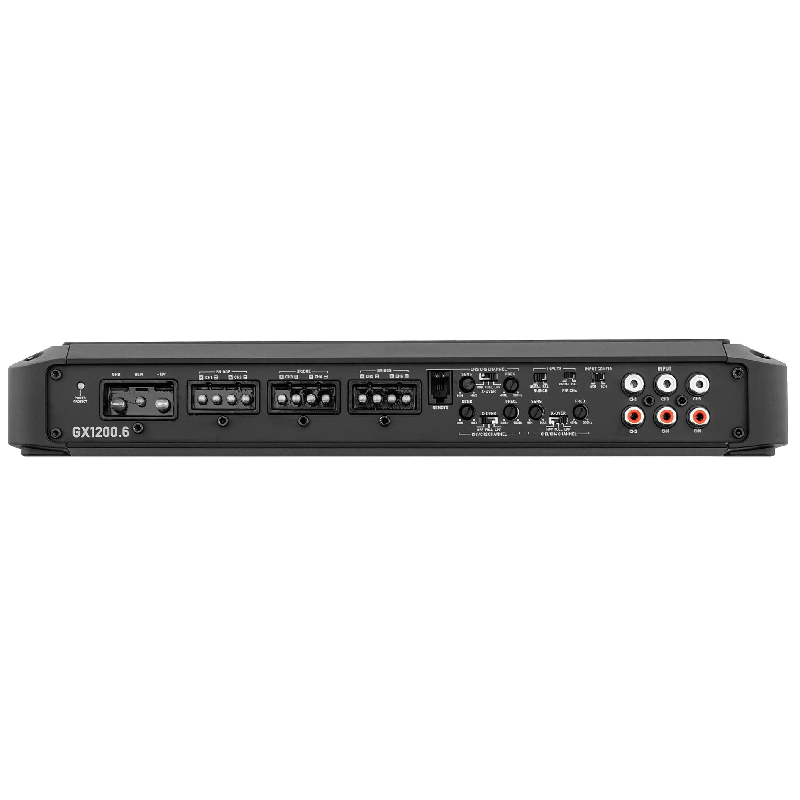

- Single Sided Control Panel
- Increased installation speed, system adjustments, and mounting options with the use of single side amplifier controls and connections
- Onboard Short/Therm/Impedance Protection
- Designed for system reliability and fault protection from thermal overload, short circuits, and low impedance situations
Specifications
RMS Power Ratings listed at less than 1% THD @ 14.4v
- Number of Channels: 6
- 4Ω: CH 1 - 6 125W x 6
- 2Ω: CH 1 - 6 200W x 6
- 4Ω: Bridged 400W x 3
- Total RMS Power (Sum of rated power): 1200W
- Bridgeable: Yes
- Crossover Mode, Linkwitz-Riley:
- FULL/HP/LP
- 40Hz - 500Hz @ 12dB / Oct
- Input Selection 0.4-10V
- Signal to Noise (@ CEA Standard): >100dB
- Frequency Response: Full Range 10-40k
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge Quick Connect
- Speaker Terminal: 8 Gauge Quick Connect
- Recommended Inline Fuse: 80A
- Dimensions (L x W x H):
-
- 13.54” x 6.5” x 2.03”
- 344mm x 165mm x 51.5mm
- UPC: 609098832397
- Weight: 1
