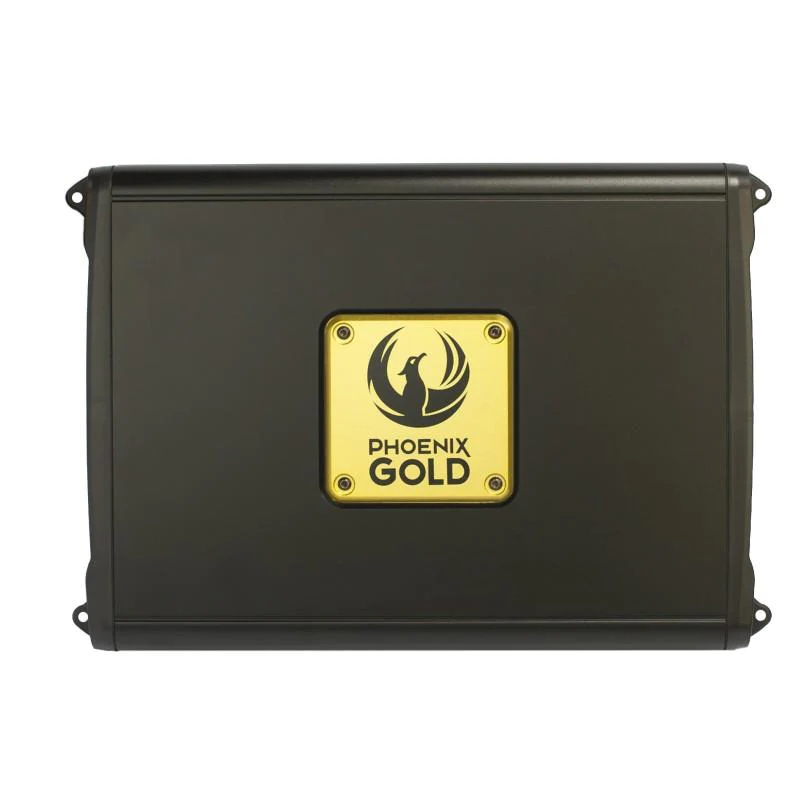

Phoenix Gold RX2750.5 RX 750 Watts 5 Channel Full Range Class D Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-D Topology
- • Small Footprint Chassis Design
- • Robust Unregulated Power Supplies

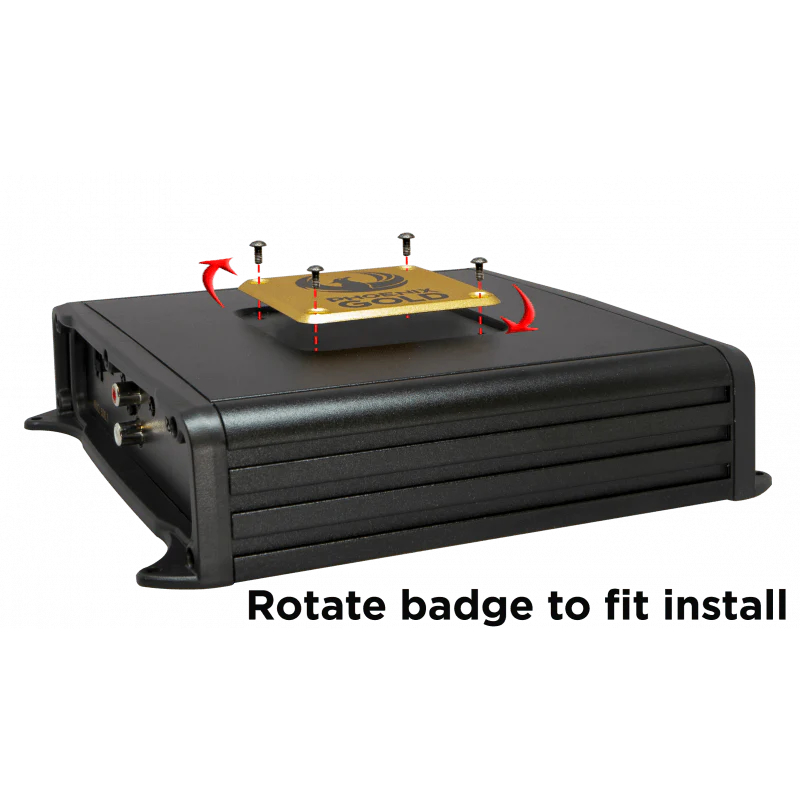

- • Rotatable Badging for installation flexibility
- • High level Inputs for Easy OEM Integration

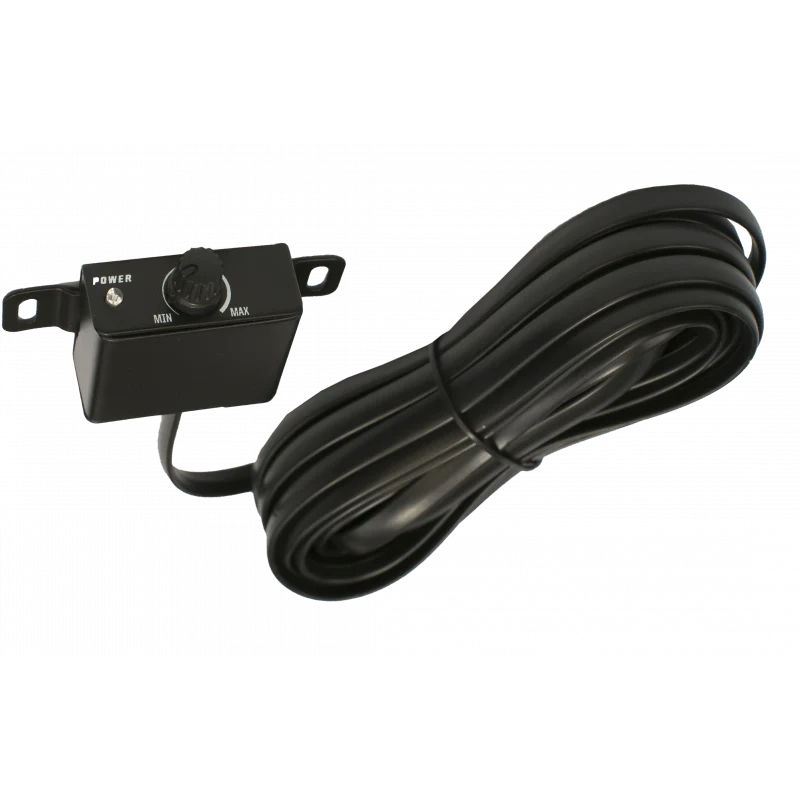

- • Remote Bass Controller Included
- • Audio Precision® Quality Control Verification
Class D 5 Channel Amplifier
Delivering massive power to support your entire system. 5 channels of clean, efficient sound, wrapped in a sleek, low profile chassis designed for versatility and musical quality.
- Maximum Power : 760 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 40 Hz
- Number of Channels : 5
- Frequency Response : 10-40 Hz
- Amplifier Class : D
- Fuse Rating : 80 A
Features:
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies
- Rotatable Badging for installation flexibility
- High level Inputs for Easy OEM Integration
- Remote Bass Controller Included
- Audio Precision® Quality Control Verification
Specifications
- Number of Channels: 5
- 4Ω: CH 1 - 4 60W x 4
- 2Ω: CH 1 - 4 90W x 4
- 4Ω: CH 5 250W x 1
- 2Ω: CH 5 400W x 1
- 3CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged + CH 5 4Ω 180W x 2 + 250W x 1
- 3CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged + CH 5 2Ω 180W x 2 + 400W x 1
- Total RMS Power (Sum of rated power): 760W
- Bridgeable: Yes

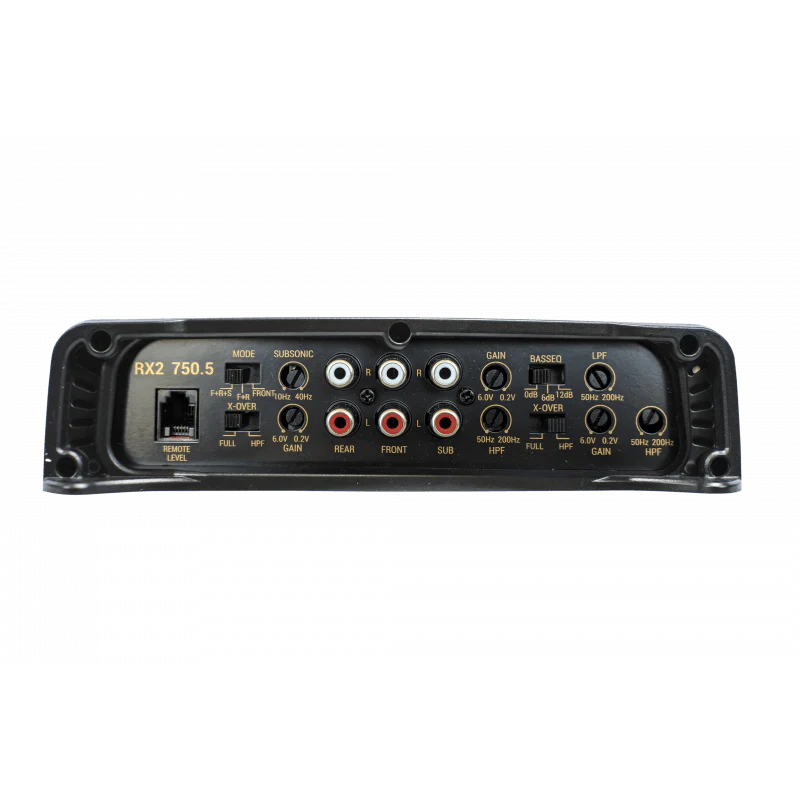

- Crossover Mode: FULL/HP/LP
- CH 1 - 4 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
- CH 5 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
- Subsonic 10Hz – 40Hz
- Input Channels: 2CH F, 4CH F/R or 6CH F/R/S
- Input Mode: Unbalanced
- Input Sensitivity: .2v - 6v Unbalanced RCA Low-Level
- Processing: Bass Boost 0dB +6dB +12dB @45hz
- Signal to Noise (@ CEA Standard): >80dB
- Frequency Response: Full Range
- CH 1 - 4 10Hz - 40kHz
- CH 5 15Hz - 200Hz
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge
- Speaker Terminal: 10 Gauge

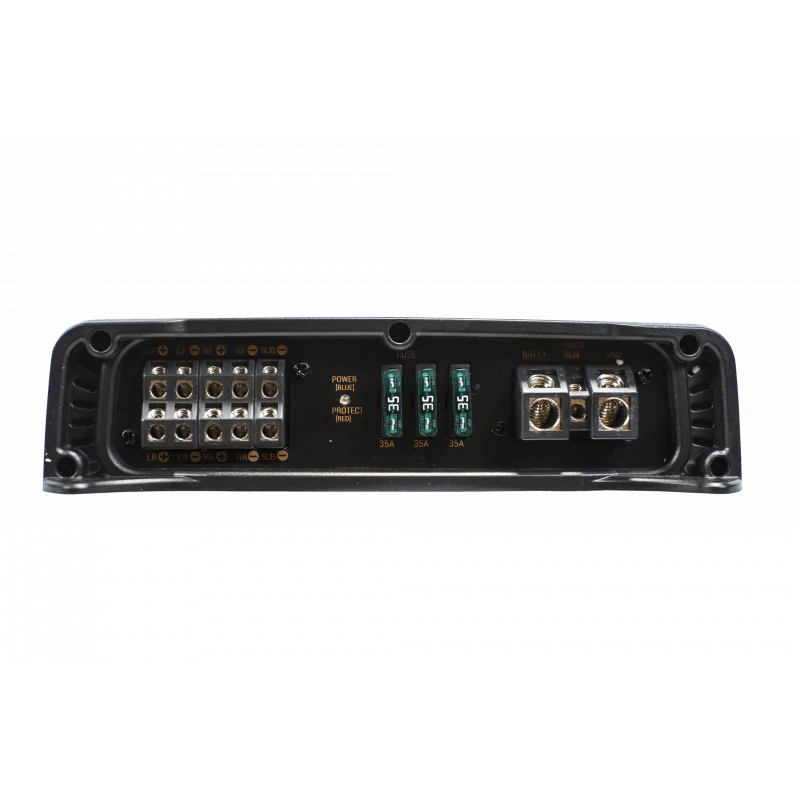

- On-Board Fusing: 3 x 35A ATC
- Recommended Inline Fuse: 80A
- Dimensions (L x W x H): 11.81” x 8.11” x 1.98” - 300mm x 206mm x 50.5mm
- UPC: 609098827584
- Weight: 1
