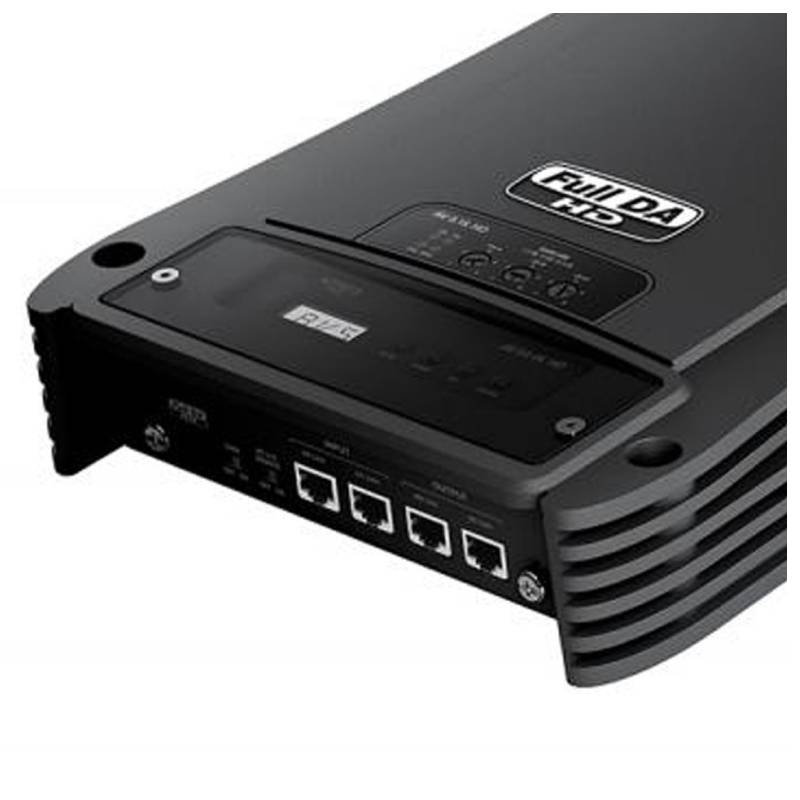

Audison  AV 5.1k HD

VOCE Series 5-Channel 75W RMS x 2 at 4-Ohms + 250W x 2 at 2-Ohms + 1000W x 1 at 2-Ohms, Class A/AB/D Full Range Car Amplifier

Item #87267

Condition:   Brand New

0
❮ ❯
AV 5.1k HD
Additional product image
Product Highlights
  • Voce 5-Channel Amplifier
  • 75W RMS x2 Power
  • 250W x2 at 2-Ohms
  • 1000W Mono Output
  • Class A/AB/D Car Amp
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
0 Review

$2,499.99

Reg. Price $3,200.00  Save $700.01
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
$100 Gift Card
Get a FREE $100 OCS Gift Card with your purchase. Click Here!
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Add to Cart
 Alert me on price change

No Credit needed for acima logo. Learn More

We Price Match! Call Us! 310-526-8635
Audison Authorized Dealer

Huge Saving on Other items:

Huge Saving on Other items:

Audison Banner

Audison AV 5.1k HD - VOCE Series 5-Channel 75W RMS x 2 at 4-Ohms + 250W x 2 at 2-Ohms + 1000W x 1 at 2-Ohms, Class A/AB/D Full Range Car Amplifier

We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • AV 5.1k HD amplifier
  • • Quick start guide
  • • nr.4 3,9 x 25mm / 0,15” x 0,99 self-tapping cross-headed fixing screws
  • • headed fixing screws
  • • N. 1 Allen wrench 0,118”
  • • nr.1 100A AFS spare fuse
  • • Owner's Manual
AV 5.1k HD
Hybrid High-Performance Amplifier

This hybrid amplifier combines two 75W Class A channels, two 250W Class AB channels, and a powerful 1000W Class D channel for versatile, high-output performance. AD Link connectivity allows you to create a full DA HD chain with the Bit One HD Virtuoso processor for seamless integration. Hi-Res audio certified with 192 kHz/24-bit DA converters and a 4–60 kHz bandwidth, it delivers crystal-clear, professional-quality sound.

High-Power, Efficient Amplifier

Operating on a wide 11–15 VDC power supply, this amplifier delivers reliable performance in any setup. With an idling current of just 3 A—and only 0.02 mA when off—it maximizes efficiency without draining your battery. At 14.4 VDC, it can handle a massive 110 A at maximum musical power for unstoppable, high-impact audio.

SPECIFICATIONS

  • Maximum Power : 1650 Watts
  • Number of Channels : 5
  • Amplifier Class : A, A/B, D
  • Fuse Rating : 100 A

FEATURES

Features:

  • Hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels, and one 1000 W D Class channel
  • AD Link connection to create a Full DA HD chain with bit One HD Virtuoso processor
  • Hi-Res audio certification thanks to 192 kHz/24-bit built-in DA converters and 4 ÷ 60k Hz bandwidth


Technical Specifications:

Power Supply:

  • Power supply voltage: 11 ÷ 15 VDC
  • Idling current: 3 A
  • Idling current when off: 0.02 mA
  • Consumption @ 14.4 VDC (Max Musical Power): 110 A



Amplifier Stage:

  • Distortion - THD (1k Hz @ 4? ) A, B Ch: 0.05 %
  • Distortion - THD (100 Hz @ 4?), C (sub) Ch: 0.3 %
  • Bandwidth (-3 dB) A, B Ch: 5 ÷ 20k Hz
  • Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
  • S/N ratio (A weighted @ 0dB) A, B Ch: 100 dB
  • S/N ratio (A weighted @ 0dB) C (sub) Ch: 87 dB
  • Damping factor (1k Hz @ 4?) A, B Ch: 100
  • Damping factor (100 Hz @ 4?) C (sub) Ch: 80
  • Gain (ON/OFF selectable): -15 / +3 dB
  • Minimum load impedance A / B / C Ch: 4Ohms / 2Ohms / 2Ohms
  • NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC, THD 0,3%, 4?: 50 W x 2 + 120 W x 2 + 500 W x 1
  • OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
    • 5 Ch: 75 W x 2 (4Ohms) + 140 W x 2 (4Ohms) + 600 W x 1 (4Ohms)
    • 5 Ch: 75 W x 2 (4Ohms) + 140 W x 2 (4Ohms) + 1000 W x 1 (2Ohms)
    • 5 Ch: 75 W x 2 (4Ohms) + 250 W x 2 (2Ohms) + 1000 W x 1 (2Ohms)



CEA Specifications:

  • Output power @ 4?, 1% THD+N, 14.4 V: 75 W x 2 + 140 W x 2 + 600 W x 1
  • SN ratio (ref. 1W output):
    • 75 W Channels: 80 dBA
    • 140 W Channels: 80 dBA
    • 600 W Channels: 78 dBA



Digital Connection Panel:

  • Digital resolution: 24 bit / 192 kHz
  • Input: AD Link / AC Link
  • Output: AD Link / AC Link



Other functions:

  • Remote IN: 7 ÷ 15 VDC - 1mA
  • Remote OUT: 12 VDC - 50mA
  • Fuse (Strip type): 100 A



Size/Weight:

  • Max size (mm/inch): 220 x 470 x 58 / 8.66” x 18.50” x 2.28”
  • Weight (kg/lb): 7,2 / 15.87



  • UPC: 8018823117050
  • Weight: 7.2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!

SPECIFICATIONS

  • Maximum Power : 1650 Watts
  • Number of Channels : 5
  • Amplifier Class : A, A/B, D
  • Fuse Rating : 100 A

FEATURES

Features:

  • Hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels, and one 1000 W D Class channel
  • AD Link connection to create a Full DA HD chain with bit One HD Virtuoso processor
  • Hi-Res audio certification thanks to 192 kHz/24-bit built-in DA converters and 4 ÷ 60k Hz bandwidth


Technical Specifications:

Power Supply:

  • Power supply voltage: 11 ÷ 15 VDC
  • Idling current: 3 A
  • Idling current when off: 0.02 mA
  • Consumption @ 14.4 VDC (Max Musical Power): 110 A



Amplifier Stage:

  • Distortion - THD (1k Hz @ 4? ) A, B Ch: 0.05 %
  • Distortion - THD (100 Hz @ 4?), C (sub) Ch: 0.3 %
  • Bandwidth (-3 dB) A, B Ch: 5 ÷ 20k Hz
  • Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
  • S/N ratio (A weighted @ 0dB) A, B Ch: 100 dB
  • S/N ratio (A weighted @ 0dB) C (sub) Ch: 87 dB
  • Damping factor (1k Hz @ 4?) A, B Ch: 100
  • Damping factor (100 Hz @ 4?) C (sub) Ch: 80
  • Gain (ON/OFF selectable): -15 / +3 dB
  • Minimum load impedance A / B / C Ch: 4Ohms / 2Ohms / 2Ohms
  • NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC, THD 0,3%, 4?: 50 W x 2 + 120 W x 2 + 500 W x 1
  • OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
    • 5 Ch: 75 W x 2 (4Ohms) + 140 W x 2 (4Ohms) + 600 W x 1 (4Ohms)
    • 5 Ch: 75 W x 2 (4Ohms) + 140 W x 2 (4Ohms) + 1000 W x 1 (2Ohms)
    • 5 Ch: 75 W x 2 (4Ohms) + 250 W x 2 (2Ohms) + 1000 W x 1 (2Ohms)



CEA Specifications:

  • Output power @ 4?, 1% THD+N, 14.4 V: 75 W x 2 + 140 W x 2 + 600 W x 1
  • SN ratio (ref. 1W output):
    • 75 W Channels: 80 dBA
    • 140 W Channels: 80 dBA
    • 600 W Channels: 78 dBA



Digital Connection Panel:

  • Digital resolution: 24 bit / 192 kHz
  • Input: AD Link / AC Link
  • Output: AD Link / AC Link



Other functions:

  • Remote IN: 7 ÷ 15 VDC - 1mA
  • Remote OUT: 12 VDC - 50mA
  • Fuse (Strip type): 100 A



Size/Weight:

  • Max size (mm/inch): 220 x 470 x 58 / 8.66” x 18.50” x 2.28”
  • Weight (kg/lb): 7,2 / 15.87



  • UPC: 8018823117050
  • Weight: 7.2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
