Audison  AF M6D

FORZA Series 6-Channel 220W x 6 at 2-Ohms, Class-D Car Amplifier

Item #87273

Condition:   Brand New

Product Highlights

  • Forza 6-Channel Amplifier
  • 220W x6 at 2-Ohms
  • Class D Car Amplifier
  • High Power Car Audio
  • Premium Sound Performance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on 6 Channel or More Amplifiers!

Use Code: CYBW5

Ends in:

$999.99

Reg. Price $1,100.00  Save $100.01
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

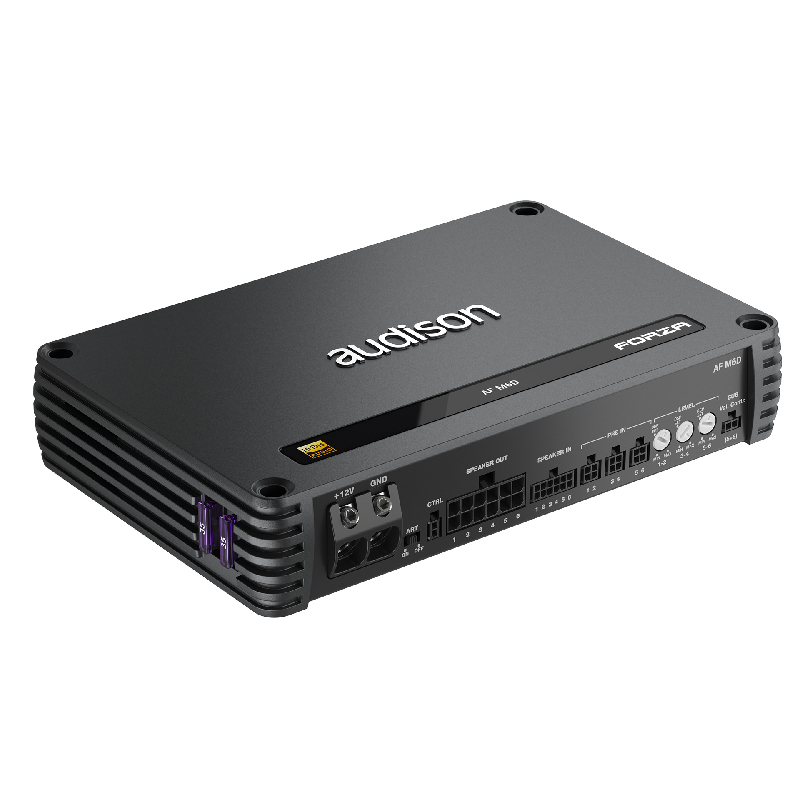

Audison AF M6D FORZA Series 6-Channel 220W x 6 at 2-Ohms, Class-D Car Amplifier


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 6-channel Amplifier, Class D, Fully Bridgeable
  • • Remote In-Out AF AMP
  • • Speaker out Cable 6CH
  • • Pre In Cable 2CH
  • • Forza Install Kit
  • • Owner's Manual
AF M6D
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.


SPECIFICATIONS


  • Maximum Power : 1320 Watts
  • Number of Channels : 6
  • Frequency Response : 10-42000 Hz
  • Amplifier Class : D
  • Fuse Rating : 2x35 A

FEATURES


Features:

  • More Power
  • More Information
  • More Control
  • More Inputs
  • More Speed
  • More Tools
  • More Capabilities
  • More Guidance
  • More Flexibility



Technical Specifications:

Power Supply:

  • Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
  • Pulse operating voltage: 6.5 ÷ 17.5 VDC
  • Idling current: 1.0 A
  • Standby current draw: 0.009 mA
  • Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 67 A
  • Remote IN: 4 ÷15 VDC (1 mA)
  • Remote OUT: 6.5 ÷15 VDC (150 mA)
  • ART – Automatic Remote Turn on/off from Speaker-In: 1.5 VDC
  • Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%



Amplifier Stage:

  • Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.04%
  • Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
  • Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
  • S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
  • S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
  • Minimum load impedance:
    • 6Ch: 2Ω
    • 3 Ch – (Bridge 1/2; 3/4; 5/6): 4Ω
  • Output Continuous Power (RMS) @14.4 VDC, 1% THD:
    • 6 Ch @ 4Ω: 135 W x 6
    • 6 Ch @ 2Ω: 220 W x 6
    • 3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3



CEA Specifications:

  • Output power @ 4Ω, 1% THD+N, 14.4 V: 130 W x 6
  • SN ratio (ref. 1 W output): 80 dB



Inputs/Outputs/Filters:

  • Inputs: Pre-In / Speaker-In
  • Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
  • Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
  • SUB remote Volume Control (optional): (-20 ÷ 6) dB



General Requirements:

  • Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)



Size/Weight:

  • Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
  • Weight (kg/lb):  1.95 / 4.3
  • UPC: 8018823136815
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
