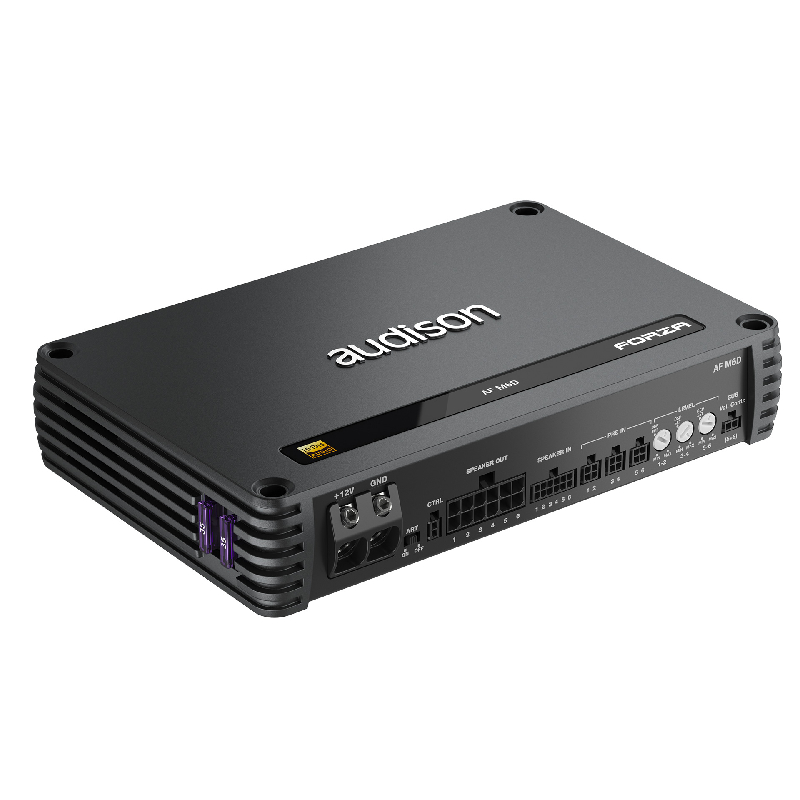

Audison AF M6D FORZA Series 6-Channel 220W x 6 at 2-Ohms, Class-D Car Amplifier
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 6-channel Amplifier, Class D, Fully Bridgeable
- • Remote In-Out AF AMP
- • Speaker out Cable 6CH
- • Pre In Cable 2CH
- • Forza Install Kit
- • Owner's Manual
AF Companion Amplifiers: Seamless Expansion
AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers, delivering high-quality audio with ease. A plug-and-play signal input harness makes connection to AF bit amplifiers straightforward and hassle-free. They are also ideal for systems managed by a standalone bit processor, such as the bit One HD Virtuoso, offering versatile integration.
Pure Performance Architecture
AF companion amplifiers feature a “straight wire” architecture, without analog preamp functions like crossover filtering, ensuring pristine audio fidelity. They are intended for use with external processors, allowing full control over sound tuning and system configuration. This design prioritizes clarity and precision, letting the processor handle all signal shaping while the amplifier focuses on delivering pure power.
- Maximum Power : 1320 Watts
- Number of Channels : 6
- Frequency Response : 10-42000 Hz
- Amplifier Class : D
- Fuse Rating : 2x35 A
Features:
- More Power
- More Information
- More Control
- More Inputs
- More Speed
- More Tools
- More Capabilities
- More Guidance
- More Flexibility
Technical Specifications:
Power Supply:
- Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
- Pulse operating voltage: 6.5 ÷ 17.5 VDC
- Idling current: 1.0 A
- Standby current draw: 0.009 mA
- Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 67 A
- Remote IN: 4 ÷15 VDC (1 mA)
- Remote OUT: 6.5 ÷15 VDC (150 mA)
- ART – Automatic Remote Turn on/off from Speaker-In: 1.5 VDC
- Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
Amplifier Stage:
- Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.04%
- Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
- Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
- S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
- S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
- Minimum load impedance:
- 6Ch: 2Ω
- 3 Ch – (Bridge 1/2; 3/4; 5/6): 4Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD:
- 6 Ch @ 4Ω: 135 W x 6
- 6 Ch @ 2Ω: 220 W x 6
- 3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3
CEA Specifications:
- Output power @ 4Ω, 1% THD+N, 14.4 V: 130 W x 6
- SN ratio (ref. 1 W output): 80 dB
Inputs/Outputs/Filters:
- Inputs: Pre-In / Speaker-In
- Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
- SUB remote Volume Control (optional): (-20 ÷ 6) dB
General Requirements:
- Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
Size/Weight:
- Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
- Weight (kg/lb): 1.95 / 4.3
- UPC: 8018823136815
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
