Hertz  S8 DSP

8-Channels Ultra Compact Digital Interface Processor

Item #87276

Condition:   Brand New

Product Highlights

  • 8-channel processing
  • Ultra-compact design
  • Digital interface
  • Efficient signal management

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$419.99

Reg. Price $519.99  Save $100.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Hertz Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Hertz Banner

Hertz S8 DSP 8-Channel Ultra Compact Digital Interface Processor


We are an Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

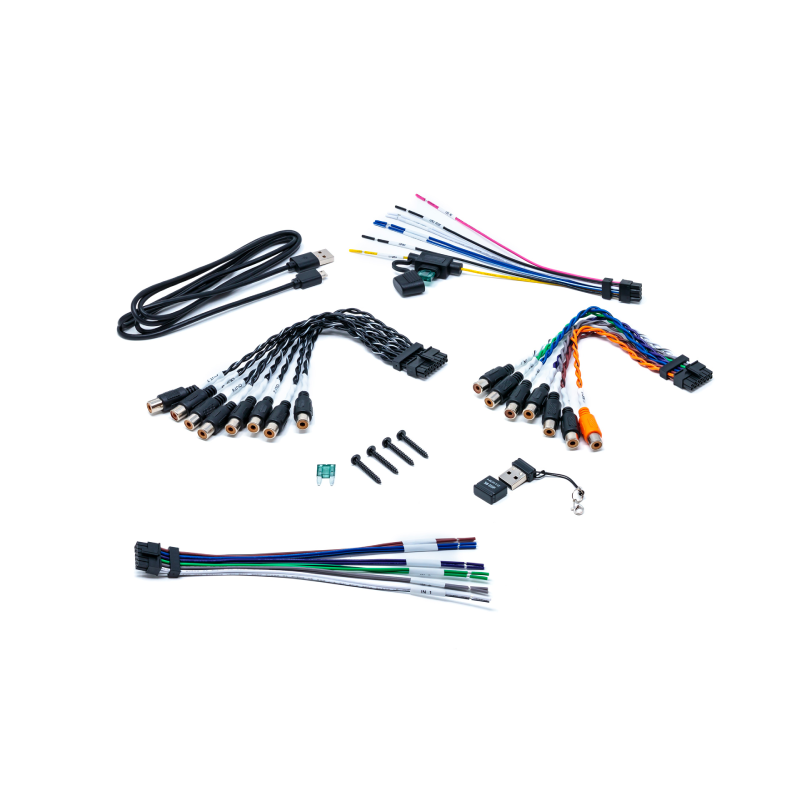

What's Inside?
  • • (1) Ultra Compact Digital Interface Processor
  • • Multipolar cable, Pre-IN/Digital-IN
  • • Multipolar cable, Speaker IN
  • • Multipolar cable PWR/REM
  • • Multipolar cable, Output
  • • USB cable 1.8 m
  • • Fuse 1 A
  • • Self-tapping, cross-head fixing screws (x4)
  • • USB Memory Dongle Setup
  • Owner's Manual

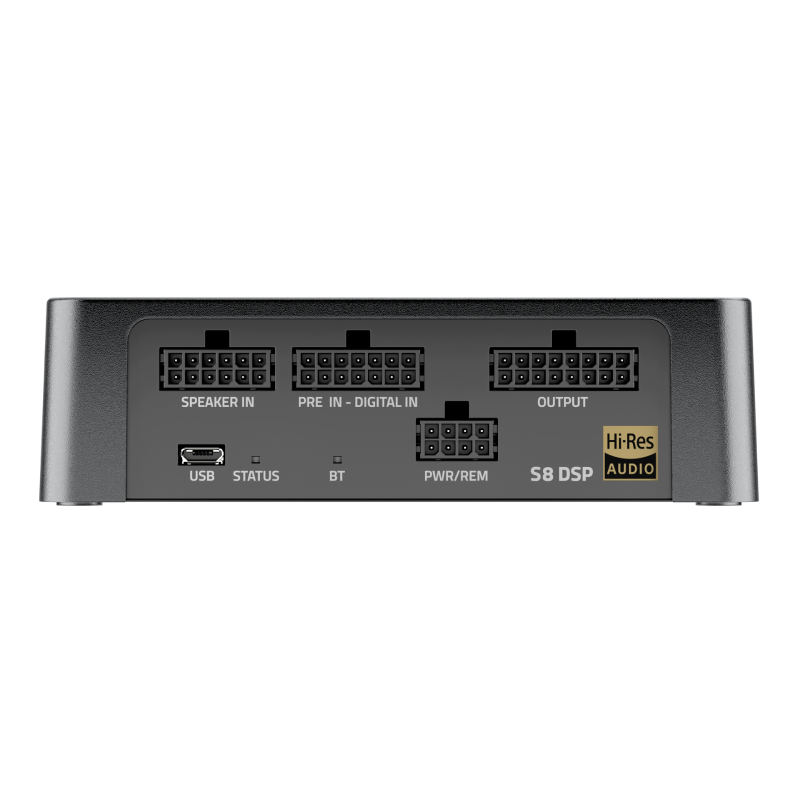

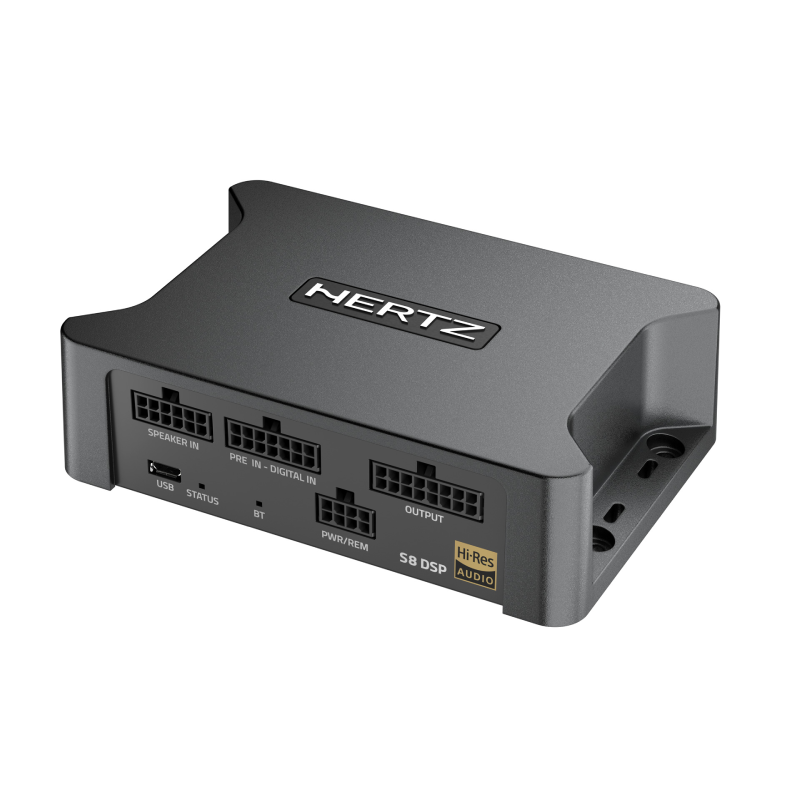

Ultra-compact S8 DSP

HThe ultra-compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.

Extreme Level of Audio Performance

S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.

Maximum Freedom

The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality.


SPECIFICATIONS



FEATURES


Features:

POWER SUPPLY

  • Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A
  • Pulse operating voltage: 5 ÷ 24 VDC
  • Idling current: 0.34 A
  • OFF current (ART= OFF): <80 uA
  • OFF current (ART= ON): <80 uA
  • Remote IN 6 ÷ 20 VDC (10 mA)
  • Remote OUT 4 ÷ 20 VDC (150 mA)
  • ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 ÷ 7 VDC



OUTPUT STAGE

  • Analog outputs (rca) 8 channels
  • Max output level (rms) @ 0.05% THD 4V
  • 95dBAAnalog outputs management The DSP controls each output channel:
  •  gain, crossover, EQ, delay, polarity
  • Bandwidth 10Hz – 40KHz (+/-3db)
  • Signal to noise ratio (A weighted) 105dBA (Analog Input) 112dBA (Digital Input)
  • THD+N (@ 1Vrms out, @ 1Khz) <0.005%
  • Crosstalk (channel separation) @ 1KHz >95dBA



INPUT STAGE

  • Analog low-level Inputs 6 ch. (Differential input) (Molex microfit to RCAs)
  • Analog high-level Inputs 6 ch. (Differential input) (Molex microfit to tripped ends) +
  • USS (Universal Speakers Simulator)
  • Digital inputs Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
  • Input sensitivity (low level) 0.8V – 6V RMS
  • Input sensitivity (high level) 2.5V – 21V RMS
  • Analog inputs management audio input routing matrix type
  • Analog inputs eq 7 bands paragraphic for each input channel
  • ART Automatic Remote Turn-On/Off with Speaker-In



DIGITAL SIGNAL PROCESSOR

  • Sample rate 96KHz
  • Bit depth 24
  • Output equalizer 15 bands per channel w/ adjustable Q and Frequency
  • Equalizer resolution 1/10th dB per step +12dB / -12dB
  • Time alignment (distance) 0 ÷ 468.4 cm / 0 ÷ 184.4 inches
  • Time alignment (time) 0 ÷ 13.5ms
  • Time alignment (step) 0,08 ms; 2,8 cm / 1.1 inch
  • Time alignment (fine set) 0,02 ms; 0,7 cm / 0.27 inch
  • Crossovers AP/HP/LP/BP all channels
  • Crossover type Butterworth, Linkwitz-Riley, Bessel (All Channels)
  • Crossover slope From 6dB/oct. until 30dB/oct. (6dB step)
  • Crossover steps 120 steps 20Hz-20KHz
  • Mute function I can mute every channel separately or all together.
  • Presets 4 presets
  • Presets selection 2 specific wires to control the 4 presets selection by external switches.
  • Input selection by wire One specific wire to select the desired input between Analog or Digital.
  • Audio signal compressor on output stage Yes (enable/disable)
  • DSP chipset Analog Device: ADAU1451

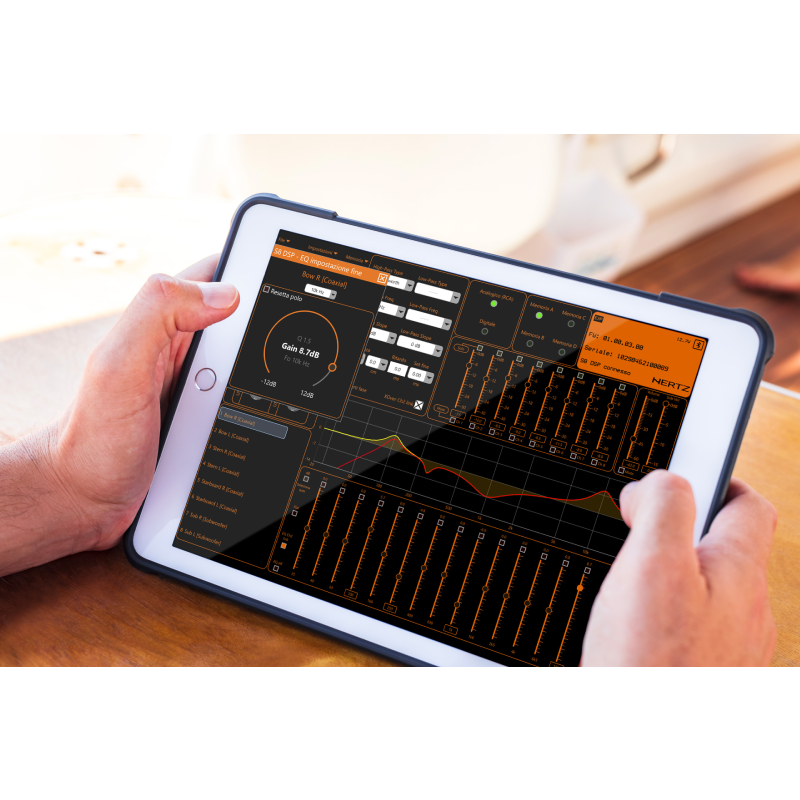

  • DSP management by bt app (iOS/ Android) 1. CONFIGURATOR mode Mainly it’ll allow the DSP tuning.
  • You can manage every DSP function through your smartphone/ tablet/PC/MAC. 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file.
  • Setup file sharing via bt Upload a setup file via BT through the BT APP when in
  •  “Configurator” or “DRC” mode.
  • DSP management by pc / mac/ios / android Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE)
  • UPC: 8018823136709
  • Weight: 2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
