Audison  AF C4D

FORZA Series 4-Channel 150W RMS x 4 at 2-Ohms, Class-D Car Amplifier (Fully Bridgeable)

Item #87279

Condition:   Brand New

Product Highlights

  • Forza 4-Channel Amplifier
  • 150W RMS x4 Power
  • Class D Car Amplifier
  • Fully Bridgeable Car Amp
  • High Performance Audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$599.99

Reg. Price $660.00  Save $60.01
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

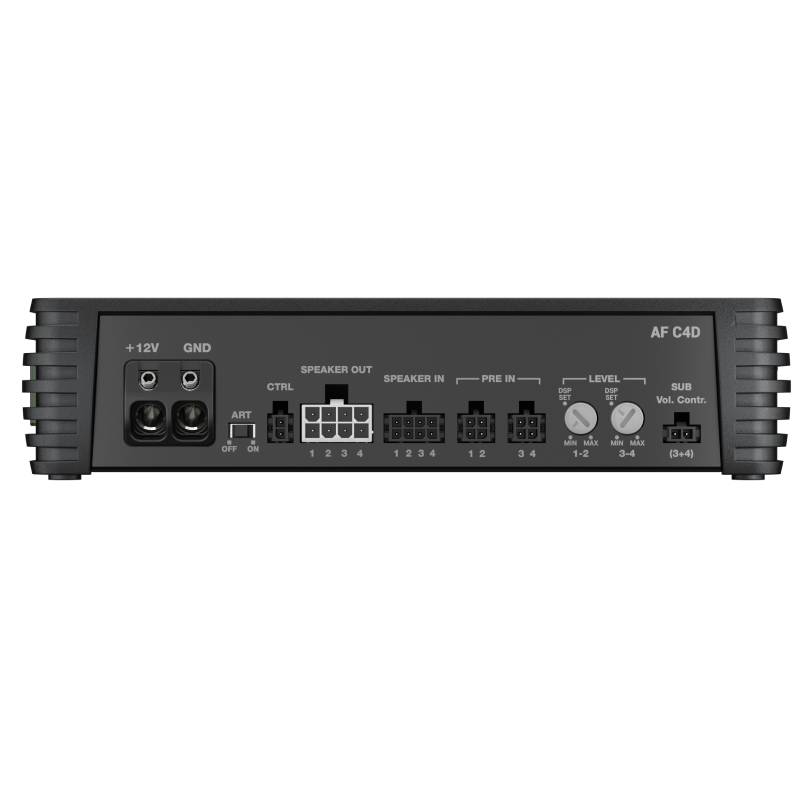

Audison AF C4D FORZA Series 4-Channel 150W RMS x 4 at 2-Ohms, Class-D Car Amplifier (Fully Bridgeable)


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-channel Amplifier, Class D, Fully Bridgeable
  • • Remote In-Out AF AMP
  • • SPK out Cable 4CH
  • • Pre In Cable 2CH
  • • Speaker in Cable 4CH
  • • Forza Install Kit
  • Owner's Manual
AF Companion Amplifiers: Powerful Expansion

AF companion amplifiers are designed to add robust amplifier channels to AF bit processor amplifiers, making system upgrades simple and effective. A plug-and-play signal input harness ensures easy and straightforward connection to AF bit amplifiers. They are also ideal for systems managed by standalone bit processors, such as the bit One HD Virtuoso, offering versatile integration for complex audio setups.

High-Fidelity, Compact Performance

The AF M4D delivers four high-fidelity channels with 90W x 4 at 4Ω and 150W x 4 at 2Ω, powered by the latest generation Audison D-Class technology. Its higher switching frequencies, steeper filtering, and high-tolerance components exceed typical Class D expectations, all in a remarkably compact package. With an extended audio band up to 40 kHz and High-Resolution certification, bridged channels produce 300W x 2 at 4Ω, ensuring flexible and powerful performance.

AF M12.14 bit

SPECIFICATIONS


  • Maximum Power : 600 Watts
  • Number of Channels : 4
  • Frequency Response : 10-40000 Hz
  • Amplifier Class : D
  • Fuse Rating : 30 A

FEATURES


Specifications:

  • Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
  • Pulse operating voltage: 6.5 ÷ 17.5 VDC
  • Idling current: 1.3 A
  • Standby current draw: 1.5 mA
  • Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 52 A
  • Remote IN: 4 ÷15 VDC (1 mA)
  • Remote OUT: 6.5 ÷15 VDC (150 mA)
  • ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
  • Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 83%
  • Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%
  • Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
  • Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
  • S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
  • Minimum load impedance: 4 Ch: 2Ω
  • 2 Ch – (Bridge 1/2; 3/4): 4Ω Output Continuous Power (RMS) @14.4 VDC, 1% THD:
    • 4Ch @ 4Ω: 90 W x 4
    • 4Ch @ 2Ω: 150 W x 4
    • 2Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2
  • Output power @ 4Ω, 1% THD+N, 14.4 V: 160 W x 4
  • SN ratio (ref. 1 W output): 80 dB
  • Inputs Pre-In / Speaker-In
  • Input sensitivity Pre-In  0.6 ÷ 6 VRMS
  • Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
  • SUB remote Volume Control (optional) ±12 dB
  • Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
  • Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
  • UPC: 8018823136808
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
