Metra Electronics  HE-MDR20

Universal 20" Dual Row Marine White LED Lightbar

Item #87597

Condition:   Brand New

Product Highlights

  • White LED Lightbar
  • 20" Size
  • Dual Row
  • Marine

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$150.14

Reg. Price $158.08  Save 5%
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Metra Electronics Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Metra Banner for OCS

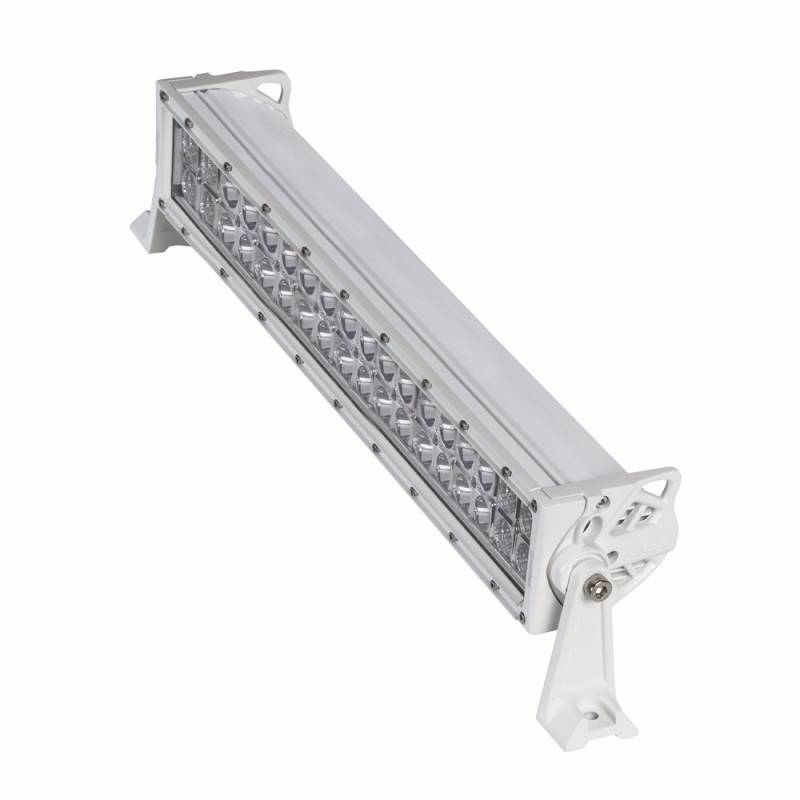

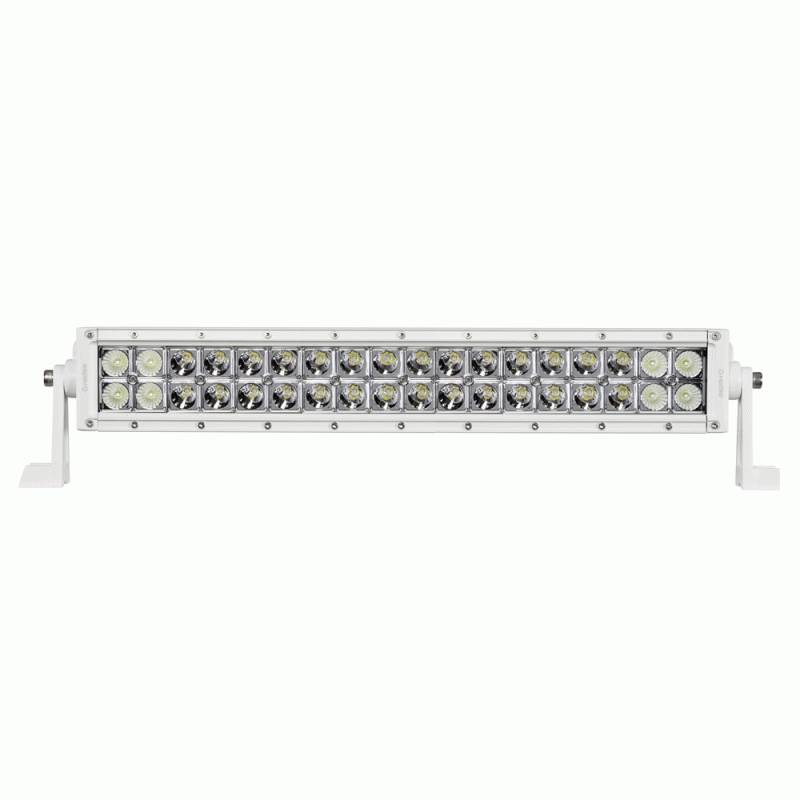

Metra Electronics HE-MDR20 Universal 20" Dual Row Marine White LED Lightbar


Authorized Dealer Stamp

We are a Metra Electronics authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •20 Inch Marine LED Lightbar
  • • Owner's Manual
Die-cast Aluminum Housing

20" Dual Row Marine BarSpecifications: Input Voltage: 10-30VWattage: 108WRaw Lumens: 8640LUX @ 10M: 612Color Temperature: 6000KBeam Pattern: Combo: Flood (90) / Spot (8)Construction:Housing Material: Die-cast Aluminum HousingHousing Color: White Coating with UV InhibitorsMembrane: GoreLens Material: PCMounting Bracket: Die-cast AluminumHole Dimensions: Brackets turned inward - 19.50"Brackets turned outward - 21.75"Mounting Bolt Drill - .25"Height of Light Bar Itself: 4.8"Depth of Light Bar Itself: 3.50"Electronics: IntegratedEpoxy EncapsulatedHardware: Stainless 316Operation:Operating Temperature: -40C to +60CCurrent Consumption: 5.7 Amps @ 13.8 VoltsIP Rating: IP68Protections: Reverse Polarity




SPECIFICATIONS



FEATURES


Features:

  • Die-cast aluminum housing
  • Color: white coating with UV
  • Membrane: gore
  • Lens material: pc
  • Mounting bolt drill: 0.25"
  • Mounting bracket: die-cast aluminum
  • Height of light bar: 3"
  • Depth of light bar: 3.50"
  • Electronics: integrated-epoxy encapsulated
  • Hardware: stainless 316
  • Operating temperature: -40 degree Celsius to +60 degrees Celsius
  • Protection: reverse polarity



Specification:

  • Wattage: 108W
  • Raw Lumens: 8640
  • Lux @ 10M: 612
  • Current Consumption at 13.8V: 5.7 A
  • IP Rating: IP68
  • Input voltage: 10-30v dc
  • Color temperature: 6000k



Beam pattern:

  • Combo/Flood (90)
  • Spot (8)



Hole Dimensions:

  • Bracket Turned In: 19.5"
  • Brackets Turned Out: 21.75"



  • UPC: 086429365203
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
