Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Vehicle Bundles includes Kicker Q Class 41L7124 + Pioneer GM-DX871
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Kicker Q Class 41L7124
- • Pioneer GM-DX871
- • Owner's Manual
Kicker Q Class 41L7124 L7 Series 12" 900W RMS (1800W Peak Power Handling) Square Dual 4 Ohm Voice Coil Car Subwoofer
Massive Motor
Extreme power handling needs a motor worthy of the KICKER name. Oversized magnets and an aluminum voice coil allow every drop of power to get from the sub to your ears.
Square Matters
A KICKER® original, these square subwoofers deliver 20% more surface area than a comparable circular sub. A bigger cone moves more air, so you get more sound!
L7 Subwoofers
Style. Substance. The L7™ brings award-winning innovation to you with the original square subwoofer.

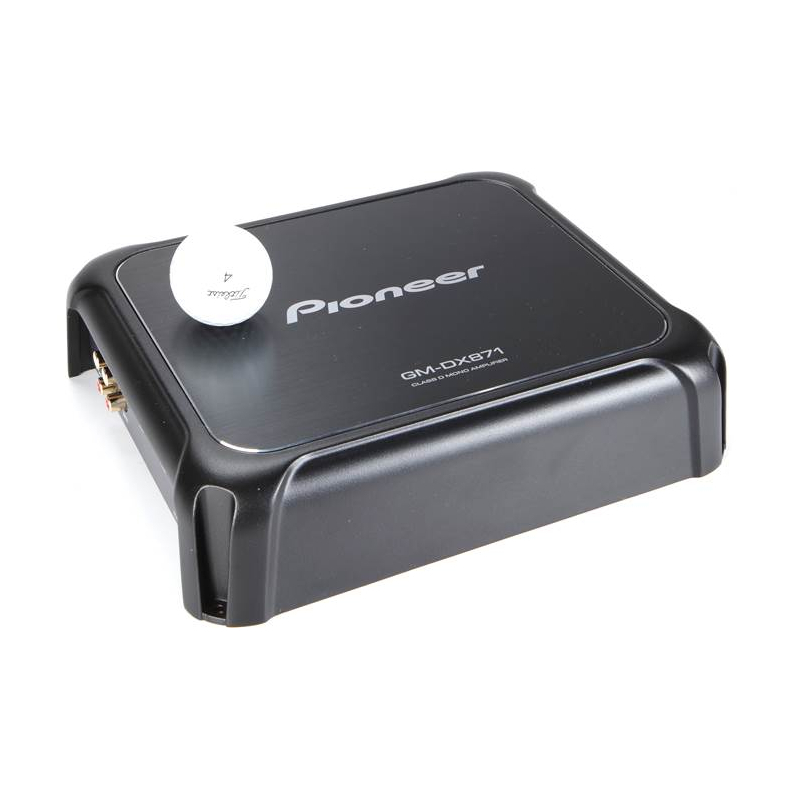

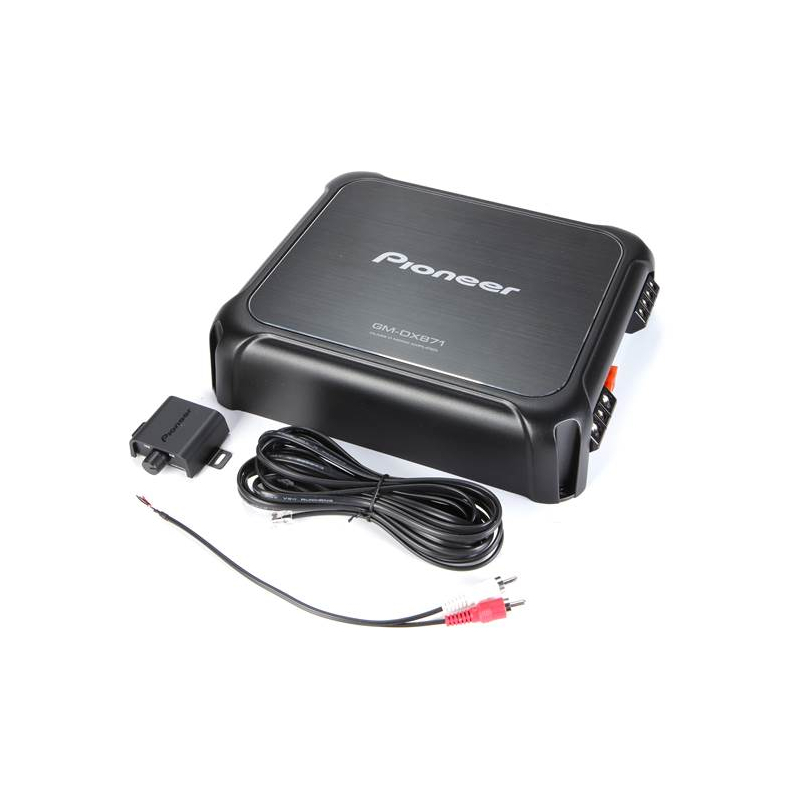

GM-DX871 GM Digital Series 1600 Watts Max Power Class-D Mono Amplifier with Gold RCA Terminals, HQ Sound Parts and Wired Bass Boost Remote
Deliver Up to 800 Watts Rms
The GM-DX871 mono subwoofer amplifier can deliver up to 800 watts RMS to your subwoofer, for powerful bass that will give every song a strong and heavy beat. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a small chassis that fits in a lot of out-of-the-way spaces.
Big Power, Small Size
Pioneer’s extra-efficient Class-D amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.
- Low Frequency Response : 34+10 Hz
- Sensitivity : 86.9 + 100 dB
- Depth : 7.78 Inch
- Impedance : 4+1 Ohm
- Number of Channels : 1
- Built In Crossovers : Yes
- Peak Power Handling : 1800 + 1600 Watts
- Design : 2 Way
- Amplifier Class : D
- Number of Voice Coils : Dual
- Mounting Depth : 7-7/8 Inches
- RMS Power Handling : 900 + 800 Watts

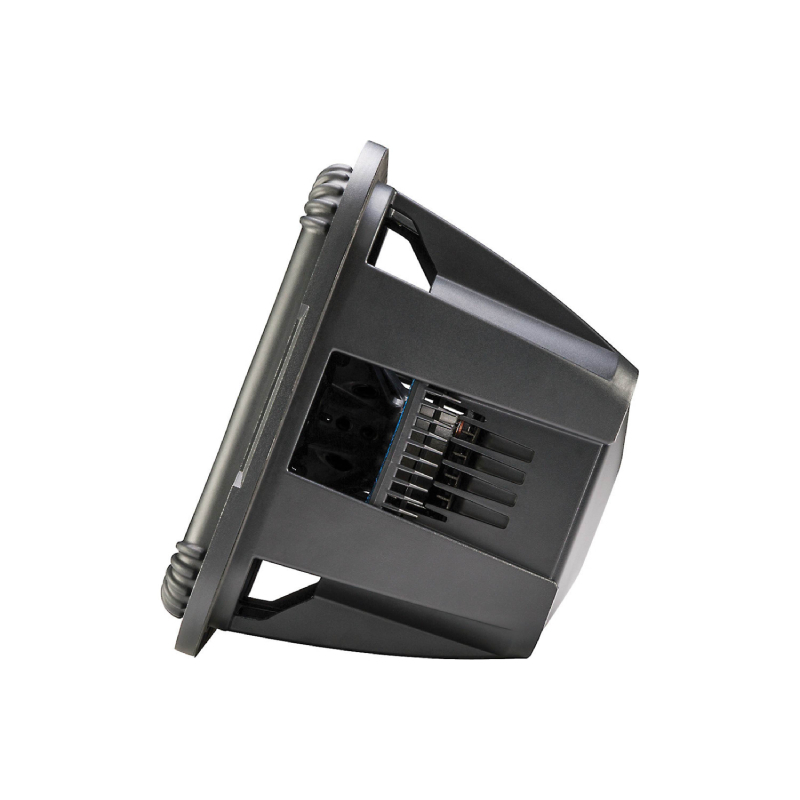

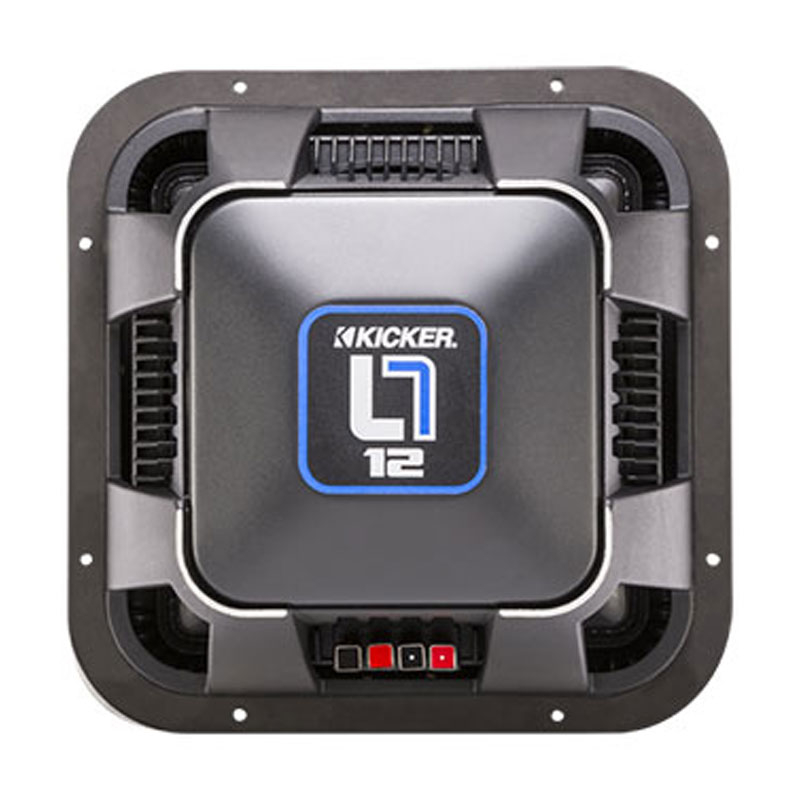

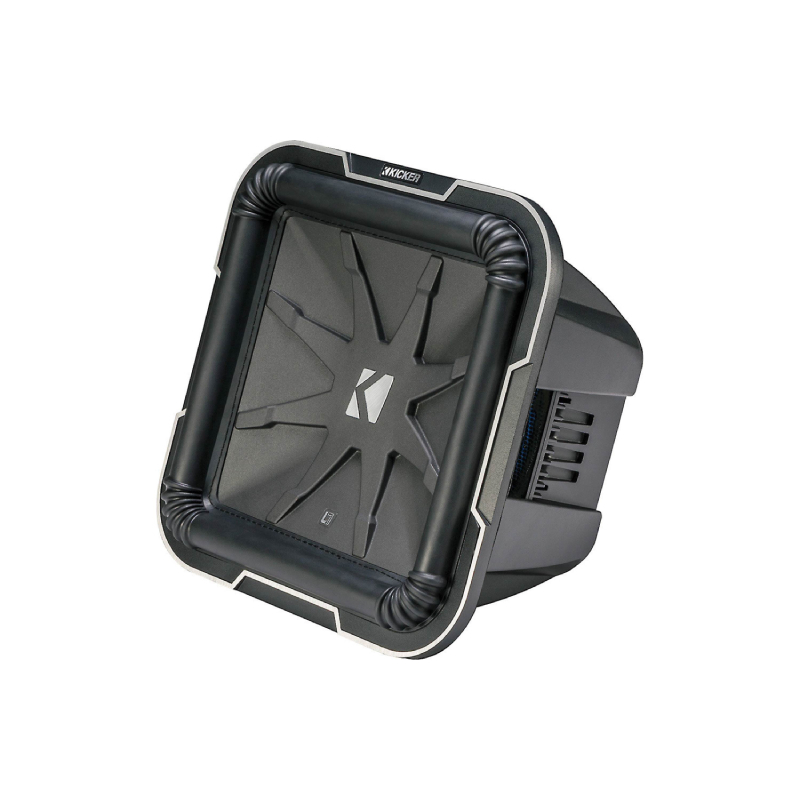

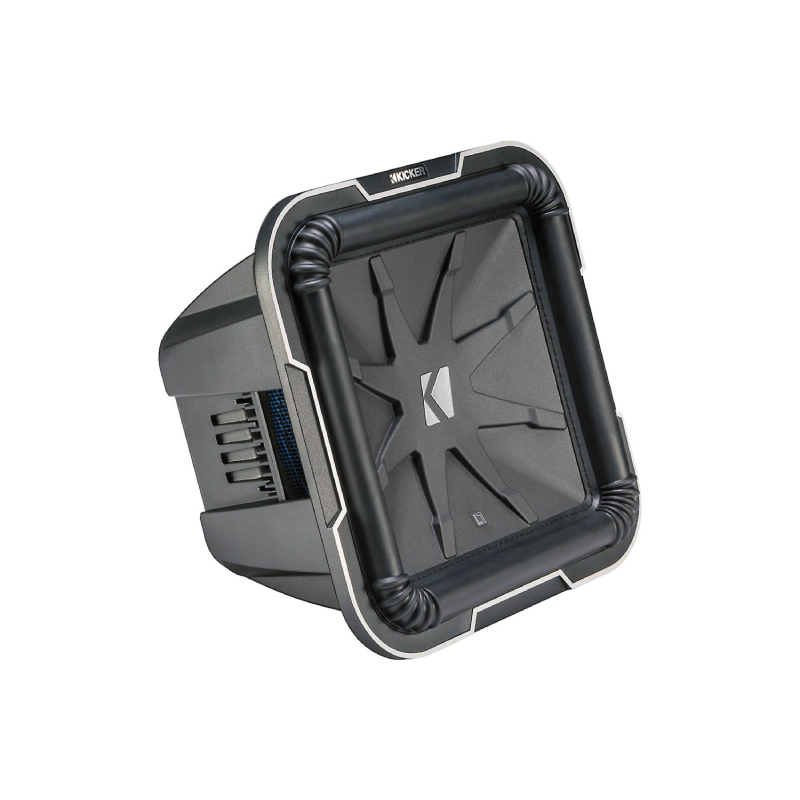

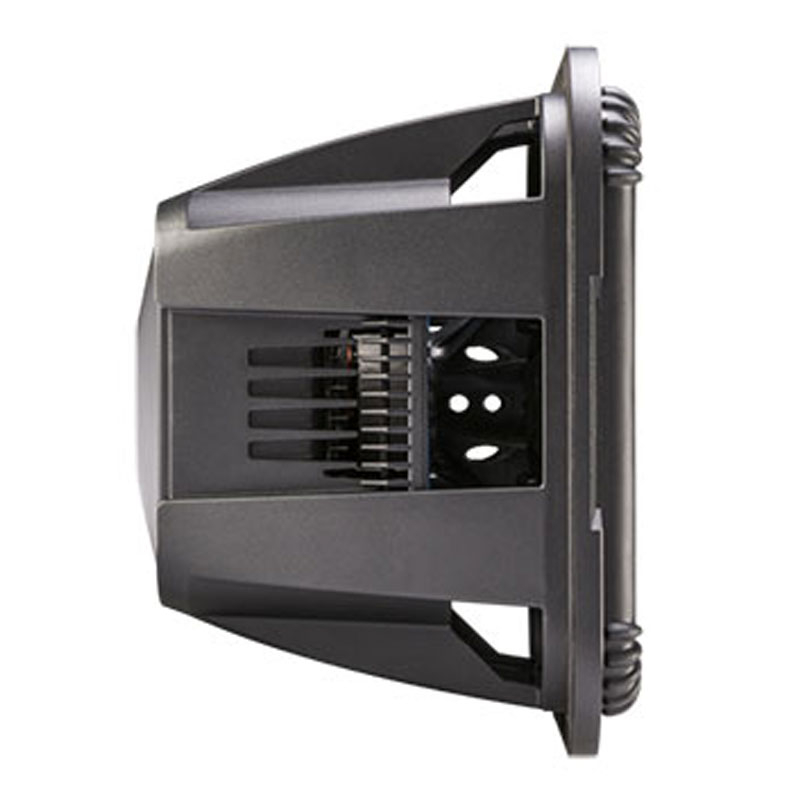

41L7124 L7 Series 12" 900W RMS (1800W Peak Power Handling) Square Dual 4 Ohm Voice Coil Car Subwoofer
Features:
- Rated Impedance [Ω]: 4
- Fs [Hz]: 34
- Sensitivity [1W, 1m]: 86.9
- Qts: 0.539
- Qms: 9.488
- Qes: 0.571
- Re [Ω]: 6.8
- Vas [ft³, L]: 1.92, 54.274
- Continuous Power Handling [Watts RMS]: 900
- Outer Frame Dimension [in, cm]: 12-9/16, 32
- Mounting Depth [in, cm]: 7-7/8, 20
- Mounting Cutout [in, cm]: 11-1/16, 28.1
- Frequency Response [Hz]: 20 - 100
Product Details
Sealed Enclosure Specs:
- Minimum Sealed Volume ft3 (L): 1 (28.32)
- Minimum Sealed Power Handling: 900W RMS
- Maximum Sealed Volume ft3 (L): 2 (56.64)
- Maximum Sealed Power Handling: 900W RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF:
- Box Volume [ft³, L]: 1 (28.32)
- Panel A [in, cm]: 13.5X13.5, 34.3X34.3
- Panel B [in, cm]: 13.5x12, 34.3x30.5
- Panel C [in, cm]: 12x12, 30.5x30.5
Vented Compact:
- Box Volume, ft³ (L) + port displacement: 1.75 (49.6)
- Port Opening Size, in x in (cm x cm): 2.5x13.25 (6.4x34)
- Port Length, in (cm): 22.5 (57)
- Power Handling, RMS: 900
Vented SQ:
- Box Volume, ft³ (L) + port displacement: 3.25 (92)
- Port Opening Size, in x in (cm x cm): 3x13.25 (7.6x34)
- Port Length, in (cm): 14.5 (37)
- Power Handling, RMS: 900

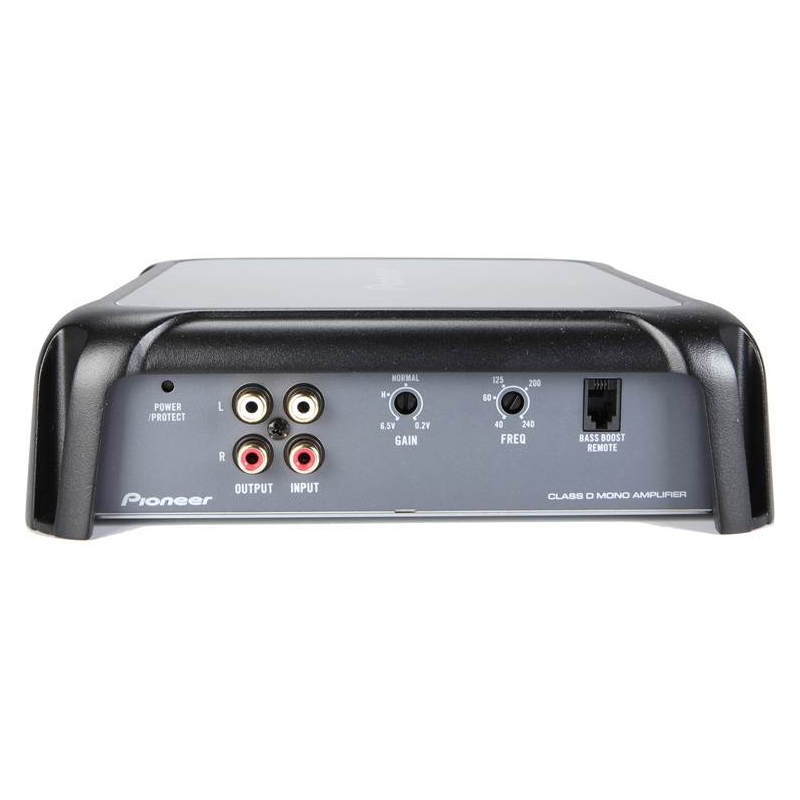

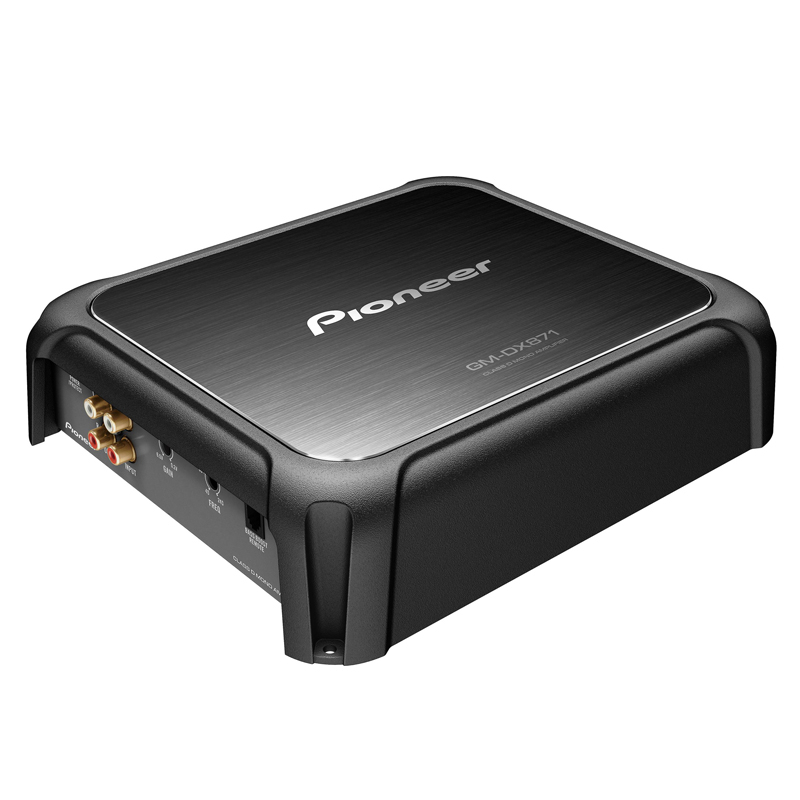

GM-DX871 GM Digital Series 1600 Watts Max Power Class-D Mono Amplifier with Gold RCA Terminals, HQ Sound Parts and Wired Bass Boost Remote
Features:
- RCA Inputs: MONO (Gold Plated)
- Amplifer Class: CLASS-D
- High Quality Sound Parts: Speaker Level Inputs
- Crossover Type: Variable LPF
- Warranty: 1 Year
Specifications:
- Continuous Power (RMS) Output at 1 Ohm: 800W RMS x 1
- Continuous Power (RMS) Output at 2 Ohms: 500W RMS x 1
- Continuous Power (RMS) Output at 4 Ohms: 300W RMS x 1
- Frequency Response: 10 Hz to 240 Hz
- Total Harmonic Distortion (THD): < 0.5% (100 Hz)
- Signal-to-Noise (SN) Ratio: > 100 dB
- Low-Pass Crossover Frequency: 40 Hz
- Low Pass Slope (dB/octave): -12dB
- High-Pass Crossover Frequency: 240 Hz
- Bass Boost Frequency: 50 Hz
- Bass Boost Level: 0 dB to 18 dB

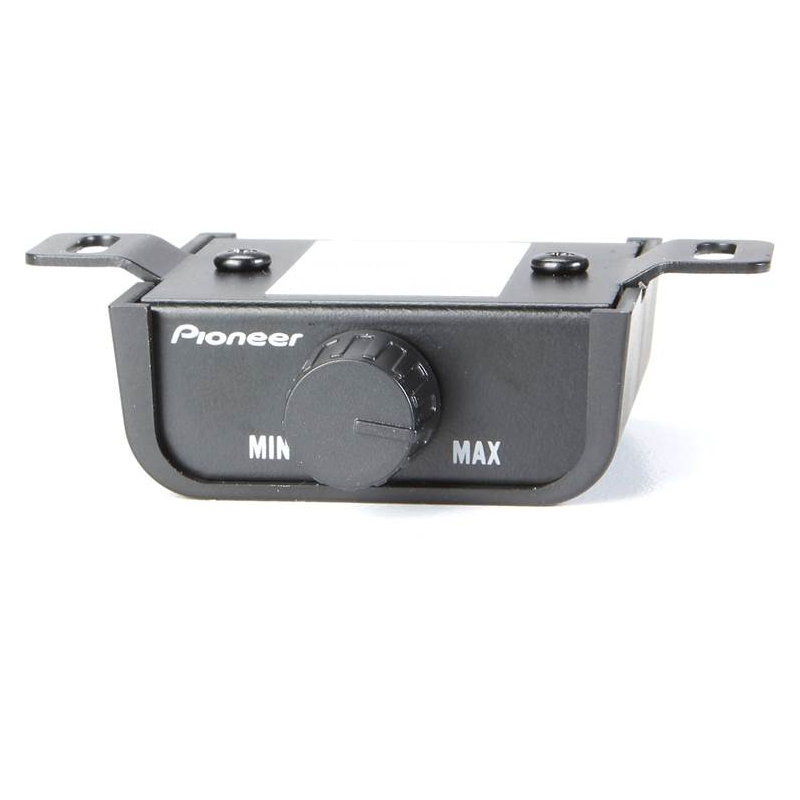

- Bass Boost Remote: Yes
- Hi-Volt Input Level Control: 200 mV to 6.5 V
- Terminal Type: Block
- Load Impedance Allowance (Ohms): 1 to 8
- Protection Control System: Yes
- Dimensions: 10-3/8" x 2-3/8" x 7-7/8"
- UPC: 798418838291
- Weight: 42
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
