JL Audio  XDM300/1

XDM Series 300W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car/Marine Amplifier with NEXD™ Switching Technology

Item #87946

Condition:   Brand New

Product Highlights

  • XDM Series
  • 300W RMS x 1 at 2 Ohms
  • Class-D Mono Subwoofer
  • Car/Marine Amplifier
  • NEXD™ Switching Technology

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$529.99

Reg. Price $599.99  Save $70.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio XDM300/1 XDM Series 300W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car/Marine Amplifier with NEXD™ Switching Technology


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

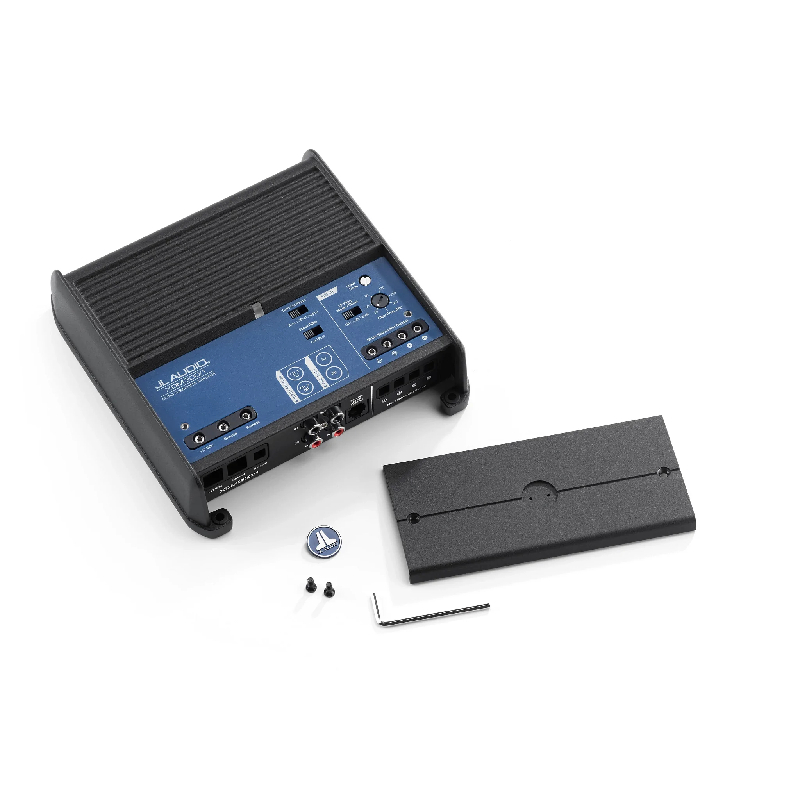

What's Inside?
  • • Mono car/marine amplifier
  • • Self-adhesive JL Audio badge
  • • 2.5mm Allen wrench
  • • Warranty information
  • Owner's Manual




Why Choose JL Audio XDM300/1 Mono Subwoofer Amplifier?

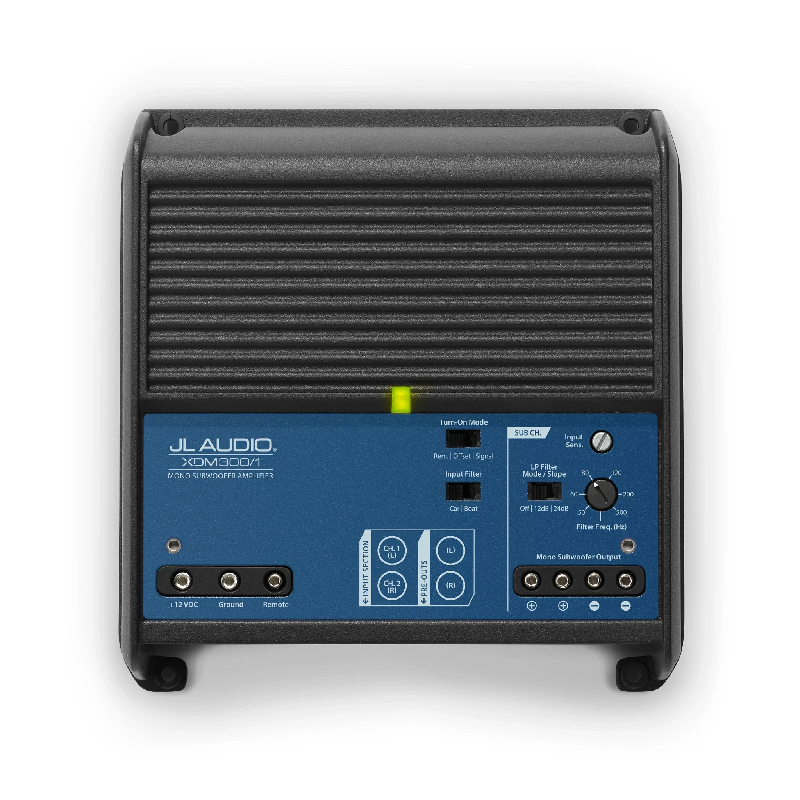

JL Audio XDM300/1 Mono Subwoofer Amplifier Top Down View
Hear the Difference!

Experience fidelity for all and crystal-clear audio in your boat or car with the xdm amplifier's exclusive dual-mode input filter and differential-balanced inputs for outstanding noise rejection, while the NEXD™ equipped advanced switching technology delivers reliable high-power output from a compact chassis by reducing current draw and heat, all benefiting from studio-grade signal processing featuring audiophile-grade, fully variable filters and calibrated potentiometers beneath a sealed security cover.

Uninterrupted Power and Built to Last!

With ADVANCED ROLLBACK PROTECTION, our innovative circuit design ensures the amplifier will never shut down due to thermal overload, keeping your music playing even under the most demanding conditions, all while offering flexible AUTO TURN-ON CAPABILITIES (via auto signal sensing, auto DC-offset sensing, or conventional +12 volt turn-on lead), and a BUILT TOUGH all-aluminum, powder-coated housing that inhibits corrosion and features a sealed security cover to protect controls from the elements.

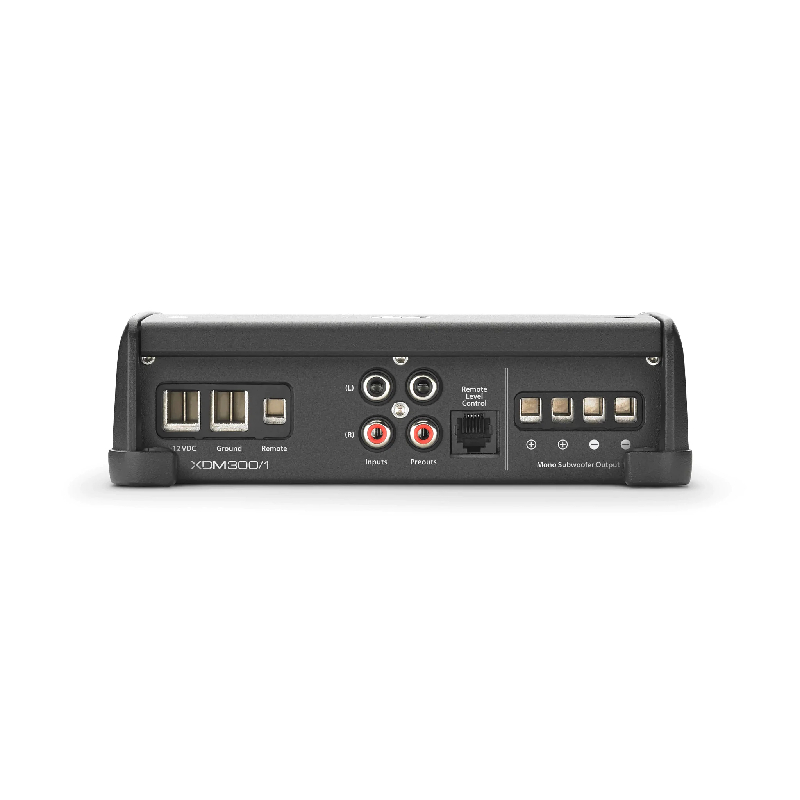

JL Audio XDM300/1 Mono Subwoofer Amplifier Rear Angle View
JL Audio XDM300/1 Mono Subwoofer Amplifier Left Angle View
Power Your Entire System!

Our amplifier line offers complete flexibility, featuring FULL-RANGE STEREO variants available in 2, 4, 6, and 8 channels, specialized SYSTEM AMPLIFIERS with 3 models that power a whole system using 2 or 4 full-range outputs plus a dedicated subwoofer output, robust MONOBLOCK options with 300, 600, and 1000 watts, and versatile 24-VOLT OPTIONS available in XDM600/6-24V and XDM800/8-24V channel variants.


Frequently Asked Questions (FAQ)


  • • Why does my JL Audio XDM300/1 turn on but my subwoofer doesn't produce any bass?
    Check the input source, low-pass crossover settings, and subwoofer wiring. A loose RCA connection is one of the most common causes.
  • • Can I run a 2-ohm subwoofer with the XDM300/1?
    Yes. The amplifier is designed to deliver its rated output into a 2-ohm load when wired correctly.
  • • Why does the amplifier shut off whenever the bass gets loud?
    This usually indicates low battery voltage, overheating, or a subwoofer load below the recommended impedance.
  • • Can I connect the XDM300/1 to a factory head unit without RCA outputs?
    Yes. The amplifier accepts high-level speaker inputs for simple integration with most factory audio systems.
  • • Why does my subwoofer sound muddy instead of tight and punchy?
    The crossover frequency, gain, or enclosure design may need adjustment for better bass response.
  • • Why do I hear engine noise through my subwoofer while driving?
    This is typically caused by poor grounding or RCA cables routed too close to the power cable.
  • • Can I use two 4-ohm subwoofers with the XDM300/1?
    Yes, provided they are wired to achieve a final impedance within JL Audio's recommended operating range.
  • • Why does the amplifier feel very hot after an hour of listening?
    Some heat is normal, but restricted airflow or prolonged high-output operation can raise amplifier temperature.
  • • Does the XDM300/1 support a remote bass level controller?
    Yes. It is compatible with JL Audio's optional HD-RLC remote bass control for convenient level adjustments.
  • • Why does the amplifier remain powered after I turn off the ignition?
    The remote turn-on wire is likely connected to constant 12-volt power instead of a switched accessory circuit.

SPECIFICATIONS


  • Low Frequency Response : 50–500 Hz
  • Number of Channels : 1
  • Frequency Response : 10-1000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 1x300 Watts
  • Amplifier Class : D

FEATURES


Features:

  • FIDELITY FOR ALL: Our exclusive dual-mode input filter and differential-balanced inputs provide outstanding noise rejection and crystal-clear audio performance in boats or cars.
  • EQUIPPED WITH NexD™: Advanced switching technology ensures exceptional efficiency, reducing current draw and heat while delivering reliable high-power output from a compact chassis.
  • STUDIO-GRADE SIGNAL PROCESSING: Each XDM amplifier features audiophile-grade signal processing with fully variable filters and calibrated potentiometers, all under a sealed security cover.
  • ADVANCED ROLLBACK PROTECTION: Innovative circuit design prevents shutdown due to thermal overload, keeping your music playing even under demanding conditions.
  • AUTO TURN-ON CAPABILITIES: Choose from three options: auto signal sensing with +12V remote out, auto DC-offset sensing with +12V remote out, or conventional +12V turn-on lead.
  • BUILT TOUGH: All-aluminum, powder-coated housing resists corrosion, and a sealed security cover protects controls from the elements.
  • FULL-RANGE STEREO: Available in 2, 4, 6, and 8 channel variants to suit your system needs.
  • SYSTEM AMPLIFIERS: Three models provide 2 or 4 full-range outputs plus a subwoofer output for complete system setups.
  • MONOBLOCK: Three models available with 300W, 600W, and 1000W outputs.
  • 24-VOLT OPTIONS: Available in 6 and 8 channel variants for high-voltage applications.



Specifications:

  • RMS Power Output: 200 W x 1 channel
  • Peak Power Output: N/A
  • Power at 2 Ohms: 300 W x 1 channel
  • Power at 1 Ohm: N/A
  • Bridged Power: N/A
  • Minimum Impedance Unbridged: 2 Ω
  • Best Frequency Response: 10 Hz – 1 kHz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 100 dB
  • Input Voltage: 14.4 V
  • Amplifier Class: D
  • Built-in DSP: No
  • Remote Control: Optional
  • Low-Pass Crossover Frequency: 50–500 Hz
  • Low-Pass Slope: 12 or 24 dB/octave, Off
  • High-Pass Crossover Frequency: N/A
  • High-Pass Slope: N/A
  • Bass Boost: No
  • Fan Cooled: No
  • Fuse Rating: 30 A
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 2
  • Dimensions (W x H x D): 6-7/8" x 2" x 7-1/8"
  • UPC: 699440986809
  • Weight: 4.45
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Sound quality is really top notch with JL Audio. The sub sounds so much better with my new amp. There is much power from this tiny little amp. Good stuff from one of the best brands in the market.

    Jason L.
    4/2/2024
