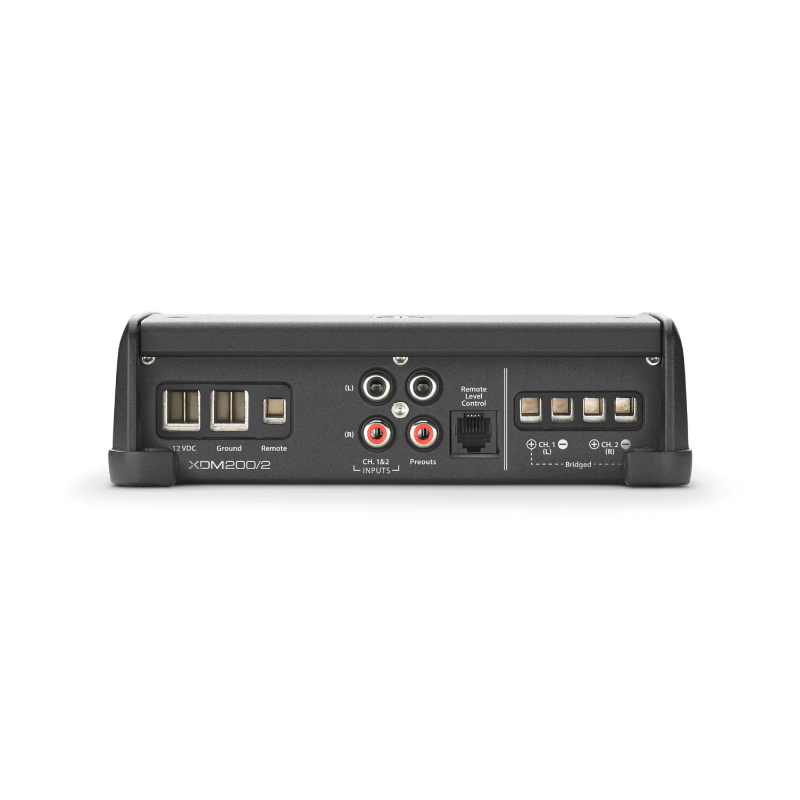

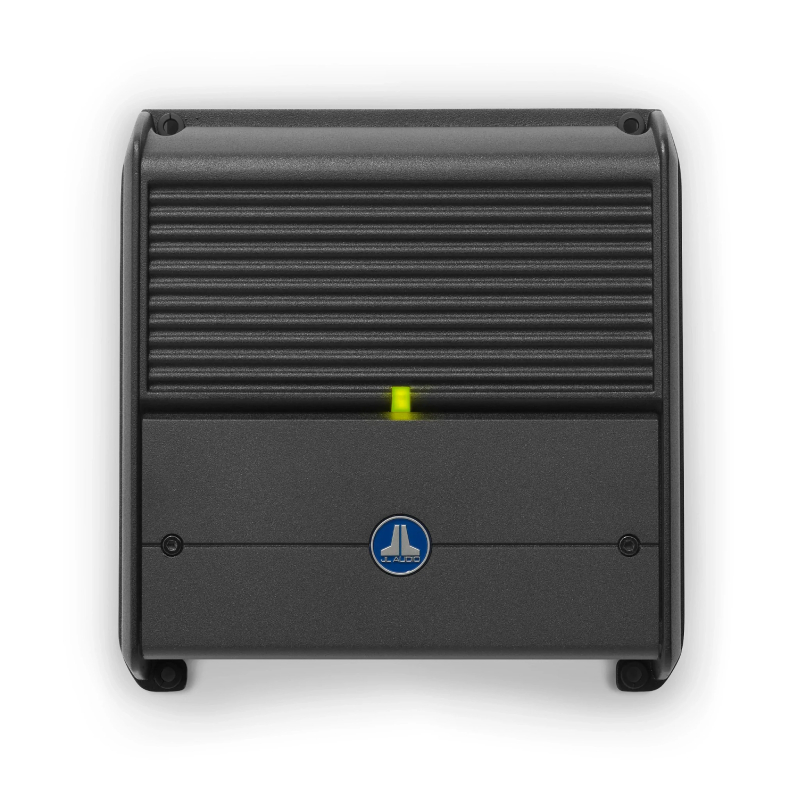

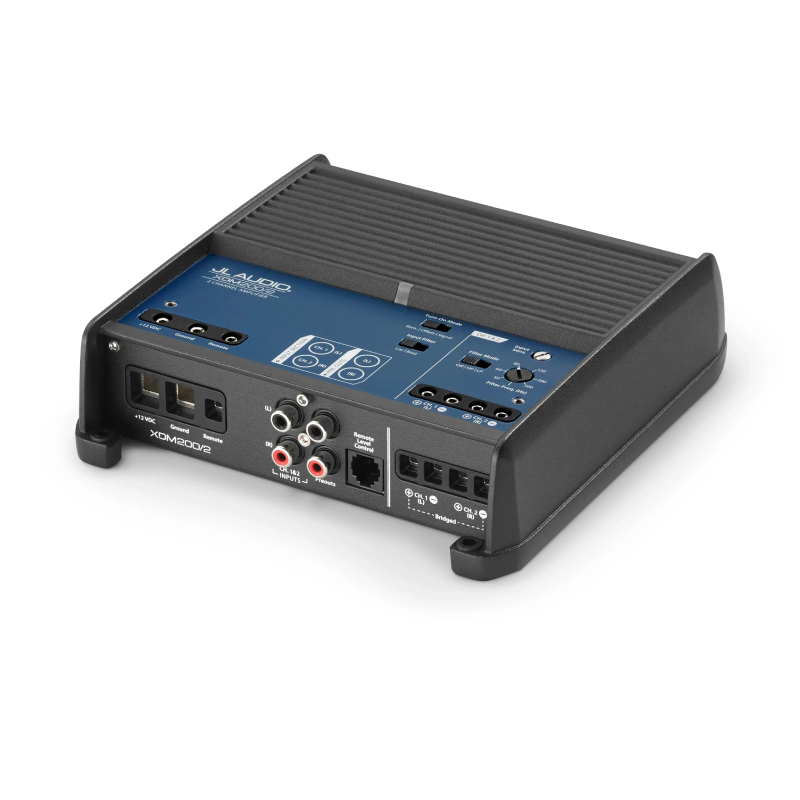

JL Audio XDM200/2 XDM Series 2-Channel 100W RMS x 2 at 2 Ohms, Class-D Full Range Car/Marine Amplifier with NEXD™ Switching Technology
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

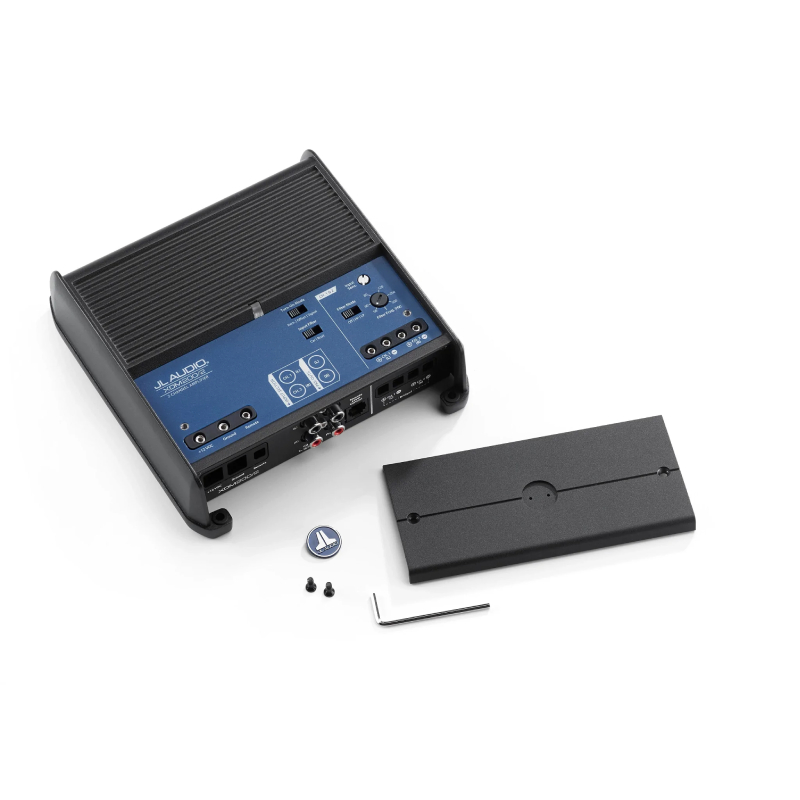

What's Inside?
- • 2-Channel car/marine amplifier
- • 2.5 mm Allen wrench
- • Self-adhesive JL Audio badge
- • Warranty information
- • Owner's Manual
Why Choose JL Audio XDM200/2 2-Channel Amplifier?
Hear the Difference!
Experience fidelity for all and crystal-clear audio in your boat or car with the xdm amplifier's exclusive dual-mode input filter and differential-balanced inputs for outstanding noise rejection, while the NEXD™ equipped advanced switching technology delivers reliable high-power output from a compact chassis by reducing current draw and heat, all benefiting from studio-grade signal processing featuring audiophile-grade, fully variable filters and calibrated potentiometers beneath a sealed security cover.
Uninterrupted Power and Built to Last!
With ADVANCED ROLLBACK PROTECTION, our innovative circuit design ensures the amplifier will never shut down due to thermal overload, keeping your music playing even under the most demanding conditions, all while offering flexible AUTO TURN-ON CAPABILITIES (via auto signal sensing, auto DC-offset sensing, or conventional +12 volt turn-on lead), and a BUILT TOUGH all-aluminum, powder-coated housing that inhibits corrosion and features a sealed security cover to protect controls from the elements.
Power Your Entire System!
Our amplifier line offers complete flexibility, featuring FULL-RANGE STEREO variants available in 2, 4, 6, and 8 channels, specialized SYSTEM AMPLIFIERS with 3 models that power a whole system using 2 or 4 full-range outputs plus a dedicated subwoofer output, robust MONOBLOCK options with 300, 600, and 1000 watts, and versatile 24-VOLT OPTIONS available in XDM600/6-24V and XDM800/8-24V channel variants.
Frequently Asked Questions (FAQ)
- • Why does my JL Audio XDM200/2 power on but my speakers don't produce any sound?
Check the RCA or high-level input connections, speaker wiring, and input sensitivity settings. An incorrect input source is a common installation issue.
- • Can I bridge the XDM200/2 to power a single subwoofer?
Yes. The amplifier supports bridged mode when the connected load meets JL Audio's recommended impedance specifications.
- • Why does the amplifier enter protection mode after I increase the volume?
This is usually caused by overheating, a speaker short, or a load below the minimum recommended impedance.
- • Can I connect the XDM200/2 to a factory stereo without RCA outputs?
Yes. It accepts high-level speaker inputs, making it compatible with most factory audio systems.
- • Why do my speakers sound distorted at moderate listening levels?
The amplifier gain may be set too high, or the source unit may already be producing a clipped signal.
- • Why do I hear a buzzing or alternator whine through my speakers?
This is commonly caused by poor grounding or signal cables routed too close to power wiring.
- • Can I run two 2-ohm speakers on the XDM200/2?
Yes. The amplifier is stable at 2 ohms per channel when wired according to JL Audio's recommendations.
- • Why does the amplifier get hot even when playing at moderate volume?
Restricted airflow, improper mounting, or low speaker impedance can increase operating temperature.
- • Can I mount the XDM200/2 vertically inside a vehicle?
Yes. Vertical installation is acceptable as long as the amplifier has sufficient ventilation.
- • Why does the amplifier stay powered after I shut off my vehicle?
The remote turn-on wire is likely connected to constant power instead of a switched ignition or accessory source.
- Low Frequency Response : 50-500 Hz
- High Frequency Response : 50-500 Hz
- Number of Channels : 2
- Frequency Response : 12-22000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 2x100 Watts
- Amplifier Class : D
- Fuse Rating : 20 A
Features:
- FIDELITY FOR ALL: Our exclusive dual-mode input filter and differential-balanced inputs result in outstanding noise rejection and crystal-clear audio performance in boats or cars.
- EQUIPPED WITH NexD™: Advanced switching technology for exceptional efficiency reduces current draw and heat, permitting reliable high-power output from a compact and easy-to-install chassis.

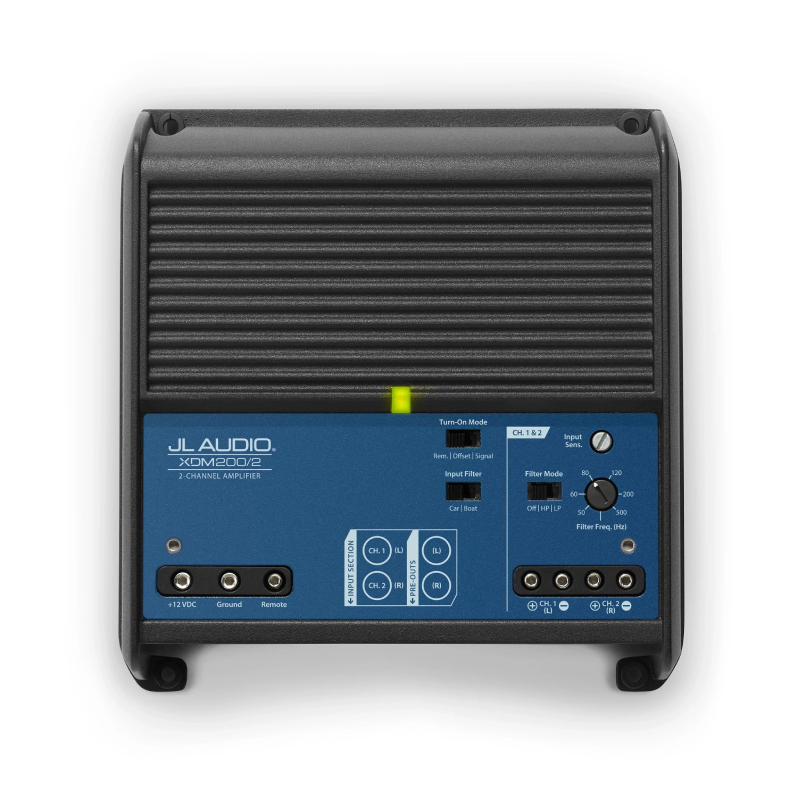

- STUDIO-GRADE SIGNAL PROCESSING: Beneath every XDM amplifier’s sealed security cover, you’ll find audiophile-grade signal processing with fully variable filters and calibrated potentiometers.
- ADVANCED ROLLBACK PROTECTION: Innovative circuit design ensures the amplifier will never shut down due to thermal overload and keeps the music playing, even under the most demanding conditions.
- AUTO TURN-ON CAPABILITIES: Choose from 3 options: auto signal sensing with +12-volt remote out; auto DC-offset sensing with +12-volt remote out; or conventional +12 volt turn-on lead.

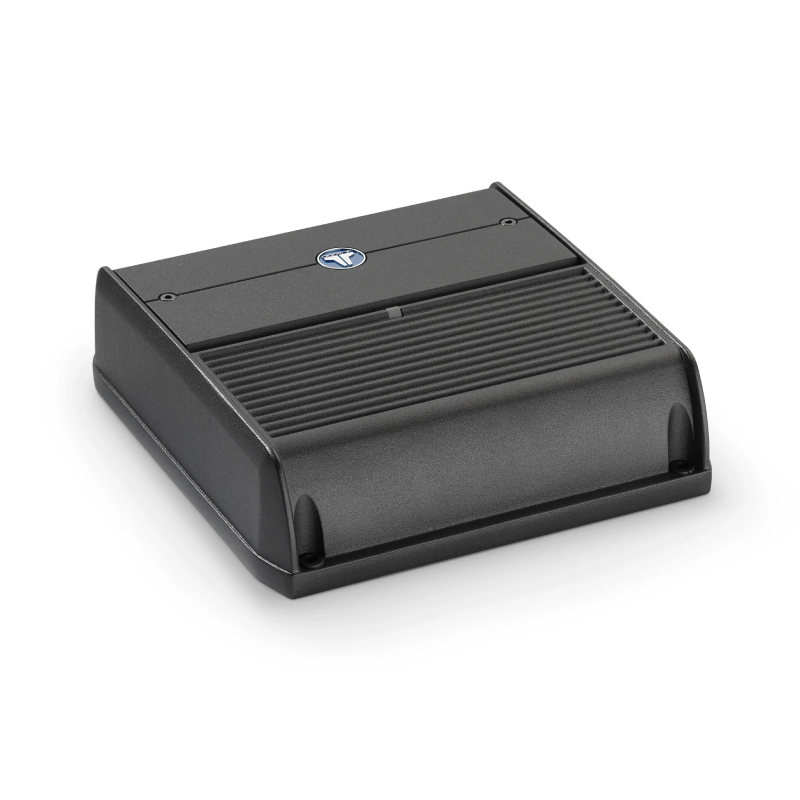

- BUILT TOUGH: The all-aluminum, powder-coated housing inhibits corrosion, and a sealed security cover protects controls from the elements.
- FULL-RANGE STEREO: These amplifiers are available in 2, 4, 6 and 8 channel variants.
- SYSTEM AMPLIFIERS: There are 3 models to power a whole system with 2 or 4 full-range outputs plus a subwoofer output.
- MONOBLOCK: Three models are available with 300, 600 and 1000 watts.
- 24-VOLT OPTIONS: These amplifiers are available in 6 and 8 channel variants.
Specifications:
- RMS Power Output (Watts x Channels): 75 x 2
- Peak Power Output (Watts x Channels): ---
- Power at 2 Ohms (Watts x Channels): 100 x 2
- Power at 1 Ohm (Watts x Channels): ---
- Bridged Power (Watts x Channels): 200 x 1
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Best Frequency Response: 12Hz–22k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 104 dB
- Input Voltage: 14.4v
- Amplifier Class: D
- Built-in DSP: No
- Remote Control: Optional
- Low-Pass Crossover Frequency: 50–500 Hz
- Low-Pass Slope (dB/octave): 12 dB/octave
- High-Pass Crossover Frequency: 50–500 Hz
- High-Pass Slope (dB/octave): 12 dB/octave
- Bass Boost: No
- Bass Boost Frequency: N/A
- Fan Cooled: No
- Fuse Rating: 20
- Speaker Level Inputs: Yes
- Preamp Outputs: 2
- Width (inches): 6-7/8
- Height (inches): 2
- Depth (inches): 7-1/8
- UPC: 699440986793
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Set it in bridge mode for my 8 inch sub. Pretty okay. A little bit expensive for a not so powerful amp but the sound quality is really top notch for what it is.
