Axxess  AXDSPX-ETH1

Bose®/DSP Data Interface with Amplifier Bypass Harness for Select 2019-Up GM Vehicles

Item #88788

Condition:   Brand New

Product Highlights

  • Bose Compatible
  • DSP Control
  • Amplifier Bypass
  • Seamless Integration
  • Factory Retention

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$517.94

  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Axxess Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Axxess Banner

Axxess AXDSPX-ETH1 Bose®/DSP Data Interface with Amplifier Bypass Harness for Select 2019-Up GM Vehicles


We are an Axxess authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

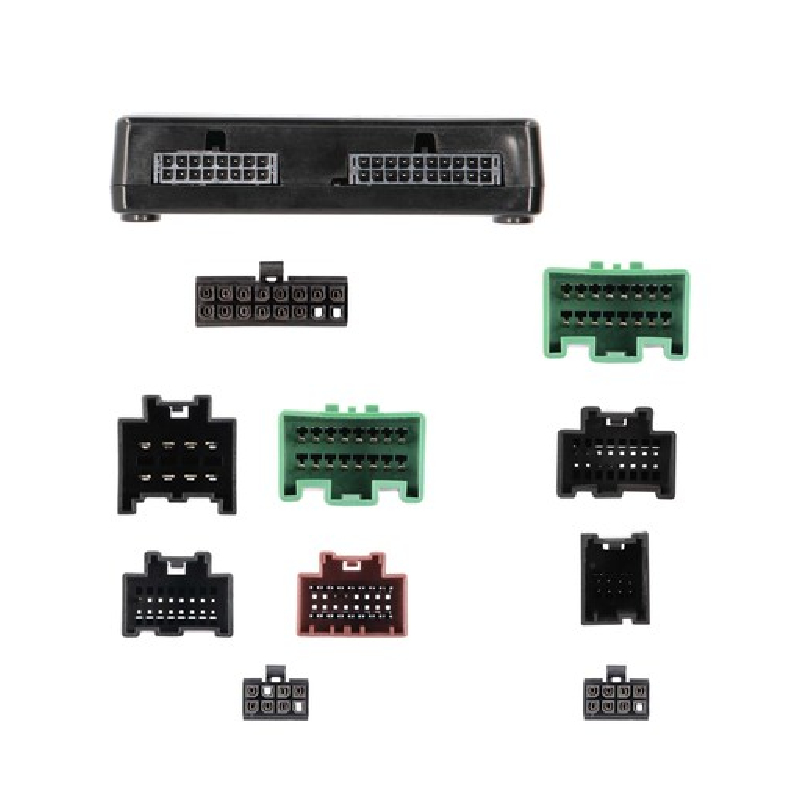

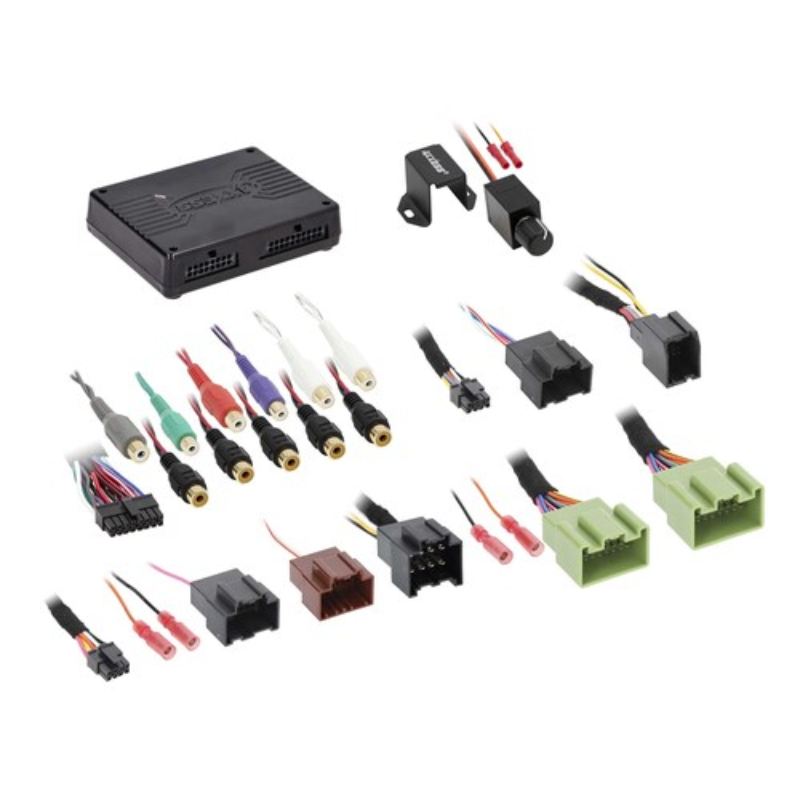

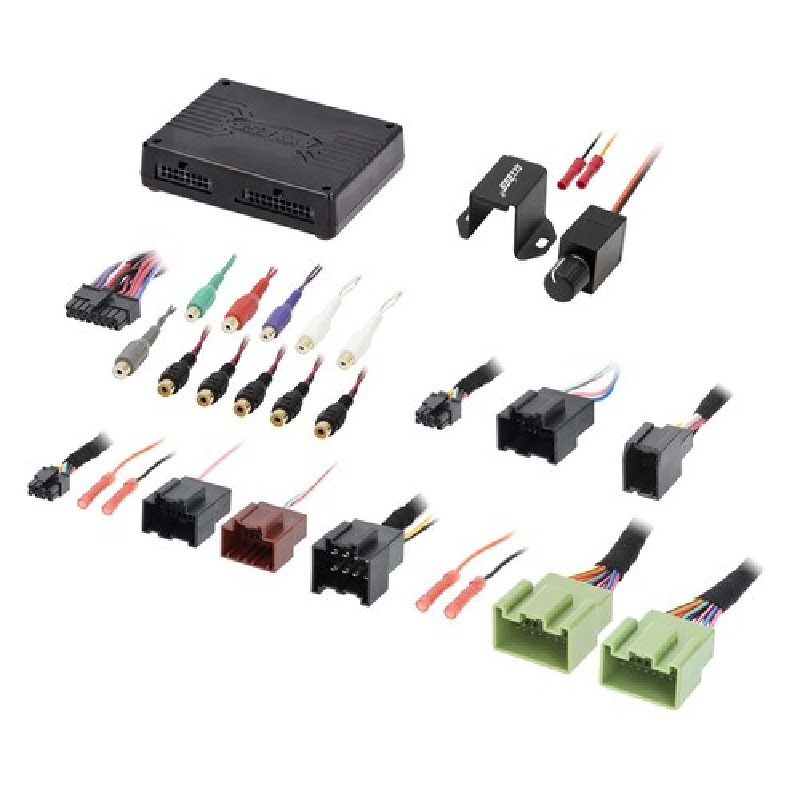

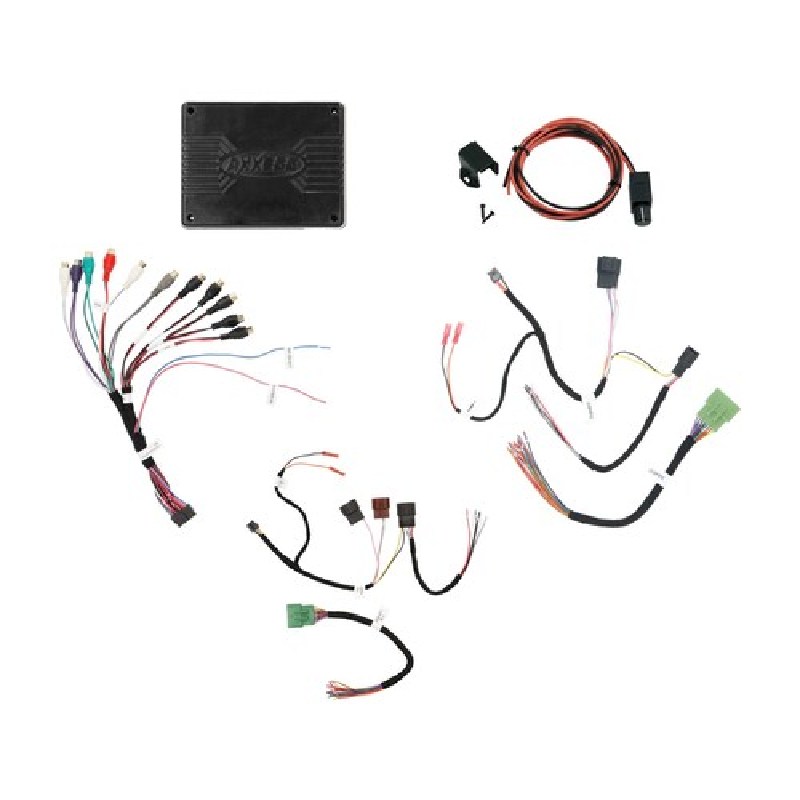

  • • Bose®/DSP Data Interface with Amplifier Bypass Harness
  • Owner's Manual
Ethernet DSP Audio Integration System

Upgrade your vehicle’s audio performance with a system designed specifically for Ethernet amplifiers, ensuring fast and reliable digital communication. It includes an Ethernet data interface and built-in AXDSP-X technology for advanced sound processing and tuning control. Engineered for seamless integration, it delivers a clean, powerful, and fully customizable aftermarket audio upgrade.

Complete Factory Feature Retention Interface

Upgrade your audio system while maintaining essential factory functionality with a clean and reliable amplifier bypass harness for seamless installation. It retains important factory chimes, including parking sensor alerts, ensuring safety and awareness are not compromised. You also keep OnStar voice prompts fully functional, delivering a smooth and connected driving experience with your aftermarket setup.

Advanced Chime & Voice Control Interface

Upgrade your audio experience with all chimes and voice prompts routed through your aftermarket amplifier for clear, consistent sound quality. Easily customize your alerts with an adjustable chime level to match your preferred listening environment. With Micro “B” USB updatable support, your system stays current for long-term performance and compatibility.


SPECIFICATIONS



FEATURES


Features:

  • Designed for Ethernet amplifiers
  • Ethernet data interface included
  • AXDSP-X included
  • Includes an amp bypass harness
  • Retains factory chimes, including parking sensor chimes
  • Retains OnStar voice prompts
  • All chimes/voice prompts go through the aftermarket amp
  • Adjustable chime level
  • Micro “B” USB updatable



Specifications:

  • Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
  • 6 inputs and 10 individually assignable outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Selectable Graphic or Parametric EQ
  • Independent equalization on each of the 10 outputs
  • Each channel can be delayed independently up to 10 ms
  • Chime control for GM vehicles
  • Clipping detection and limiting circuits
  • Bass knob included
  • Retains OE voice prompts (OnStar®) if vehicle is equipped
  • Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
  • Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
  • To be used with factory radios
  • Read, write, and store configurations for future recall
  • Password protect feature available in the app



Vehicle Applications:

  • Cadillac
    • XT4 2019-2023 , Bose
  • Chevrolet
    • Blazer 2019-2023 , IOT or IOU & Bose , N/A
    • Camaro 2019-2023 , IOS or IOT & Bose , Luggage Compartment.
    • Cheyenne 2019-2021 , IOS or IOT & Bose , Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor.
    • Colorado (New Style) 2019-2022 , IOS or IOT & Bose , Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor.
    • Corvette 2020-2023 , , Trunk / Luggage Compartment, Middle under Floor Lining. Left of Fuse Block.
    • Equinox 2019-2023 , IOS or IOT & Bose , Beneath Center Console, below Instrument Panel.
    • Malibu 2019-2022 , IOU or IOS & Bose , Right Rear of Trunk, Behind Trim Panel.
    • Silverado 2022-2024 , Bose , Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor.
    • Silverado 2019-2021 , IOS or IOT & Bose , Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor.
    • Suburban 2021-2023 , Bose , Left Rear of Trunk, Behind Trim Panel.
    • Tahoe 2021-2024 , Bose , Left Rear of Trunk, Behind Trim Panel.
    • Traverse 2020-2022 , IOS or IOT & Bose , Below Center Console.
  • GMC
    • Acadia 2020-2022 , IOU & Bose , In the Passenger Compartment, under the front of the center console.
    • Acadia 2019-2019 , IOU & Bose , In the Passenger Compartment, under the front of the center console.
    • Canyon 2019-2022 , IOS or IOT & Bose , Passenger Side, Mounted Behind Glovebox.
    • Sierra 2019-2024 , Bose , Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor.
    • Terrain 2019-2022 , IOSIOT or IOU & Bose , Below Center of Instrument Panel, Mounted on Floor.
    • Yukon 2021-2024 , Bose , Rear Compartment, behind Left Rear Quarter Trim.
  • UPC: 086429424788
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
