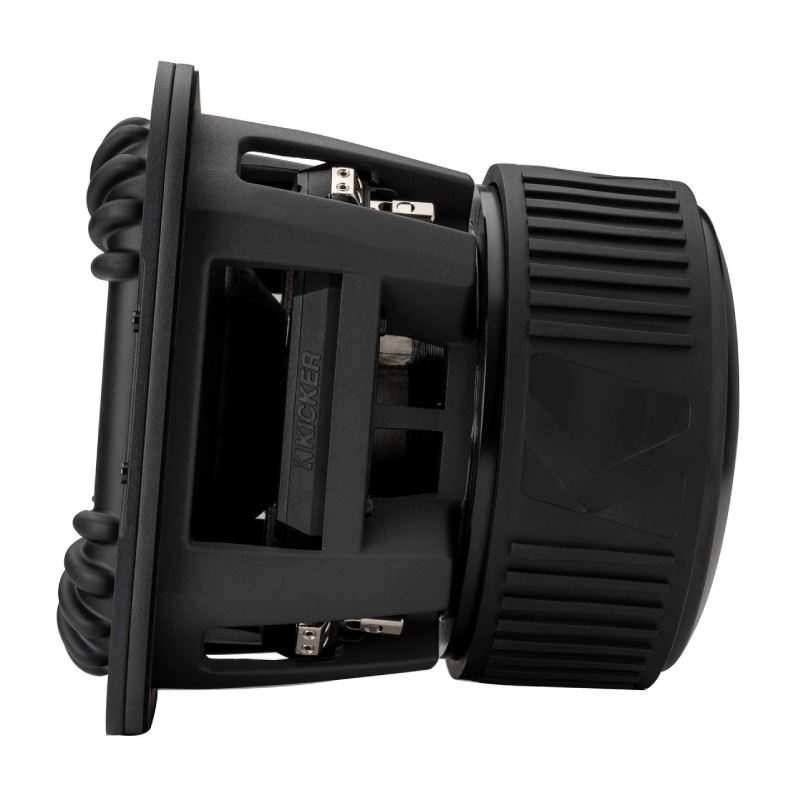

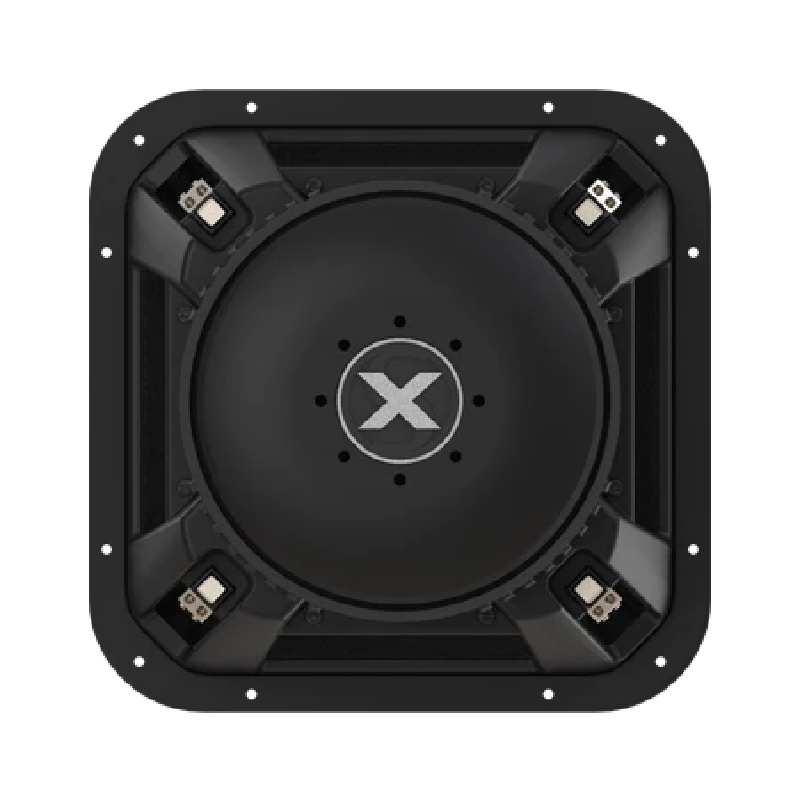

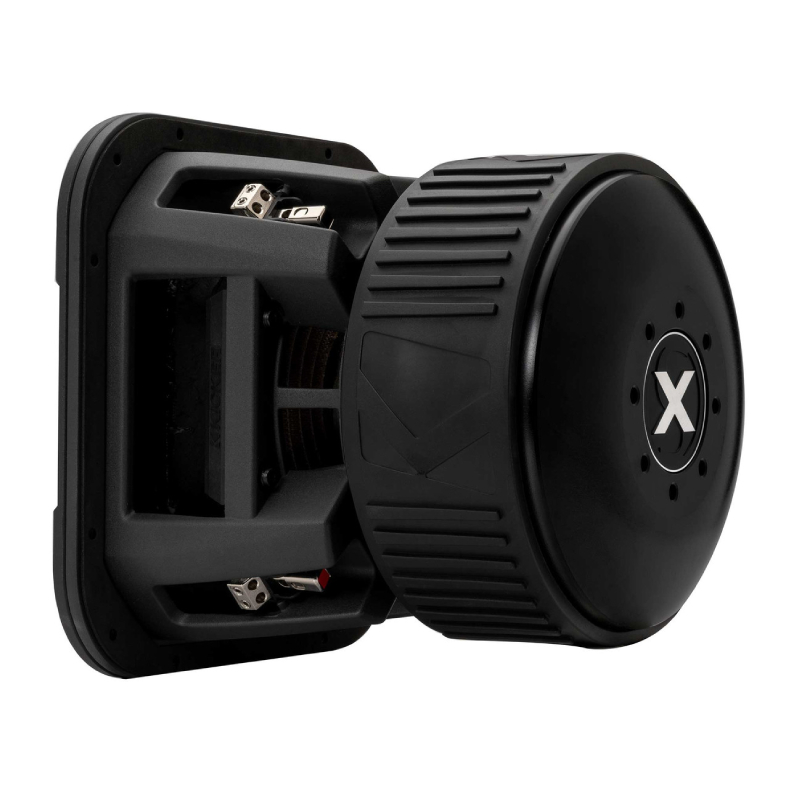

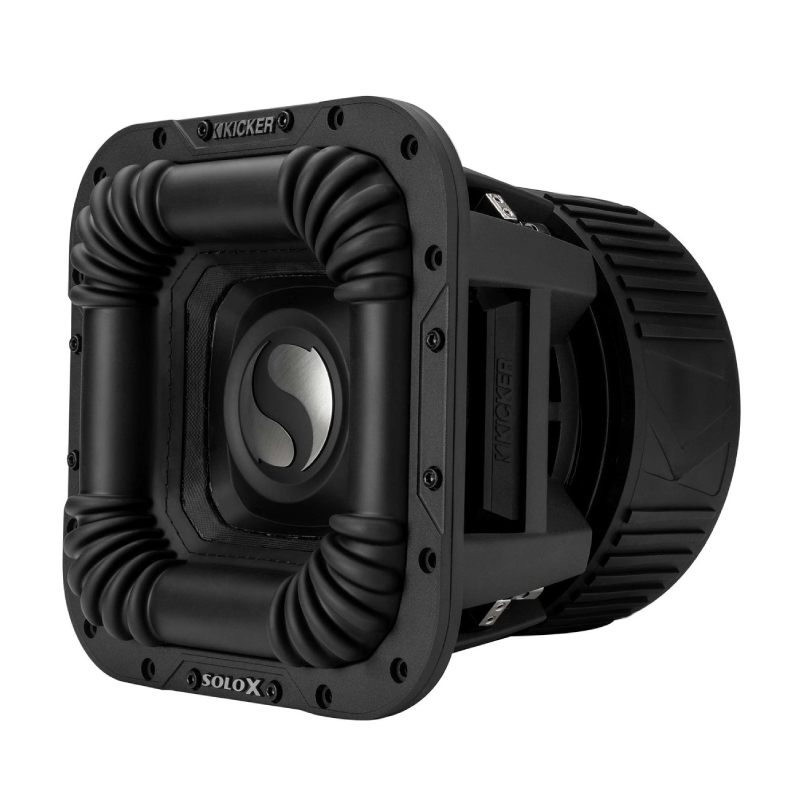

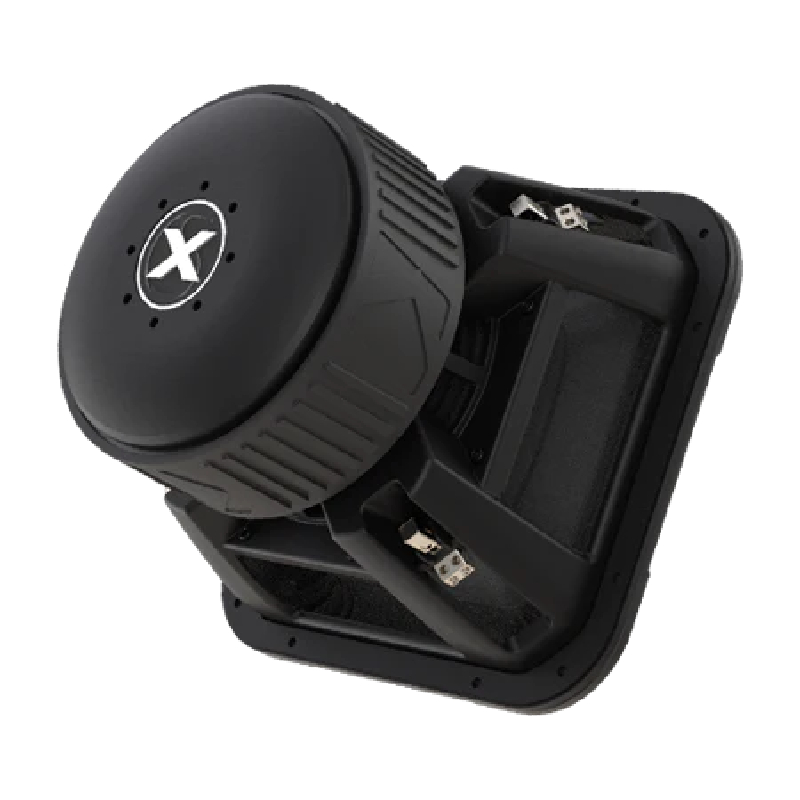

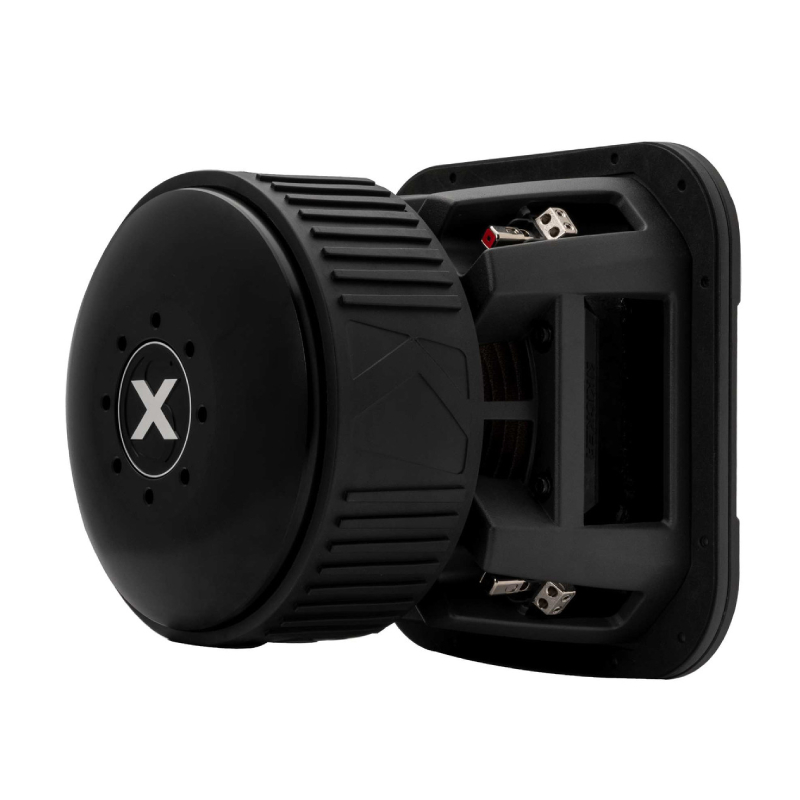

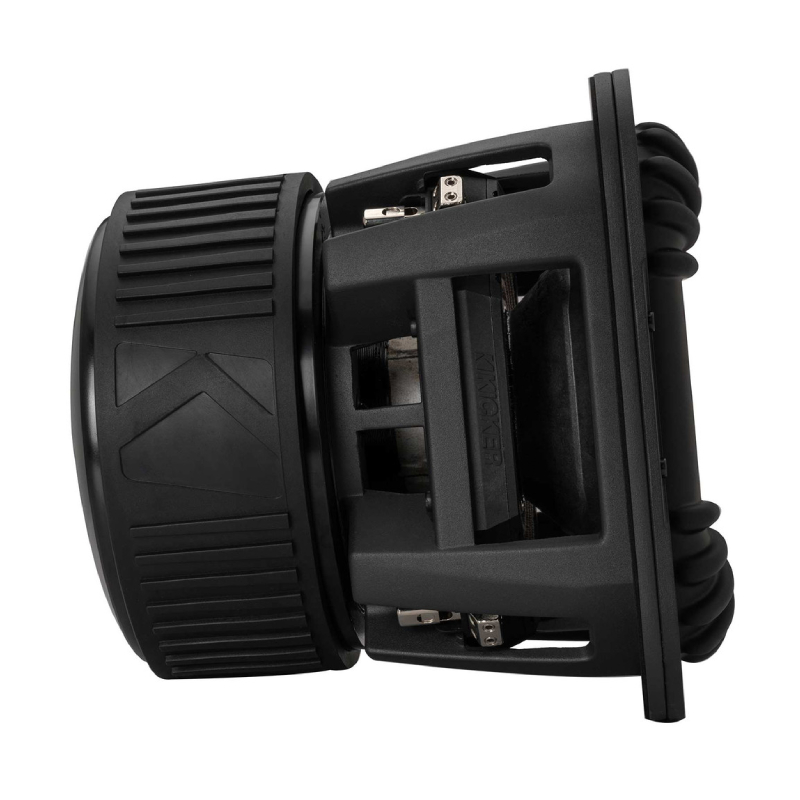

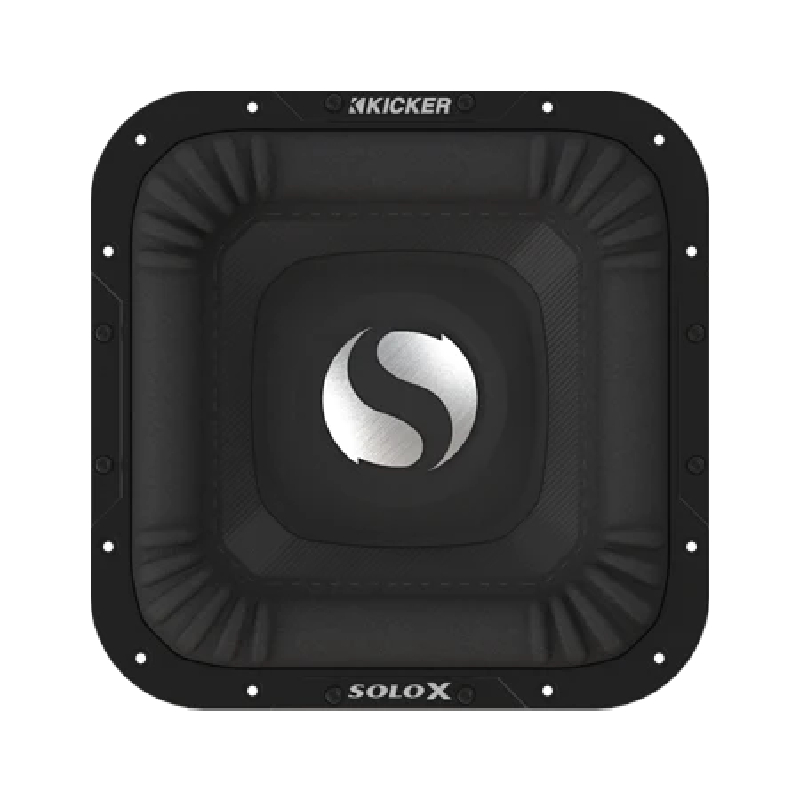

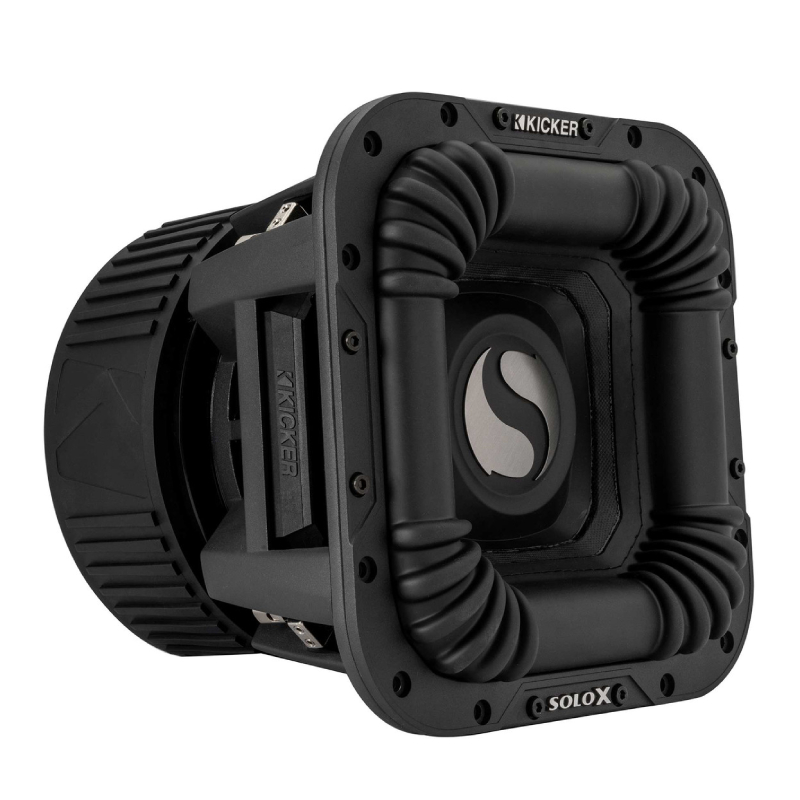

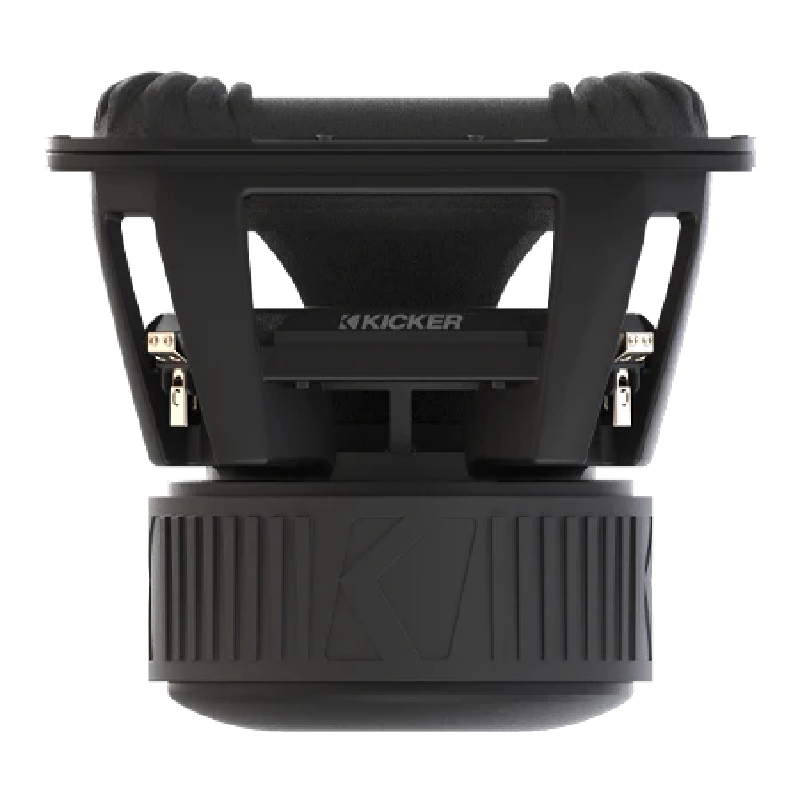

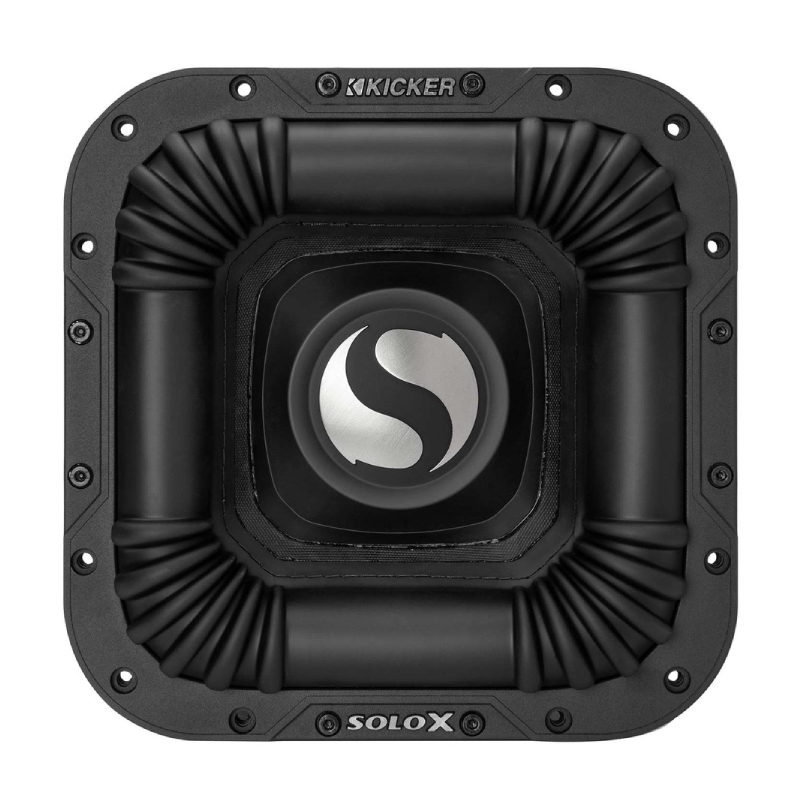

Kicker 49L7X102 SoloX L7X Series 10" 2000W RMS (4000W Peak Power Handling) 2 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" SoloX L7X Series Dual Voice Coil Component Car Subwoofer
- • (2) Kicker Decals
- • Template on box lid
- • Information sheet with QR code to owner's manual
- • Owner's Manual
Why Choose Kicker 49L7X102 Component Car Subwoofer?
Unleash Unmatched Bass and Performance with Advanced Design Features
Unlock the power of ultra-deep bass at high volumes with a high-excursion design, featuring a field-replaceable recone kit for easy maintenance, Forced Air Cooling™ for optimal performance, and a durable three-inch aluminum voice coil former for crystal-clear, high-quality sound.
Engineered for Strength and Durability
Experience unparalleled stability and control with the dual-spider suspension, coupled with a strong, reliable double-pressed pulp cone, a heavy-duty UV-resistant Santoprene surround for long-lasting performance, and a custom rubber magnet boot for added protection and durability—engineered for exceptional sound and reliability.
Maximized Power and Performance
Enjoy consistent performance with the lightweight, rigid cast-aluminum basket, flexible wiring options through the single and dual 8 AWG terminals, and maximum power handling with the triple-stacked ferrite magnet—all designed to deliver exceptional sound and reliability.
Frequently Asked Questions (FAQ)
- • Why does my 10-inch subwoofer have weak bass even with a good amplifier?
Weak output is usually caused by an enclosure that does not meet the recommended specifications or improper amplifier tuning. Check the enclosure volume, crossover settings, and speaker polarity to improve bass performance.
- • Can I install this subwoofer in a sealed or ported enclosure?
Yes. It is designed to deliver excellent performance in both enclosure types when built according to the recommended internal volume and port dimensions.
- • Why does my amplifier go into protection mode when the bass gets loud?
This is commonly caused by an impedance mismatch, loose wiring, or amplifier overheating. Verify the final speaker load and inspect all power and speaker connections carefully.
- • Can I connect this subwoofer to my factory head unit?
Yes. An external amplifier is required, and many factory audio systems also need a line output converter to provide the proper signal for the amplifier.
- • Why does the bass sound distorted when I increase the volume?
Amplifier clipping, excessive gain, or incorrect crossover settings are the most common causes. Proper amplifier tuning helps maintain clean bass while protecting the subwoofer from damage.
- • Does this subwoofer require a break-in period?
Yes. Playing music at moderate listening levels for several hours allows the suspension to loosen naturally and improves overall low-frequency response.
- • Why do I hear rattling noises from my trunk instead of clean bass?
Loose trim panels, license plates, and enclosure hardware commonly vibrate during heavy bass. Tightening loose components or adding sound-deadening material usually resolves the issue.
- • Can I use an amplifier that produces more RMS power than the subwoofer is rated for?
Yes. A properly adjusted amplifier with clean output and adequate headroom is generally safer than an underpowered amplifier that clips.
- • Why does the cone move but produce almost no bass?
This usually indicates incorrect crossover settings, reversed speaker polarity, or an air leak in the enclosure. Double-check the amplifier configuration and all speaker wiring before assuming the subwoofer is faulty.
- • Can I wire two subwoofers to a single mono amplifier?
Yes. Make sure the combined impedance matches the amplifier's supported operating range before connecting both subwoofers.
- Diameter : 10 Inch
- Sensitivity : 82.39 dB
- Impedance : 2 Ohm
- Frequency Response : 25-100 Hz
- Peak Power Handling : 4000 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 2000 Watts
- Free Air : No
Features:
- High-Excursion Design: Crafted for ultra-deep bass at high volumes

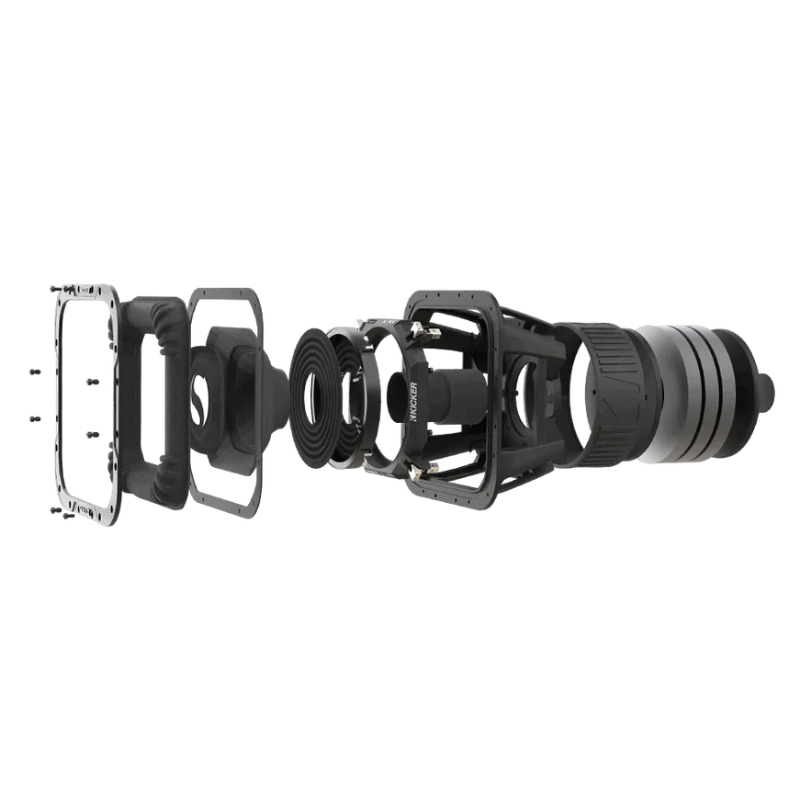

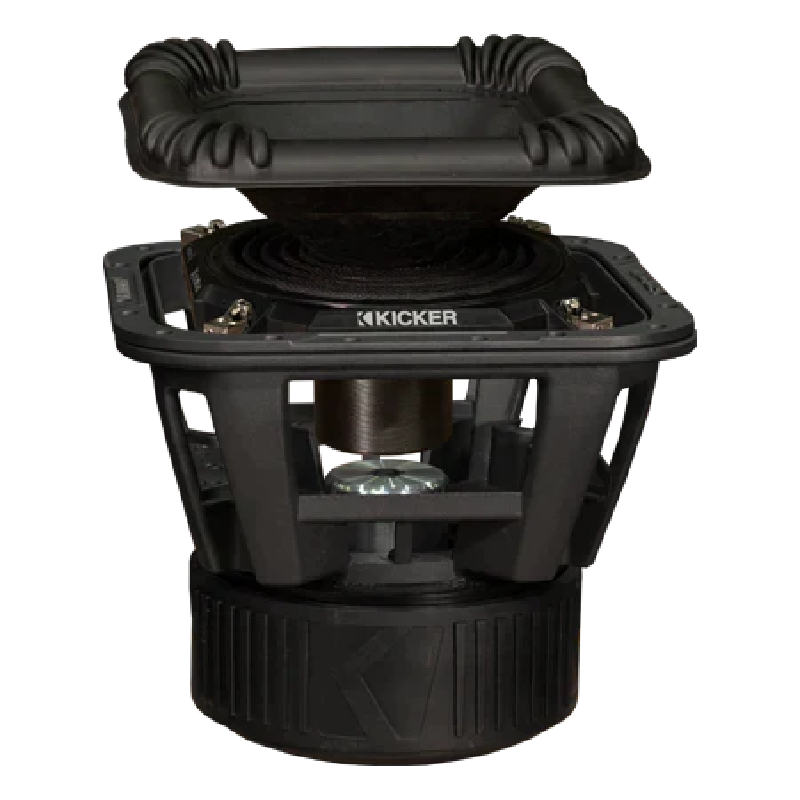

- Field-Replaceable Recone Kit: Includes cone, voice coil, and spider assembly, with no gluing required
- Forced Air Cooling™: Optimized cooling for enhanced performance
- Three-Inch Aluminum Voice Coil Former: Ensures durability and high-quality sound
- Dual-Spider Suspension: Provides exceptional stability and control
- Double-Pressed Pulp Cone: Strong and reliable construction
- Heavy-Duty UV-Resistant Santoprene Surround: Built for long-lasting performance

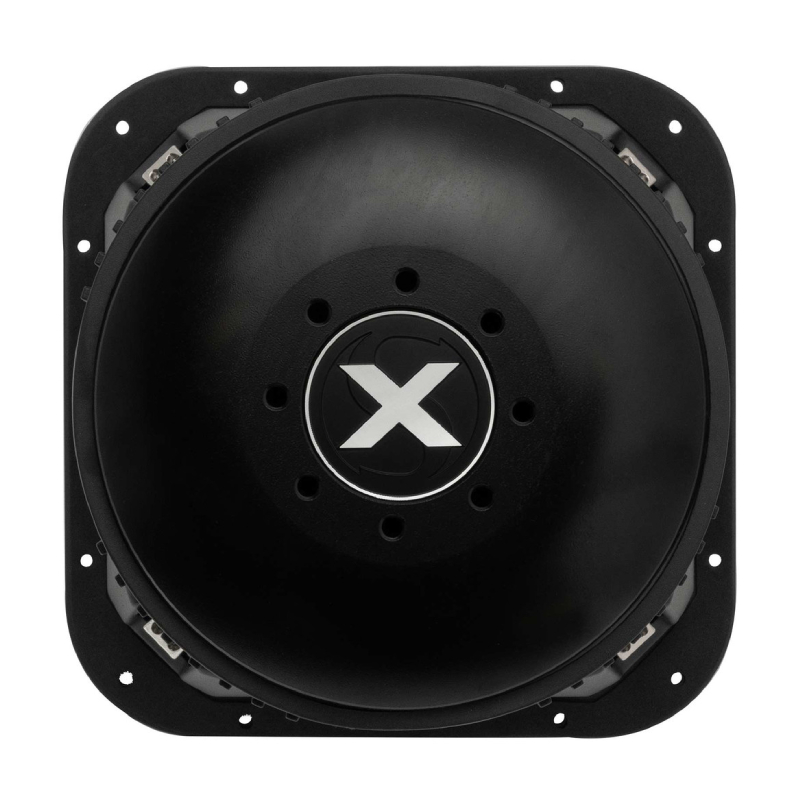

- Custom Rubber Magnet Boot: Adds extra protection and durability
- Cast-Aluminum Basket: Lightweight yet rigid for consistent performance
- Single 8 AWG Terminal and Dual 8 AWG Terminal Block: Flexible wiring options for convenience
- Triple-Stacked Ferrite Magnet: Maximum power handling and efficiency
Specifications:
- Size: Square 10-inch
- Impedance: 1, 4 Ohm
- Cone Material: Pulp
- Surround Material: Santoprene Rubber
- Basket Material: Cast Aluminum
- Grille: None included
- Free-Air: No
- Dual Voice Coil: Yes
- Sensitivity: 82.39 dB at 1 watt
- Frequency Response: 25 - 100 Hz
- Max RMS Power Handling: 2000 watts
- Peak Power Handling: 4000 watts
- Top Mount Depth: 9.44 inches
- Bottom Mount Depth: N/A
- Cutout Diameter or Length: 9.25 inches
- Frame Width: 10.675 inches
- Frame Length: 10.675 inches
- Vas: 8.6702 liters
- Fs: 39.6 Hz
- Qts: 0.469
- Xmax: 31.25 millimeters
- Ideal Sealed Box Volume: N/A
- Minimum Sealed Box Volume: N/A
- Maximum Sealed Box Volume: N/A
- Ideal Ported Box Volume: 2 cubic feet
- Minimum Ported Box Volume: N/A
- Maximum Ported Box Volume: N/A
- Port Diameter: N/A
- Port Length: N/A
- UPC: 713034018353
- Weight: 61.9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
