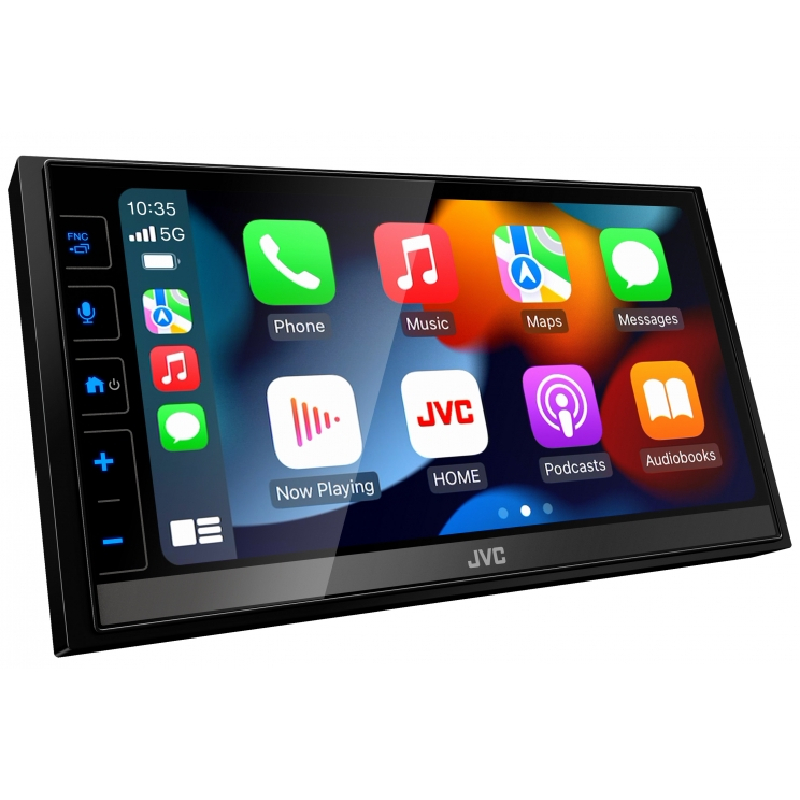

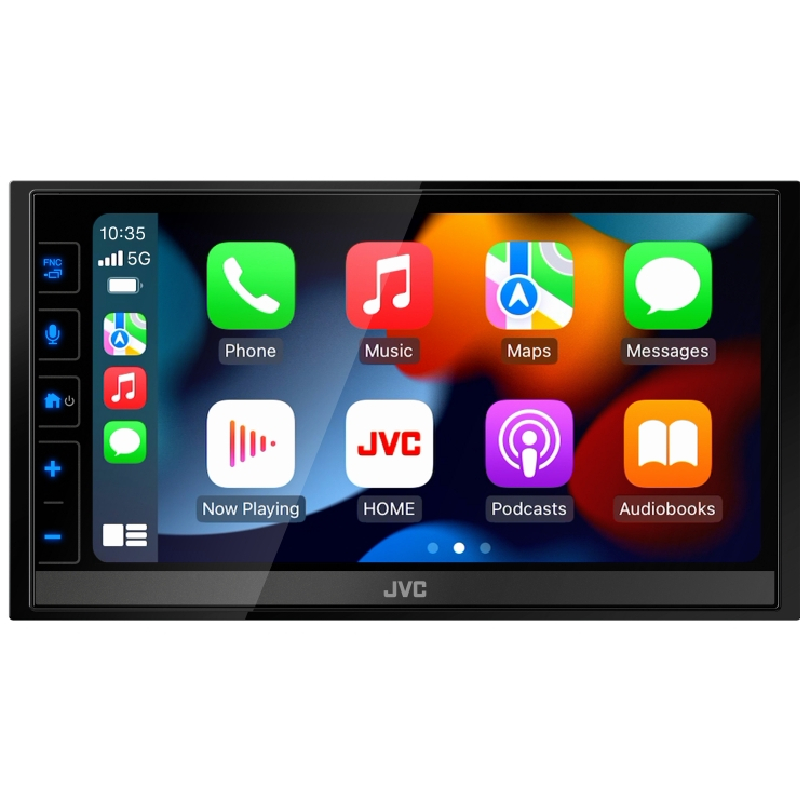

JVC KW-M780BT 6.8"6.8" Double DIN Digital Media Receiver Capacitive Touch Control Monitor
We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Digital multimedia receiver w/ fixed
- •Sleeve
- •Trim ring
- • Wiring harness
- •6.5' Parking brake wire
- •Microphone w/ bracket
- • GPS antenna
- •Self-adhesive pad
- •2 Radio removal tools
- •6 Pan-head ISO-mount screws
- •6 Flat-head ISO-mount screws
- •Owner's Manual
High-res Music Compatibility
Just because JVC's KW-M780BT multimedia receiver doesn't offer disc playback, you shouldn't be concerned about losing music choices. This receiver provides intuitive and recognizable smartphone interfaces, an option for satellite radio, high-res music compatibility, and Bluetooth® for wireless convenience. This receiver's 6.75” touchscreen display makes control easy, with Apple CarPlay®, Android Auto®, screen mirroring for Android phones. You can also add amplifiers and up to three cameras to complete your vehicle's infotainment system.
Controls Behave Like Your Phone's Interface
Apple CarPlay and Android Auto put your phone's content at your fingertips. This stereo's controls behave like your phone's interface, so there's no learning curve. Plug in your Android™ or iPhone®, and you'll get voice control access to your navigation, phone calls, weather, text messages, and of course all your music.

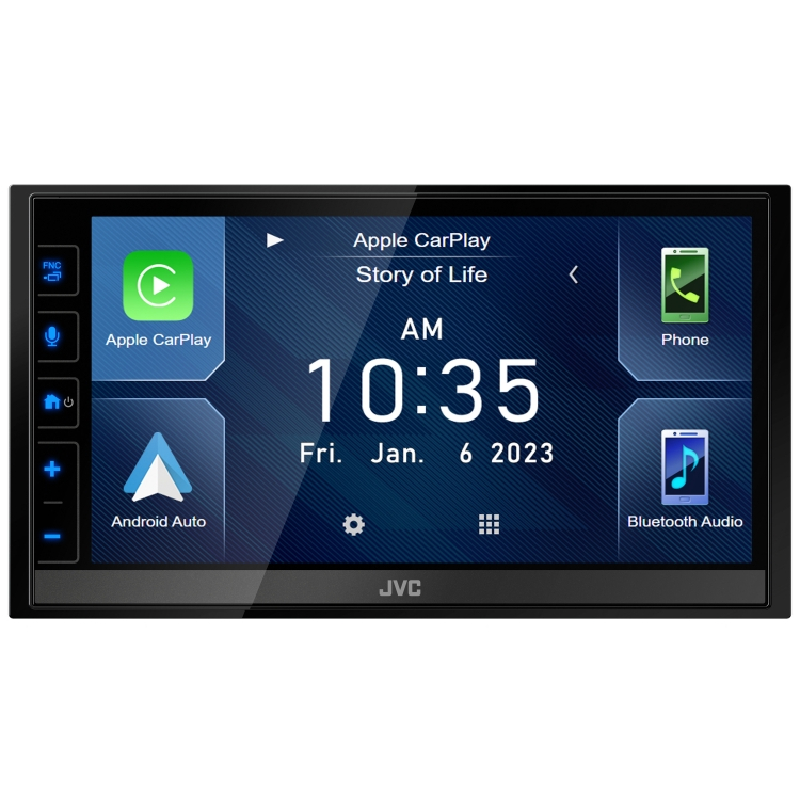

Lets You Customize Its Home Screen
This receiver's 6.75" capacitive display shows all your info in crisp detail and lets you customize its home screen for when Android Auto and Apple CarPlay are not active. When you're using the JVC onscreen interface, its built-in Gesture Control provides simple and quick control over volume, track forward, and track back with just a swipe of your finger.
This JVC also sports a 13-band equalizer that allows you to set up separate tone curves for different audio sources. Combine that with the built-in digital time alignment processor, and you can put yourself right in the engineer's seat. Three pairs of high-voltage preamp outputs give you flexibility in adding amplifiers to your system when you're ready to pump up the sound.
Music and Hands-free Phone Calls
Bluetooth enables wireless streaming for music and hands-free phone calls. You can quickly switch between two paired phones — handy for vehicles with more than one driver. Many portable audio players also include Bluetooth, so you can stream your personal music collections while you're on the road. When it comes to streaming audio, JVC's Streaming DJ feature lets you pair five phones so everybody can add their favorite songs to the road trip playlist.
- Built In Crossovers : Yes
- Built-in EQ : Yes
- DIN : 2
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
Features:
Monitor:
- Screen Size: 6.8"W VGA Screen
- Touch Panel: Capacitive
- Monitor Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Blue
- Dimmer: Yes
- Multilingual Display: Yes[4]
- Wallpaper Capture: Yes
Media Playback:
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
- H.264 Compatible: USB
- WMV Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- MKV Compatible: USB
Bluetooth Control:
- Built-in Bluetooth[1]: Yes (Wired-Mic included)
- Hands Free Call: Yes (HFP1.8 Wideband Speech)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Supported Audio Formats: AAC / SBC
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android: Yes (Android only)
Android Control

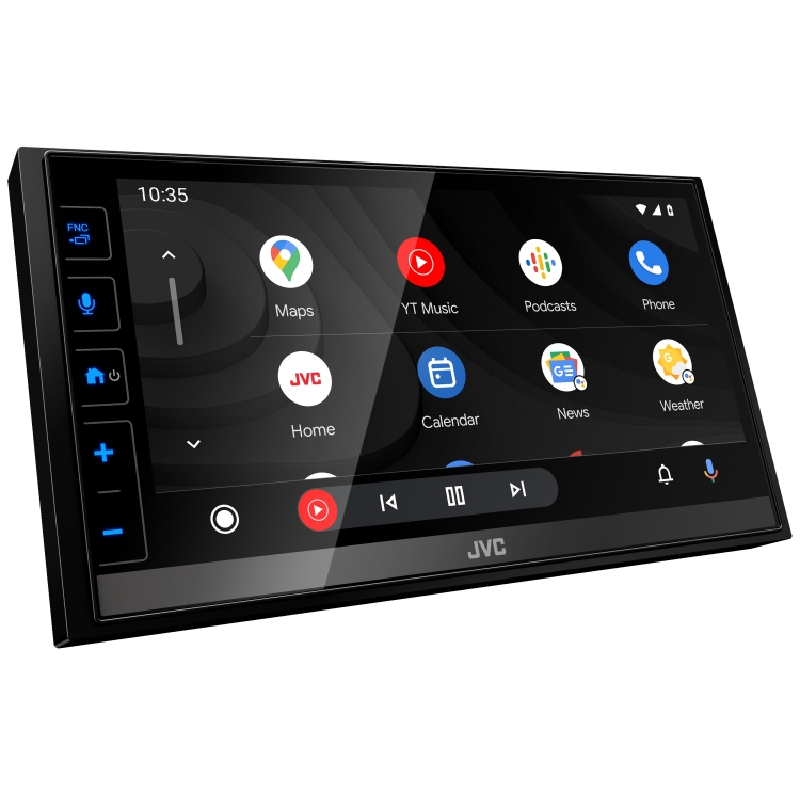

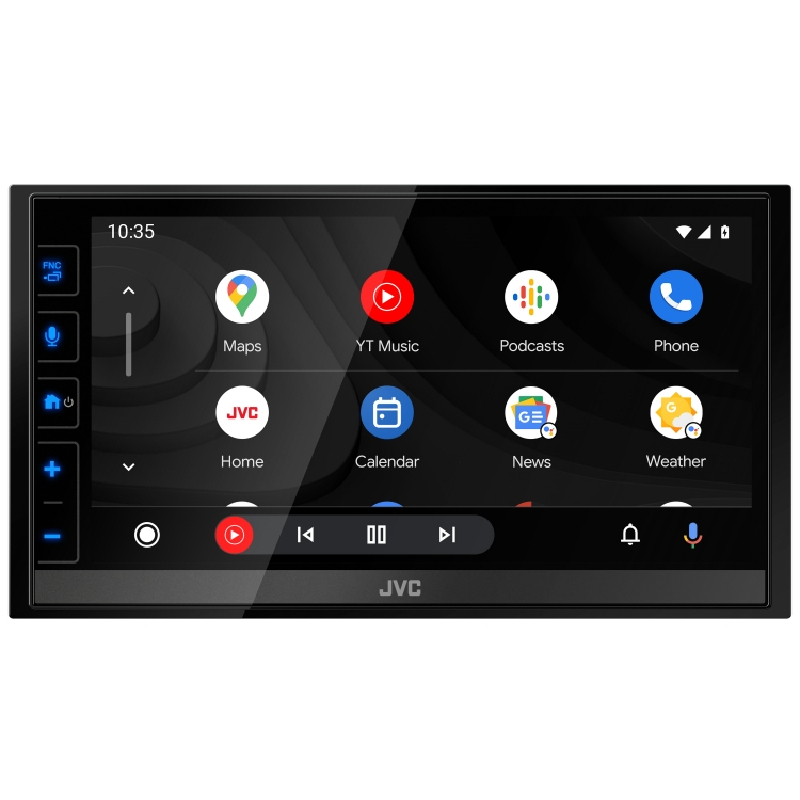

- Android Auto[2]: Yes (via USB)
- Mirroring for Android: Yes (via USB) *Need mirroring App
- Android Music Playback: Yes (via Bluetooth(R))
iPod/iPhone Control
- CarPlay[3]: Yes (via USB)
- iPhone Music Playback: Yes (via USB(CarPlay) or Bluetooth(AVRCP))
USB
- USB Port: x1 (High Speed)
- Position: Rear
- USB Power Supply: Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
Radio Tuner
- SiriusXM Ready: Yes
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
- FM Frequency Range: 87.9 - 107.9MHz
- AM Frequency Range: 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (8Preset + 4user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- Digital Track Expander: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes

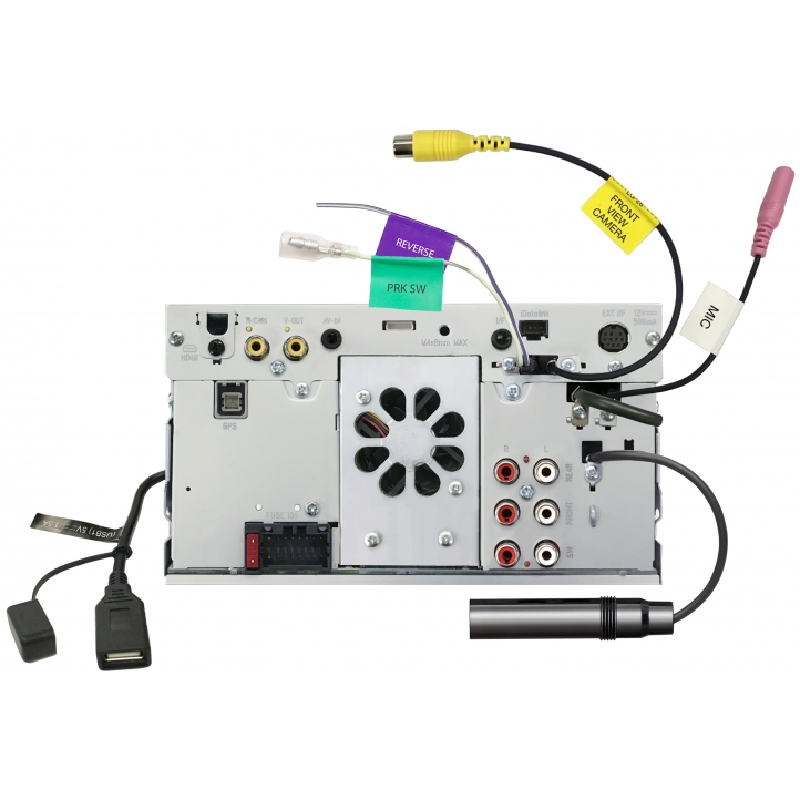

Inputs and Outputs
- AV Input: mini jack (AV-IN or Camera switchable)
- Video Out: RCA x 1
- HDMI Terminal: Yes
- Rear view camera Input: Yes
- Front view camera Input: Yes
- Line Output Terminals: 2Preouts (Terminal) + Sub WF (Cable)
- Pre-output Level/Impedance: 4.0V / 10k ohms
General
- iDatalink Maestro Ready: Yes
- Back Up Memory: Yes
- Face Type:
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree)
- Short Chassis: Yes (2-15/16inch, 75mm)
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
- Dimensions (W x H x D)
- Installation Size: 7-1/16" x 3-15/16" x 2-15/16" (180 x 100 x 75 mm)
- Weight: 2.7 lbs. (1.2kg) Including Sleeve and Trim plate
- Unit weight in individual package: 4.2lbs (1.9kg)
- UPC: 046838003615
- Weight: 3
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
