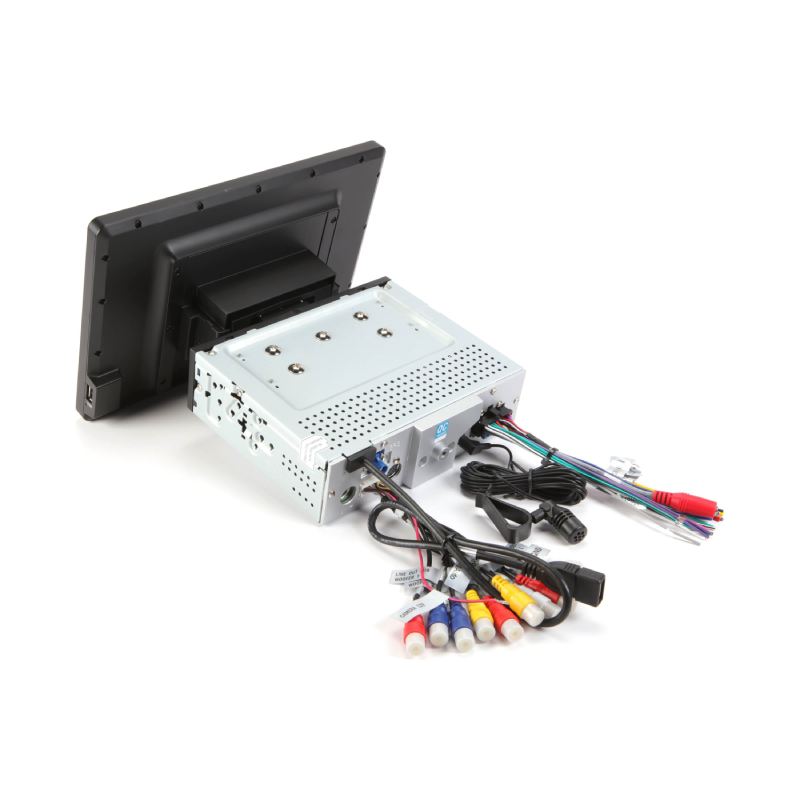

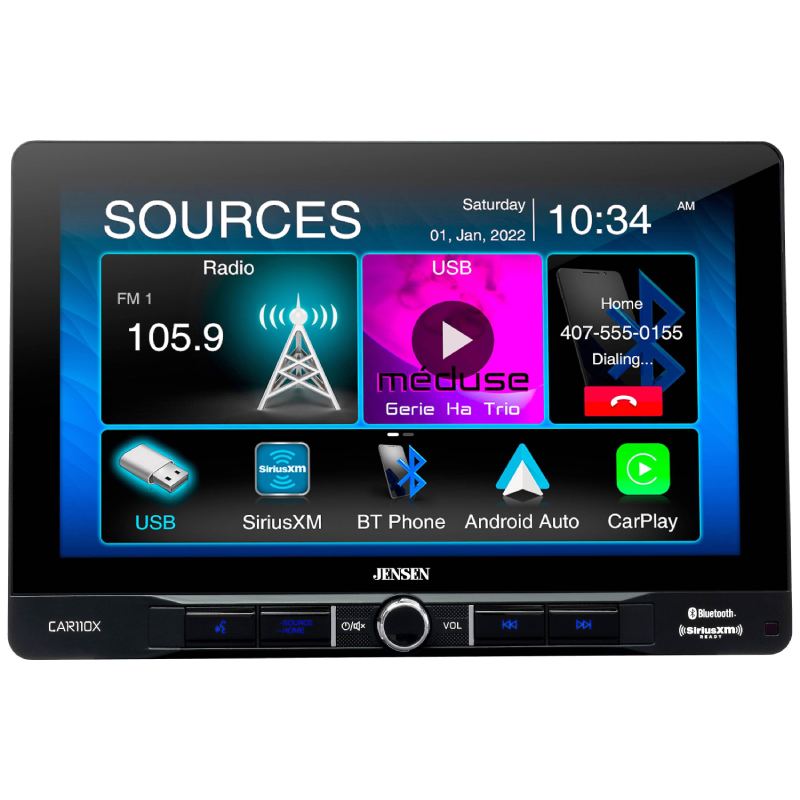

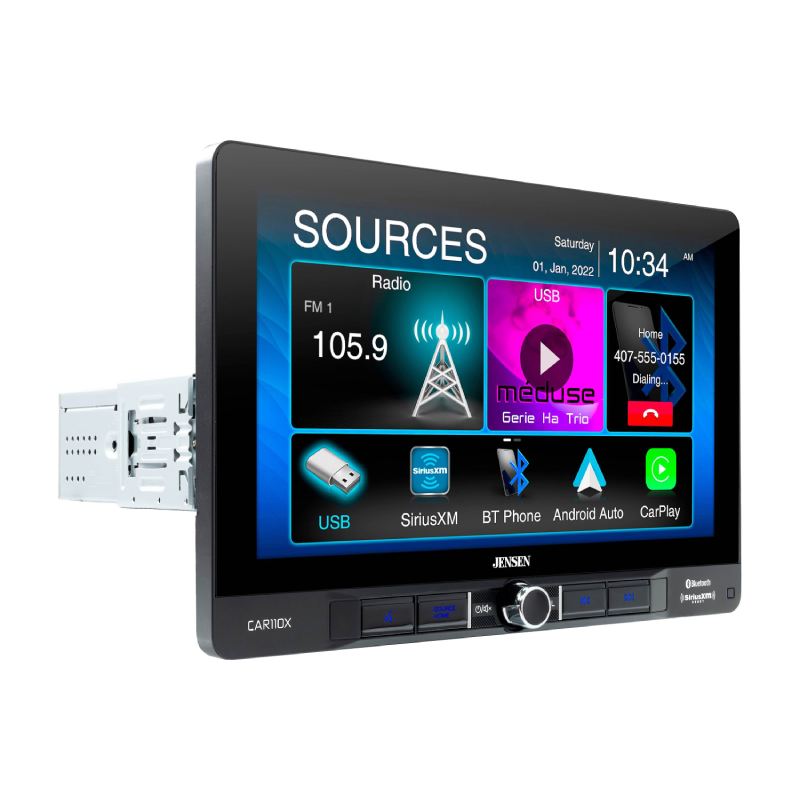

Jensen CAR110X Digital media Receiver
We are a Jensen authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

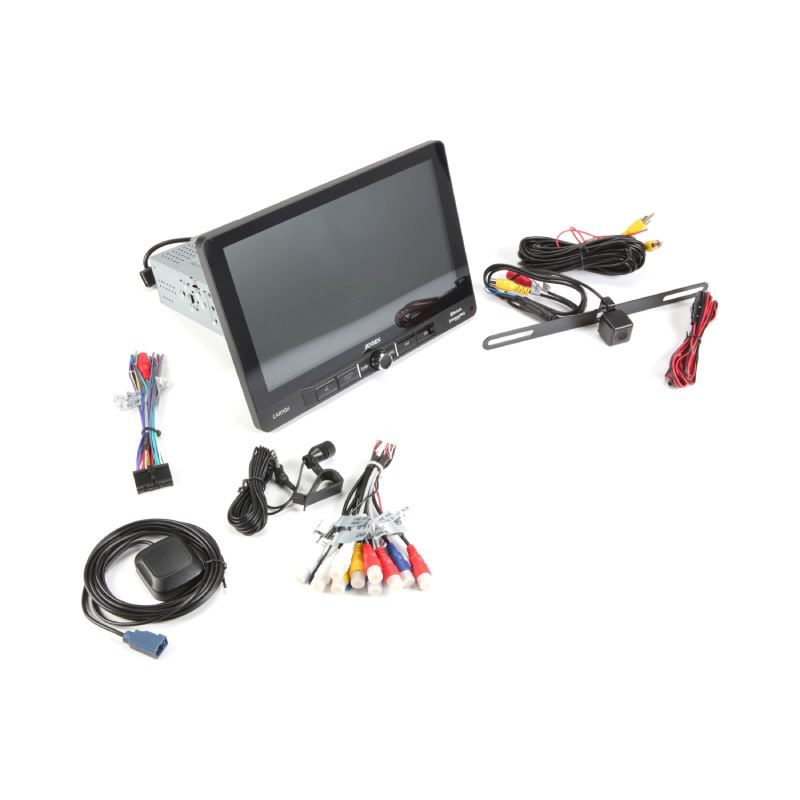

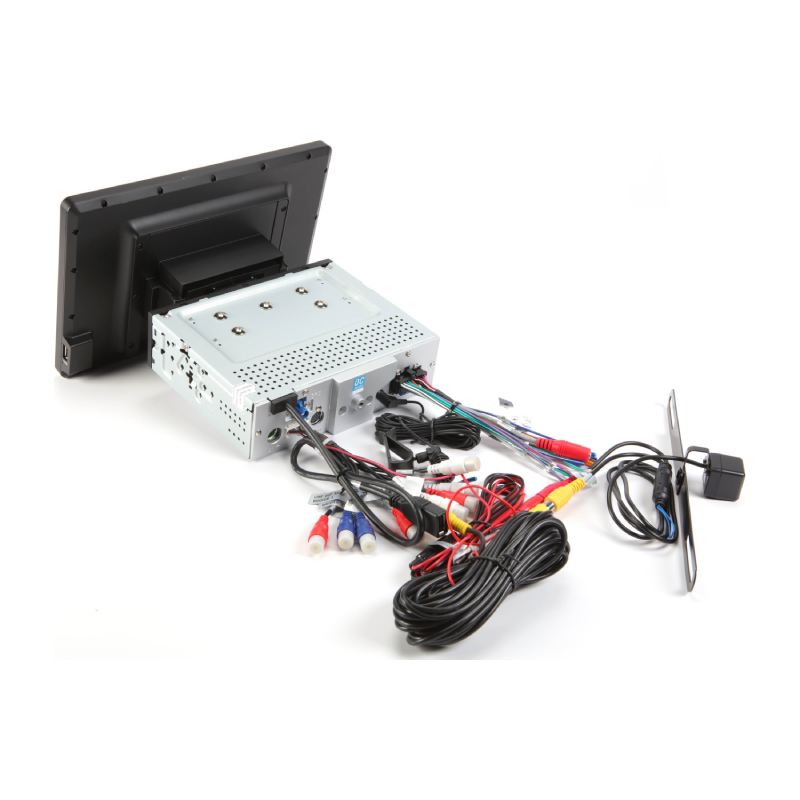

What's Inside?
- •Source unit (15A fuse)
- •10.1" Touchscreen monitor
- •Remote control (CR2025 3V battery installed)

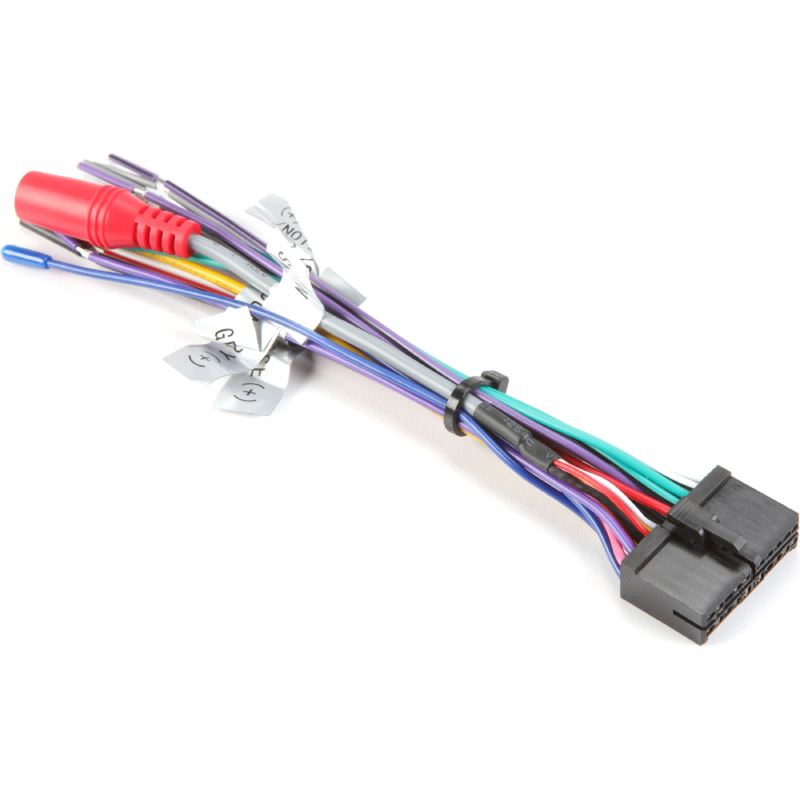

- •Wiring harness

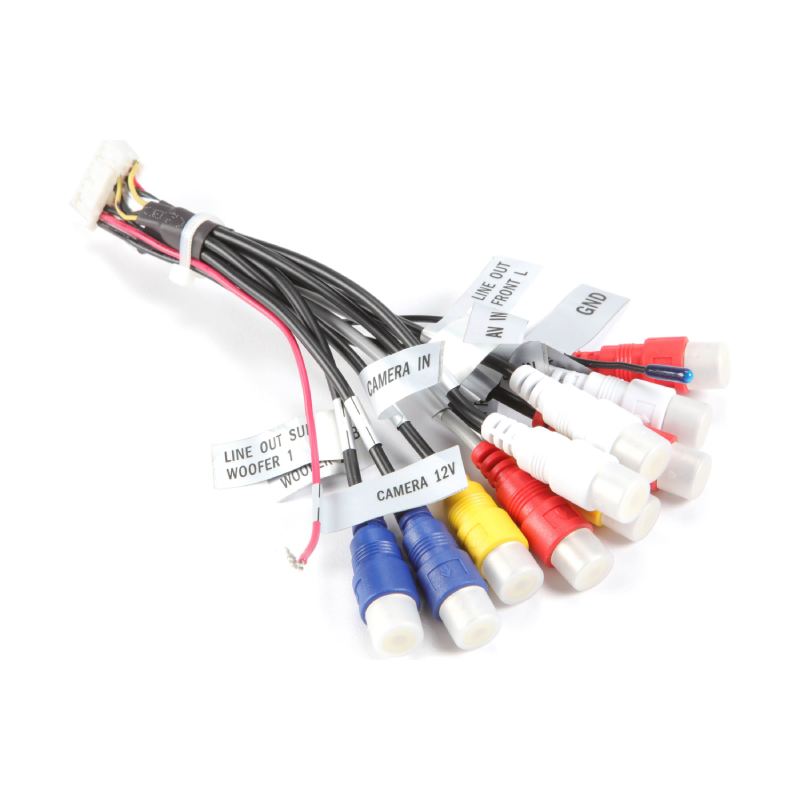

- •Preout/AV harness
- •GPS antenna (attached 9.75' cable terminated by Fakra connector)

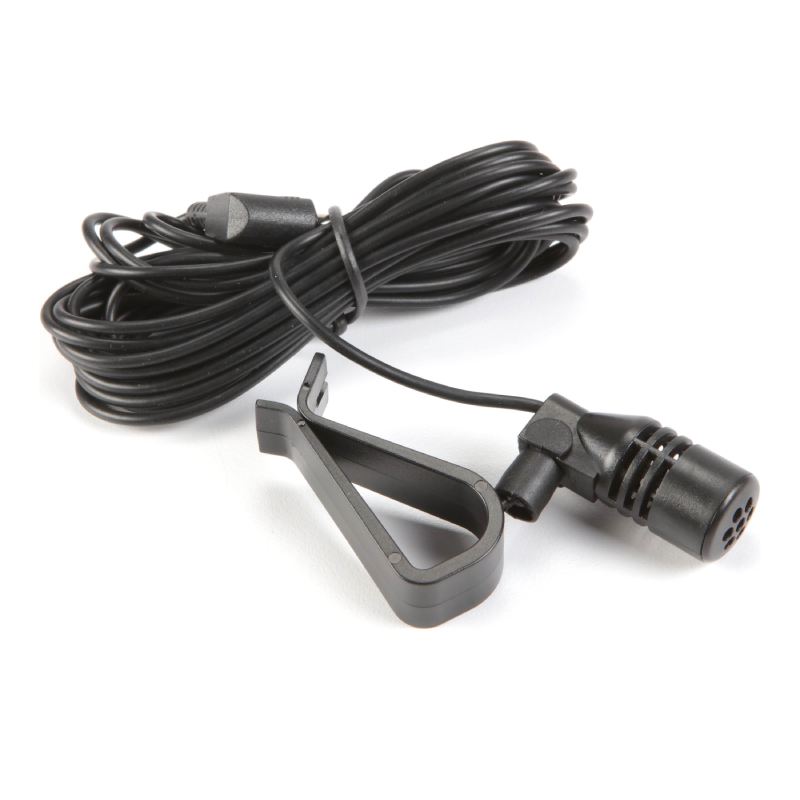

- •Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector
- •Self-adhesive bracket
- •Mounting sleeve (pre-installed)
- •Trim-ring
- •6 Side-panel covers
- •4 ISO-screws
- •4 LCD mounting screws
- •2 Radio removal tools
- •Quick Start Guide
- •Installation Guide
- •Online Warranty Registration Card

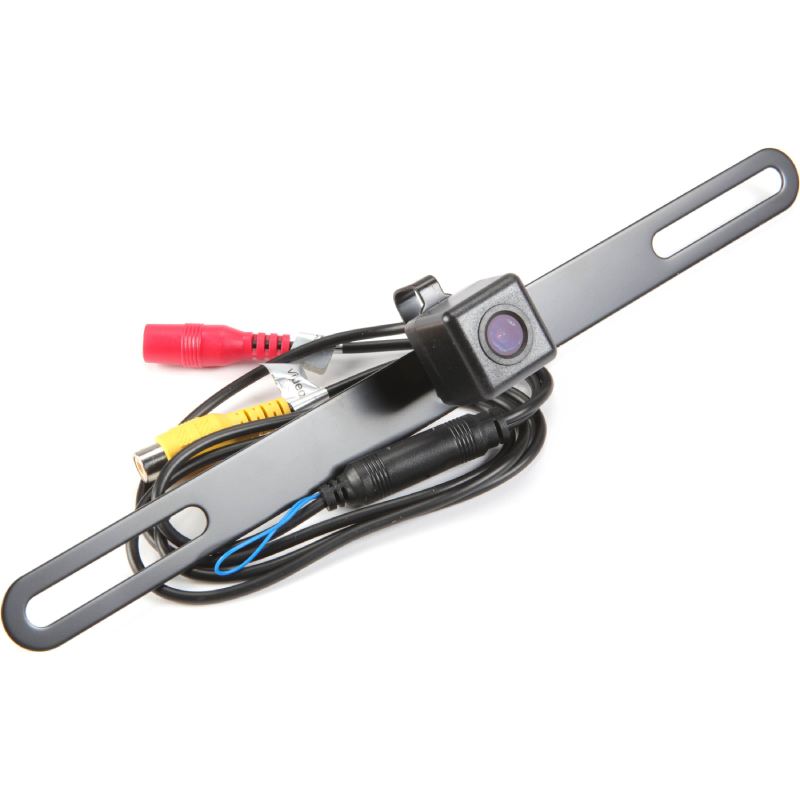

- •Backup camera with integrated license plate bracket (attached 39" power/video cable)

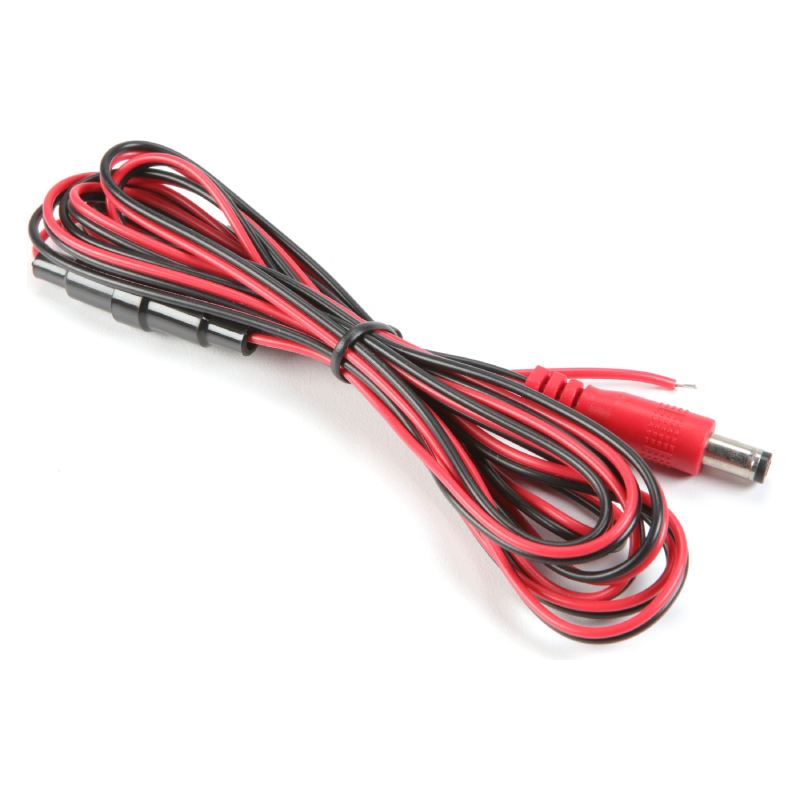

- •7' Power/ground cable

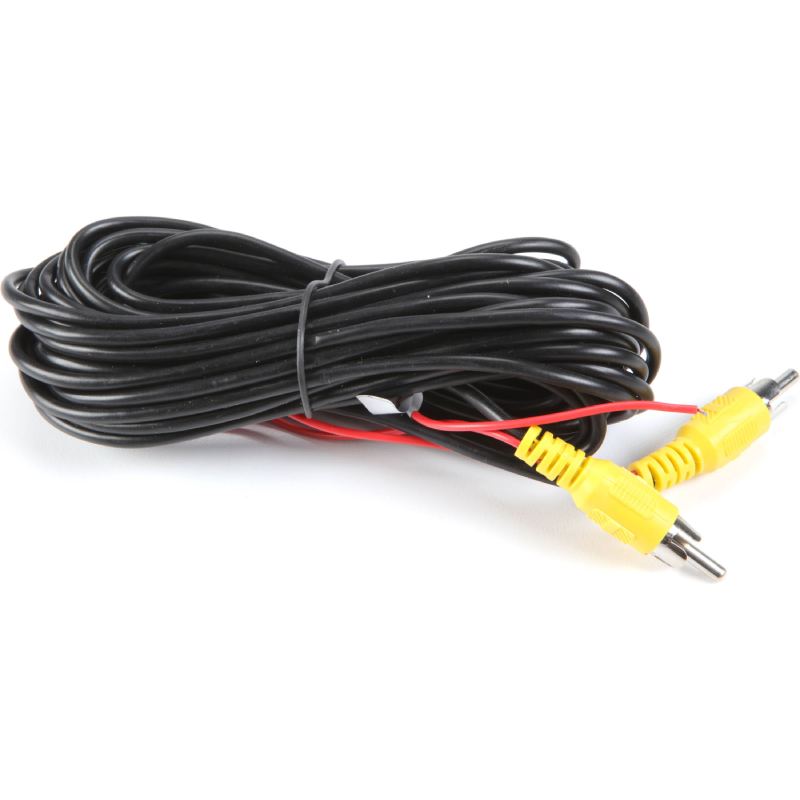

- •20' Composite video/mono audio cable
- •Installation Manual
Apple Carplay / Android Auto
Control key phone features directly from the receiver's touchscreen or via voice-control, significantly reducing driver distraction. With voice-control you can ask your phone to control your messages, maps, music and phone. Both Apple CarPlay and Android Auto launches upon connecting a compatible phone to the receiver via USB.
Bluetooth Hands-Free Calling
Safely answer and make calls from your receiver using touchscreen icons and the included microphone. Communicates via your phone's bluetooth connection to the radio. Interact with your smartphone's assistant while you drive with only a push of a button.
SiriusXM Ready
Listen to your favorite commercial-free radio stations from SiriusXM (SiriusXM Connect Vehicle Tuner and Subscription sold seperatley)
Backup Camera
You have the option to install a backup camera to your car receiver so you are always aware of your surroundings as you reverse.
- Built In Crossovers : Yes
- Built-in EQ : Yes
- DIN : 1
- Display Size : 10.1 Inch
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 6
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- digital media receiver with AM/FM tuner (does not play discs)

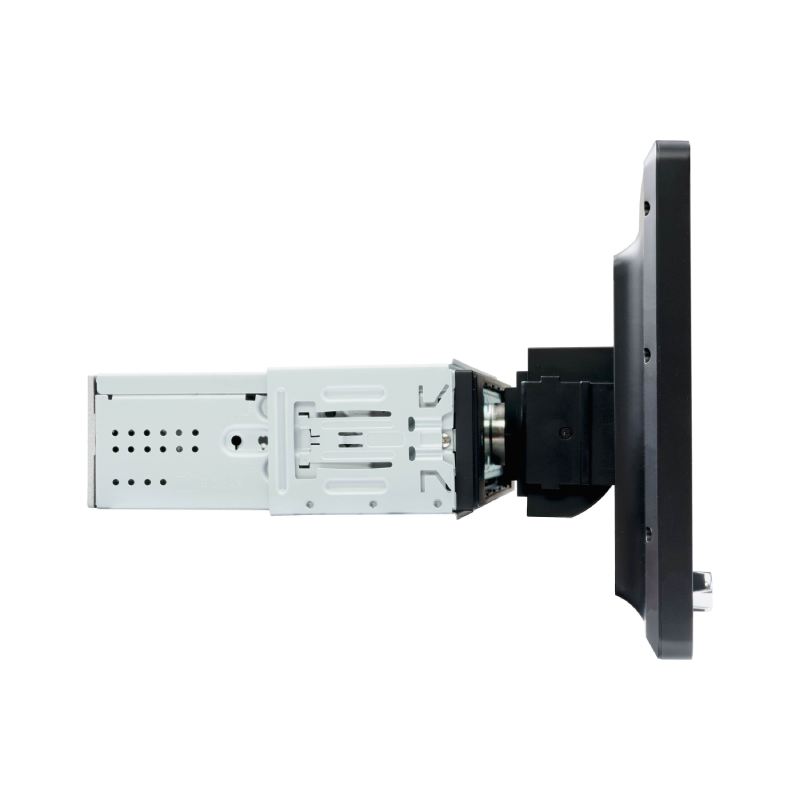

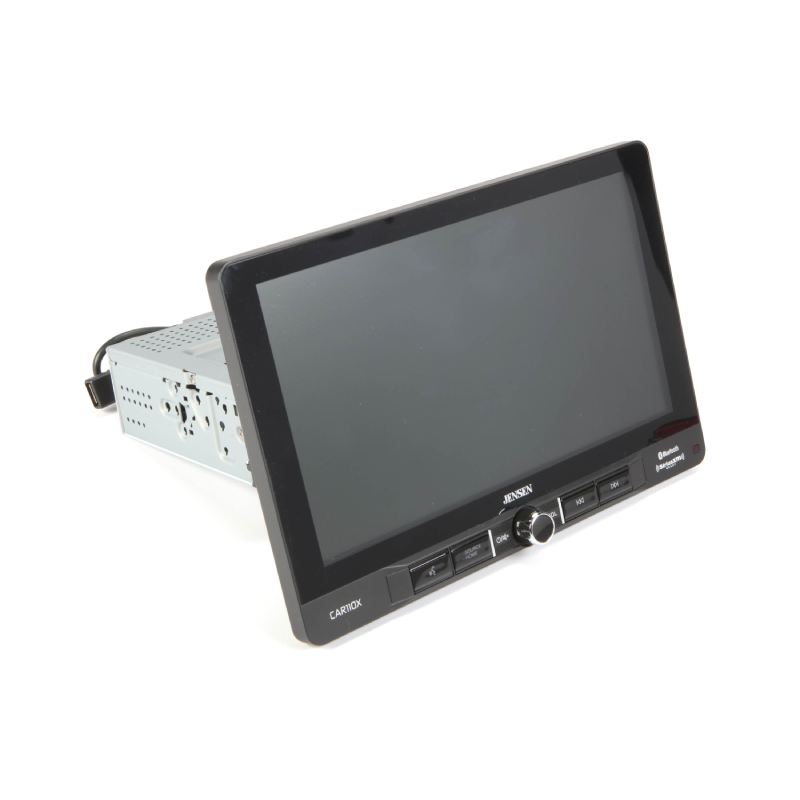

- adjustable floating 10.1" capacitive touchscreen display
- fits single-DIN dash openings
- Bluetooth for hands-free calling and audio streaming
- includes backup camera with license plate bracket
Smartphone features:
- Apple CarPlay and Android Auto compatible
- push-to-talk button for smartphone assistant
Audio/video features:
- USB playback: MP3 and FLAC audio files, MP4 and XviD video files
- 8-band EQ with 8 preset EQ curves
- subwoofer volume control
- time alignment
Expandability:
- compatible with SiriusXM satellite radio tuner

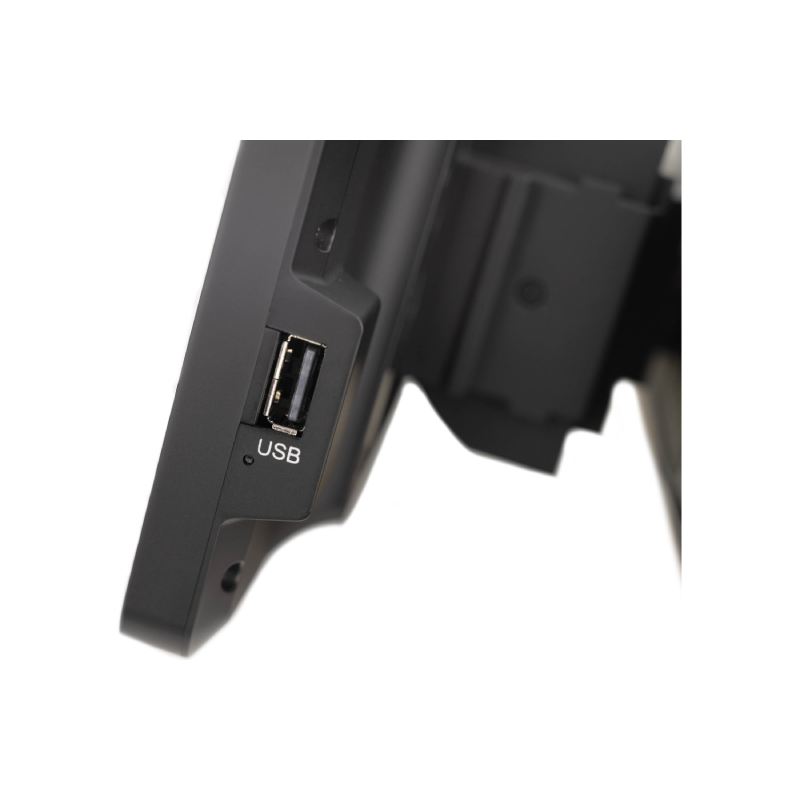

- inputs: front USB port (2.1A), rear USB input (1.5A), rear A/V inputs (RCA), rear-view camera input
- outputs: 6-channel preamp outputs (4-volt front, rear, sub)
Other information:
- Important Note — Monitor dimensions are 10.125 x 6.75". Before ordering, check for possible interference with your dash.
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (16 watts RMS CTA-2006/60 watts peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- CTA-2006 compliant
- warranty: 2 years
- UPC: 0827204118610
- Weight: 7
