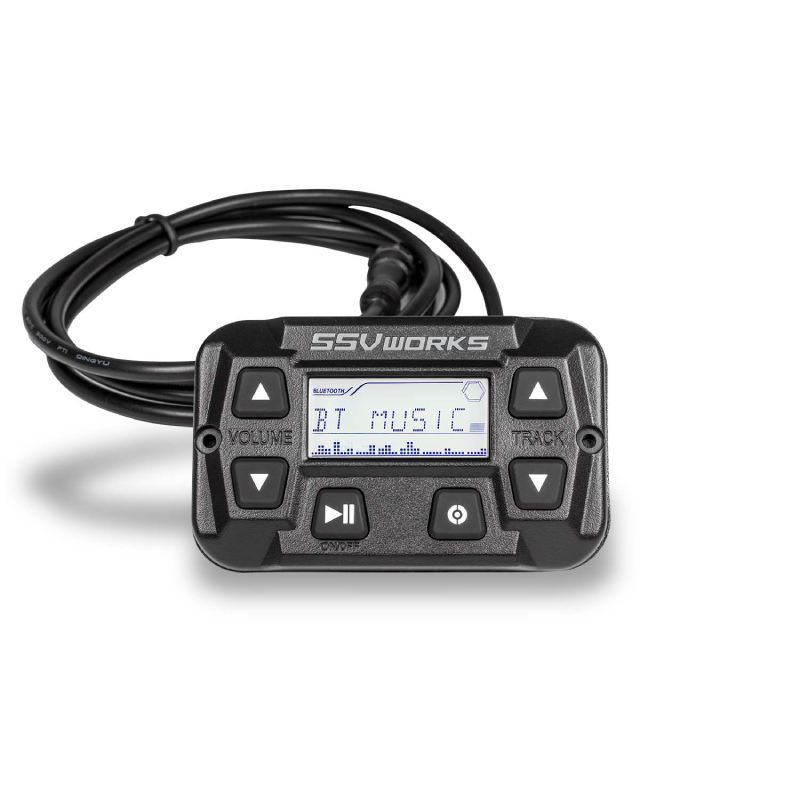

SSV Works WP-MRB3S Universal Bluetooth Media-Controller with LCD-Display
We are a SSV Works authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Universal Bluetooth Media-Controller
- • Owner's Manual
Features a Large Adjustable Hyper-white Led Backlit Display
This compact Bluetooth Media Controller is a perfect solution for your UTV, Off-road vehicle, RV, Boat and more! Mount the MRB3 to any flat surface!
Frequently Asked Questions (FAQ)
- • Why won't the MRB3S connect to my Bluetooth speaker?
The MRB3S works as a Bluetooth receiver, meaning it receives audio from devices such as phones rather than transmitting Bluetooth audio directly to wireless speakers. Your speakers need to be connected to the stereo's speaker outputs.
- • Why can't I save my favorite FM radio stations?
The MRB3S provides AM/FM radio but does not offer programmable radio-station presets. If you frequently switch between specific stations, you will need to tune them manually.
- • What should I check if the display is difficult to read during nighttime driving?
The MRB3S has adjustable hyper-white backlighting and an LCD display dimmer. Adjusting the display brightness can make the controls easier on the eyes when operating the vehicle in darker conditions.
- • Why does my MRB3S turn on but produce no sound from the speakers?
Check the power and ground connections first, followed by the speaker wiring. The supplied harness uses open-ended leads for hardwiring power, ground, and speakers, so an incorrect connection can leave the controller functioning while the speakers remain silent.
- • Can I reuse the wiring from an older MRB2 installation?
Yes, SSV Works states that the MRB3 can replace the MRB2 because the plugs are compatible. However, it is still worth checking the existing wiring before completing the installation.
- • Why does the MRB3S seem too small compared with a normal UTV stereo?
The compact size is intentional—the controller is designed to replace a larger head unit while using a separate hide-away brain. This allows installation in tighter dash locations where a conventional receiver may not fit.
- • How do I adjust the bass and treble when there are no dedicated controls?
Press and hold the MODE button to cycle through the available adjustment modes, including the audio settings. The MRB3S also provides six preset EQ options for quick sound adjustments.
- • Why isn't my amplified soundbar working when connected to the MRB3S?
The MRB3S is not designed to directly power or control an amplified soundbar. Its built-in amplifier is intended to drive compatible wired speakers, while its RCA outputs can be used when integrating additional amplification.
- • What causes intermittent operation when the UTV is bouncing over rough terrain?
A loose power, ground, or speaker connection can become more noticeable during off-road vibration. Because the system uses hardwired connections, inspect the open-ended harness connections and secure them against movement after installation.
- • Can I add a subwoofer amplifier without replacing the MRB3S?
Yes. The MRB3S provides 4-volt RCA low-level preamp outputs, allowing it to work with an additional amplifier and powered subwoofer. This makes it possible to expand the system without removing the main media controller.
Features:
- This compact unit completely replaces bulky head units with a small, compact, weatherproof design that still gives you all the features and full size unit provides..

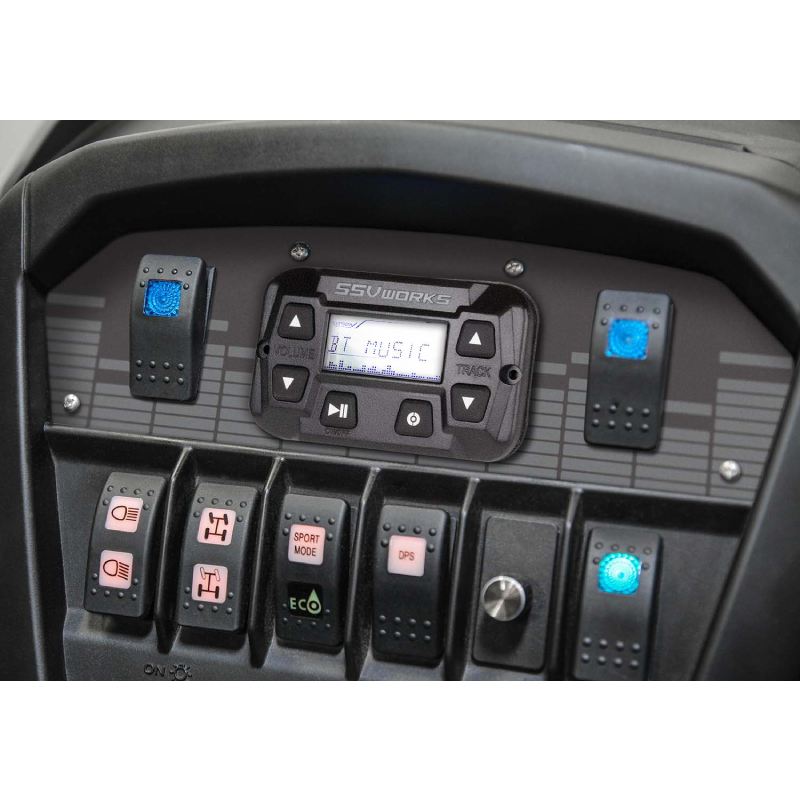

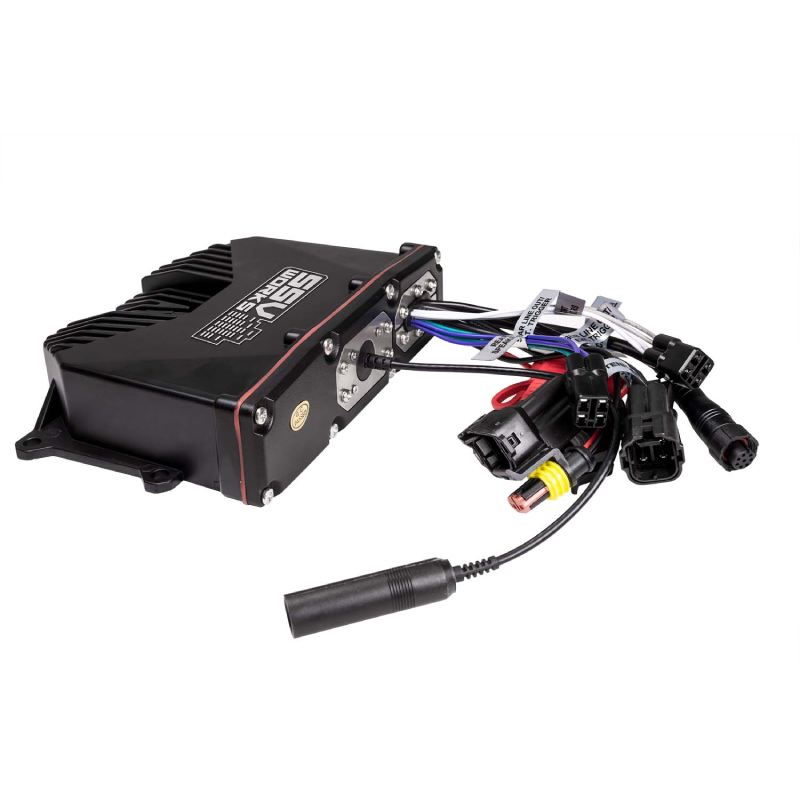

- The MRB3s measures just over 3 inches in width and only less than 1 inch deep due to a compact hide-away brain, so finding a spot in your UTV's dash to install it is a... no-brainer.
- The powerful yet compact MRB3 features Bluetooth, FM/AM radio, and an optional Auxiliary input making it the most versatile media controller you can find for your UTV, Jeep, Truck, or boat.
- The weatherproof unit features a 2ohm stable amplifier that puts out up to 200W, powering up to 8 speakers with clear, crisp sound. 6 Preset EQ options allow you to fine-tune the audio to your liking, and a 4v RCA low-level pre-output means you can run it in conjunction with an additional amplifier and powered subwoofer.
- The controller features a large adjustable hyper-white LED backlit display designed to be visible in all conditions while controlling volume, track, and play/pause functions with glove friendly, backlit rubber-coated buttons.
Specifications:
- Bluetooth, Aux-in, FM & AM sources
- Compact controller with amplifier
- Weather-proof durability
- 2ohm stable 200W max power
- Control volume, track, play/pause
- 6 preset EQ options
- 3.5mm AUX-in & USB charging
- Plug & play installation
- 4v RCA low-level preout
- Adjustable hyper-white LED back lighting
- 5' cable between controller and hide-away unit
- UPC: 815172017769
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
