Pioneer  GM-D9705

5-channel Class-D 2000W Max Power Amplifier

Item #89674

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:

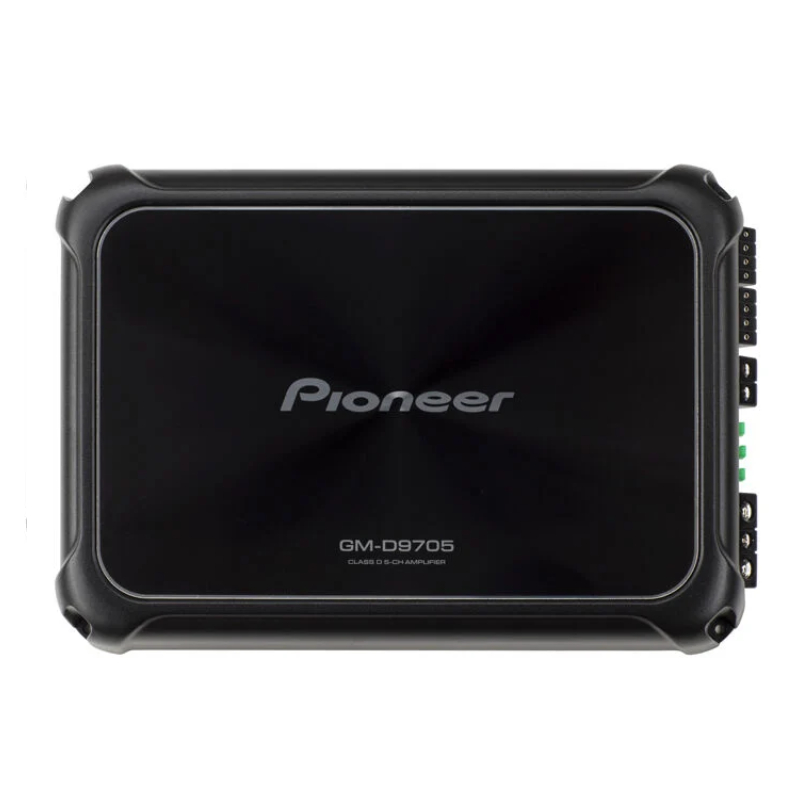

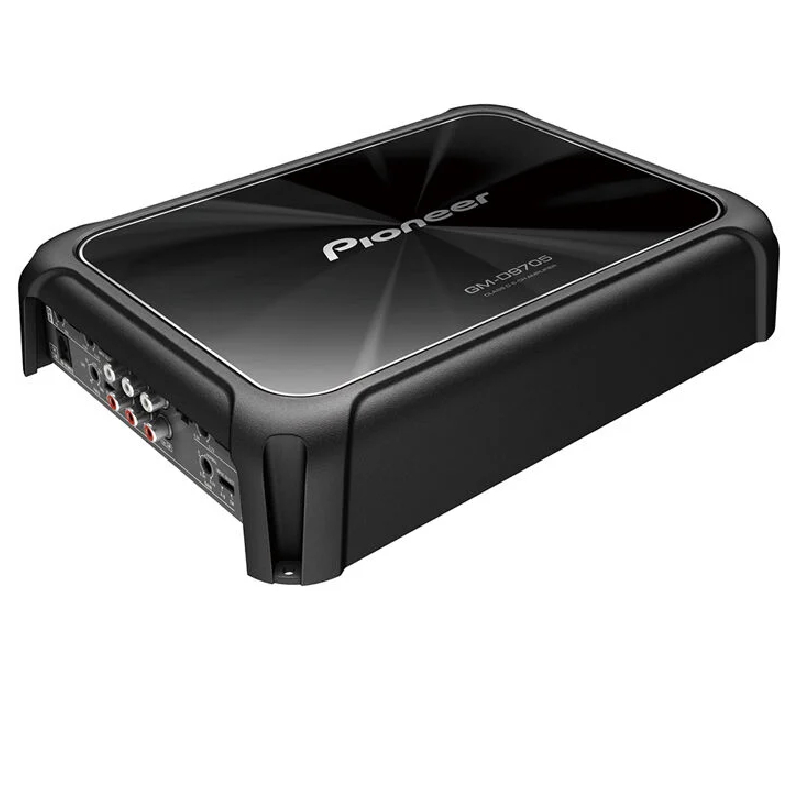

Pioneer GM-D9705 Class-D 5-channel Amplifier


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 5-Channel Amplifier
  • • (3) 30-amp ATO fuses (installed)

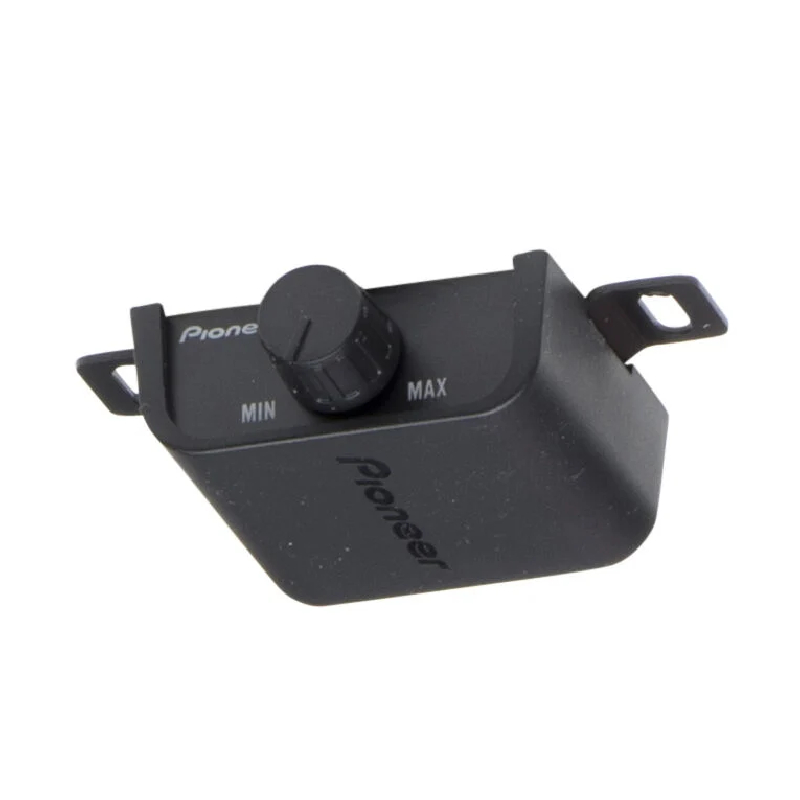

  • • Bass Boost Remote Control
  • • Bass Boost Remote Control Cable
  • • Speaker Level to RCA Input Adapters
  • • (4) Installation Screws
  • • (2) Wire Terminal Tool
  • • 1 Year Warranty Sheet
  • •Owner's manual (English/ French)
Big Power, Small Size

Pioneer’s extra-efficient Class-D amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Protection Control System (PCS)

Pioneer’s PCS continuously monitors the input voltage, current consumption, and operating temperature to automatically adjust the amplifier’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments.


SPECIFICATIONS


  • Maximum Power : 2000 Watts
  • Number of Channels : 5
  • Frequency Response : 10-50 Hz
  • Amplifier Class : D
  • Fuse Rating : 30x3 A

FEATURES


Features:

  • Total power output: 2000 watts Max
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass boost level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 5, 4 or 3 channel operation
  • Dedicated, large-block subwoofer terminal output
  • Nickle-plated RCA, Speaker and Power/Ground Terminals
  • Selectable input modes:
  • Front two channels (RCA Only) can provide signal to remaining channels
  • Four channel High-Level connection can provide signal to Subwoofer channel
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
  • Low level: 200mV - 6.5V
  • High level: 800mV - 16V
  • A/B Channel Frequency Response: 10 - 50,000 Hz (+0dB, -3dB)
  • Sub-Channel Frequency Response: 10 - 500 Hz (+0dB, -3dB)
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ration: 94 dB
  • Selectable crossover filter (Ch 1 - 4): LPF / OFF / HPF
  • Variable crossover filter (Ch 1 - 4): 40 - 500 Hz, 12 dB/octave
  • Variable low-pass filter (Sub): 40 - 500 Hz, 24 or 12 dB/octave
  • Variable Bass Boost (Via Remote): 0 to +18 dB bass boost at 50 Hz
  • Fuse Rating: 30A x 3
  • 8 - 16 Gauge speaker terminal outputs
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7-7/8"W x 12"L x 2-3/8"H
  • 1-year Sonic Electronix Warranty
  • UPC: 884938421980
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
