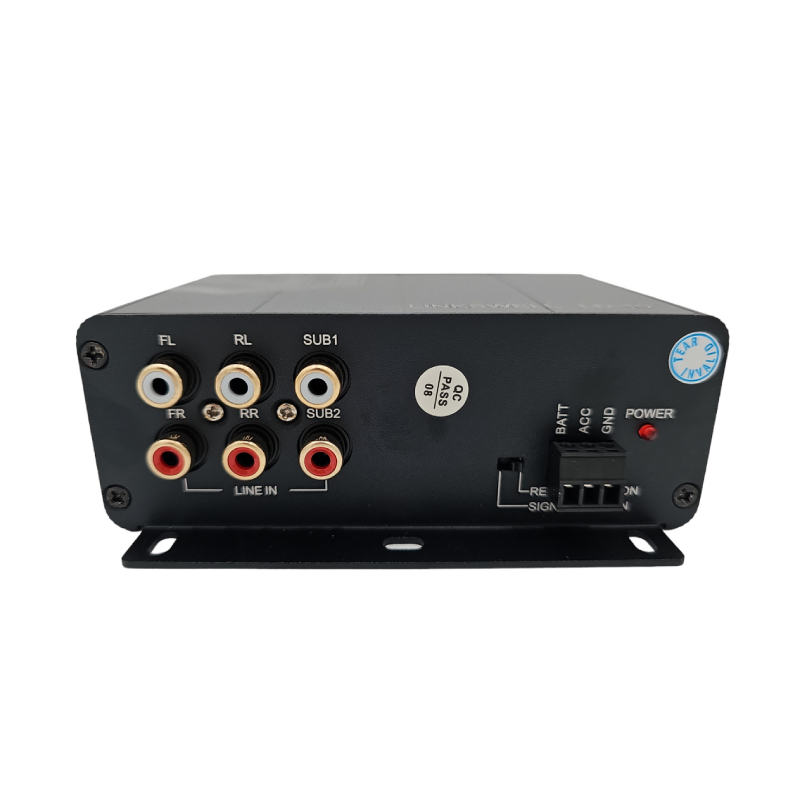

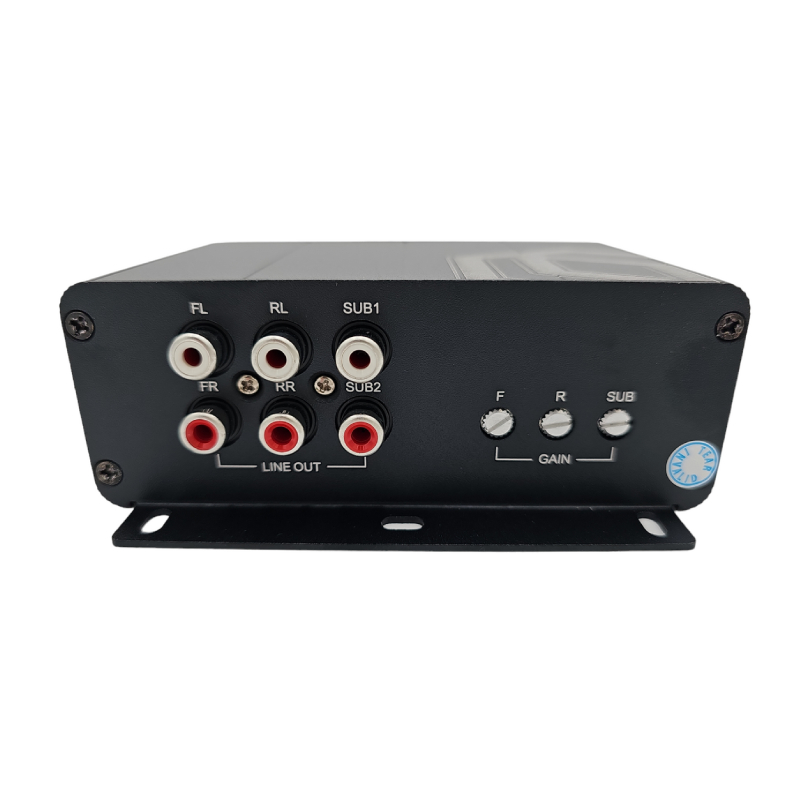

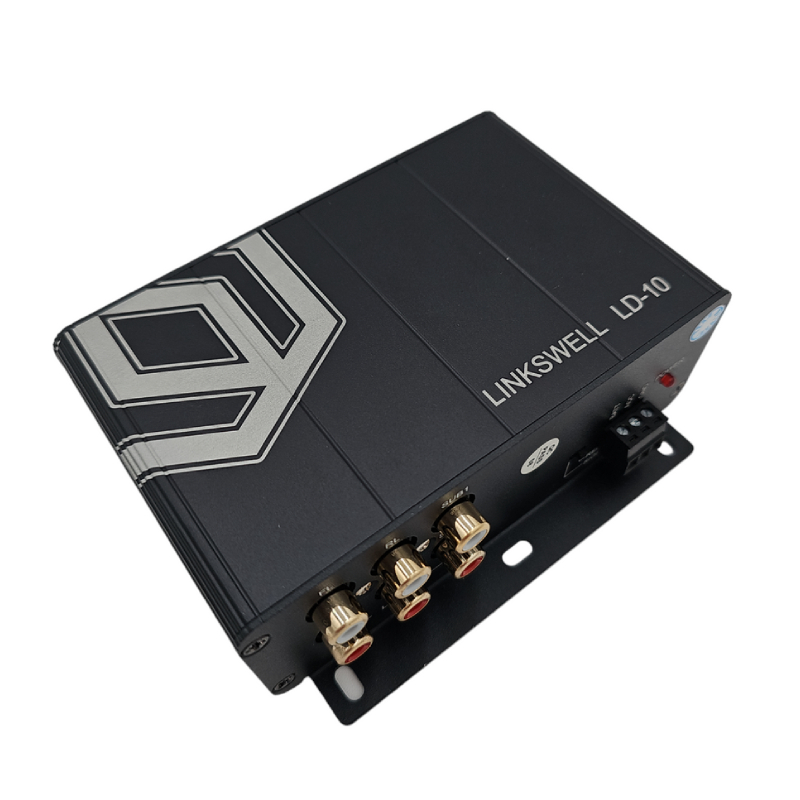

LinksWell LWLD-0010-01 Line Driver Series 6 Channel Car Amplifier
We are a LINKSWELL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Line Driver 6-Channel Car Amplifier
- • Owner's Manual
Why Choose LinksWell LWLD-0010-01 Pre-Amp & Line Driver?
Ultimate Touchscreen Command Center
Designed to boost weak head unit signals up to a massive 6 volts peak output, this 6-channel powerhouse drives clean, high-voltage audio directly to your front, rear, and subwoofer channels. By elevating your pre-amp signal voltage, you dramatically lower the noise floor, eliminate background hiss, and deliver punchier, crystal-clear sound to every speaker in your system.
Precision Tuning Across 6 Channels
Featuring dedicated input/output routing (FL/FR, RL/RR, SUB-L/SUB-R) and a flexible -12dB to +16dB gain range, the LWLD-0010-01 gives you precise, independent level control over each zone. With a high 50K ohm input impedance, it balances sound staging seamlessly across multi-amp setups, protecting your audio from distortion while giving audiophiles the exact signal control needed for peak performance.
Frequently Asked Questions (FAQ)
- • Why is there still engine noise after installing the line driver?
Engine whine is usually caused by poor grounding, incorrect RCA cable routing, or ground loops. Verify all grounds and separate signal cables from power wires.
- • Why isn't my amplifier getting a stronger audio signal?
Check that the line driver is receiving input from the head unit and that the output level is properly adjusted.
- • Why is my audio distorted after adding the line driver?
The output level may be set too high. Lower the line driver's output and readjust the amplifier gain.
- • Why does the line driver not power on?
Check the 12V power, ground, remote turn-on wire, and fuse. A missing remote signal is a common cause.
- • Why is there no sound after installing the unit?
Inspect the RCA cables, amplifier inputs, and power connections. Make sure the correct input source is selected.
- • Can I use this with a factory stereo?
Yes, provided your system has compatible signal outputs or uses the appropriate line output converter if required.
- • Why is one channel louder than the others?
Check the RCA connections, balance settings, and output level adjustments. A loose cable can also cause uneven output.
- • How do I set the output level correctly?
Start with a low output level, then gradually increase it while adjusting the amplifier gain to achieve clean, undistorted sound.
Features:
- Output level controls
- Six channels of input and output(FL FR RL RR
- SUB-L SUB-R)
- Input Impedance:50K
- Output Gain: -12dB to +16dB
- Voltage capability: 6 volts peak output
- UPC: 858507006381
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
