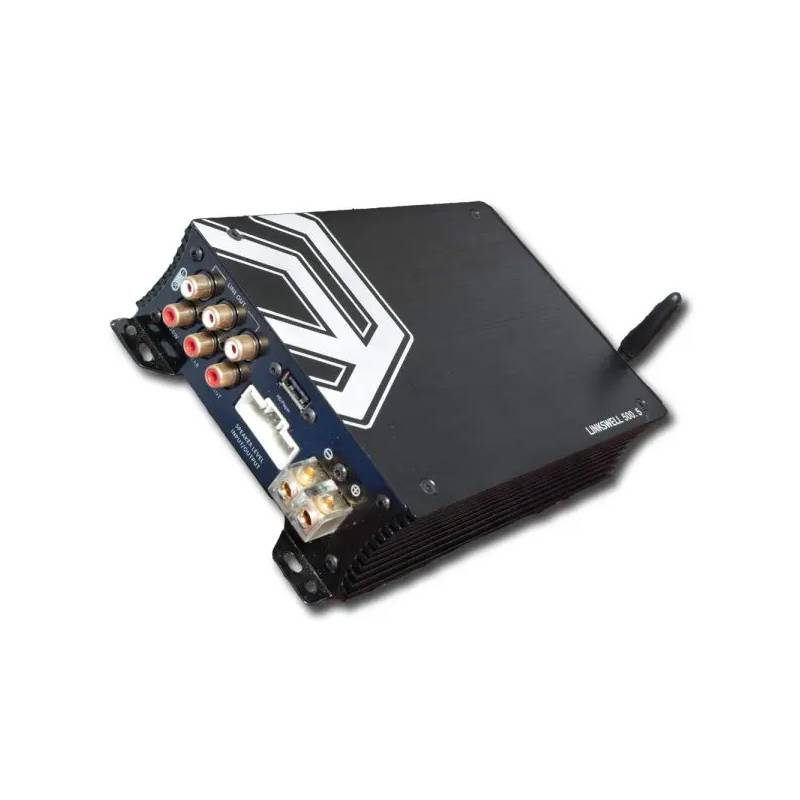

LinksWell LWAMP-0500-05 5-Channel DSP 54W RMS x 4 at 4-Ohms + 5th Channel 300W x 1 at 4-Ohms, Class-AB Car Amplifier with Optical and Bluetooth Inputs
We are a LINKSWELL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 5 Channel Smart Amplifier
- • Owner's Manual
Why Choose LinksWell LWAMP-0500-05 5-Channel Amplifier?
Designed as a Perfect Match
Designed as a perfect match to Linkswell’s T-Style radios, the Linkswell 500.5 gives you 5 channels of power (4 channels plus sub) in a very small footprint. With the free Linkswell DSP app, you can tune your system directly from your smartphone: 31-band EQ, Time delay, Crossover, Phase Control and more! Add an optional T-Harness below to connect to your GEN5 T-Style radio in minutes!
Frequently Asked Questions (FAQ)
- • Why won't the amplifier turn on after installation?
Check the fuse, ground, and remote turn-on wire. A loose or missing connection is the most common cause.
- • Why does the amplifier go into protection mode?
Incorrect wiring, overheating, or an incompatible speaker load can trigger protection mode. Inspect the wiring and speaker impedance.
- • Why is my subwoofer not producing any bass?
Check the subwoofer channel wiring and crossover settings. Also verify that the gain is adjusted correctly.
- • Can I use this amplifier with a factory stereo?
Yes, with speaker-level inputs or a line output converter if needed. Make sure the wiring follows the installation guide.
- • Why do my speakers sound distorted at higher volumes?
High gain settings or amplifier clipping cause distortion commonly. Lower the gain and retune the system.
- • Why do I hear engine whine through the speakers?
Poor grounding or cable interference is usually responsible. Improve the ground connection and separate signal and power cables.
- • Why does the amplifier get hot during normal use?
Some heat is normal, but poor ventilation can cause excessive temperatures. Mount it where air can circulate freely.
- • Why does the amplifier shut off when I raise the volume?
Low battery voltage or overheating may activate the protection circuit. Inspect the vehicle's electrical system and wiring.
- • How can I get the best sound quality from my system?
Set the gain and crossover correctly for your speakers and subwoofer. Proper tuning delivers cleaner and more balanced audio.
Features:
- Standby current: 0mA
- Distortion factor:1KHz<0.001%
- Power MAX:
- Front class AB 54W*4 (4 Ω),
- Rear Class D 300W*1 (4 Ω),
- Power RMS:
- Front class AB 32W*4 (4 Ω),
- Rear Class D 176W*1 (4 Ω)
- Voltage Range: 9V-15V
- Frequency of Sampling: 192KHz
- Signal-to-noise ratio : >120dB
- Dynamic Range : >100dB
- Frequency response: 20Hz-20KHz
- Maximum current :30A
- UPC: 0819192021869
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
