- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 9 Inch
- Audio/Video Inputs : 3.5
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Preamp Outputs : 6
- Audio/Video Outputs : 3.5
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- digital multimedia player with AM/FM tuner (does not play discs)

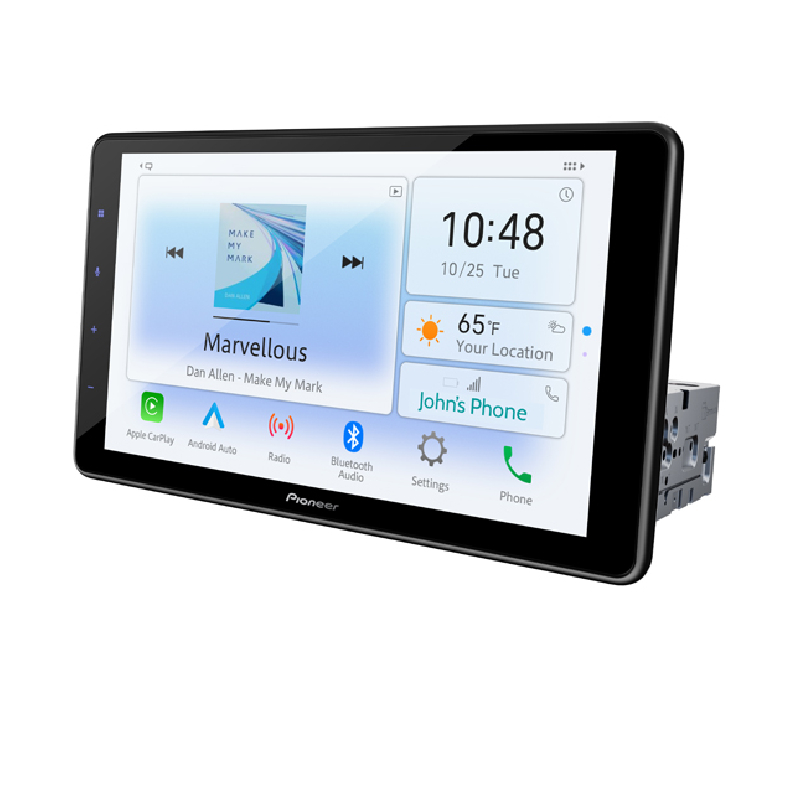

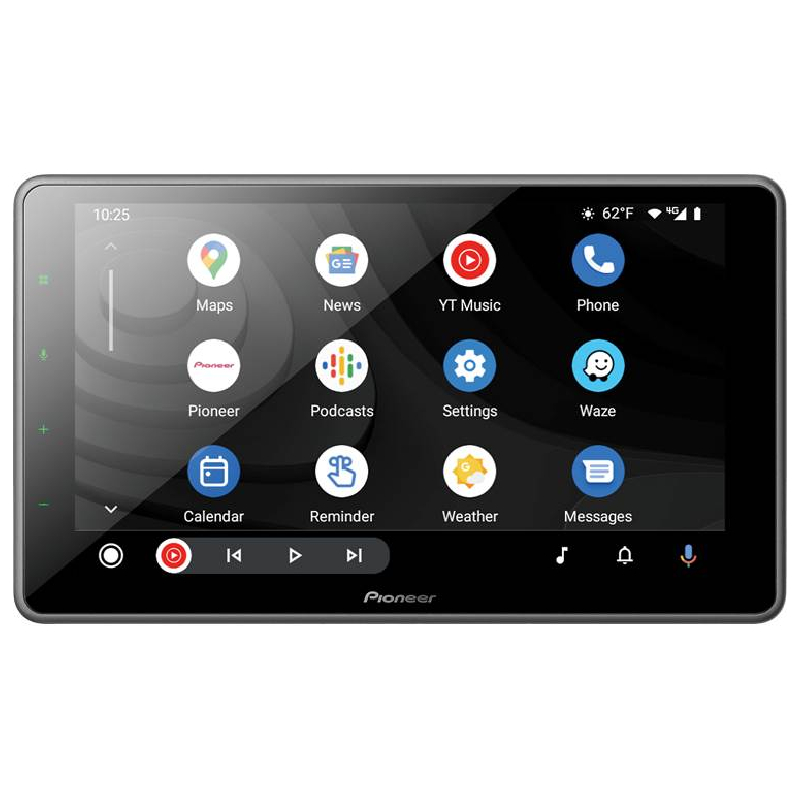

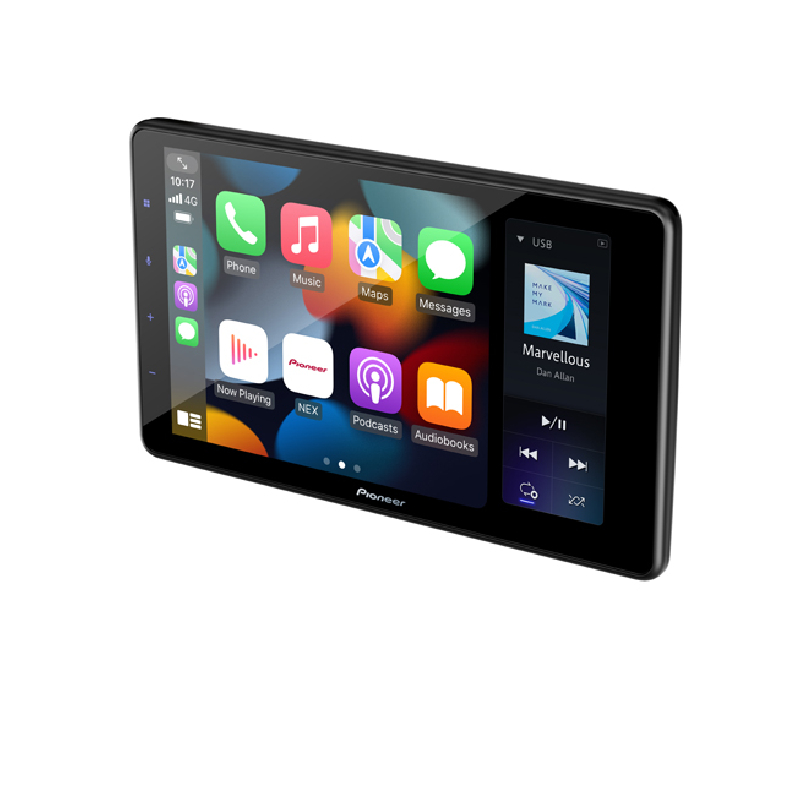

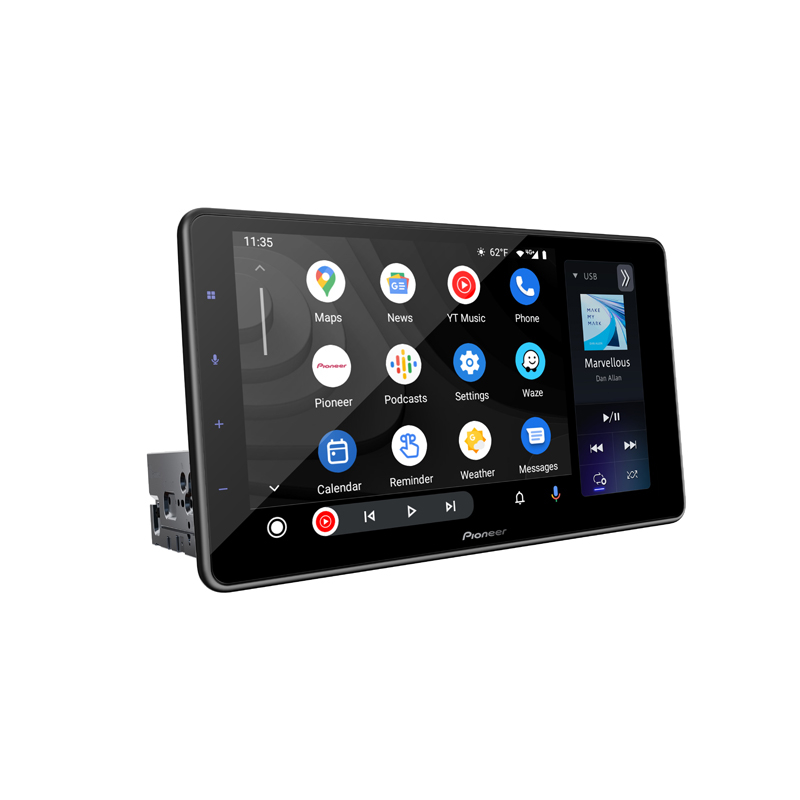

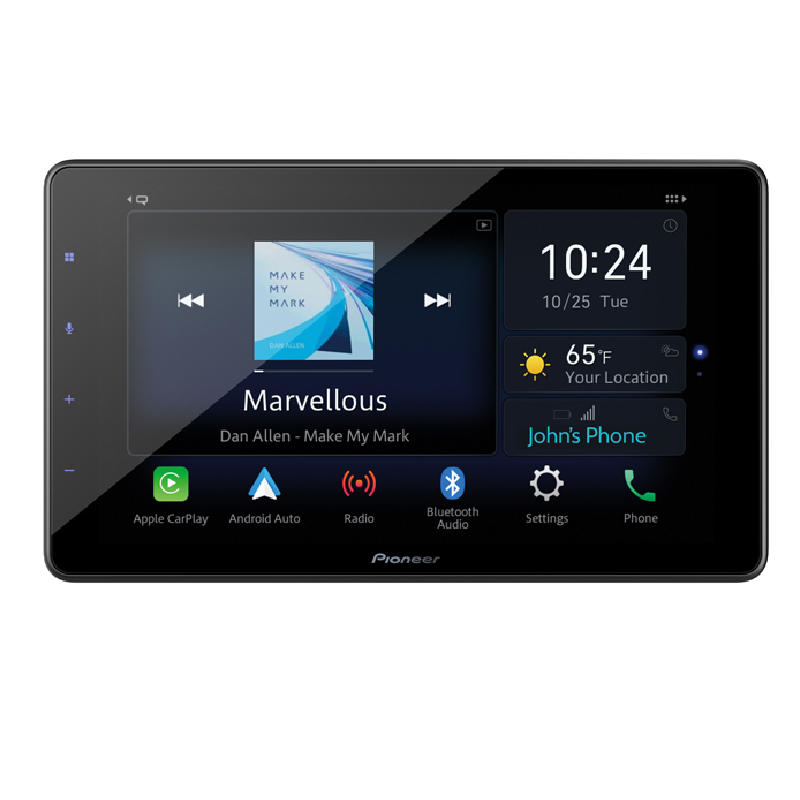

- 9" floating capacitive HD touchscreen display
- multi-color button illumination
- chassis fits single-DIN dash openings
- plays media loaded with MP3, WMA, AAC, WAV, and high-res FLAC and DSD music files
- built-in Bluetooth for hands-free calling and music streaming
- built-in wi-fi with hotspot functionality
Smartphone Features:

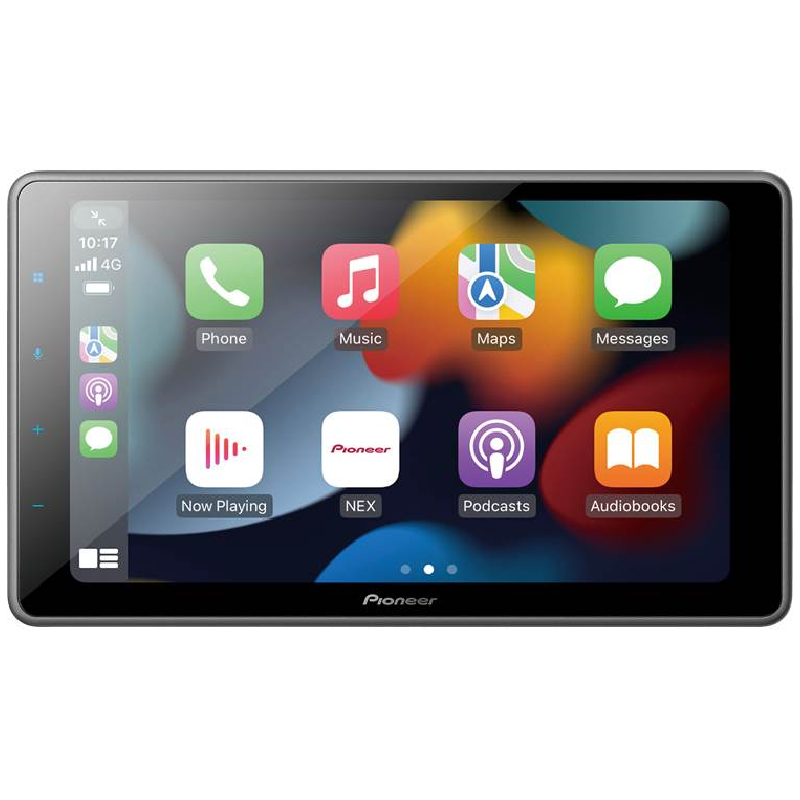

- Android Auto and Apple CarPlay compatible (wired or wireless)
- Pioneer WebLink built in
- Amazon Alexa built-in (with Pioneer Vozsis app)
- display and command of select music, navigation, and other apps with iPhone and Android
- Pandora and Spotify available through Apple CarPlay, Android Auto, and Alexa
Audio Features:
- 13-band graphic EQ
- time alignment
- low-pass, high-pass and band-pass filters
- 3-way mode for external amplifiers
Expandability:
- compatible with SiriusXM satellite radio tuner

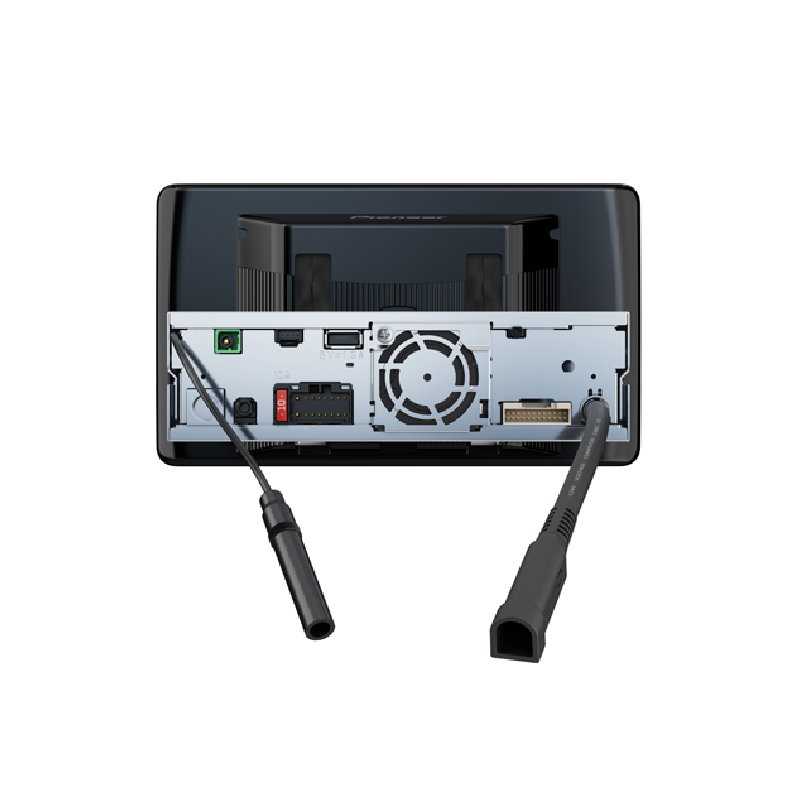

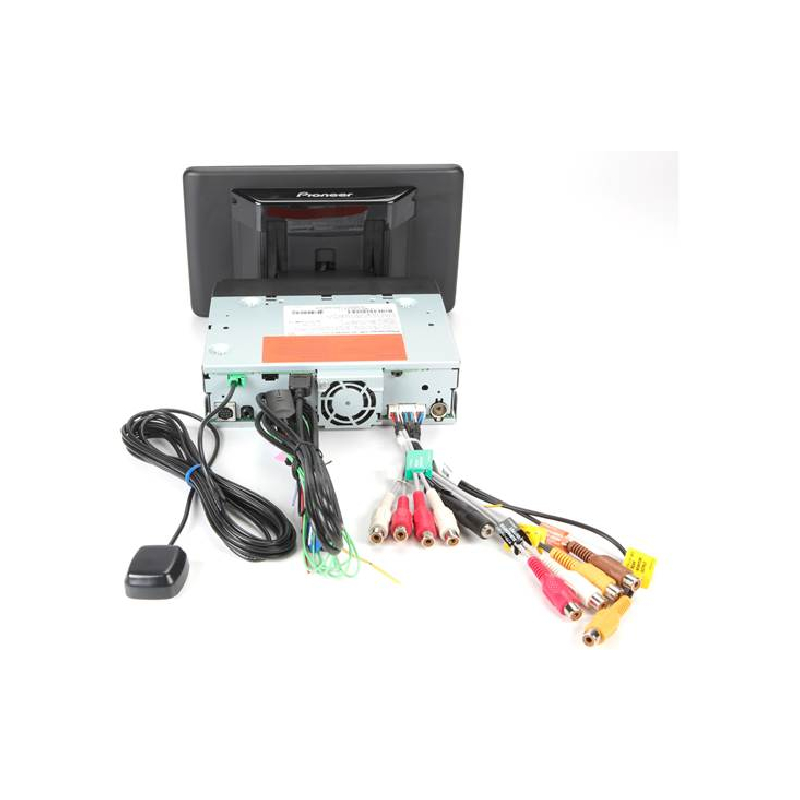

- inputs: 3.5mm audio/video AUX in, USB IN, 2x camera inputs, wired remote
- outputs: 6-channel preamp outputs (4-volt front, rear, sub), RCA video output
Other Information:
- Important Note — Monitor dimensions are 9.215" x 5.36". Before ordering, check for possible interference with your dash.
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (50 watts peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- works with iDataLink Maestro module
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
- dimensions:
- screen: 9.215"W x 5.36"H x 0.53"D

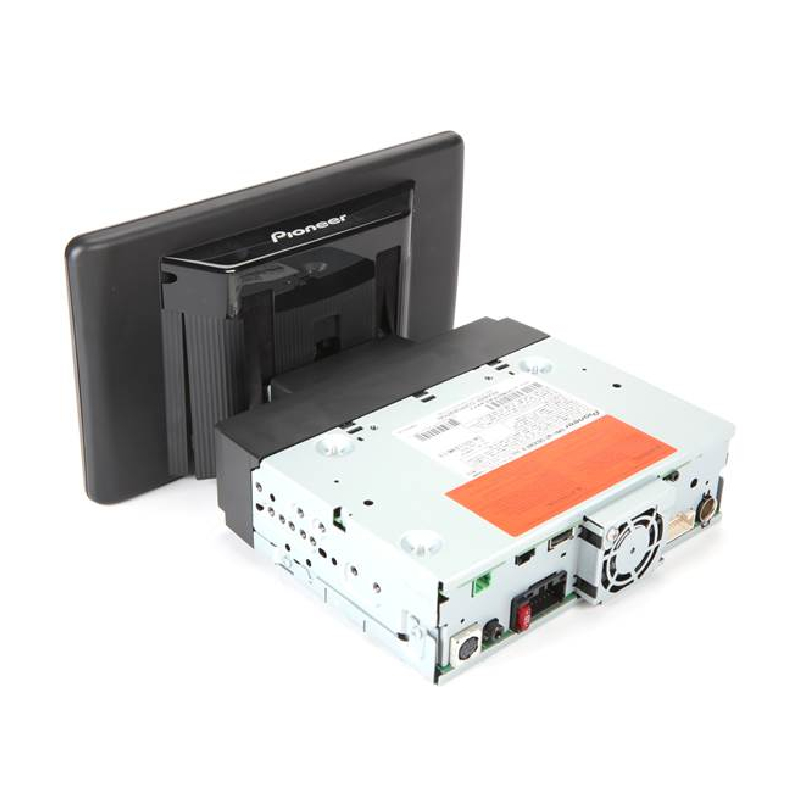

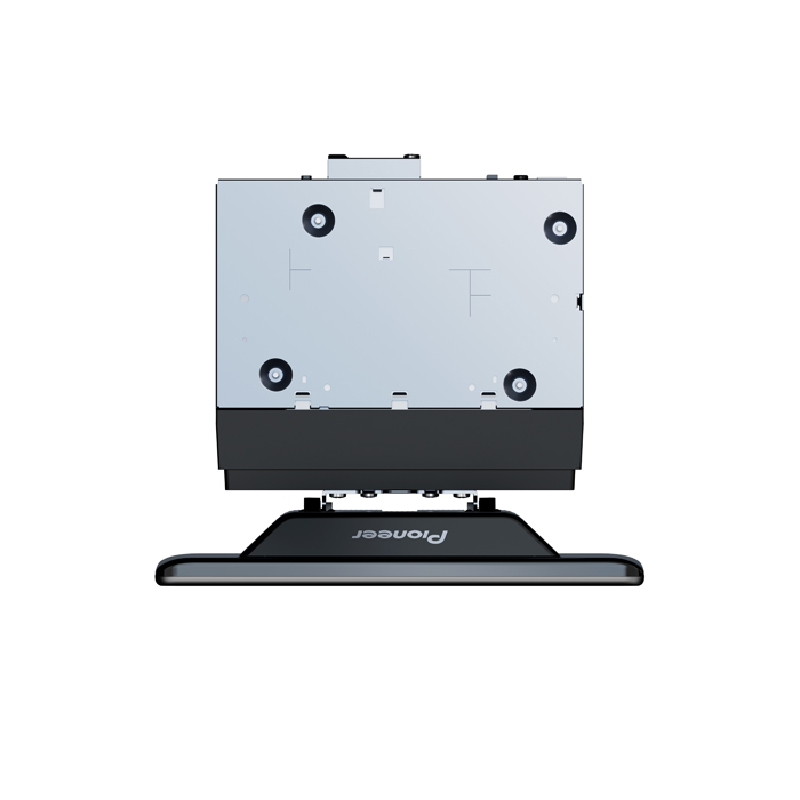

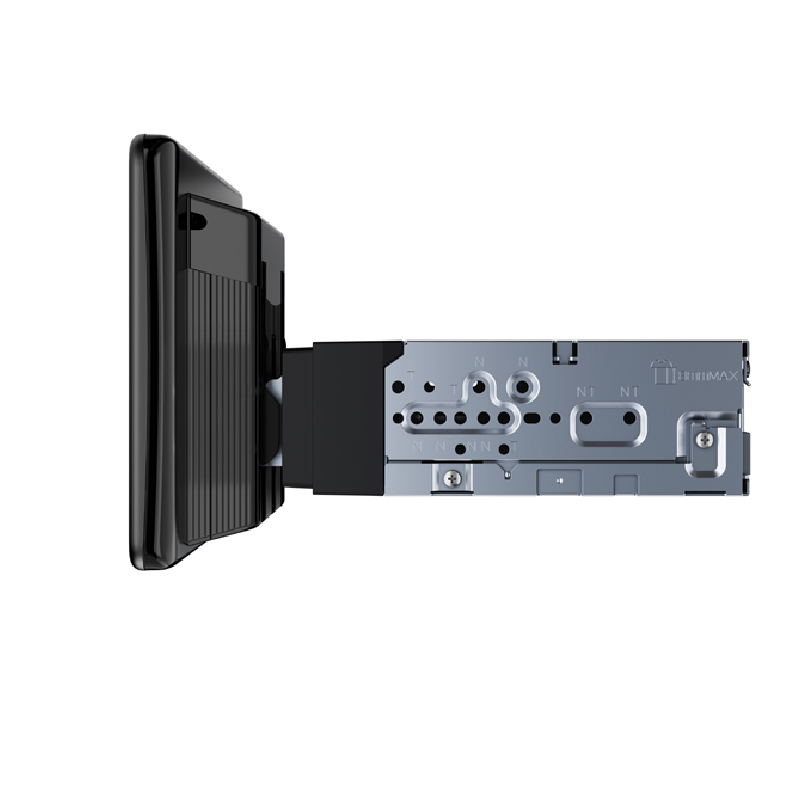

- chassis: 6.93"W x 1.97"H x 6.0"D
Specifications:
Standard
Performance
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm
- RCA Preamp Outputs: 6-Channel
- RCA Pre-out: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
Display
- Back Light: LED
- Brightness Control:Yes
- Color Customization: 5 display colors, 112 key colors

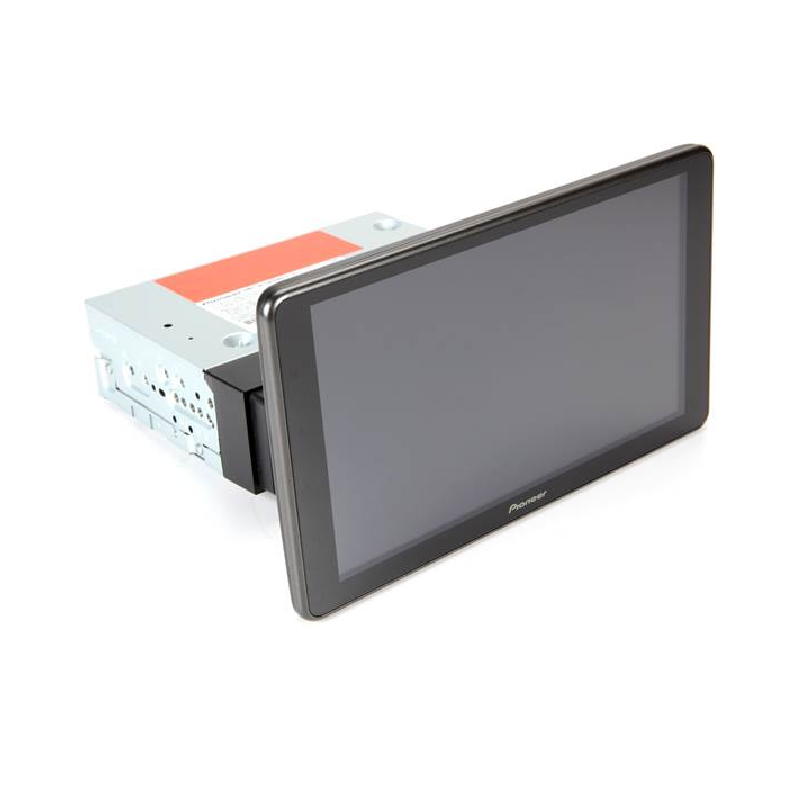

- Device (Non-DIN/Modular Unit): 1-DIN, Floating
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
- Display Off Mode: Yes
- Home Screen Customization: Yes
- Monitor Mechanism: Adjustable, Floating
- Resolution: 1024x600
- Screen Size/Aspect Ratio: 9"/16:9
- Touch Screen: Capacitive
Navigation
- External GPS Antenna: Yes
Bluetooth
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
Tuner
- Best Station Memory: Yes
- Hybrid Radio: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
Integration
- Android Auto™: Wireless Connection or Wired USB Connection
- Apple® CarPlay: Wireless Connection or Wired USB Connection
- Mobile Operating System: Android / Apple iOS
- Music Playback (MTP): Yes
- Pandora®: With Apple CarPlay or Android Auto
- Pioneer App Compatibility: CarAVAssist Android, CarAVAssist iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: With Apple CarPlay or Android Auto
- Voice Control: Yes
- Weblink: 2
- WiFi: Tethering, WiFi Hotspot
Digital Media Playback
- Audio Playback via USB: MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res), DSD Audio Playback (Hi-Res)
- Audio Video Playback via USB: .avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
- Image Display via USB: BMP, JPEG, PNG
Audio
- Advanced Sound Retriever: Mode-1/Mode-2/Off
- Bass Boost: Yes
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Network Mode: HPF/Band Pass/LPF
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Off/Low/High
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Listening Position Selector: Yes
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-channel
- Spectrum Analyzer:Yes
- Subwoofer Control:Yes
- Time Alignment:Manual
Expandability
- OEM Integration: iDatalink® Maestro™ - RR, iDatalink® Maestro™ - RR2, Metra Axxess
- OTA Update Compatible:Yes
- Parking Assist Lines:Yes
- RCA Video Output:Yes
- USB Direct Control for iPhone®: 5s and newer
Inputs
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
- Input 3: A/V or 2nd Camera
General
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB
- GPS Antenn: Yes
- Remote Control: Optional
- Steering Wheel Control Ready (Adapter Sold Separately)
- UPC: 884938499101
- Weight: 25.35
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
